2AVOR-RAISWireless Base Station

USER MANUAL NOTE: Changes or modifications not expressly approved by Retail Aware Inc. could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. To comply with RF exposure requirements, Please maintain 20cm separation from the device. NOTE: Changes or modifications made by the user and not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help NOTE: This device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. l’appareil ne doit pas produire de brouillage, et 2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. BASE STATION

THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD Authority to Act as Agent Date: March 11, 2020 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Nic Johnson of the Nebraska Center for Excellence in Electronics (NCEE Labs) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: __________________________ _Nick Masur_________________ (Signature 1 ) (Print name) Title: _Embedded Engineer__________ On behalf of: _Retail Aware Inc____________ (Company Name) 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Page 1 of 1 Request for Confidentiality Date: June 22, 2020 Subject: Confidentiality Request for: FCC ID: 2AVOR-RAIS IC: NA Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent ☐ Not Provided Block Diagrams ☐ Short Term ☐ Not Provided External Photos ☐ Short Term ☐ Permanent ☐ Not Provided Internal Photos ☐ Short Term ☒ Permanent ☐ Not Provided Operation Description/Theory of Operation ☐ Short Term ☐ Permanent ☒ Not Provided Parts List & Placement/BOM ☐ Short Term ☐ Permanent ☒ Not Provided Tune-Up Procedure ☐ Short Term ☒ Permanent ☐ Not Provided Schematics ☐ Short Term ☐ Not Provided Test Setup Photos ☐ Short Term ☐ Permanent ☐ Not Provided User’s Manual The above-mentioned company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality (if applicable): Not applicable The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered Provided to IC applications Sincerely, By: __________________________ Nic Johnson, Technical Manager, NCEE Labs

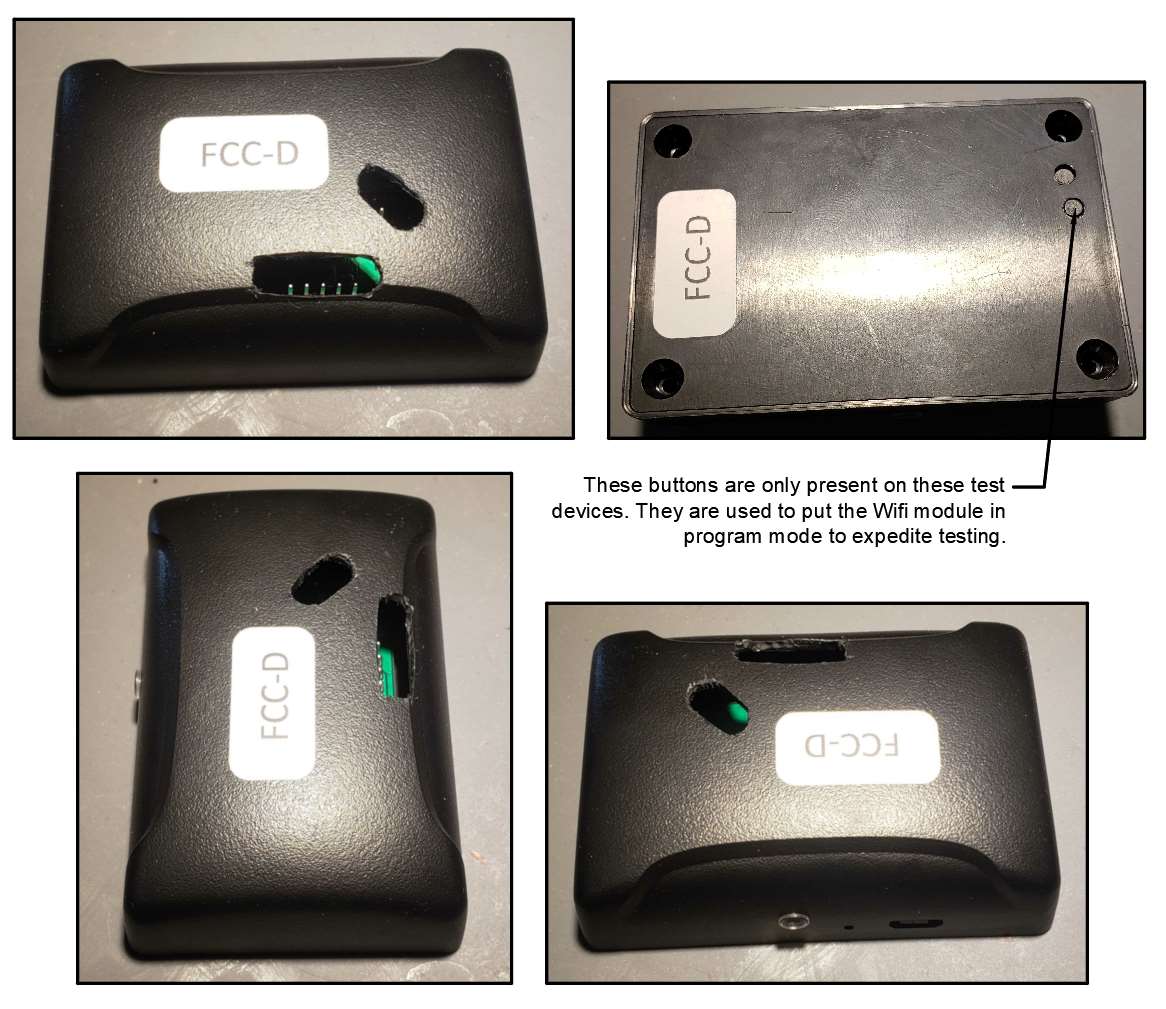

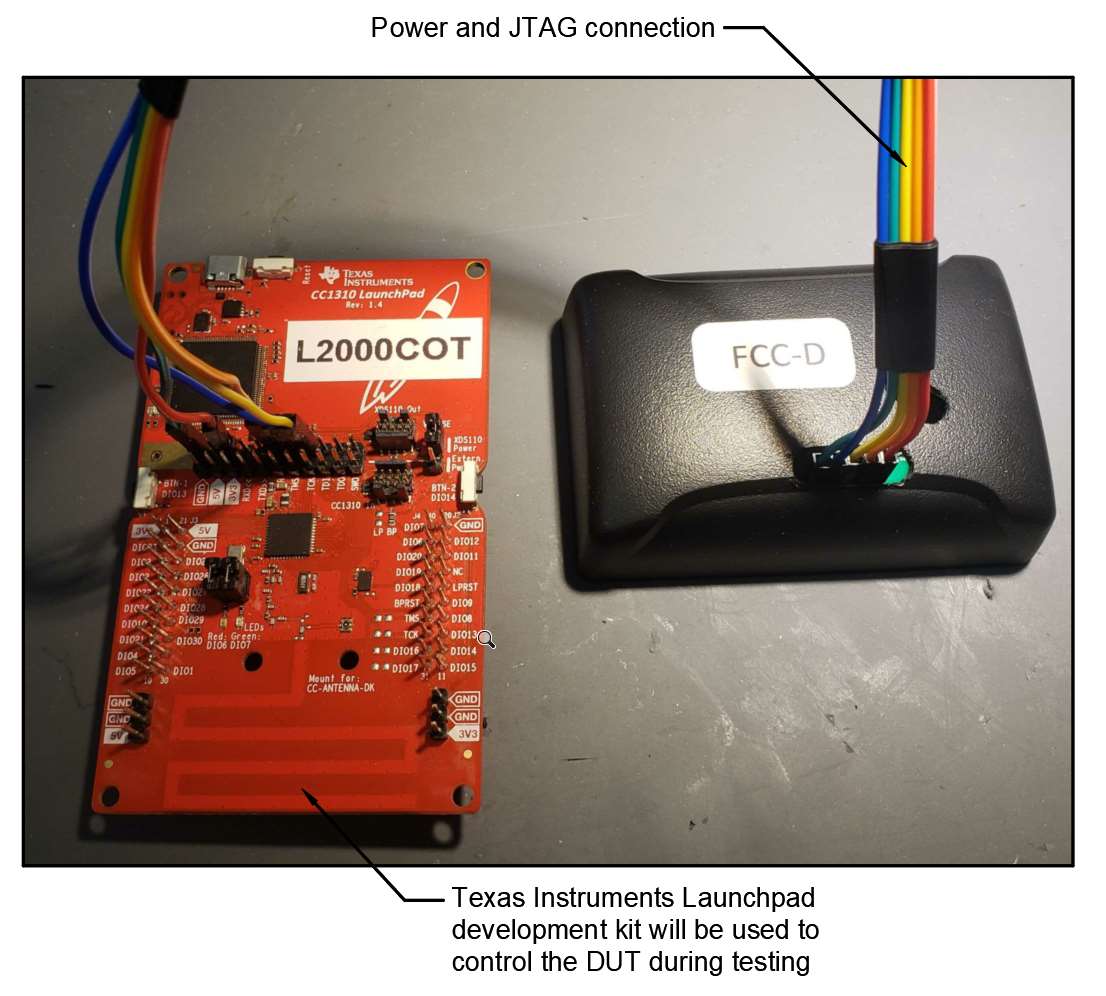

Images External – Base Station FCC Documents Masur 02/05/2020 For support or sales, contact [email protected] or call us toll-free at 1-866-212-1258. DUT used for radiated emissions testing Images External – Base Station FCC Documents Masur 02/05/2020 For support or sales, contact [email protected] or call us toll-free at 1-866-212-1258. DUT used for conducted emissions testing Images External – Base Station FCC Documents Masur 02/05/2020 For support or sales, contact [email protected] or call us toll-free at 1-866-212-1258. Anticipated test setup

Device Labeling – Base Station FCC Documents Masur 07/10/2020 For support or sales, contact [email protected] or call us toll-free at 1-866-212-1258. This is an option that we have for the base station label. We will be refining the layout as we go. The label will be located on the underside of the device, near an edge.

INTERNAL PHOTOS INTERNAL PHOTOS

Images Internal – Base Station FCC Documents Masur 02/05/2020 For support or sales, contact [email protected] or call us toll-free at 1-866-212-1258. DUT used for radiated emissions testing Images Internal – Base Station FCC Documents Masur 02/05/2020 For support or sales, contact [email protected] or call us toll-free at 1-866-212-1258. DUT used for conducted emissions testing

Page 1 of 2 FCC ID: QQIET100 Maximum exposure limits from CFR 47, FCC Part 1.1310: Table 1—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 The power density is calculated as shown below: S = (P x G)/(4 x π x d^2) – used to calculate exposure at 20 cm d = √(S/(P x G) x 4 X π) – used to calculate minimum distance to meet limits S= power density P = transmitter conducted power (in mW) G = antenna numeric gain d = distance to radiation center Page 2 of 2 Table 2 – Power Density Calculations Frequency Antenna Gain Output power Output Power +10% to account for tolerance Power Density Limit Distance MHz numeric mW mW/cm^2 mW/cm^2 914.88 1.71 1 1.1 0.0003744 0.6099 20 2400 - 2483.5 1.58 224 246.4 0.0774904 1.0000 20 Total percent of limit = 0.06% + 7.49 = 7.55 %, compliant with MPE limit. 914.88 MHz Antenna gain set to 1 because all power measurements were performed as radiated/EIRP. Note: This equipment is not intended to be operated by hand. It is expected that a 20cm separation will be maintained at all times. Values for 2AC7Z-ESPWROOM02 taken from RF exposure exhibit from the application documents for the grant dated 4/17/2015. 2.4 GHz Antenna = 1.58 dBi = 1.44 numeric Power = 23.5 dBm (80.11n(20m) is the highest) = 224 mW

The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Amended FCC/ISED Test Report Prepared for: Retail Aware Address: 808 Conagra Drive 401 Omaha, NE 68102 Product: Base Station (RAIS2) Test Report No: R20191205-21-E2C Approved by: __________________ Nic S. Johnson, NCE Technical Manager iNARTE Certified EMC Engineer #EMC-003337-NE DATE: 14 July 2020 Total Pages: 33 Report Number: R20191205-21-E2 Rev C Prepared for: Retailaware The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 2 of 33 REVISION PAGE Rev. No. Date Description 0 27 February 2020 Original – NJohnson Prepared by KVepuri A 25 June 2020 Updated calibration table, Note in Section 2.2, add note to Page 12a, corrected PSD and BW measurements to conducted. Includes NCEE Labs report R20191205-21-E2 and its amendment in full. B 30 June 2020 Added note to Section 2.2. Corrected PSD plot. Updated calibration table. Corrected average measurements for spurious emissions. Includes NCEE Labs report R20191205-21-E2A and its amendment in full. C 17 July 2020 Corrected duty cycle to -38.56 dB on page 14. Includes NCEE Labs report R20191205-21-E2B and its amendment in full. Report Number: R20191205-21-E2 Rev C Prepared for: Retail Aware The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 3 of 33 CONT EN TS Revision Page .............................................................................................................................................................. 2 1.0 Summary of test results ....................................................................................................................................... 4 2.0 EUT Description .................................................................................................................................................... 5 2.1 Equipment under test ........................................................................................................................................ 5 2.2 Description of test modes ................................................................................................................................ 6 2.3 Description of support units ............................................................................................................................ 6 3.0 Laboratory description ......................................................................................................................................... 7 3.1 Laboratory description ...................................................................................................................................... 7 3.2 Test personnel ..................................................................................................................................................... 7 3.3 Test equipment.................................................................................................................................................... 8 4.0 Detailed results ...................................................................................................................................................... 9 4.1 Duty Cycle ............................................................................................................................................................ 9 4.2 Radiated emissions .......................................................................................................................................... 11 4.3 Peak Output Power .......................................................................................................................................... 16 4.4 Bandwidth ........................................................................................................................................................... 18 4.5 Bandedges ......................................................................................................................................................... 20 4.6 Power Spectral Density ................................................................................................................................... 25 4.7 Conducted AC Mains Emissions .................................................................................................................. 27 Appendix A: Sample Calculation ................................................................................................................................... 30 Appendix B – Measurement Uncertainty ...................................................................................................................... 32 REPORT END ..................................................................................................................................................................... 33 Report Number: R20191205-21-E2 Rev C Prepared for: Retail Aware The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 4 of 33 1.0 SU MMAR Y OF TEST R ESULT S The worst-case measurements were reported in this report. The EUT has been tested according to the following specifications: APPLIED STANDARDS AND REGULATIONS Standard Section Test Type Result FCC Part 15.35 RSS Gen, Issue 5, Section 6.10 Duty Cycle Pass FCC Part 15.247(a)(1) RSS-247 Issue 2 Section 5.2 Peak output power Pass FCC Part 15.247(a)(1) RSS-247 Issue 2 Section 5.2 Bandwidth Pass FCC Part 15.209 RSS-Gen Issue 5, Section 7.1 Receiver Radiated E…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS TEST SETUP PHOTOS TEST SETUP PHOTOS TEST SETUP PHOTOS TEST SETUP PHOTOS
