2AVPP-BTB-SN-100WSecure CARD A type

NFC SecureCard Manual (Ver. 1.2) Contents 1. Basic UI Configuration -------------------------- 2 2. Card Activation ----------------------------------- 3 3. Fingerprint Registration ------------------------- 4 4. Fingerprint Delete ------------------------------- 6 5. Fingerprint Verification -------------------------- 8 6. Status LED Display ------------------------------- 9 7. FCC Warning Satemen-------------------------- 10 1. Basic UI Configuration Status Display Window: Displays connection status of NFC Secure Card Fingerprint Enrollment Window: Displays enrolled fingerprint (MAX 3) Information Display Window: Displays instructions and/or status Fingerprint Image Window: Displays scanned fingerprint image Menu Buttons: Selectable buttons are enabled 2. Card Activation - Insert SecureCard into the cradle * When SecureCard is recognized, the color of the Status Display Window changes and status notice is displayed. * Information on operation steps are displayed in Information Display Window. * Up to 3 user fingerprints can be registered in SecureCard. * The fingerprint registration status can be monitored in Fingerprint Enrollment Window. * Only selectable buttons are enabled. 3. Fingerprint Registration - Click enabled [Enroll] button to enroll user fingerprint in SecureCard. - SecureCard waits for user to scan fingerprint. User needs to scan fingerprint 8 times. - When fingerprint is scanned image is displayed and scanning status is displayed. 3. Fingerprint Registration - When fingerprint is scanned 8 times, a window pops up to input user name. - When fingerprint is enrolled successfully, Enrolled username appears under fingerprint icon. - Above image shows 3 fingerprints are enrolled. 4. Fingerprint Delete - Click enabled [Delete] button to delete enrolled fingerprint in SecureCard. - SecureCard waits for user to scan fingerprint. User can scan up to 10 times. 4. Fingerprint Delete - When a fingerprint is scanned, the name of the matched fingerprint is displayed in Fingerprint Enrollment Window. - The matched fingerprint is deleted. 5. Fingerprint Verification - Click enabled [Verify] button to wait for fingerprint scan. - SecureCard waits for user to scan fingerprint. User can scan up to 10 times. - When a fingerprint is scanned, the name of the matched fingerprint is displayed in Fingerprint Enrollment Window. 6. Status LED Display 1. When cradle is connected OnOff Green Power OnPower Off BlueUnder USB communication with PC No USB communication RedCharging*NA * Charging time : Battery is completely charged with 3 hour charging - Cradle is connected to PC through USB Cable. - Insert SecureCard such that the fingerprint sensor on SecureCard and Insertion Mark on Cradle (marked with red circle) are on the same side. 6. Status LED Display 2. When cradle is not connected OnOff Green Power OnPower Off BlueFingerprint Match Success N/A RedFingerprint Match Failure N/A 7.FCC Warning Statement FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment.

BTBL Co., Ltd. 117, Unjung-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea, 13461 Date : 09 March 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: 2AVPP-BTB-SN-100W To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae, You (Or Jungmin Yang) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae, You (Or Jungmin Yang) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; BTBL Co., Ltd. 117, Unjung-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea, 13461 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Name : James, Kim Title : Director Company Name : BTBL Co., Ltd.

BTBL Co., Ltd. 117, Unjung-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea, 13461 Date : 09 March 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: 2AVPP-BTB-SN-100W Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, (BTBL Co., Ltd.) hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give , (BTBL Co., Ltd.) temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Name : James, Kim Title : Director Company Name : BTBL Co., Ltd.

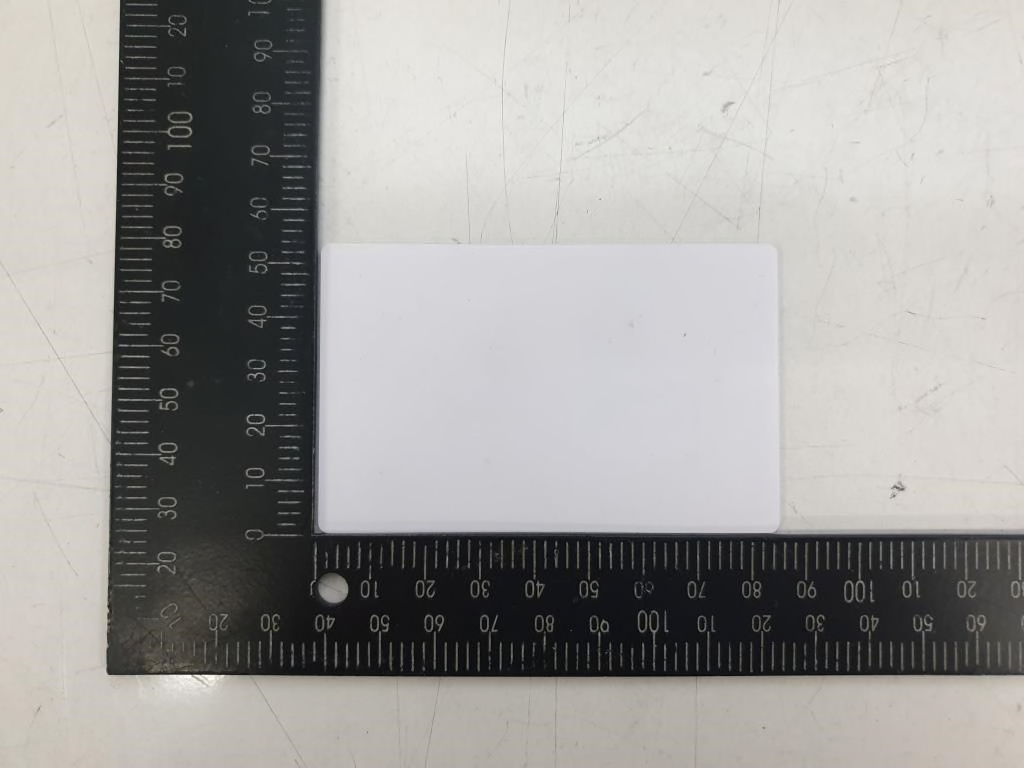

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Model : BTB-SN-100W FCC ID : 2AVPP-BTB-SN-100W Warning : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Information <Bottom view of ETU> 8cm 5cm

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB View of Antenna Loop coil Antenna

Report Number :F690501/RF-RTL014697 Page:2of21 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of contents 1. General Information -----------------------------------------------------------------------------------3 2. Radiated Emissions -----------------------------------------------------------------------------------7 3. Frequency Stability ------------------------------------------------------------------------------------16 4. 20㏈Bandwidth --------------------------------------------------------------------------------------20 Report Number :F690501/RF-RTL014697 Page:3of21 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 -4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 -Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant Applicant:BTBL Co., Ltd. Address:117, Unjung-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea, 13461 Contact Person:Kim, James Phone No.:+82 31 704 0333 1.3. Details of Manufacturer Applicant:Sams as applicant Address:Sams as applicant 1.4. Description of EUT Kind of Product Secure CARD A type Model Name BTB-SN-100W Power Supply DC 5.00 V Frequency Range 13.56㎒(NFC) Modulation Technique ASK Number of Channels 1 channel Antenna Type Loop Coil Antenna 1.5. Declarations by The Manufacturer When the EUT operates NFC mode, it is operated only co-located with support equipment. For that reason, test was performed co-located with support equipment. Report Number :F690501/RF-RTL014697 Page:4of21 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorR&SSMBV100A259067Jun. 10, 2019AnnualJun. 10, 2020 Spectrum AnalyzerR&SFSV30100768 Mar. 08, 2019 Annual Mar. 08, 2020 Spectrum AnalyzerAgilentN9020AMY53421758Sep. 11, 2019AnnualSep. 11, 2020 High Pass FilterMini circuitsNHP-25+V9741901107-1Dec. 04, 2019AnnualDec. 04, 2020 Temperature Chamber ESPEC CORP.PL-1J15000793Jun. 10, 2019AnnualJun. 10, 2020 PreamplifierH.P.8447F2944A03909Aug. 07, 2019AnnualAug. 07, 2020 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163396 Mar. 21, 2019 Biennial Mar. 21, 2021 Test ReceiverR&SESU26100109 Jan. 31, 2019 Annual Jan. 31, 2020 Antenna Mast Innco systems GmbH MM4640-XP-ET MA4640/536/ 38330516/L N.C.R.N/AN.C.R. Turn Table Innco systems GmbH DS 1200 SN/AN.C.R.N/AN.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO300/963/ 38330516/L N.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Coaxial CableSUCOFLEX104 (3 m)MY3258414Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial CableSUCOFLEX104 (10 m)MY3145814Jan. 28, 2020 Semi- annual Jul. 28, 2020 Shield RoomSY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/AN.C.R.N/AN.C.R. Note; Test was performed before calibration. 1.7. Support Equipment DescriptionManufacturerModelFCC ID Mobile phoneSamsung Electronics Co., Ltd. SM-J415NA3LSMJ415N Report Number :F690501/RF-RTL014697 Page:5of21 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.8. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C SectionTest ItemResult 15.225(a)(b)(c)(d) 15.209 Radiated Emission, Spurious Emission and Field Strength of Fundamental Complied 15.225(e)Frequency StabilityComplied 15.215(c) 20㏈Bandwidth Complied 15.207AC Power Line Conducted EmissionsN/A 1) Note; 1) The AC power line test was not performed because the EUT does not operate while charging. 1.9.Sample Calculation Where relevan…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓)
