2AVQE431050-1Remote wireless horn button hub mount, 2.4G, SD

Installation& Operation Instructions Specifications： Receiver Material Plastic (ASA) Power Supply 12 VDC Current 20 A Size L x W x H 62 x 67 x 32 mm Weight 100 g Frequency 2.4 GHz Transmitter Material Plastic (ASA) Battery CR2032 Size OD x H ψ56.8x 23 mm Weight 35 g Frequency 2.4 GHz Installation ： Receiver Installation 1. The receiver should be installed on flat surface at a dry location. 2. Secure receiver with two (2) M4 round head screws. Transmitter Installation A. Screw-Mounting way 1. Turn the transmitter cover counterclockwise, and place the base on steering wheel hub. 2. Make sure two screw holes in right and middle of the hub, secure receiver with two (2) M4 self-tapping screws. 3. Put the cover back and turn clockwise to lock/fix well. B. Adhesive-attaching way Make sure the transmitter base and steering wheel hub are clear and put the 3M double-side adhesive for attaching. Electrical Wiring： Provide DC 12 Volt input power for the receiver and 12AW G wire for connection, the effective wireless receiving range is around 15 ft. following is the wiring diagram. Battery switching： 1. Turn the transmitter cover counterclockwise and replace the battery with new CR2032 battery. 2. Put the cover back and turn clockwise to lock/fix well.

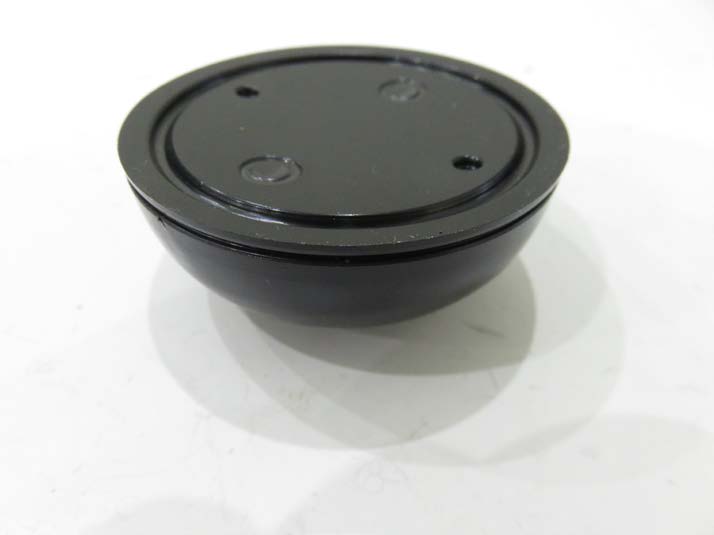

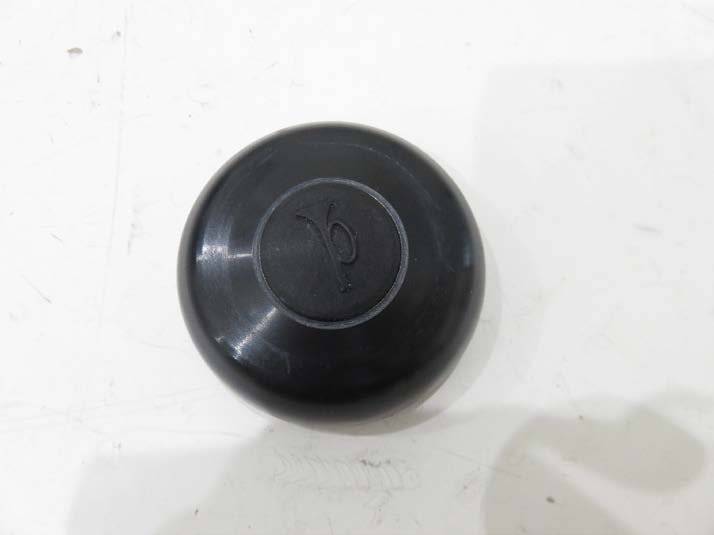

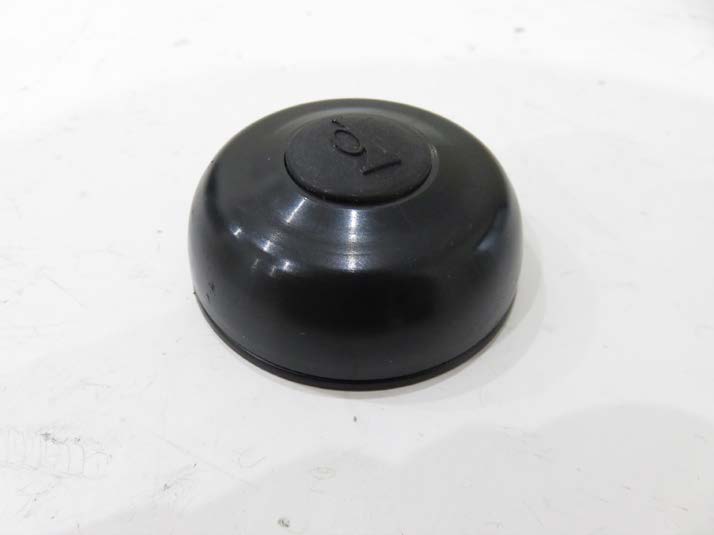

HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Contents 1 External Photographs of the EUT 3 Report Version：V01 Page 1 of 4 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Control Record Version Description Issued Date V00 Original External Photos release. 10-Dec-2019 V01 Remove Receiver sample 13-Mar-2020 Report Version：V01 Page 2 of 4 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA 1 External Photographs of the EUT View of the EUT 1 View of the EUT 2 Report Version：V01 Page 3 of 4 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA View of the EUT 3 View of the Transmitter & Receiver Report Version：V01 Page 4 of 4

HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA 1 Label Artwork and Location Label Artwork Label Location FCC Test Report Page 1 of 1

HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Contents 1 Internal Photographs of the EUT 3 Report Version：V01 Page 1 of 5 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Control Record Version Description Issued Date V00 Original Internal Photos release. 10-Dec-2019 V01 Remove Receiver sample 13-Mar-2020 Report Version：V01 Page 2 of 5 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA 1 Internal Photographs of the EUT Inside View of the EUT Front View of the PCB Report Version：V01 Page 3 of 5 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Rear View of the PCB View of the Battery Report Version：V01 Page 4 of 5 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Close Up View of the TX module & Antenna Antenna TX Module Report Version：V01 Page 5 of 5

HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Testing Laboratory 1163 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with 47 CFR Part 15 Subpart C The product Equipment Under Test ： Remote wireless horn button hub mount, 2.4G, SD Identification code ： KH9320100-6 Model Number ： 431050-1 Product Series ： N/A Report Number ： HA190961-RA Issue Date ： 24-Mar-2020 is produced by Sea-Dog Line P.O. Box 479, Everett, WA 98206, U.S.A HongAn TECHNOLOGY CO., LTD. HongAn TECHNOLOGY EMC Laboratory NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU DIST, NEW TAIPEI CITY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] Report Version：V02 Page 1 of 33 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Contents 1 General Description 7 1.1 Description of EUT 7 1.2 Test Instruments 8 1.3 Auxiliary Equipments 9 1.4 EUT SETUP 9 1.5 Identifying the Final Test Mode 9 1.6 Final Test Mode 9 1.7 Condition of Power Supply 10 1.8 EUT Configuration 10 1.9 Test Methodology 10 1.10 General Test Procedures 10 1.11 Modification 10 1.12 FCC Part 15.205 restricted bands of operations 11 1.13 Qualification of Test Facility 11 2 Power line Conducted Emission Measurement 12 2.1 Test Instruments 12 2.2 Test Arrangement and Procedure 12 2.3 Limit (§ 15.207) 12 2.4 Test Result 12 3 Radiated Emission Test 13 3.1 Test Instruments 13 3.2 Test Arrangement and Procedure 13 3.3 Limit of Field Strength of Fundamental (§ 15.249) 14 3.4 Limit of Spurious Emission (§ 15.209) 14 3.5 Test Result 14 4 Out of Band Emission Test 25 4.1 Test Instruments 25 4.2 Test Arrangement and Procedure 25 4.3 Limit of Field Strength of Fundamental (§ 15.249(d)) 25 4.4 Test Result 25 5 20 dB Bandwidth 30 5.1 Test Instruments 30 5.2 Test Arrangement and Procedure 30 5.3 Limit 30 Report Version：V02 Page 2 of 33 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA 5.4 Test Result 30 6 Antenna requirement 33 6.1 Limit (§ 15.203) 33 6.2 Test Result 33 Report Version：V02 Page 3 of 33 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Release control Record Report Version Description Issued Date V00 Original release. 10-Dec-2019 V01 1. Page 1- add in-『Identification code』 2. Remove Receiver 3. Page 9- Updated Chapter 1.4 4. Page 9、10- Update 15.247 to 15.249 5. Page 9- Add worst case description 6. Page 15~20、26~29- Update limited to peak 13-Mar-2020 V02 Page 5- Correct the FCC ID 24-Mar-2020 Report Version：V02 Page 4 of 33 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Test Result Certification Applicant ： Sea-Dog Line Address of Applicant ： P.O. Box 479, Everett, WA 98206, U.S.A Manufacturer ： KHAN'S ENTERPRISE CO., LTD. Address of Manufacturer ： 1921 Chun Ri Road, Taoyuan, Taiwan Trade Name ： Sea-Dog Line Equipment Under Test ： Remote wireless horn button hub mount, 2.4G, SD Model Number ： 431050-1 Product Series ： N/A FCC ID ： 2AVQE431050-1 Filing Type ： Certification Sample Received Date ： 09-Oct-2019 Test Standard ： FCC Part 15 Subpart C §15.249 Deviations from standard test methods & any other specifications : NONE Remark: 1. This report details the results of the test carried out on one sample. 2. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in both ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.203, 15.207, 15.209, 15.249. 3. This report applies to the above sample only and shall not be reproduced in part without written approval of HongAn Technology Co., Ltd. 4. Test Location: HongAn Technology Co., Ltd., No.15-1 Cweishuh Keng, Cweipin Village, Linkou Dist., New Taipei City, Taiwan, R.O.C. FCC Designation No.: TW1071, TW 1163. Documented by: Date: 24-Mar-2020 Cherry Chi / ADM. Dept. Staff Tested by: Date: 04-Dec-2019 Andrew Lin / ENG. Dept. Staff Approved by: Date: 24-Mar-2020 Adam Yang / SEC. Manager Report Version：V02 Page 5 of 33 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Summary of Test Result Test Item Applicable Standard Test Result 1 Antenna Requirement FCC part 15 subpart C §203 Compliance 2 Conducted Emission FCC part 15 subpart C §207 N/A 3 Restricted Band of Operation FCC part 15 subpart C §205 Compliance 4 Radiated Emission FCC part 15 subpart C §209 Compliance 5 Field Strength FCC part 15 subpart C §249(a) Compliance 6 Out of Band Emission FCC part 15 subpart C §249(d) Compliance 7 20dB Bandwidth FCC part 15 subpart C §215(c) Compliance Report Version：V02 Page 6 of 33 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA 1 General Description 1.1 Description of EUT Equipment Under Test : Remote wireless horn button hub mount, 2.4G, SD Model Number of EUT : 431050-1 Product Series : N/A Power Supply : DC 3V (Battery：Manufacturer：Panasonic, Model No.: CR 2032, Specification：DC 3V) Frequency Range : 2433、2448MHz Number of Channels : 2 Channels Carrier Frequency of Each Channel : 00 2433 01 2448 Antenna Specification : PCB Antenna / Gain: 3.20 dBi Modulation Technique : GFSK Transmit Data Rate : 1Mbps Specification : Dimensions : ψ 56.8 x 23 mm Intended Function : The EUT is a Remote wireless horn button hub mount, 2.4G, SD. Product Variance : N/A. Report Version：V02 Page 7 of 33 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA 1.2 Test Instruments Instrument Name Manufacture Model Number Serial Number Last Cal. Date Next Cal. Date EMI Receiver R&S ESCI 100931 08-Aug-2019 07-Aug-2020 Spectrum Analyzer R&S FSV 30 101629 25-Dec-2018 24-Dec-2019 Preamplifier CHASE CPA 9231A 0405 24-Dec-2018 23-Dec-2019 Preamplifier Com-Power PA M-118A 443027 27-Dec-2018 26-Dec-2019 Microwave Preamplifier Com-Power PA M-840 461269 17-May-2019 16-May-2020 Bilog Antenna TESEQ CBL6111D 25769 29-Jan-2019 28-Jan-2020 Double-Ridged Waveguide Horn EMCO 3115 9912-5992 15-May-2019 14-May-2020 Horn Antenna Com-Power AH-840 101042 21-May-2019 20-May-2020 Coaxial Cable N/A 8D-FB HA2…

Text truncated - open the document above for the full version.

HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Contents 1 Photographs of the Tests 3 1.1 Radiated Disturbances Emission Test 3 Report Version：V01 Page 1 of 3 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA Control Record Version Description Issued Date V00 Original Setup Photos release. 10-Dec-2019 V01 Remove Receiver 13-Mar-2020 Report Version：V01 Page 2 of 3 HongAn TECHNOLOGY CO., LTD. Report No.: HA190961-RA 1 Photographs of the Tests 1.1 Radiated Disturbances Emission Test Below 1 GHz Above 1 GHz Report Version：V01 Page 3 of 3
