2AVQO-RA11MRadar Motion Sensor

Doc2019_v1.4.0 MS-RA1xM Radar Module MS-RA11M User manual MS- RA1xM Radar Module 2 / 22 Doc2019_v1.4.0 MS-RA1xM Datasheet Contents 1. Product Outline ................................................................................................................................................ 5 2. Features ............................................................................................................................................................ 7 3. Pin Descriptions ............................................................................................................................................... 8 4. Electrical Characteristics .............................................................................................................................. 11 5. Antenna Characteristics ............................................................................................................................... 13 6. Mechanical Outlines ...................................................................................................................................... 18 7. GUI Software .................................................................................................................................................. 20 8. Performance Test .......................................................................................................................................... 21 Model Number Naming Rule ............................................................................................................................ 22 Doc2019_v1.4.0 3 / 22 MS- RA1xM Radar Module MS-RA1xM Datasheet List of figures Figure 1. Real Chip Size Comparison ............................................................................................................... 6 Figure 2. Blocks and Pin Descriptions ............................................................................................................. 9 Figure 3. Antenna Directionality .....................................................................................................................13 Figure 4. Radiation Pattern of MS-RA11M (Horizontal Direction)............................................................14 Figure 5. Radiation Pattern of MS-RA11M (Vertical Direction) .................................................................15 Figure 6. Radiation Pattern of MS-RA12M (Horizontal Direction)............................................................15 Figure 7. Radiation Pattern of MS-RA12M (Vertical Direction) .................................................................16 Figure 8. Radiation Pattern of MS-RA14M (Horizontal Direction)............................................................16 Figure 9. Radiation Pattern of MS-RA14M (Vertical Direction) .................................................................17 Figure 10. MS-RA11M Mechanical Outline...................................................................................................18 Figure 11. MS-RA12M Mechanical Outline...................................................................................................18 Figure 12. MS-RA14M Mechanical Outline...................................................................................................19 Figure 13. GUI Software ...................................................................................................................................20 Figure 14. Detection Performance of MS-RA11M .......................................................................................21 MS- RA1xM Radar Module 4 / 22 Doc2019_v1.4.0 MS-RA1xM Datasheet List of tables Table 1. Operating Ranges of Three Product Groups.................................................................................... 5 Table 2. Pin Descriptions .................................................................................................................................... 8 Table 3. Electrical Characteristics ................................................................................................................... 11 Table 4. Antenna Gain and Directionality ....................................................................................................... 14 Table 5. Detection Performance of MS-RA11M ............................................................................................ 21 Doc2019_v1.4.0 5 / 22 MS- RA1xM Radar Module MS-RA1xM Datasheet 1. Product Outline MS-RA1xM radar modules are the motion sensors that detect motion and speed of objects. As Doppler radar sensor modules, they operate in the 24 GHz ISM band. The RA1xM series can be categorized into three product groups—MS-RA11M, MS-RA12M, and MS- RA14M—in accordance with a number of their antennas. Table 1 introduces operating ranges of three product groups, which are based on an RCS1 [1m²] (targeting an adult). Table 1. Operating Ranges of Three Product Groups Product group Operating ranges MS-RA11M 5 to 8 m MS-RA12M 7 to 10 m MS-RA14M 9 to 12 m The range introduced in the table 1 can be adjusted by the operating environment and the gain of the digital amplifier embedded in the module. Since the MS-RA1xM module includes an exclusive transceiver for one-chip radars and an MCU for 32-bit signal processing, it has outstanding performance and provides various functions through digital signal processing. As a one-chip device, the radar IC has almost no margin of error even at a high frequency of 24 GHz and adjusts the temperature to match the external environment with a temperature compensation circuit embedded in the IC. Features such as the digital amplifier, FFT signal processor, and signal comparator can be implemented by using the embedded 32-bit Cortex M0+ MCU, and the functions including fine tuning of detection range (50 stages), configuration of object speed (km/h), configuration of range of 2-stage proximity detection, and prevention of error caused by vibration are …

Text truncated - open the document above for the full version.

Date : Jul. 16, 2018 Rev : 3.2 HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 1726 Ringwood Ave., San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC Modular Approval Declaration Letter Date : Jul. 16, 2018 Rev : 3.2 HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 1726 Ringwood Ave., San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated Template(Obsolete) 10/01/2012 QM 2.1 Updated address (Obsolete) 01/10/2014 QM 3.0 Updated Template(Obsolete) 03/30/2015 QM 3.1 Updated Address 06/21/2018 QM 3.2 Changed File Name and Split Files FCC/IC 7/16/2018 QM KOTECHSEMICOM CO., LTD. HACS-F007-1 FCC Modular Approval Declaration Letter Rev : 3.2 Date : March 11, 2020 FCC Modular Approval Attestation FCC ID: 2AVQO-RA11M is seeking FCC equipment authorization as Single Modular Transmitter Single Limited Modular Transmitter Product Information Product Description: Radar Motion sensor FRN: 0029234606 Model Name(s): MS-RA11M FCC Product ID: - FCC Module ID: 2AVQO-RA11M Modular Checklist/Information For Modular Approval, the module shall meet all the requirements listed below. Please check () if the module complies with the stated requirement. The modular transmitter must have its own shielding. The modular transmitter must have buffered modulation/data inputs. The modular transmitter must have its own power supply regulation. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c). The modular transmitter must tested in a stand-alone configuration. The modular transmitter must be labeled with its own FCC ID number. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instruction along with the module to explain any such requirements. The modular transmitter must comply with any applicable RF exposure requirements. If a module(s) does NOT meet one or more of the above listed requirements, the applicant may request Limited Modular Approval (LMA). For LMA, please state details about why the above requirement(s) could not be met; and state how control of the end product, into which the module will be installed, will be maintained by the applicant / manufacturer, such that full compliance of the end product is always ensured: ___________________________________ (Name / Title) Hyeon Do Choi / Research Engineer (Email Address) [email protected] (Phone number) +82-2-557-4335 (Address) SILICONPARK BUILDING 3F, 35, Pangyo-ro 255beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM KOTECHSEMICOM CO., LTD. HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : March 11, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID : 2AVQO-RA11M We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: (Name / Title) Hyeon Do Choi / Research Engineer (Email Address) [email protected] (Phone number) +82-2-557-4335 (Address) SILICONPARK BUILDING 3F, 35, Pangyo-ro 255beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM KOTECHSEMICOM CO., LTD. HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE : 3/11/2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : 2AVQO-RA11M We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Schematics 3 Part List SHORT-TERM CONFIDENTIAL (180 DAYS) 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual 8 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: (Name / Title) Hyeon Do Choi / Research Engineer (Email Address) [email protected] (Phone number) +82-2-557-4335 (Address) SILICONPARK BUILDING 3F, 35, Pangyo-ro 255beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea

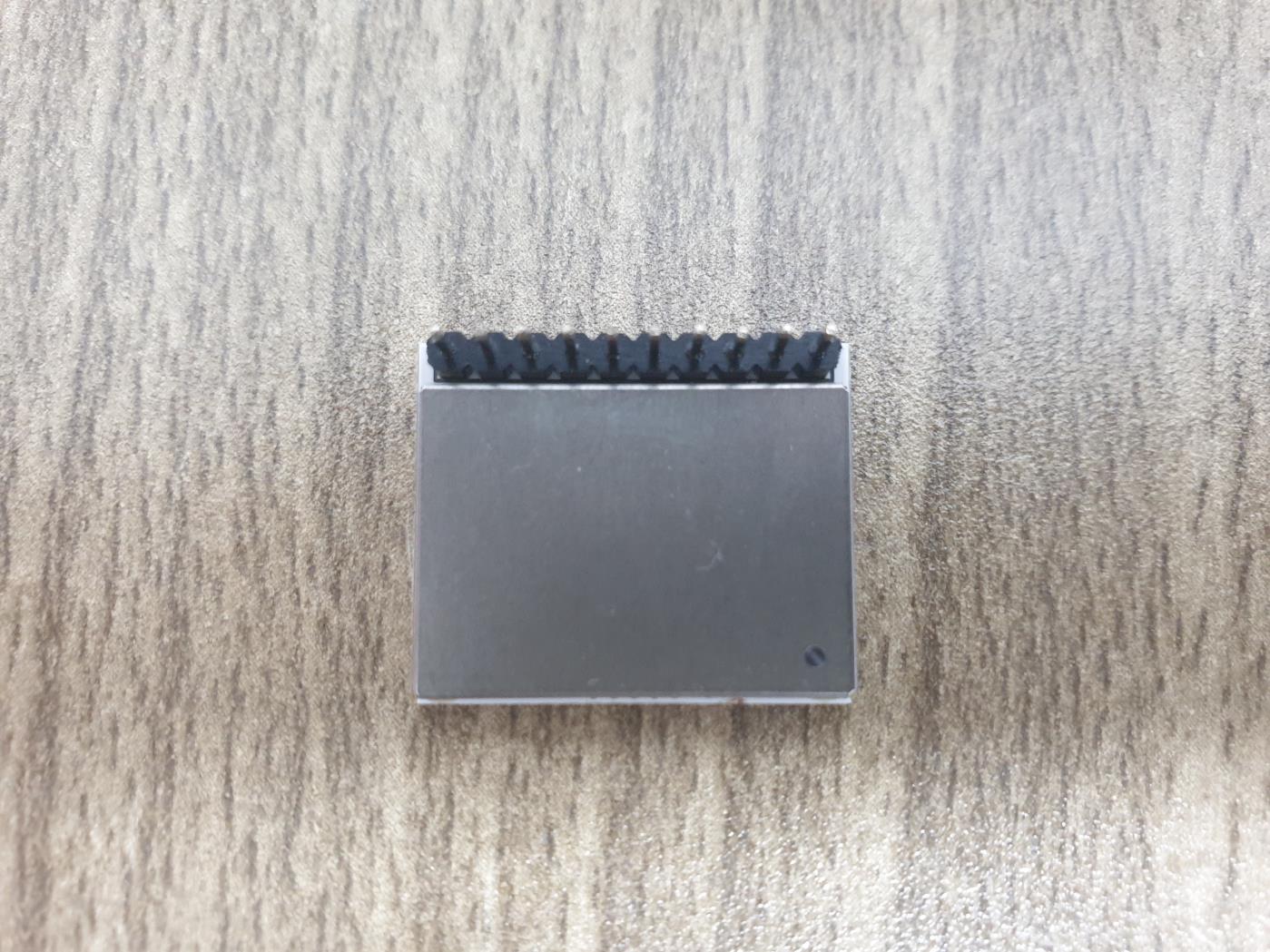

FCC ID: 2VAQO-RA11M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: 2VAQO-RA11M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO( Top ) FCC ID: 2VAQO-RA11M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO( Bottom ) FCC ID: 2VAQO-RA11M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO( Left ) FCC ID: 2VAQO-RA11M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO( Right ) FCC ID: 2VAQO-RA11M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO( Rear ) FCC ID: 2VAQO-RA11M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO( Front )

<Label Informaition>

FCC ID: 2VAQO-RA11M HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 3 INTERNAL PHOTOGRAPHS FCC ID: 2VAQO-RA11M HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 3 ■ Internal Photos FCC ID: 2VAQO-RA11M HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 3 ■ Internal Photos

Doc2019_v1.4.0 MS-RA1xM Radar Module MS-RA11M Operational Description Doc2019_v1.4.0 5 / 22 MS- RA1xM Radar Module MS-RA1xM Datasheet 1. Product Outline MS-RA1xM radar modules are the motion sensors that detect motion and speed of objects. As Doppler radar sensor modules, they operate in the 24 GHz ISM band. The RA1xM series can be categorized into three product groups—MS-RA11M, MS-RA12M, and MS- RA14M—in accordance with a number of their antennas. Table 1 introduces operating ranges of three product groups, which are based on an RCS1 [1m²] (targeting an adult). Table 1. Operating Ranges of Three Product Groups Product group Operating ranges MS-RA11M 5 to 8 m MS-RA12M 7 to 10 m MS-RA14M 9 to 12 m The range introduced in the table 1 can be adjusted by the operating environment and the gain of the digital amplifier embedded in the module. Since the MS-RA1xM module includes an exclusive transceiver for one-chip radars and an MCU for 32-bit signal processing, it has outstanding performance and provides various functions through digital signal processing. As a one-chip device, the radar IC has almost no margin of error even at a high frequency of 24 GHz and adjusts the temperature to match the external environment with a temperature compensation circuit embedded in the IC. Features such as the digital amplifier, FFT signal processor, and signal comparator can be implemented by using the embedded 32-bit Cortex M0+ MCU, and the functions including fine tuning of detection range (50 stages), configuration of object speed (km/h), configuration of range of 2-stage proximity detection, and prevention of error caused by vibration are supported. These features and functions are configured and adjusted in real time via the serial communication port. Radar modules comprised of current individual components detect motion using an analog comparator, which is not suitable for more complex situations. The MS-RA1xM module uses digital signal processing to achieve outstanding signal characteristics, and provides features that are completely differentiated from that of other radar modules. A GUI software application for PC is available to conduct performance tests when developing applications using the MS-RA1xM module, enabling users to easily assess performance and achieve target goals. With the PC software, users can develop their desired products more easily and rapidly by conducting sufficient tests in the stages prior to product development. MS- RA1xM Radar Module 6 / 22 Doc2019_v1.4.0 MS-RA1xM Datasheet Figure 1. Real Chip Size Comparison MS-RA11M MS-RA14M MS-RA12M 24 mm Doc2019_v1.4.0 7 / 22 MS- RA1xM Radar Module MS-RA1xM Datasheet 2. Features  A radar module operating in K-Band of 24.05GHz–24.25GHz  Motion and speed detection available both for indoor and outdoor use  Product groups with various detection ranges between 5 m and 15 m (detection range is based on human motion, and the maximum range may be adjusted using the embedded digital amplifier and gain controller)  PCB patch antenna with various operating ranges  Small (22 x 18 mm/22 x 22.5 mm/33 x 32 mm) and low-power module (60 mA)  Embedded 32-bit digital signal processing function — 8-stage digital amplifier — 30-stage gain controller — Adjustment of detection range, and detection of micro motion (240-stage fine tuning achieved by a combination of 8-stage digital amplifier and 30-stage gain controller) — Detection of object speed (km/h) using 256 FFT — Min/max speed detection — 2-stage proximity detection — Vibration error detection  Evaluation board and GUI software for simple evaluation of module operations and easy application development  SDK for development of dedicated software (including signal processing library)  Temperature compensation circuit maintaining operational features even with changes in environmental conditions  Embedded protection filter (2.4 GHz Wi-Fi noise immunity) to prevent interference from surrounding noises, especially communication noises  The most common single power source, 3.3 V power supply operates the device.  Same interface pins used for all modules to ensure compatibility. MS- RA1xM Radar Module 8 / 22 Doc2019_v1.4.0 MS-RA1xM Datasheet 3. Pin Descriptions Table 2. Pin Descriptions Pin number Pin name Type Description 1 VCC POWER 3.3V (Typical) (Note1) 2 GND POWER 3 PWM I/O User definition I/O (Note2) 4 nRESET INPUT Module reset 5 Motion out OUTPUT Motion detection signal output 6 IO1 I/O User definition I/O (Note3) 7 IO2 I/O User definition I/O (Note3) 8 Velocity out OUTPUT Velocity detection signal output 9 RX INPUT Command control port 10 TX OUTPUT Command control port NOTES: 1. The MS-RA11M module operates with a precision analog circuit, and offers expected features when connected to a noise-free power supply. The noise-free power can be supplied by filtering the system or power unit using an LC filter. 2. The PWM pin is a general-purpose I/O that is programmed as an input or an output according to the user's purpose. In addition, the PWM pin is connected to the hardware PWM block of the internal MCU, and can be used in lighting control. 3. The I/O pin is a general-purpose I/O that is programmed as an input or an output according to the user's purpose. In addition, the I/O pin is connected to the A/D converter block of the internal MCU, and can be used as an analog input. Doc2019_v1.4.0 9 / 22 MS- RA1xM Radar Module MS-RA1xM Datasheet Figure 2. Blocks and Pin Descriptions Pin 1: VCC Power noise should be removed as much as possible to ensure normal analog operations of the radar on a 3.3 V operating voltage. Pin 2: GND Pin 3: PWM or User I/O The PWM is connected to the dedicated PWM port of the embedded MCU, and thus can be used as a dimming control port for LED lighting. If the pin 3 is not used as a PWM port, it can be used as a general- purpose I/O. Pin 4: nReset Low active reset signal Pin 5: Motion Out Motion detection signal output detected by the radar. A motion output signal is p…

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side FCC 24 GHz Radar Report Certification APPLICANT KOTECHSEMICOM CO., LTD. REPORT NO. HCT-RF-2002-FC023 DATE OF ISSUE March 06, 2020 Report No. HCT-RF-2002-FC023 Page 3 of 26 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 06, 2020 Initial Release The measurements shown in this report were made in accordance with the procedures specified in CFR47 section §2.947. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) Report No. HCT-RF-2002-FC023 Page 4 of 26 CONTENTS EUT DESCRIPTION 5 2. TEST METHODOLOGY 6 2.1 EUT CONFIGURATION 6 2.2 EUT EXERCISE 6 2.3 GENERAL TEST PROCEDURES 6 2.4 DESCRIPTION OF TEST MODES 6 3. INSTRUMENT CALIBRATION 7 4. FACILITIES AND ACCREDITATIONS 7 4.1 FACILITIES 7 4.2 EQUIPMENT 7 5. ANTENNA REQUIREMENTS 8 6. MEASUREMENT UNCERTAINTY 8 7. SUMMARY TEST OF RESULTS 9 8. TEST RESULT 10 8.1 OCCUPIED BANDWIDTH MEASUREMENT 10 8.2 RADIATED MEASUREMENT. 12 9. LIST OF TEST EQUIPMENT 25 10. ANNEX A_TEST SETUP PHOTO 26 Report No. HCT-RF-2002-FC023 Page 5 of 26 EUT DESCRIPTION Model MS -RA11M EUT Type Radar Motion sensor Power Supply DC 3.3 V Frequency Range 24.05 GHz -24.25 GHz Operating Frequency 24.12491 GHz ~ 24.13419 GHz Fundamental Field Strength Level Peak 98.41 dBuV/m @3 m Average 97.53 dBuV/m @3 m Modulation Type CW Antenna Specification Antenna type: Patch Antenna Pe ak Gain : 0.97 dBi Maximum Dimension : 4.046 mm Date(s) of Tests February 06, 2020 ~ February 19, 2020 Report No. HCT-RF-2002-FC023 Page 6 of 26 2. TEST METHODOLOGY The measurement procedure described in the American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices (ANSI C63.10-2013) Operating Under §15.245˒ were used in the measurement. 2.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 2.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.249 under the FCC Rules Part 15 Subpart C. 2.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 6.2 of ANSI C63.10. (Version :2013) Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane below 1GHz. Above 1GHz with 1.5m using absorbers between the EUT and receive antenna. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set far-field distance away from the receiving antenna, which varied from 1 m to 4 m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. In order to find out the max. emission, the relative positions of this hand-held transmitter (EUT) was rotated through three orthogonal axes according to the requirements in Section 8 of ANSI C63.10. (Version: 2013) 2.4 DESCRIPTION OF TEST MODES The EUT has been tested under operating condition. Test program used to control the EUT for staying in continuous transmitting and receiving mode is programmed. Report No. HCT-RF-2002-FC023 Page 7 of 26 3. INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipmentˏs, which is traceable to recognized national standards. Especially, all antenna for measurement is calibrated in accordance with the requirements of C63.5 (Version : 2006). 4. FACILITIES AND ACCREDITATIONS 4.1 FACILITIES The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the radiated data are located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea. The site is constructed in conformance with the requirements of ANSI C63.4. (Version :2014) and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated April 02, 2018 (Registration Number: KR0032) 4.2 EQUIPMENT Radiated emissions are measured with one or more of the following types of Linearly polarized antennas: tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide, horn. Spectrum analyzers with pre-selectors and quasi-peak detectors are used to perform radiated measurements. Conducted emissions are measured with Line Impedance Stabilization Networks and EMI Test Receivers. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, ˑRadio Interference Measuring Apparatus and Measurement Methods.˒ Report No. HCT-RF-2002-FC023 Page 8 of 26 5. ANTENNA REQUIREMENTS According to FCC 47 CFR §15.203: ˑAn intentional radiator antenna shall be designed to ensure that no antenna other than that furnished by the responsible party can be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this se…

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side FCC MPE Test for MS-RA11M Certification APPLICANT KOTECHSEMICOM CO., LTD. REPORT NO. HCT-RF-2002-FC024 DATE OF ISSUE March 06, 2020 Report No. HCT-RF-2002-FC024 F-TP22-03 (Rev. 02) Page 3 of 5 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 06, 2020 Initial Release The result shown in this test report refer only to the sample(s) tested unless otherwise stated. The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that…
