2AVRB-METOR-900MMetor 900M Walk-Through Metal Detector

Installation and Operating Manual Metor 900M P/N 101023281 – Rev. 0.5 Page 2 Metor 900M P/N 101023281 Installation and Operating Manual Rev. 0.5 Rapiscan Systems Proprietary Information Foreword Thank You for choosing a Metor product. This manual is intended for the installation and normal daily use of the equipment. In addition to these instructions, local laws and regulations, and requirements by authorities shall be observed. The user should read this manual and understand its contents before the installation or use of the equipment. Copyright Notice The owner or authorized user of a valid copy of the products covered by this manual may reproduce this publication only for the purpose of learning to use such product. No part of this publication may be reproduced or transmitted for any other purpose, such as selling copies of this publication or providing paid- for support services. © Rapiscan Systems. All rights reserved. Content of this Manual We have made an effort to ensure that the information in this manual is accurate as of the date of publication. However, the product that you have purchased may contain options, upgrades or modifications not covered by this manual. If you have any questions about the content of this manual or the product that you have purchased, please contact Rapiscan Systems Customer Service. No Warranties The provision of this manual to you creates no express or implied warranties of any kind, including, without limitation any warranties with respect to the accuracy, applicability, completeness or fitness of this manual for any particular purpose. Limitation on Liability and Warranty Rapiscan systems will not accept liability for damage or personal injury caused directly or indirectly by either incorrect or poor quality termination of the local main power supply or power cables. Rapiscan Systems is not responsible for damage or injury caused by unauthorized modification, maintenance, operation or tampering with this equipment. Rapiscan Systems will not be liable for any indirect, special, incidental or consequential damage, including loss of profit. Rapiscan Systems disclaims liability for any express or implied warranty of merchantability or fitness of the product for a particular purpose. Any modification or alteration made to the system after purchase by the customer or their agents without written authorization from Rapiscan Systems Service Department Management will void any warranty issued to the customer. Additionally, Rapiscan Systems is not liable for any damage that might be caused by any unapproved changes or modifications. P/N 101023281 Metor 900M Page 3 Rev. 0.5 Installation and Operating Manual Rapiscan Systems Proprietary Information Revision History Name of Document: Installation and Operating Manual, Metor 900M Document Number: 101023281 Rev. Date Comments 0.1 2019-02-12 First draft. 0.2 2019-06-12 Updates to installation and user interface. 0.3 2020-01-24 Updates to user interface chapter. 0.4 2020-03-10 Added FCC statement. 0.5 2020-04-21 Modified FCC statement. Page 4 Metor 900M P/N 101023281 Installation and Operating Manual Rev. 0.5 Rapiscan Systems Proprietary Information Table of Contents 1 IMPORTANT INSTRUCTIONS .................................................................................................... 6 1.1 Types of Alert Messages ................................................................................................... 7 1.2 Symbols used on Unit and in Manual ................................................................................. 7 2 INTRODUCTION ......................................................................................................................... 8 2.1 Intended Use ..................................................................................................................... 8 2.2 Product Safety ................................................................................................................... 9 2.3 Main Components ........................................................................................................... 10 2.4 Battery Backup Set .......................................................................................................... 11 2.5 Technical Data ................................................................................................................ 11 3 INSTALLATION ......................................................................................................................... 12 3.1 Checkpoint Layout ........................................................................................................... 12 3.2 Minimizing External Interference ...................................................................................... 12 3.3 Side-by-Side Operation ................................................................................................... 14 3.4 Mechanical Assembly ...................................................................................................... 15 3.5 Floor Fixing ..................................................................................................................... 16 3.6 Electrical Connections ..................................................................................................... 17 3.7 Connections for Digital I/O ............................................................................................... 18 4 STARTUP AND SHUTDOWN ................................................................................................... 19 5 DISPLAYS AND KEYPAD ......................................................................................................... 20 6 USER INTERFACE ................................................................................................................... 21 6.1 Access to User Interface.................................................................................................. 21 6.2 User Interface Struc…

Text truncated - open the document above for the full version.

To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Rapiscan Systems Inc. 2805 Columbia Street Torrance, CA 92808 USA. Regarding: Confidentiality Request regarding application for FCC ID: 2AVRB-METOR- 900M LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Delete any document that is NOT included in your application Schematic(s) Block Diagrams Operational Descriptions Parts List / BOM The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within 180 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Ankur Mohindru Sr Manager, Systems Test Engineering Rapiscan Systems

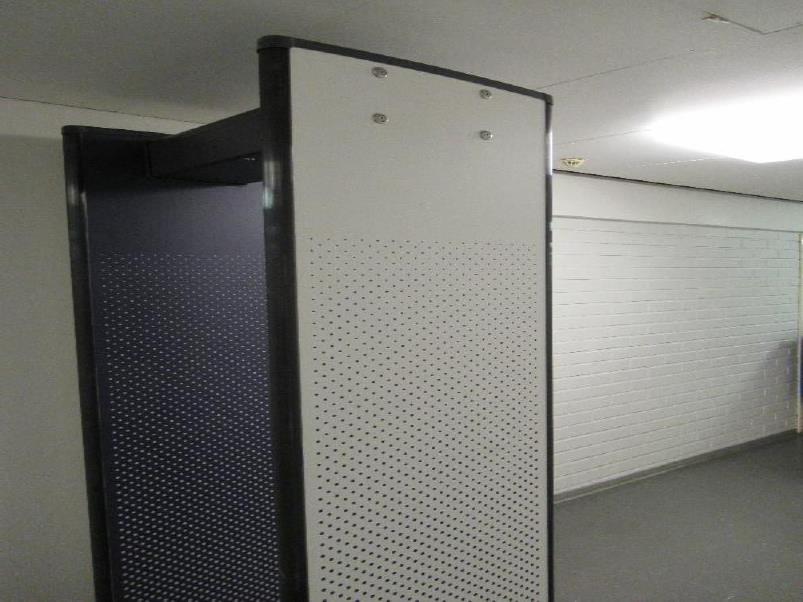

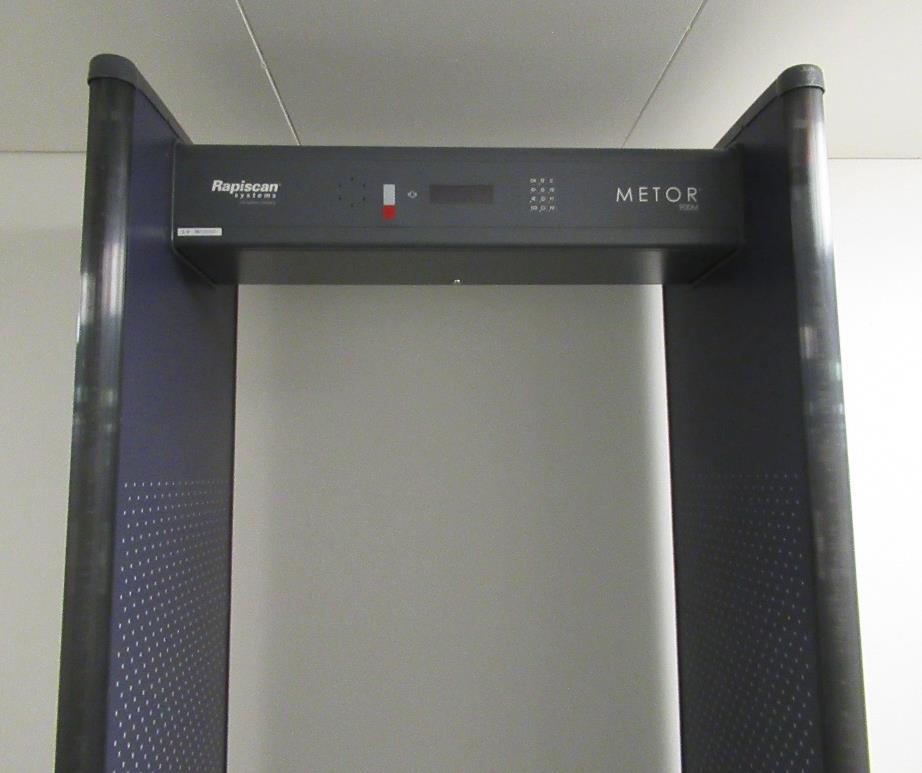

24_External photographs, Metor 900M Rapiscan Systems Confidential and Proprietary Page 1 of 3 Metor 900M External Photographs Front/ right side view 24_External photographs, Metor 900M Rapiscan Systems Confidential and Proprietary Page 2 of 3 Back/ Left side view 24_External photographs, Metor 900M Rapiscan Systems Confidential and Proprietary Page 3 of 3 Front view

Label

23_FCC ID Label Location, Metor 900M Rapiscan Systems Confidential and Proprietary Page 1 of 1 FCC ID Label Location, Metor 900M Label is placed onto outside surface of coil panel, near floor level.

25_Internal photographs, Metor 900M Rapiscan Systems Confidential and Proprietary Page 1 of 6 Metor 900M Internal Photographs Electronics compartment opened 25_Internal photographs, Metor 900M Rapiscan Systems Confidential and Proprietary Page 2 of 6 PSU and filter enclosure 25_Internal photographs, Metor 900M Rapiscan Systems Confidential and Proprietary Page 3 of 6 Main electronics enclosure 25_Internal photographs, Metor 900M Rapiscan Systems Confidential and Proprietary Page 4 of 6 Main electronics component side with NFC module 25_Internal photographs, Metor 900M Rapiscan Systems Confidential and Proprietary Page 5 of 6 NFC module component side 25_Internal photographs, Metor 900M Rapiscan Systems Confidential and Proprietary Page 6 of 6 NFC module back side

RF Exposure Assessment, NFC, Metor 900M Page 1 of 7 2805 Columbia Street Torrance, California 90503 United States of America RF EXPOSURE ASSESSMENT, NFC METOR 900M Prepared by Name Jay Patel Document No. Title / Department Senior Electrical Engineer Version 1.1 Signature Date 4/28/2020 RF Exposure Assessment, NFC, Metor900 Page 2 of 7 2805 Columbia Street Torrance, California 90503 United States of America Document amendment record A – Added, M – Modified, D – Deleted S.No Date Version No Page No Change Mode (A/M/D) Brief description of change 1 4/20/2020 1 All Initial Document Creation 2 4/28/2020 1.1 5 M Section 4.1, Updated Magnetic Field Strength limit value from FCC1.1310(e). 6 M Section 5, Changed formula for Power Density to W/m 2 from mW/cm 2 6 M Section 6, Use E-Field Value instead of 20 dB bandwidth measurement in calculation of Power density. Approval List Department Name Date Signature Engineering Marketing / Sales Quality Assurance Manufacturing Service RF Exposure Assessment, NFC, Metor900 Page 3 of 7 2805 Columbia Street Torrance, California 90503 United States of America Table of contents 1 DOCUMENT SUMMARY .................................................................................................................. 4 2 PRODUCT BRIEF DESCRIPTION: .................................................................................................. 4 3 RF GENERAL INFORMATION: ....................................................................................................... 4 4 LIMITS OF MAXIMUM PERMISSIBLE EXPOSURE: ........................................................................ 5 4.1 LIMITS OF MPE AS PER IEEE STANDARD C95.1-2005 (US) ............................................................ 5 4.2 LIMITS OF MPE AS PER ICNIRP GUIDELINES -1998 (EU) ................................................................ 5 4.3 LIMITS OF MPE AS PER SAFETY CODE 6 OF HEALTH CANADA -2015 (CANADA) .................................. 5 5 MPE CALCULATION METHOD: ...................................................................................................... 6 6 CALCULATED RESULTS AND LIMITS: .......................................................................................... 6 7 CONCLUSION: ................................................................................................................................ 6 8 REFERENCES: ................................................................................................................................ 7 RF Exposure Assessment, NFC, Metor900 Page 4 of 7 2805 Columbia Street Torrance, California 90503 United States of America 1 Document Summary This document analyses the RF exposure by NFC module in Metor 900M. It provides the general assessment of the RF exposure and demonstrates that the product Metor 900M with NFC module to be in compliant with the applicable codes for US, EU, and Canada. 2 Product Brief Description: Metor 900M is a walk-through metal detector (WTMD) designed to detect metal objects people are carrying with them. Metor 900M is equipped with NFC capability. You can use Rapiscan supplied NFC cards to quickly change unit’s parameter values. NFC read area is indicated by NFC symbol on the cross piece between status LED window and display as shown below. The NFC module is situated at about 214cm (84 inch) height from the ground level and the spiral rectangular antenna is situated parallel to the cross piece surface with maximum field strength perpendicular to the center of the surface. 3 RF General Information: Evaluation Mode Frequency MHz Operating Frequency Range MHz Modulation Type NFC 13.56 13.553-13.567 Amplitude Modulation RF Exposure Assessment, NFC, Metor900 Page 5 of 7 2805 Columbia Street Torrance, California 90503 United States of America 4 Limits of Maximum Permissible Exposure: 4.1 Limits of MPE as per IEEE Standard C95.1-2005 (US) (A) Limits for Occupational / Controlled Exposure Frequency f Range MHz Electric Field Strength E (V/m) Magnetic Field Strength H (A/m) Power Density S (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 , S (minutes) 3-30 1842/f 4.89/f 900/f 2 6 (B) Limits for General Population / Uncontrolled Exposure Frequency f Range MHz Electric Field Strength E (V/m) Magnetic Field Strength H (A/m) Power Density S (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 , S (minutes) 1.34-30 823.8/f 2.19/f 180/f 2 30 4.2 Limits of MPE as per ICNIRP Guidelines -1998 (EU) (C) Limits for Occupational / Controlled Exposure Frequency f Range MHz Electric Field Strength E (V/m) Magnetic Field Strength H (A/m) Power Density S (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 , S (minutes) 10-100 61 0.16 1 6 (D) Limits for General Population / Uncontrolled Exposure Frequency f Range MHz Electric Field Strength E (V/m) Magnetic Field Strength H (A/m) Power Density S (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 , S (minutes) 10-100 28 0.073 0.2 6 4.3 Limits of MPE as per Safety Code 6 of Health Canada -2015 (Canada) (E) Limits for Occupational / Controlled Exposure Frequency f Range MHz Electric Field Strength E (V/m) Magnetic Field Strength H (A/m) Power Density S (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 , S (minutes) 10-20 61.4 0.163 1 6 (F) Limits for General Population / Uncontrolled Exposure Frequency f Range MHz Electric Field Strength E (V/m) Magnetic Field Strength H (A/m) Power Density S (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 , S (minutes) 10-20 27.46 0.0728 0.2 6 RF Exposure Assessment, NFC, Metor900 Page 6 of 7 2805 Columbia Street Torrance, California 90503 United States of America 5 MPE Calculation Method: The MPE calculation is calculated at 5 cm distance for card operator hand as well as at 20 cm distance for general public to show compliance with the power density limit. The following formula is used to calculate the power density: E(V/m) = SQRT(30*P*G)/d Power Density S (W/m 2 ) = E 2 /377 where E = Electric Field (V/m), P = RF Output Power W, G = Antenna Gain, d = Separation distance between radia…

Text truncated - open the document above for the full version.

Reference number: 297479-1-4 Page 2 of 21 Table of Contents PRODUCT DESCRIPTION .................................................................................................................................. 3 Equipment Under Test (EUT) .......................................................................................................................... 3 Description of the EUT .................................................................................................................................... 3 Modifications incorporated in the EUT ............................................................................................................ 3 Ratings and declarations ................................................................................................................................. 3 Power Supply .................................................................................................................................................. 3 Mechanical Size of the EUT ............................................................................................................................ 3 Cables ............................................................................................................................................................. 3 Peripherals ...................................................................................................................................................... 4 GENERAL REMARKS .......................................................................................................................................... 5 Disclaimer ........................................................................................................................................................ 5 TEST CONDITIONS ............................................................................................................................................. 6 Summary of Testing ........................................................................................................................................ 6 Block Diagram ................................................................................................................................................. 6 EUT Test Conditions During Testing ............................................................................................................... 6 TEST RESULTS ................................................................................................................................................... 7 Antenna requirement ....................................................................................................................................... 7 Conducted Emissions In The Frequency Range 150 kHz - 30 MHz. .............................................................. 8 Radiated Emissions In The Frequency Range 9 kHz – 1 GHz ....................................................................... 10 Operation within the band 13.110 – 14.010 MHz ............................................................................................ 15 Frequency Stabilty ........................................................................................................................................... 18 20 dB Bandwidth ............................................................................................................................................. 19 99% Power Bandwidth .................................................................................................................................... 20 TEST EQUIPMENT .............................................................................................................................................. 21 Reference number: 297479-1-4 Page 3 of 21 Product Description PRODUCT DESCRIPTION Equipment Under Test (EUT) Walk Through Metal Detector Trade mark: Rapiscan, Metor Model: METOR 900M Type: MELS5317 Serial no: 0ME1924002 Classification of the device Fixed device Mobile Device (Human body distance > 20cm) Portable Device (Human body distance < 20cm) Description of the EUT The EUT is a walk through metal detector (WTMD) designed to detect metal objects people are carrying with them. It consists of 13.56 MHz NFC unit. Modifications incorporated in the EUT One ferrite WE 742 711 11 added on USB cable of USB/ETH converter. Ratings and declarations Operating Frequency Range (OFR): 13.56 MHz Channels: 1 transmit channel Effective radiated or conducted power: - Modulation: - Antenna: Integral antenna Power Supply Rated voltage: 100 - 240 V 120 V 60 Hz was used during the test Rated current: - Rated frequency: 47 - 63 Hz Rated power: 30 W Mechanical Size of the EUT Height: 225 cm Width: 85 cm Depth: 61 cm Cables Cable: Length: Type: AC power input cable 2.0 m unshielded, (L, N, PE) ETH cable 3.0 m shielded Reference number: 297479-1-4 Page 4 of 21 Product Description Peripherals Portable computer, type: HP ProBook 450 G3, s/n: 5CD6331CG2 Ethernet router, type ASUS RT-AC66U, s/n: G8IUGG00335 The peripherals units were located outside of the test area. Reference number: 297479-1-4 Page 5 of 21 GENERAL REMARKS Disclaimer This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and- Conditions/Terms-e-Document.aspx Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exe…

Text truncated - open the document above for the full version.

Test Setup Photographs 1 (2) 297479-1-4 SGS Fimko Ltd Särkiniementie 3, PO Box 30 FI-00211 Helsinki, Finland t. +358 9 696 361 f. +358 9 692 5474 www.fi.sgs.com Business ID 0978538-5 Member of the SGS Group (SGS SA) Photograph 1. Conducted Emissions test set-up Test Setup Photographs 2 (2) 297479-1-4 SGS Fimko Ltd Särkiniementie 3, PO Box 30 FI-00211 Helsinki, Finland t. +358 9 696 361 f. +358 9 692 5474 www.fi.sgs.com Business ID 0978538-5 Member of the SGS Group (SGS SA) Photograph 2. Radiated Emissions 9 kHz – 30 MHz Photograph 3. Radiated Emissions 30 MHz – 1000 MHz
