Vegetation Clearing Animal Trail Game Motion Detector triggered by game LED indicator from motion detector signal on receiver clipped to hunter’s visor flashes Hunter readies firearm or bow before animal appears “TripWire” Portable Wireless Motion Detector Wireless signal sent 1 2 3 4 5 Tripwire Prototype Instructions 1. There is no on/off switch. The motion detector and receiver are on when the battery is inserted and should last between 48-72 depending on use. The transmitter is water resistant. The receiver fob is not in the prototype. 2. Use the tab to open the motion detector battery case and insert a CR123A battery then snap the battery case shut: 3. Pry the receiver fob open with a screwdriver: 4. Insert a CR2032 battery into the battery holder on the circuit board by inserting the edge of the battery into the copper lip first and then pressing down on the middle of the battery to snap it in. Snap the fob case back together: 5. Attach the motion detector onto a tree or other feature along an animal trail at a height that will likely see the center of the animal’s mass. Ensure that the device is immobilized and won’t slip or be moved by wind. Test the detector by stepping out of the 180 deg.motion view and wait 10 seconds. Then walk in front of the device with the fob and watch for the LED white light to flash on the back of the fob. Once the flash sequence has started, it will continue until you hit one of the fob buttons. The device must be clear. Once you’ve verified the motion detection, you are ready to hunt and receive an early warning signal. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by Rugged Nature LLC could void your authority to operate the equipment.

Page 1 of 1 March 10, 2020 National Technical Systems TCB 41039 Boyce Road Fremont, CA, 94538 FCC ID: 2AVRC-71100-701 To whom it may concern: The enclosed documents constitute a formal submittal and application for FCC Equipment Authorization for a hand held key fob pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47) using §15.249 National Technical Systems, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact National Technical Systems for assistance. Sincerely, David W. Bare Chief Engineer

88360 Diamondhead Drive East Diamondhead, MS 39525 (769) 926-0510 • www.ruggednature.com National Technical Systems – Silicon Valley TCB 41039 Boyce Road Fremont, CA. 94538 August 18, 2020 Gentlemen: This is your letter of authorization to accept our appointment of National Technical Systems – Silicon Valley as our Agent for Rugged Nature, LLC, to sign applications before National Technical Systems – Silicon Valley TCB and to make representations to you on our behalf. National Technical Systems – Silicon Valley is to receive and exchange data between our company and National Technical Systems – Silicon Valley TCB. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC and Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by National Technical Systems – Silicon Valley TCB, still resides with Rugged Nature, LLC. I hereby certify on behalf of Rugged Nature, LLC ("Applicant") that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988 21 U.S.C. 853a. Sincerely, Amy M. Fletcher CFO/Owner

88360 Diamondhead Drive East Diamondhead, MS 39525 (769) 926-0510 • www.ruggednature.com Request for Confidentiality August 18, 2020 Subject: Confidentiality Request for: 2AVRC-71100-701 Pursuant to FCC 47 CRF 0.457(d) and 0.459, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual Rugged Nature, LLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Sincerely, By: / CFO/Owner Amy M. Fletcher (Signature/Title) (Printed name)

A B C D 1 2 3 4 5 REVISIONS DATE 4-16-20 APPROVAL DESCRIPTION REV - WF INITIAL RELEASE TITLE: )5$&7,216“ $1*8/$5“'(* '(&,0$/;“ ;;“;;;“;;;;“ DRAWN BY PAUL SKAGGS FINISH MATERIAL: SEE NOTE CONTRACT NUMBER: NA PROJECT: DATE: 4-16-20 SCALE: NA CAGE CODE:1X1H0 APPLICATION: AUTOCAD LT 2014 DIMENSIONS ARE IN INCHES TOLERANCES: NVision Solutions, Inc. 88360 Diamondhead Drive East Diamondhead, MS 39525 228-222-5900 DWG. NO: SHEET: 1 OF 1 SIZE: A REV: - SEE NOTES FOB LABEL PLACEMENT FCC ID 2AVRC-71100-701

FCC ID 2AVRC-71100-701 A B C D 1 2 3 4 5 REVISIONS DATE 4-16-20 APPROVAL DESCRIPTION REV - WF INITIAL RELEASE TITLE: )5$&7,216“ $1*8/$5“'(* '(&,0$/;“ ;;“;;;“;;;;“ DRAWN BY PAUL SKAGGS FINISH MATERIAL: SEE NOTE CONTRACT NUMBER: NA PROJECT: DATE: 4-16-20 SCALE: NA CAGE CODE:1X1H0 APPLICATION: AUTOCAD LT 2014 DIMENSIONS ARE IN INCHES TOLERANCES: NVision Solutions, Inc. 88360 Diamondhead Drive East Diamondhead, MS 39525 228-222-5900 DWG. NO: SHEET: 1 OF 1 SIZE: A REV: - SEE NOTES FOB LABEL 0.500" 1.625" NOTES: 1. TEXT IS 8 POINT FONT 2. LABEL DESCRIPTION: MYASSET TAG PERMAGUARD - SUBSURFACE PLASTIC ASSET TAG (MOO3), MATTE FINISH, WHITE TEXT ON BLACK BACKGROUND

41039 Boyce Road 510-578-3500 Phone Fremont, CA. 94538 510-440-9525 Fax File: FR-104153.01-NARF Rev 2 Page 1 EMC Test Report Application for FCC Grant of Equipment Authorization FCC Part 15 Subpart C Model: 71100-701 FCC ID: 2AVRC-71100-701 APPLICANT: Rugged Nature, LLC 88360 Diamondhead Drive E Diamondhead, MS 39525 TEST SITE(S): National Technical Systems 41039 Boyce Road. Fremont, CA. 94538-2435 PROJECT NUMBER: PR104153 REPORT DATE: March 10, 2020 RE-ISSUED DATE: September 18, 2020 FINAL TEST DATES: January 15, 27 and February 5 and September 14, 2020 TOTAL NUMBER OF PAGES: 31 This report and the information contained herein represent the results of testing of only those articles / products identified in this document and selected by the client. The tests were performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it present any statement whatsoever as to its merchantability or fitness of the test article or similar products, for a particular purpose. This report shall not be reproduced except in full without written approval from NTS. National Technical Systems Project number PR104153 Report Date: March 10, 2020 Re-issued: September 18, 2020 Test Report FR-104153.01-NARF Rev 2 Page 2 VALIDATING SIGNATORIES PROGRAM MGR ______________________________ David W. Bare Chief Engineer TECHNICAL REVIEWER: ______________________________ David W. Bare Chief Engineer FINAL REPORT PREPARER: ______________________________ David Guidotti Senior Technical Writer QUALITY ASSURANCE DELEGATE ______________________________ Jesse Reel Technical Writer National Technical Systems Project number PR104153 Report Date: March 10, 2020 Re-issued: September 18, 2020 Test Report FR-104153.01-NARF Rev 2 Page 3 REVISION HISTORY Rev# Date Comments Modified By - March 10, 2020 First release 1 September 14, 2020 Added results below 30 MHz DWB 2 September 18, 2020 Added results to cover 30 kHz to 10 MHz emissions DMG National Technical Systems Project number PR104153 Report Date: March 10, 2020 Re-issued: September 18, 2020 Test Report FR-104153.01-NARF Rev 2 Page 4 TABLE OF CONTENTS COVER PAGE............................................................................................................................................................. 1 VALIDATING SIGNATORIES ................................................................................................................................ 2 REVISION HISTORY ................................................................................................................................................ 3 TABLE OF CONTENTS ............................................................................................................................................ 4 SCOPE .......................................................................................................................................................................... 5 OBJECTIVE ................................................................................................................................................................ 6 STATEMENT OF COMPLIANCE ........................................................................................................................... 6 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 6 TEST RESULTS SUMMARY ................................................................................................................................... 7 MEASUREMENT UNCERTAINTIES .................................................................................................................... 7 EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 8 GENERAL ................................................................................................................................................................ 8 ANTENNA SYSTEM .............................................................................................................................................. 8 ENCLOSURE ........................................................................................................................................................... 8 MODIFICATIONS ................................................................................................................................................... 8 SUPPORT EQUIPMENT ......................................................................................................................................... 8 EUT INTERFACE PORTS ...................................................................................................................................... 8 EUT OPERATION ................................................................................................................................................... 8 TEST SITE ................................................................................................................................................................... 9 GENERAL INFORMATION ................................................................................................................................... 9 RADIATED EMISSIONS CONSIDERATIONS .................................................................................................... 9 MEASUREMENT INSTRUMENTATION ............................................................................................................ 10 RECEIVER SYSTEM ..................................................…

Text truncated - open the document above for the full version.

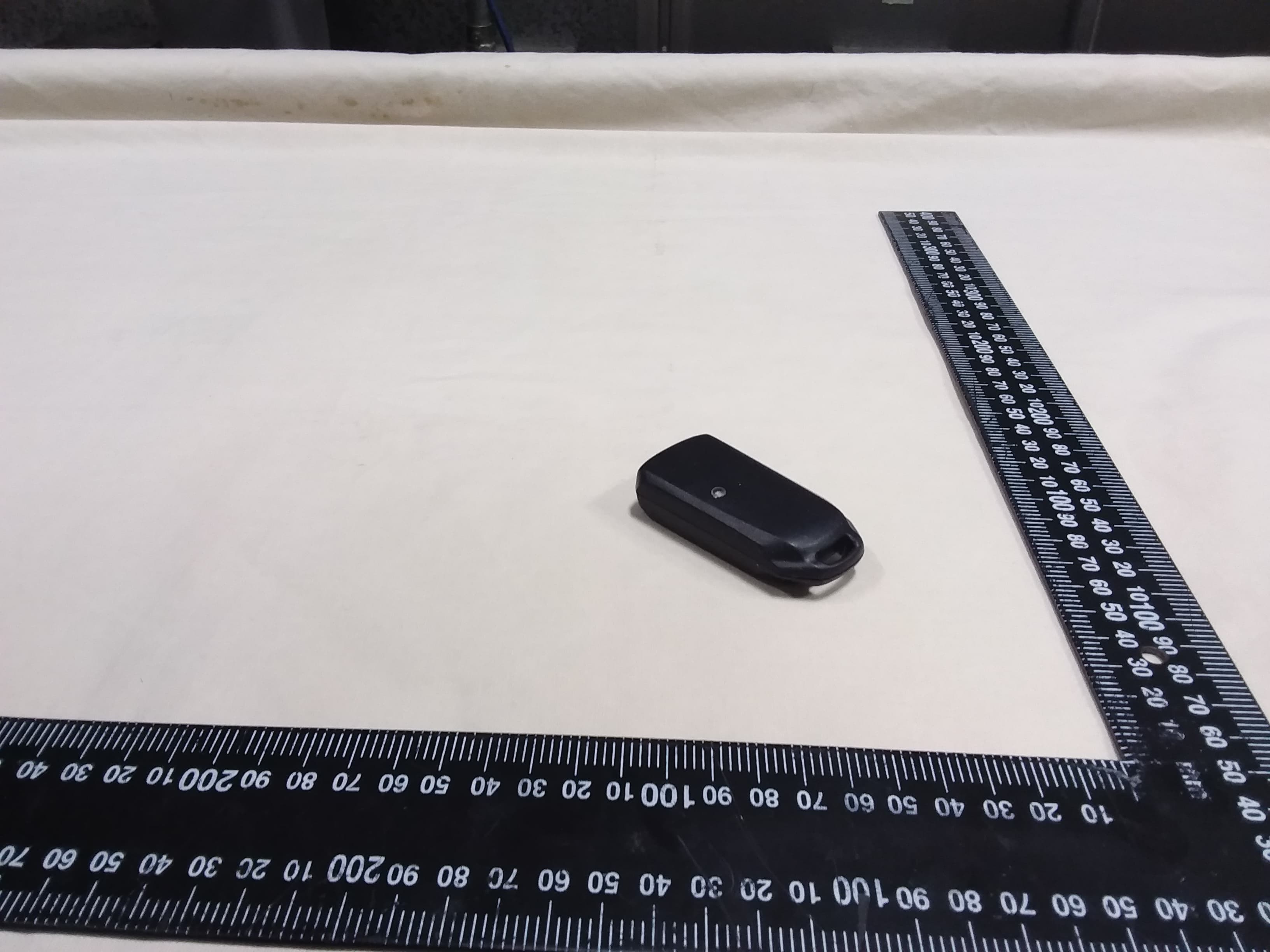

Radiated Emissions Test Configuration Photographs
