2AVRJSTABIL1electronic tag

To: Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Regarding: Confidentiality Request regarding application for FCC ID: 2AVRJSTABIL1 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby requests confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential 180 days from the grant date, whichever is less. If the device is marketed within aforementioned days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: MAARTEN ARITS Title: CTO Signature: On behalf of Company: Viloc nv Telephone: +32 3 297 19 43 E-mail: [email protected] Signature: Email: Signature: Email: Maarten Arits (Mar 9, 2020) Maarten Arits [email protected] Tim Gestels (Mar 9, 2020) [email protected]

Date: 2019/12/14 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2AVRJSTABIL1 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Jing Song in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Viloc nv This authorization is valid until further written notice from the applicant. Print Name: MAARTEN ARITS Title: CTO Signature: On behalf of Company: Viloc nv Telephone: +32 3 297 19 43 E-mail: [email protected] Signature: Email: Signature: Email: Maarten Arits (Mar 3, 2020) Maarten Arits [email protected] Tim Gestels (Mar 3, 2020) [email protected]

We, Viloc nv, declare that this EUT (FCC ID: 2AVRJSTABIL1) is only receiving 2.4G Wifi and NOT transmitting. Should you have any questions or comments regarding this matter, Please have my best attention. Print Name: MAARTEN ARITS Title: CTO Signature: On behalf of Company: Viloc nv Telephone: +32 3 297 19 43 E-mail: [email protected] Signature: Email: Signature: Email: maarten arits (Mar 9, 2020) maarten arits [email protected] Tim Gestels (Mar 9, 2020) [email protected]

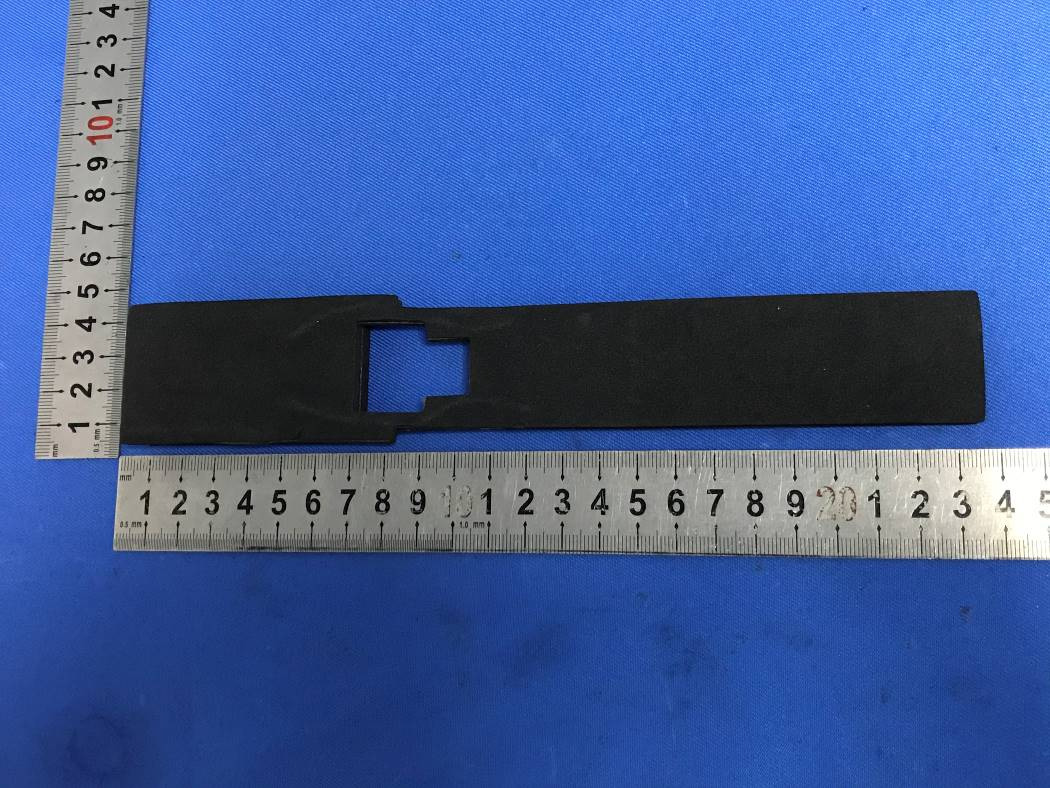

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 External Photos for SZEM1912021042CR FCC ID: 2AVRJSTABIL1 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4

Label Size 24mm W*26mm H

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM191202104204 Page: 1 of 7 Keny Xu EMC Laboratory Manager 1 Cover page RF Exposure Evaluation Report Application No.: SZEM1912021042CR Applicant: Viloc nv Address of Applicant: Posthofbrug 6-8 5/106 2600 Berchem, Belgium Manufacturer: Viloc nv Address of Manufacturer: Posthofbrug 6-8 5/106 2600 Berchem, Belgium Equipment Under Test (EUT): Product Name: electronic tag Model No.: STABIL1 Trade mark: Viloc FCC ID: 2AVRJSTABIL1 Standards: 47 CFR Part 1.1307 47 CFR Part 1.1310 47 CFR Part 2.1091 Date of Receipt: 2019-12-10 Date of Test: 2019-12-13 to 2019-12-16 Date of Issue: 2019-12-16 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd Shenzhen Branch. Report No.: SZEM191202104204 Page: 2 of 7 2 Version Revision Record Version Chapter Date Modifier Remark 01 2019-12-16 Original Authorized for issue by: Peter Geng /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd Shenzhen Branch. Report No.: SZEM191202104204 Page: 3 of 7 3 Contents Page 1 COVER PAGE ........................................................................................................................................ 1 2 VERSION ................................................................................................................................................ 2 3 CONTENTS ............................................................................................................................................ 3 4 GENERAL INFORMATION ..................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF EUT ............................................................................................................. 4 4.2 TEST LOCATION .................................................................................................................................... 5 4.3 TEST FACILITY....................................................................................................................................... 5 4.4 DEVIATION FROM STANDARDS ................................................................................................................. 5 4.5 ABNORMALITIES FROM STANDARD CONDITIONS......................................................................................... 5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER .............................................................................. 5 5 RF EXPOSURE EVALUATION ............................................................................................................... 6 5.1 RF EXPOSURE COMPLIANCE REQUIREMENT ............................................................................................. 6 5.1.1 Limits .......................................................................................................................................... 6 5.1.2 Test Procedure ........................................................................................................................... 6 5.1.3 4.1.3 EUT RF Exposure Evaluation ............................................................................................ 7 SGS-CSTC Standards Technical Services Co., Ltd Shenzhen Branch. Report No.: SZEM191202104204 Page: 4 of 7 4 General Information 4.1 General Description of EUT Power Supply: DC 3V by battery Antenna Gain: 0dBi Antenna Type: Monopole Modulation type: FSK For LoRa narrow band Channel Spacing: 0.492MHz Number of Channels: 51 Operation Frequency: 902.5 MHz-927.5MHz For LoRa wide band Operation Frequency: 903-927MHz For 2.4G Self-deifine Channel Spacing: 2 MHz Number of Channels: 40 Operation Frequency: 2402MHz to 2480MHz SGS-CSTC Standards Technical Services Co., Ltd Shenzhen Branch. Report No.: SZEM191202104204 Page: 5 of 7 4.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 No tests were sub-contracted. 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm Registration Number: 406779. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0006. IC#: 4620C.. 4.4 Deviation from Standards None. 4.5 Abnormalities from Standard Conditions None. 4.6 Other Information Requested by the Customer None. SGS-CSTC Standards Technical Services Co., Ltd Shenzhen Branch. Report No.: SZEM191202104204 Page: 6 of 7 5 RF Exposure Evaluation 5.1 RF Exposure Compliance Requirement 5.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Fre…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM191202104203 Page: 1 of 37 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM1912021042CR Applicant: Viloc nv Address of Applicant: Posthofbrug 6-8 5/106 2600 Berchem, Belgium Manufacturer: Viloc nv Address of Manufacturer: Posthofbrug 6-8 5/106 2600 Berchem, Belgium Equipment Under Test (EUT): EUT Name: electronic tag Model No.: STABIL1 Trade mark: Viloc FCC ID: 2AVRJSTABIL1 Standard(s) : 47 CFR Part 15, Subpart C 15.249 Date of Receipt: 2019-12-10 Date of Test: 2019-12-13 to 2019-12-16 Date of Issue: 2019-12-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM191202104203 Page: 2 of 37 Revision Record Version Chapter Date Modifier Remark 01 2019-12-16 Original Authorized for issue by: Peter Geng /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM191202104203 Page: 3 of 37 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.249 N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.249 ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.215 Pass Field Strength of the Fundamental Signal (15.249(a)) 47 CFR Part 15, Subpart C 15.249 ANSI C63.10 (2013) Section 6.5&6.6 47 CFR Part 15, Subpart C 15.249(a) Pass Restricted Band Around Fundamental Frequency 47 CFR Part 15, Subpart C 15.249 ANSI C63.10 (2013) Section 6.4&6.5&6.6 47 CFR Part 15, Subpart C 15.205 & 15.249(d) & 15.209 Pass Radiated Emissions 47 CFR Part 15, Subpart C 15.249 ANSI C63.10 (2013) Section 6.4&6.5&6.6 47 CFR Part 15, Subpart C 15.209 & 15.249 (a),(d) Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM191202104203 Page: 4 of 37 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 5 4.1 DETAILS OF E.U.T. ............................................................................................................................... 5 4.2 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 5 4.3 MEASUREMENT UNCERTAINTY .............................................................................................................. 5 4.4 TEST LOCATION .................................................................................................................................... 6 4.5 TEST FACILITY ...................................................................................................................................... 6 4.6 DEVIATION FROM STANDARDS ............................................................................................................... 6 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 6 5 EQUIPMENT LIST ...................................................................................................................................... 7 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ................................................................................. 9 6.1 ANTENNA REQUIREMENT ...................................................................................................................... 9 6.1.1 Test Requirement: ......................................................................................................................... 9 6.1.2 Conclusion ..................................................................................................................................... 9 7 RADIO SPECTRUM MATTER TEST RESULTS ..................................................................................... 10 7.1 20DB BANDWIDTH .............................................................................................................................. 10 7.1.1 E.U.T. Operation .......................................................................................................................... 10 7.1.2 Test Setup Diagram ..................................................................................................................... 10 7.1.3 Measurement Procedure and Data............................................................................................. 10 7.2 FIELD STRENGTH OF THE FUNDAMENTAL SIGNAL (15.249(A)) ............................................................... 13 7.2.1 E.U.T. Operation .......................................................................................................................... 14 7.2.2 Test Setup Diagram ..................................................................................................................... 14 7.2.3 Measurement Procedure and Data............................................................................................. 14 7.3 RESTRICTED BAND AROUND FUNDAMENTAL FREQUENCY ..................................................................... 21 7.3.1 E.U.T. Operation .......................................................................................................................... 22 7.3.2 Test Setup Diagram ..........................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 2 Setup Photos for SZEM1912021042CR FCC ID: 2AVRJSTABIL1 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 2 1 Photographs 1.1 Radiated Spurious Emissions Test Setup 1.2 Radiated Spurious Emissions Test Setup
