2AVRLS10WTablet

User’s Manual Android Tablet LRN10WINA-ETLT2 series Getting Started Guide Installation of Learning Pad 1. Remove touch screen from its packaging. 2. Feed the AC power cable and connect to the power port on the back of touch screen. 3. Positioning Learning Pad firmly on the desk. 4. Power on the Learning Pad. 5. After few seconds, the installation Welcome message in display on the touch screen. 6. Exploration start. Battery Installation Warning : Replacing of battery is only available through your service provider. If your battery needs to be replaced, contact your service provider to arrange for replacement. Camera Installation 2 cameras are equipped on the top and bottom edge of the touch screen. Speaker Installation A build in speaker is designed onto the bottom edge of learning pad. The volumn is adjustable by a purple volumn key designed on the left of learning pad. FCC Regulatory This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ******************************************** Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. ******************************************** This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Responsible party Info: Company: Tangible Play Inc Address: 195 Page Mill Road, Ste 105, Palo Alto , CA, 94306 United States. Contact Tel: 650-720-5551 Email address/Website: [email protected]

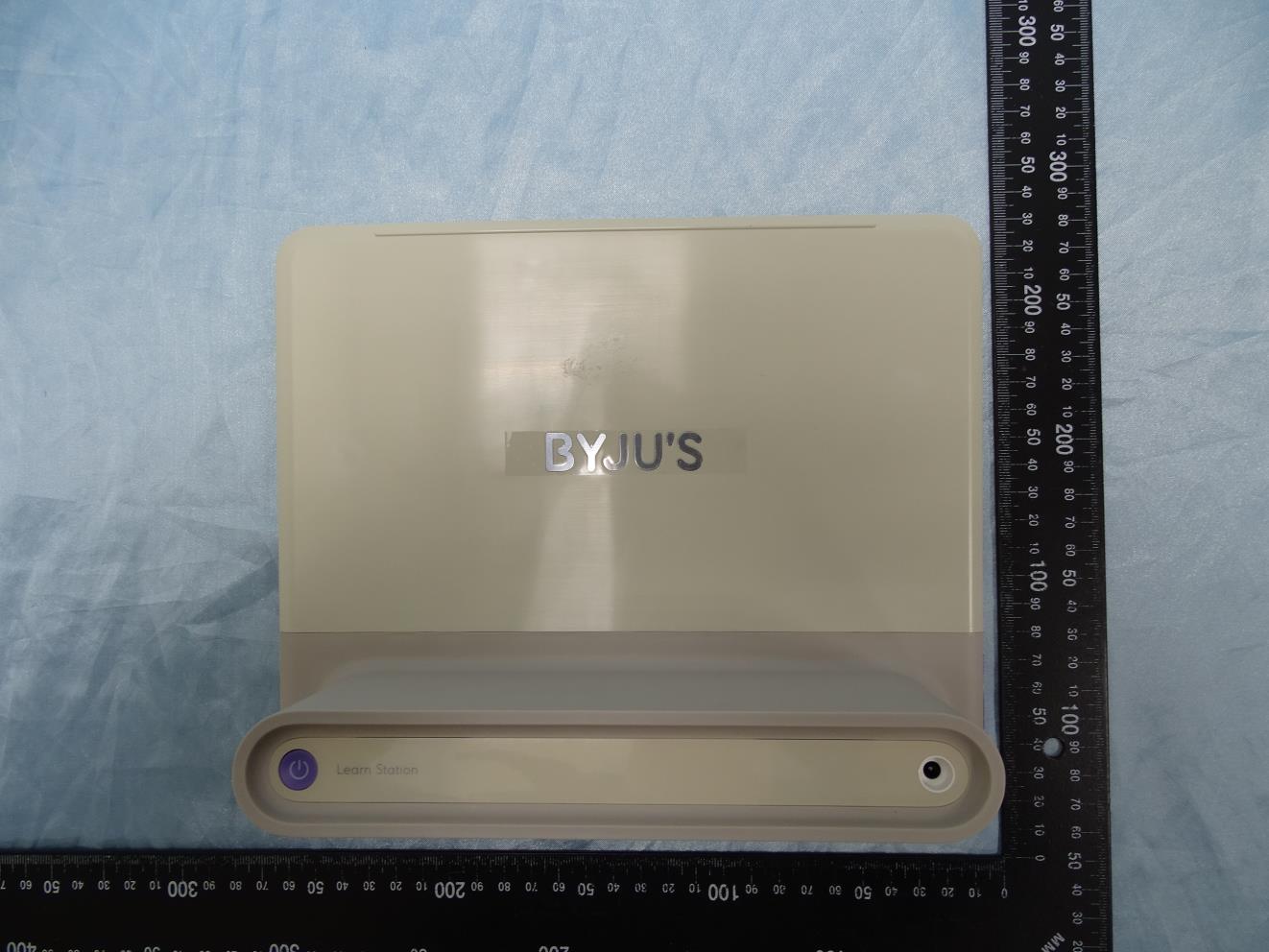

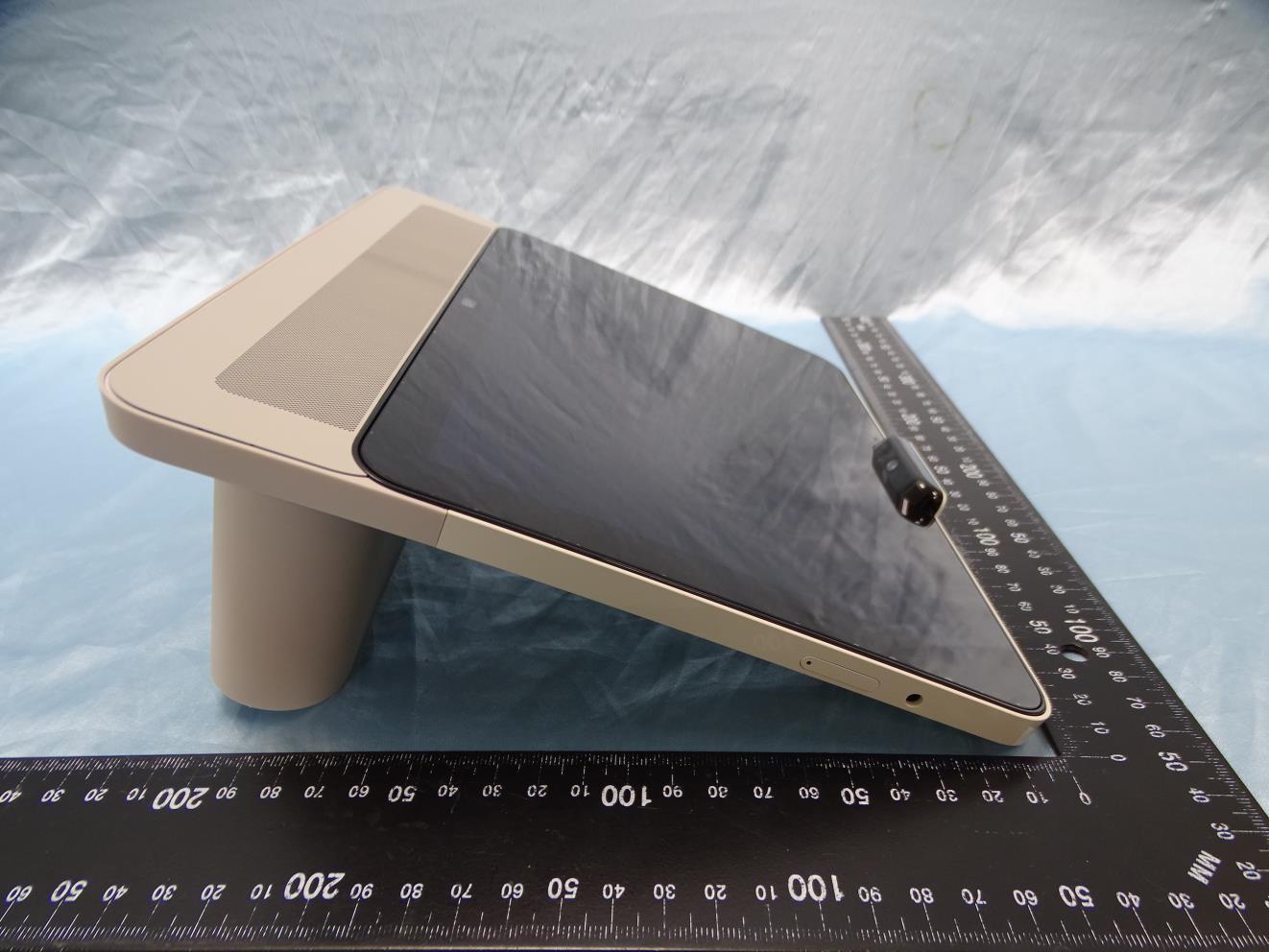

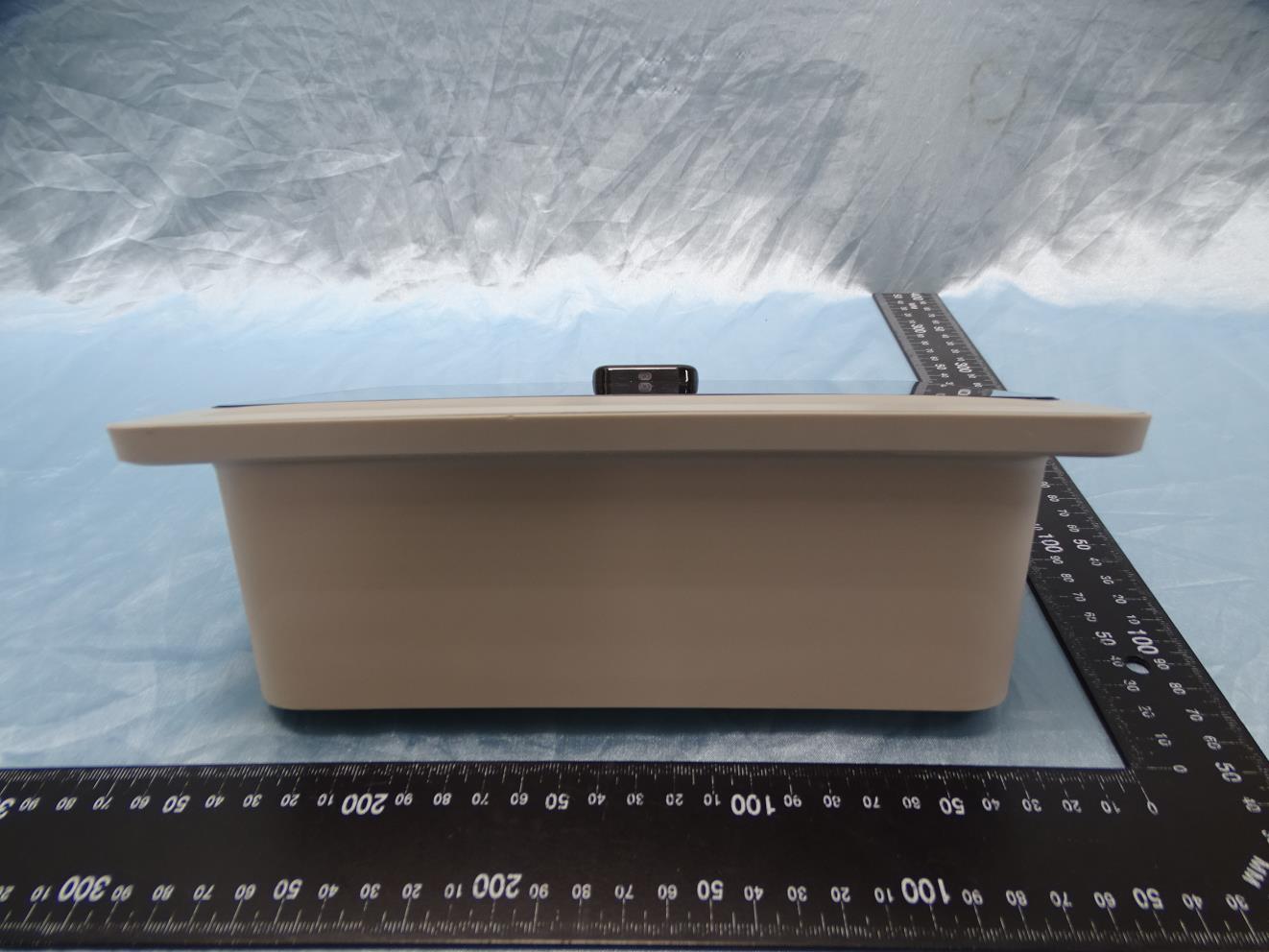

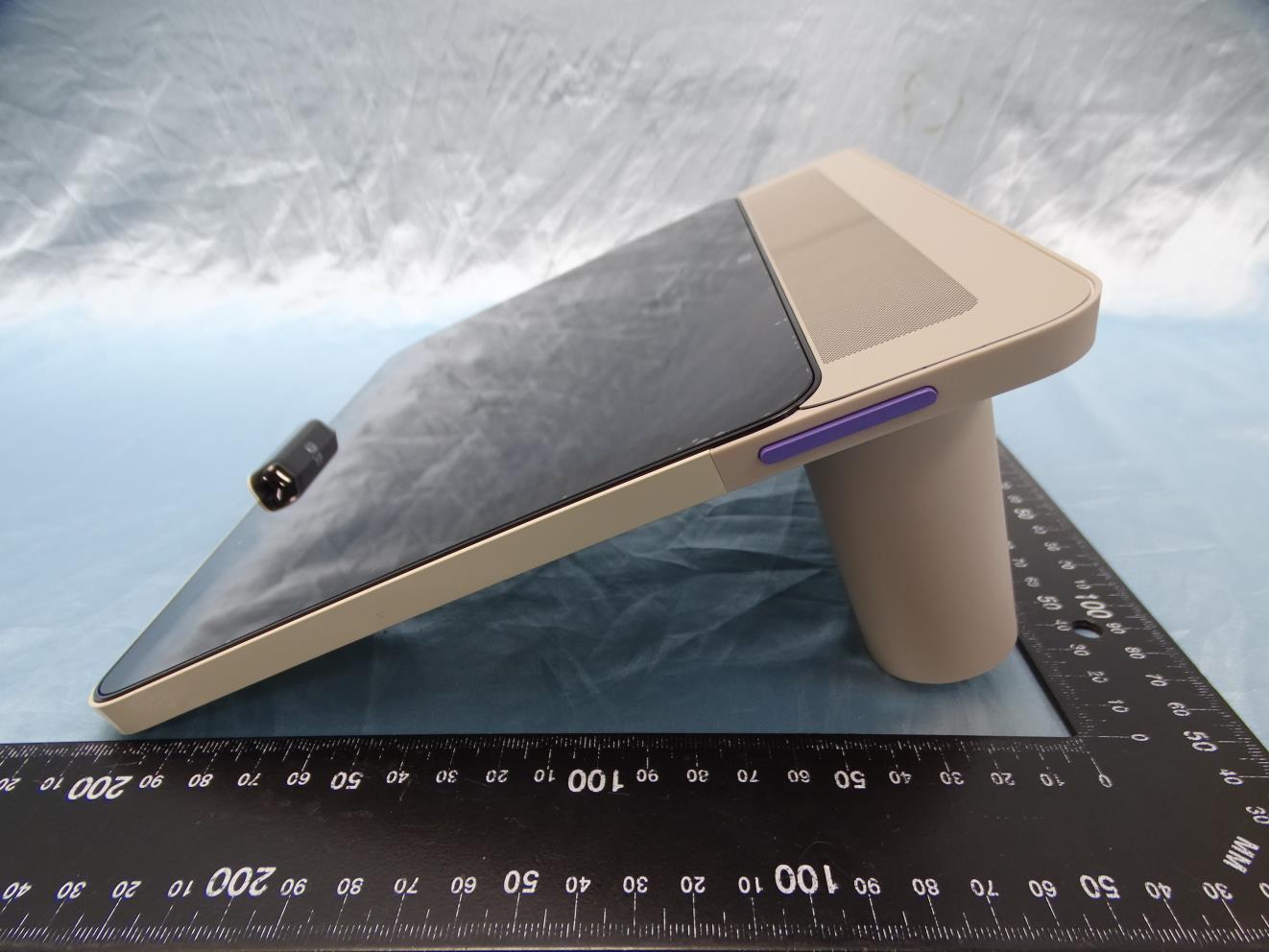

PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 1 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 Feature of Equipment Under Test Brand Name BYJU'S Model Name "LRN10WINA-ETLT2" (EVTLot2 device) "LRN10WINA" (Tf Device) "LRNS10WIW0" (Pilot+MP Device), India SKU, White "LRNS10WIW1" reserved for future supplier iterations, India SKU, White "LRNS10WIW2" reserved for future supplier iterations, India SKU, White "LRNS10WIW3" reserved for future supplier iterations, India SKU, White "LRNS10WIW4" reserved for future supplier iterations, India SKU, White "LRNS10WIW5" reserved for future supplier iterations, India SKU, White "LRNS10WIW6" reserved for future supplier iterations, India SKU, White "LRNS10WIW7" reserved for future supplier iterations, India SKU, White "LRNS10WIW8" reserved for future supplier iterations, India SKU, White "LRNS10WIW9" reserved for future supplier iterations, India SKU, White "LRNS10GIW0" reserved for future supplier iterations, India SKU, Grey "LRNS10GIW1" reserved for future supplier iterations, India SKU, Grey "LRNS10GIW2" reserved for future supplier iterations, India SKU, Grey "LRNS10GIW3" reserved for future supplier iterations, India SKU, Grey "LRNS10GIW4" reserved for future supplier iterations, India SKU, Grey "LRNS10GIW5" reserved for future supplier iterations, India SKU, Grey "LRNS10GIW6" reserved for future supplier iterations, India SKU, Grey "LRNS10GIW7" reserved for future supplier iterations, India SKU, Grey "LRNS10GIW8" reserved for future supplier iterations, India SKU, Grey "LRNS10GIW9" reserved for future supplier iterations, India SKU, Grey "LRNS10RIW0" reserved for future supplier iterations, India SKU, Red "LRNS10RIW1" reserved for future supplier iterations, India SKU, Red "LRNS10RIW2" reserved for future supplier iterations, India SKU, Red "LRNS10RIW3" reserved for future supplier iterations, India SKU, Red "LRNS10RIW4" reserved for future supplier iterations, India SKU, Red "LRNS10RIW5" reserved for future supplier iterations, India SKU, Red "LRNS10RIW6" reserved for future supplier iterations, India SKU, Red "LRNS10RIW7" reserved for future supplier iterations, India SKU, Red "LRNS10RIW8" reserved for future supplier iterations, India SKU, Red "LRNS10RIW9" reserved for future supplier iterations, India SKU, Red 1. Feature of Equipment Under Test PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 2 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 Feature of Equipment Under Test Model Name "LRNS10WUW0" reserved for future supplier iterations, US SKU, White "LRNS10WUW1" reserved for future supplier iterations, US SKU, White "LRNS10WUW2" reserved for future supplier iterations, US SKU, White "LRNS10WUW3" reserved for future supplier iterations, US SKU, White "LRNS10WUW4" reserved for future supplier iterations, US SKU, White "LRNS10WUW5" reserved for future supplier iterations, US SKU, White "LRNS10WUW6" reserved for future supplier iterations, US SKU, White "LRNS10WUW7" reserved for future supplier iterations, US SKU, White "LRNS10WUW8" reserved for future supplier iterations, US SKU, White "LRNS10WUW9" reserved for future supplier iterations, US SKU, White "LRNS10GUW0" reserved for future supplier iterations, US SKU, Grey "LRNS10GUW1" reserved for future supplier iterations, US SKU, Grey "LRNS10GUW2" reserved for future supplier iterations, US SKU, Grey "LRNS10GUW3" reserved for future supplier iterations, US SKU, Grey "LRNS10GUW4" reserved for future supplier iterations, US SKU, Grey "LRNS10GUW5" reserved for future supplier iterations, US SKU, Grey "LRNS10GUW6" reserved for future supplier iterations, US SKU, Grey "LRNS10GUW7" reserved for future supplier iterations, US SKU, Grey "LRNS10GUW8" reserved for future supplier iterations, US SKU, Grey "LRNS10GUW9" reserved for future supplier iterations, US SKU, Grey "LRNS10RUW0" reserved for future supplier iterations, US SKU, Red "LRNS10RUW1" reserved for future supplier iterations, US SKU, Red "LRNS10RUW2" reserved for future supplier iterations, US SKU, Red "LRNS10RUW3" reserved for future supplier iterations, US SKU, Red "LRNS10RUW4" reserved for future supplier iterations, US SKU, Red "LRNS10RUW5" reserved for future supplier iterations, US SKU, Red "LRNS10RUW6" reserved for future supplier iterations, US SKU, Red "LRNS10RUW7" reserved for future supplier iterations, US SKU, Red "LRNS10RUW8" reserved for future supplier iterations, US SKU, Red "LRNS10RUW9" reserved for future supplier iterations, US SKU, Red Remark: There have several color case for EUT, and the test result is not affected thus all of those are identical on electrically by manufacturer. PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 3 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 2. External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 4 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 5 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 6 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 7 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 8 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 9 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 Specification of Accessory AC Adapter Brand Name BYJU'S Model Name DSA-10PF09-05 Remark: For accessories equipped with this EUT, please refer to the following ph…

Text truncated - open the document above for the full version.

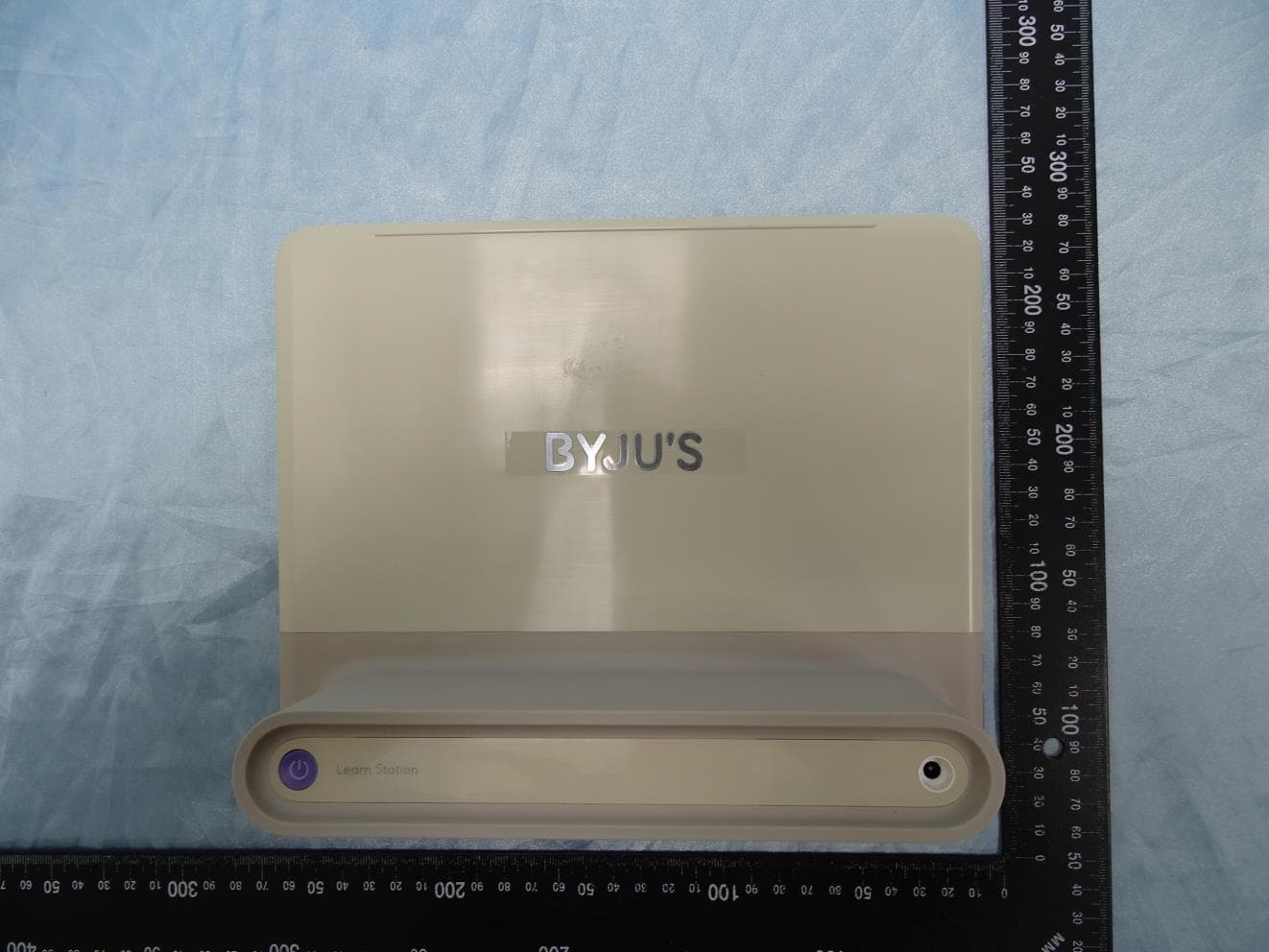

Label Location FCC ID: 2AVRLS10W Rear side of EUT FCC Label

PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 12 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 720510 4. Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 13 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 14 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 15 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 16 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 17 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 18 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 19 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 20 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 21 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 22 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 23 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 24 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 25 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 26 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 27 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 28 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 29 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 30 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 31 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 32 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 33 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 34 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 35 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 36 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 37 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 38 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 39 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 40 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 41 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 42 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 43 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 WLAN & Bluetooth Antenna PHOTOGRAPHS OF EUT Report No.: EP9D1202 TEL : 886-3-327-3456 Page Number : 44 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2020 Report Version : 01 ─────THE END──── GPS Antenna

TEL : 886-3-327-3456 Page 1 of 30 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Template version: 200217 FCC SAR TEST REPORT Report No. : FA9D1202 FCC SAR TEST REPORT FCC ID : 2AVRLS10W Equipment : Tablet Brand Name : BYJU'S Model Name : Please refer to section 3.1 of this test report Applicant : Tangible Play Inc. 195 Page Mill Rd, Ste 105, Palo Alto, CA 94306 United States Manufacturer : Tangible Play Inc. 195 Page Mill Rd, Ste 105, Palo Alto, CA 94306 United States Standard : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Feb. 05, 2020 and testing was started from Feb. 17, 2020 and completed on Mar. 03, 2020. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 30 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Template version: 200217 FCC SAR TEST REPORT Report No. : FA9D1202 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 4. RF Exposure Limits....................................................................................................................................................... 7 4.1 Uncontrolled Environment ...................................................................................................................................... 7 4.2 Controlled Environment .......................................................................................................................................... 7 5. Specific Absorption Rate (SAR) ................................................................................................................................... 8 5.1 Introduction ............................................................................................................................................................ 8 5.2 SAR Definition ........................................................................................................................................................ 8 6. System Description and Setup .................................................................................................................................... 9 6.1 E-Field Probe ........................................................................................................................................................10 6.2 Data Acquisition Electronics (DAE) .......................................................................................................................10 6.3 Phantom ................................................................................................................................................................ 11 6.4 Device Holder........................................................................................................................................................12 7. Measurement Procedures ...........................................................................................................................................13 7.1 Spatial Peak SAR Evaluation ................................................................................................................................13 7.2 Power Reference Measurement............................................................................................................................14 7.3 Area Scan .............................................................................................................................................................14 7.4 Zoom Scan ............................................................................................................................................................15 7.5 Volume Scan Procedures ......................................................................................................................................15 7.6 Power Drift Monitoring ...........................................................................................................................................15 8. Test Equipment List .....................................................................................................................................................16 9. System Verification ......................................................................................................................................................17 9.1 Tissue Simulating Liquids ......................................................................................................................................17 9.2 Tissue Verification .................................................................................................................................................18 9.3 System Performance Check Results ......................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/2/17 System Check_Head_2450MHz DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_200217 Medium parameters used: f = 2450 MHz; σ = 1.782 S/m; ε r = 38.615; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(7.48, 7.48, 7.48) ;Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2019/9/17 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7373) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 25.6 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 116.6 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 28.9 W/kg SAR(1 g) = 13.8 W/kg; SAR(10 g) = 6.35 W/kg Maximum value of SAR (measured) = 23.1 W/kg 0 dB = 23.1 W/kg = 13.64 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/2/26 System Check_Head_2450MHz DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_200226 Medium parameters used : f = 2450 MHz; σ = 1.803 S/m; ε r = 38.577; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(7.48, 7.48, 7.48) ;Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2019/9/17 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7373) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 25.9 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 116.6 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 29.3 W/kg SAR(1 g) = 14 W/kg; SAR(10 g) = 6.42 W/kg Maximum value of SAR (measured) = 23.4 W/kg 0 dB = 23.4 W/kg = 13.69 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/3 System Check_Head_5250MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5G_200303 Medium parameters used : f = 5250 MHz; σ = 4.578 S/m; ε r = 36.293; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(5.34, 5.34, 5.34) ;Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2019/9/17 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.3 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 71.82 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 30.5 W/kg SAR(1 g) = 7.67 W/kg; SAR(10 g) = 2.22 W/kg Maximum value of SAR (measured) = 19.1 W/kg 0 dB = 19.1 W/kg = 12.81 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/3 System Check_Head_5600MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: HSL_5G_200303 Medium parameters used: f = 5600 MHz; σ = 4.909 S/m; ε r = 35.833; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(4.79, 4.79, 4.79) ;Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2019/9/17 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 23.3 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 69.98 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 37.1 W/kg SAR(1 g) = 8.5 W/kg; SAR(10 g) = 2.4 W/kg Maximum value of SAR (measured) = 22.1 W/kg 0 dB = 22.1 W/kg = 13.44 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/3 System Check_Head_5750MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: HSL_5G_200303 Medium parameters used: f = 5750 MHz; σ = 5.069 S/m; ε r = 35.601; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(4.93, 4.93, 4.93) ;Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2019/9/17 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 18.5 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 69.00 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 33.3 W/kg SAR(1 g) = 7.63 W/kg; SAR(10 g) = 2.19 W/kg Maximum value of SAR (measured) = 19.8 W/kg 0 dB = 19.8 W/kg = 12.97 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/2/26 #01_WLAN2.4GHz_802.11b 1Mbps_Back_0mm_Ch6 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_200226 Medium parameters used : f = 2437 MHz; σ = 1.798 S/m; ε r = 38.645; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(7.48, 7.48, 7.48) ;Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2019/9/17 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7373) Area Scan (61x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.36 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.29 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 0.796 W/kg; SAR(10 g) = 0.395 W/kg Maximum value of SAR (measured) = 1.31 W/kg 0 dB = 1.31 W/kg = 1.17 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/3 #02_WLAN5GHz_802.11n-HT40 MCS0_Edge 1_0mm_Ch62 Communication System: 802.11n; Frequency: 5310 MHz;Duty Cycle: 1:1.066 Medium: HSL_5G_200303 Medium parameters used: f = 5310 MHz; σ = 4.631 S/m; ε r = 36.22; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(5.34, 5.34, 5.34) ;Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2019/9/17 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (81x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.36 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 9.811 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 4.54 W/kg SAR(1 g) = 0.938 W/kg; SAR(10 g) = 0.281 W/kg Maximum value of SAR (measured) = 2.62 W/kg 0 dB = 2.62 W/kg = 4.18 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/3 #03_WLAN5GHz_802.11n-HT40 MCS0_Edge 1_0mm_Ch102 Communication System: 802.11n; Frequency: 5510 MHz;Duty Cycle: 1:1.066 Medium: HSL_5G_200303 Medium parameters used: f = 5510 MHz; σ = 4.82 S/m; ε r = 35.938; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(4.79, 4.79, 4.79) ;Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2019/9/17 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (81x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.32 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 10.45 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 4.70 W/kg SAR(1 g) = 0.994 W/kg; SAR(10 g) = 0.297 W/kg Maximum value of SAR (measured) = 2.81 W/kg 0 dB = 2.81 W/kg = 4.49 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/3 #04_WLAN5GHz_802.11a 6Mbps_Edge 1_0mm_Ch165 Communication System: 802.11a; Frequency: 5825 MHz;Duty Cycle: 1:1.032 Medium: HSL_5G_200303 Medium parameters used : f = 5825 MHz; σ = 5.14 S/m; ε r = 35.511; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(4.93, 4.93, 4.93) ;Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2019/9/17 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (81x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.34 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 10.45 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 4.38 W/kg SAR(1 g) = 0.932 W/kg; SAR(10 g) = 0.273 W/kg Maximum value of SAR (measured) = 2.50 W/kg 0 dB = 2.50 W/kg = 3.98 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/2/17 #05_Bluetooth_1Mbps_Back_0mm_Ch39 Communication System: Bluetooth; Frequency: 2441 MHz;Duty Cycle: 1:1.3 Medium: HSL_2450_200217 Medium parameters used : f = 2441 MHz; σ = 1.8 S/m; ε r = 38.64; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(7.48, 7.48, 7.48) ;Calibrated: 2019…

Text truncated - open the document above for the full version.
