Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
I/O Mouse Housi ng Shell Product Dimensi ons
FFF SMART LIFE CONNECTED Corporation Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020-03-18 SUBJECT: FCC Application for FCC ID: 2AVS5-FWTVPCM1 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at EMTEK (SHENZHEN) CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EMTEK (SHENZHEN) CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, MARUYAMA TAKAOMI FFF SMART LIFE CONNECTED Corporation
FFF SMART LIFE CONNECTED Corporation Date: 2020-03-18 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AVS5-FWTVPCM1 To Whom It May Concern: This letter is to ascertain that FFF SMART LIFE CONNECTED Corporation EUT:MINI PC MODEL No.: MAL-FWTVPCM1 Has been the units used for conducting FCC compliance testing, the SDoC part will be tested by EMTEK (SHENZHEN) CO., LTD. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature : Client’s name / title : MARUYAMA TAKAOMI Contact information / address: FFF SMART LIFE CONNECTED Corporation /46-6-21,Kami- soyagi, Yamato-shi, Kanagawa-ken, 242-0029 , JAPAN
Rev 11/20/07 FFF SMART LIFE CONNECTED Corporation Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AVS5-FWTVPCM1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Block Diagram Operation Description schematic diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, MARUYAMA TAKAOMI FFF SMART LIFE CONNECTED Corporation

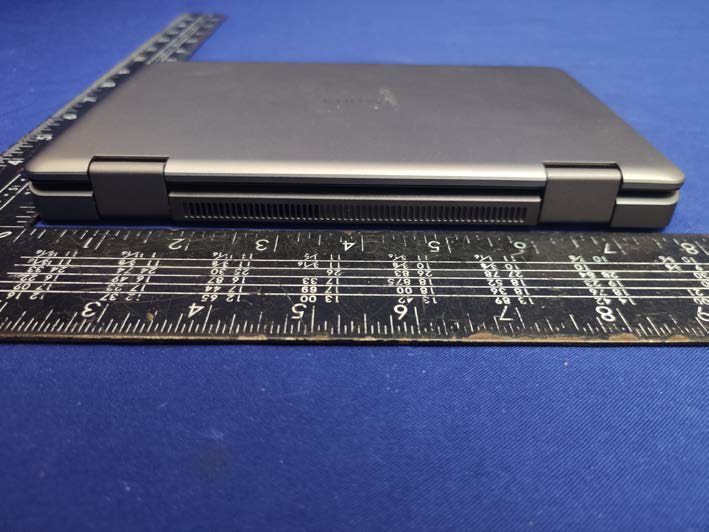

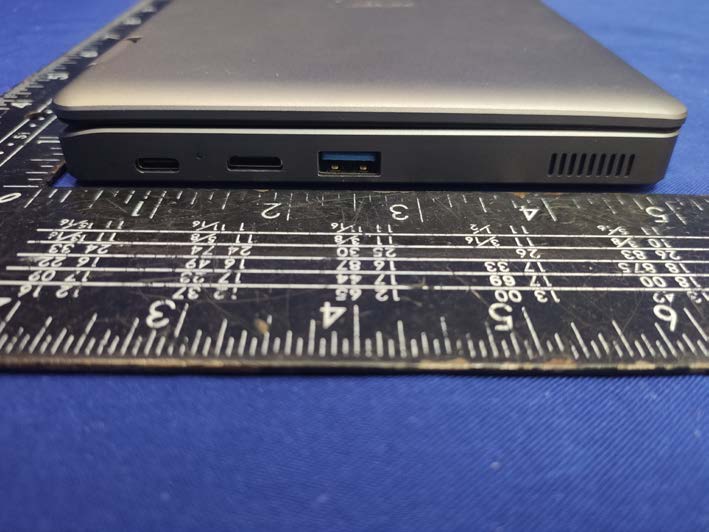

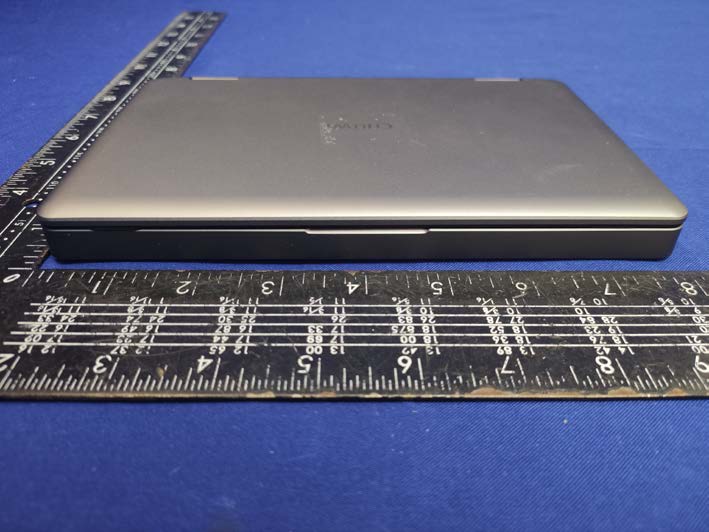

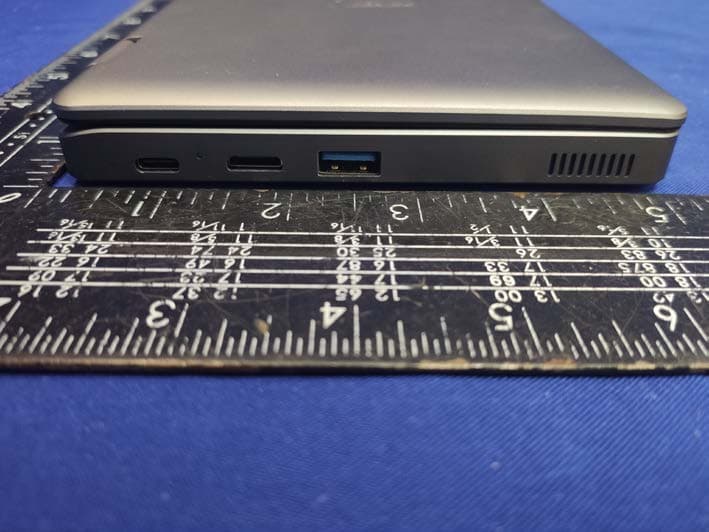

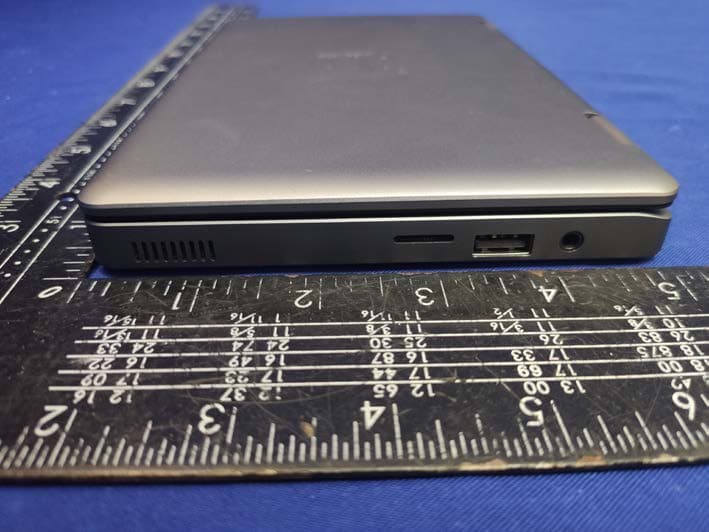

TRF NO. MIC Page 1 of 4 Report No.: ES200110031W Ver.1.0 EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 TRF NO. MIC Page 2 of 4 Report No.: ES200110031W Ver.1.0 EUT View 3 EUT View 4 TRF NO. MIC Page 3 of 4 Report No.: ES200110031W Ver.1.0 EUT View 5 EUT View 6 TRF NO. MIC Page 4 of 4 Report No.: ES200110031W Ver.1.0 EUT View 7 EUT View 8 ----------------The end----------------
Label and label location
TRF NO. MIC Page 1 of 7 Report No.: ES200110031W Ver.1.0 EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 TRF NO. MIC Page 2 of 7 Report No.: ES200110031W Ver.1.0 EUT Housing and Board View 3 EUT Housing and Board View 4 TRF NO. MIC Page 3 of 7 Report No.: ES200110031W Ver.1.0 EUT Housing and Board View 5 Solder Board-Component View 1 TRF NO. MIC Page 4 of 7 Report No.: ES200110031W Ver.1.0 Solder Board-Component View 2 Solder Board-Component View 3 TRF NO. MIC Page 5 of 7 Report No.: ES200110031W Ver.1.0 Solder Board-Component View 4 Solder Board-Component View 5 TRF NO. MIC Page 6 of 7 Report No.: ES200110031W Ver.1.0 Solder Board-Component View 6 Battery TRF NO. MIC Page 7 of 7 Report No.: ES200110031W Ver.1.0 Adapter Antenna ----------------The end---------------- WIFI Ant 1. WIFI Ant 2.
FCC SAR Test Report Report No.ES200224030W05 Page 1 of 38 Ver.1.0 FCC SAR Test Report Report No. : ES2002242030W05 Applicant : FFF SMART LIFE CONNECTED Corporation Address : 46-6-21,Kami-soyagi, Yamato-shi, Kanagawa-ken,242-0029 , JAPAN Product : MINI PC FCC ID : 2AVS5-FWTVPCM1 Brand : FFF SMART LIFE CONNECTED Corporation Model No. : MAL-FWTVPCM1 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2013 KDB 865664 D01 v01r04 / KDB 865664 D02 v01r02 KDB 248227 D01 v02r02 / KDB 447498 D01 v06/ KDB 616217 D04 v01r02 Sample Received Date : March 08, 2020 Date of Testing : March 14, 2020 ~ March 16, 2020 CERTIFICATION: The above equipment have been tested by EMTEK (SHENZHEN) CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by A2LA or any government agencies. Prepared by : Lance Li/Editor Reviewer : Joe Xia/Supervisor Approve & Authorized Signer : Lisa Wang/Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. $二维码$ FCC SAR Test Report Report No.ES200224030W05 Page 2 of 38 Ver.1.0 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 DC 12.0V ........................................................................................................................................................................................ 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of SpecificAbsorptionRate (SAR) ................................................................................................................. 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 7 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 VolumeScan Procedure.................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 …
Text truncated - open the document above for the full version.
Test Laboratory: Shenzhen EMTEK Co.,Ltd.Date: 2020/3/14 802.11b-Display Rear Face-ant0 DUT: NG08 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: B2450 Medium parameters used: f = 2412 MHz; σ = 1.968 S/m; ε r = 53.191; ρ = 1000 kg/m 3 Ambient Temperature:22.1 °C; Liquid Temperature:21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3970; ConvF(7.96, 7.96, 7.96); Calibrated: 2020/2/8; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1418; Calibrated: 2020/1/8 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1231 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Body Top Ant0/Area Scan (101x141x1): Interpolated grid: dx=2.000 mm, dy=2.000 mm Maximum value of SAR (interpolated) = 1.27 W/kg Body Top Ant0/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.931 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 4.87 W/kg SAR(1 g) = 1.28 W/kg; SAR(10 g) = 0.501 W/kg Maximum value of SAR (measured) = 1.73 W/kg Test Laboratory: Shenzhen EMTEK Co.,Ltd.Date: 2020/3/16 802.11a-Display Rear Face-ant0 DUT: NG08 Communication System: 802.11a; Frequency: 5180 MHz;Duty Cycle: 1:1 Medium: B5G Medium parameters used: f = 5180 MHz; σ = 5.117 S/m; ε r = 48.256; ρ = 1000 kg/m 3 Ambient Temperature:22.5 °C; Liquid Temperature:21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3970; ConvF(5.16, 5.16, 5.16); Calibrated: 2020/2/8; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1418; Calibrated: 2020/1/8 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1231 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Body Top Ant0/Area Scan (101x141x1): Interpolated grid: dx=2.000 mm, dy=2.000 mm Maximum value of SAR (interpolated) = 2.02 W/kg Body Top Ant0/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 12.8 W/kg SAR(1 g) = 1.32 W/kg; SAR(10 g) = 0.476 W/kg Maximum value of SAR (measured) = 1.65 W/kg
In Collab。rationwi伽 s a e a a CAUBRATI。NLABORA11。RY Add: No.51 Xueyuan Road, Haidian District, Beijing, I 00191, China Tel: +86-10-62304633-2512 Fax: +86-10-62304633-2504 E-mail: [email protected] Htto://www.china忧I.en Client : Emtek(Shenzhen) CALIBRATION CERTIFICATE 。同ect OAE4- SN: 1418 Calibration Procedure(s) FF-211-002-01 .... ~'"气::;f以.......-....... 中国认可 主兰毛主~A二汪国际互认 '!!'~二二:?电雹,'"'·〓‘3校准 气::--~怀:γ、』~CALIBRATION ”马川 Certificate N。:220-60042 Calibration Procedure for the Data Acquisition Electronics (DAEx) Calibration date: January 08, 2020 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements(SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature(22±3)°Cand humidity<70%. Calibration Equipment used (M&TE critical for calibration) Primary Standa「dsI ID# Cal Date(Calibrated by, Certificate No.) Scheduled Calibration Process Calibrator 753 I 1971018 24-Jun-19 (CTTL, No.J19X05126) Jun-20 Name Function 农二c Calibrated by: Yu Zongying SAR Test Engineer Reviewed by: Lin Hao SAR Test Engineer 哧夕皂 -一一 Approved by: Qi Dianyuan SAR Project Leader c::-?习/气~ Issued: January 10, 2020 This calibration certificate shall not be 「eproducedexcept in full without written approval of the laborato『y. Certificate N o: 220-60042 Page I of3 。ea a CALIBRATION LABORA11。RY Add: No.51 Xueyuan Road, Haidian District, Beij ing, 100191, China Tel: + 86- 10-62304633-2512 Fax: +86-10-62304633-2 504 E-mail: [email protected] Http://www.chinattl.cn Glossary: DAE Connector angle data acquisition electronics information used in DASY system to align probe sensor X to the robot coordinate system. Meth。dsApplied and lnterpretati。n。fParameters: • DC Voltage Measurement: Calibration Factor assessed for use in DASY system by comparison with a calibrated instrument traceable to national standards. The figure given corresponds to the full scale range of the voltmeter in the respective range. • Connector angle: The angle of the connector is assessed measuring the angle mechanically by a tool inserted. Uncertainty is not required. • The report provide only calibration results for DAE, it does not contain other performance test results. Certificate No: Z20-6004 2 Page 2 of3 In Collaborati。nWI由 s a e a a CALIBRATION LABORAl。RY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2512 Fax: +86-10-62304633-2504 E-mail: [email protected] Http://www.chinattl.cn DC v。ltageMeasurement AI D -Converter Resolution nominal High Range: 1 LSB = 6.1 μ V , full「ange= -100 ... +300 mV Low Range: 1LSB= 61nV, full range= -1 .. ..... +3mV DASY measurement parameter s: Auto Zero Time: 3 sec; Measu「ingtime: 3 sec Calibrati。nFactors x y z High Range 404.110 ± 0.15% (k=2) 404.644士0.15%(k=2) 404.328土0.15%(k=2) Low Range 3.99011 ± 0.7% (k=2) 4.00114 ± 0 . 7% (k=2) 3.97671土0.7%{k=2) c。nnectorAngle c。nnectorAngle to be used in DASY system I 153° ± 1。 Certificate No: 220-60042 Page 3 of 3 In臼Ifaborationwi由 叭叭飞:'J~,飞.......-...... 中国认可 止这乡鱼,,I.a飞国际互认 、·-----I{;..圃,-·’‘~ 到巳〉三气弓‘三/,J〓‘S校准 乞,刁芸":$# 、』~ CALIBRATION 仰叫,I,~,~,,,『._..,...CNAS L0570 soeaa CAUBRATI。NLABO陇阳。RY Add: No.SI Xueyuan Road, Haidian District, Beijing, 1001例,China Tel: +86-10-62304633-2512 Fax: +86-10-62304633-2504 E-mail: [email protected] Htto://www.chinattl.cn Client Emtek(Shenzhen) Certificate N。:220-60043 CALIBRATI。NCERTIFICAT 。同ect EX3DV4 - SN : 3970 Calibration Procedure(s) FF-211-004-01 Calibration Procedures for Dosimetric E-field Probes Calibration date: February 08, 2020 This calibration Ce『tificatedocuments the traceability to national standards, which realize the physical units of measurements(SI ). The measurements and the uncertainties with confidence probability are g iven on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature(22士3)°Cand humidity<70% . Calibration Equipment used (M&TE critical for calibration) Primary Standards ID# Cal Date(Calibrated by, Certificate No.) Power Meter NRP2 I 101919 18-Jun-19(CTTL, No.J19X05125) Power sensor NRP-Z91 I 101547 18-Jun-19(CTTL, No.J19X05125) Power sensor NRP-Z91 I 101548 18-Jun-19(CTTL, No .J19X05125) Reference 10dBA ttenuator I 18N50W-1 OdB 9-Feb- 18(CTTL, No.J 18X01133) Reference 20dBAttenuator Reference Probe EX 3DV4 DAE4 18N50W-20dB 9- Feb- 18(CTTL, No.J 18X01132) SN 7307 24-May-19(SPEA G, No. EX3-7307 _May19/2) 26-A ug-19(SPEAG, No. DAE4-1525 _Aug 19) Schedul ed Calib ration Jun-20 Jun-20 J un-20 Feb-20 Feb-20 May-20 Aug-20 SN 1525 Secondary Standards j ID# Cal Date(Calibrated by, Certificate No.) SignalGenerator MG3700A I 6201052605 18-Jun-19(CTTL, No.J 19X05127) Netwo『kAnalyzer N5239A I MY55491241 10-Jun-19(CTTL, No.J19X00547) n H - nv - - 1 · A ,,、 - 2 M - vt - 陆 - oo a - 呵 ’ 』呵, ι 、 J - -- r k - n H nH AU - HUHU e - , J , J | - uu - AU - e - hH - c - cu - Calibrated by: Yu Zongying Function SAR Test Engineer 令:~ 敲~-ti> d为4;ι一」/ Name Reviewed by: Lin Ha。SA R Test Engineer A pproved by: Qi Dianyuan SAR Project Leade「 Issued: February 10, 2020 This calibration certificate shall not be reproduced except in full w itho ut written approval of the la boratory. Certificate N o: Z20-60043 Page I of 11 In Colfaborationwith s o e a a CAUBRAll。NLABORATORY Add: No.SI Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2512 Fax: +86-10-62304633-2504 E-mail: cttl@china忧lcom H tto ://www. chinatt I .en Glossary: TSL NORMx,y,z ConvF tissue simulating liquid sensitivity in f「eespace sensitivity in TSL I NORMx, y,z diode comp「essionpoint DCP CF A ,8 ,C,D Polarizationφ p。larizati。ne crest factor (1/duty_cycle)。fthe RF signal modulation dependent linearization parameters φrotation around probe axis e rotati。naround an axis that is in the plane no…
Text truncated - open the document above for the full version.
FCC SAR Test Report Report No.ES200224030W05 Page 1 of 2 Ver.1.0 <Photographs of EUT> Laptop PC Mode FCC SAR Test Report Report No.ES200224030W05 Page 2 of 2 Ver.1.0 <Photographs of SAR Setup> Keyboard Rear Face 0 cm Gap Display Rear Face 0 cm Gap
Report No.ES200224030W04 Page 1 of 69 Ver.1.0 TEST REPORT Product Name : MINI PC Model Number : MAL-FWTVPCM1 FCC ID : 2AVS5-FWTVPCM1 Prepared for : FFF SMART LIFE CONNECTED Corporation Address : 46-6-21,Kami-soyagi, Yamato-shi, Kanagawa-ken, 242-0029 , JAPAN Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES200224030W04 Date(s) of Tests : March 03, 2020 to March 17, 2020 Date of issue : March 18, 2020 $二维码$ Report No.ES200224030W04 Page 2 of 69 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : FFF SMART LIFE CONNECTED Corporation Address: 46-6-21,Kami-soyagi, Yamato-shi, Kanagawa-ken, 242-0029 , JAPAN Manufacturer : Ilife Technology Co., Ltd Address: 4th/5th Floor, Bld6 and 3rd Floor, Bld3.Lijincheng Industrial Park.The East of Gongye Road. Longhua,.Shenzhen.China EUT : MINI PC Model Name : MAL-FWTVPCM1 Trademark : FFF SMART LIFE CONNECTED Corporation Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart E PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.407 The test results of this report relate only to the tested sample identified in this report. Date of Test : March 03, 2020 to March 17, 2020 Prepared by: Sewen Guo /Editor Reviewer: Joe Xia /Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No.ES200224030W04 Page 3 of 69 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................... 2 2 EUT TECHNICAL DESCRIPTION ............................................................................................................. 4 3 SUMMARY OF TEST RESULT .................................................................................................................... 5 4 TEST METHODOLOGY ............................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ...................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED ................................................................................................. 6 4.3 DESCRIPTION OF TEST MODES .......................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES.............................................................................................................................................. 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .......................................................................... 8 6 TEST SYSTEM UNCERTAINTY ................................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST .................................................................................................. 10 7.1 RADIO FREQUENCY TEST SETUP .................................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP .................................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP ............................................................................................. 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM .............................................................. 13 7.5 SUPPORT EQUIPMENT........................................................................................................................ 13 8 TEST REQUIREMENTS ............................................................................................................................. 14 8.1 BANDWIDTH MEASUREMENT ......................................................................................................... 14 8.2 MAXIMUM CONDUCTED OUTPUT POWER.................................................................................... 24 8.3 MAXIMUM PEAK POWER DENSITY ................................................................................................ 29 8.4 FREQUENCY STABILITY .................................................................................................................... 48 8.5 UNDESIRABLE RADIATED SPURIOUS EMISSION ......................................................................... 51 8.6 POWER LINE CONDUCTED EMISSIONS .......................................................................................... 65 8.7 ANTENNA APPLICATION ................................................................................................................... 68 Report No.ES200224030W04 Page 4 of 69 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Characteristics Description Product MINI PC Model Number MAL-FWTVPCM1 Wifi Type UNII-1: 5150MHz-5250MHz Band WLAN Supported 802.11a 802.11n(20MHz channel bandwidth) 802.11n(40MHz channel bandwidth) 802.11ac(20MHz channel bandwidth) 802.11ac(40MHz channel bandwidth) 802.11ac(80MHz channel bandwidth) Data Rate 802.11a:54/48/36/24/18/12/9/6Mbps 802.11n:up to 600 Mbps 802.11ac:up to 1.733Gbps Modulation OFDM with BPSK/QPSK/16QAM/64QAM for 802.11a/n; OFDM with BPSK/QPSK/16QAM/64QAM/256QAM for 802.11ac; Frequency Range UNII-1: 5150MHz-5250MHz Band 5180-5240MHz for 802.11a; 5180-5240MHz for 802.11n(HT20); 5180-5240MHz for 802.11ac(HT20); 5190-5230MHz for 802.11n(HT40); 5190-5230MHz for 802.11ac(HT40); 521…
Text truncated - open the document above for the full version.
TRF NO. FCC15/A Page 1 of 2 Report No.: ES200224030W Ver.1.0 TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) TRF NO. FCC15/A Page 2 of 2 Report No.: ES200224030W Ver.1.0 Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15E | 5.18 GHz - 5.24 GHz | 130.00 mW |
