2AVSOQL1000-QLXX00GPS TRACKER

C/N：QL-19080102 Copyright©2019QUICKLINK.Allrightsreserved. GPSTrackingDevice ModelNO.:QL-1000 UserManual Notes: ..................................................................................................................................................................... 2 1.Characteristics ................................................................................................................................................... 3 1.1FeatureDescription ................................................................................................................................. 3 1.2Specifications ........................................................................................................................................... 3 1.3ChipsetandParameters .......................................................................................................................... 3 2.InterfaceDefinition ........................................................................................................................................... 4 3.StatusLEDDefinition ........................................................................................................................................ 5 3.1REDLED(PowerIndicator) ...................................................................................................................... 5 3.2BLUELED(GPSSingalIndicator) .............................................................................................................. 5 3.3GREENLED(GSMSingalIndicator) .......................................................................................................... 6 4.USB,SIMSlot&Switch ..................................................................................................................................... 6 5.Methodofinstallation ...................................................................................................................................... 6 5.1Preparationbeforeinstallation ............................................................................................................... 6 5.2Installation ............................................................................................................................................... 6 6.Webbasedtrackingonlineactivation .............................................................................................................. 7 7.SMSConfiguration ............................................................................................................................................ 7 8.Troubleshooting ............................................................................................................................................. 10 C/N：QL-19080102 Copyright © 2019 QUICKLINK.All rights reserved. Notes: Please mount the device steadily on the flat place before using; Please make sure the voltage value is right before connecting with battery, and placing the wires to where shouldn ’ t be trodden; Please power off when plugging or taking out of any module or connector; Please keep the device dry and don ’ t let any liquid fall into the device in case any damage caused in the device or circuit; If any problem caused as follows, please turn to professional technician: When power wire, keyboard, or socket are damaged; When liquid infiltrating into the device; When the device work unusually or cannot resume to normal even operated according to the instruction; When the device cannot work as usual after falling, throwing or breaking; When there is obvious damage in the device. Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two co nditions: (1) This device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause un desired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF exposure warning : This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body. C/N：QL-19080102 Copyright©2019QUICKLINK.Allrightsreserved. 1.Characteristics 1.1FeaturesDescription: Realtimetrackingatintervals CheckIgnitionStatus G-SensorforDriverBehaviorMonitoring ExternalPowerDisconnectedAlarm GEO-Fences Alarms(Emergency,Overspeed,Parking,Idling) I/OInterface OTAControl 1.2Specifiactions: 96mm(L) × 52mm(W) × 19mm(H) OperatingVoltage:8VDC～50VDC RechargeableLi-polymerbattery260mAh OperatingTemperature:-20°C—70°C Weight:0.25Kg/Set 1.3ChipsetandParameters DescriptionParameters GSMModuleQuectelM26 OperationBand850/900/1800/1900MHZ LBSPositioningAccuracy100-500m GSMAntennaBuilt-in GNSSChipsetU-blox7020All-in-oneGPSreceiver, GNSSChipsetSensitivity-159dBm GNSSFrequencyL1,1575.42MHZ Channels35channelsexaminetrack PositioningAccuracy<2.5m GNSSAntennaBuilt-in SpeedAccuracy0.1m/s TimeAccuracySynchronizewithGPS MaxAltitude18000m MaxSpeed515m/s G-SensorChipsetGMA305KU SIMCardTypeMicro C/N：QL-19080102 Copyright©2019QUICKLINK.Allrightsreserved. 2.InterfaceDefinition TheQL-1000hasa8PINinterfaceconnectorwhichcontainstheconnectionsforpower,I/O, microphone,soskey,etc. Figure1.The8PINconnectorontheQL-1000 Table1.Descriptionofthe8PINconnections IndexDescriptionContent 1MICPOSITIVESingleend,2-2.2Kmicrophone. 2INPUTDigitalinput,negativetrigger 3SOSINPUTSOSKeyinput,negativetrigger 4POWERPOSITIVEExternalDCpowerinput,8-50V 5OUTPUT2Opendrain,150mAmax 6ACCIgnitioninput,positivetrigger 7OUTPUT1Opendrain,150mAmax 8GNDPoweranddigitalground Table2.CableColorDefinition DefinitionColorCablesColorDefinition MIC+RedBlueOUT2 INGreenWhiteACC SOSINRedYellowOUT1 PWRRedBlackGND C/N：QL-19080102 Copyright©2019QUICKLINK.Allrightsreserved. Figure2.The8PINconnections 3.StatusLEDDefinition 3.1REDLED(PowerIndica…

Text truncated - open the document above for the full version.

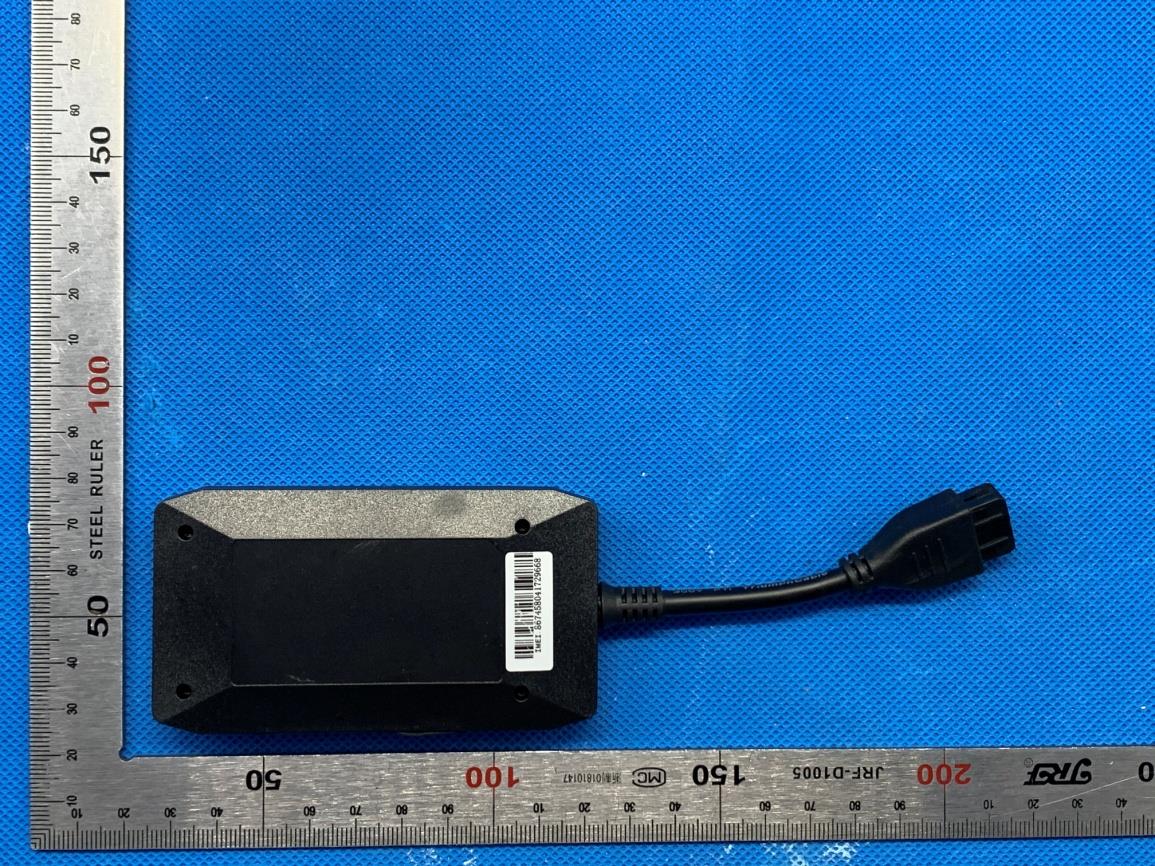

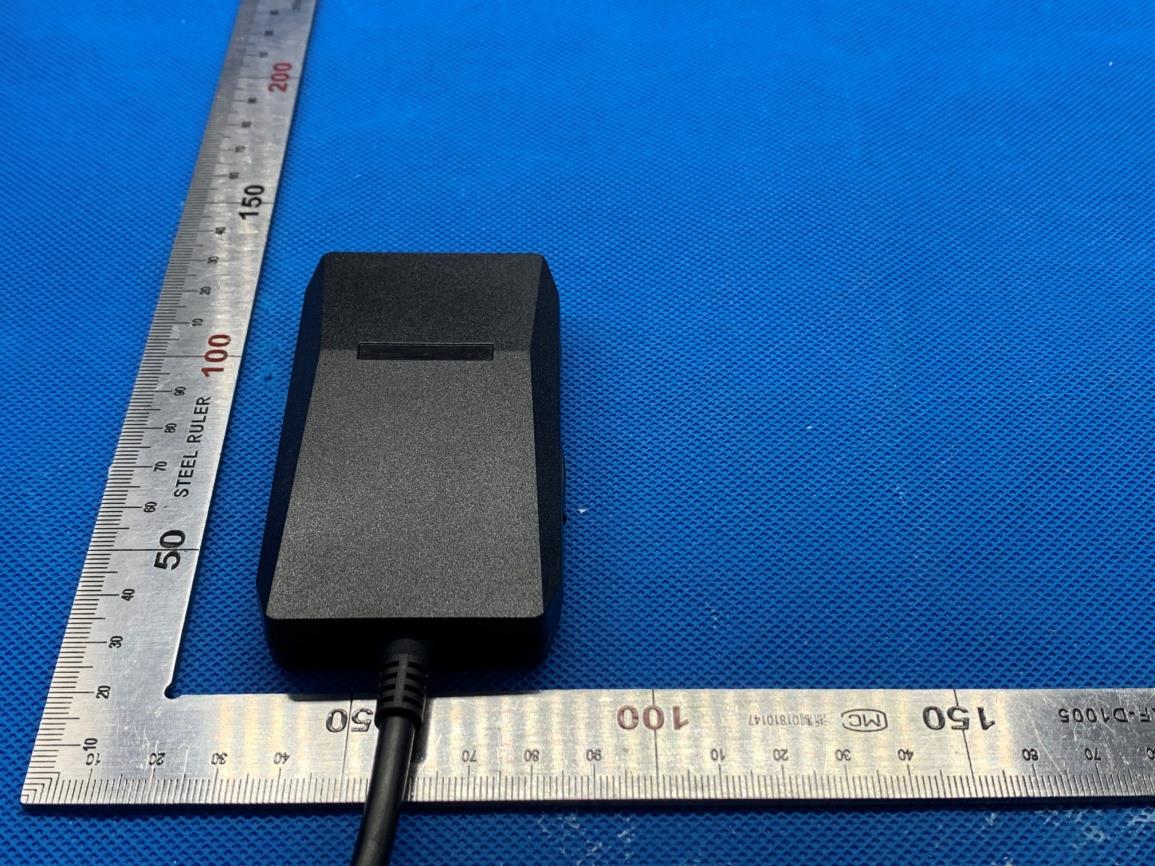

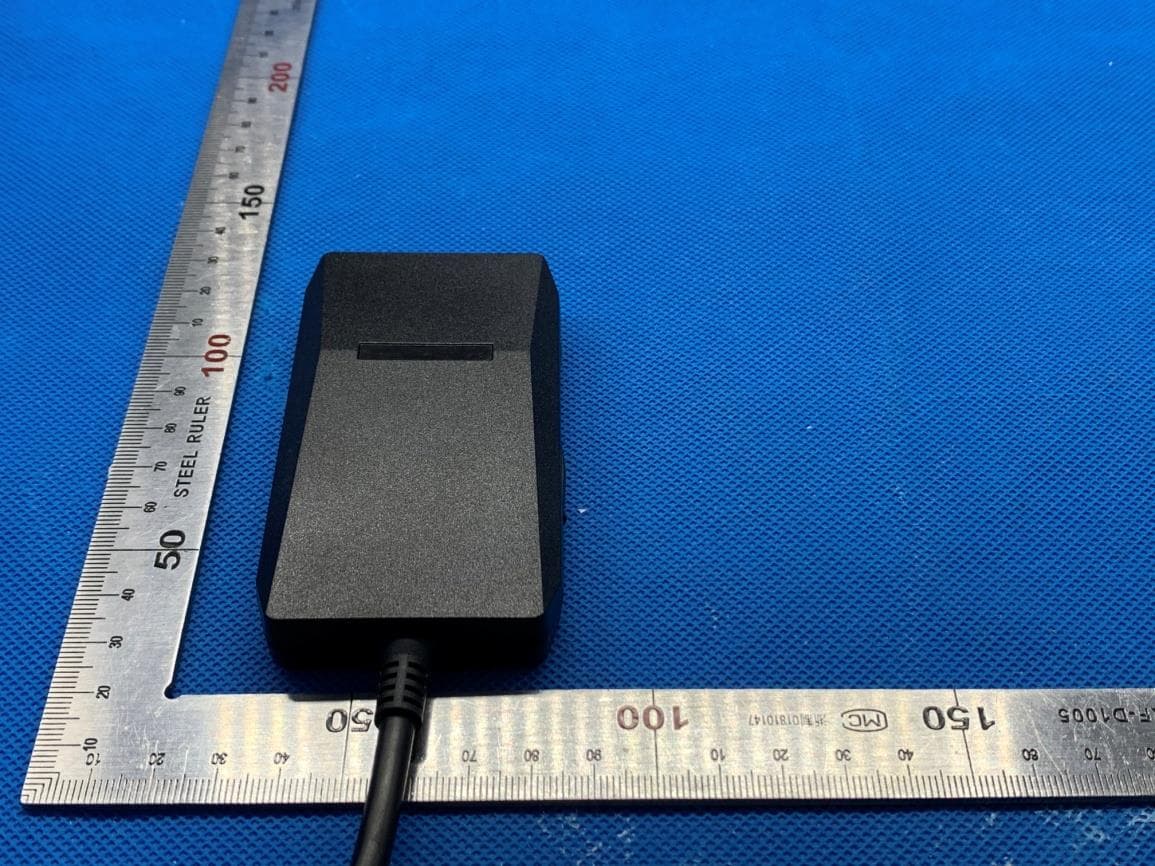

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AVSOQL1000-QLXX00 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos OPEN VIEW OF EUT(FIGURE 1) GSM Antenna GSM ANTENNA OPEN VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 4) INTERNAL VIEW OF EUT(FIGURE 5) INTERNAL VIEW OF EUT(FIGURE 6)

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: QL1000, QLXX00 (XX=01-99) FCC ID: 2AVSOQL1000-QLXX00 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Type of antenna: Built-in Antenna Gain of the antenna: 0.9 dBi Frequency range: 824.2-848.8 MHz Gain of the antenna: 1.1 dBi Frequency range: 1850.2-1909.8 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: VIONEER GROUP CO., LTD Address: Room 1801, Building 2A, Kasia City Plaza, Longgang district, Shenzhen, China Place: Shenzhen Date: 2020-03-24 Signature:

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description GPS TRACKER Model Name QL1000, QLXX00 (XX=01-99) FCC ID 2AVSOQL1000-QLXX00 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3. CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. WCDMA Test Mode Frequency ( MHz) Output Power ( dBm) Output Power ( mW) Antenna Gain (dBi) Antenna Gain (Linear) Power Density ( mW/cm 2 ) Limit (mW/cm 2 ) GPRS 850 824.2 31.73 1489.36 0 1.00 0.30 0.55 836.6 32.49 1774.19 0 1.00 0.35 0.56 848.8 32.21 1663.41 0 1.00 0.33 0.57 GPRS 1900 1850.2 27.31 538.27 0 1.00 0.11 1.00 1880 27.59 574.12 0 1.00 0.11 1.00 1909.8 28.08 642.69 0 1.00 0.13 1.00 Note: 1. Only the worst case was recorded in the test report.

Page1 of 55 FCC Test Report Report No.:AGC09856200201FE02 FCC ID : 2AVSOQL1000-QLXX00 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : GPS TRACKER BRAND NAME : QUICKLINK MODEL NAME : QL1000, QLXX00 (XX=01-99) APPLICANT : VIONEER GROUP CO., LTD DATE OF ISSUE : Mar. 20, 2020 STANDARD(S) : FCC Part 22H & 24E Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC09856200201FE02 Page 2 of 55 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar.20, 2020 Valid Initial Release Report No.: AGC09856200201FE02 Page 3 of 55 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1 PRODUCT DESCRIPTION ....................................................................................................................... 6 2.2RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.3 TEST METHODOLOGY ............................................................................................................................ 8 2.4 TEST FACILITY ........................................................................................................................................ 9 2.6 SPECIAL ACCESSORIES ....................................................................................................................... 11 2.7 EQUIPMENT MODIFICATIONS ............................................................................................................... 11 3. SYSTEM TEST CONFIGURATION ............................................................................................................. 12 3.1 EUT CONFIGURATION .......................................................................................................................... 12 3.2 EUT EXERCISE ...................................................................................................................................... 12 3.3 CONFIGURATION OF EUT SYSTEM ..................................................................................................... 12 4. SUMMARY OF TEST RESULTS ................................................................................................................. 13 5. DESCRIPTION OF TEST MODES ............................................................................................................... 14 6. OUTPUT POWER ........................................................................................................................................ 15 6.1 CONDUCTED OUTPUT POWER ........................................................................................................... 15 6.2 RADIATED OUTPUT POWER ................................................................................................................ 19 6.2.1 MEASUREMENT METHOD ................................................................................................................. 19 6.2.2 PROVISIONS APPLICABLE ................................................................................................................ 20 6.3. PEAK-TO-AVERAGE RATIO .................................................................................................................. 22 6.3.1 MEASUREMENT METHOD ................................................................................................................. 22 6.3.2 PROVISIONS APPLICABLE ................................................................................................................ 22 6.3.3 MEASUREMENT RESULT .................................................................................................................. 23 7. OCCUPIED BANDWIDTH ........................................................................................................................... 24 7.1 MEASUREMENT METHOD .................................................................................................................... 24 7.2 PROVISIONS APPLICABLE ................................................................................................................... 24 7.3 MEASUREMENT RESULT ..................................................................................................................... 25 8. BAND EDGE ................................................................................................................................................ 28 8.1 MEASUREMENT METHOD .................................................................................................................... 28 8.2 PROVISIONS APPLICABLE ................................................................................................................... 28 8.3 MEASUREMENT RESULT ..................................................................................................................... 29 9. SPURIOUS EMISSION ................................................................................................................................ 30 9.1 CONDUCTED SPURIOUS EMISSION ................................................................................................... 30 9.2 RADIATED SPURIOUS EMISSION ........................................................................................................ 38 9.2.2 TEST SETUP ....................................................................................................................................... 39 10. FREQUENCY STABILITY ..............................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC09856200201FE02 Page 41 of 55 9.2.4 MEASUREMENT RESULT GPRS 850: The Worst Test Results for Channel 251/848.8 MHz Frequency Emission Level Limits Margin Comment (MHz) (dBm) (dBm) (dB) 1967.60 -46.97 -13 -33.97 Horizontal 2475.17 -32.68 -13 -19.68 Horizontal 5989.25 -35.77 -13 -22.77 Horizontal 1967.60 -46.47 -13 -33.47 Vertical 3426.04 -35.32 -13 -22.32 Vertical 6534.14 -35.73 -13 -22.73 Vertical GPRS 1900: The Worst Test Results for Channel 810/1909.8MHz Frequency Emission Level Limits Margin Comment (MHz) (dBm) (dBm) (dB) 1456.52 -46.89 -13 -33.89 Horizontal 3819.60 -33.14 -13 -20.14 Horizontal 7061.33 -37.30 -13 -24.30 Horizontal 1462.12 -47.21 -13 -34.21 Vertical 3819.60 -35.02 -13 -22.02 Vertical 7680.19 -37.31 -13 -24.31 Vertical RESULT: PASS Note: 1. Margin = Emission Level -Limit 2. Below 30MHZ no Spurious found and Above is the worst mode data Report No.: AGC09856200201FE02 Page 42 of 55 10. FREQUENCY STABILITY 10.1 MEASUREMENT METHOD In order to measure the carrier frequency under the condition of AFC lock, it is necessary to make measurements with the EUT in a “call mode”. This is accomplished with the use of R&S CMU200 DIGITAL RADIO COMMUNICATION TESTER. 1 Measure the carrier frequency at room temperature. 2 Subject the EUT to overnight soak at -10°C. 3 With the EUT, powered via nominal voltage, connected to the CMU200 and in a simulated call on channel 661 for PCS 1900 band , channel 190 for GSM 850 band, channel 9400 for UMTS band II and channel 4175 for UMTS band V measure the carrier frequency. These measurements should be made within 2 minutes of Powering up the EUT, to prevent significant self-warming. 4 Repeat the above measurements at 10°C increments from -10°C to +40°C. Allow at least 1 1/2 hours at each temperature, unpowered, before making measurements. 5 Re-measure carrier frequency at room temperature with nominal voltage. Vary supply voltage from minimum voltage to maximum voltage, in 0.1Volt increments re-measuring carrier frequency at each voltage. Pause at nominal voltage for 1 1/2 hours unpowered, to allow any self-heating to stabilize, before continuing. 6 Subject the EUT to overnight soak at +40°C. 7 With the EUT, powered via nominal voltage, connected to the CMU200 and in a simulated call on the centre channel, measure the carrier frequency. These measurements should be made within 2 minutes of Powering up the EUT, to prevent significant self-warming. 8 Repeat the above measurements at 10°C increments from +40°C to -10°C. Allow at least 1 1/2 hours at each temperature, unpowered, before making measurements. 9 At all temperature levels hold the temperature to +/- 0.5°C during the measurement procedure. Report No.: AGC09856200201FE02 Page 43 of 55 10.2 PROVISIONS APPLICABLE 10.2.1 FOR HAND CARRIED BATTERY POWERED EQUIPMENT According to the ANSI/TIA-603-E-2016, the frequency stability of the carrier shall be accurate to within 0.1 ppm of the received frequency from the base station. This accuracy is sufficient to meet Sec. 24.235, Frequency Stability. The frequency stability shall be sufficient to ensure that the fundamental emission stays within the authorized frequency block. As this transceiver is considered "Hand carried, battery powered equipment" Section 2.1055(d)(2) applies. This requires that the lower voltage for frequency stability testing be specified by the manufacturer. This transceiver is specified to operate with an input voltage of between 3.15VDC and 4.2VDC, with a nominal voltage of 3.7VDC. Operation above or below these voltage limits is prohibited by transceiver software in order to prevent improper operation as well as to protect components from overstress. These voltages represent a tolerance of -10 % and +12.5 %. For the purposes of measuring frequency stability these voltage limits are to be used. 10.2.2 FOR EQUIPMENT POWERED BY PRIMARY SUPPLY VOLTAGE According to the ANSI/TIA-603-E-2016,the frequency stability of the carrier shall be accurate to within 0.1 ppm of the received frequency from the base station. This accuracy is sufficient to meet Sec. 24.235, Frequency Stability. The frequency stability shall be sufficient to ensure that the fundamental emission stays within the authorized frequency block. For this EUT section 2.1055(d)(1) applies. This requires varying primary supply voltage from 85 to 115 percent of the nominal value for other than hand carried battery equipment, the normal environment temperature is 20 o C. Report No.: AGC09856200201FE02 Page 44 of 55 10.3 MEASUREMENT RESULT Test Results Frequency Error vs. Voltage: Test Band Test Mode Test Channel Test Temp. Test Volt.(V) Freq.Error (Hz) Freq.vs.rated (ppm) Limit (ppm) Verdict GSM850 GPRS LCH TN VL 1.10 0.001335 ±2.5 PASS TN VN 2.58 0.003130 ±2.5 PASS TN VH 2.58 0.003130 ±2.5 PASS MCH TN VL -2.65 -0.003168 ±2.5 PASS TN VN 0.52 0.000622 ±2.5 PASS TN VH -1.55 -0.001853 ±2.5 PASS HCH TN VL -7.49 -0.008824 ±2.5 PASS TN VN -1.68 -0.001979 ±2.5 PASS TN VH -7.81 -0.009201 ±2.5 PASS Test Band Test Mode Test Channel Test Temp. Test Volt. (V) Freq.Error (Hz) Freq.vs.rated (ppm) Verdict PCS 1900 GPRS LCH TN VL -8.65 -0.004675 PASS TN VN -4.78 -0.002584 PASS TN VH -11.36 -0.006140 PASS MCH TN VL -27.83 -0.014803 PASS TN VN -21.37 -0.011367 PASS TN VH -27.31 -0.014527 PASS HCH TN VL -17.89 -0.009367 PASS TN VN -20.73 -0.010855 PASS TN VH -22.60 -0.011834 PASS Note: Based on the results of the frequency stability test at the center channel the frequency deviation results measured are very samll. As such it is determined that channels at the band edge would remain in-band when the maximum measured frequency deviation noted duing the frequency stability tests is applied. Therefore the device is detemined to remain operating in band over the temperture and voltage range as tested. Report No.: AGC09856200201FE02 Page 45 of 55 Frequency Error vs. Temperature: Test Band Test Mode Test Channel Test Volt. Test Tem. (°C) Freq.Error (Hz) Freq.vs.rated (ppm) Limit (ppm) Verdi…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED SPURIOUS EMISSION RADIATED SPURIOUS ABOVE 1G EMISSION
