2AVSP-AW102AAtmoph Window 2

CE Declaration of Conformity Hereby, Atmoph Inc. declares that the radio equipment type Atmoph Window 2 of AW102 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:https://atmoph.com RF exposure information: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Radiation Exposure Statement Power is so low that no RF exposure calculation is needed. Warning AW102 normal operating temperature is 5°C ~ 35°C. In order to ensure the normal AW102 functions, do not use this AW102 outside the temperature range. When the wheelie bin symbol is attached to a product, it means the product is covered by the European Directive 2012/19/EU. All electrical and electronic products should be disposed of separately from normal household waste via designated collection points provided by government or local authorities. The correct disposal of electrical and electronic products will help protect the environment and human health. The Wi-Fi function for this device is restricted to indoor use only when operating in the 5150 MHz to 5350 MHz frequency range. EU certified frequency band Operating Frequency Range:Max Output Power: Bluetooth: 2402-2480MHz（EIRP value） 9.34dBm WIFI: 2.412GHz - 2.472GHz （EIRP value） 17.28dBm WIFI:5180MHz- 5240MHz（EIRP value） 20.23dBm WIFI:5260MHz- 5320MHz（EIRP value） 19.68dBm WIFI:5500MHz- 5700MHz（EIRP value） 19.22dBm FCC Federal Communication Commission (FCC) Radiation Exposure Statement When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. Model Name: AW102 FCC ID:2AVSP-AW102A

Atmoph Inc. Date: 2020/04/18 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Atmoph Inc. FCC ID:2AVSP-AW102A Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Atmoph Inc. requests that the following documents regarding this submission for FCC ID: 2AVSP-AW102A be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematic.pdf Operational Description Operational description.pdf Part list BOM.pdf Those documents contain detailed system and equipment description and related information about the product which Atmoph Inc. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Atmoph Inc. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Contact name:Kyohi Kang Title:CEO Tel:+81 75-744-6227 Email:[email protected] company name :Atmoph Inc.

Atmoph Inc. Date: 05/13/2020 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Rd. Columbia MD 21046 FCC ID: 2AVSP-AW102A To whom it may concern: Atmoph Inc. hereby declares that the E-labeling operation mode detailed in detail below. 1.Access path: [Setup] → [System] → [Authorization] 2.Label content: Applicant company name, applicant address, product name, model name, brand name, FCC ID number, FCC LOGO, CE LOGO, ashcan LOGO, MIC number, MIC LOGO , MIC warning, dark sky link, software license link, Sincerely, Signature _________________________ Date 5/15/2020

Atmoph Inc. Date: 2020/04/18 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Atmoph Inc. the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Atmoph Inc. solely in matters relating to the application for an FCC equipment authorization for FCC ID:2AVSP-AW102A including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the Atmoph Inc. in connection with the Application shall have the same effect as acts of the Atmoph Inc. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name:Kyohi Kang Title:CEO Tel:+81 75-744-6227 Email:[email protected] company name :Atmoph Inc.

Atmoph Inc. UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2AVSP-AW102A (1) DFS Device --Master,Client with Radar detection capability , Client without radar detection capability,N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2472 MHzYes,NoYes,NoYes,NoYes,No 2422 – 2452 MHzYes,NoYes,NoYes,NoYes,No 5745 – 5825 MHzYes,NoYes,NoYes,NoYes,No 5755 – 5795 MHzYes,NoYes,NoYes,NoYes,No 5180 – 5240 MHzYes,NoYes,NoYes,NoYes,No 5190 – 5230 MHzYes,NoYes,NoYes,NoYes,No 5260 – 5320 MHzYes,NoYes,NoYes,NoYes,No 5270 – 5310 MHzYes,NoYes,NoYes,NoYes,No 5500 – 5700 MHzYes,NoYes,NoYes,NoYes,No 5510 – 5670 MHzYes,NoYes,NoYes,NoYes,No (3) Country code selection ability -Yes ,No If no, pls explain how was implemented : Country is selected as US by default and user can not change the country code. (4) Meet 15.202 requirement - Yes ,No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply ,No Apply, (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) The device configuration can not be modified by user as program is not exposed to user by any means. Hardware does not allow USB connection for user which is must to change the configuration. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Printed Name : Kyohi Kang Position : CEO

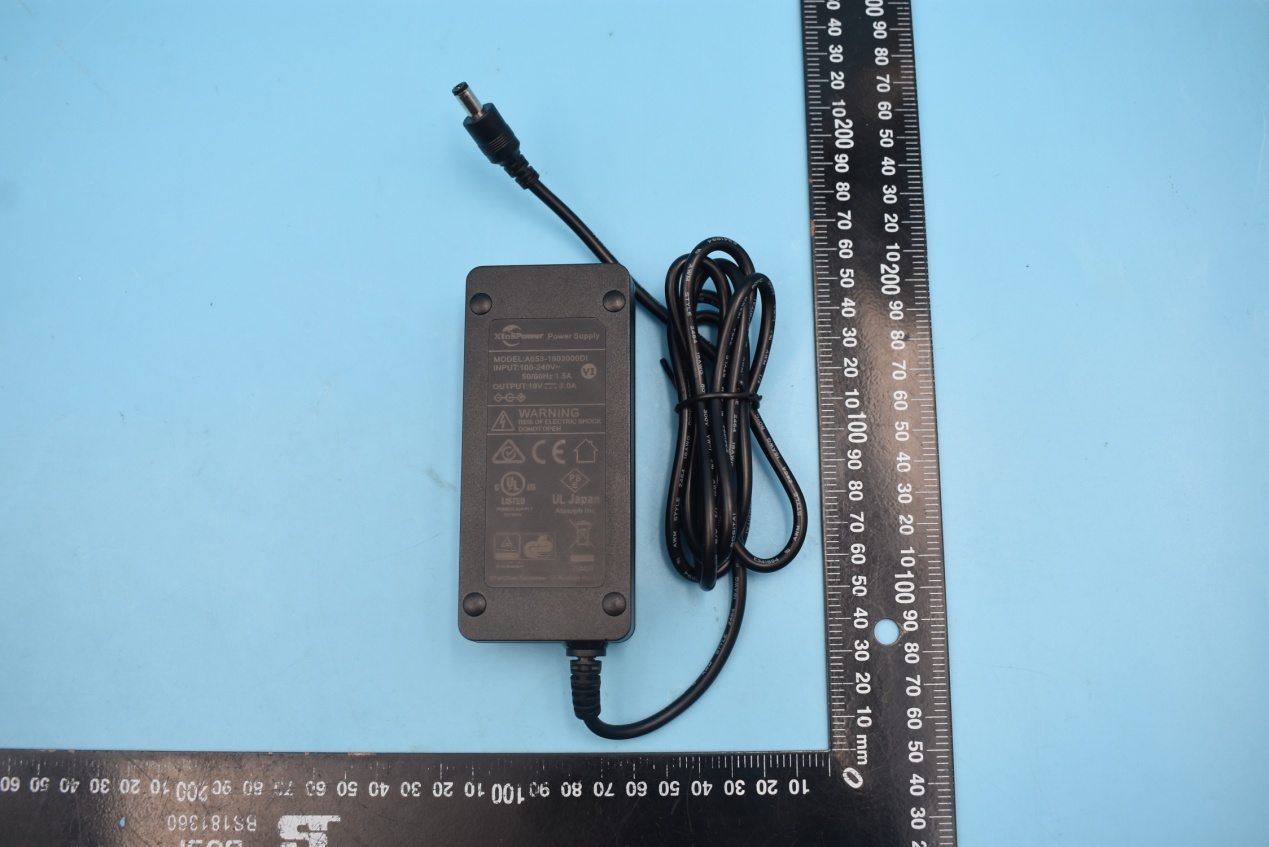

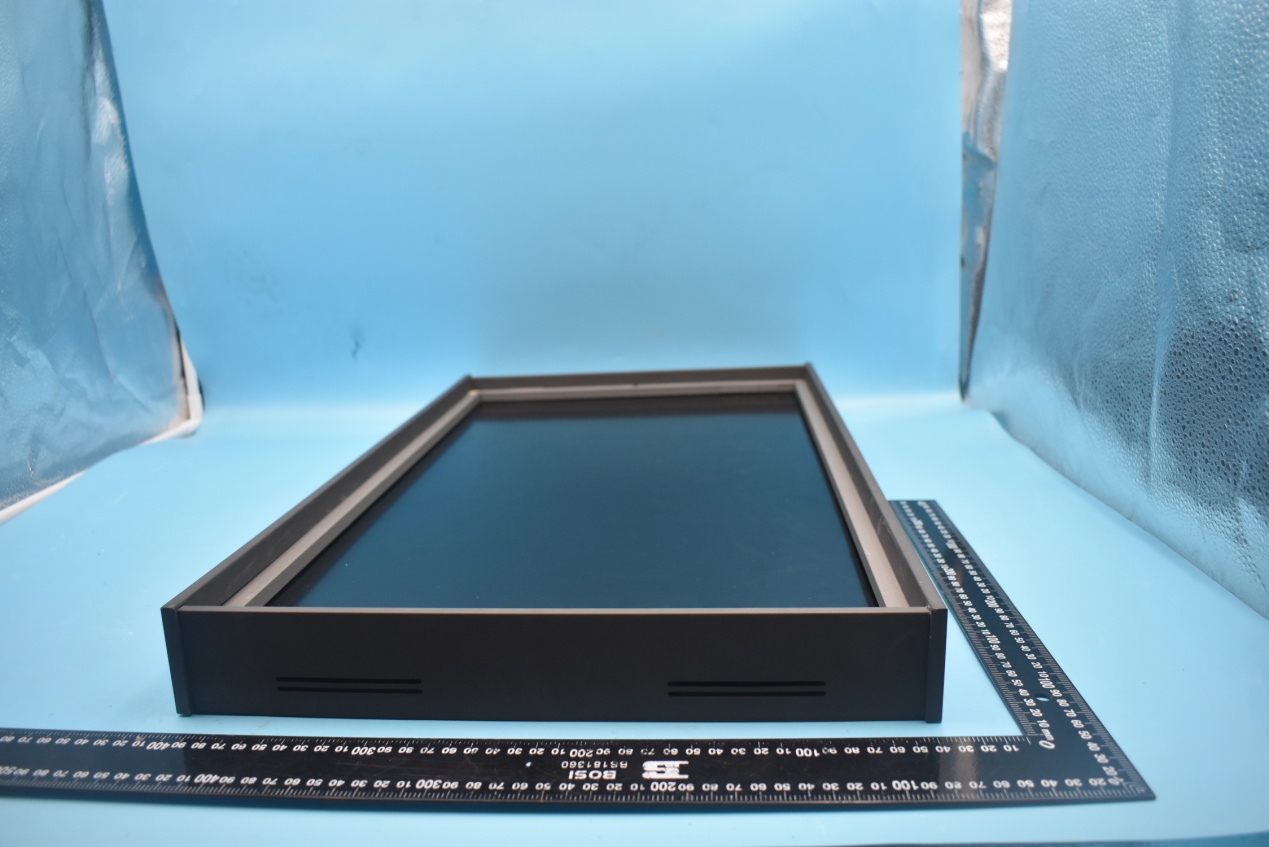

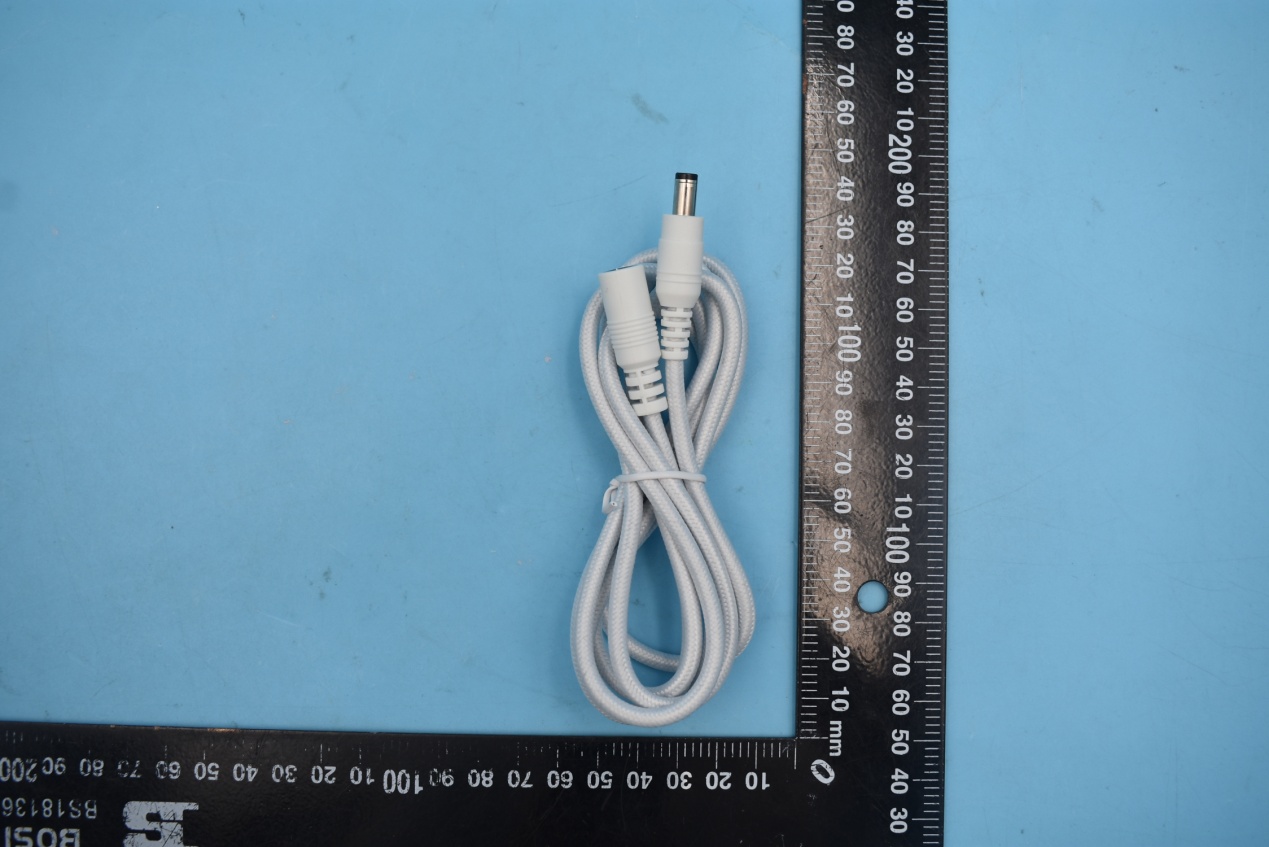

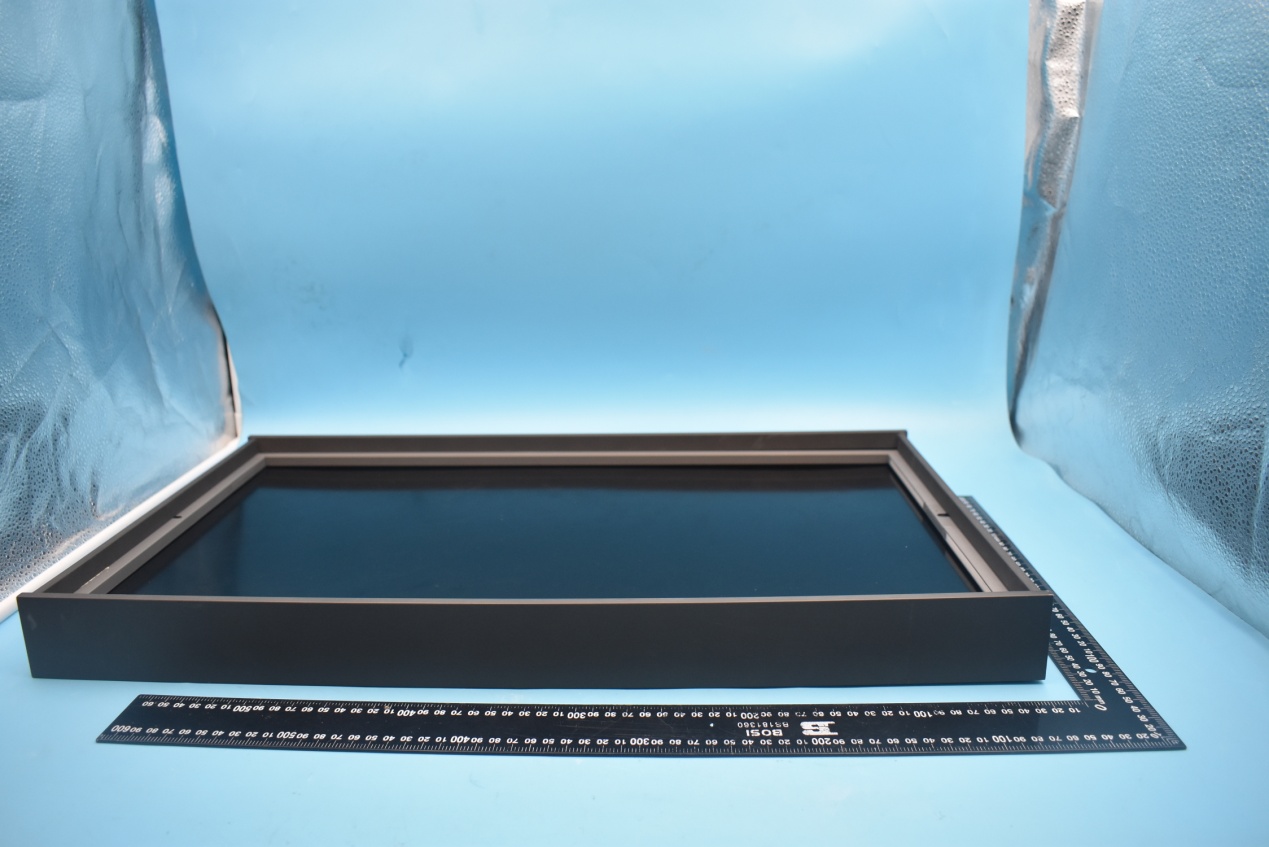

FCC ID:2AVSP-AW102A External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

1.ElectronicLabel 2.ElectronicLabellocation [Setup]→[System]→[Authorization]

FCC ID:2AVSP-AW102A Internal Photos 1. EUT uncover view

2. Antenna view BT/WIFI Antenna

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page1 of 11 REPORT No.：SZ20010031S01 RFEXPOSURE ASSESSMENTREPORT APPLICANT : Atmoph Inc. PRODUCT NAME : Atmoph Window 2 MODEL NAME : AW102 BRAND NAME : ATMOPH FCC ID : 2AVSP-AW102A STANDARD(S) : 47CFR 2.1091 KDB 447498 RECEIPT DATE : 2020-01-13 TEST DATE : 2020-03-05 to 2020-04-04 ISSUE DATE : 2020-05-08 Edited by: Peng Mi (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20010031S01 Page2of 11 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 1.2 Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 Annex A General Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 11 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20010031S01 Page3of 11 Change history Version Date Reason of changed 1.0 2020-05-08 Original MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20010031S01 Page4of 11 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Atmoph Inc. Applicant Address: 75-6 Yanagihachimancho, Nakagyo-ku, LS Kyoto 3F, Kyoto, 604-8101, Japan Manufacturer: Jenesis (Shenzhen) Co., Ltd. Manufacturer Address: 401-1 Building 2nd, Runheng industrial factory building , No.1 Liu'xian 3rd Road, Xingdong Community, Xin'an Avenue, Bao'an District, Shenzhen, Guangdong, China 518101 1.2 Equipment under Test (EUT) Description Product Name: Atmoph Window 2 Serial No: (N/A, marked #1 by test site) Hardware Version: AW102-V1 Software Version: 1.0.0 Frequency Bands: WLAN 2.4GHz: 2412 MHz ~ 2472 MHz U-NII Band 1: 5180 MHz ~ 5240 MHz U-NII Band 2A: 5260 MHz ~ 5320 MHz U-NII Band 2C: 5500 MHz ~ 5720 MHz Bluetooth: 2402 MHz ~ 2480 MHz Modulation Mode: 802.11b: DSSS 802.11a/g/n-HT20/HT40/ ac-VHT20/ac-VHT40/VHT80: OFDM Bluetooth BR+EDR: GFSK, π/4-DQPSK, 8-DPSK Bluetooth LE: GFSK Antenna Type: FPC Antenna Antenna Gain: WLAN 2.4GHz:1.53dBi WLAN 5GHz:3.05dBi Bluetooth:1.53dBi MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20010031S01 Page5of 11 1.3 Applied Reference Documents Leading reference documents for testing: No. Identity Document Title Method determination /Remark 1 47 CFR§2.1091 Radio Frequency Radiation Exposure Assessment: mobile devices No deviation 2 KDB 447498 D01v06 General RF Exposure Guidance No deviation Note 1: The test item is not applicable. Note 2: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20010031S01 Page6of 11 2. Device Category and RF Exposure Limit Per user manual, Based on 47CFR 2.1091, this device belongs to mobile device category with General Population/Uncontrolled exposure. Mobile Devices: 47CFR 2.1091(b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located…

Text truncated - open the document above for the full version.

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page1of 179 REPORT No.：SZ20010031W04 TEST REPORT APPLICANT : Atmoph Inc. PRODUCT NAME : Atmoph Window 2 MODEL NAME :AW102 BRAND NAME : ATMOPH FCC ID : 2AVSP-AW102A STANDARD(S) : 47 CFR Part 15 Subpart E RECEIPT DATE : 2020-01-13 TEST DATE :2020-03-05 to 2020-04-04 ISSUE DATE :2020-05-08 Edited by: Peng Mi (Rapporteur) Approved by: Peng Huarui( Supervisor ) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page2of 179 REPORT No.：SZ20010031W04 DIRECTORY 1. Technical Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.1. Applicant and Manufacturer Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.2. Equipment Under Test (EUT) Description ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.3. Modulation Type and Data Rate of EUT ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 1.4. The Channel Number and Frequency ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 1.5. Test Standards and Results ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 1.6. Environmental Conditions ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 9 2. 47 CFR Part 15E Requirements ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 10 2.1. Antenna requirement ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 10 2.2. Duty Cycle of the test signalꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 11 2.3. Maximum Conducted Output Power ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 16 2.4. Emission Bandwidth ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 21 2.5. Peak Power spectral density ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 54 2.6. Frequency Stability ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 87 2.7. Conducted Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 89 2.8. Restricted Frequency Bands ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 93 2.9. Radiated Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 124 Annex A Test Uncertainty ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 175 Annex B Testing Laboratory Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 176 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page3of 179 REPORT No.：SZ20010031W04 Change History Version Date Reason for change 1.0 2020-05-08 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page4of 179 REPORT No.：SZ20010031W04 1. Technical Information Note: Provide by applicant. 1.1. Applicant and ManufacturerInformation Applicant: Atmoph Inc. Applicant Address: 75-6 Yanagihachimancho, Nakagyo-ku, LS Kyoto 3F, Kyoto, 604-8101, Japan Manufacturer: Jenesis (Shenzhen) Co., Ltd. ManufacturerAddress: 401-1 Building 2nd, Runheng industrial factory building , No.1 Liu'xian 3rd Road, Xingdong Community, Xin'an Avenue, Bao'an District, Shenzhen, Guangdong, China 518101 1.2. Equipment Under Test (EUT) Description Product Name: Atmoph Window 2 Serial No: (N/A, marked #1 by test site) Hardware Version: AW102-V1 Software Version: 1.0.0 Modulation Type: OFDM Modulation Mode: 802.11a, 802.11n(HT20), 802.11n(HT40) 802.11ac(VHT20), 802.11ac(VHT40), 802.11ac(VHT80), Operating Frequency Range: 5.180 GHz- 5.240GHz; 5.260 GHz -5.320GHz ; 5.500 GHz -5.720 GHz Channel Number: Refer to 1.3 Antenna Type: FPC Antenna Antenna Gain: 3.05dBi Accessory Information: Battery(button cell) Brand Name: Panasonic Model No.: CR1220 Serial No.: (N/A, marked #1 by test site) Capacity: 35mAh Rated Voltage: 3.0V MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page5of 179 REPORT No.：SZ20010031W04 Accessory Information: AC Adapter Brand Name: XinSPower Model No.: A653-1903000DI Serial No.: (N/A, marked #1 by test site) Rated Output: 19V 3.0A Rated Input: 100-240V 50/60Hz 1.5A Note1: WIFI hotspot does not support U-NII band. Note2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.mor…

Text truncated - open the document above for the full version.

MORLA B. Test NO. ( 1 0 2 0 3 0 4 0 5 8 6 1 AB SHENZ FL1-3, B Block67 Plots: Fre. (MHz) E Q 0.1725 0.4741 0.5145 0.7267 8.1890 9.0008 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh Emission Le Quai-peak 53.84 34.49 33.47 33.70 24.92 27.62 MMUNICATIONS TEC Science Park, No.8 L enZhen ,GuangDong evel (dBμV) Average 36.91 24.59 24.64 22.76 17.21 20.92 CHNOLOGY Co., Ltd LongChang Road, g Province, P. R. Chi (L Phase ) Quai-p 64.8 56.4 56.0 56.0 60.0 60.0 d. na Tel: 8 Http: RE ) Limit (dBμV peak Av 84 5 44 4 00 4 00 4 00 5 00 5 86-755-36698555 //www.morlab.cn EPORT No V) verage 54.84 46.44 46.00 46.00 50.00 50.00 Fax: 86-755-3669 E-mail: service@ o.：SZ2001 Power-line Line 98525 @morlab.cn Page91of 17 10031W04 e Verdict PASS PASS PASS PASS PASS PASS 79 4 MORLA NO. ( 1 0 2 0 3 1 4 4 5 7 6 1 AB SHENZ FL1-3, B Block67 Fre. (MHz) E Q 0.1546 0.5374 1.1168 4.0404 7.5311 8.9921 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh Emission Le Quai-peak 51.99 41.05 32.68 30.63 43.84 38.20 MMUNICATIONS TEC Science Park, No.8 L enZhen ,GuangDong evel (dBμV) Average 39.12 35.63 24.41 21.00 36.70 29.66 CHNOLOGY Co., Ltd LongChang Road, g Province, P. R. Chi (N Phase ) Quai-p 65.7 56.0 56.0 56.0 60.0 60.0 d. na Tel: 8 Http: RE e) Limit (dBμV peak Av 75 5 00 4 00 4 00 4 00 5 00 5 86-755-36698555 //www.morlab.cn EPORT No V) verage 55.75 46.00 46.00 46.00 50.00 50.00 Fax: 86-755-3669 E-mail: service@ o.：SZ2001 Power-line Neutral 98525 @morlab.cn Page92of 17 10031W04 e Verdict PASS PASS PASS PASS PASS PASS 79 4 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page93of 179 REPORT No.：SZ20010031W04 2.8. Restricted Frequency Bands 2.8.1. Requirement According to FCC section 15.407(b)(7), in any 100kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power, In addition, radiated emissions which fall in the restricted bands, as defined in 15.205(a), must also comply with the radiated emission limits specified in 15.209(a). 2.8.2. Test Description Test Setup The Module is located in a 3m Semi-Anechoic Chamber; the antenna factors, cable loss and so on of the site as factors are calculated to correct the reading. KDB 789033 Section H) 3)5)6(d)) was used in order to provecompliance For the Test Antenna: Test Antenna is 3m away from the EUT. Test Antenna height is varied from 1m to 4m above the ground to determine the maximum value of the field strength. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page94of 179 REPORT No.：SZ20010031W04 2.8.3. Test Result The lowest and highest channels are tested to verify Restricted Frequency Bands. The measurement results are obtained as below: E [dBμV/m] =U R + A T + A Factor [dB]; A T =L Cable loss [dB]-G preamp [dB] A T : Total correction Factor except Antenna; U R : Receiver Reading G preamp : Preamplifier Gain; A Factor : Antenna Factor at 3m Note: Restricted Frequency Bands were performed when antenna was at vertical and horizontal polarity, and only the worse test condition (vertical) was recorded in this test report. 802.11a Test mode A. Test Verdict: Channel Frequency (MHz) Detector Receiver Reading U R (dBuV) A T (dB) A Factor (dB@3m) Max. Emission E (dBμV/m) Limit (dBμV/m) Verdict PK/ AV 36 5141.84 PK 54.05 -26.92 32.20 59.33 74 PASS 36 5150.00 AV 42.50 -26.92 32.20 47.78 54 PASS 64 5351.26 PK 50.92 -26.80 32.20 56.32 74 PASS 64 5350.00 AV 40.27 -26.80 32.20 45.67 54 PASS 100 5445.80 PK 51.98 -26.64 32.20 57.54 74 PASS 100 5470.00 AV 40.92 -26.64 32.20 46.48 54 PASS 144 5755.90 PK 52.44 -26.64 32.20 58.00 68.23 PASS 144 5726.80 AV 41.53 -26.64 32.20 47.09 54 PASS MORLA B. Test AB SHENZ FL1-3, B Block67 Plots: ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh MMUNICATIONS TEC Science Park, No.8 L enZhen ,GuangDong (Channe (Chann CHNOLOGY Co., Ltd LongChang Road, g Province, P. R. Chi el 36, PEAK nel 36, AVG d. na Tel: 8 Http: RE K,802.11a) G,802.11a) 86-755-36698555 //www.morlab.cn EPORT No Fax: 86-755-3669 E-mail: service@ o.：SZ2001 98525 @morlab.cn Page95of 17 10031W04 79 4 MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh MMUNICATIONS TEC Science Park, No.8 L enZhen ,GuangDong (Channe (Chann CHNOLOGY Co., Ltd LongChang Road, g Province, P. R. Chi el64, PEAK nel 64, AVG d. na Tel: 8 Http: RE K, 802.11a) G,802.11a) 86-755-36698555 //www.morlab.cn EPORT No Fax: 86-755-3669 E-mail: service@ o.：SZ2001 98525 @morlab.cn Page96of 17 10031W04 79 4 MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh MMUNICATIONS TEC Science Park, No.8 L enZhen ,GuangDong (Channe (Chann CHNOLOGY Co., Ltd LongChang Road, g Province, P. R. Chi el100, PEAK el 100, AVG d. na Tel: 8 Http: RE K, 802.11a) G,802.11a) 86-755-36698555 //www.morlab.cn EPORT No Fax: 86-755-3669 E-mail: service@ o.：SZ2001 98525 @morlab.cn Page97of 17 10031W04 79 4 MORLA AB SHENZ FL1-3, B Block67 ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, Sh MMUNICATIONS TEC Science Park, No.8 L enZhen ,GuangDong (Channe (Chann CHNOLOGY Co., Ltd LongChang Road, g Province, P. R. Chi el144, PEAK el 144, AVG d. na Tel: 8 Http: RE K, 802.11a) G,802.11a) 86-755-36698555 //www.morlab.cn EPORT No Fax: 86-755-3669 E-mail: service@ o.：SZ2001 98525 @morlab.cn Page98of 17 10031W04 79 4 MORLA 802.11n A. Test Channel 36 3…

Text truncated - open the document above for the full version.

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 26 REPORT No.：SZ20010031W05 TEST REPORT APPLICANT : Atmoph Inc. PRODUCT NAME : Atmoph Window 2 MODEL NAME :AW102 BRAND NAME : ATMOPH FCC ID : 2AVSP-AW102A STANDARD(S) : 47 CFR Part 15 Subpart E RECEIPT DATE : 2020-01-13 TEST DATE :2020-03-05 to 2020-04-04 ISSUE DATE :2020-05-08 Edited by: Peng Mi (Rapporteur) Approved by: Peng Huarui ( Supervisor ) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 26 REPORT No.：SZ20010031W05 DIRECTORY 1. Technical Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.1. Applicant and Manufacturer Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.2. Equipment Under Test (EUT) Description ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.3. Companion Equipment(Master) Description ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 1.4. The Channel Number and Frequency ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 1.5. Test Standards and Results ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 1.6. Environmental Conditions ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 2. 47 CFR Part 15E Requirements ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 2.1. Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 Annex A Test Uncertainty ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 24 Annex B Testing Laboratory Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 25 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 26 REPORT No.：SZ20010031W05 Change History Version Date Reason for change 1.0 2020-05-08 First edition MORLAB SHENZHEN …
