2AVT2SE32XXSwitch Mini Controller

FCC STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: connected. IC: INDUSTRY CANADA: Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device RSS (RSS) d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes : (1) Cet appareil ne doit pas causer d'interférences. (2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles de provoquer un fonctionnement indésirable de l'appareil. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure,users can obtain Canadian information on RF exposure and compliance.

Declaration on model difference Page 1 of 1 page We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; Model SE3208,SE3209,SE3210,SE3211,SE3212 (for market purpose only, all models are identical except the model number an color); Confirmed by zhenyu you Date: 2020.04.23 FCC ID: 2AVT2SE32XX For X of FCC ID: 2AVT2SE32XX, X is not wildcard, but it is fixed capital English letters

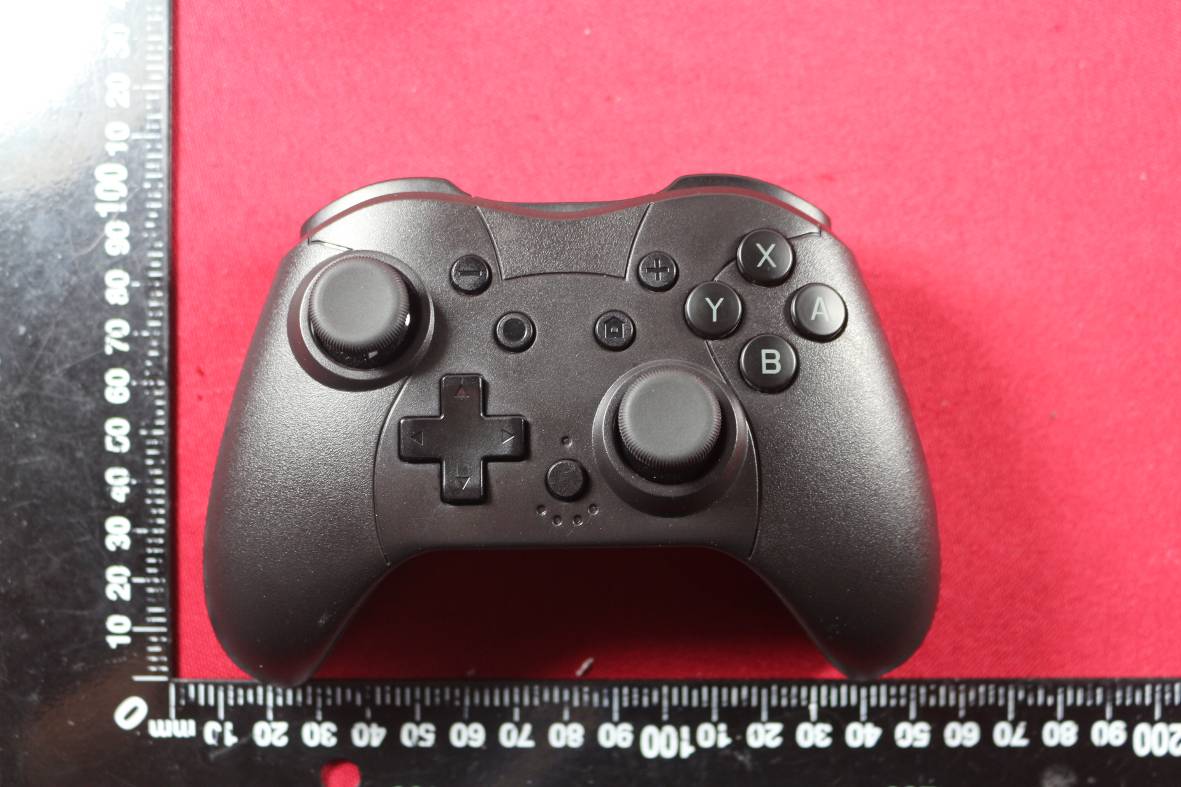

External photo

FCC ID:2AVT2SE32XX FCC ID:2AVT2SE32XX FCC ID:2AVT2SE32XX FCC ID:2AVT2SE32XX FCC ID:2AVT2SE32XX

Label Location FCC LABLE Label Location (34.7mm x 23.2mm Dumb silver PET aluminized film)

Internal photo

FCC ID: 2AVT2SE32XX RF EXPOSURE EVALUATION METHOD FCC ID: 2AVT2SE32XX SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. BT GFSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 -10.255 0.094 CH39 2441 -9.935 0.102 CH78 2480 -9.473 0.113 π/4-DQPSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 -10.321 0.093 CH39 2441 -9.938 0.101 CH78 2480 -9.452 0.113 8DPSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 -10.261 0.094 CH39 2441 -9.935 0.102 CH78 2480 -9.476 0.113 Remark: The best case gain of the antenna is 0dBi. 0 dBi logarithmic terms convert to numeric result is nearly 1.00 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] FCC ID: 2AVT2SE32XX BT Te s t Channel [(max. power of channel, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit GFSK CH00 0.094 5 2.402 0.029 3 CH39 0.102 5 2.441 0.032 3 CH78 0.113 5 2.480 0.036 3 π/4-DQPSK CH00 0.093 5 2.402 0.029 3 CH39 0.101 5 2.441 0.032 3 CH78 0.113 5 2.480 0.036 3 8DPSK CH00 0.094 5 2.402 0.029 3 CH39 0.102 5 2.441 0.032 3 CH78 0.113 5 2.480 0.036 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

Report No.: 20EFAS04010 2281 Page 1 of 63 FCC &ISED Radio Test Report FCC ID: 2AVT2SE32XX IC:25997-BGKXXX The report concerns: Original Grant Report Reference No. ................. : 20EFAS04010 2281 Date Sample(s) Received ........... : 2020-03-10 Date of Tested ............................. : 2020-03-10 to 2020-04-15 Date of issue ............................... : 2020-04-15 Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name ........................ : Dongguan 3e electronics Co.,Ltd Address ...................................... : No. 20, Baihao Shiji Road, Houjie, Dongguan,Guangdong, China Manufacturer............................... : Dongguan 3e electronics Co.,Ltd Equipment................................... : Switch Mini Controller Trade Mark ................................. : N/A Model ........................................ : FCC:SE3208,SE3209,SE3210,SE3211,SE3212, IC:BGK496,BGK497,BGK498 Ratings ....................................... : I/P: DC 5V 500mA Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 20EFAS04010 2281 Page 2 of 63 Table of Contents Page 1 . TEST REPORT DECLARE 5 2 . SUMMARY OF TEST RESULTS 6 2.1 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 PARAMETERS OF TEST SOFTWARE 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 SUPPORT UNITS 11 3.6 TEST ENVIRONMENT CONDITIONS 12 4 . AC POWER LINE CONDUCTED EMISSIONS TEST 13 4.1 LIMIT 13 4.2 TEST PROCEDURE 13 4.3 MEASUREMENT INSTRUMENTS LIST 13 4.4 TESTSETUP 14 4.5 EUT OPERATING CONDITIONS 14 4.6 TEST RESULTS 15 5 . RADIATED EMISSION TEST 17 5.1 LIMIT 17 5.2 TEST PROCEDURE AND SETTING 18 5.3 MEASUREMENT INSTRUMENTS LIST 19 5.4 TESTSETUP 19 5.5 EUT OPERATING CONDITIONS 20 5.6 TEST RESULTS - 9 KHZ TO 30MHZ 21 5.7 TEST RESULTS- 30 MHZ TO 1000MHZ 22 5.8 TEST RESULTS - ABOVE 1000MHZ(BAND EDGE) 24 5.9 TEST RESULTS - ABOVE 1000MHZ(HARMONIC) 32 6 . NUMBER OF HOPPING FREQUENCY 44 6.1 LIMIT 44 6.2 TEST PROCEDURE AND SETTING 44 6.3 MEASUREMENT INSTRUMENTS LIST 44 6.4 TEST SETUP 44 Report No.: 20EFAS04010 2281 Page 3 of 63 Table of Contents Page 6.5 EUT OPERATION CONDITIONS 44 6.6 TEST RESULTS 45 7 . AVERAGE TIME OF OCCUPANCY 46 7.1 LIMIT 46 7.2 TEST PROCEDURE AND SETTING 46 7.3 MEASUREMENT INSTRUMENTS LIST 46 7.4 TEST SETUP 46 7.5 EUT OPERATION CONDITIONS 46 7.6 TEST RESULTS 47 8 . HOPPING CHANNEL SEPARATION MEASUREMENT 49 8.1 LIMIT 49 8.2 TEST PROCEDURE AND SETTING 49 8.3 MEASUREMENT INSTRUMENTS LIST 49 8.4 TEST SETUP 49 8.5 EUT OPERATION CONDITIONS 49 8.6 TEST RESULTS 50 9 . BANDWIDTH TEST 52 9.1 LIMIT 52 9.2 TEST PROCEDURE AND SETTING 52 9.3 MEASUREMENT INSTRUMENTS LIST 52 9.4 TEST SETUP 52 9.5 EUT OPERATION CONDITIONS 52 9.6 TEST RESULTS 53 10 . MAXIMUM OUTPUT POWER 55 10.1 LIMIT 55 10.2 TEST PROCEDURE AND SETTING 55 10.3 MEASUREMENT INSTRUMENTS LIST 55 10.4 TEST SETUP 55 10.5 EUT OPERATION CONDITIONS 55 10.6 TEST RESULTS 56 11 . CONDUCTED SPURIOUS EMISSION 59 11.1 LIMIT 59 11.2 TEST PROCEDURE AND SETTING 59 11.3 MEASUREMENT INSTRUMENTS LIST 59 Report No.: 20EFAS04010 2281 Page 4 of 63 Table of Contents Page 11.4 TEST SETUP 59 11.5 EUT OPERATION CONDITIONS 59 11.6 TEST RESULTS 60 12 . FREQUENCY STABILITY MEASUREMENT 62 12.1 LIMIT 62 12.2 TEST PROCEDURE 62 12.3 MEASUREMENT INSTRUMENTS LIST 62 12.4 TEST SETUP 62 12.5 EUT OPERATION CONDITIONS 62 12.6 TEST RESULTS 63 Report No.: 20EFAS04010 2281 Page 5 of 63 1. TEST REPORT DECLARE Applicant Dongguan 3e electronics Co.,Ltd Address No. 20, Baihao Shiji Road, Houjie, Dongguan,Guangdong, China Manufacturer Dongguan 3e electronics Co.,Ltd Address No. 20, Baihao Shiji Road, Houjie, Dongguan,Guangdong, China Factory Dongguan 3e electronics Co.,Ltd Address No. 20, Baihao Shiji Road, Houjie, Dongguan,Guangdong, China Equipment Switch Mini Controller Model No. FCC:SE3208,SE3209,SE3210,SE3211,SE3212, IC:BGK496,BGK497,BGK498 Trade Mark N/A Standard FCC Part15, Subpart C (15.247) RSS-247 Issue 2, Feb. 2017 RSS-Gen Iss ue 5, Mar. 2019 ANSI C63.10-2013 We Declare: The equipment described above is tested by DongGuanShuoXin Electronic Technology Co., Ltd. and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and DongGuanShuoXin Electronic Technology Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. Report No.: 20EFAS04010 2281 Page 6 of 63 2. SUMMARY OF TEST RESULTS The EUT have been tested according to the applicable stand ards as referenced below: Standard(s) Section Test Item Judgment Remark FCC ISED 15.207 RSS-Gen 8.8 AC Power Line Conducted Emissions PASS ------ 15.247(d) 15.205(a) 15.209(a) RSS-247 5.5 RSS-Gen 8.9 RSS-Gen 8.10 Radiated Emission PASS ------ 15.247(a)(1)(iii) RSS-247 5.1 (d) Number of Hopping Frequency PASS ------ 15.247(a)(1)(iii) RSS-247 5.1 (d) Average Time Of Occupancy PASS ------ 15.247(a)(1) RSS-247 5.1 (b) Hopping Channel Separation PASS ------ 15.247(a)(1) RSS-247 5.1 (a) RSS-Gen 6.7 BandwidthPASS ------ 15.247(a)(1) RSS-247 5.1 (b) Maximum Output Power PASS ------ 15.247(d) RSS-247 5.5 Conducted Spurious Emission PASS ------ - RSS-Gen 6.11 Frequency Stability PASS ------ 15.203 - Antenna Requirement PASS Note(2) Note: (1) “N/A” denotes test is not applica ble in this te st report (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: 20EFAS04010 2281 Page 7 of 63 2.1 MEASUREMENT UNCERTAINTY Test Item Uncertainty Uncertainty for Conduction emission test (9kHz-150kHz) 3.7 dB Uncertainty for Conduction emission test (150kHz-30MHz) 3.3 dB Uncertainty for Radiation Emission test (30MHz-200MHz) 4.60 dB (Polarize: V) 4.60 dB (Pola…
