User Manual Read me first  Please read this manual before operating your tablet, and keep it for future reference.  The descriptions in this manual are based on the default settings.  Images and screenshots used in this manual may differ from the actual product.  Available features and additional services may vary by device, software or service provider.  Our company is not liable for performance issues caused by third-party applications. Contents Assembling................................................................................................................................... - 1 - Unpack.................................................................................................................................. - 1 - Charge the battery ............................................................................................................... - 1 - Install the SIM card ............................................................................................................... - 1 - Install the memory card ....................................................................................................... - 1 - Getting started ............................................................................................................................. - 2 - Turn your device on ,rebootand off ..................................................................................... - 2 - Switch to flight mode ........................................................................................................... - 2 - Home screen ........................................................................................................................ - 2 - Task bar ................................................................................................................................ - 2 - Notification panel ................................................................................................................. - 3 - Auto rotation ........................................................................................................................ - 3 - Lock & unlock the screen ..................................................................................................... - 3 - Customize your device ......................................................................................................... - 4 - Manage applications ............................................................................................................ - 4 - Security ................................................................................................................................ - 4 - Set up the fingerprint ........................................................................................................... - 4 - Display size ........................................................................................................................... - 5 - Data Saver ............................................................................................................................ - 5 - Quick Switch ......................................................................................................................... - 5 - Reset mobile phone ............................................................................................................. - 5 - Communication ........................................................................................................................... - 5 - Phone ................................................................................................................................... - 5 - Contacts ............................................................................................................................... - 7 - Messaging ............................................................................................................................ - 8 - Email ..................................................................................................................................... - 9 - Web .............................................................................................................................................. - 9 - Browser ................................................................................................................................ - 9 - Entertainment............................................................................................................................ - 10 - Camera ............................................................................................................................... - 10 - Tools ........................................................................................................................................... - 11 - Calendar ............................................................................................................................. - 11 - Alarm .................................................................................................................................. - 11 - File Manager ...................................................................................................................... - 12 - Sound Recorder .................................................................................................................. - 12 - Calculator ........................................................................................................................... - 12 - Connectivity ............................................................................................................................... - 12 - USB Connection.................................................................................................................. - 12 - Wi-Fi ................................................................................................................................... - 13 - Bluetooth ...........................…

Text truncated - open the document above for the full version.

Hyundai Technology Group, Inc. Agent Authorization Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave.Tustin, California,United States, 92780 Product Name: Tablet Trade Mark: Model Number(s): 10LB2 FCC ID: 2AVTH-10LB2 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-02 Name: Sophia Wong Title: procurement manager Company: Hyundai Technology Group, Inc.

Hyundai Technology Group, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-02-02 Subject; Request for Confidentiality FCC ID: 2AVTH-10LB2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sophia Wong Title: procurement manager

Page 1 of 1 Rev.2.0 Hyundai Technology Group, Inc. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2AVTH-10LB2 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by- case basis Other suitable geo-location data based on IP addresses or other reliable source. Signature: Name / Title: Sophia Wong / procurement manager Phone: 949-679-7960 Email: [email protected] Date: 2021-03-02

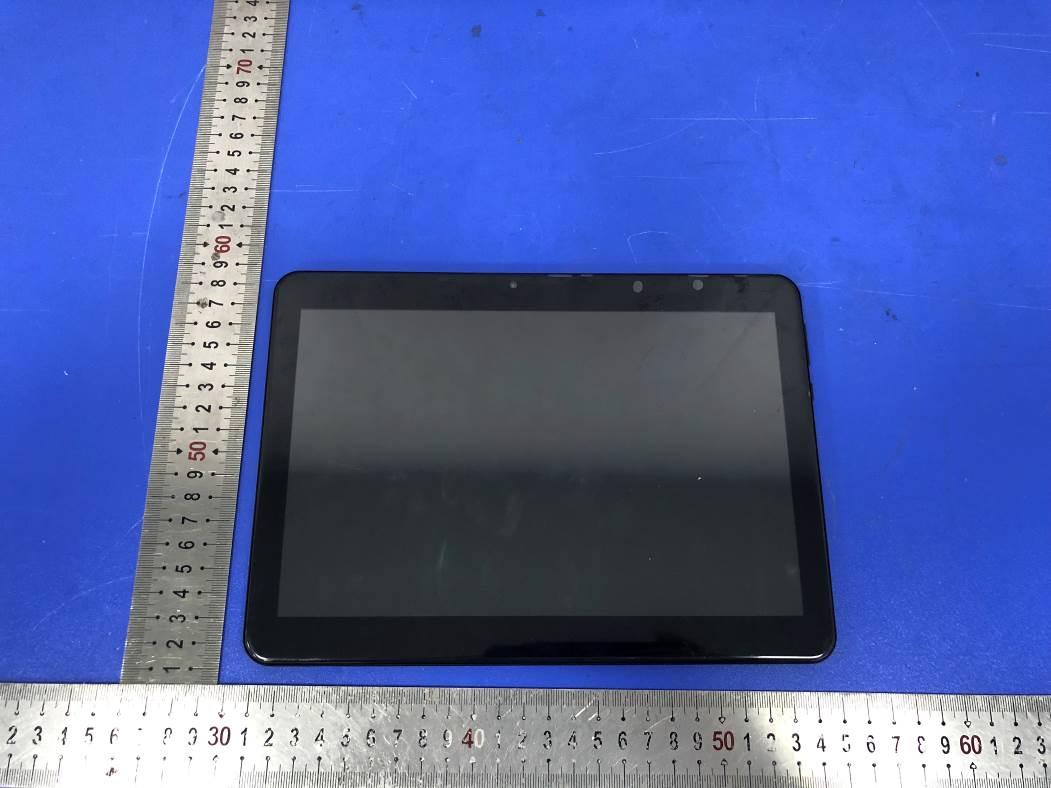

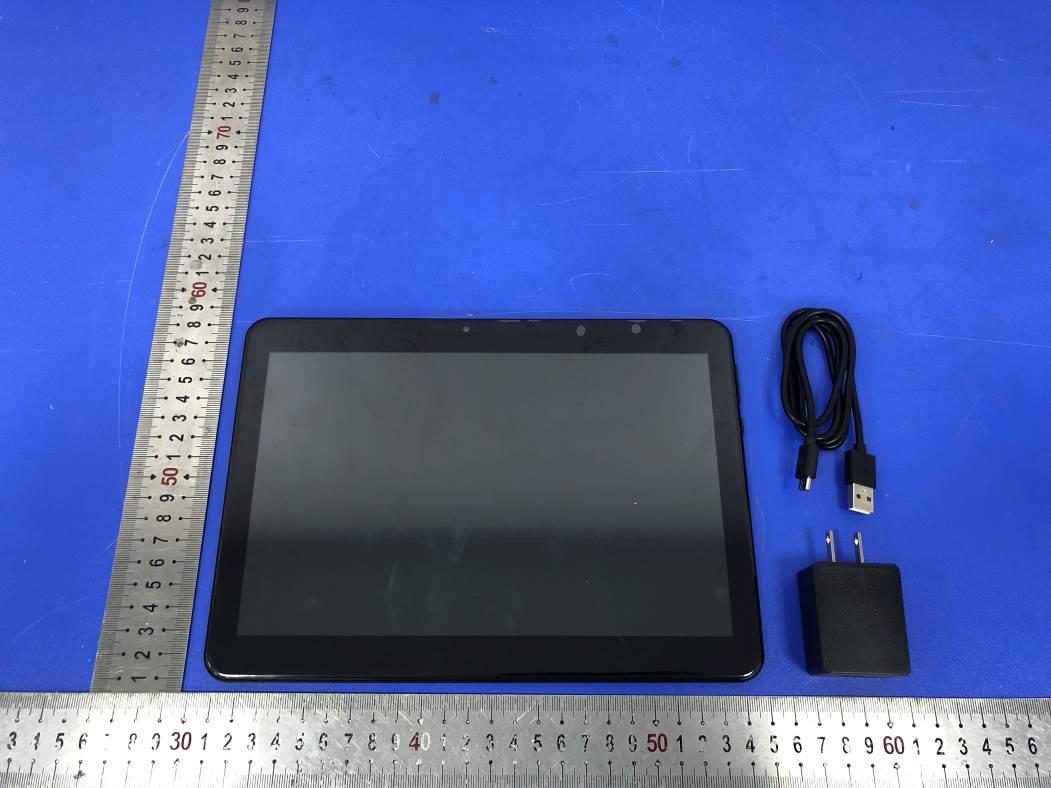

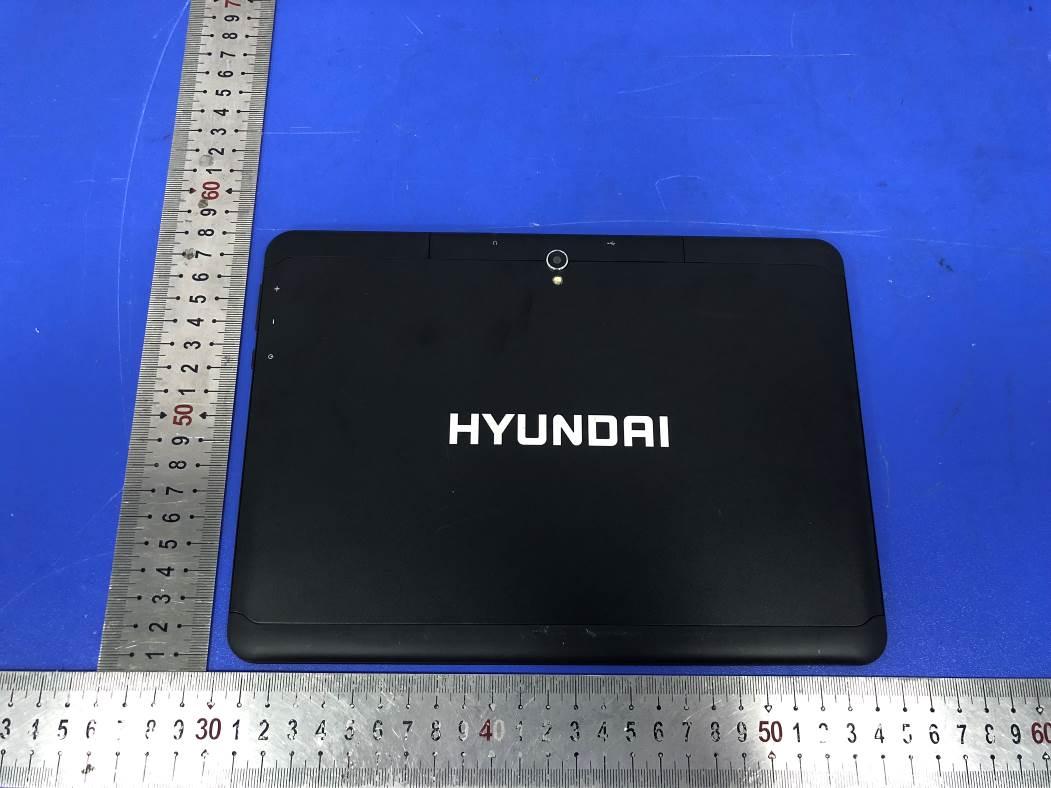

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4.0cm*W: 4.0cm Label and Location Tablet Model No.: 10LB2 FCC ID: 2AVTH-10LB2 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 BT/WIFI ANT GSM/WCDMA/LTE Main ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 134 SAR TEST REPORT For Hyundai Technology Group, Inc. Tablet Test Model: 10LB2 Additional Model No.: / Prepared for : Hyundai Technology Group, Inc. Address : 2601 Walnut Ave.Tustin, California,United States, 92780 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 23, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : October 23, 2020~December 18, 2020 Date of Report : December 24, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 134 SAR TEST REPORT Report Reference No. ............... : LCS201016078AEB Date Of Issue .............................. : December 24, 2020 Testing Laboratory Name ........ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ....................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : Hyundai Technology Group, Inc. Address ....................................... : 2601 Walnut Ave.Tustin, California,United States, 92780 Test Specification: Standard ...................................... : IEEE Std C95.1, 2005& IEEE Std 1528™-2013&FCC Part 2.1093 Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ........................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................. : Dated 2014-09 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .............. : Tablet Trade Mark ................................. : Model/Type Reference ............... : 10LB2 Operation Frequency .................. : GSM 850/PCS1900, WCDMA Band II/V; LTE Band2/4/5/7; WLAN2.4G; Bluetooth4.2. Modulation Type ........................ : Refer to page 7 Ratings ........................................ : DC 3.7V by Rechargeable Li-ion Battery(5000mAh) Recharged by 5V2.0A Adapter Result ........................................ : Positive Compiled by: Supervised by: Approved by: Ping Li / File administrators Jin Wang / Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 134 SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS201016078AEB December 24, 2020 Date of issue Test Model........................... : 10LB2 EUT....................................... : Tablet Applicant.............................. : Hyundai Technology Group, Inc. Address.................................. : 2601 Walnut Ave.Tustin, California,United States, 92780 Telephone.............................. : / Fax......................................... : / Manufacturer....................... : Hyundai Technology Group, Inc. Address.................................. : 2601 Walnut Ave.Tustin, California,United States, 92780 Telephone.............................. : / Fax......................................... : / Factory.................................. : / Address.................................. : / Telephone.............................. : / Fax......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 134 Revison History Revision Issue Date Revisions Revised By 000 December 24, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 134 TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. TEST STANDARDS ...................................................................................................................................................................6 1.2. TEST DESCRIPTION .................................................................................................................................................................6 1.3. GENERAL REMARKS ...........................................................................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 111 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 112 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 113 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 114 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 115 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 116 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 117 of 134 5.7 SID2600 Dipole Calibration Ceriticate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 118 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 119 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 120 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 121 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 122 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 123 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 124 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 125 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 126 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 127 of 134 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 128 of 134 6. EUT TEST PHOTOGRAPHS 6.1 Photograph of liquid depth Photograph of the depth in the Body Phantom (835MHz, 16.1cm depth) Photograph of the depth in the Body Phantom (1800MHz, 16.0cm depth) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 129 of 134 Photograph of the depth in the Body Phantom (1900MHz, 16.0cm depth) Photograph of the depth in the Body Phantom (2450MHz, 15.7cm depth) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 130 of 134 Photograph of the depth in the Body Phantom (2600MHz, 16.2cm depth) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 131 of 134 6.2 Photograph of the Test 0mm body-worn Back Side Setup Photo (hotspot) 0mm body-worn Front Side Setup Photo (hotspot) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 132 of 134 0mm body-worn Right Side Setup Photo (hotspot) 0mm body-worn Top Side Setup Photo (hotspot) SHENZH…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 136 Appendix D: Test Data for E-UTRA Band 2 Product Name: Tablet Trade Mark: Test Model: 10LB2 Environmental Conditions Temperature: 22.7C Relative Humidity: 53.4% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan D.1 Conducted Output Power Conducted Output Power Test Result (Channel Bandwidth: 1.4 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.32 21.70 PASS 1 3 22.46 21.92 PASS 1 5 22.39 21.75 PASS 3 0 22.67 21.40 PASS 3 2 22.54 21.78 PASS 3 3 22.51 21.53 PASS 6 0 21.50 20.38 PASS MCH 1 0 22.60 21.59 PASS 1 3 22.72 21.65 PASS 1 5 22.59 21.51 PASS 3 0 22.77 21.81 PASS 3 2 22.79 21.51 PASS 3 3 22.73 21.38 PASS 6 0 21.72 20.89 PASS HCH 1 0 23.05 22.16 PASS 1 3 23.19 22.34 PASS 1 5 23.38 22.13 PASS 3 0 22.85 22.15 PASS 3 2 22.95 22.26 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 136 3 3 22.87 22.06 PASS 6 0 21.97 20.55 PASS Conducted Output Power Test Result (Channel Bandwidth: 3 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.50 21.49 PASS 1 7 22.56 21.74 PASS 1 14 22.53 22.33 PASS 8 0 21.63 20.71 PASS 8 4 21.52 20.53 PASS 8 7 21.60 20.58 PASS 15 0 21.64 20.49 PASS MCH 1 0 22.95 22.24 PASS 1 7 23.03 22.02 PASS 1 14 22.89 22.03 PASS 8 0 21.94 21.08 PASS 8 4 21.96 20.64 PASS 8 7 21.91 20.68 PASS 15 0 21.92 20.97 PASS HCH 1 0 23.10 22.55 PASS 1 7 22.99 22.19 PASS 1 14 22.99 21.96 PASS 8 0 21.99 20.96 PASS 8 4 22.09 20.97 PASS 8 7 22.03 20.81 PASS 15 0 21.95 20.96 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 136 Conducted Output Power Test Result (Channel Bandwidth: 5 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.70 21.32 PASS 1 12 23.13 21.33 PASS 1 24 22.73 21.30 PASS 12 0 21.67 20.66 PASS 12 6 21.86 20.66 PASS 12 13 21.86 20.86 PASS 25 0 21.81 20.69 PASS MCH 1 0 22.95 21.89 PASS 1 12 23.20 21.50 PASS 1 24 22.95 21.65 PASS 12 0 21.95 21.12 PASS 12 6 21.95 20.96 PASS 12 13 21.98 20.86 PASS 25 0 21.82 20.86 PASS HCH 1 0 22.77 21.64 PASS 1 12 23.10 21.33 PASS 1 24 23.05 21.65 PASS 12 0 21.94 20.84 PASS 12 6 21.91 20.63 PASS 12 13 22.11 20.86 PASS 25 0 22.00 20.94 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 136 Conducted Output Power Test Result (Channel Bandwidth: 10 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.58 21.93 PASS 1 24 22.70 22.50 PASS 1 49 23.16 22.65 PASS 25 0 21.89 20.94 PASS 25 12 21.88 20.91 PASS 25 25 21.87 20.91 PASS 50 0 21.81 21.04 PASS MCH 1 0 22.97 22.39 PASS 1 24 22.86 22.46 PASS 1 49 22.70 22.22 PASS 25 0 22.05 21.18 PASS 25 12 21.93 20.91 PASS 25 25 22.01 20.99 PASS 50 0 21.95 21.01 PASS HCH 1 0 22.72 21.72 PASS 1 24 22.73 21.83 PASS 1 49 22.99 21.86 PASS 25 0 21.86 21.07 PASS 25 12 21.91 20.84 PASS 25 25 22.07 21.21 PASS 50 0 22.00 20.87 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 136 Conducted Output Power Test Result (Channel Bandwidth: 15 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.79 22.05 PASS 1 37 22.85 22.70 PASS 1 74 23.14 22.99 PASS 37 0 21.82 20.86 PASS 37 18 21.94 20.94 PASS 37 38 22.18 21.15 PASS 75 0 22.00 21.03 PASS MCH 1 0 22.83 22.03 PASS 1 37 22.99 22.50 PASS 1 74 22.75 22.05 PASS 37 0 21.99 21.17 PASS 37 18 21.95 20.94 PASS 37 38 21.98 20.95 PASS 75 0 21.91 20.94 PASS HCH 1 0 22.39 21.41 PASS 1 37 23.07 22.04 PASS 1 74 23.20 21.86 PASS 37 0 21.74 20.86 PASS 37 18 21.80 20.69 PASS 37 38 21.97 20.84 PASS 75 0 21.83 20.86 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LB2 Report No.: LCS201016078AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 136 Conducted Output Power Test Result (Channel Bandwidth: 20 MHz) Modulation Channel RB …
