2AVTH-10LC1-2Tablet PC

10LC1 USER MANUAL HYTAB PRO 10LC1 User Manual 4 WARRANTY NOTICE Limited Warranty does NOT cover: Any costs associated with the repair or replacement of the Product including labor, installation or other costs incurred by you, and in particular, any costs relating to the removal or replacement of any Product that is soldered or otherwise permanently affixed to any printed circuit board; OR Damage to the Product due to external causes, including accident, problems with electrical power, abnormal electrical, mechanical or environmental conditions, usage not in accordance with product instructions, misuse, neglect, alteration, repair, improper installation, or improper testing; OR Any Product which has been modified or operated outside of specifications or where the original identification markings (trademark or serial number) has been removed, altered or obliterated from the Product, or where the label or screw on the exterior of the Product is removed or broken. 5 Assembling Unpack Charge the battery Installing the SIM card Installing the Memory Card Getting started Turn your Device On, Reboot and Powering Off Switch to Flight Mode- Home Screen Task Bar Notification Panel Auto Rotation Locking & Unlocking your Screen Customize your Device Manage Applications Security Fingerprint Setup Display Size Data Saver Quick Switch Reset Mobile Phone Communication Phone Contacts Messaging Email CONTENTS: 7 7 7 8 8 8 8 9 10 10 10 10 11 11 12 12 12 12 12 13 15 16 17 6 Web Browser Entertainment Camera Tools Calendar Alarm File Manager Audio Recorder Calculator Connectivity USB Connection Wi-Fi Bluetooth Safety Precautions Care & Maintenance Warnings 19 20 21 21 22 22 22 23 23 24 24 25 26 1. 2. 1. 2. 7 ASSEMBLING: Unpack Check your product box for the following items. Hyundai HYTAB PRO 10LC1 Tablet User Manual Warranty Card Charging Adapter Charge the Battery Before using the device for the first time, you must charge the battery completely. You can charge your device with a travel adapter or by connecting the device to a PC with the included USB cable. “Battery Full” icon will be displayed when your device is fully charged. Warning: Use only the original batteries and chargers provided. Unapproved chargers or cables can cause batteries to explode or damage your device. Installing the SIM card You need to insert a SIM card to use the Mobile function. To install a SIM card into your dedvice, follow the instructions below. Make sure that the SIM card’s gold contacts face into the device. Push the SIM card into the slot. 1. 2. 8 Installing the Memory Card To store additional multimedia files, you need to insert a memory card of up to 128GB. Insert a memory card with the gold contacts facing downwards. Push the memory card into the slot. Notice: Our company uses approved industry standards for memory cards, but some brands may not be fully compatible with your device. GETTING STARTED: Turning your Device On, Off and Rebooting To turn on your device, press and hold the power key. To reboot your device, press and hold the power key, select “Reboot”. To turn off your device, press and hold the power key, select “Power Off”. Switch to Flight Mode To use only your device’s non-network services, switch to Flight mode. Please follow the instructions below to turn on Flight mode: Tap Settings ⮑ Network & Internet ⮑ Advanced ⮑ Airplane Mode from application list to turn on Flight mode. Home Screen The home screen has multiple panels. Scroll left or right to the panels on the home screen, you can view indicator icons, widgets, shortcuts to applications, and other items. 9 Task Bar The task bar is shown at the top of the screen. It displays commonly used option buttons, battery level indicator, current time and other indicator icons. Indicator Icons Open WiFi available Definition WiFi connectedNew email Signal strength BT connected Uploading data Downloading data Connected to PC Alarm activated Battery power level Music being played Don't disturb Auto-rotate Location Flashlight DefinitionIconIcon Flight mode activated New text or multimedia message Call in progress Missed call Call on hold Call diverting activated 10 Notification Panel Pull down to open the top of the notification bar to show the 6 users commonly used shortcut switch, support click on the switch, and long press to enter the corresponding settings. If you continue to pull down the notification bar to display all the quick switch, fast switch in the lower right corner of page will display a “Edit” button, click to add / delete custom shortcut switch, or drag to sort. Tap icon to activate or deactivate wireless connection features and other settings. Wi-Fi: Activate or deactivate the Wi-Fi connection. Bluetooth: Activate or deactivate the Bluetooth connection. Notifications: Activate or deactivate the notification feature. Flashlight: Activate or deactivate the Flashlight. Auto-Rotate Screen: Activate or deactivate the auto rotation feature. Battery Saver: Activate or deactivate the Battery Saver. Brightness: Adjust the brightness level of the display to lighter or darker. Settings: Access Settings application. Auto Rotation If you rotate the device while using some features, the interface will automatically rotate as well. To prevent the interface from rotating, open the notifications panel and select Auto-Rotate Screen, then tap it to Off. Lock & Unlock the Screen Slide to unlock the screen. To lock the screen manually, press Power key. Customize your Device To customize your device according to your preferences, tap Settings from application list or notification panel. 1. 2. 11 Manage Applications To manage the applications installed on your device, tap Settings ⮑ Apps & Notifications. To uninstall an application, select an item and tap UNINSTALL, tap OK to confirm. To stop or change the settings of an application, select an item and tap the option you need. Security You can protect your device and data by setting screen lock or encrypting your tablet.…

Text truncated - open the document above for the full version.

Hyundai Technology Group, Inc. Agent Authorization Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave.Tustin, California,United States, 92780 Product Name: Tablet PC Trade Mark: Model Number(s): 10LC1, 10LC2 FCC ID: 2AVTH-10LC1-2 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-10 Name: Sophia Wong Title: procurement manager Company: Hyundai Technology Group, Inc.

Hyundai Technology Group, Inc. 2601 Walnut Ave.Tustin, California,United States, 92780 Tel: 949-679-7960 E-mail: [email protected] Series Models Description Date: 2021/03/10 To: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: 2AVTH-10LC1-2 Dear Sir/Madam, We, Hyundai Technology Group, Inc. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: Tablet PC Model no.: 10LC1, 10LC2 Sincerely, Name: Sophia Wong / procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave.Tustin, California,United States, 92780 Phone: 949-679-7960 E-Mail: [email protected]

Hyundai Technology Group, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-03-10 Subject; Request for Confidentiality FCC ID: 2AVTH-10LC1-2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sophia Wong Title: procurement manager

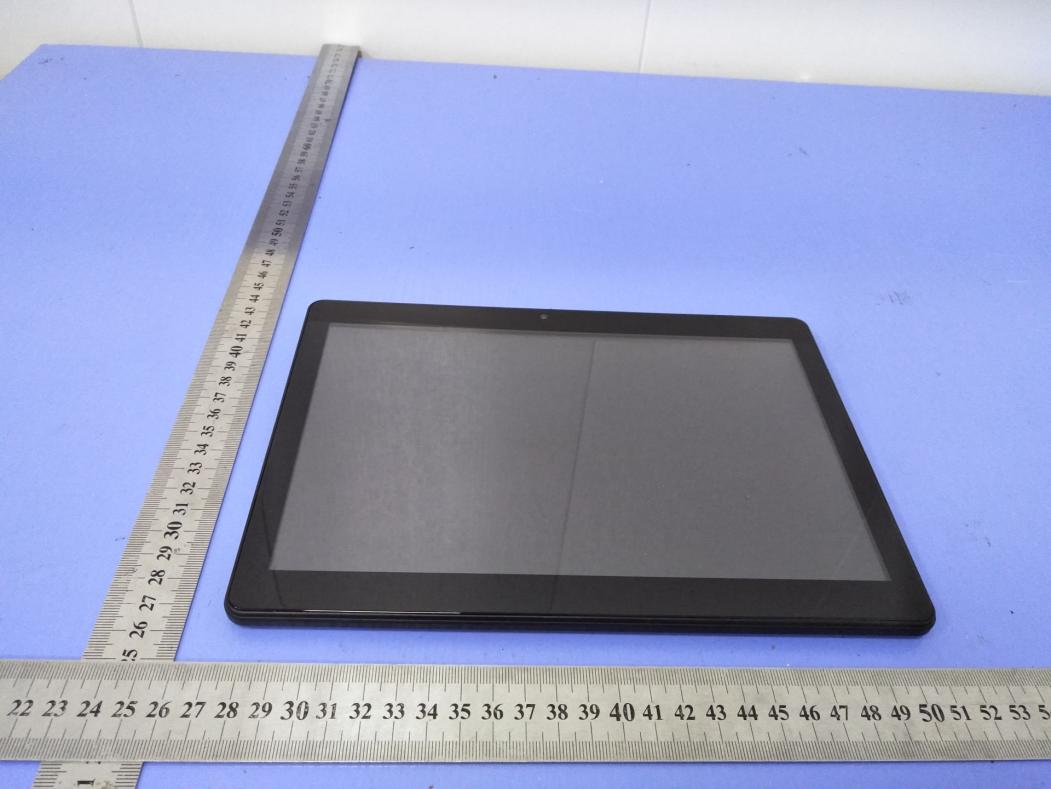

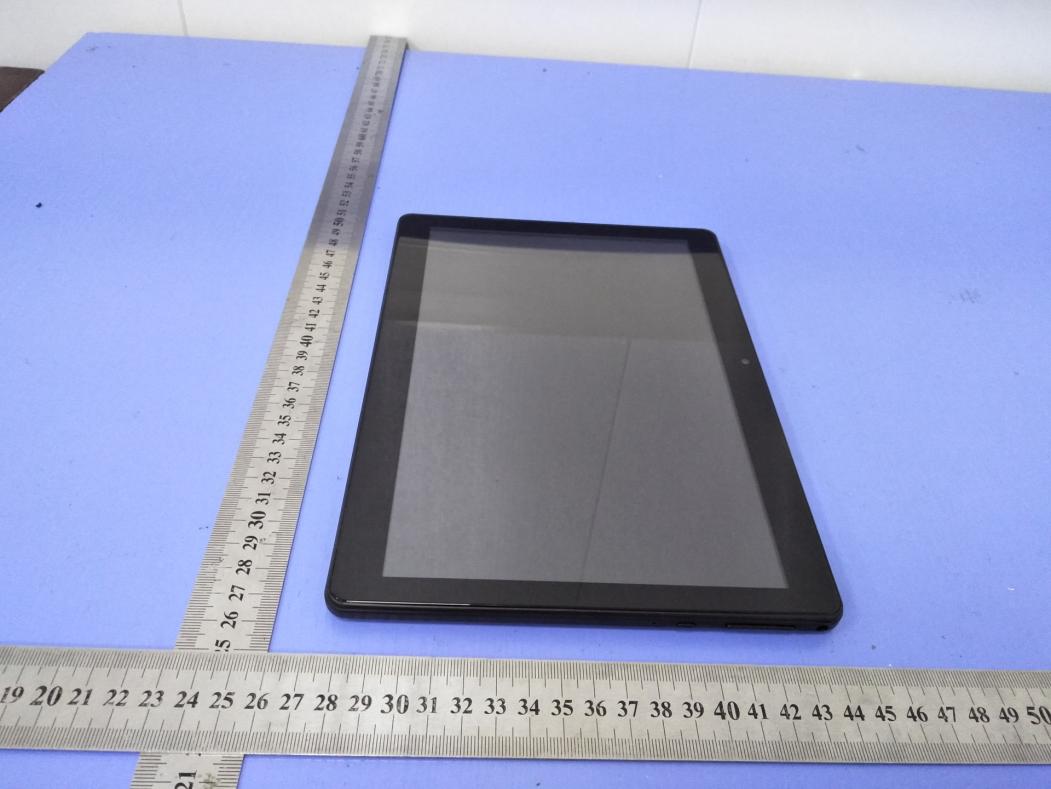

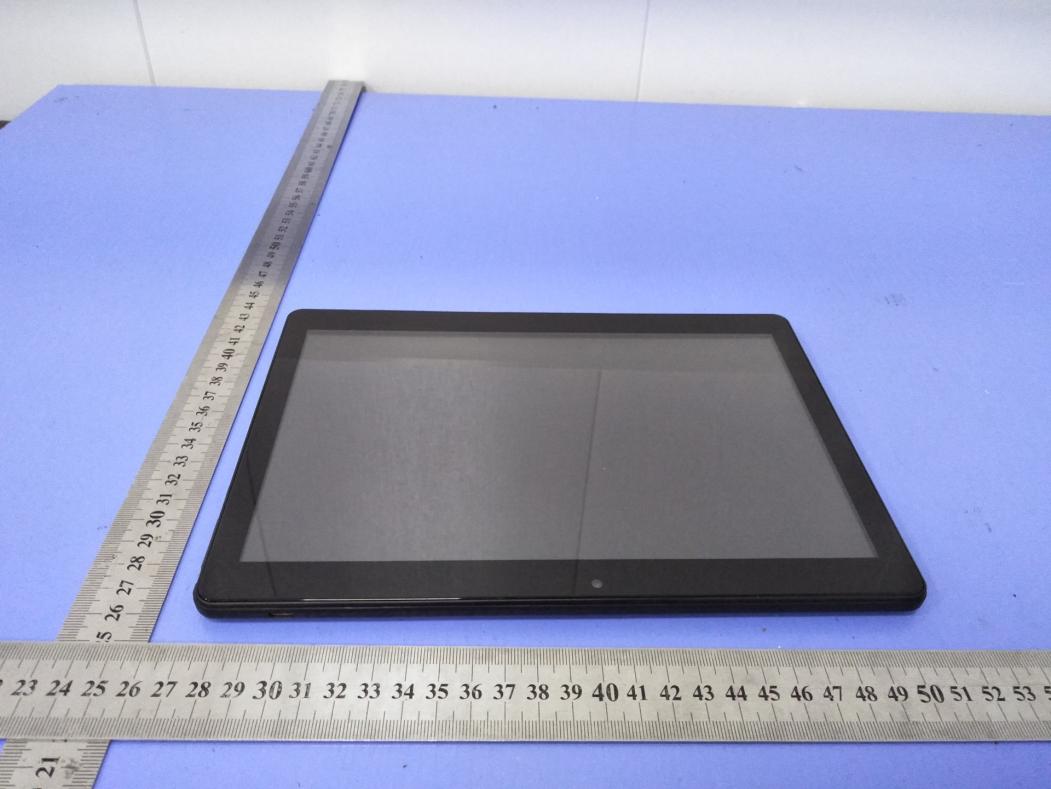

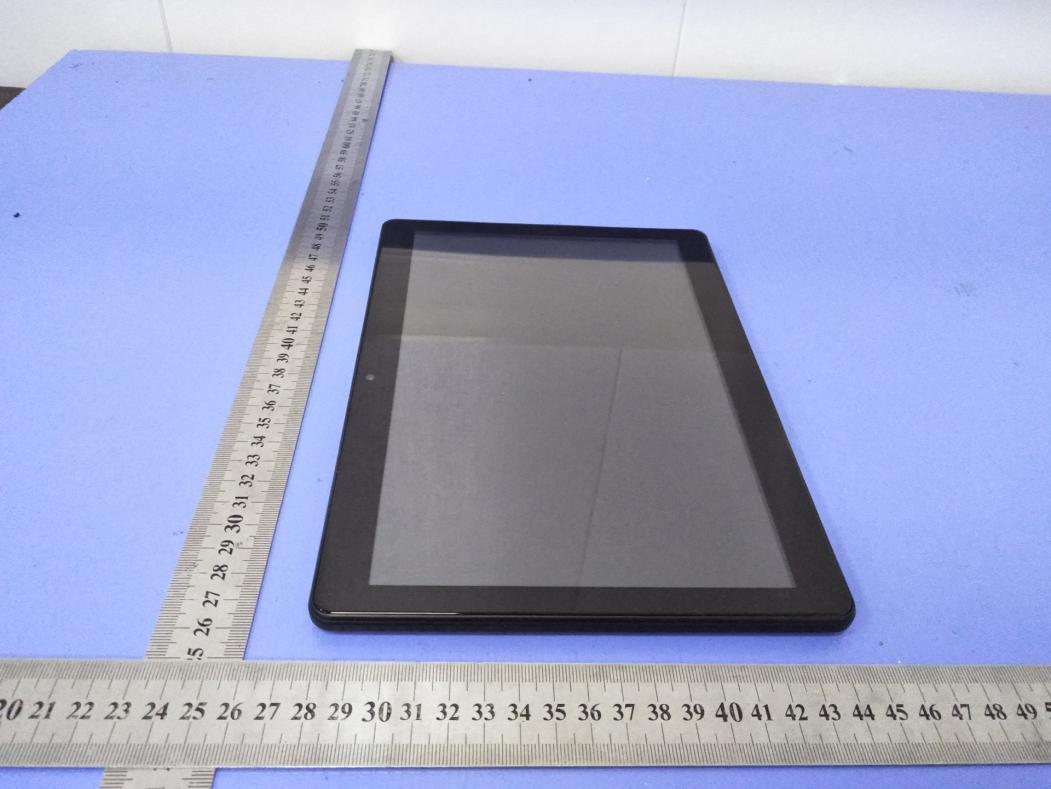

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4.0cm*W: 4.0cm Label and Location Tablet PC Model No.: 10LC1 FCC ID: 2AVTH-10LC1-2 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 BT/WIFI ANT LTE Diversity ANT GSM/WCDMA/LTE Main ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 152 SAR TEST REPORT For Hyundai Technology Group, Inc. Tablet PC PC Test Model: 10LC1 Additional Model No.: 10LC2 Prepared for : Hyundai Technology Group, Inc. Address : 2601 Walnut Ave.Tustin, California,United States, 92780 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : November 09, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : November 09, 2020~December 10, 2020 Date of Report : December 18, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 152 SAR TEST REPORT Report Reference No. ............... : LCS201026153AEB Date Of Issue .............................. : December 18, 2020 Testing Laboratory Name ........ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ....................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : Hyundai Technology Group, Inc. Address ....................................... : 2601 Walnut Ave.Tustin, California,United States, 92780 Test Specification: Standard ...................................... : IEEE Std C95.1, 2005& IEEE Std 1528™-2013&FCC Part 2.1093 Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ........................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................. : Dated 2014-09 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .............. : Tablet PC PC Trade Mark ................................. : Model/Type Reference ............... : 10LC1 Operation Frequency .................. : GSM 850/PCS1900, WCDMA Band II/V; LTE Band2/4/5/7/12/17; WLAN2.4G; Bluetooth4.2. Modulation Type ........................ : Refer to page 7 Ratings ........................................ : DC 3.7V by Rechargeable Li-ion Battery(5000mAh) Recharged by 5V2.0A Adapter Result ........................................ : Positive Compiled by: Supervised by: Approved by: Ping Li / File administrators Jin Wang / Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 152 SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS201026153AEB December 18, 2020 Date of issue Test Model........................... : 10LC1 EUT....................................... : Tablet PC PC Applicant.............................. : Hyundai Technology Group, Inc. Address.................................. : 2601 Walnut Ave.Tustin, California,United States, 92780 Telephone.............................. : / Fax......................................... : / Manufacturer....................... : KONKA Mobility Co., Ltd Address.................................. : No.7 Shantou Str. Overseas Chinese Town, NanShan, Shenzhen, P .R. China 518053 Telephone.............................. : / Fax......................................... : / Factory.................................. : KONKA Smart Technology Co., Ltd Address.................................. : #5 Workshop, Intelligent Terminal Industrial Park, West Section o f GangYuan Blvd, YiBin LingGang Economic and Technological Development Zone, SiChuan, China Telephone.............................. : / Fax......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 152 Revison History Revision Issue Date Revisions Revised By 000 December 18, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 152 TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. TEST STANDARDS ...................................................................................................................................................................6 1.2. TEST DESCRIPTION .................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 118 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 119 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 120 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 121 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 122 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 123 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 124 of 152 5.6 SID2450 Dipole Calibration Ceriticate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 125 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 126 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 127 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 128 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 129 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 130 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 131 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 132 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 133 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 134 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 135 of 152 5.7 SID2600 Dipole Calibration Ceriticate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 136 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 137 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 138 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 139 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 140 of 152 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 141 of 152 SHENZHEN LCS COMPLIANCE TESTING LABO…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 135 Appendix D: Test Data for E-UTRA Band 2 Product Name: Tablet PC Trade Mark: Test Model: 10LC1 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Li Huan Supervised by: Tom Liu D.1 Conducted Output Power Conducted Output Power Test Result (Channel Bandwidth: 1.4 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.75 22.14 PASS 1 3 22.74 21.73 PASS 1 5 22.80 21.73 PASS 3 0 22.69 21.58 PASS 3 2 22.80 21.72 PASS 3 3 22.35 21.67 PASS 6 0 21.70 20.55 PASS MCH 1 0 22.75 21.50 PASS 1 3 22.85 21.52 PASS 1 5 22.84 21.45 PASS 3 0 22.76 21.75 PASS 3 2 22.90 21.39 PASS 3 3 22.88 21.56 PASS 6 0 21.81 20.95 PASS HCH 1 0 22.60 21.67 PASS 1 3 22.71 21.58 PASS 1 5 22.68 21.54 PASS 3 0 22.69 21.92 PASS 3 2 22.72 21.78 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 135 3 3 22.75 21.77 PASS 6 0 21.63 20.67 PASS Conducted Output Power Test Result (Channel Bandwidth: 3 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.81 22.32 PASS 1 7 22.84 22.47 PASS 1 14 22.67 22.18 PASS 8 0 21.70 20.71 PASS 8 4 21.71 20.57 PASS 8 7 21.63 20.58 PASS 15 0 21.76 20.74 PASS MCH 1 0 22.88 22.09 PASS 1 7 22.84 22.11 PASS 1 14 22.62 22.16 PASS 8 0 21.80 20.91 PASS 8 4 21.81 20.90 PASS 8 7 21.75 21.06 PASS 15 0 21.74 20.84 PASS HCH 1 0 22.71 21.28 PASS 1 7 22.96 21.38 PASS 1 14 22.36 21.27 PASS 8 0 21.69 20.76 PASS 8 4 21.54 20.56 PASS 8 7 21.55 20.46 PASS 15 0 21.68 20.86 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 135 Conducted Output Power Test Result (Channel Bandwidth: 5 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.77 21.36 PASS 1 12 22.93 21.51 PASS 1 24 22.60 21.18 PASS 12 0 21.68 20.79 PASS 12 6 21.64 20.75 PASS 12 13 21.65 20.62 PASS 25 0 21.60 20.80 PASS MCH 1 0 22.75 21.38 PASS 1 12 22.96 21.70 PASS 1 24 22.78 21.06 PASS 12 0 21.71 20.82 PASS 12 6 21.76 20.98 PASS 12 13 21.66 20.71 PASS 25 0 21.79 21.02 PASS HCH 1 0 22.72 21.46 PASS 1 12 22.75 21.50 PASS 1 24 21.85 20.97 PASS 12 0 21.77 20.71 PASS 12 6 21.85 20.64 PASS 12 13 21.64 20.47 PASS 25 0 21.66 20.81 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 135 Conducted Output Power Test Result (Channel Bandwidth: 10 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.94 22.48 PASS 1 24 23.04 22.67 PASS 1 49 22.17 21.55 PASS 25 0 21.82 20.93 PASS 25 12 21.80 21.00 PASS 25 25 21.79 20.80 PASS 50 0 21.74 20.84 PASS MCH 1 0 22.39 21.76 PASS 1 24 23.84 23.54 PASS 1 49 22.69 21.96 PASS 25 0 21.80 20.68 PASS 25 12 21.81 20.85 PASS 25 25 21.70 20.91 PASS 50 0 21.79 20.90 PASS HCH 1 0 20.58 20.07 PASS 1 24 22.71 22.22 PASS 1 49 21.08 20.66 PASS 25 0 21.61 20.73 PASS 25 12 22.55 21.60 PASS 25 25 21.81 20.80 PASS 50 0 21.73 20.89 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 135 Conducted Output Power Test Result (Channel Bandwidth: 15 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.85 21.69 PASS 1 37 23.13 22.05 PASS 1 74 21.82 21.11 PASS 37 0 21.88 20.95 PASS 37 18 21.89 20.87 PASS 37 38 21.89 20.83 PASS 75 0 21.91 20.93 PASS MCH 1 0 21.62 21.02 PASS 1 37 23.71 23.13 PASS 1 74 22.81 22.02 PASS 37 0 21.89 21.00 PASS 37 18 22.02 21.11 PASS 37 38 21.90 20.91 PASS 75 0 21.91 21.12 PASS HCH 1 0 20.96 20.35 PASS 1 37 21.70 21.09 PASS 1 74 21.03 20.47 PASS 37 0 21.02 20.10 PASS 37 18 21.65 20.75 PASS 37 38 22.19 21.19 PASS 75 0 21.58 20.69 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 135 Conducted Output Power Test Result (Channel Bandwidth: 20 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 23.07 21.63 PASS 1 49 22.81 21.91 PASS 1 99 21.20 20.58 PASS 50 0 22.03 21.15 PASS 50 25 21.98 21.14 PASS 50 50 21.86 20.94 PASS 100 0 21.88 20.99 PASS MCH 1 0 21.34 20.78 PASS 1 49 23.80 22.61 PASS 1 99 22.57 21.39 PASS 50 0 21.88 20.93 PASS 50 25 22.06 21.22 PASS 50 50 21.93 20.88 PASS 100 0 21.94 21.14 PASS HCH 1 0 22.34 21.53 PASS 1 49 21.31 20.72 PASS 1 99 21.11 20.53 PASS 50 0 21.60 20.69 PASS 50 25 21.41 20.53 PASS 50 50 21.79 20.93 PASS 100 0 21.62 20.73 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 135 D.2 Peak-to-Average Ratio Peak-to Average Ratio Test Result (Channel Bandwidth: 1.4 MHz) Modulation Channel Peak-…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10LC1-2 Report No.: LCS201026153AEG This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 82 of 135 (Channel Bandwidth: 5 MHz)_HCH_QPS…
