2AVTH-10M4I1012

KORAL 10M4 User Manual KORAL 10M4 User Manual 5 I. Warranty Notice 6 II. Precautions Before Use 7 III. Key Layout And Definitions 9 IV. Descriptions Of Keys 10 V. Introduction To Desktop 11 1. Image Slide Application 11 2. Cortana 11 3. Introduction To App Interface 12 4. Start Menu 14 5. Multitasking Operating Interface 16 VI. Basic Operations 17 1. Sleep, Shut Down And Restart 17 CONTENT 6 7 Thank you for purchasing the Hyundai Koral 10M4. Hyundai offers a 1-year warranty service for any “damaged” or “defected” product. The following conditions are not included in our warranty service program, and the following repairs could and will be charged: The use of the device not in accordance with the product manual operation or improper operation of instructions. Man-made damage, computer viruses, moisture, improper installation or disassembled software and so on. Fires, floods, storms, earthquakes and other natural disasters. Accessories, supplies, natural wear and tear caused by use. The need to re-install the software on behalf of the company or adjust computer settings, will be charged as appropriate. Our warranty identification number is damaged or dirty, making it impossible to identify. Before the product repair, please back up your information and files separately, the repair process may affect the integrity of the data. We guarantee service, to make the purchase and user-experience satisfying. WARRANTY NOTICE 1. This production is suitable for use in non-tropic areas below 2,000 meters, and the mark in the nameplate indicates the product is suitable for use in non-tropic areas. 2. Prevent the Tablet PC from falling to the ground or being strongly impacted otherwise. 3. Do not use it in the long term in any environment where the air is too cold, too hot (<35 o C), too humid or with too much dust. Do not expose the Notebook PC to sunlight. 4. Avoid using it in the strong magnetic and strong static environment as much as possible. 5. Once any water or other liquid splashes onto the Notebook PC, close it immediately and do not use it until it dries out. 6. Do not clean the Tablet PC with any detergent containing chemical element or other liquid to avoid causing damage due to corrosion and becoming damp. If cleaning is really necessary, clean it with dry soft cloth tissue paper. 7. Our company shall not bear any and all responsibilities for loss or deletion of material inside the machine caused due to abnormal software and hardware operation, maintenance or any other accident. 8. Please back up your important material at any time to avoid loss. 9. Please do not disassemble the Tablet PC by yourself; otherwise you will lose the right to warranty. 10. Quick Use Guide and the relevant software shall be updated at any time. For updated software version, visit www.hyundaitechnology.com for downloading by yourself, and no Precautions Before Use 8 9 Precautions Before Use: notice shall be given otherwise. If anything is found to be inconsistent with the Quick Use Guide, the material object shall prevail. 11. Replacement with incorrect type batteries may cause explosion. Make sure to use original batteries. Key Layout And Definitions 1.- Power 2.- Volume +/- 3.- Front Camera 4.- DC 5.- Type-C 6.- Mini HDMI 7.- USB 3.0 8.- Earphone 9.- SD Card 10.- Speaker 11.- Pogo Pin 12.- Rear Camera 13.- Speaker 12 4 5 6 7 8 9 10 3 11 13 12 10 11 ATTENTION: Keyboard is optional, and configure the product according to the specific type of the tablet PC you have bought. Descriptions Of Keys 1.- Movable base keyboard interface: This interface is magnetic, which is convenient for alignment and firmly linking the Table PC and the keyboard. 2.- Keyboard group: The keyboard group provides full size QWERTY key and best typewriting comfortability. 3.- Touch Mousepad: Used to control the cursor on the Tablet PC, with the same function as a mouse. 4.- Left key. 5.- Right key. Windows 10 start image: On the start screen, you can see many programs fixed in the image. These application programs are displayed in the form of “magnet”. As long as you click them, you can easily visit them. You need to log on your Microsoft account before the application program completely runs. Introduction To Desktop Image Slide Application: Use Cortana for fast smart searching. Cortana: 1 2 3 4 5 12 13 Besides the application programs already fixed on the “start” screen, you can also fix other applications, programs, folders, etc., to the “start” screen. 1. If you want to fix more application programs on the start interface, see the operation in the figure below. In the start menu, right-click the application you want to fix and select “Pin to Star”. You can also drag the application onto the “start” screen, as follows: Introduction To App Interface: Conversely, if you want to cancel or delete a certain application in the start screen, (1) Right Clicking the application, (2) Click the “Unpin from Start”. 2. If you want to fix more application programs on the taskbar, see the operation in the figure below. In the start menu, right-click the application you want to fix and select “More”, and then select “Pin to taskbar”. You can also drag the application onto the taskbar, as follows: Conversely, if you want to cancel or delete a certain application in the taskbar, (1) Right Clicking the application, (2) Click the “Unpin this program from taskbar”. 14 15 Under PC mode, press Start icon, Start Menu will display including: Start, Device, Setup, Share, and Search Program. Start Menu: Usually: Power, Settings and Account. Can Change account setting/Lock/Sign out. Can let you set up the Table PC. Can Sleep/Shut down/Restart the Notebook PC. Action Center is a notification center also allows for quick settings like Tablet / PC mode, Wi-Fi, Bluetooth etc. Search menuSetup Menu Action Center 16 17 If you Click the Task View (or press the icon ), the running applications will be display. We can enter the application, also can be deleted. Multitasking Ope…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.1 Hyundai Technology Group, Inc. FCC Software Configuration Control Declaration Date: January 27, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product Name: I1012 Model Number: 10WWA464B Regarding FCC Country Code Selection guidelines identified in KDB 594280 D02 U-NII Device Security v01r03. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature: Date: 2021-01-27 Name: Sophia Wong Title: procurement manager Company: Hyundai Technology Group, Inc.

Hyundai Technology Group, Inc. Agent Authorization Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave.Tustin, California,United States, 92780 Product Name: I1012 Trade Mark: Hyundai Model Number(s): 10WWA464B FCC ID: 2AVTH-10M4 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-27 Name: Sophia Wong Title: procurement manager Company: Hyundai Technology Group, Inc.

Hyundai Technology Group, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-01-27 Subject; Request for Confidentiality FCC ID: 2AVTH-10M4 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sophia Wong Title: procurement manager

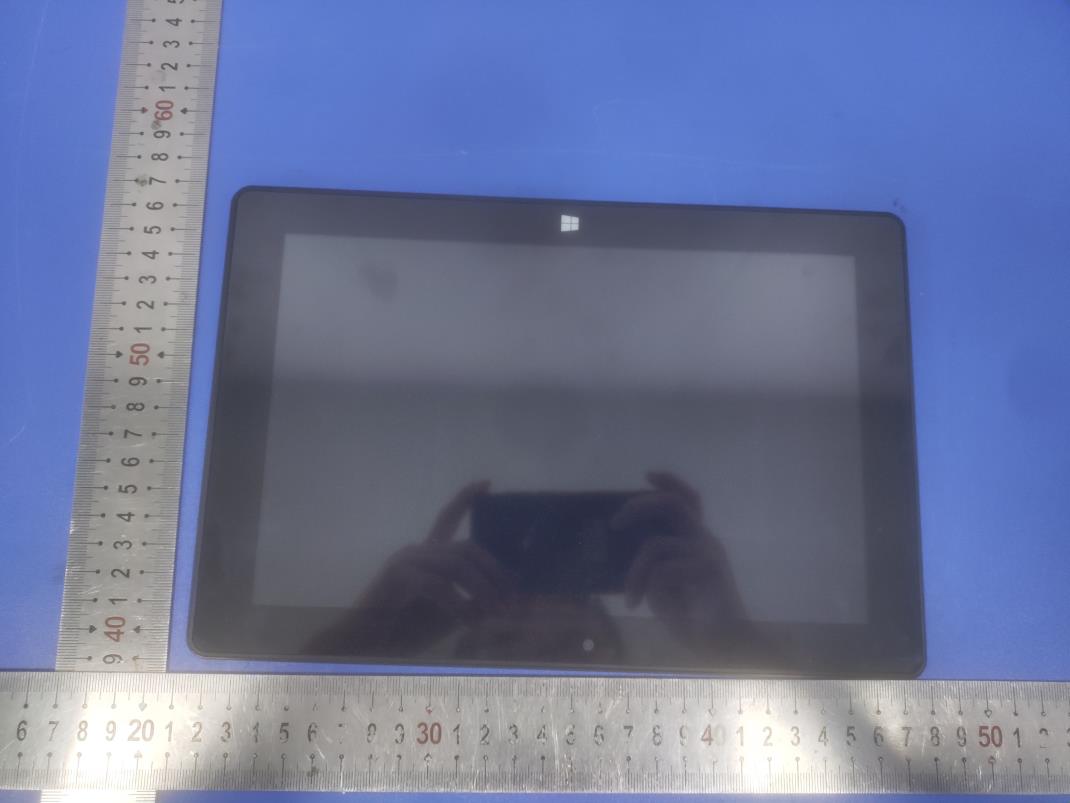

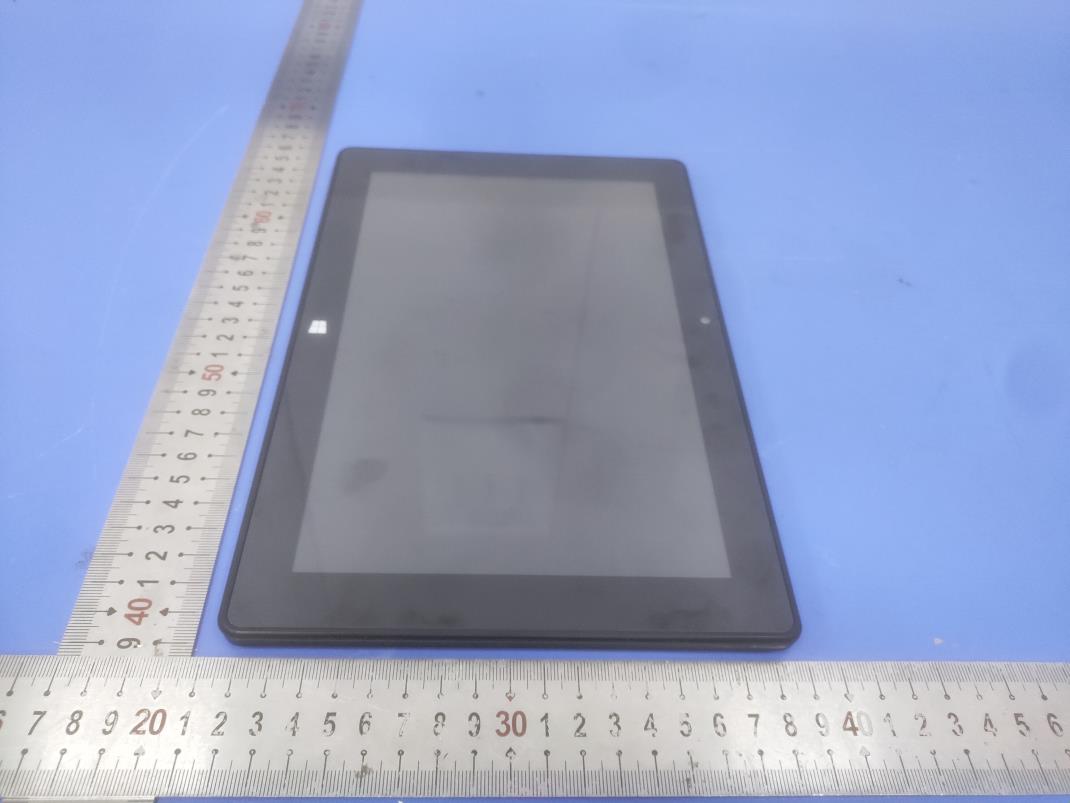

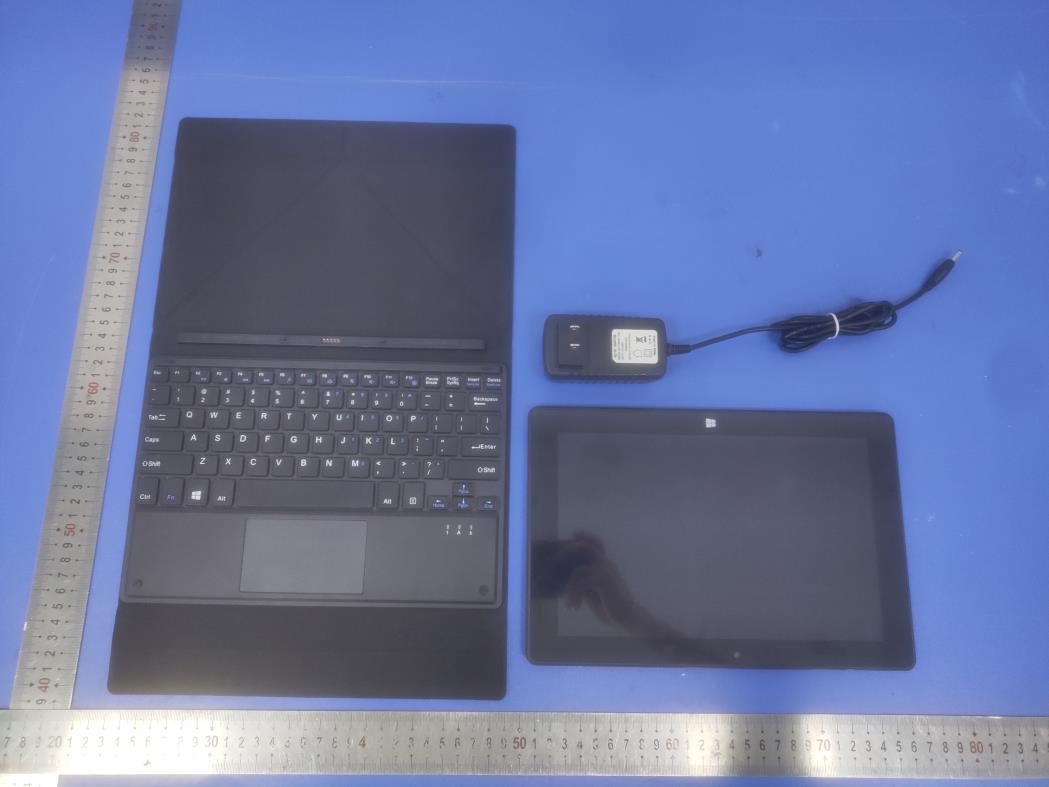

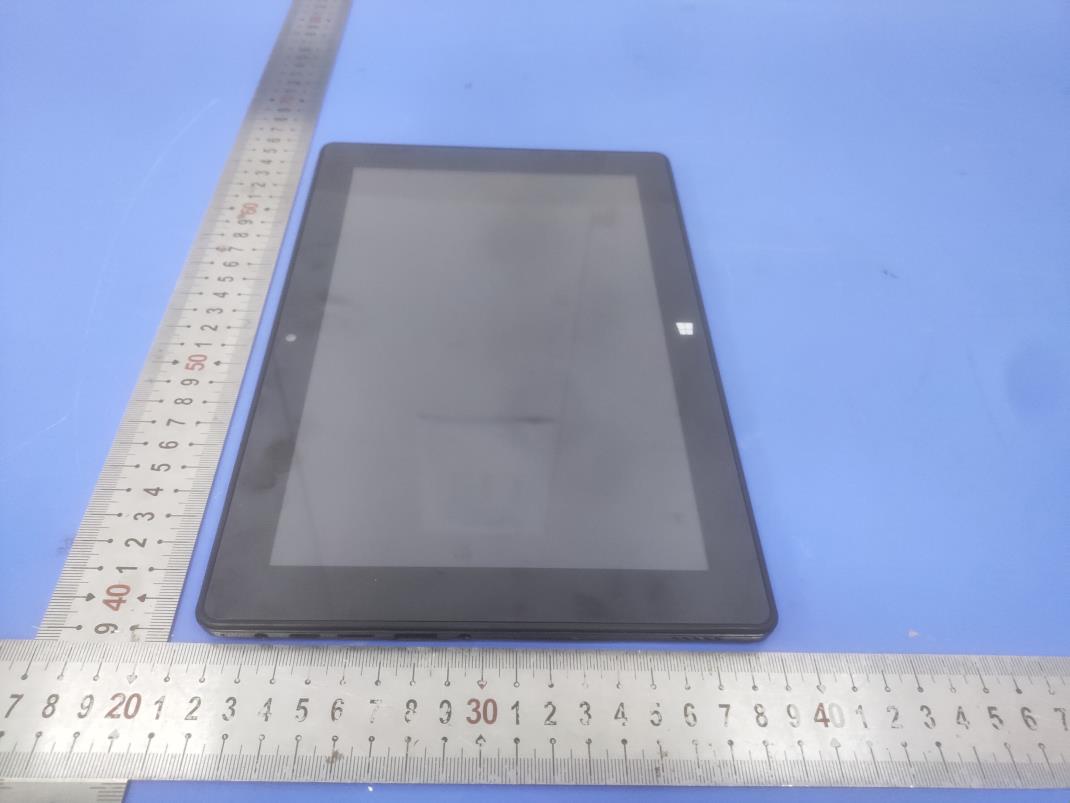

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L4.0m x 3.0cm) Label Location I1012 Model No.: 10WWA464B FCC ID: 2AVTH-10M4 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 8 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AVTH-10M4 Product name I1012 Model number 10WWA464B Power supply DC 7.6V by Rechargeable Li-ion Battery(3000mAh) Recharged by 12V2000mA Adapter Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.2 (DSS) GFSK for Bluetooth V4.2 (DTS) IEEE 802.11b: DSSS (CCK,DQPSK,DBPSK); IEEE 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11a/n/ac: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description PIFA Antenna(ANT 0), used for Bluetooth & WIFI 1.61dBi(Max.) for Bluetooth, 1.69dBi(Max.) for 2.4GWIFI 0.74dBi(Max.) for 5.2GWIFI, 0.93dBi(Max.) for 5.8GWIFI PIFA Antenna(ANT 1), used for WIFI 1.69dBi(Max.) for 2.4GWIFI 0.74dBi(Max.) for 5.2GWIFI, 0.93dBi(Max.) for 5.8GWIFI Hardware version EM_G8811_366B_V6.1 Software version OS build:19041.508 /BIOS Version/Date: American Megatrends inc. V1.1.2. P1S0E1F0L28BOT4P0G2U0D502 3668 timing, 2020-09 -18 Bluetooth Operation frequency 2402MHz-2480MHz Operation frequency 79 channels for Bluetooth V4.2 (DSS) 40 hannels for Bluetooth V4.2 (DTS) 11 channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth(2422~2452MHz) 4 Channels for 20MHz bandwidth(5180-5240MHz) 5 channels for 20MHz bandwidth(5745-5825MHz) 2 channels for 40MHz bandwidth(5190~5230MHz) 2 channels for 40MHz bandwidth(5755~5795MHz) 1 Channels for 80MHz bandwidth(5210MHz) 1 channels for 80MHz bandwidth(5775MHz) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 8 structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 4.748 39 2441 4.798 78 2480 3.991 π/4DQPSK 0 2402 1.350 39 2441 1.254 78 2480 0.507 8-DPSK 0 2402 1.565 39 2441 1.494 78 2480 0.732 BT LE 0 2402 3.215 19 2440 3.106 39 2480 2.388 [2.4GWLAN Max Peak Conducted Power_ANT0] Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 5.48 6 2437 5.49 11 2462 5.53 IEEE 802.11g 1 2412 6.40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 8 6 2437 6.16 11 2462 6.33 IEEE 802.11n HT20 1 2412 6.37 6 2437 6.42 11 2462 6.19 IEE…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 1 of 68 Appendix D RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: I1012 Trade Mark: Hyundai Test Model: 10WWA464B Environmental Conditions Temperature: 23.4  C Relative Humidity: 53.7% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan D.1 Duty Cycle ANT 0 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0.00 0.01 11N20 SISO 5200 100 0.00 0.01 11N40 SISO 5190 100 0.00 0.01 11AC20 SISO 5200 100 0.00 0.01 11AC40 SISO 5190 100 0.00 0.01 11AC80 SISO 5210 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 2 of 68 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 3 of 68 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 4 of 68 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 5 of 68 ANT 1 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0.00 0.01 11N20 SISO 5200 100 0.00 0.01 11N40 SISO 5190 100 0.00 0.01 11AC20 SISO 5200 100 0.00 0.01 11AC40 SISO 5190 100 0.00 0.01 11AC80 SISO 5210 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 6 of 68 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 7 of 68 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 8 of 68 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 9 of 68 D.2 Maximum Conduct Output Power ANT 0 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 6.13 0 6.13 24 Pass 40 5200 5.76 0 5.76 Pass 48 5240 5.85 0 5.85 Pass 11N20 SISO 36 5180 5.55 0 5.55 24 Pass 40 5200 5.56 0 5.56 Pass 48 5240 5.66 0 5.66 Pass 11N40 SISO 38 5190 5.15 0 5.15 24 Pass 46 5230 5.31 0 5.31 Pass 11AC20 SISO 36 5180 5.22 0 5.22 24 Pass 40 5200 5.24 0 5.24 Pass 48 5240 5.91 0 5.91 Pass 11AC40 SISO 38 5190 5.74 0 5.74 24 Pass 46 5230 5.65 0 5.65 Pass 11AC80 SISO 42 5210 5.43 0 5.43 24 Pass ANT 1 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 5.58 0 5.58 24 Pass 40 5200 6.02 0 6.02 Pass 48 5240 6.08 0 6.08 Pass 11N20 SISO 36 5180 5.87 0 5.87 24 Pass 40 5200 5.30 0 5.30 Pass 48 5240 5.34 0 5.34 Pass 11N40 SISO 38 5190 5.25 0 5.25 24 Pass 46 5230 5.19 0 5.19 Pass 11AC20 SISO 36 5180 5.18 0 5.18 24 Pass 40 5200 5.29 0 5.29 Pass 48 5240 5.13 0 5.13 Pass 11AC40 SISO 38 5190 5.18 0 5.18 24 Pass 46 5230 5.05 0 5.05 Pass 11AC80 SISO 42 5210 5.42 0 5.42 24 Pass SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 10 of 68 Combined Ant0 and Ant1 Test Mode Channel Frequency (MHz) Report Conducted Power (dBm) Limit (dBm) Ant_0 Ant_1 Sum 11N20 36 5180 5.55 5.87 8.72 24 40 5200 5.56 5.30 8.44 48 5240 5.66 5.34 8.51 11N40 38 5190 5.15 5.25 8.21 24 46 5230 5.31 5.19 8.26 11AC20 36 5180 5.22 5.18 8.21 24 40 5200 5.24 5.29 8.28 48 5240 5.91 5.13 8.55 11AC40 38 5190 5.74 5.18 8.48 24 46 5230 5.65 5.05 8.37 11AC80 42 5210 5.43 5.42 8.44 24 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 11 of 68 D.3 Power Spectral Density ANT 0 Test Mode Channel Frequency (MHz) Power Density (dBm/MHz) Duty Cycle Factor(dB) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11A 36 5180 -2.55 0 -2.55 11 Pass 40 5200 -2.56 0 -2.56 Pass 48 5240 -2.73 0 -2.73 Pass 11N20 SISO 36 5180 -2.86 0 -2.86 11 Pass 40 5200 -2.79 0 -2.79 Pass 48 5240 -2.82 0 -2.82 Pass 11N40 SISO 38 5190 -6.12 0 -6.12 11 Pass 46 5230 -5.94 0 -5.94 Pass 11AC20 SISO 36 5180 -3.09 0 -3.09 11 Pass 40 5200 -2.63 0 -2.63 Pass 48 5240 -2.73 0 -2.73 Pass 11AC40 SISO 38 5190 -6.46 0 -6.46 11 Pass 46 5230 -5.09 0 -5.09 Pass 11AC80 SISO 42 5210 -8.61 0 -8.61 11 Pass ANT 1 Test Mode Channel Frequency (MHz) Power Density (dBm/MHz) Duty Cycle Factor(dB) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11A 36 5180 -2.17 0 -2.17 11 Pass 40 5200 -2.32 0 -2.32 Pass 48 5240 -2.60 0 -2.60 Pass 11N20 SISO 36 5180 -2.54 0 -2.54 11 Pass 40 5200 -2.45 0 -2.45 Pass 48 5240 -2.65 0 -2.65 Pass 11N40 SISO 38 5190 -5.55 0 -5.55 11 Pass 46 5230 -5.23 0 -5.23 Pass 11AC20 SISO 36 5180 -2.54 0 -2.54 11 Pass 40 5200 -2.87 0 -2.87 Pass 48 5240 -2.34 0 -2.34 Pass 11AC40 SISO 38 5190 -5.67 0 -5.67 11 Pass 46 5230 -5.48 0 -5.48 Pass 11AC80 SISO 42 5210 -8.47 0 -8.47 11 Pass SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 12 of 68 Combined Ant0 and Ant1 Test Mode Channel Frequency (MHz) Report Power Density (dBm/MHz) Limit (dBm/MHz) Ant_0 Ant_1 Sum 11N20 36 5180 -2.86 -2.54 0.31 11 40 5200 -2.79 -2.45 0.39 48 5240 -2.82 -2.65 0.28 11N40 38 5190 -6.12 -5.55 -2.82 11 46 5230 -5.94 -5.23 -2.56 11AC20 36 5180 -3.09 -2.54 0.20 11 40 5200 -2.63 -2.87 0.26 48 5240 -2.73 -2.34 0.48 11AC40 38 5190 -6.46 -5.67 -3.04 11 46 5230 -5.09 -5.48 -2.27 11AC80 42 5210 -8.61 -8.47 -5.53 11 ANT 0 Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 13 of 68 IEEE 802.11na / Channel 40 / 5200MHz IEEE 802.11na / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED Page 14 of 68 Power Spectral Dens…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 1 of 70 Appendix E RF Test Data for 5.8G WLAN (Conducted Measurement) Product Name: I1012 Trade Mark: Hyundai Test Model: 10WWA464B Environmental Conditions Temperature: 23.4  C Relative Humidity: 53.7% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan E.1 Duty Cycle ANT 0 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5785 100 0.00 0.01 11N20 SISO 5785 100 0.00 0.01 11N40 SISO 5755 100 0.00 0.01 11AC20 SISO 5785 100 0.00 0.01 11AC40 SISO 5755 100 0.00 0.01 11AC80 SISO 5775 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 2 of 70 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 3 of 70 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 4 of 70 IEEE 802.11AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 5 of 70 ANT 1 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5785 100 0.00 0.01 11N20 SISO 5785 100 0.00 0.01 11N40 SISO 5755 100 0.00 0.01 11AC20 SISO 5785 100 0.00 0.01 11AC40 SISO 5755 100 0.00 0.01 11AC80 SISO 5775 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 6 of 70 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 7 of 70 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 8 of 70 IEEE 802.11AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 9 of 70 E.2 Maximum Conduct Output Power ANT 0 Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 149 5745 4.23 0 4.23 30 Pass 157 5785 4.19 0 4.19 Pass 165 5825 4.24 0 4.24 Pass 11N20 SISO 149 5745 4.33 0 4.33 30 Pass 157 5785 4.10 0 4.10 Pass 165 5825 4.09 0 4.09 Pass 11N40 SISO 151 5755 4.46 0 4.46 30 Pass 159 5795 4.20 0 4.20 Pass 11AC20 SISO 149 5745 4.21 0 4.21 30 Pass 157 5785 4.30 0 4.30 Pass 165 5825 4.14 0 4.14 Pass 11AC40 SISO 151 5755 4.11 0 4.11 30 Pass 159 5795 4.12 0 4.12 Pass 11AC80 SISO 155 5775 4.23 0 4.23 30 Pass ANT 1 Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 149 5745 4.32 0 4.32 30 Pass 157 5785 4.15 0 4.15 Pass 165 5825 4.22 0 4.22 Pass 11N20 SISO 149 5745 4.29 0 4.29 30 Pass 157 5785 4.18 0 4.18 Pass 165 5825 4.47 0 4.47 Pass 11N40 SISO 151 5755 4.26 0 4.26 30 Pass 159 5795 4.27 0 4.27 Pass 11AC20 SISO 149 5745 4.20 0 4.20 30 Pass 157 5785 4.19 0 4.19 Pass 165 5825 4.35 0 4.35 Pass 11AC40 SISO 151 5755 4.28 0 4.28 30 Pass 159 5795 4.32 0 4.32 Pass 11AC80 SISO 155 5775 4.26 0 4.26 30 Pass ANT0+ANT1 Test Mode Channel Frequency (MHz) Peak Conducted Power (dBm) Limit (dBm) Ant0 Ant1 Sum 11N20 149 5745 4.33 4.29 7.32 30 157 5785 4.10 4.18 7.15 165 5825 4.09 4.47 7.29 11N40 151 5755 4.46 4.26 7.37 30 159 5795 4.20 4.27 7.25 11AC20 149 5745 4.21 4.20 7.22 30 157 5785 4.30 4.19 7.26 165 5825 4.14 4.35 7.26 11AC40 151 5755 4.11 4.28 7.21 30 159 5795 4.12 4.32 7.23 11AC80 155 5775 4.23 4.26 7.26 30 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 10 of 70 E.3 Power Spectral Density ANT 0 Test Mode Channel Frequency (MHz) Power Density (dBm/510KHz) Duty Cycle Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11A 149 5745 7.41 0 7.41 30 Pass 157 5785 8.08 0 8.08 Pass 165 5825 8.01 0 8.01 Pass 11N20 SISO 149 5745 7.33 0 7.33 30 Pass 157 5785 6.98 0 6.98 Pass 165 5825 7.26 0 7.26 Pass 11N40 SISO 151 5755 3.58 0 3.58 30 Pass 159 5795 3.63 0 3.63 Pass 11AC20 SISO 149 5745 7.14 0 7.14 30 Pass 157 5785 7.43 0 7.43 Pass 165 5825 7.16 0 7.16 Pass 11AC40 SISO 151 5755 1.44 0 1.44 30 Pass 159 5795 1.69 0 1.69 Pass 11AC80 SISO 155 5775 -3.05 0 -3.05 30 Pass ANT 1 Test Mode Channel Frequency (MHz) Power Density (dBm/510KHz) Duty Cycle Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11A 149 5745 6.23 0 6.23 30 Pass 157 5785 6.45 0 6.45 Pass 165 5825 7.34 0 7.34 Pass 11N20 SISO 149 5745 6.21 0 6.21 30 Pass 157 5785 7.00 0 7.00 Pass 165 5825 6.89 0 6.89 Pass 11N40 SISO 151 5755 1.20 0 1.20 30 Pass 159 5795 1.77 0 1.77 Pass 11AC20 SISO 149 5745 4.37 0 4.37 30 Pass 157 5785 5.06 0 5.06 Pass 165 5825 4.81 0 4.81 Pass 11AC40 SISO 151 5755 1.30 0 1.30 30 Pass 159 5795 2.11 0 2.11 Pass 11AC80 SISO 155 5775 -3.35 0 -3.35 30 Pass ANT0+ANT1 Test Mode Channel Frequency (MHz) Report Power Density (dBm/500KHz) Limit (dBm) Ant0 Ant1 Sum 11N20 149 5745 7.33 6.21 9.82 30 157 5785 6.98 7.00 10.00 165 5825 7.26 6.89 10.09 11N40 151 5755 3.58 1.20 5.56 30 159 5795 3.63 1.77 5.81 11AC20 149 5745 7.14 4.37 8.98 30 157 5785 7.43 5.06 9.42 165 5825 7.16 4.81 9.15 11AC40 151 5755 1.44 1.30 4.38 30 159 5795 1.69 2.11 4.92 11AC80 155 5775 -3.05 -3.35 -0.19 30 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 11 of 70 ANT 0 Power Spectral Density IEEE 802.11a / Channel 149 / 5745MHz IEEE 802.11na / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 12 of 70 IEEE 802.11na / Channel 165 / 5825MHz Power Spectral Density IEEE 802.11n20 / Channel 149 / 5745MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AEE Page 13 of 70 IEEE 802.11n20 / Channel 157 / 5785MHz IEEE 802.11n20 / Channel 165 / 5825MHz …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 42 FCC TEST REPORT For Hyundai Technology Group, Inc. I1012 Test Model: 10WWA464B Prepared for : Hyundai Technology Group, Inc. Address : 2601 Walnut Ave.Tustin, California,United States, 92780 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 13, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : October 13, 2020 ~ November 03, 2020 Date of Report : November 05, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-10M4 Report No.: LCS201009108AED This r…

Text truncated - open the document above for the full version.
