8WC1 USER MANUAL HYTAB 8WC1 User Manual Limited Warranty does NOT cover: Any costs associated with the repair or replacement of the Product including labor, installation or other costs incurred by you, and in particular, any costs relating to the removal or replacement of any Product that is soldered or with electrical power, abnormal electrical, mechanical or environmental conditions, usage not in accordance with product instructions, misuse, been removed, altered or obliterated fr om the Product, or where the label or Assembling User manual Adapter Charge the battery War ning: Install the memory card Notice: Undo Check your product box for the following items. reboot Getting Started Home Screen on the home screen, you can view indicator icons, widgets, shortcuts to Task bar option buttons, battery level indicator, current time and other indicator Connected to PC Alarm activated Battery power level Don't disturb Auto-rotateLocation Wi-Fi: Bluetooth: Auto-rotate screen: Battery Saver: Brightness: Settings: Auto rotation select Lock & Unlock the Screen Power Customize your Device Charge the Battery Settings Apps & UNINSTALL, tap OK Security Set a Screen Lock Security Settings Security Screen None: Swipe: Pattern: Screen time-out Select Settings Display Advanced Screen timeoutfrom application list, Attention: Display Size Settings Display Advanced Display size Recents" button Quick Switch PIN: Password: Reset Tablet steps: Select Settings System Advanced Reset options from applica- all data all data all data Google™ account, system and application data and settings, and dowloaded Before you can send or receive mail on your device, you need to set up an email Settings Add account Set up Your Email Delete your email account Settings fr om application list Users & accounts address REMOVE ACCOUNT"button To Cc/Bcc Create and send email Set Homepage Select Settings General Set homepage Add Bookmarks View Bookmarks and History Bookmarks/History”to open Customize browser right, and then select Settings Web Br owser Br owser webpages address of the webpage, and select Go Camera Capture a Photo Settings Change to Video Mode Smile Mode Record a Video Camera After recording videos, select the image viewer icon at the lower right to view Calendar Calendar New event tapthe option button at the upper right and then select Delete Alarm AM or PM, OK Set repeat cycle, alarm ringtone, Vibrate ,and edit Label message, tap OK DISMISS” to shut down the alarm, and tap”SNOOZE”, then the alarm File Manager Many features of the device, such as images, videos, documents, received attachments Note: Sound Recorder Sound Recorder. Calculator USB Connection Connectivity Wi-Fi Activate the Wi-Fi feature Settings Network & internet, turn on the Wi-Fi Find and Connect to Wi-Fi - Bluetooth Activate the Bluetooth feature Settings Connected devices Pair new device. Scan and connect to other Bluetooth devices Safety Precautions Aircraft Vehicles Electronic Devices Potentially Explosive Environments Pacemakers and Other Medical Devices Consult a physician or the manufacturer of the medical device to determine if they are Operating Environment When connecting to other device, read its user guide for detailed safety Ar eas with Posted Regulations HYUNDAI Advertencia Nota para uso en México Contact Us For sales inqury (U.S. Worldwide) U.S. and Worldwide México (Spanish) FCC Statement 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Information to user. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This product meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. This device was tested for operations with the back of the handset kept 0mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 0mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and sho…

Text truncated - open the document above for the full version.

2020-08-24 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Hyundai Technology Group, Inc. /2601 Walnut Ave. Tustin, CA, USA Agency agreement expiration date: Aug. 23, 2021 By: Jeff Zhong Signature Printed Title: Product Manager On behalf of : Hyundai Technology Group, Inc. Telephone: 949-679-7960

2020-08-24 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AVTH-8WC1 Product Name: WIFI tablet Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Jeff Zhong Signature Printed Title: Product Manager On behalf of : Hyundai Technology Group, Inc. Telephone: 949-679-7960

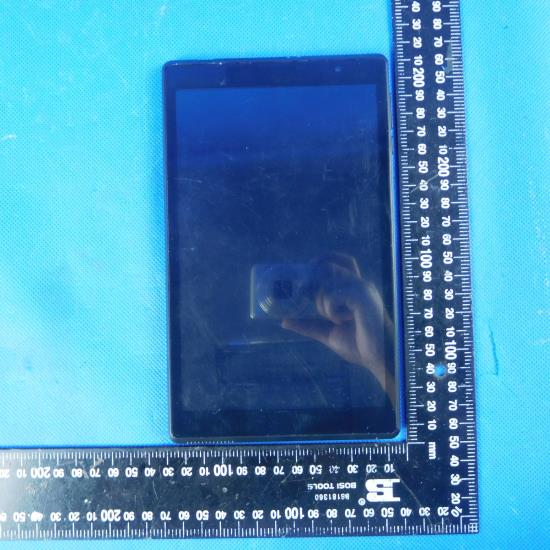

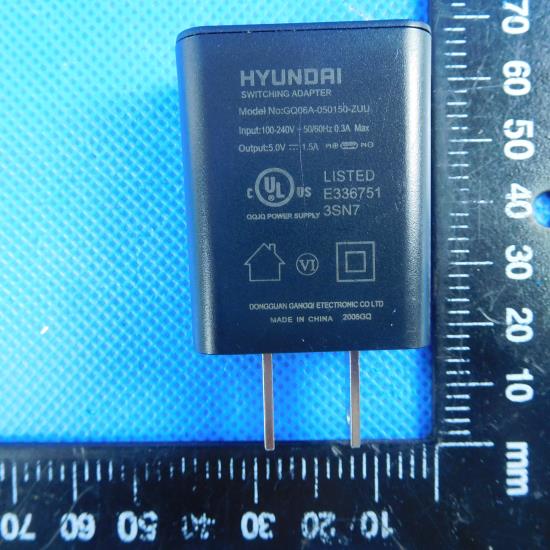

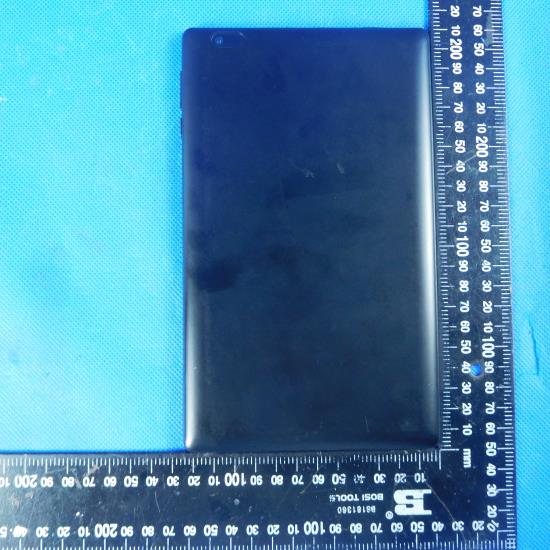

7.EXTERANAL AND INTERNAL PHOTOS External photos of EUT M odel:8WC1

Label & Location

Internal photos of EUT Model:8WC1

Page: 1 of 35 TEST REPORT Report No. ...................................... : CHTEW20080186 Report Verification: Project No.................................： SHT2007123701EW FCC ID ............................................. : 2AVTH-8WC1 Applicant’s name ........................... : Hyundai Technology Group, Inc. Address ............................................. : 2601 Walnut Avenue, Tustin, CA 92780 USA Manufacturer.....................................: Hyundai Technology Group, Inc. Address..............................................: 2601 Walnut Avenue, Tustin, CA 92780 USA Test item description .................... : WIFI tablet Trade Mark ....................................... : HYUNDAI Model/Type reference ....................... : 8WC1 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Jul. 30, 2020 Date of testing.............................: Jul. 31, 2020- Aug. 20, 2020 Date of issue...............................: Aug. 21, 2020 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Silvia Li Supervised by (Position+Printed name+Signature): Project Engineer Aaron Fang Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20080186 Page: 2 of 35 Issued: 2020-08-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 5 4. TEST CONFIGURATION 6 4.1. Test frequency list 6 4.2. Descriptions of Test mode 6 4.3. Test mode 6 4.4. Support unit used in test configuration and system 7 4.5. Testing environmental condition 7 4.6. Measurement uncertainty 7 4.7. Equipment Used during the Test 8 5. TEST CONDITIONS AND RESULTS 10 5.1. Antenna Requirement 10 5.2. AC Conducted Emission 11 5.3. Peak Output Power 14 5.4. 20 dB Bandwidth 15 5.5. 99% Occupied Bandwidth 16 5.6. Carrier Frequencies Separation 17 5.7. Hopping Channel Number 18 5.8. Dwell Time 19 5.9. Duty Cycle Correction Factor (DCCF) 20 5.10. Pseudorandom Frequency Hopping Sequence 21 5.11. Conducted Band edge and Spurious Emission 22 5.12. Radiated Band edge Emission 23 5.13. Radiated Spurious Emission 25 6. TEST SETUP PHOTOS 29 7. EXTERANAL AND INTERNAL PHOTOS 31 8. APPENDIX REPORT 35 Report No.: CHTEW20080186 Page: 3 of 35 Issued: 2020-08-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2020-08-20 Original Report No.: CHTEW20080186 Page: 4 of 35 Issued: 2020-08-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247 (c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247 (b)(1) PASS 5.4 20 dB Bandwidth 15.247 (a)(1) PASS 5.5 99% Occupied Bandwidth - PASS *1 5.6 Carrier Frequency Separation 15.247 (a)(1) PASS 5.7 Hopping Channel Number 15.247 (a)(1) PASS 5.8 Dwell Time 15.247 (a)(1) PASS 5.9 Duty Cycle Correction Factor - PASS *1 5.10 Pseudorandom Frequency Hopping Sequence 15.247(b)(4) PASS 5.11 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.12 Radiated Band Edge Emission 15.205/15.209 PASS 5.13 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW20080186 Page: 5 of 35 Issued: 2020-08-20 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3. SUMMARY 3.1. Client Information Applicant: Hyundai Technology Group, Inc. Address: 2601 Walnut Avenue, Tustin, CA 92780 USA Manufacturer: Hyundai Technology Group, Inc. Address: 2601 Walnut Avenue, Tustin, CA 92780 USA 3.2. Product Description Name of EUT: WIFI tablet Trade Mark: HYUNDAI Model No.: 8WC1 Listed Model(s): - Power supply: DC 3.7V Hardware version: TZX A863T-68T5B Software version: 8WC1_V01_20200720 3.3. Radio Specification Description Bluetooth version: V4.0 Support function *2 : EDR Modulation: GFSK, π/4DQPSK, 8DPSK Operation fre…

Text truncated - open the document above for the full version.

Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 41 APPENDIX REPORT Project No. SHT2007123701EW Radio Specification Bluetooth EDR Test sample No. YPHT20071237002 Model No. 8WC1 Start test date 2020/8/6 Finish date 2020/8/6 Temperature 25°C Humidity 50% Test Engineer Jiongsheng.Feng Auditor Appendix clause Test item Result A Peak Output Power PASS B 20 dB Bandwidth PASS C 99% Occupied Bandwidth PASS D Carrier Frequencies Separation PASS E Hopping Channel Number PASS F Dwell Time PASS G Duty Cycle Correction Factor (DCCF) PASS H Band edge and Spurious Emissions(coducted) PASS Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 41 Appendix A：Peak Output Power Modulation type Channel Output power (dBm) Average Output power (dBm) Limit (dBm) Result GFSK 00 9.46 9.44 ≤ 30.00 Pass 39 9.25 9.23 78 8.78 8.77 π/4DQPSK 00 7.78 6.57 ≤ 21.00 Pass 39 7.65 6.51 78 7.25 6.32 8DPSK 00 7.99 6.63 ≤ 21.00 Pass 39 5.51 3.52 78 5.03 3.40 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 41 Modulation Type: GFSK CH00 CH39 CH78 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 41 Modulation Type: π/4DQPSK CH00 CH39 CH78 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 41 Modulation Type: 8DPSK CH00 CH39 CH78 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 41 Appendix B : 20 dB Bandwidth Modulation type Channel 20 dB Bandwidth (kHz) Limit (kHz) Result GFSK 00 925.00 - Pass 39 925.00 78 925.00 π/4DQPSK 00 1322.50 - Pass 39 1320.00 78 1322.50 8DPSK 00 1297.50 - Pass 39 1295.00 78 1295.00 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 41 Modulation Type: GFSK CH00 CH39 CH78 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 41 Modulation Type: π/4DQPSK CH00 CH39 CH78 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 41 Modulation Type: 8DPSK CH00 CH39 CH78 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 41 Appendix C：99% Occupied Bandwidth Modulation type Channel 99% Occupied Bandwidth (MHz) Limit (MHz) Result GFSK 00 0.89 - Pass 39 0.89 78 0.89 π/4DQPSK 00 1.19 - Pass 39 1.19 78 1.19 8DPSK 00 1.18 - Pass 39 1.18 78 1.18 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 41 Modulation Type: GFSK CH00 CH39 CH78 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 41 Modulation Type: π/4DQPSK CH00 CH39 CH78 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 41 Modulation Type: 8DPSK CH00 CH39 CH78 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 41 Appendix D：Carrier Frequencies Separation Modulation type Channel Carrier Frequencies Separation (MHz) Limit (kHz) * Result GFSK 39 1.00 ≥925 Pass π/4DQPSK 39 1.00 ≥881.67 Pass 8DPSK 39 1.00 ≥865 Pass Note: *: GFSK limit = The maximum 20 dB Bandwidth for GFSK modulation on the appendix B. π/4DQPSK limit = 2/3 * The maximum 20 dB Bandwidth for π/4DQPSK modulation on the appendix B. 8DPSK limit = 2/3 * The maximum 20 dB Bandwidth for 8DPSK modulation on the appendix B Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 15 of 41 GFSK π/4DQPSK 8DPSK Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 16 of 41 Appendix E：Hopping Channel Number Modulation type Channel number Limit Result GFSK 79 ≥15.00 Pass π/4DQPSK 79 8DPSK 79 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 17 of 41 GFSK π/4DQPSK 8DPSK Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 18 of 41 Appendix F：Dwell Time Modulation type Packet Burst Width [ms] Total Hops[hop*ch] Dwell time (Second) Limit (Second) Result GFSK DH1 0.37 320 0.12 ≤ 0.40 Pass DH3 1.62 162 0.26 DH5 2.87 102 0.29 π/4DQPSK 2DH1 0.38 320 0.12 ≤ 0.40 Pass 2DH3 1.63 164 0.27 2DH5 2.88 111 0.32 8DPSK 3DH1 0.38 320 0.12 ≤ 0.40 Pass 3DH3 1.63 161 0.26 3DH5 2.88 113 0.33 Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 19 of 41 Modulation Type: GFSK DH1 Burst width DH1 Burst number DH3 Burst width Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 20 of 41 DH3 Burst number DH5 Burst width DH5 Burst number Project No.: SHT2007123701EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 21 of 41 Modulation Type: π/4DQPSK 2DH1 Burst width 2DH1 Burst number 2DH3 Burst width Project No.: SHT2007123701EW Radio Specification: Bluetooth ED…
