2AVTH-HT14CCIC44EGH14.1 inch laptop

USER MANUAL 14.1” Windows Laptop HYBOOK User Manual 4 Limited Warranty does NOT cover: Any costs associated with the repair or replacement of the Product including labor, installation or other costs incurred by you, and in particular, any costs relating to the removal or replacement of any Product that is soldered or otherwise permanently affixed to any printed circuit board; OR Damage to the Product due to external causes, including accident, problems with electrical power, abnormal electrical, mechanical or environmental conditions, usage not in accordance with product instructions, misuse, neglect, alteration, repair, improper installation, or improper testing; OR Any Product which has been modified or operated outside of specifications or where the original identification markings (trademark or serial number) has been removed, altered or obliterated from the Product, or where the label or screw on the exterior of the Product is removed or broken. WARRANTY NOTICE 5 INTRODUCTION Precautions Before Use: Thank you for choosing the new Hyundai Hybook. This guide serves to enable users to familiarize themselves with our product as quickly as possible. Below is a brief introduction to the key layout, features, definitions in figures and words. This production is suitable for use in non-tropic areas below 2,000 meters, and in the mark in the nameplate indicates the product is suitable for use in non-tropic areas. 1. Prevent the Hybook from falling to the ground or being strongly impacted otherwise. 2. Not for long-term use in an environment where the air is too hot (<35 o C), too humid or with too much dust. Do not expose the Hybook directly to sunlight. 3. Avoid using in strong magnetic or strong static environment as much as possible. 4. Once any water or other liquid splashes onto the Hybook, leave it open and do not use it until it dries out. 5. Do not clean the Hybook with any detergents, chemicals or liquids to avoid causing damage due to corrosion and becoming damp. If cleaning is necessary, clean it with a dry soft cloth. 6. Our company shall not be held responsible for any loss or deletion of data inside the Hybook due to abnormal software and hardware operation, maintenance or any other accident. 7. Please back up your Hybook to avoid any loss of important data or information. 6 8. Please do not disassemble the Hybook by yourself; otherwise you will lose the right to warranty. 9. Quick Start Guide and relevant software shall be updated at any time. Please visit www. hyundaitechnology.com to check for avilable software updates. 10. Replacement with incorrect type of batteries may cause explosion. Make sure to use original batteries. Model No.: xxxxxxxxxxxxxx FCC ID: xxxxxxxxxxxxx SN: xxxxxxxxxxxxxxx 2 1 5 4 3 6 7 10 11 9 13 8 1212 7 1. Power Button: Press it down to start or turn off the device. You can also let the computer enter sleep mode through this button or wake from the sleep mode. 2. Front Camera: Take pictures, shoot video. 3. Touchpad: The device can be operated directly. 4. Keyboard Board: The device can be operated directly. 5. Indicators: a) Green light indicates when Caps Lock is on; b) Charging indicator, red when the adapter is charging; c) Work light, bright green when the machine is running. 6. USB 2.0: can insert U disk, mouse, keyboard directly. 7. Audio Jack 3.5 mm. 8. MicroSD Slot: Supports up to 256GB 9. DC Charging Base: Use the built-in 12V / 2A charger. 10. USB 3.0: can insert U disk, mouse, keyboard directly. 11. Mini-HDMI interface: High definition multimedia interface. 12. Speakers - The built-in speaker lets you hear sound without additional devices attached. 13. Expandable M.2 SATA SSD Slot Key Layout And Definitions: 8 Windows 10 start image: On the start screen, you will see many applications fixed in the image. These application programs are displayed in the form “magnet”. Click on an application to begin. You will need to log in with your Micosoft account before the application will run. Interface Introduction: Applications Introduction: In addition to being available on the start screen, you can also open all applications from the homepage. If you want to add multiple applications on the Start screen, refer to the operation as shown below: (1) Right-click on the Properties icon. (2) Select fixed at the beginning of the page. 9 10 Menu Bar: Use mouse to click windows home button to appear on the menu bar. Conversely, if you want to change or delete an application from the startup screen, (1) Right-click (2), and then select the undocked from the start page. Search Menu: After you login, your account can be set up with your preferred language or text dialogue. If not logged into your account, only text searches will be available. 11 Expand the menu bar from the screen, usually: a file manager, settings, power supply and all applications, you can sleep / shutdown / restart the device. Here you can manage your files and applications on the device. Here you can set up and customize the settings on your device. Here you browse and choose more applications. Search Menu: After you login, your account can be set up with your preferred language or text dialogue. If not logged into your account, only text searches will be available. 12 Device menu Click on the notification menu. Multitasking Operation Interface. 13 Basic Operations: Sleep, Restart, Power Off: Short press the power button Hibernation. Advertencia Nota para uso en México La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. Contact Us Visit us at http//www.hyundaitechnology.com/ For sales inqury (U.S. Worldwide) Email [email protected] For technical support please contact HYUNDAI® U.S. and Worldwide Toll Free Number: (800) 560-0626 Monday-Friday 8:00am-5:00pm P…

Text truncated - open the document above for the full version.

Hyundai Technology Group, Inc. Agent Authorization Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave. Tustin, CA, USA Product Name: 14.1 inch laptop Trade Mark: Hyundai Model Number: HT14CCIC44EGH, HT14CCIC44EGP FCC ID: 2AVTH-HT14CCIC44EGH We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-06-22 Name: Sophia Wong Title: procurement manager Company: Hyundai Technology Group, Inc.

Hyundai Technology Group, Inc. 2601 Walnut Ave. Tustin, CA, USA Product Similarity Declaration FCC ID: 2AVTH-HT14CCIC44EGH Model Number: HT14CCIC44EGH, HT14CCIC44EGP DATE: 2021-06-22 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Hyundai Technology Group, Inc. hereby declare that our product (14.1 inch laptop) Model Number: HT14CCIC44EGH, HT14CCIC44EGP board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Sophia Wong / procurement manager Company Name: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave. Tustin, CA, USA Phone: (949) 679-7960 125 Fax: 714-409-3091 E-Mail: [email protected]

Hyundai Technology Group, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-06-22 Subject; Request for Confidentiality FCC ID: 2AVTH-HT14CCIC44EGH To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sophia Wong Title: procurement manager

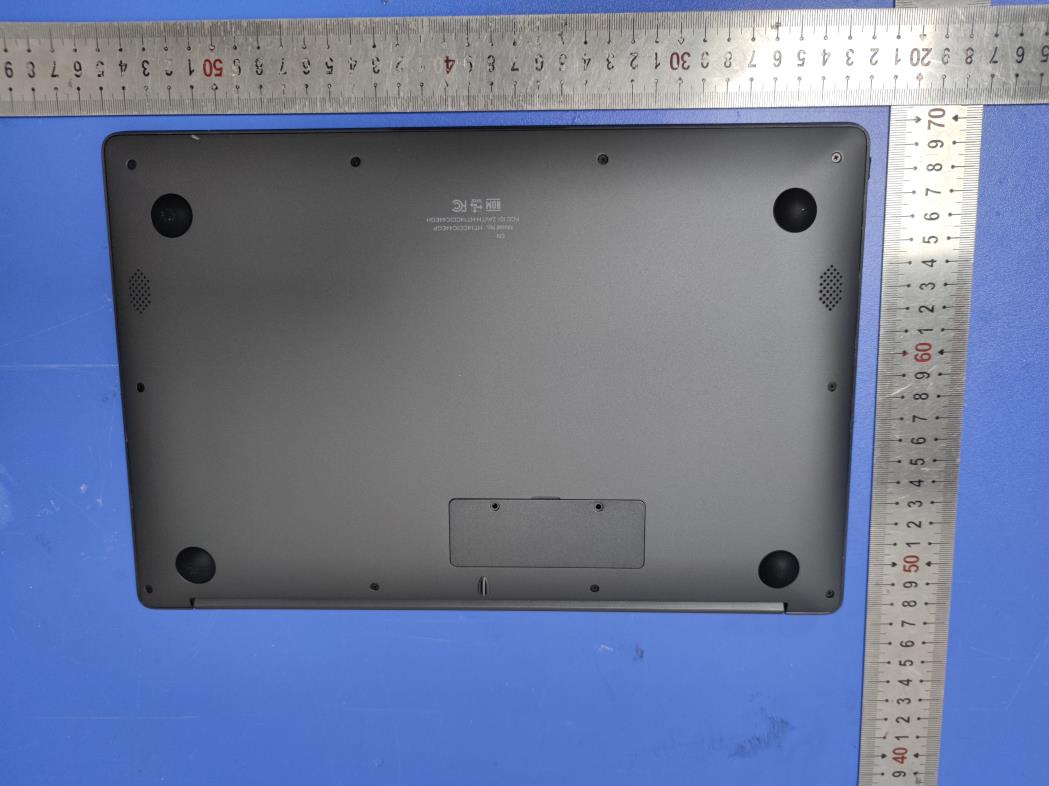

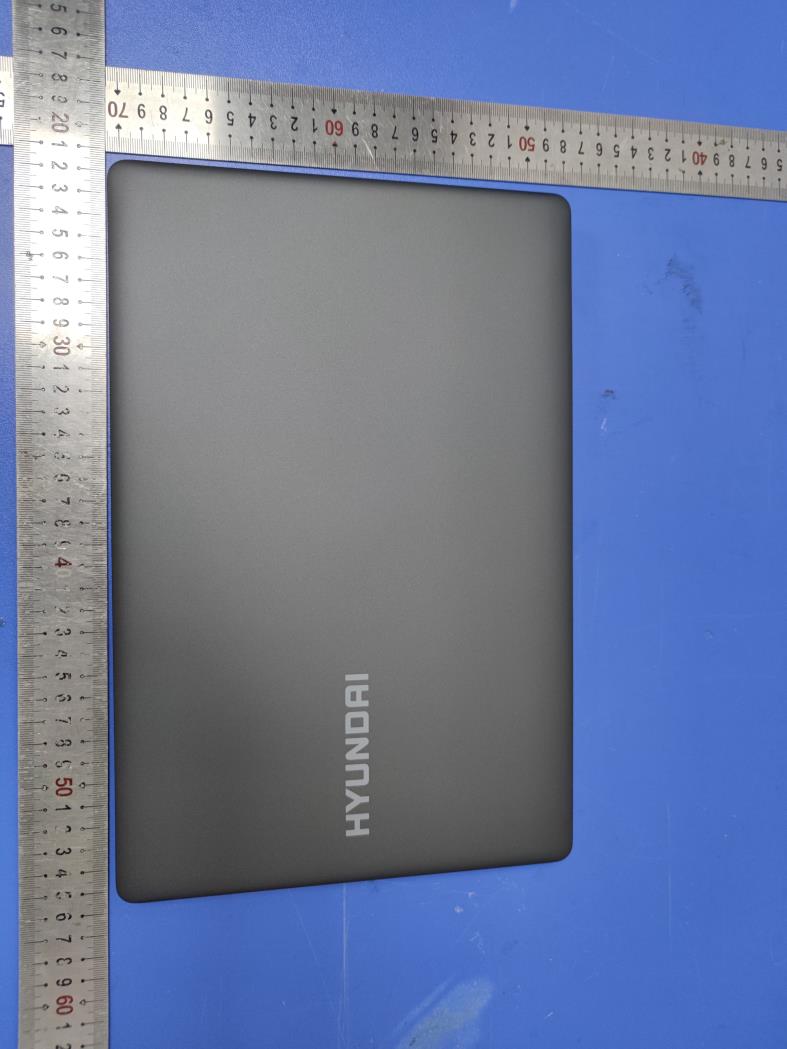

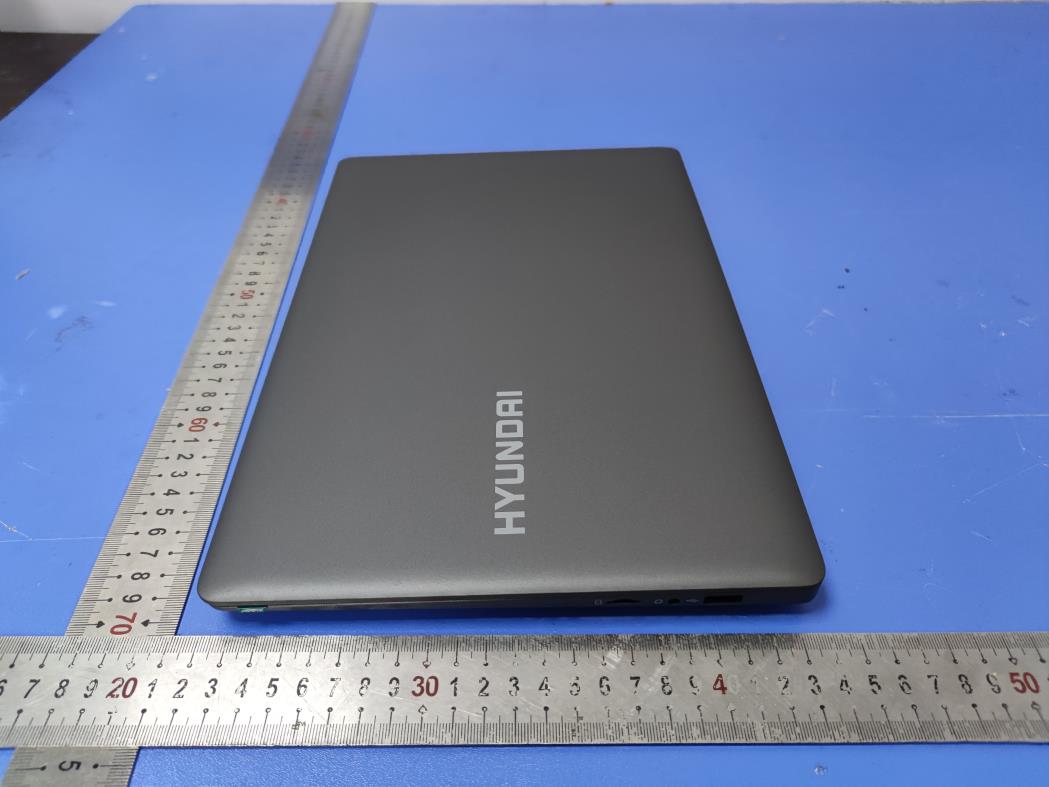

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L5.0cm*W3.0cm Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Bluetooth and 2.4G WiFi, 5G WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 1 of 14 Appendix B RF Test Data for BT LE (Conducted Measurement) Product Name: 14.1 inch laptop Trade Mark: Hyundai Test Model: HT14CCIC44EGH Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 2 of 14 B.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 1.604 30 PASS BT LE MCH 1.804 30 PASS BT LE HCH 2.199 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 4 of 14 B.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -15.587 8 PASS BT LE MCH -15.483 8 PASS BT LE HCH -14.869 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 6 of 14 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6712 ≥0.5 PASS BT LE MCH 0.6945 ≥0.5 PASS BT LE HCH 0.6874 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 8 of 14 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 0.286 -37.076 -19.714 PASS BT LE MCH 0.27 -37.824 -19.730 PASS BT LE HCH 0.831 -37.804 -19.169 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 11 of 14 B.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 0.768 -49.545 -19.23 PASS BT LE HCH 0.837 -48.215 -19.16 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 12 of 14 B.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -41.30 2.0 0 55.93 PEAK 74 PASS Ant1 2310.0 -53.40 2.0 0 43.83 AV 54 PASS Ant1 2390.0 -42.24 2.0 0 54.99 PEAK 74 PASS Ant1 2390.0 -52.98 2.0 0 44.25 AV 54 PASS 2480 Ant1 2483.5 -41.48 2.0 0 55.75 PEAK 74 PASS Ant1 2483.5 -52.40 2.0 0 44.83 AV 54 PASS Ant1 2500.0 -41.58 2.0 0 55.65 PEAK 74 PASS Ant1 2500.0 -52.39 2.0 0 44.84 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 1 of 52 Appendix C RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: 14.1 inch laptop Trade Mark: Hyundai Test Model: HT14CCIC44EGH Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan C.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 2 of 52 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 3 of 52 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 4 of 52 C.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 8.18 30 PASS MCH 7.83 30 PASS HCH 7.96 30 PASS 11G LCH 7.59 30 PASS MCH 8.17 30 PASS HCH 7.73 30 PASS 11N20SISO LCH 8.72 30 PASS MCH 8.35 30 PASS HCH 7.95 30 PASS 11N40SISO LCH 8.78 30 PASS MCH 8.58 30 PASS HCH 8.33 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 5 of 52 Test Graphs 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 6 of 52 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 7 of 52 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 8 of 52 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 9 of 52 11N20SISO/HCH 11N40SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 10 of 52 11N40SISO/MCH 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 11 of 52 C.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -24.595 8 PASS MCH -25.019 8 PASS HCH -24.840 8 PASS 11G LCH -27.445 8 PASS MCH -27.793 8 PASS HCH -27.600 8 PASS 11N20SISO LCH -26.289 8 PASS MCH -27.207 8 PASS HCH -27.410 8 PASS 11N40SISO LCH -27.539 8 PASS MCH -27.533 8 PASS HCH -27.883 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 12 of 52 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 13 of 52 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 14 of 52 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 15 of 52 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 16 of 52 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 17 of 52 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 18 of 52 C.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 10.14 ≥0.5 PASS MCH 10.14 ≥0.5 PASS HCH 10.13 ≥0.5 PASS 11G LCH 16.59 ≥0.5 PASS MCH 16.59 ≥0.5 PASS HCH 16.58 ≥0.5 PASS 11N20SISO LCH 17.75 ≥0.5 PASS MCH 17.76 ≥0.5 PASS HCH 17.75 ≥0.5 PASS 11N40SISO LCH 36.55 ≥0.5 PASS MCH 36.55 ≥0.5 PASS HCH 36.54 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 19 of 52 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 20 of 52 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 21 of 52 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 22 of 52 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 23 of 52 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 24 of 52 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 25 of 52 C.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 4.309 -37.389 -15.691 PASS MCH 4.355 -37.545 -15.645 PASS HCH 3.887 -38.810 -16.113 PASS 11G LCH -4.904 -38.123 -24.904 PASS MCH -4.88 -38.189 -24.880 PASS HCH -4.543 -38.317 -24.543 PASS 11N20 SISO LCH -3.778 -38.236 -23.778 PASS MCH -4.324 -37.469 -24.324 PASS HCH -4.301 -38.030 -24.301 PASS 11N40 SISO LCH -7.386 -38.314 -27.386 PASS MCH -7.693 -38.211 -27.693 PASS HCH -8.028 -38.611 -28.028 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 26 of 52 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 27 of 52 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEC Page 28 of 52 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 10 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AVTH-HT14CCIC44EGH EUT 14.1 inch laptop Test Model HT14CCIC44EGH Additional Model No. HT14CCIC44EGP Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply DC 8.4V by Battery(5000mAh) Adapter parameters: Input: AC 100-240V 50/60Hz 0.55A Output: DC 12V 2A Hardware Version G116X1-1 REV.02 Software Version / Bluetooth 2402MHz ~ 2480MHz Channel Number 79 channels for Bluetooth V4.0 (BDR/EDR) 40 channels for Bluetooth V4.0 (BT LE) Channel Spacing 1MHz for Bluetooth V4.0 (BDR/EDR) 2MHz for Bluetooth V4.0 (BT LE) Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.0 (BDR/EDR) GFSK for Bluetooth V4.0 (BT LE) Bluetooth Version V4.0 Antenna Description Internal Antenna, 1.5dBi(Max.) 2.4G WLAN 2412MHz ~ 2462 MHz Channel Spacing 5MHz Channel Number 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Description Internal Antenna, 1.5dBi(Max.) 5.2G WLAN 5180MHz-5240MHz Channel Number 4 channels for 20MHz bandwidth (5180-5240MHz) 2 channels for 40MHz bandwidth (5190~5230MHz) 1 channels for 80MHz bandwidth(5210MHz) Modulation Type IEEE 802.11a/n/ac: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK) Antenna Description Internal Antenna, 1.5dBi(Max.) 5.8G WLAN 5745-5825MHz Channel Number 5 channels for 20MHz bandwidth(5745-5825MHz) 2 channels for 40MHz bandwidth(5755~5795MHz) 1 channels for 80MHz bandwidth(5775MHz) Modulation Type IEEE 802.11a/n/ac: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK) Antenna Description Internal Antenna, 1.5dBi(Max.) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 10 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz t…

Text truncated - open the document above for the full version.

Hyundai Technology Group, Inc. 2601 Walnut Ave. Tustin, CA, USA Date: June 22, 2021 FCC ID: 2AVTH-HT14CCIC44EGH Model Number: HT14CCIC44EGH, HT14CCIC44EGP To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Hyundai Technology Group, Inc. declare that this EUT (FCC ID: 2AVTH-HT14CCIC44EGH) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Sophia Wong / procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave. Tustin, CA, USA Phone: (949) 679-7960 125 Fax: 714-409-3091 E-Mail: [email protected]

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 34 FCC TEST REPORT For Hyundai Technology Group, Inc. 14.1 inch laptop Test Model: HT14CCIC44EGH Additional Model No.: HT14CCIC44EGP Prepared for : Hyundai Technology Group, Inc. Address : 2601 Walnut Ave. Tustin, CA, USA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 12, 2021 Number of tested samples : 2 Serial number : Prototype Date of Test : May 12, 2021 ~ June 22, 2021 Date of Report : June 22, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC44EGH Report No.: LCS210426113AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210426113AEB Date of Issue ................................... : June 22, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Hyundai Technology Group, Inc. Address ........................................... : 2601 Walnut Ave. Tustin, CA, USA Test Specification Standard ......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen …
