2AVTH-HT14CCIC45SSHyBook

USER MANUAL 14.1” Windows Laptop HYBOOK User Manual 4 Limited Warranty does NOT cover: Any costs associated with the repair or replacement of the Product including labor, installation or other costs incurred by you, and in particular, any costs relating to the removal or replacement of any Product that is soldered or otherwise permanently affixed to any printed circuit board; OR Damage to the Product due to external causes, including accident, problems with electrical power, abnormal electrical, mechanical or environmental conditions, usage not in accordance with product instructions, misuse, neglect, alteration, repair, improper installation, or improper testing; OR Any Product which has been modified or operated outside of specifications or where the original identification markings (trademark or serial number) has been removed, altered or obliterated from the Product, or where the label or screw on the exterior of the Product is removed or broken. WARRANTY NOTICE 5 INTRODUCTION Precautions Before Use: Thank you for choosing the new Hyundai Hybook. This guide serves to enable users to familiarize themselves with our product as quickly as possible. Below is a brief introduction to the key layout, features, definitions in figures and words. This production is suitable for use in non-tropic areas below 2,000 meters, and in the mark in the nameplate indicates the product is suitable for use in non-tropic areas. 1. Prevent the Hybook from falling to the ground or being strongly impacted otherwise. 2. Not for long-term use in an environment where the air is too hot (<35 o C), too humid or with too much dust. Do not expose the Hybook directly to sunlight. 3. Avoid using in strong magnetic or strong static environment as much as possible. 4. Once any water or other liquid splashes onto the Hybook, leave it open and do not use it until it dries out. 5. Do not clean the Hybook with any detergents, chemicals or liquids to avoid causing damage due to corrosion and becoming damp. If cleaning is necessary, clean it with a dry soft cloth. 6. Our company shall not be held responsible for any loss or deletion of data inside the Hybook due to abnormal software and hardware operation, maintenance or any other accident. 7. Please back up your Hybook to avoid any loss of important data or information. 6 8. Please do not disassemble the Hybook by yourself; otherwise you will lose the right to warranty. 9. Quick Start Guide and relevant software shall be updated at any time. Please visit www. hyundaitechnology.com to check for avilable software updates. 10. Replacement with incorrect type of batteries may cause explosion. Make sure to use original batteries. 2 1 5 66 4 3 11 12 8 10 9 7 1313 14 Model No.: HT14CCIC45SS FCC ID: xxxxxxxxxxxxx SN: xxxxxxxxxxxxxxx 7 1. Power Button: Press it down to start or close the touch screen panel. You can also let the computer to enter dormancy through this button or wake from the dormacy mode. 2. Front Camera: Take pictures, shoot video. 3. Touchpad: The device can be operated directly. 4. Keyboard Board: The device can be operated directly. 5. Indicators: a) Green light indicates when Caps Lock is on; b) Charging indicator, red when the adapter is charging; c) Work light, bright green when the machine is running. 6. Microphone: You can transmit audio signals to a device at work. 7. Charging port: red light when adapter is plugged in. 8. DC charging cradle: use the built-in 12V / 2A charger. 9. USB 3.0: can insert U disk, mouse, keyboard directly. 10. Mini-HDMI interface: High definition multimedia interface. 11. USB 2.0: can insert U disk, mouse, keyboard directly. 12. Audio connector: 3.5 mm. 13. Speakers - The built-in speaker lets you hear work sound without additional devices attached. 14. 2.5 ”expandable SATA HDD slot Key Layout And Definitions: 8 Windows 10 start image: On the start screen, you will see many applications fixed in the image. These application programs are displayed in the form “magnet”. Click on an application to begin. You will need to log in with your Micosoft account before the application will run. Interface Introduction: Applications Introduction: In addition to being available on the start screen, you can also open all applications from the homepage. If you want to add multiple applications on the Start screen, refer to the operation as shown below: (1) Right-click on the Properties icon. (2) Select fixed at the beginning of the page. 9 10 Menu Bar: Use mouse to click windows home button to appear on the menu bar. Conversely, if you want to change or delete an application from the startup screen, (1) Right-click (2), and then select the undocked from the start page. Search Menu: After you login, your account can be set up with your preferred language or text dialogue. If not logged into your account, only text searches will be available. 11 Expand the menu bar from the screen, usually: a file manager, settings, power supply and all applications, you can sleep / shutdown / restart the device. Here you can manage your files and applications on the device. Here you can set up and customize the settings on your device. Here you browse and choose more applications. Search Menu: After you login, your account can be set up with your preferred language or text dialogue. If not logged into your account, only text searches will be available. 12 Device menu Click on the notification menu. Multitasking Operation Interface. 13 Basic Operations: Sleep, Restart, Power Off: Short press the power button Hibernation. HYUNDAI The information contained herein is subject to change without notice. The only warranties for Connect and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Connect shall not be liable for technical or editorial errors or omissions contained herein. First Edition: May 2016 Advertencia Nota para uso en México La operación…

Text truncated - open the document above for the full version.

<Hyundai Technology Group, Inc.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-03-25 Subject; Request for Confidentiality FCC ID: 2AVTH-HT14CCIC45SS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sophia Wong Title: procurement manager

Hyundai Technology Group, Inc. Letter of Authorization Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave. Tustin, CA, USA Product Name: HyBook Model Number: HT14CCIC45SS FCC Identifier: 2AVTH-HT14CCIC45SS We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Sophia Wong Date: 2021-03-25 Title: procurement manager Signature of applicant:

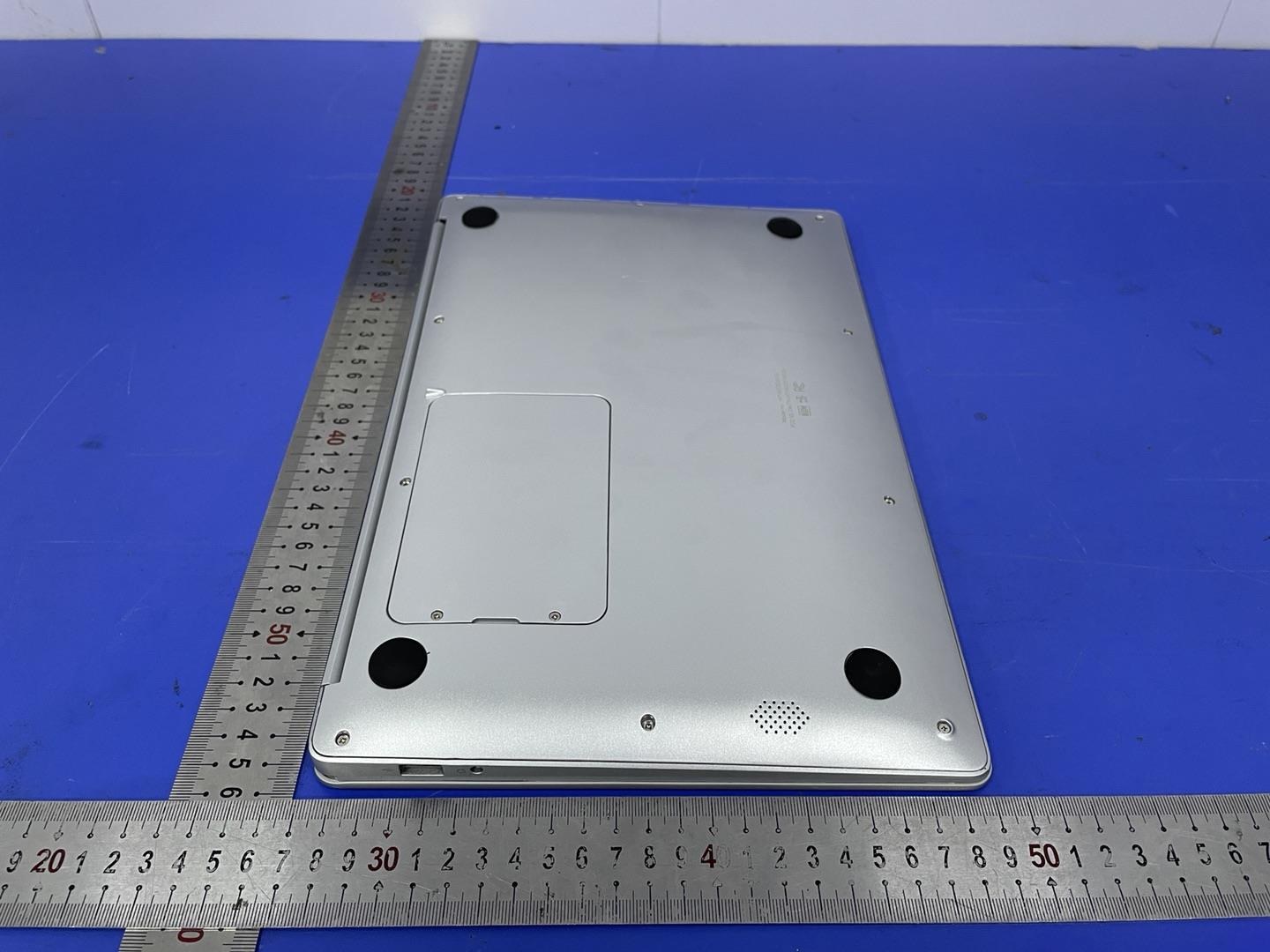

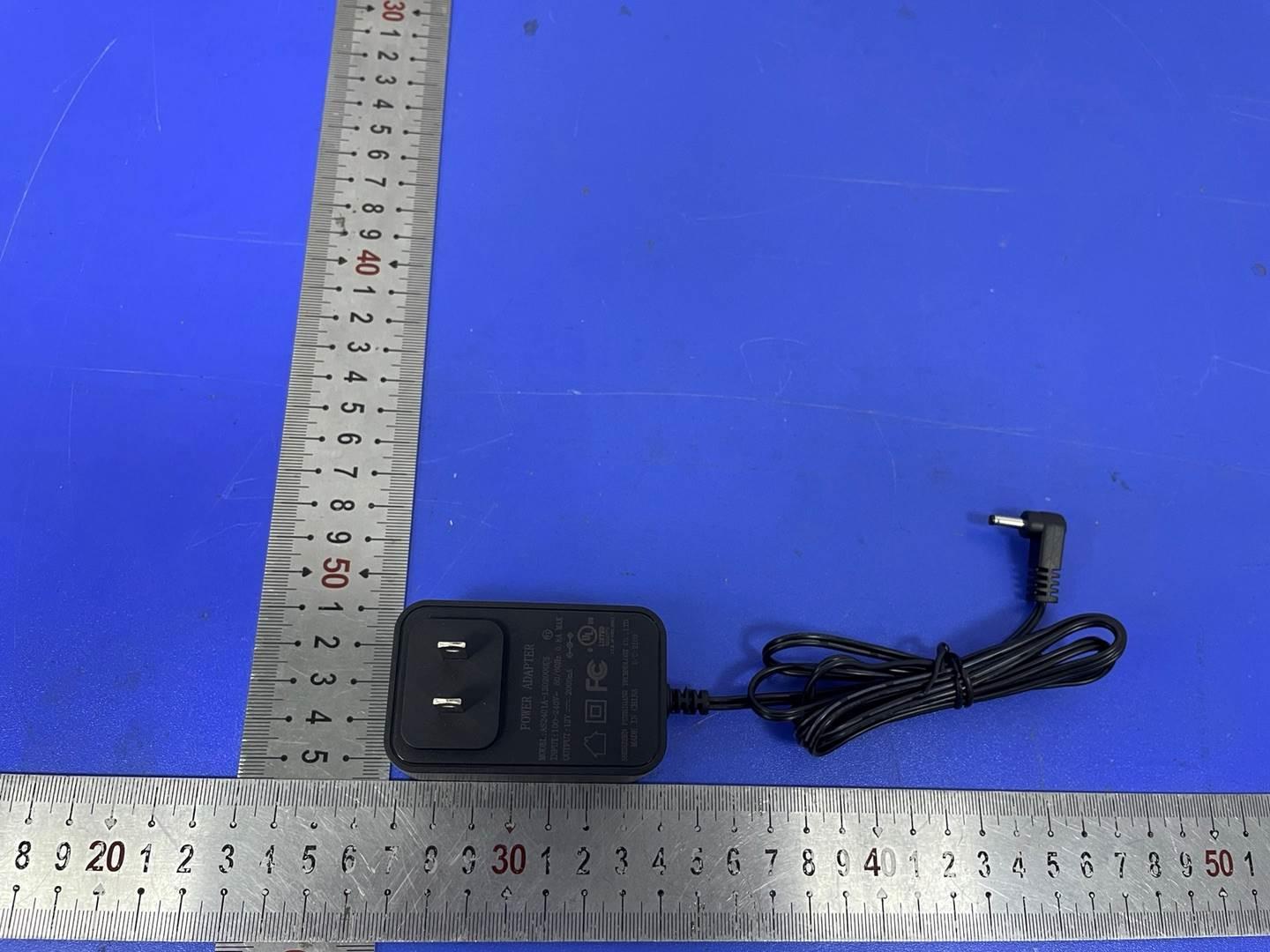

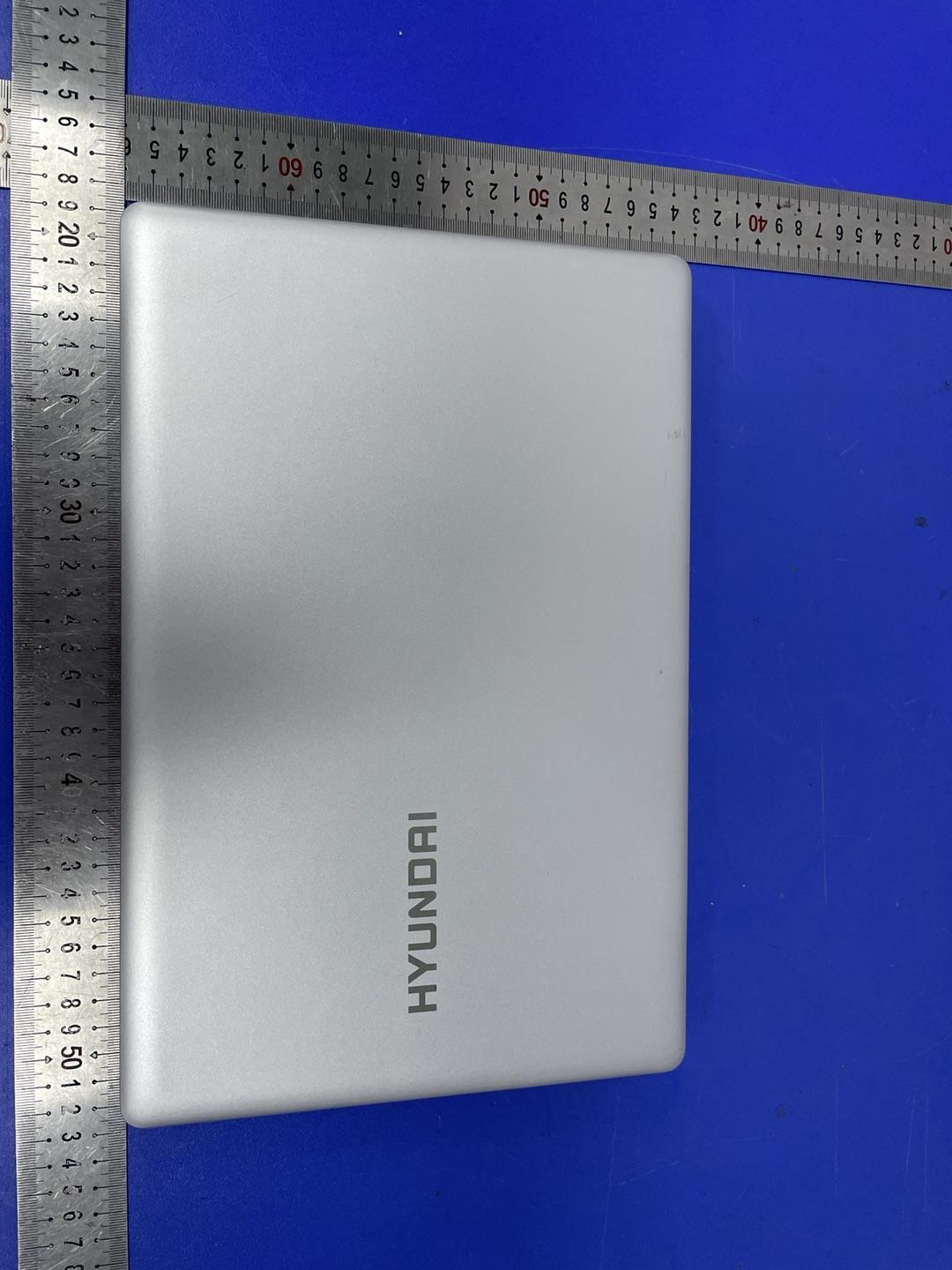

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Fig. 11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L4.0cm*W1.0cm Label Location Model No: HT14CCIC45SS FCC ID: 2AVTH-HT14CCIC45SS

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 \ Bluetooth and WIFI(2.4G Band) Antenna Bluetooth and WIFI(2.4G Band) Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Fig. 11 Fig. 12

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 1 of 47 Appendix A RF Test Data for BT V4.0(BDR/EDR) (Conducted Measurement) Product Name: HyBook Trade Mark: HYUNDAI Test Model: HT14CCIC45SS Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Ben Jin Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.440 21 PASS MCH 1.867 21 PASS HCH 0.236 21 PASS π/4DQPSK LCH -0.653 21 PASS MCH 0.858 21 PASS HCH -0.753 21 PASS 8DPSK LCH -0.735 21 PASS MCH 0.623 21 PASS HCH -0.895 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.8199 Not Specified PASS MCH 0.8157 Not Specified PASS HCH 0.8232 Not Specified PASS π/4DQPSK LCH 1.134 Not Specified PASS MCH 1.135 Not Specified PASS HCH 1.135 Not Specified PASS 8DPSK LCH 1.134 Not Specified PASS MCH 1.152 Not Specified PASS HCH 1.120 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.133 0.549 PASS MCH 1.002 0.549 PASS HCH 1.142 0.549 PASS π/4DQPSK LCH 1.182 0.757 PASS MCH 1.340 0.757 PASS HCH 0.994 0.757 PASS 8DPSK LCH 0.876 0.768 PASS MCH 1.060 0.768 PASS HCH 1.012 0.768 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.308 0.4 PASS 2DH5 MCH 2.88 106.7 0.308 0.4 PASS 2DH5 HCH 2.88 106.7 0.308 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 0.117 -37.680 -19.883 PASS MCH 1.59 -38.073 -18.410 PASS HCH -0.015 -38.394 -20.015 PASS π/4DQPSK LCH -1.439 -37.467 -21.439 PASS MCH -0.566 -37.966 -20.566 PASS HCH -1.421 -37.742 -21.421 PASS 8DPSK LCH -1.615 -36.533 -21.615 PASS MCH 0.013 -37.685 -19.987 PASS HCH -1.468 -37.737 -21.468 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS CO…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC TEST REPORT FOR Hyundai Technology Group, Inc. HyBook Test Model: HT14CCIC45SS Prepared for : Hyundai Technology Group, Inc. Address : 2601 Walnut Ave. Tustin, CA, USA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 16, 2021 Number of tested samples : 1 Serial number : Prototype Date of Test : March 16, 2021 ~ March 25, 2021 Date of Report : March 25, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................ : LCS210316040AEA Date of Issue .................................. : March 25, 2021 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Hyundai Technology Group, Inc. Address .......................................... : 2601 Walnut Ave. Tustin, CA, USA Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : HyBook Trade Mark ..................................... : HYUNDAI Test Model ..................................... : HT14CCIC45SS Ratings ........................................... : DC 7.4V By Battery(5000mAh) Adapter parameters: Input: AC 100-240V 50/60Hz 0.5A Output: DC 12V 2A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Lh Li/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210316040AEA March 25, 2021 Date of issue Test Model........................... : HT14CCIC45SS EUT......................................... : HyBook Applicant............................... : Hyundai Technology Group, Inc. Address.................................. : 2601 Walnut Ave. Tustin, CA, USA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Hyundai Technology Group, Inc. Address................................... : 2601 Walnut Ave. Tustin, CA, USA Telephone............................... : / Fax.......................................... : / Factory................................... : Hyundai Technology Group, Inc. Address................................... : 2601 Walnut Ave. Tustin, CA, USA Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 March 25, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS Report No.: LCS210316040AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 35 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ................................................................................................................... 6 1.2 SUPPORT EQUIPMENT LIST ........................................................................................................................... 6 1.3 EXTERNAL I/O CABLE ................................................................................................................................. 7 1.4 DESCRIPTION OF TEST FACILITY ................................................................................................................... 7 1.5 STATEMENT OF THE MEASUREMENT UN…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HT14CCIC45SS _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
