2AVTH-HTLB14INC4Z1HyBook

USER MANUAL 14.1” Windows Laptop 4 Limited Warranty does NOT cover: Any costs associated with the repair or replacement of the Product including labor, installation or other costs incurred by you, and in particular, any costs relating to the removal or replacement of any Product that is soldered or otherwise permanently affixed to any printed circuit board; OR Damage to the Product due to external causes, including accident, problems with electrical power, abnormal electrical, mechanical or environmental conditions, usage not in accordance with product instructions, misuse, neglect, alteration, repair, improper installation, or improper testing; OR Any Product which has been modified or operated outside of specifications or where the original identification markings (trademark or serial number) has been removed, altered or obliterated from the Product, or where the label or screw on the exterior of the Product is removed or broken. WARRANTY NOTICE 5 INTRODUCTION Precautions Before Use: Thank you for choosing the new Hyundai Hybook. This guide serves to enable users to familiarize themselves with our product as quickly as possible. Below is a brief introduction to the key layout, features, definitions in figures and words. This production is suitable for use in non-tropic areas below 2,000 meters, and in the mark in the nameplate indicates the product is suitable for use in non-tropic areas. 1. Prevent the Hybook from falling to the ground or being strongly impacted otherwise. 2. Not for long-term use in an environment where the air is too hot (<35 o C), too humid or with too much dust. Do not expose the Hybook directly to sunlight. 3. Avoid using in strong magnetic or strong static environment as much as possible. 4. Once any water or other liquid splashes onto the Hybook, leave it open and do not use it until it dries out. 5. Do not clean the Hybook with any detergents, chemicals or liquids to avoid causing damage due to corrosion and becoming damp. If cleaning is necessary, clean it with a dry soft cloth. 6. Our company shall not be held responsible for any loss or deletion of data inside the Hybook due to abnormal software and hardware operation, maintenance or any other accident. 7. Please back up your Hybook to avoid any loss of important data or information. 6 8. Please do not disassemble the Hybook by yourself; otherwise you will lose the right to warranty. 9. Quick Start Guide and relevant software shall be updated at any time. Please visit www. hyundaitechnology.com to check for avilable software updates. 10. Replacement with incorrect type of batteries may cause explosion. Make sure to use original batteries. 7 1. Power Button: Press it down to start or close the touch screen panel. You can also let the computer to enter dormancy through this button or wake from the dormacy mode. 2. Front Camera: Take pictures, shoot video. 3. Touchpad: The device can be operated directly. 4. Keyboard Board: The device can be operated directly. 5. Indicators: a) Is the green light when the Caps Lock indicator Caps Lock; b) charging indicator, red when charging connector adapter; c) work light, bright green when the machine starts to work. 6. Microphone: It can transmit audio signals to a device at work. 7. Charge Indicator: Red light when plug adapter. 8. DC Charging Base: Use the built-12V / 2A charger. 9. USB Interface: You can insert U disk, mouse, keyboard directly. 10. Mini-HDMI Interface: High-Definition Multimedia Interface. 11. USB 2.0: You can insert U disk, mouse, keyboard directly. 12. RJ-45: Physical Interface to Connect Computer Networks 13. USB 2.0: You can insert U disk, mouse, keyboard directly. 14. Speakers: The built-in speaker lets you hear the sound of work without additional connected devices Key Layout And Definitions: 2 1 5 66 4 3 11 13 12 8 10 9 7 1414 8 Windows 10 start image: On the start screen, you will see many applications fixed in the image. These application programs are displayed in the form “magnet”. Click on an application to begin. You will need to log in with your Micosoft account before the application will run. Interface Introduction: Applications Introduction: In addition to being available on the start screen, you can also open all applications from the homepage. If you want to add multiple applications on the Start screen, refer to the operation as shown below: (1) Right-click on the Properties icon. (2) Select fixed at the beginning of the page. 9 10 Menu Bar: Use mouse to click windows home button to appear on the menu bar. Conversely, if you want to change or delete an application from the startup screen, (1) Right-click (2), and then select the undocked from the start page. Search Menu: After you login, your account can be set up with your preferred language or text dialogue. If not logged into your account, only text searches will be available. 11 Expand the menu bar from the screen, usually: a file manager, settings, power supply and all applications, you can sleep / shutdown / restart the device. Here you can manage your files and applications on the device. Here you can set up and customize the settings on your device. Here you browse and choose more applications. Search Menu: After you login, your account can be set up with your preferred language or text dialogue. If not logged into your account, only text searches will be available. 12 Device menu Click on the notification menu. Multitasking Operation Interface. 13 Basic Operations: Sleep, Restart, Power Off: Short press the power button Hibernation. HYUNDAI The information contained herein is subject to change without notice. The only warranties for Connect and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Connect shall not be liable for technical or editorial errors or omissions contained herein. First Edition: May 2016 Advertencia Nota para uso en México La operac…

Text truncated - open the document above for the full version.

2020-10-13 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Hyundai Technology Group, Inc. /2601 Walnut Ave. Tustin, CA, USA Device is not restricted to use by only law enforcement agencies, device is also for other civil industries use. Agency agreement expiration date: Oct. 12, 2021 By: Sophia Wong Signature Printed Title: procurement manager On behalf of : Hyundai Technology Group, Inc. Telephone: 949-679-7960

2020-10-13 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AVTH-HTLB14INC4Z1 Product Name: HyBook Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Sophia Wong Signature Printed Title: procurement manager On behalf of : Hyundai Technology Group, Inc. Telephone: 949-679-7960

Differences Declaration To whom concern, We company Hyundai Technology Group, Inc. Here by declares: The product model(s) HTLB14INC4Z1SSG, HTLB14INC4Z1SS, HTLB14INC4Z1EBK, HTLB14INC4Z1ESG, HTLB14INC4Z1ES is the same PCB layout, electronic schematic and Antenna with HTLB14INC4Z1SBK, which tested in Shenzhen Huatongwei International Inspection Co., Ltd., the only difference is different model names for commercial purpose. Sincerely yours, Name (in print): Sophia Wong Company name: Hyundai Technology Group, Inc. Company address: 2601 Walnut Ave. Tustin, CA, USA Tel: 949-679-7960 E-Mail: [email protected]

7.EXTERANAL AND INTERNAL PHOTOS External photos of EUT Model:HTLB14INC4Z1SBK

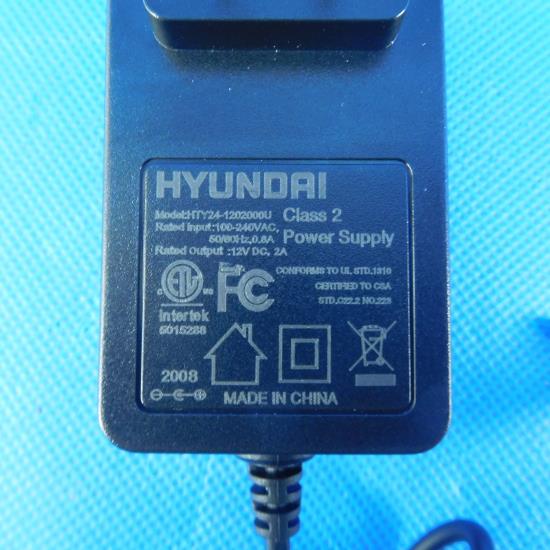

Label & Location

Internal photos of EUT M odel:HTLB14INC4Z1SBK

Page: 1 of 28 TEST REPORT Report No. ...................................... : CHTEW20090015 Report verificaiton: Project No. ...................................... : SHT2008055602EW FCC ID ............................................. : 2AVTH-HTLB14INC4Z1 Applicant’s name ........................... : Hyundai Technology Group, Inc. Address ............................................. : 2601 Walnut Avenue, Tustin, CA 92780 USA Test item description .................... : HyBook Trade Mark ....................................... : Hyundai Model/Type reference ....................... : HTLB14INC4Z1SBK Listed Model(s) ................................. : HTLB14INC4Z1SSG, HTLB14INC4Z1SS, HTLB14INC4Z1EBK, HTLB14INC4Z1ESG, HTLB14INC4Z1ES Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample..........: Aug.17, 2020 Date of testing..............................: Aug.18, 2020- Sep.01, 2020 Date of issue...............................: Sep.01, 2020 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators: Fanghui Zhu Supervised by ( position+printedname+signature) ... : Test Engineer: Patrick Qiu Approved by ( position+printedname+signature) ... : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20090015 Page: 2 of 28 Issued: 2020-09-01 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) Contents 1. Statement of Compliance 3 2. Test Standards and Report version 4 2.1. Test Standards 4 2.2. Report version 4 3. Summary 5 3.1. Client Information 5 3.2. Product Description 5 3.3. RF Specification Description 6 3.4. Testing Laboratory Information 7 3.5. Environmental conditions 7 4. Equipments Used during the Test 8 5. Measurement Uncertainty 9 6. SAR Measurements System Configuration 10 6.1. SAR Measurement Set-up 10 6.2. DASY5 E-field Probe System 11 6.3. Phantoms 12 6.4. Device Holder 12 7. SAR Test Procedure 13 7.1. Scanning Procedure 13 7.2. Data Storage and Evaluation 15 8. Position of the wireless device in relation to the phantom 17 8.1. Body Exposure conditions 17 9. Dielectric Property Measurements & System Check 18 9.1. Tissue Dielectric Parameters 18 9.2. System Check 19 10. SAR Exposure Limits 22 11. Conducted Power Measurement Results 23 11.1. Wi-Fi 23 11.2. Bluetooth 23 12. Maximum Tune-up Limit 24 13. Antenna Location 25 14. Measured and Reported SAR Results 26 15. Simultaneous Transmission analysis 27 16. TestSetup Photos 28 17. External and Internal Photos of the EUT 28 Report No.: CHTEW20090015 Page: 3 of 28 Issued: 2020-09-01 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions DTS Bluetooth Simultaneous TX Body-worn(Dist.= 0mm) 0.252 0.020 0.272 This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits (1.6 W/kg) specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2013 and FCC KDB publications. Report No.: CHTEW20090015 Page: 4 of 28 Issued: 2020-09-01 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices. IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 248227 D01 802 11 Wi-Fi SAR v02r02: SAR Measurement Proceduresfor802.11 a/b/g Transmitters 616217 D04 SAR for laptop and tablets v01r02: describes the SAR evaluation requirements for laptop, notebook, netbook and tablet computers TCB workshop April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2020-09-01 Original Report No.: CHTEW20090015 Page: 5 of 28 Issued: 2020-09-01 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 3. Summary 3.1. Client Information Applicant: Hyundai Technology Group, Inc. Address: 2601 Walnut Avenue, Tustin, CA 92780 USA Manufacturer: Hyundai Technology Group, Inc. Address: 2601 Walnut Avenue, Tustin, CA 92780 USA 3.2. Product Description Main unit Name of EUT: HyBook Trade Mark: Hyundai Model No.: HTLB14INC4Z1S…

Text truncated - open the document above for the full version.

Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 8/26/2020 Wifi 2.4G-Body Communication System: UID 0, Generic WIFI (0); Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.853 S/m; ε r = 40.507; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.3°C;Liquid Temperature:22.1°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(7.91, 7.91, 7.91) @ 2412 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Bottom/CH 1/Area Scan (71x181x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.381 W/kg Bottom/CH 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.095 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.486 W/kg SAR(1 g) = 0.236 W/kg; SAR(10 g) = 0.116 W/kg Maximum value of SAR (measured) = 0.378 W/kg 0 dB = 0.378 W/kg = -4.23 dBW/kg Appendix A: SAR Test Data Plots Plot No.1 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 8/26/2020 BT-Body Communication System: UID 0, Generic BT (0); Frequency: 2402 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2402 MHz; σ = 1.844 S/m; ε r = 40.55; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.2°C;Liquid Temperature:22.0°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(7.91, 7.91, 7.91) @ 2402 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Bottom/CH 0/Area Scan (71x181x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.0276 W/kg Bottom/CH 0/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.792 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.0330 W/kg SAR(1 g) = 0.018 W/kg; SAR(10 g) = 0.010 W/kg Maximum value of SAR (measured) = 0.0267 W/kg 0 dB = 0.0267 W/kg = -15.73 dBW/kg Appendix A: SAR Test Data Plots Plot No.2

Appendix B: DAE and Probe Calibration Certificate 1 of 12 1.1. DAE4 Calibration Certificate Appendix B: DAE and Probe Calibration Certificate 2 of 12 Appendix B: DAE and Probe Calibration Certificate 3 of 12 Appendix B: DAE and Probe Calibration Certificate 4 of 12 1.2. Probe Calibration Certificate Appendix B: DAE and Probe Calibration Certificate 5 of 12 Appendix B: DAE and Probe Calibration Certificate 6 of 12 Appendix B: DAE and Probe Calibration Certificate 7 of 12 Appendix B: DAE and Probe Calibration Certificate 8 of 12 Appendix B: DAE and Probe Calibration Certificate 9 of 12 Appendix B: DAE and Probe Calibration Certificate 10 of 12 Appendix B: DAE and Probe Calibration Certificate 11 of 12 Appendix B: DAE and Probe Calibration Certificate 12 of 12

Appendix C: Dipole Calibration Certificate 1 of 11 1.1. D2450V2 Dipole Calibration Certificate Appendix C: Dipole Calibration Certificate 2 of 11 Appendix C: Dipole Calibration Certificate 3 of 11 Appendix C: Dipole Calibration Certificate 4 of 11 Appendix C: Dipole Calibration Certificate 5 of 11 Appendix C: Dipole Calibration Certificate 6 of 11 Appendix C: Dipole Calibration Certificate 7 of 11 Appendix C: Dipole Calibration Certificate 8 of 11 Appendix C: Dipole Calibration Certificate 9 of 11 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head-2450 Date of measurement Return-loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary impedance (ohm) Delta (ohm) 2018-02-05 -27.4 53.8 2.2 2019-02-03 -26.8 2.19% 52.9 0.9 1.9 0.3 2020-01-22 -27.1 1.09% 53.1 0.7 1.8 0.4 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5ohm of prior calibration. Therefore the verification result should support extended calibration. Appendix C: Dipole Calibration Certificate 10 of 11 Appendix C: Dipole Calibration Certificate 11 of 11

Page: 1 of 32 TEST REPORT Report No. ...................................... : CHTEW20090227 Report Verification: Project No.................................： SHT2008055601EW FCC ID ............................................. : 2AVTH-HTLB14INC4Z1 Applicant’s name ........................... : Hyundai Technology Group, Inc. Address ............................................. : 2601 Walnut Avenue, Tustin, CA 92780 USA Manufacturer.....................................: Hyundai Technology Group, Inc. Address..............................................: 2601 Walnut Avenue, Tustin, CA 92780 USA Test item description .................... : HyBook Trade Mark ....................................... : Hyundai Model/Type reference ....................... : HTLB14INC4Z1SBK Listed Model(s) ................................. : HTLB14INC4Z1SSG, HTLB14INC4Z1SS, HTLB14INC4Z1EBK, HTLB14INC4Z1ESG, HTLB14INC4Z1ES Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Aug. 17, 2020 Date of testing.............................: Aug. 18, 2020- Sep.28, 2020 Date of issue...............................: Sep.29, 2020 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Silvia Li Supervised by (Position+Printed name+Signature): Project Engineer Aaron Fang Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20090227 Page: 2 of 32 Issued: 2020-09-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. Power Spectral Density 16 5.5. 6dB bandwidth 17 5.6. 99% Occupied Bandwidth 18 5.7. Duty Cycle 19 5.8. Conducted Band edge and Spurious Emission 20 5.9. Radiated Band edge Emission 21 5.10. Radiated Spurious Emission 25 6. TEST SETUP PHOTOS 31 7. EXTERANAL AND INTERNAL PHOTOS 32 8. APPENDIX REPORT 32 Report No.: CHTEW20090227 Page: 3 of 32 Issued: 2020-09-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2020-09-29 Original Report No.: CHTEW20090227 Page: 4 of 32 Issued: 2020-09-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247(c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247(b)(3) PASS 5.4 Power Spectral Density 15.247(e) PASS 5.5 6dB Bandwidth 15.247(a)(2) PASS 5.6 99% Occupied Bandwidth - PASS *1 5.7 Duty cycle - PASS *1 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.9 Radiated Band Edge Emission 15.205/15.209 PASS 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW20090227 Page: 5 of 32 Issued: 2020-09-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3. SUMMARY 3.1. Client Information Applicant: Hyundai Technology Group, Inc. Address: 2601 Walnut Avenue, Tustin, CA 92780 USA Manufacturer: Hyundai Technology Group, Inc. Address: 2601 Walnut Avenue, Tustin, CA 92780 USA 3.2. Product Description Name of EUT: HyBook Trade Mark: Hyundai Model No.: HTLB14INC4Z1SBK Listed Model(s): HTLB14INC4Z1SSG, HTLB14INC4Z1SS, HTLB14INC4Z1EBK, HTLB14INC4Z1ESG, HTLB14INC4Z1ES Power supply: DC7.6V Battery Information: Model:5074116PV-2S1P 7.6V,5000mAh 38Wh Adapter Information: Model:HTY24-1202000U Input: AC100-240V, 50/60Hz, 0.8A Output: 12Vdc,2.0A Hardware version: A116U1-1 REV02 Software version: E.A116U_5.S4.E1.058 3.3. Radio Specification Description Support type *2 : 802.11b, 802.11g, 802.11n(HT20), 802.11n(HT40) Modulation: DS…

Text truncated - open the document above for the full version.

Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 28 APPENDIX REPORT Project No. SHT2008055601EW Radio Specification WIFI 2.4G Test sample No. YPHT20080556001 Model No. HTLB14INC4Z1SBK Start test date 2020/8/26 Finish date 2020/8/26 Temperature 25°C Humidity 50% Test Engineer Jiongsheng.Feng Auditor Appendix clause Test item Result A Conducted Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty Cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 28 Appendix A：Conducted Peak Output Power Type Channel Peak Output power (dBm) Average Output power (dBm) Limit (dBm) Result 802.11b 01 18.27 14.71 ≤ 30.00 Pass 06 17.23 13.74 11 17.30 13.82 802.11g 01 20.09 17.15 ≤ 30.00 Pass 06 20.28 17.36 11 20.35 17.51 802.11n (HT20) 01 19.66 16.75 ≤ 30.00 Pass 06 20.03 17.02 11 20.03 17.03 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 28 Appendix B：Power Spectral Density Type Channel Power Spectral Density (dBm/30KHz) Limit (dBm/3KHz) Result 802.11b 01 -1.43 ≤8.00 Pass 06 -1.16 11 -0.86 802.11g 01 -5.47 ≤8.00 Pass 06 -5.21 11 -4.67 802.11n(HT20) 01 -6.37 ≤8.00 Pass 06 -5.49 11 -5.54 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 28 Type: 802.11 b CH01 CH06 CH11 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 28 Type: 802.11 g CH01 CH06 CH11 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 28 Type: 802.11n(HT20) CH01 CH06 CH11 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 28 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth (MHz) Limit (MHz) Result 802.11b 01 10.11 ≥0.5 Pass 06 10.11 11 10.11 802.11g 01 16.65 ≥0.5 Pass 06 16.65 11 16.65 802.11n(HT20) 01 17.88 ≥0.5 Pass 06 17.88 11 17.88 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 28 Type: 802.11 b CH01 CH06 CH11 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 28 Type: 802.11 g CH01 CH06 CH11 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 28 Type: 802.11n(HT20) CH01 CH06 CH11 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 28 Appendix D：99% Occupied Bandwidth Type Channel 99% Bandwidth (MHz) Limit (MHz) Result 802.11b 01 15.10 - Pass 06 15.10 11 15.13 802.11g 01 16.99 - Pass 06 16.99 11 17.02 802.11n(HT20) 01 18.04 - Pass 06 18.04 11 18.04 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 28 Type: 802.11 b CH01 CH06 CH11 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 28 Type: 802.11 g CH01 CH06 CH11 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 28 Type: 802.11n(HT20) CH01 CH06 CH11 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 15 of 28 Appendix E：Duty Cycle Modulation Type Test Frequency （MHz） T on time for single burst (ms) T period (ms) Duty cycle 1/T on time (kHz) 11b 2437 1.00 1.00 100.0% 1.0 11g 2437 1.00 1.00 100.0% 1.0 11n20 2437 1.00 1.00 100.0% 1.0 11b 11g Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 16 of 28 11n20 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 17 of 28 Appendix F：Band edge and Spurious Emissions (conducted) Test Item: Bandedge Type: 802.11 b CH01 CH11 Project No.: SHT2008055601EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 18 of 28 Test Item: Bandedge Type: 802.11 g CH01 CH11 Project No.: SHT200805…

Text truncated - open the document above for the full version.
