2AVTH-HTLF11INC4Z1HyFlip

MANUAL DE USUARIO 11.6” Windows Laptop HYFLIP Manual de Usuario 4 La garantía limitada NO cubre: Cualquier costo asociado con la reparación o reemplazo del Producto, incluidos mano de obra, instalación u otros costos incurridos por usted, y en particular, cualquier costo relacionado con la remoción o reemplazo de cualquier Producto que esté soldado o fijado permanentemente a cualquier placa de circuito impreso; O Daños al Producto debido a causas externas, incluidos accidentes, problemas con la energía eléctrica, condiciones eléctricas, mecánicas o ambientales anormales, uso no acorde con las instrucciones del producto, uso indebido, negligencia, alteración, reparación, instalación incorrecta o pruebas incorrectas; O Cualquier Producto que haya sido modificado u operado fuera de las especificaciones o donde las marcas de identificación originales (marca comercial o número de serie) se hayan eliminado, alterado o borrado del Producto, o donde la etiqueta o el tornillo en el exterior del Producto se haya quitado o roto. AVISO DE GARANTÍA 5 PRECAUCIONES ANTES DEL USO: Esta producción es adecuada para su uso en áreas no tropicales por debajo de los 2000 metros. Evite que el dispositivo se caiga al suelo o reciba un fuerte impacto. No lo utilice durante mucho tiempo en un entorno donde la temperatura sea demasiado fría, demasiado caliente (<35 °C), demasiado húmeda o polvorienta. No exponga el dispositivo directamente a la luz solar durante largos períodos de tiempo. Evite usarlo en un entorno magnético fuerte y estático fuerte tan a menudo como sea posible. Si salpica agua o cualquier otro líquido sobre el dispositivo, ciérrelo inmediatamente y no lo utilice. hasta que se seque por completo. No limpie el dispositivo con ningún detergente que contenga elementos químicos o cualquier otro líquido para evitar dañarlo por corrosión y humedecerlo. Si es necesario limpiarlo, límpielo con un paño seco y suave. Nuestra empresa no asumirá ninguna y todas las responsabilidades por la pérdida o eliminación de material dentro del dispositivo debido a un funcionamiento anormal del software y hardware, mantenimiento o cualquier otro accidente. Haga una copia de seguridad de su contenido importante con frecuencia para evitar pérdidas. No desmonte el dispositivo usted mismo; de lo contrario, perderá el derecho a la garantía. 1. 2. 3. 4. 5. 6. 7. 8. 9. 6 1. Botón de encendido: presione hacia abajo para iniciar o cerrar el panel de la pantalla táctil. También puede permitir que la computadora entre en modo de suspensión a través de este botón o que se despierte del modo de suspensión. 2. Cámara frontal / Webcam: tome fotos, grabe videos. 3. Panel táctil: el dispositivo se puede operar directamente. 4. Teclado: el dispositivo se puede operar directamente. 5. Indicadores: 1 luz verde cuando el indicador de Bloq Mayús está encendido - Bloq Mayús; 2 El indicador de carga está rojo cuando el conector de carga está enchufado; 3 La luz de funcionamiento es de color verde brillante cuando la máquina está funcionando 6. Micrófono: Puede transmitir señales de audio a un dispositivo en el trabajo. 7. Indicador de carga: Luz roja cuando conecta el adaptador 8. Base de carga de CC: Utilice el cargador incorporado de 12V / 2A. 9. Puerto USB 2.0: Puede insertar disco U, mouse, teclado directamente. 10. Interfaz Mini-HDMI: Interfaz multimedia de alta definición. 11. Conector de auriculares: Este dispositivo de conector puede transmitir señales de audio a altavoces o auriculares. 12. Puerto USB 3.0: Puede insertar disco U, mouse, teclado directamente. 13. Ranura para tarjeta microSD: Ranura para lector de tarjetas de memoria incorporada que admite el formato microSD. 14. Altavoces: Los altavoces incorporados le permiten escuchar el sonido del trabajo sin dispositivos adicionales conectados. 360º 7 INTRODUCCIÓN A LA INTERFAZ: Imagen de inicio de Windows 10: en la pantalla de inicio, puede ver muchos programas arreglados en la imagen. Estos programas de aplicación se muestran en forma de “imán”. Siempre que haga clic en ellos, podrá visitarlos fácilmente. Debe iniciar sesión en su cuenta de Microsoft antes de que el programa de aplicación se ejecute por completo. Introducción a las aplicaciones Además de las aplicaciones ya fijadas en la pantalla de inicio de la aplicación, puede abrir todas las aplicaciones en la página de inicio. Si desea agregar varias aplicaciones en la pantalla de Inicio, consulte la operación que se muestra a continuación. (1) Haga clic con el botón derecho en el icono Propiedades (2) Seleccione fijo al principio de la página 8 Por el contrario, si desea cancelar o eliminar la pantalla de inicio para una determinada aplicación, (1) Haga clic con el botón derecho (2) y luego seleccione Desacoplar en la página de Inicio. 9 BARRA DE MENÚS: Toque o use un mouse USB para hacer clic en el botón Inicio de Windows que aparece en la barra de menú. Expanda la barra de menú de la pantalla, haga clic en Administrador de archivos, Configuración, Fuente de alimentación y todas las aplicaciones, puede Suspender / Apagar / Reiniciar su dispositivo. Puede administrar sus archivos y aplicaciones en el dispositivo. Puede configurar su dispositivo. Puede elegir más aplicaciones. 10 MENÚ DE BÚSQUEDA: Su cuenta se puede configurar después de configurar el diálogo de idioma o texto. Si no está conectado, la cuenta solo es válida para búsquedas de texto. Menú del dispositivo: haga clic en el menú de notificaciones 11 BARRA DE MENÚS: Operaciones básicas Suspender, reiniciar, apagar Presione brevemente el botón de encendido para hibernación / modo de suspensión 12 ESPECIFICACIONES: Procesador: Almacenamiento: Monitor: Redes Wi-Fi: Salida de audio: Puerto USB: HDMI: Bluetooth: Cámara: Sistema operativo: Poder: Altavoces: Intel Apollo Lake N3350 RAM: 4GB Storage: 64GB 11.6” 1366x768 IPS WiFi 802.11 b/g/n 3.5mm Headphone 1 x USB 3.0, 1 x USB 2.0 1 x Mini HDMI Port 4.0 0.3MP Windows 10 Pro Rechargeable Li-poly battery Power Adapter (DC…

Text truncated - open the document above for the full version.

Hyundai Technology Group, Inc. Add: 2601 Walnut Ave.Tustin, California, United States, 92780 Date: 2021-4-25 FCC ID: 2AVTH-HTLF11INC4Z1 Dear Sir/Madam, We, Hyundai Technology Group, Inc. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: HyFlip Model no.: HTLF11INC4Z1ES, HTLF11INC4Z1EBK Sincerely, Name/Title： Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave.Tustin, California, United States, 92780 Phone: 949-679-7960 Fax: 714-409-3091 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-4-25> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVTH-HTLF11INC4Z1 HTLF11INC4Z1ES For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave.Tustin, California, United States, 92780 Phone: 949-679-7960 Fax: 714-409-3091 E-Mail: [email protected]

Hyundai Technology Group, Inc. 2601 Walnut Ave.Tustin, California, United States, 92780 Date: 2021-4-25 FCC ID: 2AVTH-HTLF11INC4Z1 Model Number: HTLF11INC4Z1ES To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Hyundai Technology Group, Inc., declare that this EUT (FCC ID: 2AVTH-HTLF11INC4Z1) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave.Tustin, California, United States, 92780 Phone: 949-679-7960 Fax: 714-409-3091 E-Mail: [email protected]

Hyundai Technology Group, Inc. 2601 Walnut Ave.Tustin, California, United States, 92780 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-4-25 To whom it may concern: We, Hyundai Technology Group, Inc. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVTH-HTLF11INC4Z1 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave.Tustin, California, United States, 92780 Phone: 949-679-7960 Fax: 714-409-3091 E-Mail: [email protected]

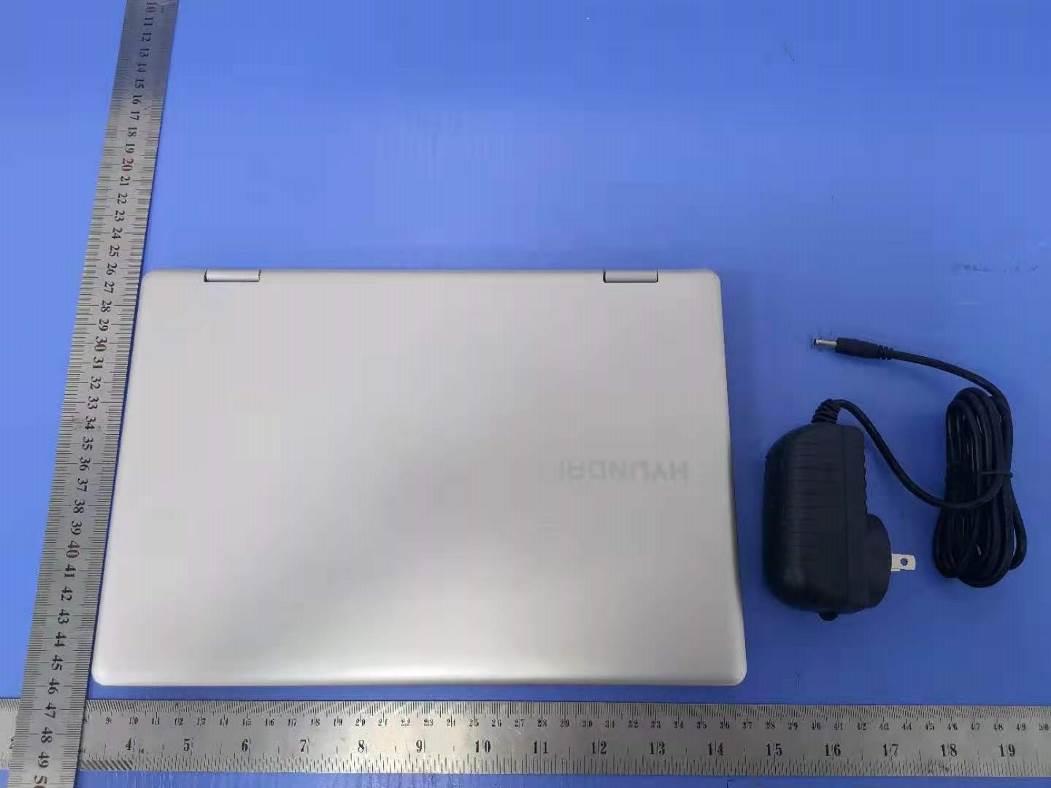

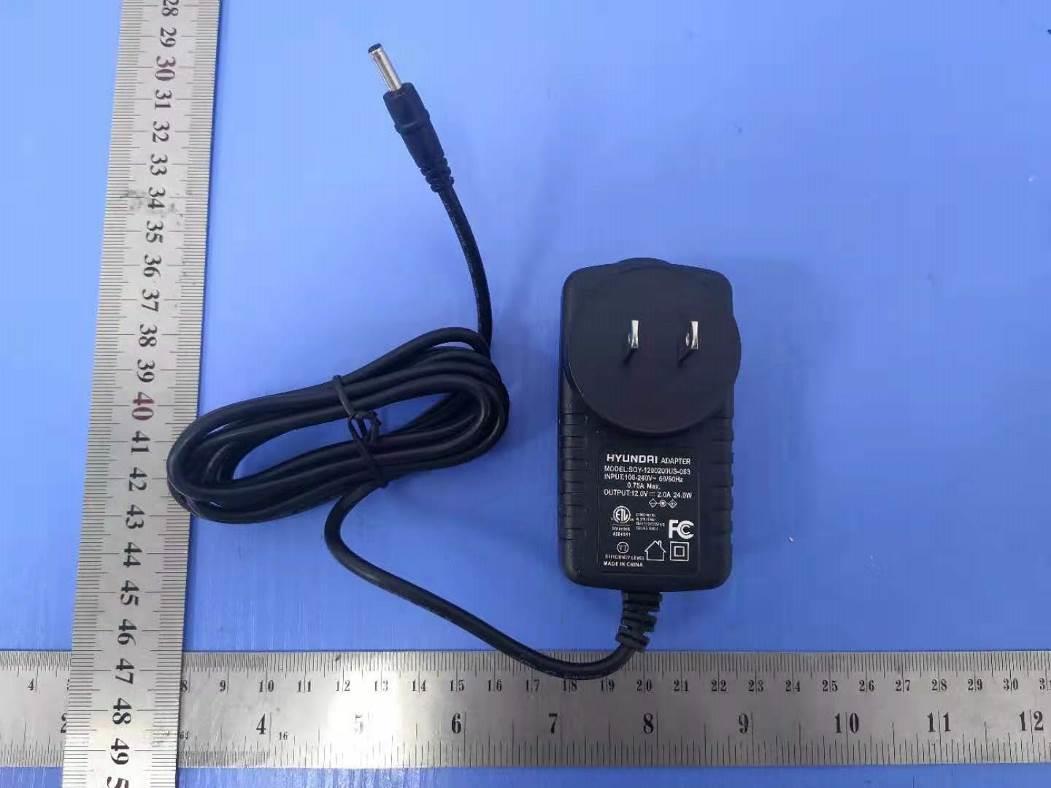

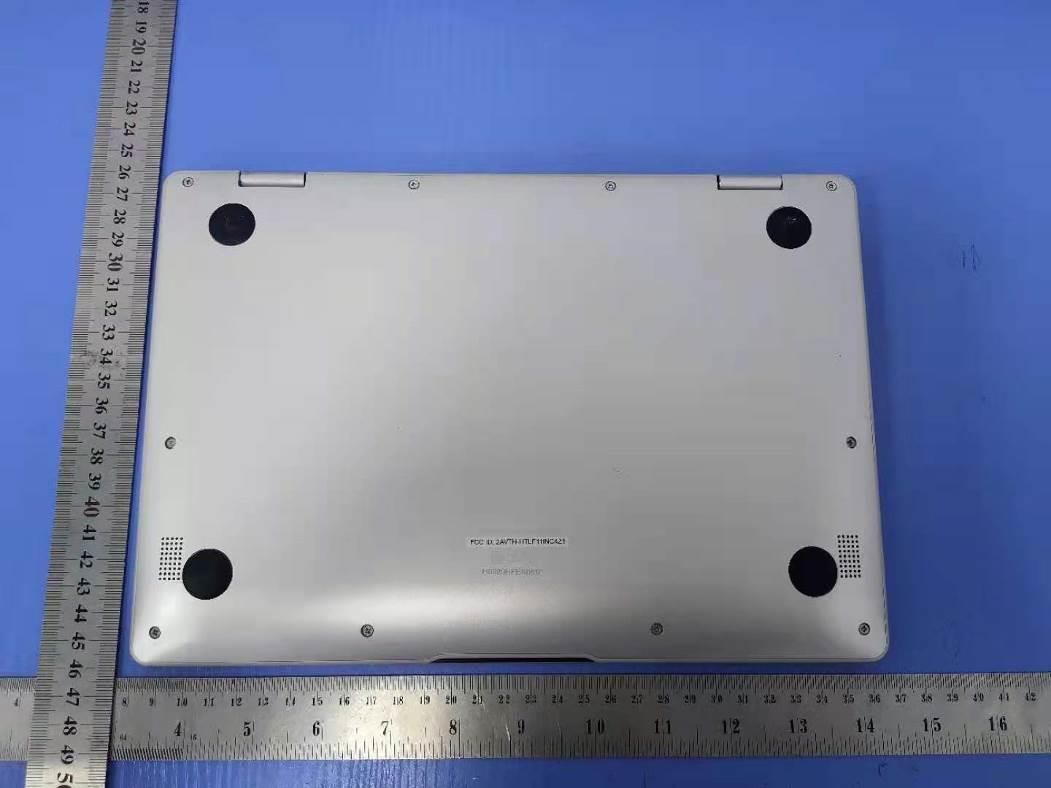

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION Size: L4cm*W3cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Model No.: HTLF11INC4Z1ES FCC ID: 2AVTH-HTLF11INC4Z1 Input: 100-240V~, 50/60Hz, 0.7A Output: 12V2A DC 7.4V by Rechargeable Li-ion Battery, 4000mAh This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 9 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 9 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 9 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 9 Fig.7 Fig.8 BT/ WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 9 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 9 Fig.11 Fig.12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 9 Fig.13 Fig.14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 8 of 9 Fig.15 Fig.16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 9 of 9 Fig.17

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AVTH-HTLF11INC4Z1 Product name : HyFlip Test Model : HTLF11INC4Z1ES Additional Model No. : HTLF11INC4Z1EBK Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply : Input: 100-240V~, 50/60Hz, 0.7A Output: 12V2A DC 7.4V by Rechargeable Li-ion Battery, 4000mAh FCC Operation frequency : 2402MHz-2480MHz 2412MHz-2462MHz Channel Number : 79 Channels for Bluetooth V4.0(DSS) 11 Channels for 20MHz bandwidth(2412~2462MHz) 7 Channels for 40MHz bandwidth(2422~2452MHz) Channel Spacing : 1MHz for Bluetooth V4.0(DSS) 5MHz Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.0(DSS) IEEE 802.11b: DSSS(CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Bluetooth Version : V4.0 Antenna Type : PIFA Antenna Antenna Gain : 2.1dBi(Max.) Hardware Version : N3350Y116ARX320 Software Version : OS:YHSM-JX-11.6-Y116ARX320-AA55E-297-A /BIOS： YHSM-BI-11.6-Y116ARX320-AA55E-297-A /EC:YHSM-EC-11.6-Y116ARX320-AA55E-297-C.ROM Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 ________________________________________________________________________ ___ This report…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 1 of 46 Appendix B RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: HyFlip Trade Mark: N/A Test Model: HTLF11INC4Z1ES Environmental Conditions Temperature: 24.6  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 4 of 46 B.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 8.98 30 PASS MCH 8.35 30 PASS HCH 8.65 30 PASS 11G LCH 8.79 30 PASS MCH 8.16 30 PASS HCH 8.19 30 PASS 11N20SISO LCH 8.84 30 PASS MCH 8.12 30 PASS HCH 8.15 30 PASS 11N40SISO LCH 8.43 30 PASS MCH 8.83 30 PASS HCH 8.51 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 5 of 46 B.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -22.936 8 PASS MCH -23.201 8 PASS HCH -22.509 8 PASS 11G LCH -27.037 8 PASS MCH -27.956 8 PASS HCH -25.655 8 PASS 11N20SISO LCH -27.142 8 PASS MCH -26.092 8 PASS HCH -25.000 8 PASS 11N40SISO LCH -26.557 8 PASS MCH -19.228 8 PASS HCH -19.635 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 12 of 46 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 10.09 ≥0.5 PASS MCH 10.09 ≥0.5 PASS HCH 10.06 ≥0.5 PASS 11G LCH 16.46 ≥0.5 PASS MCH 16.47 ≥0.5 PASS HCH 16.49 ≥0.5 PASS 11N20SISO LCH 17.60 ≥0.5 PASS MCH 17.60 ≥0.5 PASS HCH 17.62 ≥0.5 PASS 11N40SISO LCH 36.49 ≥0.5 PASS MCH 36.47 ≥0.5 PASS HCH 36.44 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 19 of 46 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH -6.097 -34.833 -26.097 PASS MCH -6.699 -33.878 -26.699 PASS HCH -6.609 -34.464 -26.609 PASS 11G LCH -11.837 -34.081 -31.837 PASS MCH -12.459 -33.528 -32.459 PASS HCH -12.921 -33.647 -32.921 PASS 11N20 SISO LCH -12.361 -34.452 -32.361 PASS MCH -13.267 -33.918 -33.267 PASS HCH -13.049 -34.178 -33.049 PASS 11N40 SISO LCH 0.459 -37.849 -19.541 PASS MCH -16.352 -37.740 -36.352 PASS HCH -16.148 -37.792 -36.148 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB Page 28 of 46 11N20SISO_H…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT For Hyundai Technology Group, Inc. HyFlip Test Model: HTLF11INC4Z1ES Additional Model No.: HTLF11INC4Z1EBK Prepared for : Hyundai Technology Group, Inc. Address : 2601 Walnut Ave.Tustin, California, United States, 92780 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 08, 2021 Number of tested samples : 2 Sample No. : 210302092A-1, 210302092A-2 Serial number : Prototype Date of Test : March 08, 2021 ~ March 19, 2021 Date of Report : March 22, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210302092AEB Date of Issue ................................... : March 22, 2021 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Hyundai Technology Group, Inc. Address ........................................... : 2601 Walnut Ave.Tustin, California, United States, 92780 Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : HyFlip Trade Mark ...................................... : N/A Test Model ...................................... : HTLF11INC4Z1ES Ratings ............................................ : DC 7.4V by Rechargeable Li-ion Battery, 4000mAh Input: 12V2A Adapter input: 100-240V~, 50/60Hz, 0.7A Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF11INC4Z1 Report No.: LCS210302092AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT EUT...…

Text truncated - open the document above for the full version.
