2AVTH-HTLF1314HyFlip

USER MANUAL 14.1” Windows Laptop HYFLIP User Manual 4 Limited Warranty does NOT cover: Any costs associated with the repair or replacement of the Product including labor, installation or other costs incurred by you, and in particular, any costs relating to the removal or replacement of any Product that is soldered or otherwise permanently affixed to any printed circuit board; OR Damage to the Product due to external causes, including accident, problems with electrical power, abnormal electrical, mechanical or environmental conditions, usage not in accordance with product instructions, misuse, neglect, alteration, repair, improper installation, or improper testing; OR Any Product which has been modified or operated outside of specifications or where the original identification markings (trademark or serial number) has been removed, altered or obliterated from the Product, or where the label or screw on the exterior of the Product is removed or broken. WARRANTY NOTICE 5 APPEARANCE AND BUTTONS 1. Charging Port 2. USB 3.0 Port 3. Mini HDMI Port 4. Keyboard 5. Touch Pad 6. Camera / Webcam 7. IPS FHD Display 8. Audio Jack 3.5mm 9. USB 2.0 Port 10. microSD Slot 11. Power On / Off 12. 2280 M.2 SATA SSD Slot 13. Speakers 14. LED Indicator 15. Mic 6 INTRODUCTION TO WINDOWS 10 HOME: Windows 10 Home comes with touch and tablet features created for Windows 8, combined with a familiar Start menu & desktop screen. Its improved operating system with more security and a new browser has its own version of Office far on-the-go editing and plenty of new features intended to make life simpler. The full Startup screen of Windows 8 is back to being a Start menu in Windows 10 Home that combines the best of both options. You get a scrolling Start menu that’s restricted to a single column, with jump lists and flyout menus far extra options, divided into frequently used and recently installed programs with the option to switch to a scrolling view of ali your applications sorted alphabetically. The improvements include a space you can personalize with your favorite apps, programs, people and websites. To get to the Start menu, select Start in the lower-left comer of the taskbar. You can also open the Start menu by pressing the Start button located on your keyboard or device. (START UP MENU) 7 ACCOUNT OPTIONS: Click on your account name to change your account picture. Lock your device or sign out of your account. This can be done from the top of the start menu where you will find the Account name with a picture. POWER: Click the “Power” icon to sleep, shut down or restart your device. 8 ALL APPS: Click “AII Apps” to see all your apps and programs listed alphabetically. Looking far a specific app? Just type it in the search box. SEARCH: Search across your device, your cloud storage on OneDrive and across the Web simultaneously. Simply open the Start menu and type in the search box - Windows search will do the rest. You can also open search directly from the taskbar; click “Search” and start typing. PIN YOUR FAVORITE APPS: Pin apps, programs and falders to the Start menu far fast access to the things you use the most. Apps with Live Tiles will show updates far the people and things that matter. Click Start, select AII Apps, right-click the app you want to pin and then select Pin to Start. Once pinned, your app will show up as a tile on the right. Right-click the tile to change its size. Drag and drop to move it around. Don’t worry about running out of space - the Start menu will automatically resize to hold everything. 9 TASK VIEW: lf you have a lot of apps and programs open, there is a new Task view button so you can quickly switch between them. Click Task view to see all of your running apps and programs; select any item to open it. MULTIPLE DESKTOPS: lf you’re working on a lot of different projects, using different apps and programs, try adding a desktop. lt wiII keep things neatly organized for you or create a desktop for the things you do at work and one for the things you do at home. Select Task view from the taskbar, and then click Add a desktop. A thumbnail will show up at the bottom of the task view page. Click the blank thumbnail to open up a clean desktop. To switch between desktops, click Task view and then choose a desktop from the bottom of the page. 10 SNAP WINDOWS: Because ali your apps and programs run in windows on the desktop, instead of modern apps from the Store being in their own space, you can no longer drag across the left edge of the screen to bring another app on screen and get a split view. lnstead, you will drag windows into the corners ofthe screen to get the familiar Snap view. To snap, click and hold the top of the window and drag it to either the side or comer ofthe screen. You’II see a shadow of where the window will snap; release the window to snap it into place. (MULTIPLE DESKTOPS) 11 ACTION CENTRE: Windows 10 Home brings this up on the right side of the screen with notifications from various apps at the top and your choice ofvarious settings buttons at the bottom far quick access. (SMAP WINDOW) 12 THE NEW EDGE BROWSER: Enjoy the latest way of surfing the internet with the new Edge browser. Stay put and save time by typing your search in the handy address bar. You’II get search suggestions, instant results from the web and your browsing history, right on the spot. (EDGE BROWSER INTERFACE) NEW WINDOWS STORE WITH UNIVERSAL APPS : Windows 10 Home gets a new Windows Store, where you can download desktop programs as well as modern Windows apps. The Office for Windows apps like Word and Excel are universal apps, as are the Outlook Mail and Calendar apps. 13 (NEW WINDOWS APP STORE) SETTINGS AND CONTROL PANEL: The Windows 10 Home has a Control Panel-style interface with icons to navigate with, but the old Control Panel interface is still there for settings that aren’t in the new Settings app. (SETTINGS & CONTROL PANEL WINDOW) 14 TROUBLESHOOT: Apollo lake N3350 64GB 802.11 a/b/g/n 14.1 4.0 2.…

Text truncated - open the document above for the full version.

Hyundai Technology Group, Inc. Date: 2020-11-30 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Hyundai Technology Group, Inc. Hereby declares the following statement for FCC, PCB board, structure and internal of these model(s) are the same, Only models name is different for these models: Product name: HyFlip Trade Mark: Hyundai Model No.: HTLF14INC4Z1SSG, HTLF14INC4Z1SS, HTLF14INC4Z1ES, HTLF14INC4Z1ESG, HTLF13INC4Z1ES, HTLF13INC4Z1ESG Sincerely, (Signed) Name / Title: Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave., Tustin, CA 92780, United States Phone: (949) 679-7960 125 Fax: 714-409-3091 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-11-30> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID 2AVTH-HTLF1314 Model name HTLF14INC4Z1SSG, HTLF14INC4Z1SS, HTLF14INC4Z1ES, HTLF14INC4Z1ESG, HTLF13INC4Z1ES, HTLF13INC4Z1ESG For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave., Tustin, CA 92780, United States Phone: (949) 679-7960 125 Fax: 714-409-3091 E-Mail: [email protected]

Hyundai Technology Group, Inc. Add: 2601 Walnut Ave., Tustin, CA 92780, United States Date: Nov. 30, 2020 FCC ID: 2AVTH-HTLF1314 Model Number: HTLF14INC4Z1SSG, HTLF14INC4Z1SS, HTLF14INC4Z1ES, HTLF14INC4Z1ESG, HTLF13INC4Z1ES, HTLF13INC4Z1ESG To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Hyundai Technology Group, Inc., declare that this EUT (FCC ID: 2AVTH-HTLF1314) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave., Tustin, CA 92780, United States Phone: (949) 679-7960 125 Fax: 714-409-3091 E-Mail: [email protected]

Hyundai Technology Group, Inc. Add: 2601 Walnut Ave., Tustin, CA 92780, United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/11/30 To whom it may concern: We, Hyundai Technology Group, Inc. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVTH-HTLF1314 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave., Tustin, CA 92780, United States Phone: (949) 679-7960 125 Fax: 714-409-3091 E-Mail: [email protected]

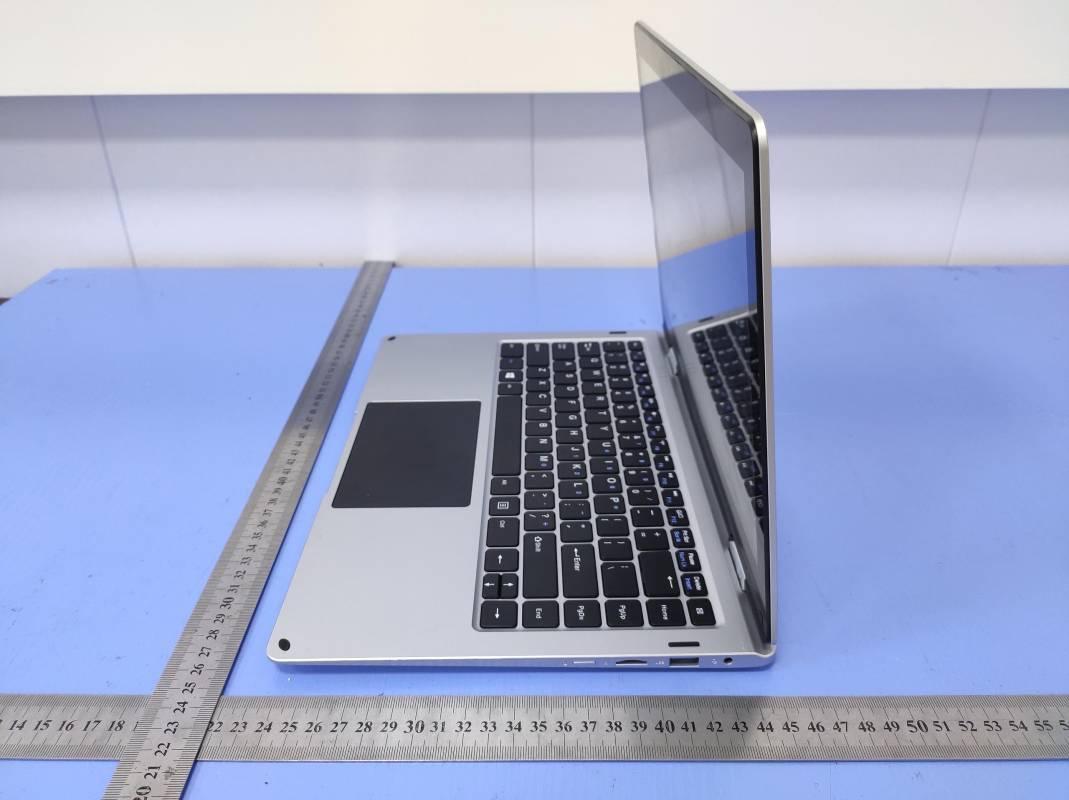

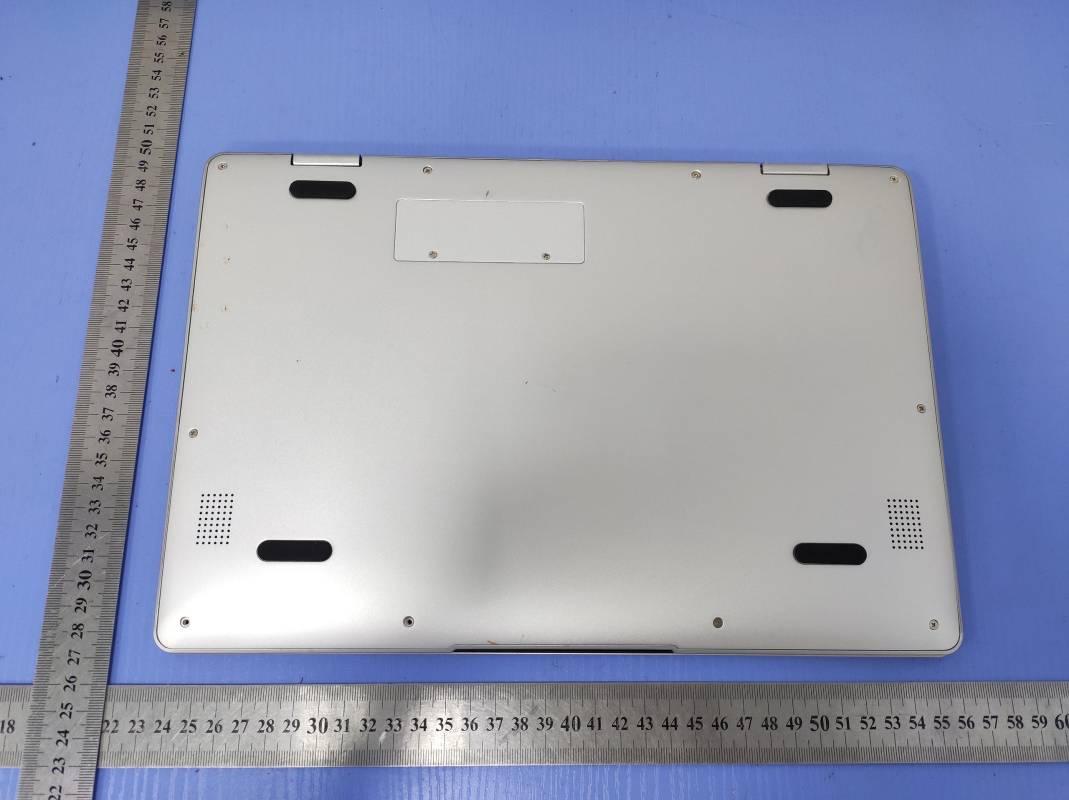

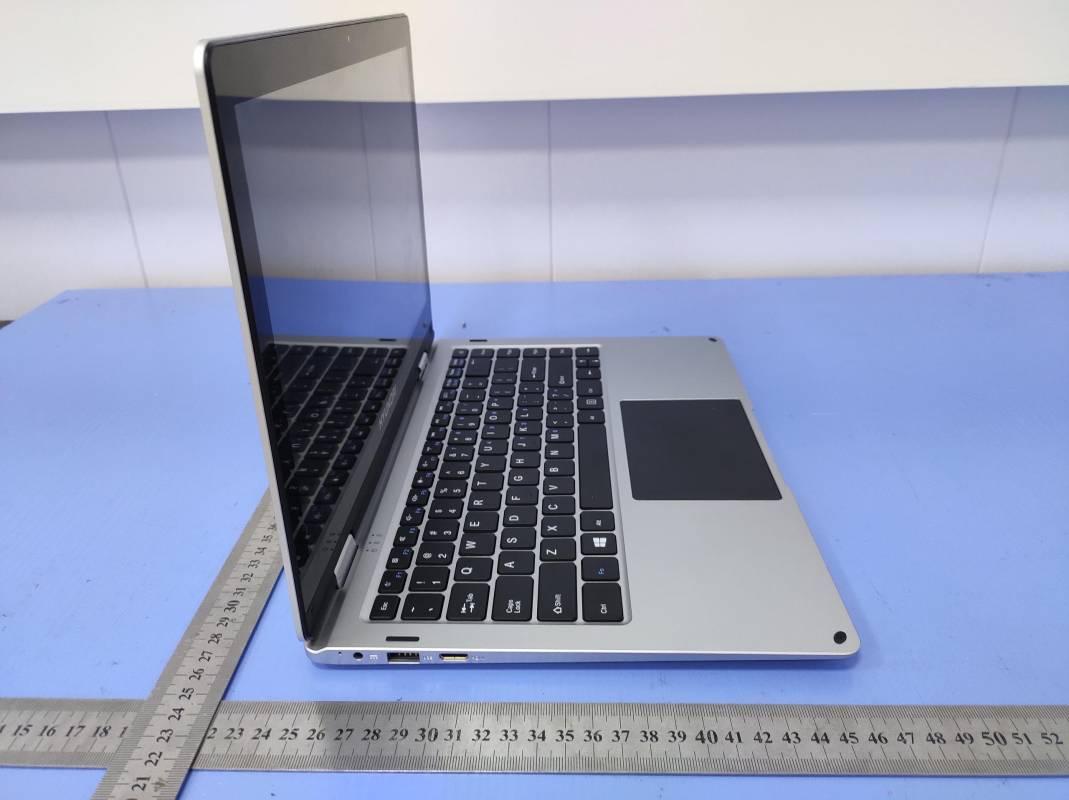

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L4.0m x 3.0cm) Label Location HyFlip Model No.: HTLF14INC4Z1SSG FCC ID: 2AVTH-HTLF1314 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 1 of 14 Appendix B RF Test Data for BT V4.0(BDR/EDR) (Conducted Measurement) Product Name: HyFlip Trade Mark: Hyundai Test Model: HTLF14INC4Z1SSG Environmental Conditions Temperature: 24.2  C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Jenny Wu Supervised by: Li Huan B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 2 of 14 B.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 3.054 30 PASS BT LE MCH 3.486 30 PASS BT LE HCH 2.954 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 4 of 14 B.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -11.883 8 PASS BT LE MCH -12.452 8 PASS BT LE HCH -12.881 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 6 of 14 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6504 ≥0.5 PASS BT LE MCH 0.6472 ≥0.5 PASS BT LE HCH 0.6450 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 8 of 14 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 2.934 -37.320 -17.066 PASS BT LE MCH 3.424 -37.100 -16.576 PASS BT LE HCH 2.813 -36.271 -17.187 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 11 of 14 B.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 3.138 -50.159 -16.86 PASS BT LE HCH 2.985 -38.406 -17.02 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 12 of 14 B.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -43.97 2.05 0 53.34 PEAK 74 PASS Ant1 2310.0 -53.28 2.05 0 44.03 AV 54 PASS Ant1 2390.0 -42.79 2.05 0 54.52 PEAK 74 PASS Ant1 2390.0 -52.78 2.05 0 44.53 AV 54 PASS 2480 Ant1 2483.5 -40.81 2.05 0 56.5 PEAK 74 PASS Ant1 2483.5 -52.42 2.05 0 44.89 AV 54 PASS Ant1 2500.0 -43.09 2.05 0 54.22 PEAK 74 PASS Ant1 2500.0 -52.31 2.05 0 45 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 1 of 88 Appendix C RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: HyFlip Trade Mark: Hyundai Test Model: HTLF14INC4Z1SSG Environmental Conditions Temperature: 24.2  C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Jenny Wu Supervised by: Li Huan C.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant0 100 PASS 11G 2437 Ant0 100 PASS 11N20SISO 2437 Ant0 100 PASS 11N40SISO 2437 Ant0 100 PASS Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 2 of 88 Duty Cycle_11B_2437_Ant0 Duty Cycle_11G_2437_Ant0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 3 of 88 Duty Cycle_11N20SISO_2437_Ant0 Duty Cycle_11N40SISO_2437_Ant0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 4 of 88 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 5 of 88 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 6 of 88 C.2 Maximum Conducted Output Power Mode Channel Peak Power [dBm] Limit [dBm] Verdict Ant 0 Ant 1 Sum 11B LCH 7.11 8.05 / 30 PASS MCH 8.06 8.2 / 30 PASS HCH 7.81 7.98 / 30 PASS 11G LCH 7.57 7.41 / 30 PASS MCH 7.64 8.06 / 30 PASS HCH 7.81 8.47 / 30 PASS 11N20 LCH 6 6.83 9.45 30 PASS MCH 6.34 6.52 9.44 30 PASS HCH 6.07 6.84 9.48 30 PASS 11N40 LCH 6.49 6.35 9.43 30 PASS MCH 6.21 6.07 9.15 30 PASS HCH 6.1 6.66 9.40 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 7 of 88 C.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict Ant 0 Ant 1 Sum 11B LCH -18.278 -23.729 / 8 PASS MCH -17.595 -23.704 / 8 PASS HCH -17.270 -23.886 / 8 PASS 11G LCH -23.637 -27.769 / 8 PASS MCH -22.115 -27.294 / 8 PASS HCH -23.635 -27.791 / 8 PASS 11N20 LCH -23.227 -26.067 -21.41 8 PASS MCH -23.716 -27.629 -22.24 8 PASS HCH -22.147 -27.176 -20.96 8 PASS 11N40 LCH -24.589 -29.466 -23.37 8 PASS MCH -26.128 -28.225 -24.04 8 PASS HCH -24.841 -28.486 -23.28 8 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 8 of 88 ANT 0 Test Graphs 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 9 of 88 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 10 of 88 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 11 of 88 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 12 of 88 11N20SISO/HCH 11N40SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 13 of 88 11N40SISO/MCH 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 14 of 88 ANT 1 Test Graphs 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 15 of 88 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 16 of 88 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 17 of 88 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 18 of 88 11N20SISO/HCH 11N40SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 19 of 88 11N40SISO/MCH 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 20 of 88 C.4 6dB Bandwidth ANT 0 Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.160 ≥0.5 PASS MCH 9.138 ≥0.5 PASS HCH 9.165 ≥0.5 PASS 11G LCH 15.14 ≥0.5 PASS MCH 15.15 ≥0.5 PASS HCH 15.15 ≥0.5 PASS 11N20SISO LCH 15.16 ≥0.5 PASS MCH 15.15 ≥0.5 PASS HCH 15.15 ≥0.5 PASS 11N40SISO LCH 35.15 ≥0.5 PASS MCH 35.13 ≥0.5 PASS HCH 35.14 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 21 of 88 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 22 of 88 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 23 of 88 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 24 of 88 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 25 of 88 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 26 of 88 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC Page 27 of 88 ANT 1 Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 10.13 ≥0.5 PASS MCH 10.13 ≥0.5 PASS HCH 10.13 ≥0.5 PASS 11G LCH 16.54 ≥0.5 PASS MCH 16.57 ≥0.5 PASS HCH 16.55 ≥0.5 PASS 11N20SISO LCH 17.71 ≥0.5 PASS MCH 17.72 ≥0.5 PASS HCH 17.70 ≥0.5 PASS 11N40SISO LCH 36.50 ≥0.5 PASS MCH 36.49 ≥0.5 PASS HCH 36.51 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 R…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 34 FCC TEST REPORT For Hyundai Technology Group, Inc. HyFlip Test Model: HTLF14INC4Z1SSG Additional Models No. : Please refer to page 6 Prepared for : Hyundai Technology Group, Inc. Address : 2601 Walnut Ave.Tustin, California,United States, 92780 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 13, 2020 Number of tested samples : 2 Sample number 201009107A-1, 201009107A-2 Serial number : Prototype Date of Test : October 13, 2020 ~ November 04, 2020 Date of Report : November 05, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS201009107AEB Date of Issue .................................. : November 05, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Hyundai Technology Group, Inc. Address .......................................... : 2601 Walnut Ave.Tustin, California,United States, 92780 Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : HyFlip Trade Mark ..................................... : Hyundai Test Model ...................................... : HTLF14INC4Z1SSG Ratings ........................................... : DC 7.6V by Rechargeable Li-ion Battery(5000mAh) Recharged by 12V2000mA Adapter Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He/ Administrator Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 34 FCC -- TEST REPORT Test Model............................... : HTLF14INC4Z1SSG EUT......................................... : HyFlip Applicant............................... : Hyundai Technology Group, Inc. Address.................................. : 2601 Walnut Ave.Tustin, California,United States, 92780 Telephone............................... : Fax.......................................... : Manufacturer........................ : Shenzhen Weihejia Electronic Technology Co., Ltd. Address................................... : 11st floor, Taijiale technology Industrial park, Tongguan Road, Tianliao community, Gongming agency, Guangming new district, Shenzhen Telephone............................... : Fax.......................................... : Factory................................... : Yibin Weiheng Digital Technology Co. LTD Address................................... : BUILDING 23, NO.7, GANGYUAN WEST, LINGANG ECONOMIC AND TECHNOLOGICAL DEVELOPMENT ZONE, YIBIN, CHINA Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS201009107AEB November 05, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 November 05, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CA…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For Hyundai Technology Group, Inc. HyFlip Test Model: HTLF14INC4Z1SSG Additional Models No. : Please refer to page 6 Prepared for : Hyundai Technology Group, Inc. Address : 2601 Walnut Ave.Tustin, California,United States, 92780 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 13, 2020 Number of tested samples : 2 Sample number : 201009107A-1, 201009107A-2 Serial number : Prototype Date of Test : October 13, 2020 ~ November 05, 2020 Date of Report : November 05, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTLF1314 Report No.: LCS201009107AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS201009107AEC Date of Issue ................................... : November 05, 2020 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Hyundai Technology Group, Inc. Address ........................................... : 2601 Walnut Ave.Tustin, California,United States, 92780 Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compli…

Text truncated - open the document above for the full version.
