2AVTH-HTN4020MPCHYUNDAI Mini PC

FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

FCC Software Configuration Control Declaration Rev1.1 Hyundai Technology Group, Inc. FCC Software Configuration Control Declaration Date: 2021-04-13 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product Name: HYUNDAI Mini PC Model Numbers: HTN4020MPC Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Sophia Wong Date: 2021-04-13 Title: procurement manager Signature of applicant

<Hyundai Technology Group, Inc.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-04-13 Subject; Request for Confidentiality FCC ID: 2AVTH-HTN4020MPC To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sophia Wong Title: procurement manager

Hyundai Technology Group, Inc. Letter of Authorization Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave. Tustin, CA, USA Product Name: HYUNDAI Mini PC Model Number: HTN4020MPC FCC Identifier: 2AVTH-HTN4020MPC We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Sophia Wong Date: 2021-04-13 Title: procurement manager Signature of applicant:

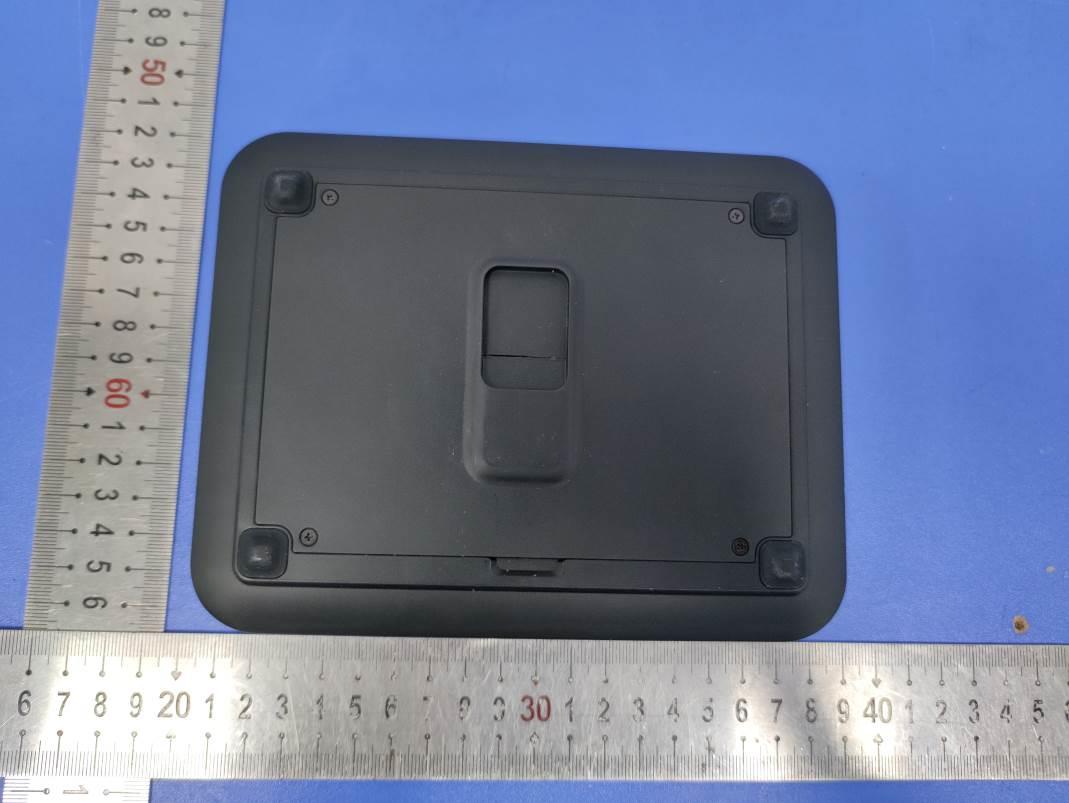

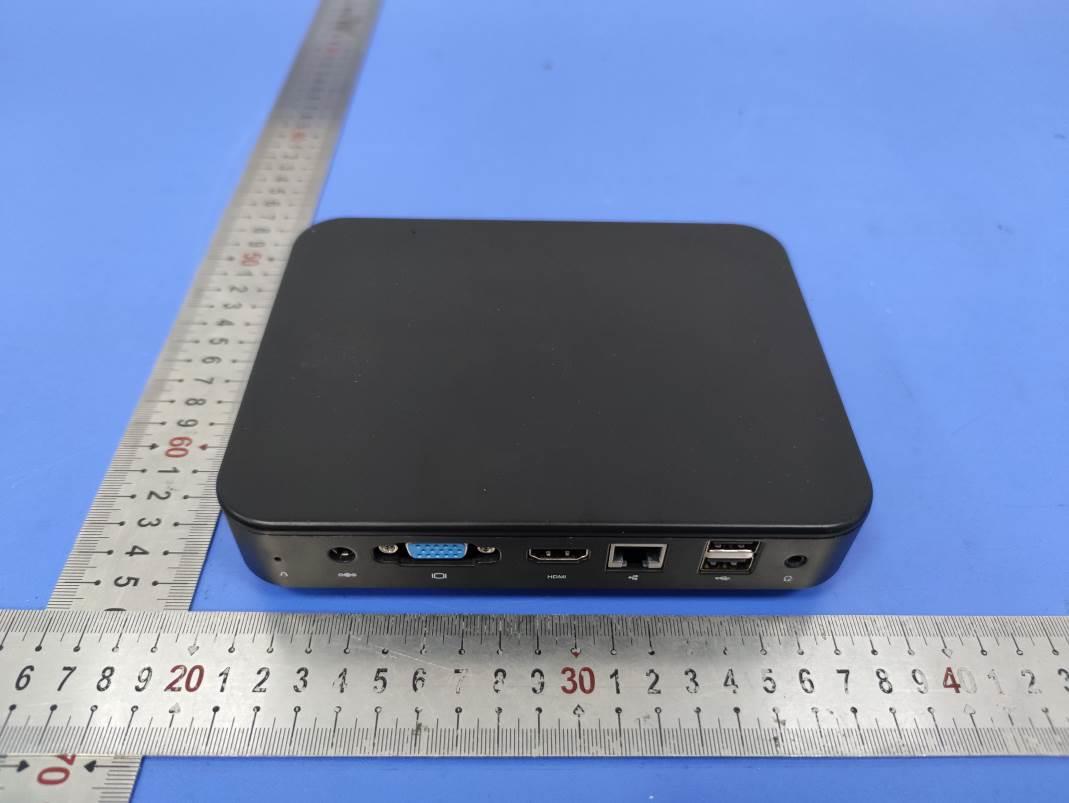

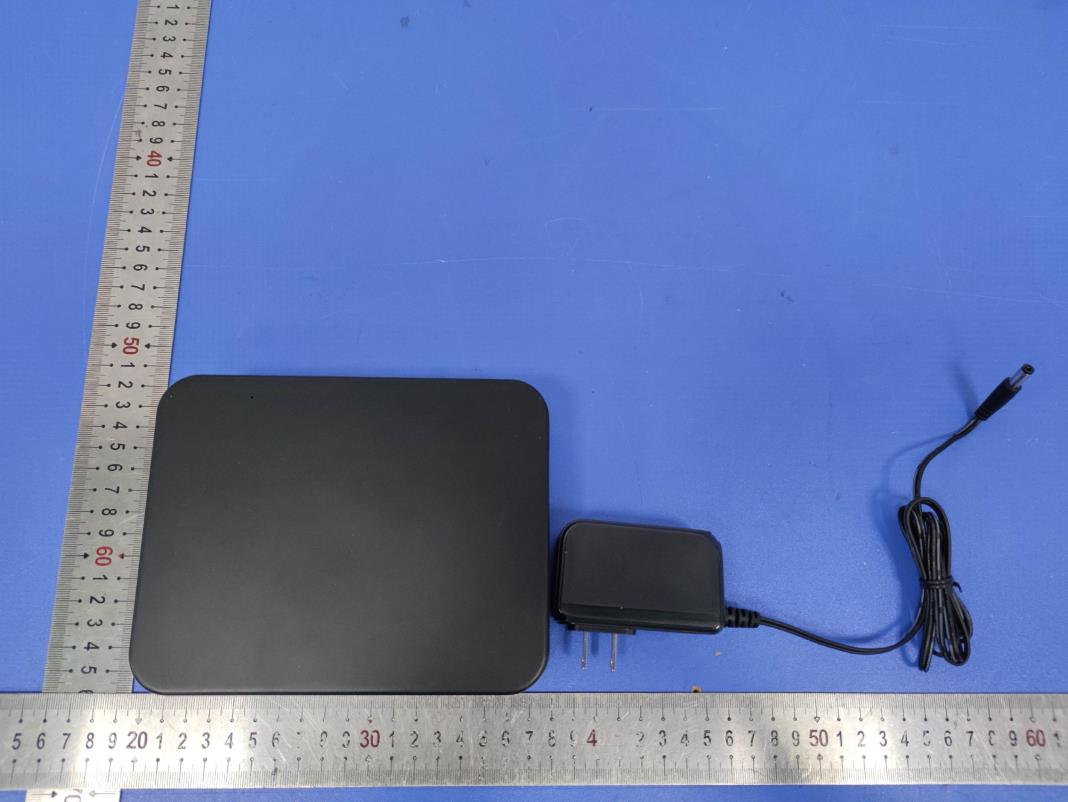

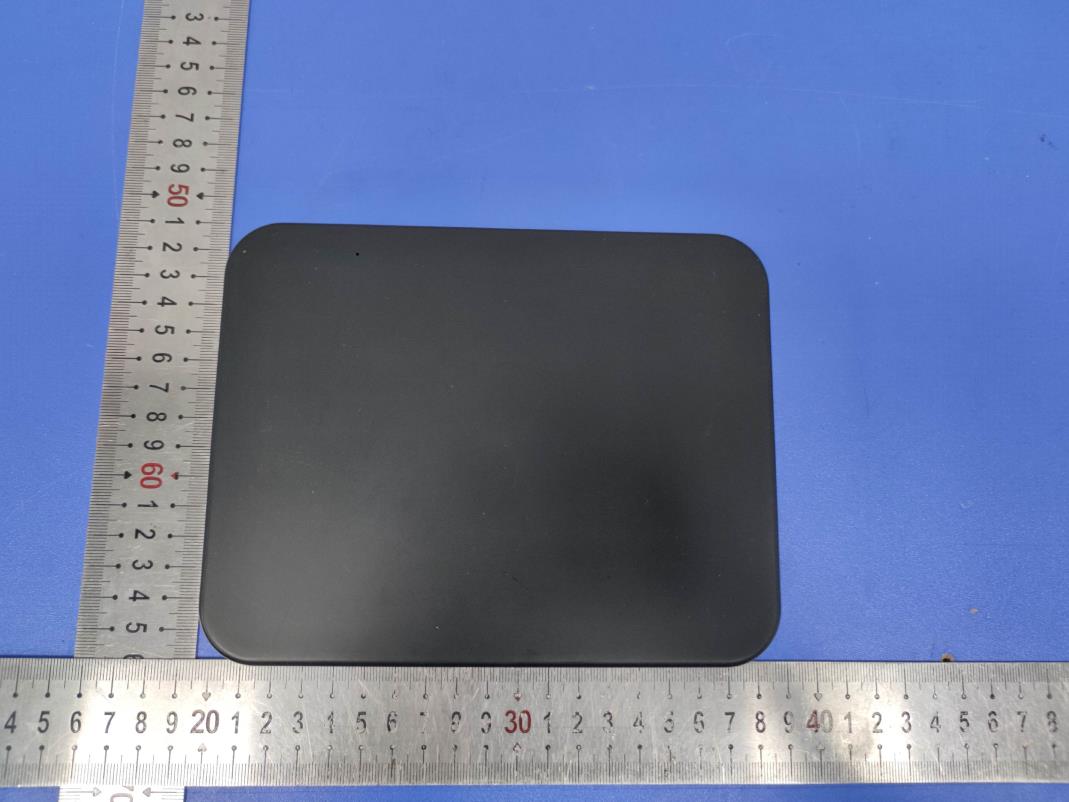

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.0cm*W1.5cm Label Location FCC ID: 2AVTH-HTN4020MPC

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 \ WIFI(2.4G Band), WIFI(5.2G Band), WIFI(5.8G Band) Antenna（ANT 2） Bluetooth, WIFI(2.4G Band), WIFI(5.2G Band), WIFI(5.8G Band) Antenna（ANT 1） SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Fig. 5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 13 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AVTH-HTN4020MPC Product name HYUNDAI Mini PC Test Model HTN4020MPC Model List No. HTN4020MPC Power Supply DC 12V 2.0A Adapter parameters: Input: AC 100-240V 50/60Hz 0.8A Output: DC 12V 2.0A Bluetooth Operation frequency 2402MHz-2480MHz Bluetooth Version Bluetooth 5.0 Channel Number 79 channels for Bluetooth 5.0 (BT Classics) 40 channels for Bluetooth 5.0 (BT LE) Channel Spacing 1MHz for Bluetooth 5.0 (BT Classics) 2MHz for Bluetooth 5.0 (BT LE) Modulation Type GFSK, π/4-DQPSK, 8-DPSK for 5.0 (BT Classics) GFSK for Bluetooth 5.0 (BT LE) WIFI(2.4G Band) Frequency Range 2412MHz-2462MHz Channel Spacing 5MHz Channel Number 11 channels for 20MHz bandwidth (2412~2462MHz) 7 channels for 40MHz bandwidth (2422~2452MHz) Modulation Type IEEE 802.11b: DSSS (CCK,DQPSK,DBPSK); IEEE 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) WIFI(5.2G Band) Frequency Range 5180MHz-5240MHz Channel Number 4 channels for 20MHz bandwidth (5180-5240MHz) 2 channels for 40MHz bandwidth (5190~5230MHz) 1 channels for 80MHz bandwidth (5210MHz) Modulation Type IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) WIFI(5.8G Band) Frequency Range 5745MHz-5825MHz Channel Number 5 channels for 20MHz bandwidth (5745-5825MHz) 2 channels for 40MHz bandwidth (5755~5795MHz) 1 channels for 80MHz bandwidth (5775MHz) Modulation Type IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) Antenna Type ANT 1: Internal Antenna, used for Bluetooth TX/RX, WIFI TX/RX, 2.0 dBi(Max.) for Bluetooth and WIFI 2.4G, 2.0 dBi(Max.) for WIFI 5G Band ANT 2: Internal Antenna, used for WIFI TX/RX, 2.0 dBi(Max.) for WIFI 2.4G, 2.0 dBi(Max.) for WIFI 5G Band Hardware version IP3-GB3B Software version Windows10 20H2 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Equipment SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 13 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 13 R=distance to the center of radiation of the antenna 5. Antenna Information HTN4020MPC can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain ANT 1 Internal Antenna 2402 MHz – 2480 MHz 2.0 dBi ANT 1 Internal Antenna 5180 MHz – 5825 MHz 2.0…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 1 of 41 Appendix E RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: HYUNDAI Mini PC Trade Mark: HYUNDAI Test Model: HTN4020MPC Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan E.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0.00 0.01 11N20 SISO 5200 100 0.00 0.01 11N40 SISO 5190 100 0.00 0.01 11AC20 SISO 5200 100 0.00 0.01 11AC40 SISO 5190 100 0.00 0.01 11AC80 SISO 5210 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 2 of 41 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 3 of 41 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 4 of 41 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 5 of 41 E.2 Maximum Conduct Output Power Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 14.30 0 14.30 24 Pass 40 5200 14.43 0 14.43 Pass 48 5240 14.35 0 14.35 Pass 11N20 SISO 36 5180 14.47 0 14.47 24 Pass 40 5200 14.67 0 14.67 Pass 48 5240 14.17 0 14.17 Pass 11N40 SISO 38 5190 13.31 0 13.31 24 Pass 46 5230 13.89 0 13.89 Pass 11AC20 SISO 36 5180 13.45 0 13.45 24 Pass 40 5200 13.69 0 13.69 Pass 48 5240 13.39 0 13.39 Pass 11AC40 SISO 38 5190 14.01 0 14.01 24 Pass 46 5230 13.74 0 13.74 Pass 11AC80 SISO 42 5210 12.40 0 12.40 24 Pass Maximum Conducted Output Power IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 6 of 41 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 7 of 41 Maximum Conducted Output Power IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 8 of 41 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 9 of 41 Maximum Conducted Output Power IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 10 of 41 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 11 of 41 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 12 of 41 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 13 of 41 E.3 Power Spectral Density Test Mode Channe l Frequenc y (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11A 36 5180 3.54 0 3.54 11 Pass 40 5200 3.76 0 3.76 Pass 48 5240 3.38 0 3.38 Pass 11N2 0 SISO 36 5180 3.59 0 3.59 11 Pass 40 5200 3.72 0 3.72 Pass 48 5240 3.24 0 3.24 Pass 11N4 0 SISO 38 5190 -0.66 0 -0.66 11 Pass 46 5230 0.10 0 0.10 Pass 11AC 20 SISO 36 5180 2.62 0 2.62 11 Pass 40 5200 2.70 0 2.70 Pass 48 5240 2.58 0 2.58 Pass 11AC 40 SISO 38 5190 -0.12 0 -0.12 11 Pass 46 5230 0.22 0 0.22 Pass 11AC 80 SISO 42 5210 -2.97 0 -2.97 11 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 14 of 41 IEEE 802.11na / Channel 40 / 5200MHz IEEE 802.11na / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 15 of 41 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 16 of 41 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 17 of 41 Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 18 of 41 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 19 of 41 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 20 of 41 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 21 of 41 E.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11A 36 5180 20.50 No Limit Pass 40 5200 19.95 Pass 48 5240 20.52 Pass 11N20 SISO 36 5180 21.23 No Limit Pass 40 5200 21.14 Pass 48 5240 21.28 Pass 11N40 SISO 38 5190 41.93 No Limit Pass 46 5230 41.62 Pass 11AC20 SISO 36 5180 21.04 No Limi Pass 40 5200 21.19 Pass 48 5240 21.18 Pass 11AC40 SISO 38 5190 41.45 No Limi Pass 46 5230 41.53 Pass 11AC80 SISO 42 5210 81.6…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 1 of 41 Appendix F RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: HYUNDAI Mini PC Trade Mark: HYUNDAI Test Model: HTN4020MPC Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan F.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0.00 0.01 11N20 SISO 5200 100 0.00 0.01 11N40 SISO 5190 100 0.00 0.01 11AC20 SISO 5200 100 0.00 0.01 11AC40 SISO 5190 100 0.00 0.01 11AC80 SISO 5210 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 2 of 41 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 3 of 41 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 4 of 41 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 5 of 41 F.2 Maximum Conduct Output Power Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 13.26 0 13.26 24 Pass 40 5200 13.07 0 13.07 Pass 48 5240 13.06 0 13.06 Pass 11N20 SISO 36 5180 13.63 0 13.63 24 Pass 40 5200 13.38 0 13.38 Pass 48 5240 13.38 0 13.38 Pass 11N40 SISO 38 5190 12.23 0 12.23 24 Pass 46 5230 12.45 0 12.45 Pass 11AC20 SISO 36 5180 13.63 0 13.63 24 Pass 40 5200 12.44 0 12.44 Pass 48 5240 12.08 0 12.08 Pass 11AC40 SISO 38 5190 13.27 0 13.27 24 Pass 46 5230 13.31 0 13.31 Pass 11AC80 SISO 42 5210 13.53 0 13.53 24 Pass Maximum Conducted Output Power IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 6 of 41 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 7 of 41 Maximum Conducted Output Power IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 8 of 41 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 9 of 41 Maximum Conducted Output Power IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 10 of 41 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 11 of 41 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 12 of 41 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 13 of 41 F.3 Power Spectral Density Test Mode Channe l Frequenc y (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11A 36 5180 2.67 0 2.67 11 Pass 40 5200 2.42 0 2.42 Pass 48 5240 2.45 0 2.45 Pass 11N2 0 SISO 36 5180 2.52 0 2.52 11 Pass 40 5200 2.34 0 2.34 Pass 48 5240 2.33 0 2.33 Pass 11N4 0 SISO 38 5190 -1.78 0 -1.78 11 Pass 46 5230 -1.22 0 -1.22 Pass 11AC 20 SISO 36 5180 2.86 0 2.86 11 Pass 40 5200 1.47 0 1.47 Pass 48 5240 0.98 0 0.98 Pass 11AC 40 SISO 38 5190 -0.74 0 -0.74 11 Pass 46 5230 -0.75 0 -0.75 Pass 11AC 80 SISO 42 5210 -2.53 0 -2.53 11 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 14 of 41 IEEE 802.11na / Channel 40 / 5200MHz IEEE 802.11na / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 15 of 41 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 16 of 41 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 17 of 41 Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 18 of 41 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 19 of 41 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 20 of 41 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AED Page 21 of 41 F.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11A 36 5180 20.46 No Limit Pass 40 5200 20.34 Pass 48 5240 20.33 Pass 11N20 SISO 36 5180 21.22 No Limit Pass 40 5200 21.16 Pass 48 5240 21.01 Pass 11N40 SISO 38 5190 41.75 No Limit Pass 46 5230 42.04 Pass 11AC20 SISO 36 5180 21.26 No Limi Pass 40 5200 21.33 Pass 48 5240 20.96 Pass 11AC40 SISO 38 5190 41.45 No Limi Pass 46 5230 41.89 Pass 11AC80 SISO 42 5210 …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 1 of 43 Appendix K RF Test Data for 5.8G WLAN (Conducted Measurement) Product Name: HYUNDAI Mini PC Trade Mark: HYUNDAI Test Model: HTN4020MPC Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan K.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5785 100 0.00 0.01 11N20 SISO 5785 100 0.00 0.01 11N40 SISO 5755 100 0.00 0.01 11AC20 SISO 5785 100 0.00 0.01 11AC40 SISO 5755 100 0.00 0.01 11AC80 SISO 5775 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 2 of 43 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 3 of 43 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 4 of 43 IEEE 802.11AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 5 of 43 K.2 Maximum Conduct Output Power Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 149 5745 14.09 0 14.09 30 Pass 157 5785 13.73 0 13.73 Pass 165 5825 13.87 0 13.87 Pass 11N20 SISO 149 5745 13.78 0 13.78 30 Pass 157 5785 14.63 0 14.63 Pass 165 5825 13.08 0 13.08 Pass 11N40 SISO 151 5755 14.06 0 14.06 30 Pass 159 5795 14.52 0 14.52 Pass 11AC20 SISO 149 5745 13.45 0 13.45 30 Pass 157 5785 13.69 0 13.69 Pass 165 5825 13.39 0 13.39 Pass 11AC40 SISO 151 5755 14.01 0 14.01 30 Pass 159 5795 13.74 0 13.74 Pass 11AC80 SISO 155 5775 14.3 0 14.3 30 Pass Maximum Conducted Output Power IEEE 802.11a / Channel 149 / 5745MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 6 of 43 IEEE 802.11a / Channel 157 / 5785MHz IEEE 802.11a / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 7 of 43 Maximum Conducted Output Power IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 8 of 43 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 9 of 43 Maximum Conducted Output Power IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 10 of 43 IEEE 802.11ac20 / Channel 149 / 5745MHz IEEE 802.11ac20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 11 of 43 IEEE 802.11ac20 / Channel 165/ 5825MHz IEEE 802.11ac40 / Channel 151 / 5755MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 12 of 43 IEEE 802.11ac40 / Channel 159 / 5795MHz IEEE 802.11ac80 / Channel 155 / 5775MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 13 of 43 K.3 Power Spectral Density Test Mode Channel Frequency (MHz) Power Density (dBm/300KHz) Duty Cycle Factor (dB) RBW Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11A 149 5745 -0.28 0 2.218 1.94 30 Pass 157 5785 -0.79 0 2.218 1.43 Pass 165 5825 -0.31 0 2.218 1.91 Pass 11N20 SISO 149 5745 -0.86 0 2.218 1.36 30 Pass 157 5785 -0.26 0 2.218 1.96 Pass 165 5825 -1.85 0 2.218 0.37 Pass 11N40 SISO 151 5755 -3.79 0 2.218 -1.57 30 Pass 159 5795 -3.34 0 2.218 -1.12 Pass 11AC20 SISO 149 5745 -1.29 0 2.218 0.93 30 Pass 157 5785 -1.23 0 2.218 0.99 Pass 165 5825 -1.94 0 2.218 0.28 Pass 11AC40 SISO 151 5755 -3.57 0 2.218 -1.36 30 Pass 159 5795 -3.95 0 2.218 -1.73 Pass 11AC80 SISO 155 5775 -6.08 0 2.218 -3.86 30 Pass Power Spectral Density IEEE 802.11a / Channel 149 / 5745MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 14 of 43 IEEE 802.11na / Channel 157 / 5785MHz IEEE 802.11na / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 15 of 43 Power Spectral Density IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 16 of 43 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 17 of 43 Power Spectral Density IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 18 of 43 IEEE 802.11ac20 / Channel 149 / 5745MHz IEEE 802.11ac20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-HTN4020MPC Report No.: LCS210329044AEE Page 19 of 43 IEEE 802.11ac20 / Channel 165 / 5825MHz IEEE 802.11ac40 / Channel 151 / 5755MHz SHENZHEN LCS COMPLIANC…

Text truncated - open the document above for the full version.
