2AVTH-LB131N13.3 notebook

USER MANUAL 13.3” Windows Laptop HYBOOK PLUS User Manual 4 AVISO DE GARANTÍA La garantía limitada NO cubre: Cualquier costo asociado con la reparación o reemplazo del Producto, incluyendo mano de obra, instalación u otros costos incurridos por usted, y en particular, cualquier costo relacionado con la remoción o reemplazo de cualquier Producto que esté soldado o adherido permanentemente a cualquier placa de circuito impreso; O Daños al Producto debido a causas externas, incluidos accidentes, problemas con la energía eléctrica, condiciones eléctricas, mecánicas o ambientales anormales, uso no acorde con las instrucciones del producto, uso indebido, negligencia, alteración, reparación, instalación incorrecta o pruebas incorrectas; O Cualquier Producto que haya sido modificado u operado fuera de las especificaciones o donde las marcas de identificación originales (marca comercial o número de serie) se hayan eliminado, alterado o borrado del Producto, o donde la etiqueta o el tornillo en el exterior del Producto se haya quitado o roto. 5 Especificaciones técnicas Conociendo su computadora portátil Diseño del teclado Encendido de su computadora portátil Usando el panel táctil Carga de la computadora portátil Encendido de la computadora portátil por primera vez Desbloqueo de la pantalla Menu de inicio El Centro de Acción Activar WIFI y abrir el navegador Reiniciar Colocarse Apagando Ahorrar energía Realización de una copia de seguridad completa de Windows 10 en un disco duro externo Avisos de seguridad para su computadora portátil CONTENIDO: 6 8 11 13 13 16 16 17 17 18 18 19 19 19 19 20 20 6 CPU Operating system RAM Almacenamiento Panel de pantalla Relación de aspecto Resolución Cámara LAN inalámbrico Bluetooth Altavoces Micrófono Interfaz de E/S 8th Gen Intel® CoreTM i5 Processor 8265U 1.6GHz-3.9GHz, Windows 10 Home 8GB LPDDR3 M.2 2280 SATA SSD - 256GB 13.3’’ FHD IPS 16:9 1920x1080 FHD Front 2.0MP Wireless Lan BT V5.0 Built-in Box Speakers Built in Microphone 1*Audio Jack 3.5mm 1*DC Charging Port 1*USB Type-C (Charging, Data transferring and Display Port) 1*HDMI Port 2*USB 3.0 1*microSD Slot ESPECIFICACIONES TÉCNICAS: 7 Batería Teclado Panel táctil adaptador de CA Medición Peso Materiales 7.6V / 4800mAh (Lithium-ion Polymer Battery) Full Size Keys Supports PTP 19V / 2.1A 12.15” x 8.23” x 0.65” 2.78 lbs A/D Metal, B glass, C Plastic, with cooling fan 8 CONOCIENDO SU COMPUTADORA PORTÁTIL: Cámara Monitor Indicador de bloqueo de mayúsculas Encender Bloqueo de Toychpad Indicador Botón de encendido 9 Puerto de entrada de energía DC USB 3.0 Port HDMI USB Type-C Port Auriculares / Auriculares / Micrófono USB 3.0 Port microSD Slot 10 Micrófono M.2 SATA SSD 11 DISEÑO DEL TECLADO: Ejecute el bloqueo del panel táctil y F1-F12 teclas cuando se presiona con dichas teclas. Descripción Abra el menú Inicio. Presione de nuevo para cerrar el menú de inicio. Presione para deshabilitar el desplazamiento con las teclas de flechas. Presione nuevamente para desactivar esta función. Te cla Realice una captura de pantalla de toda la pantalla. Pausar salida continua. Scr ik Prt Scr Pause 12 FunciónTe claPresionado con Fn Tecla ESCBloquear el panel táctil Modo SuspenciónF1 Encender / apagar LCDF2 Silenciar / Activar silencioF3 Bajar volumenF4 Sube el volumenF5 Reducción del brillo de la pantallaF6 Aumento del brillo de la pantallaF7 Activar / desactivar WiFiF8 Retroceso rápidoF9 Reproducir/PausarF10 Avance rápidoF11 Pantalla externaF12 Flecha arribaTecla de avance de página Flecha hacia abajoTecla de avance de página Flecha izquierdaTecla Inicio Flecha derechaTecla Finalizar 13 ENCENDIDO DE SU COMPUTADORA PORTÁTIL: Short press the POWER button to start your laptop. USANDO EL PANEL TÁCTIL: Deslizar horizontalmenteDeslizar verticalmente Deslizar en diagonalClick izquierdo 14 Botón derecho del ratónToque con dos dedos Desplazamiento con dos dedos (arriba / abajo Desplazamiento con dos de- dos (izquierda / derecha) AlejarseAcercarse Arrastrar y soltar con dos dedos Deslizar tres dedos hacia la izquierda / derecha 15 Deslizar tres dedos hacia la izquierda / derecha Deslizar tres dedos hacia arriba Deslizar tres dedos hacia abajo 16 Cargue su computadora portátil completamente antes de usarla por primera vez. Conecte el enchufe de CC del adaptador de corriente suministrado a la toma de carga (DC IN) de la computadora portátil. Luego, enchufe el adaptador de corriente en un enchufe. La luz LED de carga es roja mientras el dispositivo se está cargando. Solo deje el adaptador de corriente conectado al enchufe hasta que la batería del portátil esté completamente cargada. Nota: También puede comprar un adaptador de corriente con una salida tipo C para encender la computadora portátil, pero este adaptador no está incluido y la salida del adaptador debe ser 19V / 2.1A. CARGA DE LA COMPUTADORA PORTÁTIL: ENCENDIDO DE LA COMPUTADORA PORTÁTIL POR PRIMERA VEZ: Abra la pantalla hasta que esté en un ángulo mínimo de 90 ° con respecto al teclado. Mantenga presionado el botón de encendido para encender la computadora portátil. El asistente de configuración aparecerá en la pantalla. Siga las instrucciones del asistente de configuración para configurar su computadora portátil. Durante el inicio, el asistente le solicita que se registre en su cuenta de Microsoft. Si aún no tiene una cuenta de Microsoft, configure una aquí. Después de completar el inicio, su computadora portátil se está configurando. Este proceso puede tardar varios minutos en completarse. No apague la computadora portátil durante este tiempo. 17 DESBLOQUEO DE LA PANTALLA: Tan pronto como se haya configurado el dispositivo (y cada vez que se encienda y reinicie posteriormente), aparece la pantalla de bloqueo, presione cualquier tecla del teclado para desbloquear la pantalla. Si su computadora portátil está protegida con contraseña, debe ingresar la contraseña. MENU DE INICIO: Para mostrar el menú Inicio, haga clic en el icono de Windows en la parte inferior izquierda de la panta…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-3-3> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVTH-LB131N HTLB131NA58Z1EG For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave. Tustin, CA 92780, United States Phone: (949) 679-7960 125 Fax: 714-409-3091 E-Mail: [email protected]

Hyundai Technology Group, Inc. 2601 Walnut Ave. Tustin, CA 92780, United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-3-3 To whom it may concern: We, Hyundai Technology Group, Inc. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVTH-LB131N including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave. Tustin, CA 92780, United States Phone: (949) 679-7960 125 Fax: 714-409-3091 E-Mail: [email protected]

Hyundai Technology Group, Inc. 2601 Walnut Ave. Tustin, CA 92780, United States UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2AVTH-LB131N (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title： Sophia Wong/procurement manager Company: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave. Tustin, CA 92780, United States Phone: (949) 679-7960 125 Fax: 714-409-3091 E-Mail: [email protected]

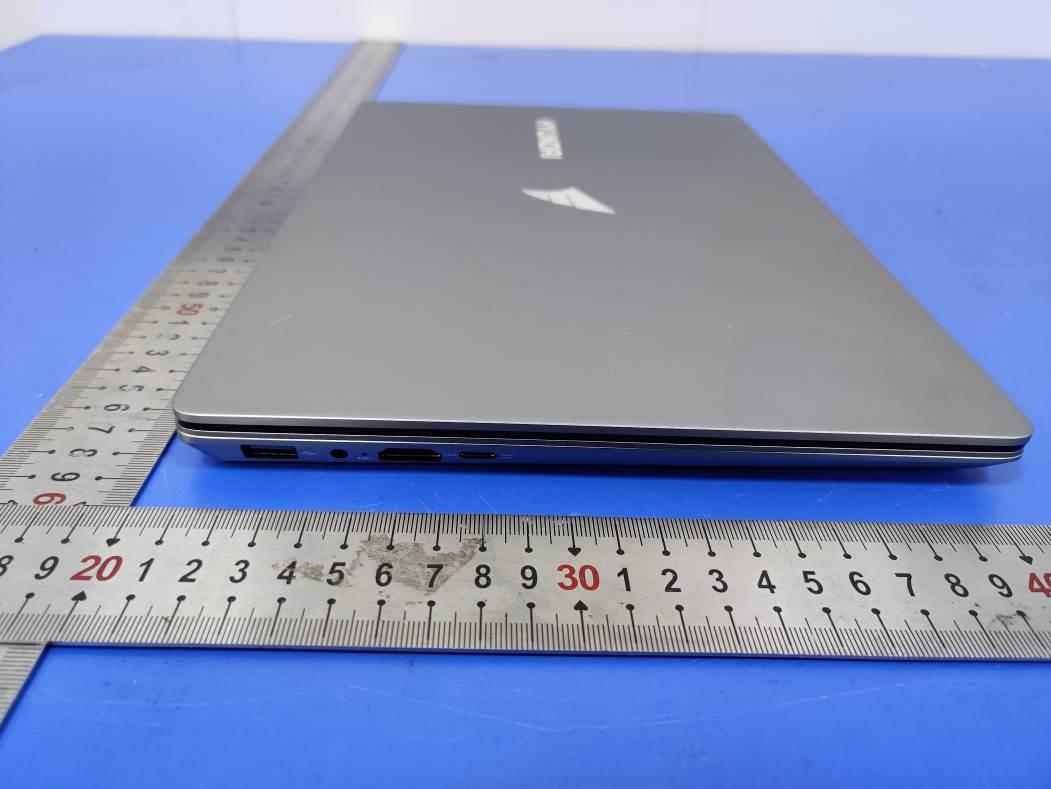

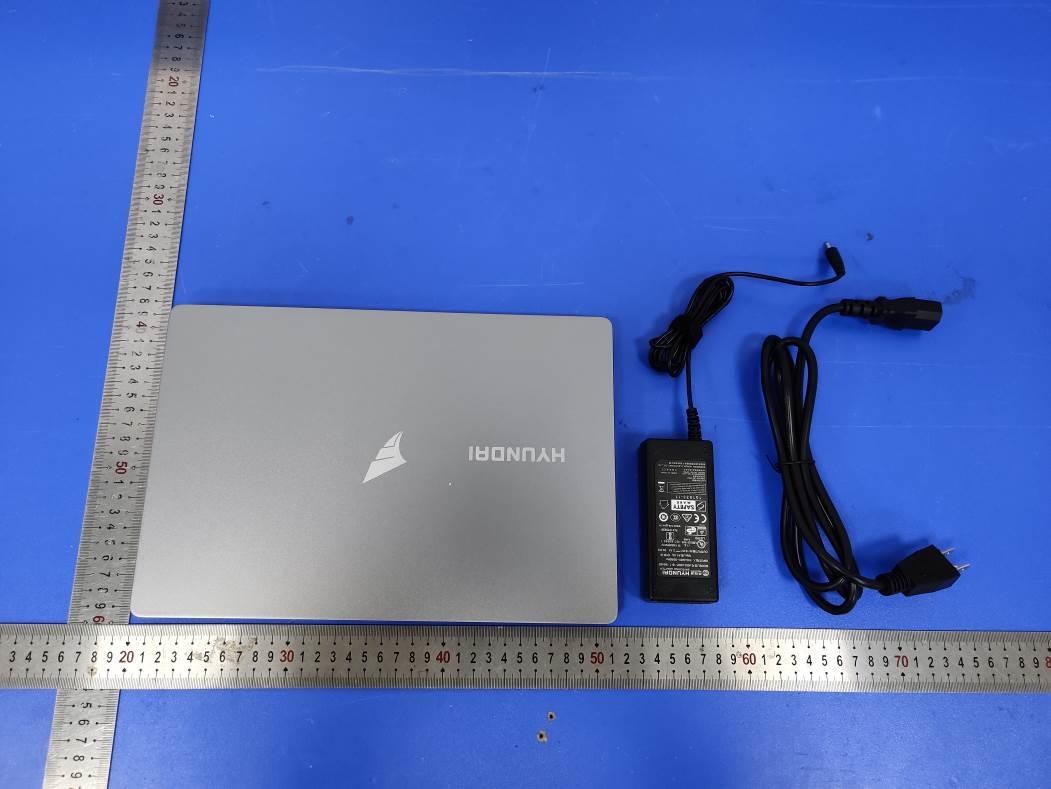

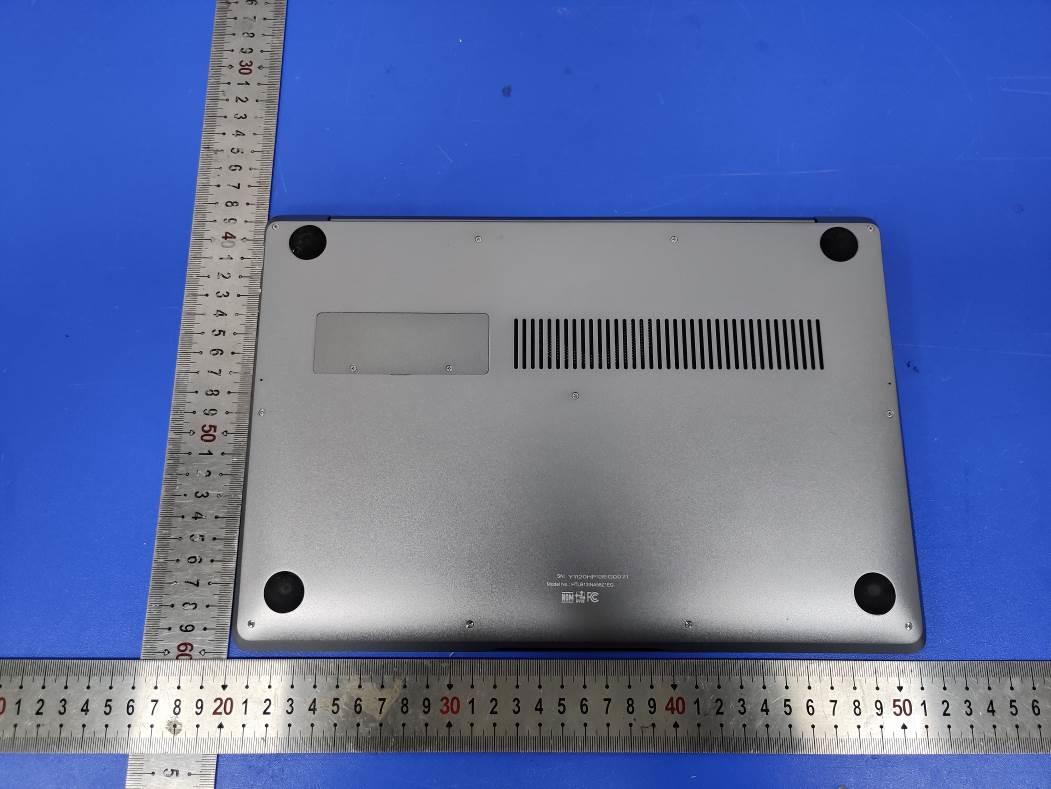

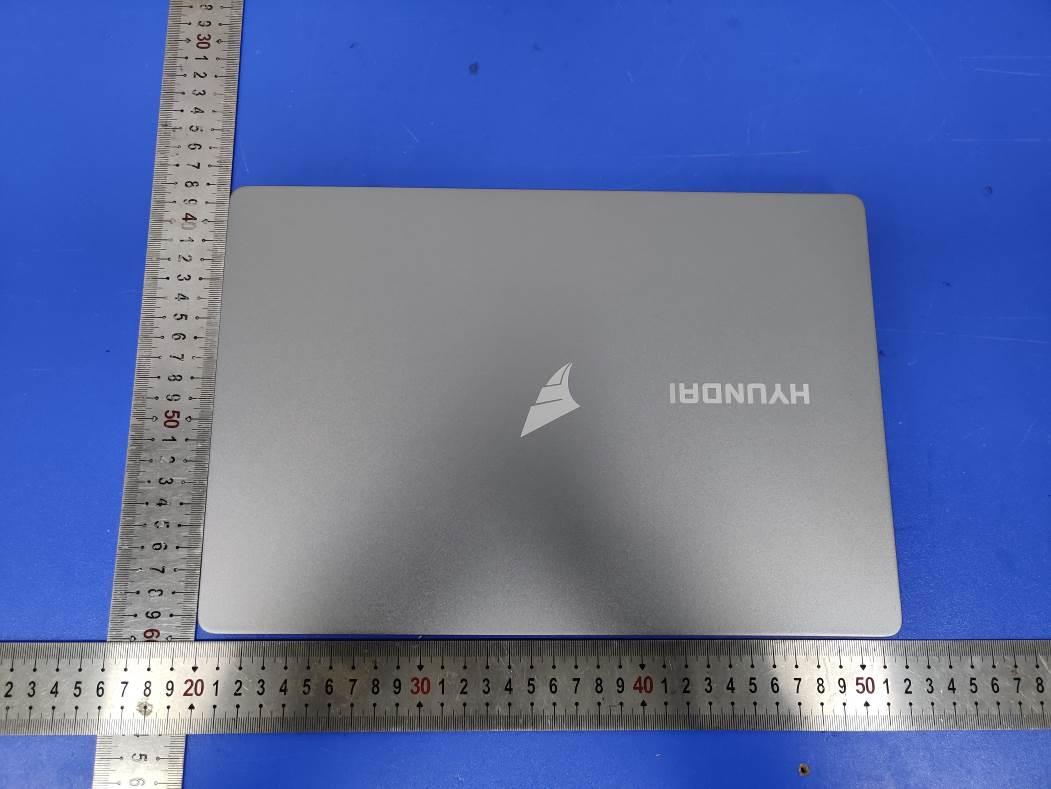

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L3.0cm*W2.0cm Label Location 13.3 notebook Model No.: HTLB131NA58Z1EG FCC ID: 2AVTH-LB131N This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Fig.7 Fig.8 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Fig.11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AVTH-LB131N EUT : 13.3 notebook Test Model : HTLB131NA58Z1EG Power Supply : DC 7.6V by Rechargeable Li-ion Battery, 4800mAh For Adapter Input: AC 100-240V, 50/60Hz, 1.0A Max Adapter Output: DC 19.0V, 2.1A Hardware Version : / Software Version : WINDOWS 10 Home Bluetooth Frequency Range : 2402MHz-2480MHz Bluetooth Channel Number : 79 Channels for Bluetooth V5.0(BDR/EDR) 40 channels for Bluetooth V5.0(BT LE/ BT 2LE) Bluetooth Channel Spacing : 1MHz for Bluetooth V5.0(BDR/EDR) 2MHz for Bluetooth V5.0(BT LE/ BT 2LE) Bluetooth Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0(BDR/EDR) GFSK for Bluetooth V5.0(BT LE/ BT 2LE) Bluetooth Version : V5.0 Antenna Description : FIFA Antenna, 1.38dBi(Max.) 2.4G WLAN Frequency Range : 2412MHz-2462MHz Channel Number : 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing : 5MHz Modulation Type : IEEE 802.11b: DSSS(CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Description : FIFA Antenna, 1.38dBi(Max.) 5.2G WLAN Frequency Range : 5180MHz-5240MHz Channel Number : 4 channels for 20MHz bandwidth(5180MHz-5240MHz) 2 channels for 40MHz bandwidth(5190MHz~5230MHz) 1 channels for 80MHz bandwidth(5210MHz) Modulation Type : IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) Antenna Description : FIFA Antenna, 1.21dBi(Max.) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 5.8G WLAN Frequency Range : 5745MHz-5825MHz Channel Number : 5 channels for 20MHz bandwidth(5745MHz-5825MHz) 2 channels for 40MHz bandwidth(5755MHz~5795MHz) 1 channels for 80MHz bandwidth(5775MHz) Modulation Type : IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) Antenna Description : FIFA Antenna, 1.21dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 4. Conducted Power Results [BT Max Conducted Power] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 5.406 39 2441 5.913 78 2…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 1 of 34 Appendix D RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: 13.3 notebook Trade Mark: N/A Test Model: HTLB131NA58Z1EG Environmental Conditions Temperature: 23.2 C Relative Humidity: 51.2% ATM Pressure: 100.0 kPa Test Engineer: Ken He Supervised by: Li Huan D.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/T Minimum VBW(KHz) 11A 5200 84.69 0.72 0.489 11N20 SISO 5200 84.55 0.73 0.525 11N40 SISO 5190 84.19 0.75 1.071 11AC20 SISO 5200 84.62 0.73 0.522 11AC40 SISO 5190 84.10 0.75 1.063 11AC80 SISO 5210 83.41 0.79 2.181 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 2 of 34 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 3 of 34 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 4 of 34 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 5 of 34 D.2 Maximum Conduct Output Power Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor (dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 12.43 0.72 13.15 24 Pass 40 5200 12.44 0.72 13.16 Pass 48 5240 12.44 0.72 13.16 Pass 11N20 SISO 36 5180 12.37 0.73 13.10 24 Pass 40 5200 12.38 0.73 13.11 Pass 48 5240 12.44 0.73 13.17 Pass 11N40 SISO 38 5190 12.89 0.75 13.64 24 Pass 46 5230 13.09 0.75 13.84 Pass 11AC20 SISO 36 5180 12.56 0.73 13.29 24 Pass 40 5200 12.7 0.73 13.43 Pass 48 5240 12.73 0.73 13.46 Pass 11AC40 SISO 38 5190 12.99 0.75 13.74 24 Pass 46 5230 13.08 0.75 13.83 Pass 11AC80 SISO 42 5210 12.96 0.79 13.75 24 Pass SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 6 of 34 D.3 Power Spectral Density Test Mode Channel Frequency (MHz) Power Density (dBm/MHz) Duty Cycle Factor(dB) Report Power Density (dBm/MHz) Limit (dBm/MHz) Verdict 11A 36 5180 1.99 0.72 2.71 11 Pass 40 5200 2.10 0.72 2.82 Pass 48 5240 2.22 0.72 2.94 Pass 11N20 SISO 36 5180 1.93 0.73 2.66 11 Pass 40 5200 1.52 0.73 2.25 Pass 48 5240 1.68 0.73 2.41 Pass 11N40 SISO 38 5190 -0.43 0.75 0.32 11 Pass 46 5230 -0.59 0.75 0.16 Pass 11AC20 SISO 36 5180 2.21 0.73 2.94 11 Pass 40 5200 1.82 0.73 2.55 Pass 48 5240 1.96 0.73 2.69 Pass 11AC40 SISO 38 5190 -0.58 0.75 0.17 11 Pass 46 5230 -0.55 0.75 0.20 Pass 11AC80 SISO 42 5210 -3.34 0.79 -2.55 11 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 7 of 34 IEEE 802.11na / Channel 40 / 5200MHz IEEE 802.11na / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 8 of 34 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 9 of 34 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 10 of 34 Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 11 of 34 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 12 of 34 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 13 of 34 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 14 of 34 D.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11A 36 5180 23.41 No Limit Pass 40 5200 22.66 Pass 48 5240 23.50 Pass 11N20 SISO 36 5180 23.54 No Limit Pass 40 5200 22.91 Pass 48 5240 23.28 Pass 11N40 SISO 38 5190 44.88 No Limit Pass 46 5230 44.90 Pass 11AC20 SISO 36 5180 22.77 No Limi Pass 40 5200 23.85 Pass 48 5240 23.00 Pass 11AC40 SISO 38 5190 43.49 No Limi Pass 46 5230 44.90 Pass 11AC80 SISO 42 5210 82.55 No Limi Pass 26dB Bandwidth IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 15 of 34 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 16 of 34 26dB Bandwidth IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 17 of 34 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 18 of 34 26dB Bandwidth IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 19 of 34 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 20 of 34 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AED Page 21 of 34 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 1 of 35 Appendix E RF Test Data for 5.8G WLAN (Conducted Measurement) Product Name: 13.3 notebook Trade Mark: N/A Test Model: HTLB131NA58Z1EG Environmental Conditions Temperature: 23.2 C Relative Humidity: 51.2% ATM Pressure: 100.0 kPa Test Engineer: Ken He Supervised by: Li Huan D.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/T Minimum VBW(KHz) 11A 5785 84.62 0.73 0.489 11N20 SISO 5785 84.55 0.73 0.525 11N40 SISO 5755 84.23 0.75 1.071 11AC20 SISO 5785 84.60 0.73 0.522 11AC40 SISO 5755 84.02 0.75 1.063 11AC80 SISO 5775 83.37 0.79 2.187 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 2 of 35 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 3 of 35 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 4 of 35 IEEE 802.11AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 5 of 35 D.2 Maximum Conduct Output Power Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 149 5745 12.47 0.73 13.20 30 Pass 157 5785 12.54 0.73 13.27 Pass 165 5825 12.42 0.73 13.15 Pass 11N20 SISO 149 5745 12.45 0.73 13.18 30 Pass 157 5785 12.42 0.73 13.15 Pass 165 5825 12.34 0.73 13.07 Pass 11N40 SISO 151 5755 13 0.75 13.75 30 Pass 159 5795 13.02 0.75 13.77 Pass 11AC20 SISO 149 5745 12.56 0.73 13.29 30 Pass 157 5785 12.7 0.73 13.43 Pass 165 5825 12.73 0.73 13.46 Pass 11AC40 SISO 151 5755 12.99 0.75 13.74 30 Pass 159 5795 13.08 0.75 13.83 Pass 11AC80 SISO 155 5775 12.87 0.79 13.66 30 Pass SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 6 of 35 D.3 Power Spectral Density Test Mode Channel Frequency (MHz) Power Density (dBm/300KHz) Duty Cycle Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11A 149 5745 0.01 0.73 0.74 30 Pass 157 5785 -0.16 0.73 0.57 Pass 165 5825 -0.04 0.73 0.69 Pass 11N20 SISO 149 5745 0.08 0.73 0.81 30 Pass 157 5785 -0.72 0.73 0.01 Pass 165 5825 0.07 0.73 0.8 Pass 11N40 SISO 151 5755 -2.80 0.75 -2.05 30 Pass 159 5795 -2.16 0.75 -1.41 Pass 11AC20 SISO 149 5745 -0.10 0.73 0.63 30 Pass 157 5785 0.04 0.73 0.77 Pass 165 5825 0.60 0.73 1.33 Pass 11AC40 SISO 151 5755 -2.18 0.75 -1.43 30 Pass 159 5795 -2.85 0.75 -2.1 Pass 11AC80 SISO 155 5775 -5.73 0.79 -4.94 30 Pass Power Spectral Density IEEE 802.11a / Channel 149 / 5745MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 7 of 35 IEEE 802.11na / Channel 157 / 5785MHz IEEE 802.11na / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 8 of 35 Power Spectral Density IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 9 of 35 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 10 of 35 Power Spectral Density IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 11 of 35 IEEE 802.11ac20 / Channel 149 / 5745MHz IEEE 802.11ac20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 12 of 35 IEEE 802.11ac20 / Channel 165 / 5825MHz IEEE 802.11ac40 / Channel 151 / 5755MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 13 of 35 IEEE 802.11ac40 / Channel 159 / 5795MHz IEEE 802.11ac80 / Channel 155/ 5775MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 14 of 35 D.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Verdict 11A 149 5745 16.40 >=0.5 Pass 157 5785 16.35 Pass 165 5825 16.40 Pass 11N20 SISO 149 5745 17.64 >=0.5 Pass 157 5785 17.64 Pass 165 5825 17.60 Pass 11N40 SISO 151 5755 35.99 >=0.5 Pass 159 5795 36.37 Pass 11AC20S ISO 149 5745 17.61 >=0.5 Pass 157 5785 17.60 Pass 165 5825 17.60 Pass 11AC40S ISO 151 5755 36.33 >=0.5 Pass 159 5795 36.30 Pass 11AC80S ISO 155 5775 75.22 >=0.5 Pass 6dB Bandwidth IEEE 802.11a / Channel 149 / 5745MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 15 of 35 IEEE 802.11a / Channel 157 / 5785MHz IEEE 802.11a / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 16 of 35 6dB Bandwidth IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 17 of 35 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 18 of 35 26dB Bandwidth IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVTH-LB131N Report No.: LCS201211138AEE Page 19 of 35 IEEE 802.11a…
