2AVTH-THINNOTE-AHyundai Thinnote-A

THINNOTE-A User Manual 328.9 mm 217.0 m m 22.8 mm 16.8 mm 75.00mm 10.11mm 壳料颜色四款: 银 、黑 、蓝、 金 丝印颜色: THINNOTE-A User Manual Thank you for purchasing the Hyundai Thinnote-A. Hyundai offers a 1-year warranty service for any “damaged” or “defected” product. The following conditions are not included in our warranty service program, and the following repairs could and will be charged: The use of the device not in accordance with the product manual operation or improper operation of instructions. Man-made damage, computer viruses, moisture, improper installation or disassembled software and so on. Fires, floods, storms, earthquakes and other natural disasters. Accessories, supplies, natural wear and tear caused by use. The need to re-install the software on behalf of the company or adjust computer settings, will be charged as appropriate. Our warranty identification number is damaged or dirty, making it impossible to identify. Before the product repair, please back up your information and files separately, the repair process may affect the integrity of the data. We guarantee service, to make the purchase and user-experience satisfying. WARRANTY NOTICE Thank you for your choosing the new Thinnote-A. This guide serves to enable users to get to know and familiar with our product as soon as possible. Here we have made a brief introduction to the key layout and definitions in figures and words. INTRODUCTION This production is suitable for use in non-tropic areas below 2,000 meters, and the mark in the nameplate indicates the product is suitable for use in non-tropic areas. 2. Prevent the Thinnote-A from falling to the ground or being strongly impacted otherwise. 3. Do not use it in the long term in any environment where the air is too cold, too hot (<35°C), too humid or with too much dust. Do not expose the Thinnote-A to sunlight. 4. Avoid using it in the strong magnetic and strong static environment as much as possible. 5. Once any water or other liquid splashes onto the Thinnote-A, close it immediately and do not use it until it dries out. I. Precautions before Use 6. Do not clean the Thinnote-A with any detergent containing chemical element or other liquid to avoid causing damage due to corrosion and becoming damp. If cleaning is really necessary, clean it with dry soft cloth tissue paper. 7.Our company shall not bear any and all responsibilities for loss or deletion of material inside the machine caused due to abnormal software and hardware operation, maintenance or any other accident. 8. Please back up your important material at any time to avoid loss. 9. Please do not disassemble the Thinnote-A by yourself; otherwise you will lose the right to warranty. 10. Quick Use Guide and the relevant software shall be updated at any time. For updated software version, visit www.hyundaitechnology.com for downloading by yourself, and no notice shall be given otherwise. If anything is found to be inconsistent with the Quick Use Guide, the material object shall prevail. 11. Replacement with incorrect type batteries may cause explosion. Make sure to use original batteries. 1. Windows 10 start image: On the start screen, you can see many programs fixed in the image. These application programs are displayed in the form of “magnet”. As long as you click them, you can easily visit them. 2. You need to log on your Microsoft account before the application program completely runs. Introduction to Desktop 3. Introduction to App Interface Besides the application programs already fixed on the start screen, you can also start other application programs in all application programs, such as other software application programs attached to the Thinnote-A. If you want to fix more application programs on the start interface, see the operation in the figure below, (1) Click the properties icon (2) press and hold the application program magnet for about one second and then let go (3) Click the Pin to start. Conversely, if you want to cancel or delete a certain application in the start screen, (1) lightly touch, press and hold the application program magnet for about one second and then let it go and run, and select. 4. Start Menu Under PC mode,press Start ion, Start Menu will display, including: Start, Device, Setup, Share, and Search Program. Usually: File Explorer, Settings, Power, and All Apps. Can Sleep/Shut down/Restart the Thinnote-A. Allows you to search the files and application programs in the Thinnote-A. Allows you to set up the Table PC. Can scan more apps. POWER FILE EXPLORERFILE EXPLORER SETTINGS ALL APPS Action Center is a notification center also allows for quick settings like Tablet / PC mode, Wi-Fi, Bluetooth etc. Action Center Setup Menu 5. Multitasking Operating Interface Slide it right from the left side of the screen, Let go when Can see the running applications. We can enter the application, also can be deleted. Basic Operations 1. Sleep, Restart and Power Off FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0mm between the radiator & your body. 1. 2. 3. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This e…

Text truncated - open the document above for the full version.

2020-06-11 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Hyundai Technology Group, Inc. /2601 Walnut Ave. Tustin, CA, USA Device is not restricted to use by only law enforcement agencies, device is also for other civil industries use. Agency agreement expiration date: Jun. 10, 2021 By: Moe Kalbouneh Signature Printed Title: Product Manager On behalf of : Hyundai Technology Group, Inc. Telephone: 949-679-7960

2020-06-11 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AVTH-THINNOTE-A Product Name: Hyundai Thinnote-A Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  BOM  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Moe Kalbouneh Signature Printed Title: Product Manager On behalf of : Hyundai Technology Group, Inc. Telephone: 949-679-7960

Differences Declaration To whom concern, We company Hyundai Technology Group, Inc. Here by declares: The product model(s) L14WB1S is the same PCB layout, electronic schematic and Antenna with L14WB2BK, which tested in Shenzhen Huatongwei International Inspection Co., Ltd., the only difference is different model names for commercial purpose. Sincerely yours, Name (in print): Moe Kalbouneh Company name: Hyundai Technology Group, Inc. Company address: 2601 Walnut Ave. Tustin, CA, USA Tel: 949-679-7960 E-Mail: [email protected]

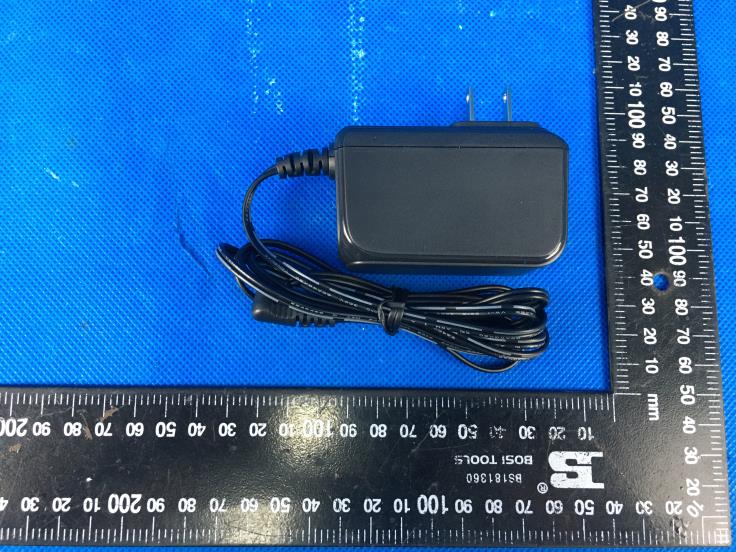

7.EXTERANAL AND INTERNAL PHOTOS External photos of the EUT M odel:L14WB2BK

Internal photos of the EUT M odel:L14WB2BK

Page: 1 of 44 TEST REPORT Report No. ...................................... : CHTEW20060056 Report Verification: Project No.................................： SHT2005010201EW FCC ID ............................................. : 2AVTH-THINNOTE-A Applicant’s name ........................... : Hyundai Technology Group, Inc. Address ............................................. : 2601 Walnut Ave. Tustin, CA, USA Manufacturer.....................................: Hyundai Technology Group, Inc. Address..............................................: 2601 Walnut Ave. Tustin, CA, USA Test item description .................... : Hyundai Thinnote-A Trade Mark ....................................... : HYUNDAI Model/Type reference ....................... : L14WB2BK Listed Model(s) ................................. : L14WB1S Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: May. 25, 2020 Date of testing.............................: May. 26, 2020- Jun. 08, 2020 Date of issue...............................: Jun. 09, 2020 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Silvia Li Supervised by (Position+Printed name+Signature): Project Engineer Chengxiao Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20060056 Page: 2 of 44 Issued: 2020-06-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. 20 dB Bandwidth 16 5.5. 99% Occupied Bandwidth 17 5.6. Carrier Frequencies Separation 18 5.7. Hopping Channel Number 19 5.8. Dwell Time 20 5.9. Duty Cycle Correction Factor (DCCF) 21 5.10. Pseudorandom Frequency Hopping Sequence 22 5.11. Conducted Band edge and Spurious Emission 23 5.12. Radiated Band edge Emission 25 5.13. Radiated Spurious Emission 27 6. TEST SETUP PHOTOS 32 7. EXTERANAL AND INTERNAL PHOTOS 34 8. APPENDIX REPORT 44 Report No.: CHTEW20060056 Page: 3 of 44 Issued: 2020-06-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2020-06-09 Original Report No.: CHTEW20060056 Page: 4 of 44 Issued: 2020-06-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247 (c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247 (b)(1) PASS 5.4 20 dB Bandwidth 15.247 (a)(1) PASS 5.5 99% Occupied Bandwidth - PASS *1 5.6 Carrier Frequency Separation 15.247 (a)(1) PASS 5.7 Hopping Channel Number 15.247 (a)(1) PASS 5.8 Dwell Time 15.247 (a)(1) PASS 5.9 Duty Cycle Correction Factor - PASS *1 5.10 Pseudorandom Frequency Hopping Sequence 15.247(b)(4) PASS 5.11 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.12 Radiated Band Edge Emission 15.205/15.209 PASS 5.13 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW20060056 Page: 5 of 44 Issued: 2020-06-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3. SUMMARY 3.1. Client Information Applicant: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave. Tustin, CA, USA Manufacturer: Hyundai Technology Group, Inc. Address: 2601 Walnut Ave. Tustin, CA, USA 3.2. Product Description Name of EUT: Hyundai Thinnote-A Trade Mark: HYUNDAI Model No.: L14WB2BK Listed Model(s): L14WB1S Power supply: DC 7.6V Adapter information: Model:RY-24A120200VU Input: AC100-240V, 50/60Hz, 0.8A Output: 12Vdc, 2.0A Hardware version: IP3_AN10F MB_V30 Software version: 1909 3.3. Radio Specification Description Bluetoo…

Text truncated - open the document above for the full version.

Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 41 APPENDIX REPORT Project No. SHT2005010201EW Radio Specification Bluetooth EDR Test sample No. YPHT20050102001 Model No. L14WB2BK Start test date 2020/6/1 Finish date 2020/6/1 Temperature 25°C Humidity 50% Test Engineer JiongSheng.Feng Auditor Appendix clause Test item Result A Peak Output Power PASS B 20 dB Bandwidth PASS C 99% Occupied Bandwidth PASS D Carrier Frequencies Separation PASS E Hopping Channel Number PASS F Dwell Time PASS G Duty Cycle Correction Factor (DCCF) PASS H Band edge and Spurious Emissions(coducted) PASS Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 41 Appendix A：Peak Output Power Modulation type Channel Output power (dBm) Average Output power (dBm) Limit (dBm) Result GFSK 00 3.92 3.90 ≤ 30.00 Pass 39 3.83 3.81 78 3.92 3.90 π/4DQPSK 00 5.68 4.92 ≤ 21.00 Pass 39 5.32 4.68 78 5.50 4.85 8DPSK 00 6.04 5.37 ≤ 21.00 Pass 39 6.01 5.33 78 5.64 4.93 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 41 Modulation Type: GFSK CH00 CH39 CH78 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 41 Modulation Type: π/4DQPSK CH00 CH39 CH78 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 41 Modulation Type: 8DPSK CH00 CH39 CH78 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 41 Appendix B : 20 dB Bandwidth Modulation type Channel 20 dB Bandwidth (kHz) Limit (kHz) Result GFSK 00 784.20 - Pass 39 784.20 78 696.80 π/4DQPSK 00 1360.00 - Pass 39 1360.00 78 1365.00 8DPSK 00 1302.50 - Pass 39 1305.00 78 1320.00 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 41 Modulation Type: GFSK CH00 CH39 CH78 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 41 Modulation Type: π/4DQPSK CH00 CH39 CH78 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 41 Modulation Type: 8DPSK CH00 CH39 CH78 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 41 Appendix C：99% Occupied Bandwidth Modulation type Channel 99% Occupied Bandwidth (MHz) Limit (MHz) Result GFSK 00 0.93 - Pass 39 0.93 78 0.93 π/4DQPSK 00 1.20 - Pass 39 1.20 78 1.20 8DPSK 00 1.18 - Pass 39 1.18 78 1.19 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 41 Modulation Type: GFSK CH00 CH39 CH78 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 41 Modulation Type: π/4DQPSK CH00 CH39 CH78 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 41 Modulation Type: 8DPSK CH00 CH39 CH78 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 41 Appendix D：Carrier Frequencies Separation Modulation type Channel Carrier Frequencies Separation (MHz) Limit (kHz) * Result GFSK 39 1.00 ≥784.20 Pass π/4DQPSK 39 1.00 ≥910 Pass 8DPSK 39 1.00 ≥880 Pass Note: *: GFSK limit = The maximum 20 dB Bandwidth for GFSK modulation on the appendix B. π/4DQPSK limit = 2/3 * The maximum 20 dB Bandwidth for π/4DQPSK modulation on the appendix B. 8DPSK limit = 2/3 * The maximum 20 dB Bandwidth for 8DPSK modulation on the appendix B Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 15 of 41 GFSK π/4DQPSK 8DPSK Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 16 of 41 Appendix E：Hopping Channel Number Modulation type Channel number Limit Result GFSK 79 ≥15.00 Pass π/4DQPSK 79 8DPSK 79 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 17 of 41 GFSK π/4DQPSK 8DPSK Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 18 of 41 Appendix F：Dwell Time Modulation type Packet Burst Width [ms] Total Hops[hop*ch] Dwell time (Second) Limit (Second) Result GFSK DH1 0.39 317 0.12 ≤ 0.40 Pass DH3 1.65 157 0.26 DH5 2.90 104 0.30 π/4DQPSK 2DH1 0.40 317 0.13 ≤ 0.40 Pass 2DH3 1.66 158 0.26 2DH5 2.90 99 0.29 8DPSK 3DH1 0.40 319 0.13 ≤ 0.40 Pass 3DH3 1.65 161 0.27 3DH5 2.90 120 0.35 Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 19 of 41 Modulation Type: GFSK DH1 Burst width DH1 Burst number DH3 Burst width Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 20 of 41 DH3 Burst number DH5 Burst width DH5 Burst number Project No.: SHT2005010201EW Radio Specification: Bluetooth EDR Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 21 of 41 Modulation Type: π/4DQPSK 2DH1 Burst width 2DH1 Burst number 2DH3 Burst width Project No.: SHT2005010201EW Radio Specification: Bluetooth…

Text truncated - open the document above for the full version.

6.TEST SETUP PHOTOS Radiated Emission Model:L14WB2BK AC Conducted Emission
