2AVTHHTN4020MPCHyundai Mini PC

User Manual MINI PC MINI PC User Manual 4 Limited Warranty does NOT cover: Any costs associated with the repair or replacement of the Product including labor, installation or other costs incurred by you, and in particular, any costs relating to the removal or replacement of any Product that is soldered or otherwise permanently affixed to any printed circuit board; OR Damage to the Product due to external causes, including accident, problems with electrical power, abnormal electrical, mechanical or environmental conditions, usage not in accordance with product instructions, misuse, neglect, alteration, repair, improper installation, or improper testing; OR Any Product which has been modified or operated outside of specifications or where the original identification markings (trademark or serial number) has been removed, altered or obliterated from the Product, or where the label or screw on the exterior of the Product is removed or broken. WARRANTY NOTICE 5 businesses, or a person is not allowed to change the frequency, increase the power or change the features and functions of the original design. legitimate communication; When there is interference it should be immediately suspended and improved to no interference. Legal correspond refers to wireless correspond, low-frequency and medical radiation power radio waves. 3. Product contains miniature battery used by motherboard CMOS, do not replace them yourselves; If consumers replaces the incorrect type of battery, this might lead to dangerous issues. Proper battery replacement is required. Remarks: Intel Celeron N4020 Windows 10 Pro 4GB DDR4 128GB 802.11 AC/B/G/N, Bluetooth 5.0 1) 2 x USB 2.0 2) 2 x USB 3.0 3) 1 x USB Type-C 4) 1 x Ethernet RJ45 5) 1 x VGA Port 6) 1 x HDMI Port 7) 1 x microSD Slot (Supports up to 128GB) 8) 1 x Expandable 2.5” SATA HDD Slot 9) 1 x Expandable M.2 SSD Slot 10) 1 x DC 12V/2A 11) 1 x Audio Jack 3.5mm Pr ocessor Operating System RAM Storage WiFi Interface 6 1324567 Package Contents: Mini PC Adapter Quick Start Guide Vesa Mount User Manual 89101112 1.- AUDIO JACK 2.- 2 x USB 2.0 3.- ETHERNET RJ45 4.- HDMI PORT 5.- VGA PORT 6.- DC-IN JACK 7.- RESET BUTTON 8.- USB TYPE-C 9~10.- 2 x USB 3.0 11.- SD CARD SLOT 12.- POWER BUTTON 7 1. Connect the device to the TV HDMI interface with HDMI CABLE, and a display device (eg: TV, screen, projector) “Video Input Source”. Select the connected HDMI input channel. 2. DC-IN Power: Connect the power cord DC-IN Jack accessories with this device and the other end directly into the plug. 3. Can be used with a Bluetooth keyboard and mouse. Use the USB interface to connect wireless keyboard and mouse devices. 4. Press the Power button to start the system. Instructions: HDMI Adapter (Original attachment) Can be used with Bluetooth or wireless keyboard and mouse use (self) HYUNDAI The information contained herein is subject to change without notice. The only warranties for Connect and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Connect shall not be liable for technical or editorial errors or omissions contained herein. First Edition: May 2016 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Advertencia Nota para uso en México La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. Contact Us Visit us at http//www.hyundaitechnology.com/ For sales inqury (U.S. Worldwide) Email [email protected] For technical support please contact HYUNDAI® U.S. and Worldwide Toll Free Number: (800) 560-0626 Monday-Friday 8:00am-5:00pm PST Email: [email protected] México (Spanish) Toll Free Number: 81 5030-7375 Lunes-Viernes 8:00am-5:00pm CST Email: [email protected] FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

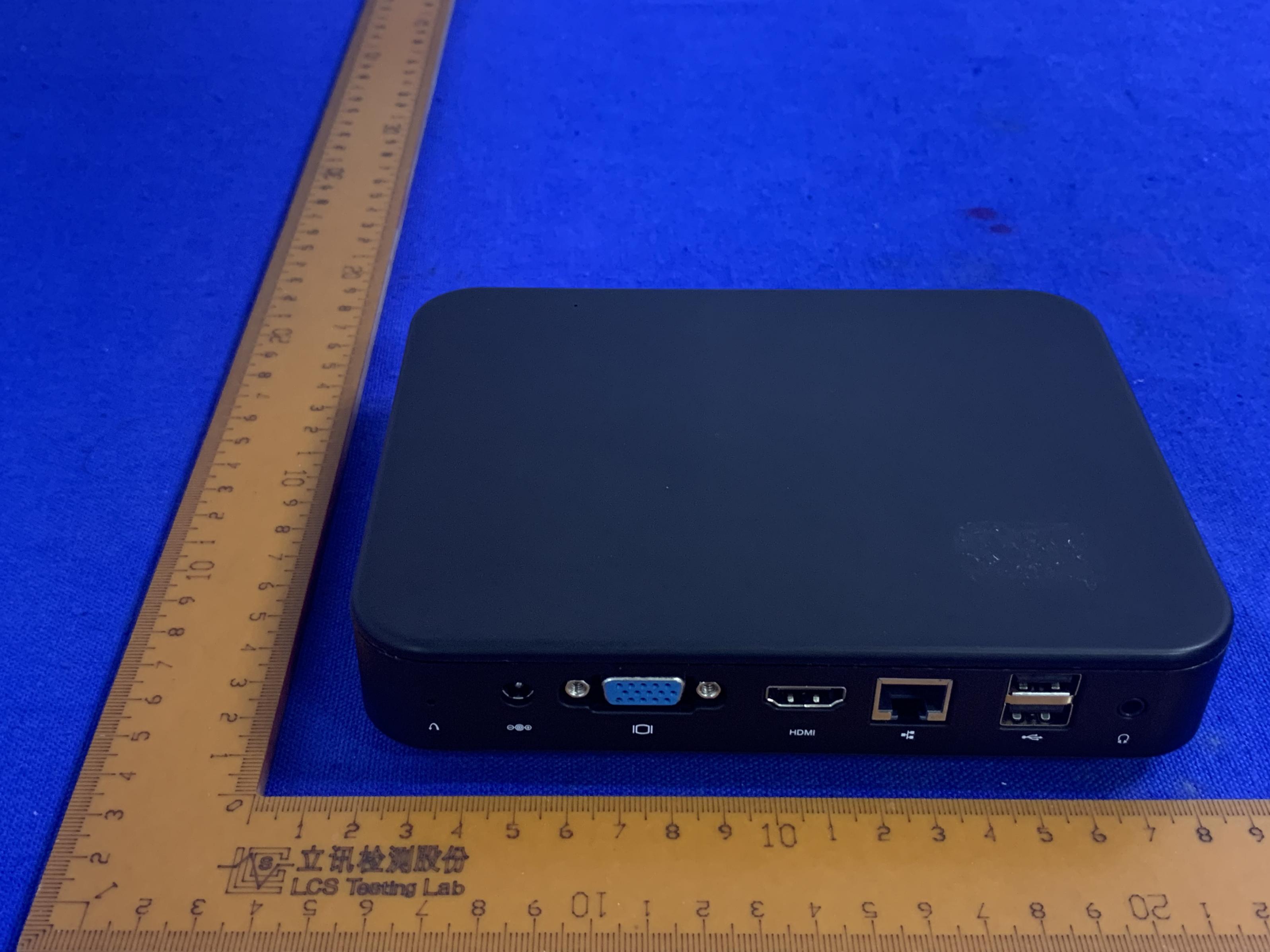

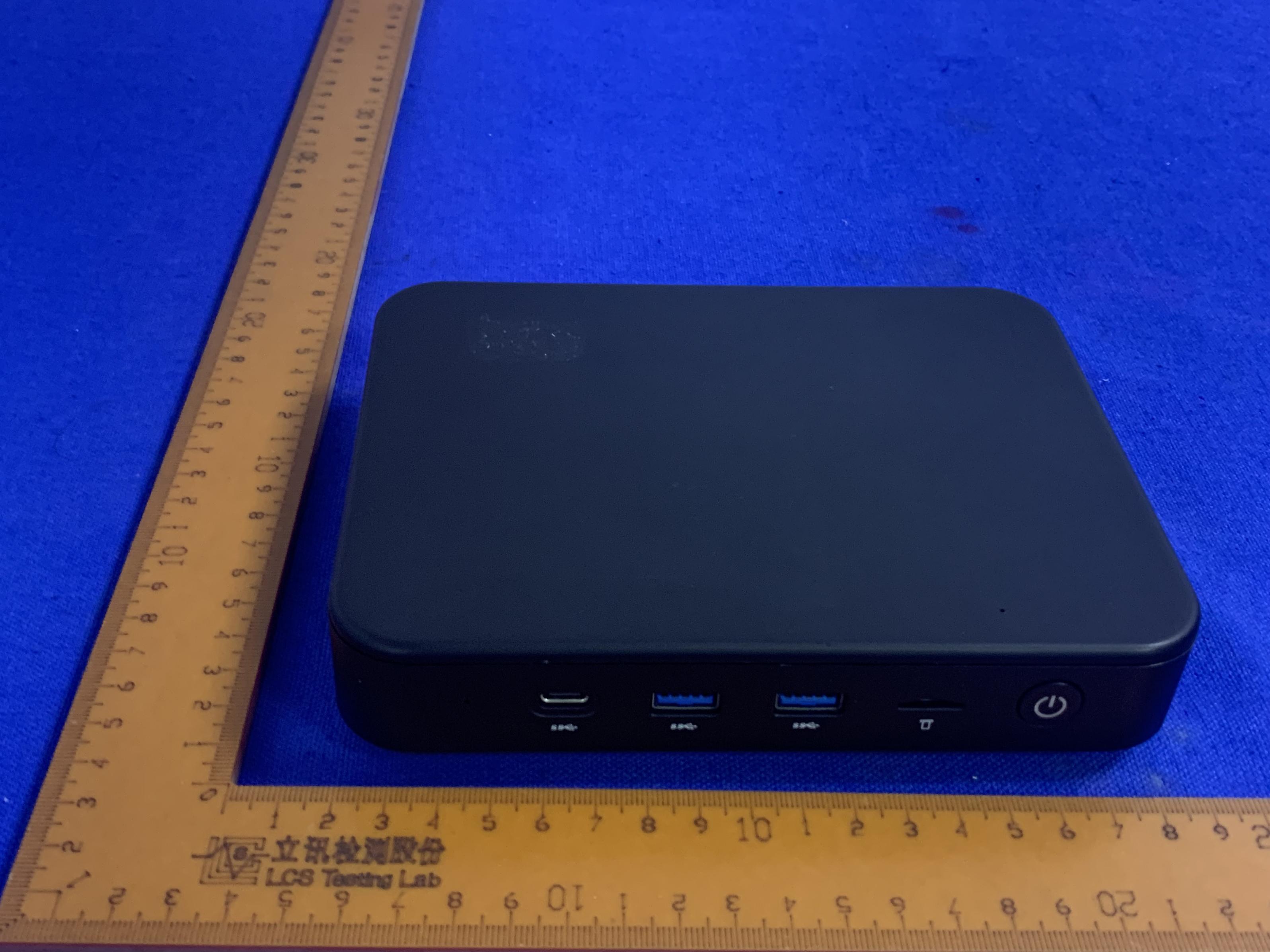

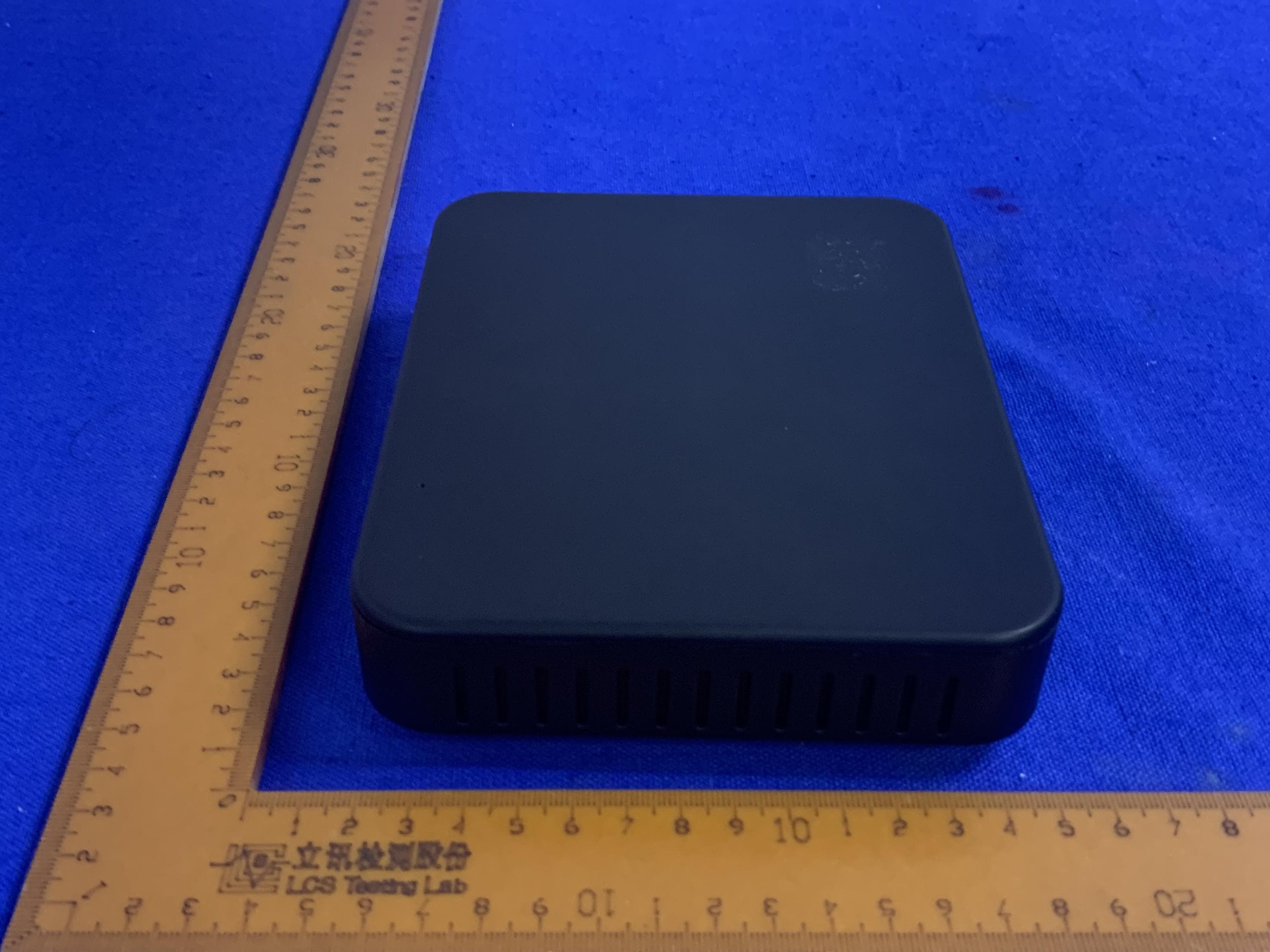

Page1of4FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8

Page1of1FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L4.0cmxW1.5cm) LabelLocation HyundaiMiniPC Model:HTN4020MPC FCCID:2AVTHHTN4020MPC

Page1of7FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 ANT1:Bluetooth/2.4GWIFI /5.2GWIFI/5.8GWIFI ANT2:2.4GWIFI /5.2GWIFI/5.8GWIFI Page2of7FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of7FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of7FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of7FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9 Fig.10 Page6of7FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.11 Fig.12 Page7of7FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.13

Page1of12FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity MaximumPermissibleExposureReport 1.ProductInformation EUT:HyundaiMiniPC TestModel:HTN4020MPC PowerSupply: Input:12V2.0A ForACAdapterInput:100-240V~,50/60Hz,0.8A AdapterOutput:12V2.0A DC3.0VByBattery HardwareVersion:/ SoftwareVersion:/ Bluetooth: FrequencyRange:2402MHz~2480MHz ChannelNumber:79channelsforBluetoothV5.0(DSS) 40channelsforBluetoothV5.0(DTS) ChannelSpacing:1MHzforBluetoothV5.0(DSS) 2MHzforBluetoothV5.0(DTS) ModulationType:GFSK,π/4-DQPSK,8-DPSKforBluetoothV5.0(DSS) GFSKforBluetoothV5.0(DTS) BluetoothVersion:V5.0 AntennaDescription:Antenna1:PIFAAntenna,2.15dBi(Max.) Antenna2:PIFAAntenna,2.15dBi(Max.) WIFI(2.4GBand): FrequencyRange:2412MHz~2462MHz ChannelSpacing:5MHz ChannelNumber:11Channelsfor20MHzbandwidth(2412~2462MHz) 7Channelsfor40MHzbandwidth(2422~2452MHz) ModulationType:IEEE802.11b:DSSS(CCK,DQPSK,DBPSK) IEEE802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) AntennaDescription:Antenna1:PIFAAntenna,2.15dBi(Max.) Antenna2:PIFAAntenna,2.15dBi(Max.) 5.2GWLAN: FrequencyRange:5180MHz-5240MHz ChannelNumber:4channelsfor20MHzbandwidth(5180MHz-5240MHz) 2channelsfor40MHzbandwidth(5190MHz~5230MHz) 1channelsfor80MHzbandwidth(5210MHz) ModulationType:IEEE802.11a/n/ac:OFDM(256QAM,64QAM,16QAM,QPSK,BPSK) AntennaDescription:Antenna1:PIFAAntenna,1.99dBi(Max.) Antenna2:PIFAAntenna,1.99dBi(Max.) 5.8GWLAN: FrequencyRange:5745MHz-5825MHz ChannelNumber:5channelsfor20MHzbandwidth(5745MHz-5825MHz) Page2of12FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 2channelsfor40MHzbandwidth(5755MHz~5795MHz) 1channelsfor80MHzbandwidth(5775MHz) ModulationType:IEEE802.11a/n/ac:OFDM(256QAM,64QAM,16QAM,QPSK,BPSK) AntennaDescription:Antenna1:PIFAAntenna,2.03dBi(Max.) Antenna2:PIFAAntenna,2.03dBi(Max.) Exposurecategory : Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevice 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensuresthatthe publicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobiledevice wherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelowRFPermissible Exposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesumofthe MPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPEratioof eachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperatingconfigurationsand exposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpowerdensitytoMPElimit,atthe testfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrommeasurementsornumericalsimulations maybeusedtodeterminetheMPEratios.SpatialaveragingdoesnotapplywhenMPEisestimatedusingsimple calculationsbasedonfar-fieldplane-waveequivalentconditions.Theantennainstallationandoperating requirementsforthehostdevicemustmeettheminimumtestseparationdistancesrequiredbyallantennas,inboth standaloneandsimultaneoustransmissionoperations,tosatisfycompliance. 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoElectric,Magnetic,and ElectromagneticFields,0Hzto300GHz FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices. Page3of12FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/UncontrolledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation PIFAAntennacanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal/External Identification Antennatypeand antennanumber Operatefrequency band Maximumantenna gain Notes Antenna1PIFAAntenna2400-6000MHz BT/BLE/2.4GWIFI: 2.15dBi 5.2GWIFI:1.99dBi 5.8GWIFI:2.03dBi BT/BLE/2.4GWIFI /5.2GWIFI/5.8GWIFI Antenna Antenna2PIFAAntenna2400-6000MHz 2.4GWIFI:2.15dBi 5.2GWIFI:1.99dBi 5.8GWIFI:2.03dBi 2.4GWIFI /5.2GWIFI/5.8GWIFI Antenna Page4of12FCCID:2AVTHHTN4020MPC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201B…

Text truncated - open the document above for the full version.

深圳天路通电子有限公司 SHENZHENTLTCOMMUNICATION CO.,LTD. MPC69Antenna specification Antenna parameter Function VSWR Frequency (MHz) TX Free Space Bluetooth/WIFI ≤ 2.40G~5.0G 3 ≥0dBi±0.5dBi Dimension figure 60mm

Page 1 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity AppendixD RF Test Data for 5.2GWIFI(ConductedMeasurement) ProductName:HyundaiMini PC Test Model:HTN4020MPC EnvironmentalConditions Temperature: 23.8  C RelativeHumidity:52.2 % ATM Pressure:10 0.0 kPa Test Engineer:Nick Peng Supervisedby:Li Huan Page 2 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity D.1 -26dBBandwidth ConditionMode : MIMO Frequency(MHz)Antenna-26 dB Bandwidth(MHz)Limit -26 dB Bandwidth(MHz)Verdict NVNTa5180Ant124.472>=0.5Pass NVNTa5200Ant126.078>=0.5Pass NVNTa5240Ant123.449>=0.5Pass NVNTn205180Ant124.074>=0.5Pass NVNTn205200Ant123.084>=0.5Pass NVNTn205240Ant123.924>=0.5Pass NVNTn405190Ant154.986>=0.5Pass NVNTn405230Ant152.326>=0.5Pass NVNTac205180Ant122.283>=0.5Pass NVNTac205200Ant126.047>=0.5Pass NVNTac205240Ant120.742>=0.5Pass NVNTac405190Ant153.102>=0.5Pass NVNTac405230Ant154.005>=0.5Pass NVNTac805210Ant1117.445>=0.5Pass ConditionMode : MIMO Frequency(MHz)Antenna-26 dB Bandwidth(MHz)Limit -26 dB Bandwidth(MHz)Verdict NVNTa5180Ant219.612>=0.5Pass NVNTa5200Ant219.337>=0.5Pass NVNTa5240Ant219.664>=0.5Pass NVNTn205180Ant219.78>=0.5Pass NVNTn205200Ant219.902>=0.5Pass NVNTn205240Ant219.678>=0.5Pass NVNTn405190Ant240.274>=0.5Pass NVNTn405230Ant240.247>=0.5Pass NVNTac205180Ant219.708>=0.5Pass NVNTac205200Ant219.65>=0.5Pass NVNTac205240Ant219.77>=0.5Pass NVNTac405190Ant240.171>=0.5Pass NVNTac405230Ant239.893>=0.5Pass NVNTac805210Ant281.221>=0Pass Page 3 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity ANT1: Test Graphs -26dBBandwidthNVNTa 5180MHzAnt1 -26dBBandwidthNVNTa 5200MHzAnt1 Page 4 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Page 5 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -26dBBandwidthNVNTa 5240MHzAnt1 -26dBBandwidthNVNTn20 5180MHzAnt1 Page 6 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -26dBBandwidthNVNTn20 5200MHzAnt1 -26dBBandwidthNVNTn20 5240MHzAnt1 Page 7 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -26dBBandwidthNVNTn40 5190MHzAnt1 -26dBBandwidthNVNTn40 5230MHzAnt1 Page 8 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -26dBBandwidthNVNTac205180MHzAnt1 -26dBBandwidthNVNTac205200MHzAnt1 Page 9 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -26dBBandwidthNVNTac205240MHzAnt1 -26dBBandwidthNVNTac405190MHzAnt1 Page 10 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -26dBBandwidthNVNTac405230MHzAnt1 -26dBBandwidthNVNTac805210MHzAnt1 Page 11 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity ANT2: Test Graphs -26dBBandwidthNVNTa 5180MHzAnt2 -26dBBandwidthNVNTa 5200MHzAnt2 Page 12 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129ED ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -26dBBandwidthNVNTa 5240MHzAnt2 -26dBBandwidthNVNTn20 5180MHzAnt2 Page 13 of 71 FCCID: 2AVTHHT…

Text truncated - open the document above for the full version.

Page 1 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity AppendixE RF Test Data for 5.8GWIFI(ConductedMeasurement) ProductName:HyundaiMini PC Test Model:HTN4020MPC EnvironmentalConditions Temperature: 23.8  C RelativeHumidity:52.2 % ATM Pressure:10 0.0 kPa Test Engineer:Nick Peng Supervisedby:Li Huan Page 2 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity E.1 -6dB Bandwidth Condition Mode：MIMO Frequency(MHz)Antenna-6 dB Bandwidth(MHz)Limit -6 dB Bandwidth(MHz)Verdict NVNTa5745Ant115.07>=0.5Pass NVNTa5785Ant115.107>=0.5Pass NVNTa5825Ant114.219>=0.5Pass NVNTn205745Ant112.667>=0.5Pass NVNTn205785Ant115.119>=0.5Pass NVNTn205825Ant117.01>=0.5Pass NVNTn405755Ant132.568>=0.5Pass NVNTn405795Ant131.277>=0.5Pass NVNTac205745Ant113.875>=0.5Pass NVNTac205785Ant115.05>=0.5Pass NVNTac205825Ant114.185>=0.5Pass NVNTac405755Ant128.855>=0.5Pass NVNTac405795Ant133.748>=0.5Pass NVNTac805775Ant175.061>=0.5Pass ConditionMode：MIMOFrequency(MHz)Antenna-6 dB Bandwidth(MHz)Limit -6 dB Bandwidth(MHz)Verdict NVNTa5745Ant215.71>=0.5Pass NVNTa5785Ant215.003>=0.5Pass NVNTa5825Ant214.446>=0.5Pass NVNTn205745Ant216.672>=0.5Pass NVNTn205785Ant215.11>=0.5Pass NVNTn205825Ant217.23>=0.5Pass NVNTn405755Ant231.319>=0.5Pass NVNTn405795Ant230.032>=0.5Pass NVNTac205745Ant214.999>=0.5Pass NVNTac205785Ant215.702>=0.5Pass NVNTac205825Ant215.927>=0.5Pass NVNTac405755Ant231.315>=0.5Pass NVNTac405795Ant231.279>=0.5Pass NVNTac805775Ant270.096>=0.5Pass Page 3 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity ANT1: Test Graphs -6dBBandwidthNVNTa 5745MHzAnt1 -6dBBandwidthNVNTa 5785MHzAnt1 Page 4 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTa 5825MHzAnt1 -6dBBandwidthNVNTn20 5745MHzAnt1 Page 5 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTn20 5785MHzAnt1 -6dBBandwidthNVNTn20 5825MHzAnt1 Page 6 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTn40 5755MHzAnt1 -6dBBandwidthNVNTn40 5795MHzAnt1 Page 7 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTac205745MHzAnt1 -6dBBandwidthNVNTac205785MHzAnt1 Page 8 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTac205825MHzAnt1 -6dBBandwidthNVNTac405755MHzAnt1 Page 9 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTac405795MHzAnt1 -6dBBandwidthNVNTac805775MHzAnt1 Page 10 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity ANT2: Test Graphs -6dBBandwidthNVNTa 5745MHzAnt2 -6dBBandwidthNVNTa 5785MHzAnt2 Page 11 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTa 5825MHzAnt2 -6dBBandwidthNVNTn20 5745MHzAnt2 Page 12 of 71 FCCID: 2AVTHHTN4020MPCReportNo. : LCSA070522129EE ShenzhenLCS ComplianceTestingLaboratoryLtd. Add: 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTn20 5785MHzAnt2 -6dBBandwidthNVNTn20 58…

Text truncated - open the document above for the full version.

Page1of41FCCID:2AVTHHTN4020MPCReportNo.:LCSA070522129ED ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For HyundaiTechnologyGroup,Inc. HyundaiMiniPC TestModel:HTN4020MPC Preparedfor:HyundaiTechnologyGroup,Inc. Address:2601WalnutAve.Tustin,California,UnitedStates Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:July18,2022 Numberoftestedsamples:2 SampleNo.:A070522129-1,A070522129-2 Serialnumber:Prototype DateofTest:July18,2022~September28,2022 DateofReport:September28,2022 Page2of41FCCID:2AVTHHTN4020MPCReportNo.:LCSA070522129ED ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15E(15.407) ReportReferenceNo......................:LCSA070522129ED DateofIssue.......................................:September28,2022 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:HyundaiTechnologyGroup,Inc. Address................................................:2601WalnutAve.Tustin,California,UnitedStates TestSpecification Standard..............................................: FCCCFR47PART15E(15.407) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLC…
