2AVTI-INPX400Indoor Positioning Solution

Inpixon Doc No. INPX-DOC Rev.1.2 User Guide, UWB Module– INPX-400 Dated: July 22, 2020 The content of this document is to be treated as strictly confidential and is not to be disclosed, Reproduced or used, except as authorized in writing by Inpixon Copyright © 2020 Inpixon Page 1 of 8 Product User Guide INPX-DOC Revision 1.2 July 22, 2020 Inpixon Doc No. INPX-DOC Rev.1.2 User Guide, UWB Module– INPX-400 Dated: July 22, 2020 The content of this document is to be treated as strictly confidential and is not to be disclosed, Reproduced or used, except as authorized in writing by Inpixon Copyright © 2020 Inpixon Page 2 of 8 Table of Contents Table of Contents ........................................................................................................................ 2 1 General Description ........................................................................................................... 3 2 Features .............................................................................................................................. 3 2.1 Applications .............................................................................................................................. 3 3 System Description ............................................................................................................ 4 4 Disclaimers ......................................................................................................................... 6 5 Ordering Information ....................................................................................................... 7 6 Certifications ...................................................................................................................... 7 7 References ........................................................................................................................... 8 7.1 Contact and Support ................................................................................................................ 8 Inpixon Doc No. INPX-DOC Rev.1.2 User Guide, UWB Module– INPX-400 Dated: July 22, 2020 The content of this document is to be treated as strictly confidential and is not to be disclosed, Reproduced or used, except as authorized in writing by Inpixon Copyright © 2020 Inpixon Page 3 of 8 1 General Description This specification provides general information regarding performance and integration of INPX-400, a complete wireless subsystem featuring UWB capabilities in a small form factor module. The INPX-400 module is designed to simplify the process of adding UWB capability without lengthy design cycles or complex RF design. It is completely tested for functionality and performance along with coexistence with other wireless standards. A full menu of certifications will also be provided, simplifying the certification process for your end product while further reducing valuable time-to-market. Based on world-class silicon from Decawave, the INPX-400 has been fully optimized for throughput and receive sensitivity using careful design practices. Software development resources are available to create and to optimize the wireless subsystem for your application. The specification maximum and minimum limits presented herein are to serve as representative performance characteristics of the INPX-400 when properly designed into a customer’s product. Inpixon makes no warranty, implied or otherwise specified, with respect to design and performance characteristics presented in this specification when used in customer designs. The latest revision of this document supersedes all previous versions of this document. Inpixon reserves the right to change this specification without notice. 2 Features • A single chip wireless transceiver based on UWB techniques compliant with the IEEE802.15.4- 2011 • Fully coherent receiver for maximum range and accuracy • Supports 6 RF bands from 3.5GHz to 6.5GHz • Support TDOA for precise real time location calculation • ROHS Compliant • USB interface (single 5V USB input voltage) • 50-Ohm antenna launch • FCC, IC, and CE Certified radio • Small form factor design 64x23x7.5 mm Applications • Precision real time location systems (RTLS) using TDOA scheme for variety of markets: healthcare, retail, industrial, enterprise, and any indoor RTLS needs. • Location aware wireless sensor network. Inpixon Doc No. INPX-DOC Rev.1.2 User Guide, UWB Module– INPX-400 Dated: July 22, 2020 The content of this document is to be treated as strictly confidential and is not to be disclosed, Reproduced or used, except as authorized in writing by Inpixon Copyright © 2020 Inpixon Page 4 of 8 3 System Description INPX-400 is a complete UWB module. It includes the Decwave1000, STM32 microcontroller, and all the components needed to operate the radio. It supports USB interface for data communication and the power. It requires an external UWB antenna It preserves characteristics from the Decawave1000 chipset while providing optimized system level functionality and performance. 4 Host Product Integration Integrating Inpixon UWB Module The Inpixon UWB Module can be integrated to a host controller via a simple USB interface cable with a 5-pin modular termination and screws to mount the module board. 4.1.1 Connecting to Inpixon UWB Module Inpixon UWB Module features a 5-pin 1.5mm-spaced header that provides integrated USB serial interface. Refer to the PIN Diagram for the 5-pin configuration. Power from USB source (5V) is sufficient to drive the Inpixon UWB Module. 4.1.2 Serial Interface Most modern operating systems would immediately recognize the UWB Module as a serial device, without additional driver installation. Standard 115200/8-N-1 baud rate configuration is used for serial communication with the Inpixon UWB Module. 4.1.3 Application Requirements A UWB device operating under the provisions of this section shall transmit only when it is sending information to an associated receiver. The UWB intentional radiator shall cease t…

Text truncated - open the document above for the full version.

FCC Agent Authorization Letter Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 D ate: 6/4/2020 SU BJECT: FCC Application for FCC ID: _____2AVTI-INPX400___________ To Whom It May Concern: We, the undersigned, hereby authorize _____David Zhang__________ in _____Vista Laboratories, Inc.________ on our behalf, to apply to the Federal Communications Co mmission for our equipment. Any and all acts carried out by ___Vista Laboratories, Inc.________ on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of t he Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, C lient’s signature: Client’s name & title: Amir Tavakoli | Director of Compliance Contact information / address: 7700 Irvine Center Drive#800, Irvine CA92618, USA

F ederal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ___2AVTI-INPX400_ Pursuant to Sections 0.457 and 0.459 of t he Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Type of Confidentiality Requested Exhibit Type ☐Short Term ☒PermanentBlock Diagrams ☒Short TermExternal Photos ☒Short Term☐Permanent*Internal Photos ☐Short Term ☒PermanentOperation Description ☐Short Term ☒PermanentParts List/BOM ☐Short Term ☒PermanentSchematics ☒Short TermTest Setup Photos ☒Short Term☐Permanent*User manual *Requires further justification before permanent confidentiality will be allowed. T he above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for an initial period of 180 days. (45, 90 or 180 days) S incerely, Client’s signature: Client’s name & title: Amir Tavakoli | Director of Compliance Contact information / address: 7700 Irvine Center Drive #800, Irvine CA 92618, USA

2479 East Bayshore Road | Suite 195 | Palo Alto | CA 94303 US www.inpixon.com Letter of Authorization To Whom It May Concern: This letter certifies that Inpixon has engaged the services of GMA LABS LLC to assist Inpixon in filing applications for regulatory approvals on our behalf for the following product: Trademark / Brand: Inpixon Product Names: Inpixon UWB Module, Inpixon 5000, Inpixon 4400 Model(s): INPX-400, INPX-5000, INPX4400 Please direct any correspondence with Inpixon in all matters relating to the applications for regulatory approvals to GMA Labs LLC. Thank you for your assistance in obtaining the corresponding certifications. Adam Benson CTO 06/04/2020

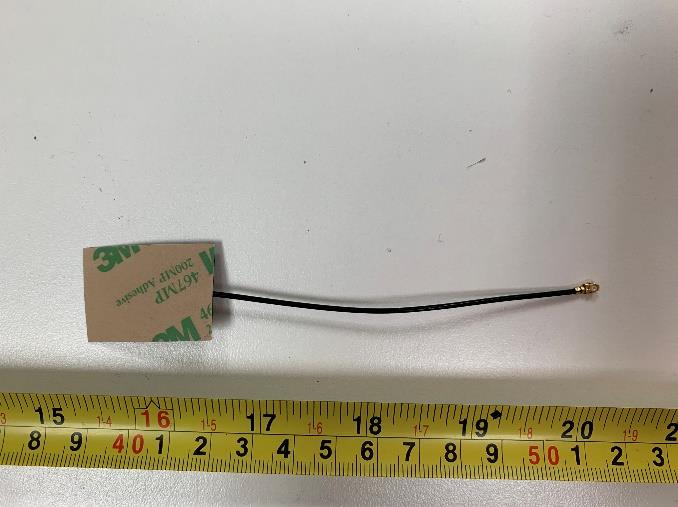

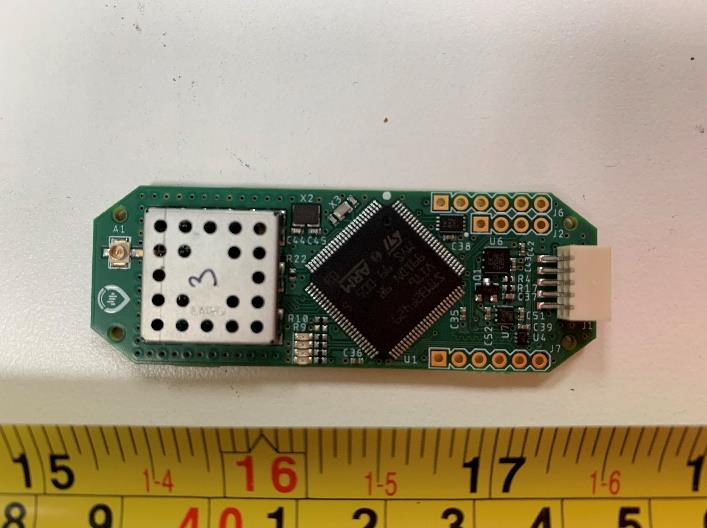

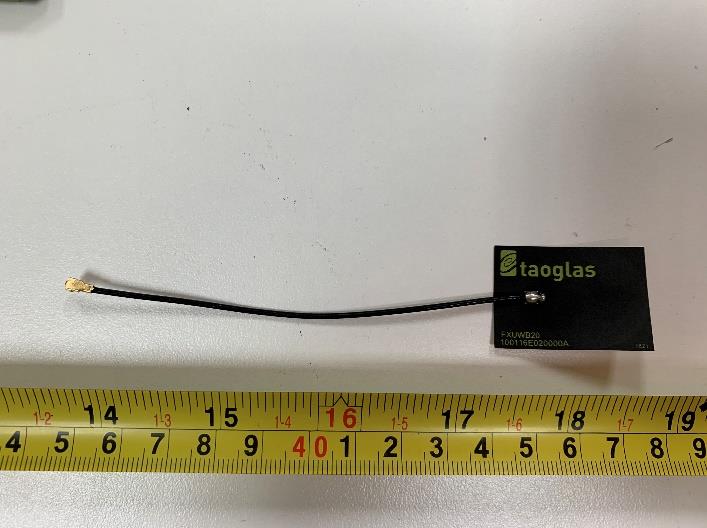

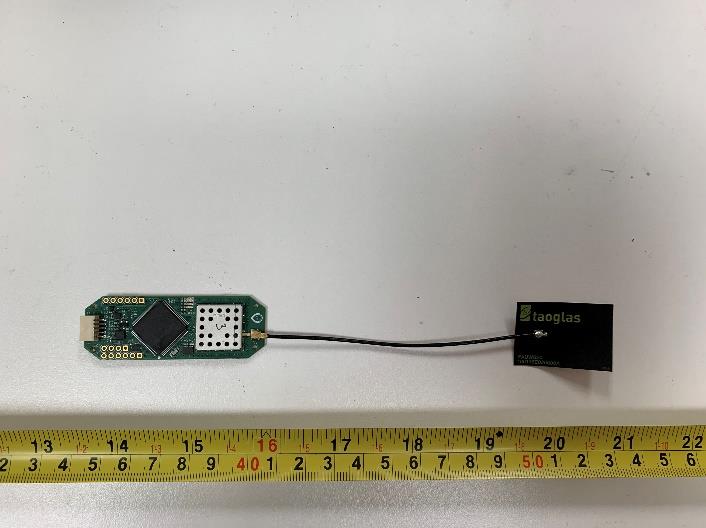

EUT Top View EUT Bottom View Antenna Top View Antenna Bottom View EUT assembly with antenna

lnpixon UWB Module Label - 2AVTI-I N PX400 0.5" lnpixon � UWB Module� Model: :.:: ! ���x 1 ��o : � 2AVTI-INPX400 < }.5" Label: OnlineLabels OL2050LP Weatherproof Polyester Laser - 0.5'' x 0.5'' Small Square/ Half Inch Labels Font (FCC): 4pt Open Sans MFD, UID Font: 3pt Open Sans

EUT Top View EUT Bottom View

Report# GLS-20043021-LC-FCC-RF-R2 Page 42 of 44 7.9 RF Exposure Evaluation 7.9.1 Requirement RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 3240-4830MHz 6215-7000MHz 1) SAR Test Exclusion for <6GHz According to the procedure in KDB447498 (v05r02) section 4.3, 1g-SAR testing is excluded if the following criteria is met. (P/d)* √f ≤3.0 for 1-g SAR 10g-SAR testing is excluded if the following criteria is met. (P/d)* √f ≤7.5 for 10-g SAR Where P is the time averaged maximum conducted power in mW d minimum separation distance in mm f is the frequency in GHz The distance between the antenna and human body is 5 mm. The calculation was based on the distance of 5 mm. Radio Frequency (MHz) Max Radiated Power (dBm) Max Radiated Output Power (mW) Measurement distance (mm) Test Exclusion Threshold Result UWB 3240-4830MHz -2.43 0.571 5 0.251 The above results show that the device is excluded for both standalone 1g-SAR and 10g-SAR testing. 2) MPE Calculation for >6GHz The SAR Test Exclusion Threshold of the guidance is limited only up to 6GHz. According to OET Bulletin 65, the portable device operating at frequencies above 6GHz is evaluated in terms of MPE limits. Radio Frequency (MHz) Max Radiated Power (dBm) Max Radiated Output Power (mW) Separation distance (cm) Power Density (mW/ cm2) MPE Limit (mW/ cm2) UWB 6215-7000 -5.63 0.274 0.5 0.087 1 The above results show that the device complies with the MPE requirement with 5mm separation distance.
