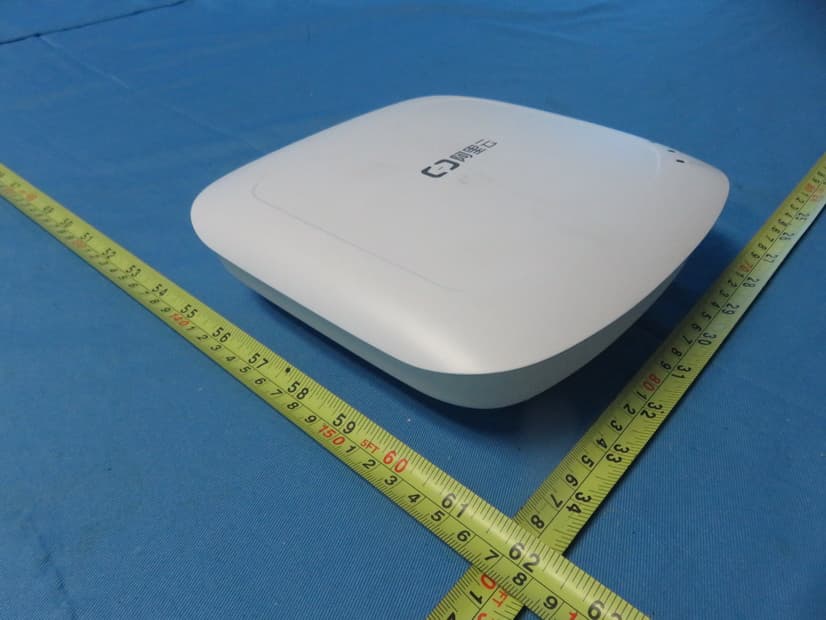

2AVUGAP4220Wireless LAN Access Point

– 1 – Install the AP a. Install it on the Wall 1. Rotate the bracket onto the T-bar of the ceiling. 2. Push the AP toward the bracket until it snaps into place. Connect Cables 1. Connect the external cable to the WAN/POE port. 2. Connect the local LAN switch or computer cable to the LAN port. 1 2 1. AP4220 access point 2. 3.One pack of screws 2 4 3 1 Quick Start Guide 2. Push the AP toward the bracket until it snaps into place. One mounting bracket 4 . Package Contents 150200002019H R04 2 Mode 2: First insert the mounting bracket into the AP then insert the Docume ntation— Quick Start Guide (this document ), Warning: For indoor use only. The access point and all 1. Fix two screws on the wall and 110 mm apart. 2. Slide the AP’S wall mounting slots down onto the screws so b. Install it on the Ceiling T-Bar d. Install it on the Ceiling Bracket Mode 1: The hole on the back of the access point is threaded into the cable tie, and secured to the water pipe at the top. connected cables are not suitable for outdoor use. Certificate and Warranty card that the unit is secure. at the top position. 1. Use the included screws to attach the mounting bracket to the wall. c. Install it with Cable Ties (with or without bracket) AP4220 Wireless Access Point Quick Start Guide – 2 – Size(WxDxH) 191.0x195.0x43.5mm Weight360g TemperatureWorking˖0° C to 45° C Storage: -20° C to 60° C Humidity5 % to 95% (No-condensation) 2.4 GHz Radio IEEE 802.11b/g/n 5 GHz Radio IEEE 802.11a/ac/n POEWAN port support s POE, 802.3af/at power supply 1 GE LAN portSupport 10/100/1000Mbps 1 GE WAN portSupport 10/100/1000Mbps 1 Console RJ45 port 1 USB2.0 port5V/500mA Check AP LED 1. Power LED— green means normal operation. 2. 2G-WiFi and 5G-WiFi LEDs — green means radio enabled. 3 1 Default button Port Description NOMOR:63194/SDPPI/2019 HIDF16000136 ALIBABA CLOUD CON{PUTING CO., LTD Bt74t040919AE0lA2 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. – 1 – ᆹ㻵᧕ޕ⛩ a.൘້кᆹ㻵 1.⭘єњ㷪эപᇊ൘້кˈ㷪䪹䰤؍ᤱ110 mm 䐍⿫DŽ 2.ሶ᧕ޕ⛩Ⲵ໱ᤲ‭ੁл━ࣘࡠ㷪䪹ˈԕ֯䇮༷⢒പDŽ b.൘਺㻵 T රᵶкᆹ㻵 1.ሶ᭟ᷦ঑᯻䖜䘋਺亦Ⲵ7රᵶкDŽ 2.ሶ᧕ޕ⛩ੁ᭟ᷦᯩੁ᧘ˈⴤࡠ ަ⢒പ঑ᢓࡠսDŽ 䘎᧕㓯㔶 1.ሶཆ䜘㓯㔶䘎᧕ࡠWAN/POEਓDŽ 2.ሶᵜൠ LAN Ӕᦒᵪᡆ䇑㇇ᵪ㓯㔶䘎᧕ࡠLANਓDŽ 䆖੺˖ ӵ䲀൘ᇔ֯޵⭘DŽ᧕ޕ⛩઼ᡰᴹ䘎᧕Ⲵ㓯㔶н 䘲ਸ൘ᇔཆ֯⭘DŽ 1 1.AP4220ᰐ㓯᧕ޕ⛩ 2. 3.1व㷪䪹 ᮷ẓ — ᘛ䙏ޕ䰘ᤷই (ᵜ᮷ẓ) $3ᰐ㓯᧕ޕ⛩ 2 4 3 1 ᘛ䙏ޕ䰘ᤷই d.൘਺亦᭟ᷦкᆹ㻵 ֯⭘䱴ᑖⲴ㷪䪹ሶ਺亦 ᭟ᷦᆹ㻵ࡠ້кDŽ 2.ሶ᧕ޕ⛩ੁ᭟ᷦᯩੁ᧘ˈⴤަࡠ⢒പ঑ᢓࡠսDŽ 1 4. व㻵␵অ 150200002019H R04 c.᡾ᑖപᇊᆹ㻵 ᑖ᭟ᷦᡆ㘵нᑖ᭟ᷦ˅ 2 ᯩᔿҼ˖ݸሶᆹ㻵᭟ᷦ঑ޕ᧕ޕ⛩ˈ❦ਾ൘᭟ᷦⲴമ皮ս㖞クޕ ᡾ᑖᒦሶ᧕ޕ⛩പᇊ൘亦䜘Ⲵս㖞DŽ ਸṬ䇱 ঑؞؍ ઼ ᯩᔿа˖᧕ޕ⛩㛼䶒Ⲵᆄクޕ᡾ᑖˈപᇊ൘亦䜘Ⲵ≤㇑кDŽ 2 1. ᘛ䙏ޕ䰘ᤷই – 2 – ⺜Ԧ㿴Ṭ ቪረ (WxDxH)191.0x195.0x43.5mm 䟽䟿360g ⑙ᓖᐕ֌˖0° C ࡠ 45° C ᆈۘ˖-20° Cࡠ60° C (t)ᓖ5% ࡠ95% ˅ࠍߧ˄ᰐ 2.4 GHz ᰐ㓯⭥ IEEE 802.11b/g/n 5 GHz ᰐ㓯⭥ IEEE 802.11a/ac/n POEWANPOE802.3af/at ㄟਓ䈤᰾ 1њGE LANਓ᭟ᤱ10/100/1000Mbps   1њGE WANਓ᭟ᤱ10/100/1000Mbps 1њConsole RJ45᧕ਓ 1њUSB2.0᧕ਓ5V/500mA 1њ༽ս᤹䫞 Ựḕ AP LED  LED — Ӟ㔯⚟㺘皮↓ᑨᐕ֌DŽ 2G-WiFi ઼ 5G-WiFi LED —Ӟ㔯⚟㺘皮ᰐ㓯䙊䇟ᐢ੟⭘DŽ 3 NOMOR:63194/SDPPI/2019 HIDF16000136 ALIBABA CLOUD CON{PUTING CO., LTD Bt74t040919AE0lA2 ⭥Ⓚ ↔䇮༷ᅨਸ)&&㿴ࡉᅮ䜘࠶Ⲵ㾱≲DŽ᫽֌享ᅨਸԕлєњᶑԦ˖ ˄˅↔䇮༷ਟ㜭нՊ䙐ᡀᴹᇣᒢᢠDŽ ˄˅↔䇮༷ᗵ享᧕ਇ᧕᭦ࡠⲴԫօᒢᢠˈवᤜਟ㜭ሬ㠤᜿ཆ ᫽֌ⲴᒢᢠDŽ 㚄䛖䙊ؑငઈՊ༠᰾ ṩᦞ㚄䛖䙊ؑငઈՊ㿴ࡉᅮ䜘࠶Ⲵ㿴ᇊˈ䈕䇮༷㓿䗷⍻䈅ˈ ᅨਸ%㊫ᮠᆇ䇮༷Ⲵ䲀ࡦDŽ䘉Ӌ䲀ࡦᰘ൘ᨀ׋ਸ⨶Ⲵ؍ᣔˈ 䱢→տᆵ䇮ᯭਇࡠᴹᇣᒢᢠDŽᵜ䇮༷ӗ⭏ǃ֯⭘઼䗀ሴሴ仁 㜭䟿ˈྲ᷌н᤹➗䈤᰾ᆹ㻵઼֯⭘ˈਟ㜭ሩᰐ㓯⭥䙊ؑ䙐ᡀ ᴹᇣᒢᢠDŽ նᱟˈн㜭؍䇱൘⢩ᇊᆹ㻵ѝнՊਁ⭏ᒢᢠDŽྲ᷌ᵜ䇮༷⺞ᇎ ሩᰐ㓯⭥ᡆ⭥㿶᧕᭦䙐ᡀᴹᇣᒢᢠ˄ਟ䙊䗷ޣ䰝઼ᢃᔰ䇮༷ᶕ ⺞ᇊ˅ˈࡉ啃࣡⭘ᡧቍ䈅䙊䗷ԕла⿽ᡆཊ⿽᧚ᯭᶕ㓐↓ᒢᢠ˖ 䟽ᯠᇊੁᡆ䟽ᯠᇊս᧕᭦ཙ㓯DŽ ໎࣐䇮઼༷᧕᭦ಘѻ䰤Ⲵ䰤䳄DŽ ሶ䇮༷䘎᧕ࡠо᧕᭦ಘ䘎᧕⭥䐟н਼Ⲵ⭥䐟кⲴᨂᓗDŽ 䈧૘䈒㓿䬰୶ᡆᴹ㓿傼Ⲵᰐ㓯⭥⭥㿶ᢰᵟӪઈԕ㧧ᗇᑞࣙDŽ )&&䗀ሴ᳤䵢༠᰾ 䈕㻵㖞ᅨਸ)&&䗀ሴ᳤䵢䲀٬ˈ䈕䲀٬ᱟ䪸ሩ䶎ਇ᧗⧟ໍາ㘼ࡦ ᇊⲴˈ਼ᰦҏᅨਸ)&&ሴ仁㿴ࡉᅮ䜘࠶Ⲵ㾱≲DŽᵜ䇮༷ᗵ享 ᤹➗ᨀ׋Ⲵ䈤᰾䘋㹼ᆹ㻵઼᫽֌ˈф⭘ҾᵜਁሴᵪⲴཙ㓯ᗵ享 оᡰᴹӪ؍ᤱ㠣ቁৈ㊣Ⲵ䐍⿫ˈфнᗇоԫօަԆཙ㓯ᡆ ਁሴᵪа䎧ᆹ㻵ᡆ᫽֌DŽᗵ享ੁᴰ㓸⭘ᡧ઼ᆹ㻵Ӫઈᨀ׋ཙ㓯 ᆹ㻵䈤᰾ˈᒦ㘳㲁ࡐ䲔Ā韋→ᩝ䝽ā䈝ਕDŽ ⌘᜿ᆹޘ ᵚ㓿ਸ㿴ᯩ᰾⺞ᢩ߶Ⲵԫօਈᴤᡆ؞᭩ਟ㜭Պ֯⭘ᡧ᫽֌ 䇮༷Ⲵᵳ䲀ཡ᭸DŽ

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2020-03-23> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVUGAP4220 AP4220 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely,

Report No.: 1903C114A Page 2 of 13 Report No.: 1903C114A Page 3 of 13

03.25.20 03.25.20 246000002439H04 UL LABEL EAP7206AW2-0918-A1 AP4220 增加越南认证标识等 Ver.04

Report No.: 1903C114A Page 4 of 13 2.4G&5G Ant. 2 2.4G&5G Ant. 1 LE Antenna Report No.: 1903C114A Page 5 of 13 Report No.: 1903C114A Page 6 of 13 Report No.: 1903C114A Page 7 of 13 Report No.: 1903C114A Page 8 of 13 Report No.: 1903C114A Page 9 of 13 Report No.: 1903C114A Page 10 of 13 Report No.: 1903C114A Page 11 of 13 Report No.: 1903C114A Page 12 of 13 Report No.: 1903C114A Page 13 of 13

Report No.: BTL-FCCP-4-1903C114A Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: 2AVUGAP4220 Project No. : 1903C114A Equipment : Wireless LAN Access Point Brand Name : Alibaba Cloud Test Model : AP4220 Series Model : N/A Applicant : Alibaba Cloud Comuting Co.,Ltd Address : Building 8, No.16, Zhuan Tang Jing Ji Qu Kuai, Xihu District,Hangzhou, Zhejiang, China Manufacturer : Alibaba Cloud Comuting Co.,Ltd Address : Building 8, No.16, Zhuan Tang Jing Ji Qu Kuai, Xihu District,Hangzhou, Zhejiang, China Factory : Joy Technology (ShenZhen) Corporation Address : HengKeng Ind., Shangpai, Shangwu,Aiqun Rd., Shiyan Town,Shenzhen 518108 China Date of Receipt : Jan. 08, 2020 Date of Test : Jan. 08, 2020 ~ Jan. 15, 2020 Issued Date : Apr. 14, 2020 Report Version : R01 Test Sample : Engineering Sample No.: D190302460 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chay Cai Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-4-1903C114A Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 07, 2020 R01 Modified the comments of TCB. Apr. 14, 2020 Report No.: BTL-FCCP-4-1903C114A Page 3 of 4 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For LE: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Internal N/A 4.7 For 2.4G: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Internal N/A 5.8 2 N/A N/A Internal N/A 5.8 Note: 1. This EUT supports MIMO 2X2, any transmit signals are correlate with each other, so Directional gain = G ANT +10log(N)dBi, that is Directional gain=5.8+10log(2)dBi=8.8; So, the output power limit is 30-8.8+6=27.2 0, t he power density limit is 8-8.8+6=5.2. 2. Beamformign gain = 3dBi. So Directional gain= 5.8+3=8.8dBi. So, the output power limit is 30-8.8+6=27.2 0, t he power density limit is 8-8.8+6=5.2. For 5G: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Internal N/A 5.5 2 N/A N/A Internal N/A 5.5 Note: 1. This EUT supports MIMO 2X2, any transmit signals are correlate with each other, so Directional gain = G ANT +10log(N)dBi, that is Directional gain=5.5+10log(2)dBi=8.5; So, the out power limit for UNII-1 and UNII-3 is 30-8.5+6=27.50, the power density limit for UNII-1 is 17-8.5+6=14.5, for UNII-3 is 30-8.5+6=27.50 2. Beamformign gain = 3dBi. So Directional gain= 5.5+3=8.5dBi, So, the out power limit for UNII-1 and UNII-3 is 30-8.5+6=27.50, the power density limit for UNII-1 is 14-8.5+6=11.5, for UNII-3 is 30-8.5+6=27.50 Report No.: BTL-FCCP-4-1903C114A Page 4 of 4 2. TEST RESULTS For LE: Antenna Gain (dBi) Antenna Gain (numeric) Max. Peak Output Power (dBm) Max. Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.70 1.8621 9.00 7.9433 0.00294 1 Complies For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.80 7.5858 23.00 199.5262 0.30127 1 Complies For 5GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.5 7.0795 23.00 199.5262 0.28116 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result LE 2.4GHz 5GHz 0.00294 0.30127 0.28116 0.585 1 Complies Note: (1) The calculated distance is 20 cm. (2) Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-3-1903C114A Page 1 of 355 FCC Radio Test Report FCC ID: 2AVUGAP4220 This report concerns: Original Grant Project No. : 1903C114A Equipment : Wireless LAN Access Point Brand Name : Alibaba Cloud Test Model : AP4220 Series Model : N/A Applicant : Alibaba Cloud Comuting Co.,Ltd Address : Building 8, No.16, Zhuan Tang Jing Ji Qu Kuai, Xihu District,Hangzhou, Zhejiang, China Manufacturer : Alibaba Cloud Comuting Co.,Ltd Address : Building 8, No.16, Zhuan Tang Jing Ji Qu Kuai, Xihu District,Hangzhou, Zhejiang, China Factory : Joy Technology (ShenZhen) Corporation Address : HengKeng Ind., Shangpai, Shangwu,Aiqun Rd., Shiyan Town,Shenzhen 518108 China Date of Receipt : Jan. 08, 2020 Date of Test : Jan. 08, 2020 ~ Apr. 13, 2020 Issued Date : Apr. 14, 2020 Report Version : R01 Test Sample : Engineering Sample No.: D190302460 Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chay Cai Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-1903C114A Page 2 of 355 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-3-1903C114A Page 3 of 355 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 11 2.3 TABLE OF PARAMETERS OF TEST SOFTWARE SETTIING 13 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 16 2.5 DESCRIPTION OF SUPPORT UNITS 16 3 . EMC EMISSION TEST 17 3.1 AC POWER LINE CONDUCTED EMISSIONS MEASUREMENT 17 3.1.1 LIMIT 17 3.1.2 TEST PROCEDURE 17 3.1.3 DEVIATION FROM TEST STANDARD 17 3.1.4 TEST SETUP 18 3.1.5 EUT OPERATING CONDITIONS 18 3.1.6 TEST RESULTS 18 3.2 RADIATED EMISSION MEASUREMENT 19 3.2.1 RADIATED EMISSION LIMITS 19 3.2.2 TEST PROCEDURE 20 3.2.3 DEVIATION FROM TEST STANDARD 20 3.2.4 TEST SETUP 20 3.2.5 EUT OPERATING CONDITIONS 22 3.2.6 TEST RESULTS (9K TO 30MHz) 22 3.2.7 TEST RESULTS (30 MHz TO 1000 MHz) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHz) 22 4 . 26dB SPECTRUM BANDWIDTH 23 4.1 LIMIT 23 4.1.1 TEST PROCEDURE 23 4.1.2 DEVIATION FROM STANDARD 23 4.1.3 TEST SETUP 23 4.1.4 EUT OPERATION CONDITIONS 23 4.1.5 TEST RESULTS 23 5 . MAXIMUM OUTPUT POWER 24 5.1 LIMIT 24 5.1.1 TEST PROCEDURE 24 Report No.: BTL-FCCP-3-1903C114A Page 4 of 355 Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 24 5.1.3 TEST SETUP 24 5.1.4 EUT OPERATION CONDITIONS 24 5.1.5 TEST RESULTS 24 6 . POWER SPECTRAL DENSITY TEST 25 6.1 LIMIT 25 8.1.1 TEST PROCEDURE 25 6.1.1 DEVIATION FROM STANDARD 25 6.1.2 TEST SETUP 25 6.1.3 EUT OPERATION CONDITIONS 26 6.1.4 TEST RESULTS 26 7 . FREQUENCY STABILITY MEASUREMENT 27 7.1 LIMIT 27 7.1.1 TEST PROCEDURE 27 7.1.2 DEVIATION FROM STANDARD 27 7.1.3 TEST SETUP 27 7.1.4 EUT OPERATION CONDITIONS 27 7.1.5 TEST RESULTS 27 8 . MEASUREMENT INSTRUMENTS LIST 28 9 . EUT TEST PHOTO 30 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 34 APPENDIX B - RADIATED EMISSION (9KHZ TO 30MHZ) 39 APPENDIX C - RADIATED EMISSION (30MHZ TO 1000MHZ) 44 APPENDIX D - RADIATED EMISSION (ABOVE 1000MHZ) 57 APPENDIX E - BANDWIDTH 178 APPENDIX F - MAXIMUM OUTPUT POWER 201 APPENDIX G - POWER SPECTRAL DENSITY 228 APPENDIX H - FREQUENCY STABILITY 353 Report No.: BTL-FCCP-3-1903C114A Page 5 of 355 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 07, 2020 R01 Modified the comments of TCB. Apr. 14, 2020 Report No.: BTL-FCCP-3-1903C114A Page 6 of 355 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgement Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.407(b) 15.205(a) 15.209(a) Radiat…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-1903C114A Page 194 of 355 TX CH38 TX CH46 Report No.: BTL-FCCP-3-1903C114A Page 195 of 355 Test Mode: UNII-1/TX AC Wave80 Mode_CH42 Channel Frequency (MHz) 26dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) CH42 5210 83.40 76.00 TX CH42 Report No.: BTL-FCCP-3-1903C114A Page 196 of 355 Test Mode: UNII-3/ TX AC Wave20 Mode_CH149/CH157/CH165 Channel Frequency (MHz) 6dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) Limit (kHz) CH149 5745 17.65 17.60 >=500 CH157 5785 17.65 17.60 >=500 CH165 5825 17.65 17.70 >=500 TX CH 149 Report No.: BTL-FCCP-3-1903C114A Page 197 of 355 TX CH 157 TX CH 165 Report No.: BTL-FCCP-3-1903C114A Page 198 of 355 Test Mode: UNII-3/ TX AC Wave40 Mode_CH151/CH159 Channel Frequency (MHz) 6dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) Limit (kHz) CH151 5755 36.00 36.20 >=500 CH159 5795 36.00 36.20 >=500 Report No.: BTL-FCCP-3-1903C114A Page 199 of 355 TX CH 151 TX CH 159 Report No.: BTL-FCCP-3-1903C114A Page 200 of 355 Test Mode: UNII-3/ TX AC Wave80 Mode_CH155 Channel Frequency (MHz) 6dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) Limit (kHz) CH155 5775 72.79 76.00 >=500 TX CH 155 Report No.: BTL-FCCP-3-1903C114A Page 201 of 355 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-3-1903C114A Page 202 of 355 For 1TX Test Mode: UNII-1/TX A Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH36 5180 19.87 0.15 20.02 30.00 1.00 CH40 5200 19.79 0.15 19.94 30.00 1.00 CH48 5240 19.82 0.15 19.97 30.00 1.00 Test Mode: UNII-1/TX N20 Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH36 5180 19.84 0.07 19.91 30.00 1.00 CH40 5200 19.64 0.07 19.71 30.00 1.00 CH48 5240 19.74 0.07 19.81 30.00 1.00 Test Mode: UNII-1/TX N40 Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH38 5190 17.82 0.21 18.03 30.00 1.00 CH46 5230 17.69 0.21 17.90 30.00 1.00 Report No.: BTL-FCCP-3-1903C114A Page 203 of 355 Test Mode: UNII-3/ TX A Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH149 5745 19.91 0.15 20.06 30.00 1.00 CH157 5785 19.85 0.15 20.00 30.00 1.00 CH165 5825 19.83 0.15 19.98 30.00 1.00 Test Mode: UNII-3/TX N20 Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH149 5745 19.83 0.07 19.90 30.00 1.00 CH157 5785 19.64 0.07 19.71 30.00 1.00 CH165 5825 19.77 0.07 19.84 30.00 1.00 Test Mode: UNII-3/ TX N40 Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH151 5755 17.69 0.21 17.90 30.00 1.00 CH159 5795 17.73 0.21 17.94 30.00 1.00 Report No.: BTL-FCCP-3-1903C114A Page 204 of 355 Test Mode: UNII-1/TX AC Wave20 Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH36 5180 19.28 0.57 19.85 30.00 1.00 CH40 5200 19.34 0.57 19.91 30.00 1.00 CH48 5240 19.46 0.57 20.03 30.00 1.00 Test Mode: UNII-1/TX AC Wave40 Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH38 5190 17.17 1.09 18.26 30.00 1.00 CH46 5230 17.21 1.09 18.30 30.00 1.00 Test Mode: UNII-1/TX AC Wave80 Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH42 5210 17.06 0.86 17.92 30.00 1.00 Report No.: BTL-FCCP-3-1903C114A Page 205 of 355 Test Mode: UNII-3/TX AC Wave20 Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH149 5745 19.66 0.57 20.23 30.00 1.00 CH157 5785 19.51 0.57 20.08 30.00 1.00 CH165 5825 19.83 0.57 20.40 30.00 1.00 Test Mode: UNII-3/TX AC Wave40 Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH151 5755 17.25 1.09 18.34 30.00 1.00 CH159 5795 17.36 1.09 18.45 30.00 1.00 Test Mode: UNII-3/TX AC Wave80 Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH155 5775 17.21 0.86 18.07 30.00 1.00 Report No.: BTL-FCCP-3-1903C114A Page 206 of 355 For 2TX Test Mode: UNII-1/TX A Mode_ANT 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH36 5180 19.58 0.15 19.73 27.50 0.56 CH40 5200 19.84 0.15 19.99 27.50 0.56 CH48 5240 19.61 0.15 19.76 27.50 0.56 Test Mode: UNII-1/TX A Mode_ANT 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH36 5180 19.65 0.15 19.80 27.50 0.56 CH40 5200 19.77 0.15 19.92 27.50 0.56 CH48 5240 19.52 0.15 19.67 27.50 0.56 Test Mode: UNII-1/TX A Mode_Total Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH36 5180 22.78 27.50 0.56 CH40 5200 22.97 27.50 0.56 CH48 5240 22.73 27.50 0.56 Report No.: BTL-FCCP-3-1903C114A Page 207 of 355 Test Mode: UNII-1/TX N20 Mode_ANT 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH36 5180 19.46 0.07 19.53 27.50 0.56 CH40 5200 19.62 0.07 19.69 27.50 0.56 CH48 5240 19.58 0.07 19.65 27.50 0.56 Test Mode: UNII-1/TX N20 Mode_ANT 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH36 5180 19.31 0.07 19.38 27.50 0.56 CH40 5200 19.42 0.07 19.49 27.50 0.56 CH48 5240 19.28 0.07 19.35 27.50 0.56 Test Mode: UNII-1/TX N20 Mode _Total Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH36 5180 22.47 27.50 0.56 CH40 5200 22.60 27.50 0.56 CH48 5240 22.51 27.50 0.56 Report No.: BTL-FCCP-3-1903C114A Page 208 of 355 Test Mode: UNII-1/TX N40 Mode_ANT 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Limit (dBm) Limit (Watt) CH38 5190 17.01 0.21 17.…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-1903C114A Page 29 of 350 9. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-3-1903C114A Page 30 of 350 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-3-1903C114A Page 31 of 350 Radiated Emissions Test Photos 30 MHz to 1000 MHz Report No.: BTL-FCCP-3-1903C114A Page 32 of 350 Radiated Emissions Test Photos Above 1 GHz
