2AVVZ-MSA01Mobile Assistant

User Manual 1) Device layout Power button: Switch device on/off SIM Card slot: Insert nano-sim card TYPE-C connector: To charge this device Headphone jack: 3.5mm Headphone jack for headphones(Temporarily not open / use when holding) USBConnector: To charge a mobile phone Volumn button: To adjust volumn Translation Buton: Press to translate 2) Power ON/OFF Power ON: Press and hold the "Power button" for 2 seconds. The screenlights up and the animation on screenindicates that the device is turned on, system will boot to MSA User Interface. Power OFF: Press and hold the "Power button" for 2 seconds, the screen will show "Shutdown" or "Restart". Select "Shutdown", the screen turn off indicates that the machine has been shut down. Restart: Press and hold the "Power button" for 2 seconds, the screen will show "Shutdown" or "Restart". Select "Restart", the screen will turn offand lights up again, the animation on screen indicates that device is restarting, system will boot to MSA user Interface. 3) Connecting to Internet Built-in virtual SIM card for network connection: Wait for network signal on the upper right corner after power on. The network connected successfully when the signal shows "4G". SIM card slot: Please power off the device, Insert the nano-sim card, and then turn on the device. The network is connected successfully if the network signal on the upper right corner shows “4G”. If you insert the nano-sim card during device power-on state, please restart the device and wait for the network signal shows “4G”. 4) Voice Translation Select"Voice Translation" feature and choose the languages to be translate. Press and hold the "Translation button" to speak, and release the button after speaking, the screen will display the original text, translate it into the corresponding language, and broadcast the translated language. Click on the "small speaker" icon of the translated sentence to listen to the translation again. 5) Group Chat Translation To create group chat:Select “Group chat” feature, press “Create” button, select your own language. Inform group chat members about the “Group number”on the top left corner to join the meeting. To join the meeting: Insert the corresponding “Group number”given by group creator, click the "Join" button, select your own language, check the corresponding group number is shown on the top left corner, you have successfully joined the group meeting. To speak, press and hold the "translation button" on the side and speak, release the button after you have finished speaking. Everyone's speech in the group will be translated into the language of your choice. What you say is also translated into the language of others' choice. 6) Presentation Mode （β） To create a speech: Select "Presentation Mode (β)" feature, choose "Create" button, and select your own language. Inform all audiences about the “Room number”on the top left corner to join the presentation. To join the lecture: Enter the number corresponding “Room number”, click "Join" button, select your own language, check the correctroom number shown on the top left corner, and you have successfully joined the lecture. The device used to createand start a presentation room is the “default speaker”, and ONLY this device can perform voice input. Press the "Translate button" on the side to start recording, the speaker can start speaking, and the device recognizes and translates. When you wish to stop record and translate, simply press the "Translate button" again to “pause” the recording. All the speaker’s speech will be translated into the choosen language on audience’s device. 7) Camera Translation Select the “Camera Translation” feature and then choose the language to be translate on the top. Point the camera to the content you wish to translate, click the "Capture" button below, choose "Confirm" button to start the translation for the picture. If the picture is blurred, you can choose to take another shot. Cameratranslation recognizes standard fonts text better, artistic or hand written fonts may not recognizes correctly. Settings To Adjust the volume: Drag the Volume bar left or right to adjust your desired volume level. To Adjust the brightness: Drag the Brightness bar left or right to adjust your desired brightness level. To Change the system language: Select “System Language”, and then choose your language needed. Currently only supports Simplified Chinese, Traditional Chinese, English, Japanese and Korean. ToUpdate: Select "Check Version", and the system will automatically search for a newer version. System will start to download if new update found, please follow the installation prompt after the download is complete and click Install. About: Device IMEI number and battery level information. FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorie…

Text truncated - open the document above for the full version.

Company Name: Shenzhen CO-ME Technology Co., Ltd. Address: ，， Room 201 A block #1 1st Qian Wan Road, Qianhai Shenzhen and Hong Kong cooperation Shenzhen China TEL: 18688965668 F A X: 07 55-88601724 Attestation Letter 2020-03-26 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 Dear Sir or Madam: We, Shenzhen CO-ME Technology Co., Ltd. Have a product Mobile Assistant Model name: MSA 01, FCC ID: 2AVVZ-MSA01 The chip MT6739V, installed in our product ,support Bluetooth launch function, but for the purpose of marketing, it has been shielded by software . The chip MT6739V, installed in our product ,supports Wifi transmit and receiving function. But for the purpose of marketing, it has been shielded by software . The c hip MT6739V, installed in our product ,supports 2G/3G. But for the purpose of marketing, i t has been shielded by software . The chip MT6739 V, installed in our product ,supports other 4G bands besides band2/4/12. But for the purpose of marketing, they have been shielded by software . Headphone jack: 3.5mm Headphone jack for headphones(Temporarily not open / use when holding) Sincerely, Signature: Printed Name: zhen zhang Title: Managing Director

Shenzhen CO-ME Technology Co., Ltd. ADD: Room 201, A block, #1 1st Qian Wan Road, Qianhai Shenzhen and Hong Kong cooperation Shenzhen China Tel: +8618688965668 Fax: 0755-88601724 E-mail: [email protected] FCC Confidential Authorization Date: 2020-04-08 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AVVZ-MSA01 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, （Shenzhen CO-ME Technology Co., Ltd.）, hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description Parts List/Tune up procedure The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Print Name: zhen zhang Title: Managing director 

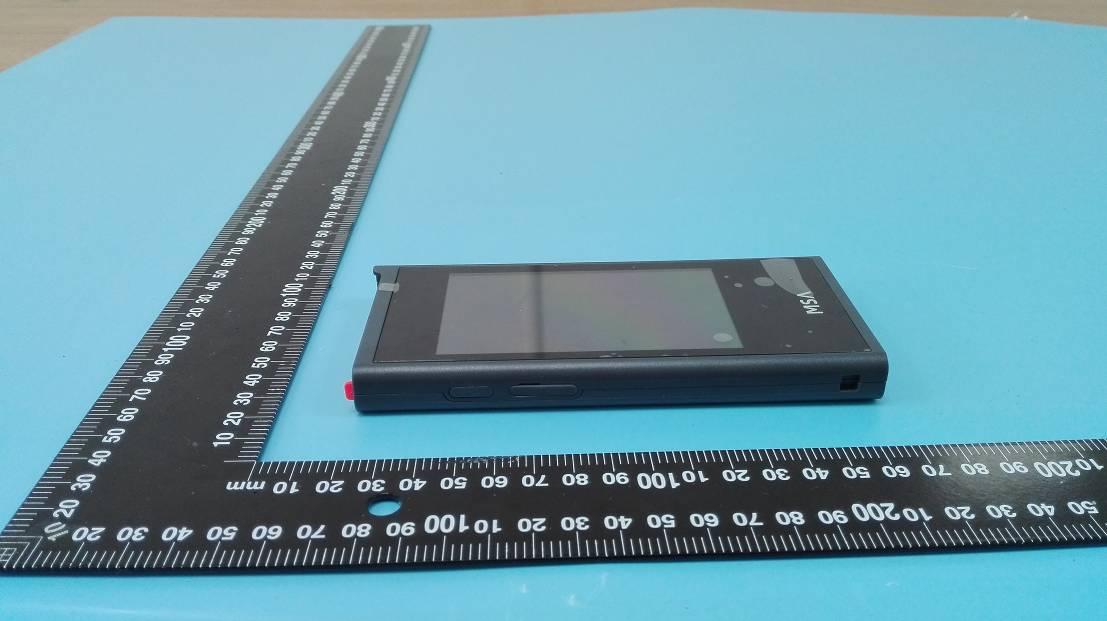

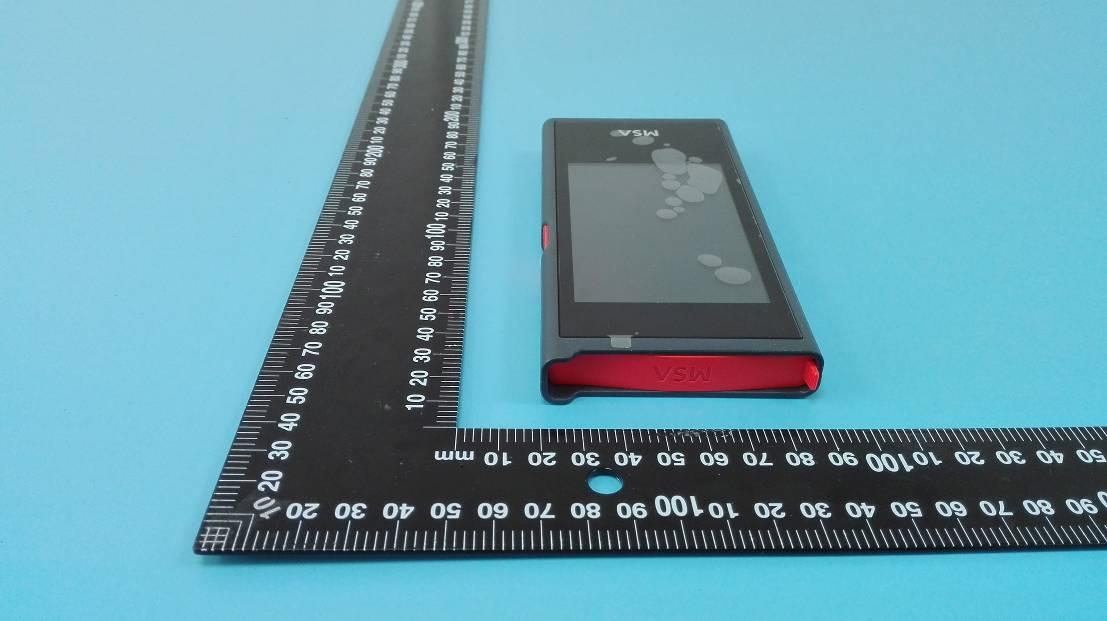

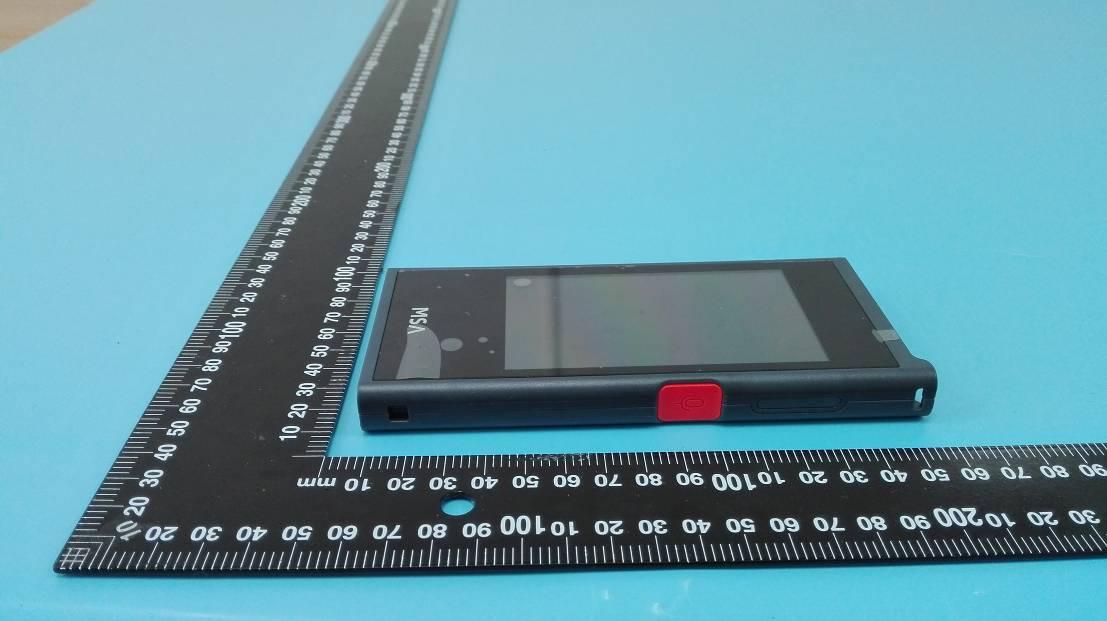

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Main Antenna DIV Antenna

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. SAR EVALUATION REPORT For Shenzhen CO-ME Technology Co., Ltd. Room 201, A block, #1 1st Qian Wan Road, Qianhai Shenzhen and Hong Kong cooperation district, Shen Zhen China FCC ID: 2AVVZ-MSA01 R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e : M o b i l e A s s i s ta n t Report Number: RSZ200120813-SAB Report Date: 2020-04-15 Reviewed By: Alvin Huang Lab Manager Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120813-SAB SAR Evaluation Report 2 of 47 Attestation of Test Results EUT Information EUT Description Mobile Assistant Tested Model MSA 01 FCC ID 2AVVZ-MSA01 Serial Number RSZ200120813-SA-S1 Test Date 2020-03-27 to 2020-03-28 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) LTE Band 2 1g Face up SAR 0.09 1.6 LTE Band 4 1g Face up SAR 0.05 LTE Band 12 1g Face up SAR 0.05 LTE Band 2 10g Handheld SAR 1.76 4.0 LTE Band 4 10g Handheld SAR 0.75 LTE Band 12 10g Handheld SAR 0.19 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120813-SAB SAR Evaluation Report 3 of 47 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION ................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES ................................................................................................. 6 SAR LIMITS ................................................................................................................................................................ 7 FACILITIES ................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION ................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION .......................................................................................................................... 18 SAR SYSTEM VALIDATION DATA ...................................................................................................................... 19 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 22 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ....................................................................... 22 CHEEK/TOUCH POSITION .......................................................................................................................................... 23 EAR/TILT POSITION ...........................................................................................…
