2AVWT-GENPPF

Portrait Displays, Inc

PatternForge

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Apr 26, 2020
Application Purpose: Original Equipment
Date of Application: Apr 26, 2020
Equipment Note: PatternForge
Frequency Range: 2412.00000000 - 2462.00000000
Company: Portrait Displays, Inc
Country: United States

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

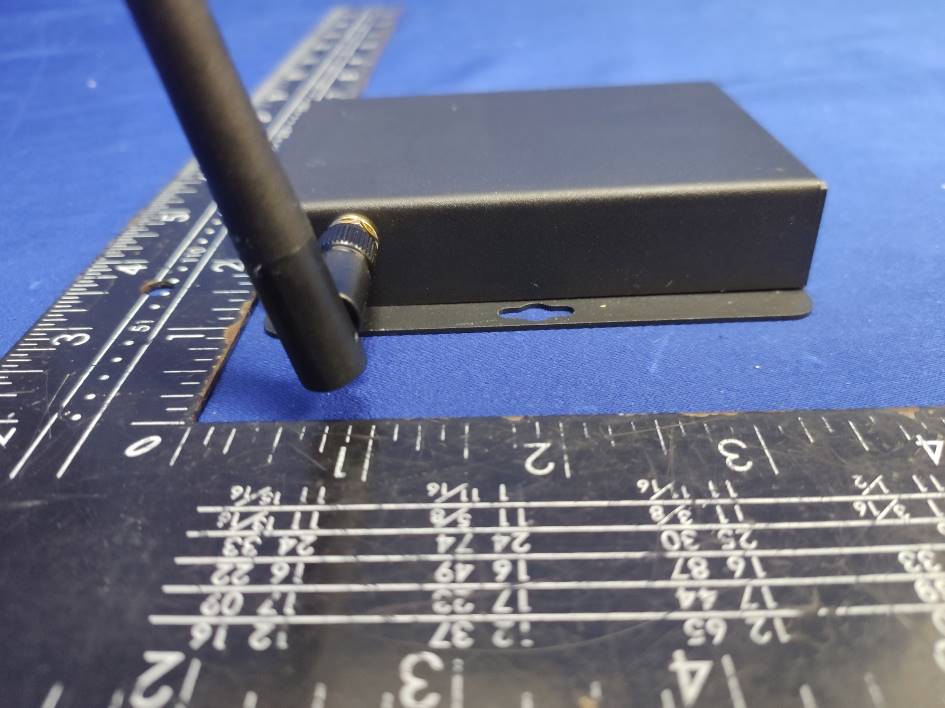

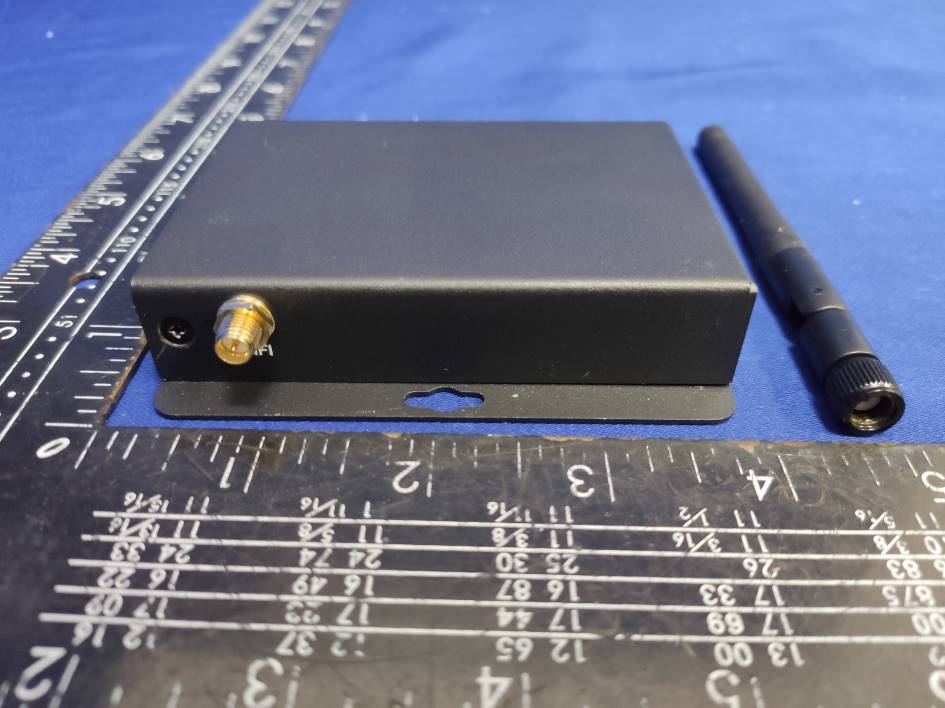

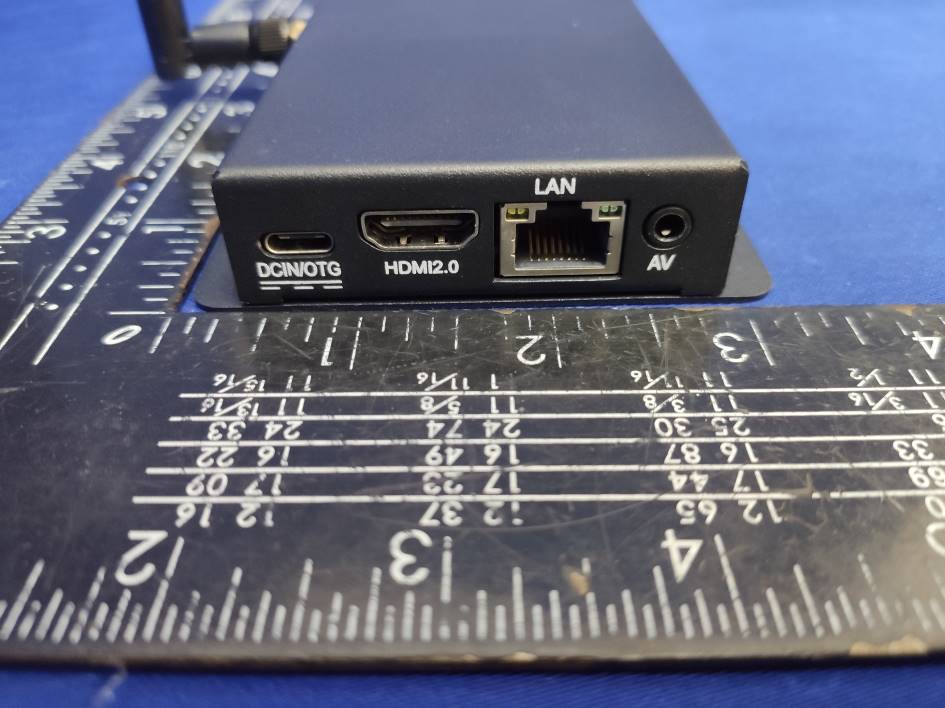

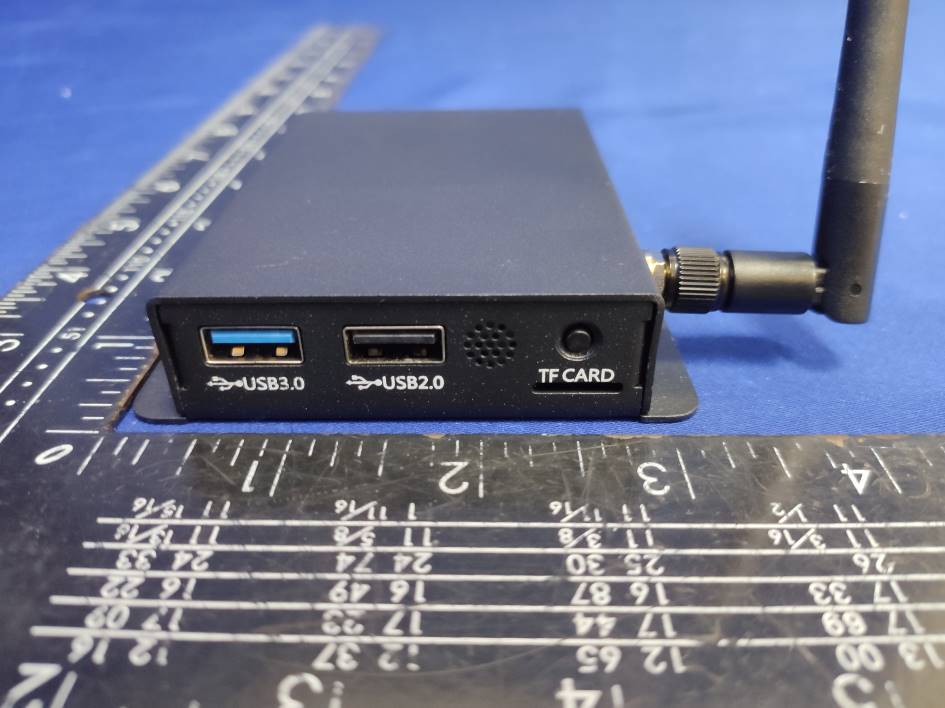

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Jonathan Ahlberg(Technical Product Manager)

[email protected]925 227 2700Fax: N/A

Test Firm

EMTEK (Shenzhen) Co., Ltd.Lisa Wang

[email protected]86 755 26954280

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.46 GHz	130.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. Device must be operated to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 and 40 MHz bandwidth modes.
