2AVYG-SEESAW19True Wireless Earphone

USER’S MANUAL Seesaw Wireless Earphones Welcome to Card 21 Wireless Earphones! In order to let you understand Card 21 more quickly , please read the following instructions carefully. Product Diagram T he package box contains a charging case, a pair of wireless earphones and a charging cable Operation You can refer to this instruction to perform the following operations on the wireless earphone. 1.Turn on and Turn off Turn on Method 1: When the charging case has residual power, open the charging case earphone and it will turnon automatically; Method 2: Long press the operation area for 2 seconds when the phone is turned off, and the earphone will turn on When starting up, the white light will be on for 1 second and then off, and the voice prompt will be "Power on" Turn off Method 1: Put the earphone into the charging chamber and it will automatically shut down. Method 2: When the terminal device is not connected, the earphone will automatically shut down after 3 minutes or long pressing the touch area for 6 seconds. Indicator light: red light goes on for 2 seconds and then goes off Voice reminder: before power off, voice prompt "Power off" 2. Pairing Pairing includes the pairing between the left and right earphones, and the connection between the earphones and the terminal device. Pairing between left and right earphones The two earphones can be paired automatically after power on. Indicator light before pairing: red light and white light flash alternately. Indicator light after pairing: white light flashes, and voice will prompt with "Du" sound. Connection to terminal equipment Bluetooth on the end device turned on After the earphone is turned on, search for the Bluetooth signal on the terminal device , select the corresponding earphone signal name, and then select Connect to pair with the terminal device. Earphone indicator light: After pairing is complete, the indicator light goes out After the earphone successfully completes a connection with the terminal device, the earphone will automatically find the terminal device that was successfully connected last time when it is used again, and try to connect with it. 3. Play music or audiobooks Play / Pause Double tap on any earbud to play or pause music Indicator light: no prompt Switch up and down Previous song: Touch the touch area of the left earphone 3 times Next song: Touch the touch area of the right earphone 3 times Adjust the volume Increase volume: Operate the touch area of the right earphone in the way of interval touch, each touch , the volume of the earphone will increase by 1 unit Decrease the volume: Operate the touch area of the left earphone in the way of interval touch, each touch , the volume of the earphone will increase by 1 unit Voice assistant on/off Turn on the voice assistant: touch any earphone touch area 4 times Turn off the voice assistant: touch the touch area of any earphone twice When using the voice assistant, the indicator light has no prompt, and the prompt sound comes from the terminal device 4.Calls answering call Touch any earphone touch area once. Indicator light: When there is an incoming call, the white light flashes quickly, and goes off after the call is connected The prompt tone comes from the terminal device End call Touch any earphone touch area twice When the call ends, there is no indicator light, and the voice prompt is "Du" Reject call Long press any earphone for 2 seconds When rejecting a call, there is no indication on the indicator light, and the voice prompt is "Du" 5. Mode switching Long press any earphone for 1.5 seconds Once every 1.5 seconds, the earphone will switch from one mode to another, in the order of active noise reduction mode → transparent mode → music mode → active noise reduction mode, and so on. 6. Restore factory settings After the earphone is turned on, touch the touch areas of the two earphones 5 times in a row without connecting to the terminal device, the white light will go out after flashing 5 times, and return to the factory settings. Charging case indicator light When the charging case is charging, the indicator light corresponding to the power level will flash, and the indicator light will go out when fully charged 6. Charging the earphone or charging case earphone charging When the charging case has remaining power, put it into the charging compartment and close the cover to automatically charge Indicator light: The white light of the earphone is always on, and it will go out when fully charged Earphone low battery reminder : the white light flashes twice every 30 seconds Charging case charging Indicator light of the charging case: The red light blinks when the charging box is charging. When fully charged, the red light is on Reminder of low charge of the charging case: When the battery is less than 5%, when the headset is put into the charging bay, blink 4S and then turn off . Reminder of overheating of charging case temperature: the red indicator flashes 3 times every 3 seconds until it returns to normal temperature. The main parameters Model Seesaw Dynamic unit size φ=10mm Earphone battery level 35 mAh*2 Earphone single play time 4- 5 hours Charging case battery 39 0mAh Cumulative playback time about 20 hours Input Voltage/Current 5V/0.3A Precautions 1. Try to use the minimum volume that meets the needs. Long-term high-volume use will cause permanent hearing damage. 2. Please keep the device and accessories out of the reach of children, and children should use the device under adult supervision. 3. Do not immerse the device in water for a long time. Avoid using this product while swimming, diving, diving or showering. 4. Do not use this product in places with humidity, dust, or near magnetic fields, so as not to cause internal circuit failure. 5. Avoid storing the earphones in an environment below -15°C or above 50°C. 6. Avoid charging the earphone or charging case in an environment below 0°C. 7. Do not place the earphones on windowsills, car dashboards and…

Text truncated - open the document above for the full version.

Applicant: Yibai Science & Technology (Shenzhen) Co., Ltd. Add:No. 1112, Building 5A, Tusincere Technology Park,Huanggekeng Community Longcheng Street,Longgang,Shenzhen,China TEL: 13502890859 E- mail: [email protected] D ate: 2023-08-22 F EDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 D ear Sir/Madam, W e, Yibai Science & Technology (Shenzhen) Co., Ltd. hereby authorize China Certification ICT Co., Ltd (Dongguan) to act as a laboratory for testing and test report generation for the following project(s): ( Product description: True Wireless Earphone,model: Seesaw19 FCC ID: 2AVYG-SEESAW19) The Chip supports BDR(GFSK), EDR(π/4-DQPSK, 8DPSK), BLE(1Mbps, 2 Mbps)function,but this product only support B DR(GFSK), EDR(π/4-DQPSK), BLE (1 Mbps, 2Mbps). 8DPSK has been shielded by software,and the end user doesn't have the capability to active it. T he right headset and left headset have the same circuit diagram, PCB layout and key components. Right Board Left Board Sincerely, Signature: Printed Name: Keyu Guo Title: Manager

ATTESTATION STATEMENT Applicant: Yibai Science & Technology (Shenzhen) Co., Ltd. Add:No. 1112, Building 5A, Tusincere Technology Park,Huanggekeng Community Longcheng Street,Longgang,Shenzhen,China TEL: 13502890859 E- mail: [email protected] Date: 2023-08-22 FEDE RAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 R ef: Attestation Statements Part 2.911(d)(5)(i), (ii) Filing FCC ID: 2AVYG-SEESAW19 Yibai Science & Technology (Shenzhen) Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. And Yibai Science & Technology (Shenzhen) Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signed by (printed name): Keyu Guo Title: Manager Signature:

U.S. AGENT LETTER OF ATTESTATION Date: 2023-08-22 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AVYG-SEESAW19 Yibai Science & Technology (Shenzhen) Co., Ltd. certifies that, as of the date of the filing o f the application, THREE STONES MEDIA LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Yibai Science & Technology (Shenzhen) Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related p roceeding involving the equipment. THREE STONES MEDIA LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: THREE STONES MEDIA LLC Address: 1200 Broadway St. APT 329, Los Angeles，C A90015, USA FRN: 0033401761 Tel.: + 1 267 909 3692 Email: [email protected] Signed by (printed name): Sijie Zhang Signature: Applicant: Yibai Science & Technology (Shenzhen) Co., Ltd. Add: No. 1112, Building 5A, Tusincere Technology Park.Huanggekeng Community Longcheng Street,Longgang District.Shenzhen,China FRN:0029342953 Tel: 13502890859 Email: [email protected] Signed by (printed name): Key u Guo Signature:

QA-FR-170-B Yibai Science & Technology (Shenzhen) Co., Ltd. Add:No. 1112, Building 5A, Tusincere Technology Park,Huanggekeng Community Longcheng Street,Longgang,Shenzhen,China TEL: 13502890859 E- mail: [email protected] FCC Authorization Date: 2023-08-22 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Yibai Science & Technology (Shenzhen) Co., Ltd. Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Keyu Guo Title: Manager Signature:

QA-FR-171- A Yibai Science & Technology (Shenzhen) Co., Ltd. Add:No. 1112, Building 5A, Tusincere Technology Park,Huanggekeng Community Longcheng Street,Longgang,Shenzhen,China TEL: 13502890859 E- mail: [email protected] FCC Confidential Authorization Date: 2023-08-22 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AVYG-SEESAW19 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Yibai Science & Technology (Shenzhen) Co., Ltd.) hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Bloc k Diagram •Schematics •Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sin cerely, Signature: Prin ted Name: Keyu Guo Title: Manager

Yibai Science & Technology (Shenzhen) Co., Ltd. Add:No. 1112, Building 5A, Tusincere Technology Park,Huanggekeng Community Longcheng Street,Longgang,Shenzhen,China TEL: 13502890859 E- mail: [email protected] Date: 2023-08-22 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 De ar Sir or Madam: We, Yibai Science & Technology (Shenzhen) Co., Ltd. hereby submits FCC ID:2AVYG-SEESAW19, justification for placing th e FCC ID label to charging box. According to the FCC Regulation and Guidence (KDB Publication 784748 D01 v09R01) allows for the FCC to be remo ved to charging box if the device is Unquestionably too small for the FCC ID label to be printed. The measurement of headset:Length33(mm)*Width20 (mm)*High15(mm), label:Length35(mm)*14Width(mm), charging box:70(mm)*45(mm)*28(mm).Refer to the above quote,as the headset are too small for the ID label to be printed, so the ID label will be moved to the charging box. For details, please see below photos: Head set Label Charging box Signature: Printed Name: Keyu Guo Title: Manager

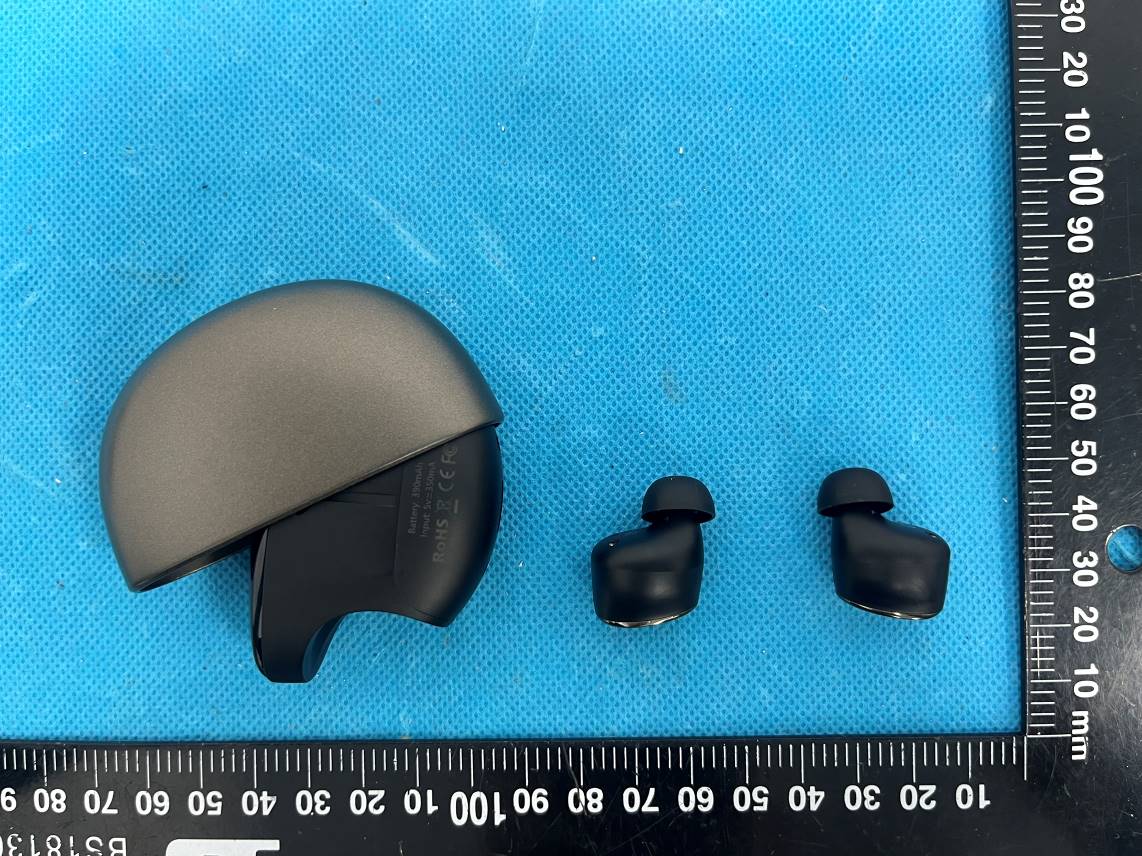

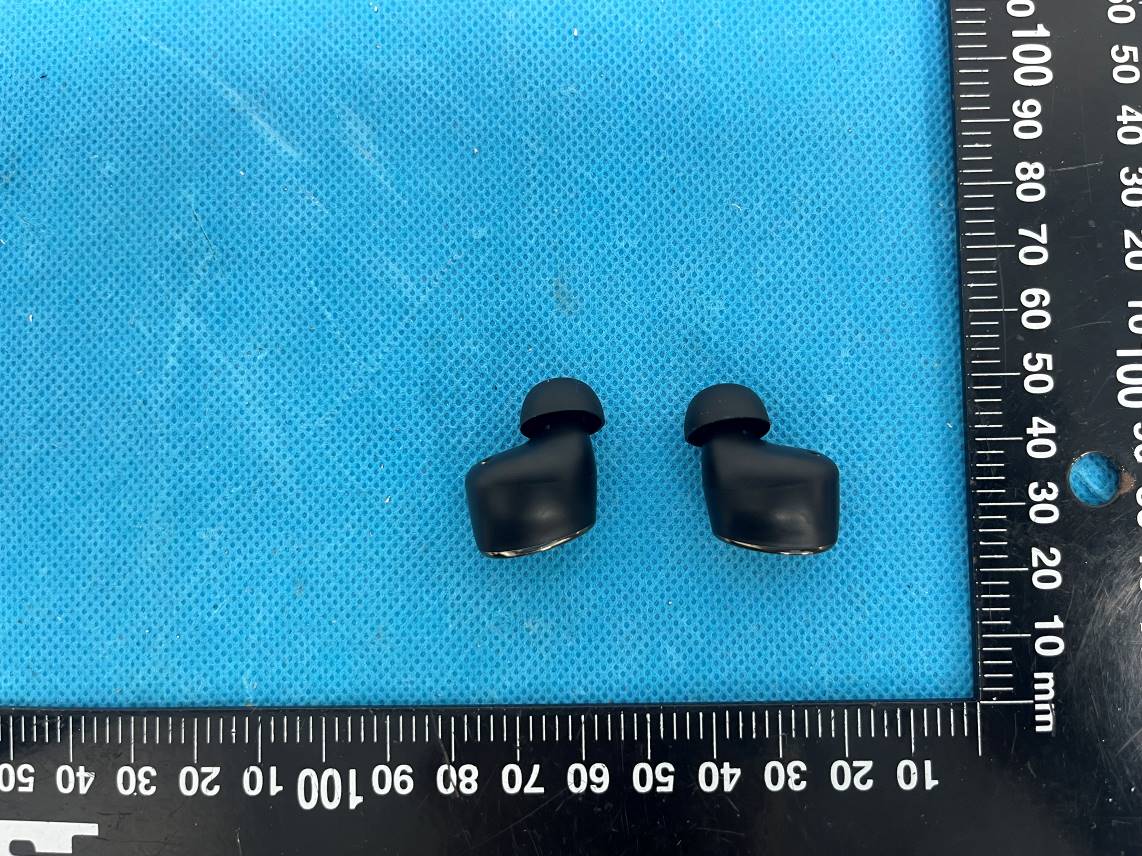

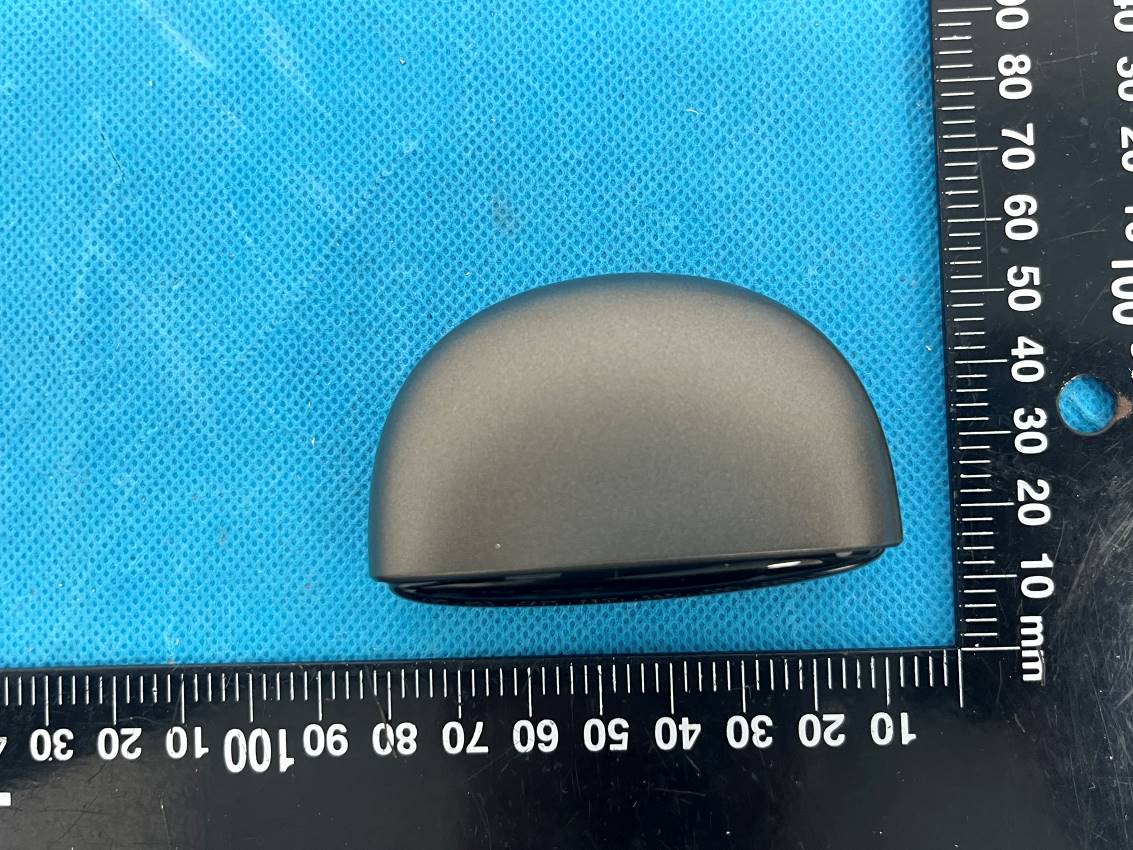

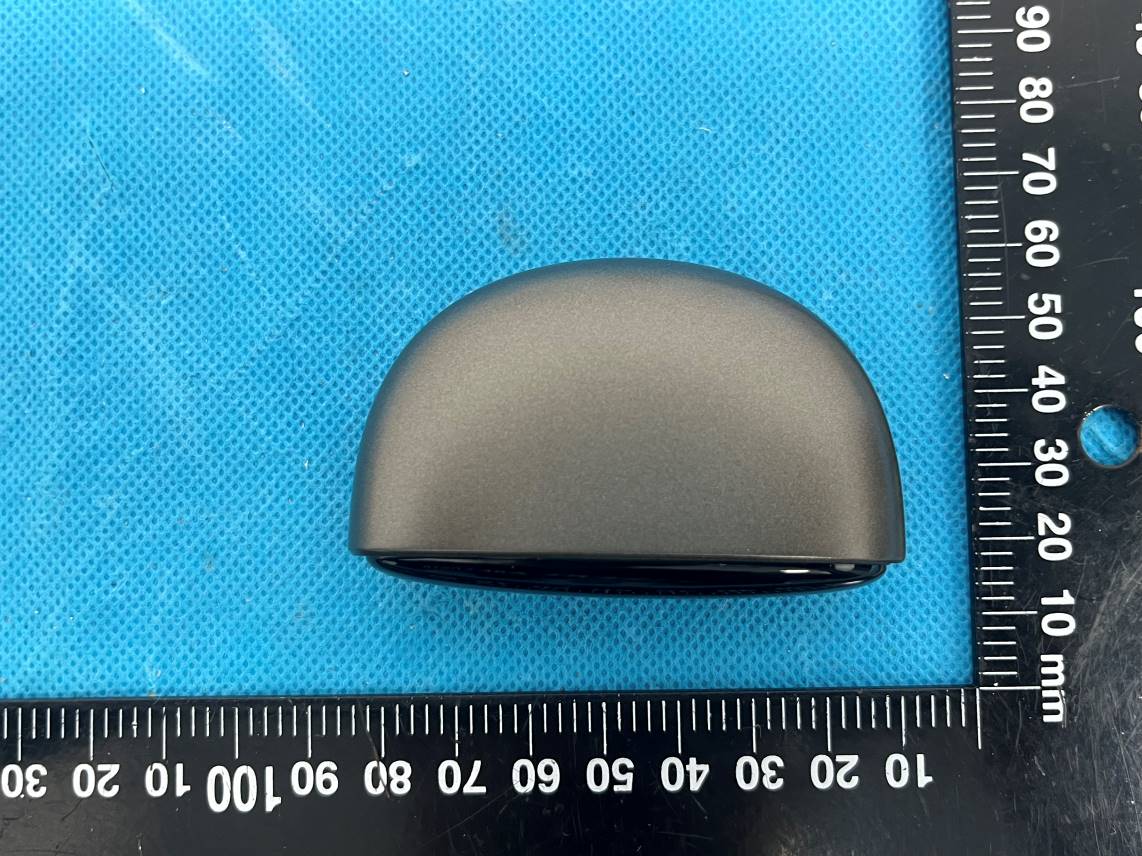

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Page 1 of 8 Page 2 of 8 Page 3 of 8 Page 4 of 8 Port Page 5 of 8 Page 6 of 8 Page 7 of 8 Page 8 of 8

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Page 1 of 10 Page 2 of 10 Page 3 of 10 Page 4 of 10 Chip Right Page 5 of 10 Page 6 of 10 Chip Page 7 of 10 Antenna Left Page 8 of 10 Page 9 of 10 Chip Page 10 of 10 Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845910-00B Page 44 of 44 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 5.2 Measurement Result The max conducted power including tune-up tolerance is 1 dBm (1.26 mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =1.26/5*(√2.480) = 0.4< 3.0 Result: Compliant. The stand-alone SAR evaluation is not necessary. ===== END OF REPORT ====

- 1 - 嘉兴佳利电子有限公司 http://www. glead.com.cn 阿里巴巴 http://zydq.en.al iba ba.com JIA XING GLEAD ELECTRONICS CO., LTD 产 品 技 术 规 格 书 SPECIFICATION 产品型号 PART NO： GL2012H2450-D06 客户料号 CUSTOMER PART NO： 客户确认 CUSTOMER APPROVED BY： 确认日期 APPROVED DATE： 中国浙江省嘉兴市经济开发区正原路 66 号 No.66 ZhengyuanRoad, Economic Development Zone,Jiaxing,Zhejiang,China TEL：0086-573-83651818 FAX：0086-573-83651858 拟制 Prepared by： 审核 Checked by ： 批准 Approved by： 送样日期 Formed On 产品版本 Document Version ( V1.5 ) - 2 - 嘉兴佳利电子有限公司 http://www. glead.com.cn 阿里巴巴 http://zydq.en.al iba ba.com JIA XING GLEAD ELECTRONICS CO., LTD 目 录 Table of contents 规格书版本更改记录 Version rejigger track record... ......... ......... ......... 3 1. 概述 Introduc tio n..................................................................4 2. 型号 P art Numb er...............................................................4 3. 外形尺寸及焊盘尺寸 Dimens io n.............................................4 4. 测试电路和匹配电路 Evaluation Board and Matc hing C ircuits.........5 5. 电气性能 Elec tric al C haracteris tics..........................................5 6. 特性曲线 C ha r a c t e r is t ic c ur ve .......................................... 5 7. 方向图 R a d ia t io n P a t t e r n ................................................... 6 8. 可靠性试验后允许误差 Post Dep endab ility To lerance ..................7 9. 可靠性试验 Depend ab ility Tes t..........................................7～8 10. 回流焊温度 Reflow So ld ering Stand ard Cond itio n........................9 11. 包装尺寸 Packaging and Dimens ions ....................................9～10 - 3 - 嘉兴佳利电子有限公司 http://www. glead.com.cn 阿里巴巴 http://zydq.en.al iba ba.com JIA XING GLEAD ELECTRONICS CO., LTD 产品规格书版本更改记录 Version rejigger track record 版本号 Version 更改记录 Rejigg er 拟制 Prep ared 批准 Approve 日期 Date V1.0 首次发行 孙超 陆德龙 2015.2.30 V1.1 更改产品尺寸公差值 罗昌桅 卢冠宇 2017.05.24 V1.2 修正可靠性试验说明内容 8.1~8.4 潘枫 卢冠宇 2017.11.07 V1.3 修改焊盘尺寸图 潘枫 卢冠宇 2017.11.23 V1.4 修正可靠性项目 9.4 内容 更新回流焊温度曲线图表 修正 11.3 产品储存条件为 MSL:1 潘枫 卢冠宇 2018.06.13 V1.5 修正 11.2 载盘宽度 潘枫 卢冠宇 2018.12.28 备注： 1、更改产品电性能指标时，版本号需更换（V1.0 换为 V2.0、V3.0......）； 2、更改产品测试方法（包括可靠性测试条件），或更改使用条件时，当前版本号加系列（ V1.0 换为 V1.1、V1.2......）。 - 4 - 嘉兴佳利电子有限公司 http://www. glead.com.cn 阿里巴巴 http://zydq.en.al iba ba.com JIA XING GLEAD ELECTRONICS CO., LTD 1. 概述 INTRODUCTION "佳利"微波多层陶瓷天线 GL 系列产品设计用于 WLAN、WiF i、蓝牙、PHS，手机 多频天线, FM 等小体积 SMD 片式设计。 "GLEAD" Microwave Multi- Layer Ceramic Antenna LA series are designed to be used in WLAN、WiF i、Bluetooth、PHS、 Multip le-band Mobile phone antenna, FM, etc and compact size SMD chip design. 2. 型号 Part Number GL 2012 H 2450 – D06 产品名称，编号 D06 /Product Name:D06 天线频率/ Antenna Frequency: 2450 MHz 产品设计结构 H 型/Via Des ign Series 产品尺寸/Size：2.0×1.25×0.6 多层结构天线/Mult i- layer Antenna 3. 外型尺寸及焊盘尺寸 Dimensions（Unit：mm） - 5 - 嘉兴佳利电子有限公司 http://www. glead.com.cn 阿里巴巴 http://zydq.en.al iba ba.com JIA XING GLEAD ELECTRONICS CO., LTD 4. 测试板和匹配电路 EvaluationBoard and MatchingCircuits 5. 电气性能 Electrical Characteristics 0.5pF 6.5nH No. Item （项目） Specifications （特性） 5.1 Working Central Frequency 中心工作频率 (After matching) 2450 MHz 5.2 Band Width 通带宽度 65MHz typ. 5.3 Peak Gain 峰值增益 2.7 dBi 5.4 V. S . W. R ( in BW) 驻波比 ≤2.0 5.5 Polarization 极化方式 Lin ear 线性 5.6 Azimuth Beam width 方位角 Omni-direction al 全向 5.7 Impedance 阻抗 50 Ω 6. 特性曲线 Characteristic curve - 6 - 嘉兴佳利电子有限公司 http://www. glead.com.cn 阿里巴巴 http://zydq.en.al iba ba.com JIA XING GLEAD ELECTRONICS CO., LTD 7 方向图 Radiation Pattern - 7 - 嘉兴佳利电子有限公司 http://www. glead.com.cn 阿里巴巴 http://zydq.en.al iba ba.com JIA XING GLEAD ELECTRONICS CO., LTD 8 可靠性试验后允许误差 Post Dependability Tolerance 经可靠性试验后允许比起始读数偏差见下表 Post Dependability Tolerance ( Refer to the table ) No. Item （项目） Post Dependability Tolerance (可靠性试验后允许附加误差) 8.1 Central Frequency 中心频率 ±5 MHz 8.2 Band Width 通带宽度 ±5 MHz 8.3 Gain 增益 ±0.1 dBi 8.4 V. S . W. R ( in BW) 驻波比 ±0.1 9 可靠性试验 Dependability Test 基准条件：温度范围 Temperature range 25±5°C 相对湿度范围 Relat ive Hum id ity range 55~75%RH 工作温度 Operating Temperature range -40°C~+85°C 贮藏温度 Storage Temperature range -40°C~+85°C 9.1 耐振动 Vibration Resist 在振动频率为 10~55Hz 振幅为 1.5mm 沿 X.Y.Z 方向各振动 2 小时后测试符合表 8.1~8.4 规定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after applied to the vibration of 10 to 55Hz w ith amplitude of 1.5mm for 2 hours each in X , Y and Z directions. 9.2 耐跌落冲击 Drop Shock 在 100cm 高度处按 X，Y，Z 三个面分别自由跌落在木制地板上共 3 次后测试符合表 8.1~8.4 规 定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after dropping onto the hard w ooden board from the height of 100cm for 3 times each facet of the 3 dimensions of the device. 9.3 耐焊接热 Solder Heat Proof 能承受经 120~150°C的温度预热 120 秒后，在 255°C+10°C的焊锡浸 5 ±0.5 秒，或 300°C-10°C的 电烙铁焊接 3 ±0.5 秒，焊接面无损伤。 The device should be satisfied after preheating at 120°C~150°C for 120 seconds and dipping in soldering Sn at 255°C+10°C for 5 ±0.5 seconds，or electric iron 300°C-10°C for 3±0.5 seconds， w ithout damnify. 9.4 推力试验 Adhesive Strength of Termination 在产品电极端子上或表面上可承受 5N(≦0603)；10N(>0603)水平推力10±1秒而无明显外观损 坏 与电极移位 。 The device have no remarkable damage or removal of the termination after horizontal force of 5N(≦0603)；10N(>0603)w ith 10±1 seconds. - 8 - 嘉兴佳利电子有限公司 http://www. glead.com.cn 阿里巴巴 http://zydq.en.al iba ba.com JIA XING GLEAD ELECTRONICS CO., LTD 9.5 耐弯曲试验 Ben ding Resist Test 将产品按图焊在 1.6±0.2mm 的 PCB 板中间，由箭头方向施 力： 1mm/S，弯曲距离：1.0mm ，保持 5±1S，产品金属层无脱落。 Weld the product to the center part of the PCB w ith the thickness 1.6 ± 0.2mm as the illustration shows, and keep exerting force arrow-w ard on it at speed of :1mm/S , and hold for 5 ±1S at the position of 1.5mm bending distance , so far , any peeling off of the product metal coating should not be detected . 9.6 耐湿热特性 Mois ture Proof 在温度为 60 ±2°C，相对湿度 90~95%的恒温湿箱中放置 96 小时，在常温中恢复 1~2 小时后测 试，符合表 8.1~8.4 规定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after exposed to the temperature 60 ±2°Cand the relative humid ity 90~95% RH for 96 hours and 1~2 hours recovery time under normal condition. 9.7 高温特性 High Temperat…

Text truncated - open the document above for the full version.

TEST REPORT Applicant: Yibai Science & Technology (Shenzhen) Co., Ltd. Address: No. 1112, Building 5A, Tusincere Technology Park.Huanggekeng Community Longcheng Street,Longgang District.Shenzhen,China FCC ID: 2AVYG-SEESAW19 Product Name: True Wireless Earphone Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230845910-00B Date Of Issue: 2023/8/21 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845910-00B Page 2 of 44 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845910-00B Page 3 of 44 CONTENTS TEST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY........................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.1 EUT Operation Condition: ............................................................................................................................. 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 8 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup .................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup .................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 MINIMUM 6 DB BANDWIDTH ......…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
