2AVZYX1ALARM SYSTEM

Smart Wi-Fi/GSM Alarm System User Manual 1 Please remove all supplied contents from packaging as below. If there' re anything missing, please return to your place of purchase. Control Panel P.I.R. Motion Detector Remote Control Bracket for Motion Detector Power Adapter User Manual Plastic Plugs & Screws Batteries Wall-mounted Bracket Door/Window Sensor Product List 3M Double-sided Tape The dual network security system is built to offer convenient, real-time monitoring and flawless home security. It protects your home 7/24. The control panel is the brain of security alarm system, which is able to communicate with all wireless sensors. If an intrusion is detected or if an abnormal amount of smoke is detected, it triggers an immediate alarm and send you notification by SMS, push notification and calls. Content Setup Mobile App PIR Motion Detector 08 Mobile App Setup 13 Add Device 14 Accessories Enrollment/Delete 19 Zone Setup via App 21 Device Setup22 29 Connecting Wired Accessories & Linkage Electronic Failities Q & A 35 Product list 01 Status LED Indication 03 Door/Window Sensor 11 Other APP Settings 26 31 SMS Text Operation Specification 32 Features/Control Panel Appearence 02 Included Accessories 17 Alarm Notification 18 Quick Start Guide 05 Installation of The Control Panel 32 Features 24 Hours Protection Wi-Fi + GSM, Double Safety Immediate SMS Alerts Added on up to 50pcs Sensors 110dB Siren 3 Groups of SMS 5 Groups of Phone Call 2 Groups of Central Monitoring Station iOS & Android App, Easy to Setup Working Status of Control Panel Appearance Green LED: AC Power Yellow/Red LED: GSM Signal Indicator White LED: Arming / Disarming Red LED: Control Panel Status Loudspeaker SIM Card Slot Power Switch Adapter Interface Wired Interface Enroll Button Bracket Hole Tamper Switch 54 Name No Function Red LED In enrolling statusNormally on: Sending SMS or connecting Flashes quickly: WiFi network in smart mode AlarmingFlashes once a second: connecting WiFi Flashes once in 2 seconds: network in AP mode. White LED System armed in away mode.On: System disarmedOff: Systems armed in stay mode.Flashes slowly: WiFi network lost.Flashes quickly: Status LED Indication 1 2 3 Power/Signal LED Indication Green LED Power onOn: Power offOff: Orange LED： Searching GSM networkFlashes quickly: GSM network foundFlashes normally: Tamper Switch Press 5 times：Restore the system to default setting. Restoring operation will not delete the enrolled accessories. beep heard: start setup with app Press 7 times: Delete all connected accessories. Button Enroll Button Tamper Switch A. Gently open the battery bay cover. B. Insert a SIM card and fix it. C. Insert power adapter’s barrel plug to adapter socket. D. Slide the power switch to ON position. E. Test

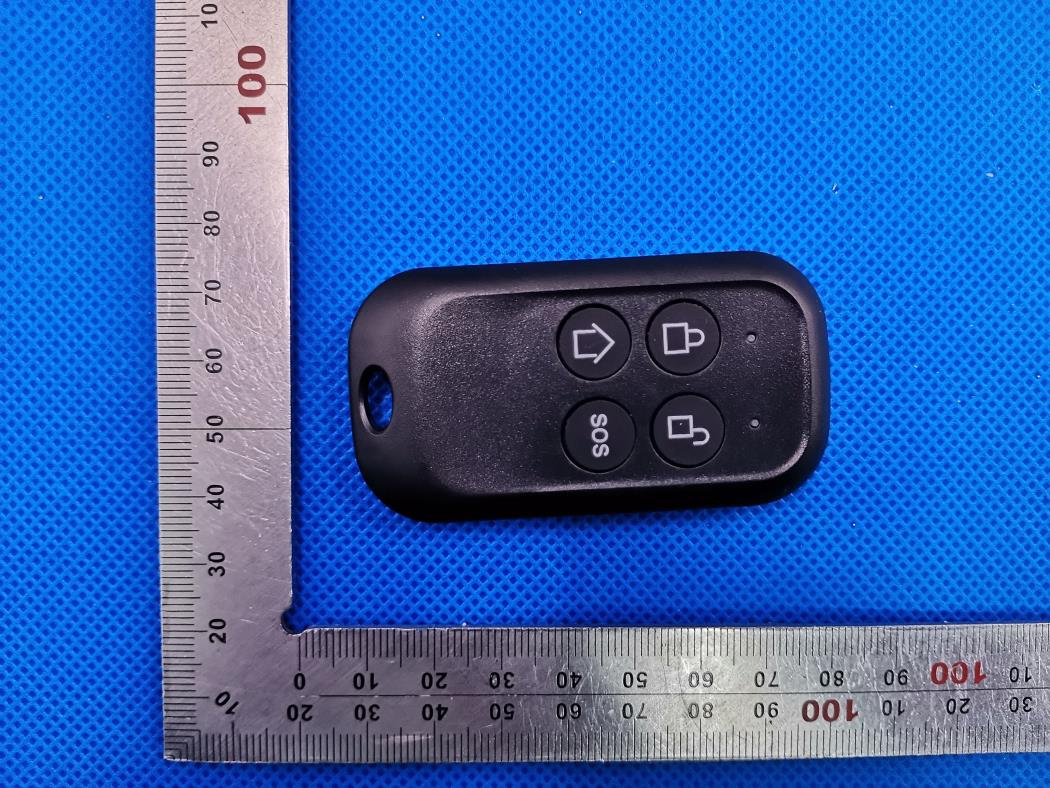

the enrollment of accessories. A B C D 1 Quick Start Guide 1. Installation of The Control Panel Important: The sim card you have purchased may not ask for a PIN. However should your SIM card requested a PIN, you can switch off the PIN request by briefly using the SIM card in a mobile phone. 76 A. Pull out insulating strip. B. Arm the system with “ ” button. C. Now separate both parts of the sensor and hold them at least 5cm away from one another. A red light will briefly flash on the sensor 3. Using and Testing the Door Sensor 2. Using and Testing the Remote Control(s) A. Press the panic button“ ”. A small display on the remote control will briefly light up. A loud alarm tone will immediately sound and the symbol on the control panel will flash red . Turn the alarm off again by pressing the B. disarm “ ” button. Congratulations! Your remote control( s ) are working! D. As soon as the alarm sounds, disarm the control panel with “ ”on the remote control. Congratulations. The door sensor is now working! A. Carefully open the cover of the motion sensor by pressing the clip and pull out insulating strip. B. Fix the cover by the short screw. D. Now press the small, black button (program) on the rear of the motion sensor. 4. Using and Testing the Motion Detector C. Arm the system with “ ” button. E. As soon as the alarm sounds, disarm the control panel with “ ” on the remote control Congratulations. The motion sensor is now working! 2 3 4 5 6 8 7 9 The passive infrared sensor with novel and beautiful style, perfect streamline can be easily installed. It is designed to detect human movement indoor. Adopted advanced fuzzy logic chip and intelligent analysis distinguish signal between body movement and interference to minimize false alarms. The built-in buzzer remind you low battery state and event of tamper alarm, which ensure your safety. 1. Detection Window 2. LED Indicator 3. Learning Button 4. Clip 5. Battery Compartment 6. Zone Jumper 7. Buzzer 8. Tamper Switch 9. Infrared Sensor Infrared Sensor: Detects the infrared rays released by human body motion. Please do not touch the surface and keep it clean. Once the case is opened ,
the tamper switch will be Tamper Switch: triggered, generating an alarm signal. Features Wireless P.I.R Motion Detector 9 8 1. When the power is on, the LED indicator flashes five times and buzzer beeps five times to enter working state. Status Indicator LED flashed once: Movement is detected. LED flashes 5 times, and buzzer beeps 5 times: Power on, tamper alarm, low battery indication. If it’s in low battrey state,please replace it only with1.5V/AA LR6 Manganese Dioxide Cell ( EXCELL, GP) immediately. 1 55 Test Mode & Normal Operation TEST MODE: After switching on (inserting the batteries), the motion detector beeps and flashes five times. This shows that the detector is only in test mode and will remain in that mode, until it has recognized a movement 20 times. In test mode, every movement triggers an alarm. NORMAL OPERATION: Once the test mode has ended, the motion detector switches to normal operation and, after the first recognized movement, into sleep mode to save energy. The sleep mode ends after four minutes. This helps save considerable amounts of…
