Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction Due to the product material, the FCC ID number cannot be marked, and the FCC ID number is printed on the charging box

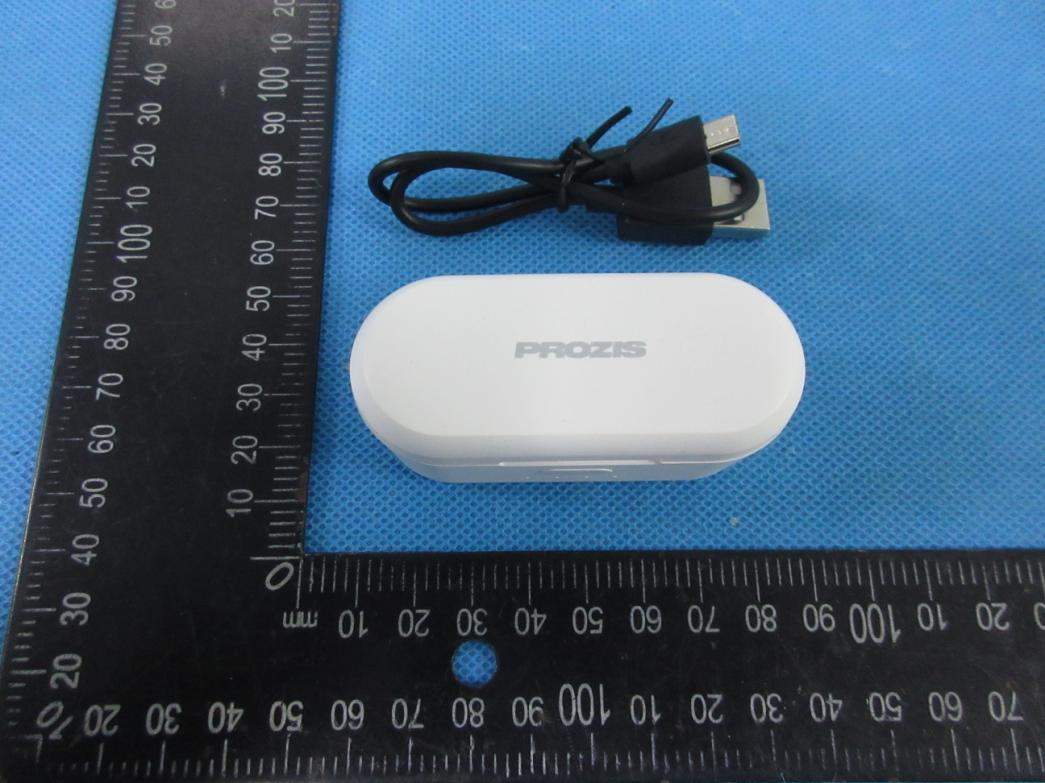

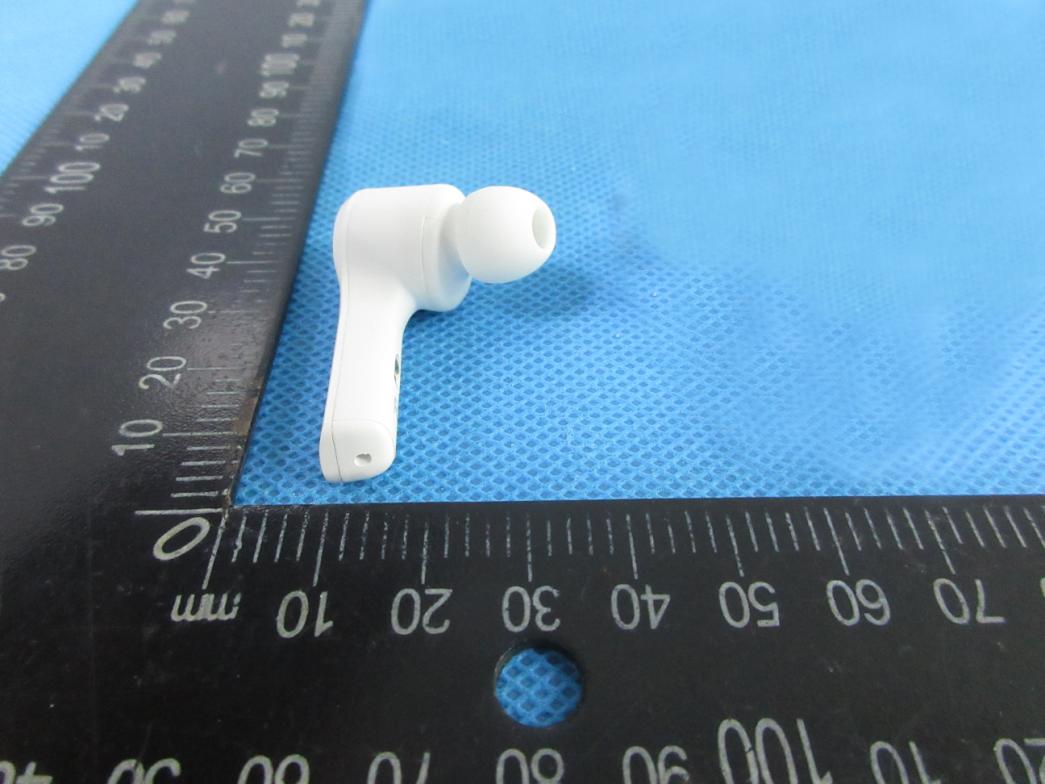

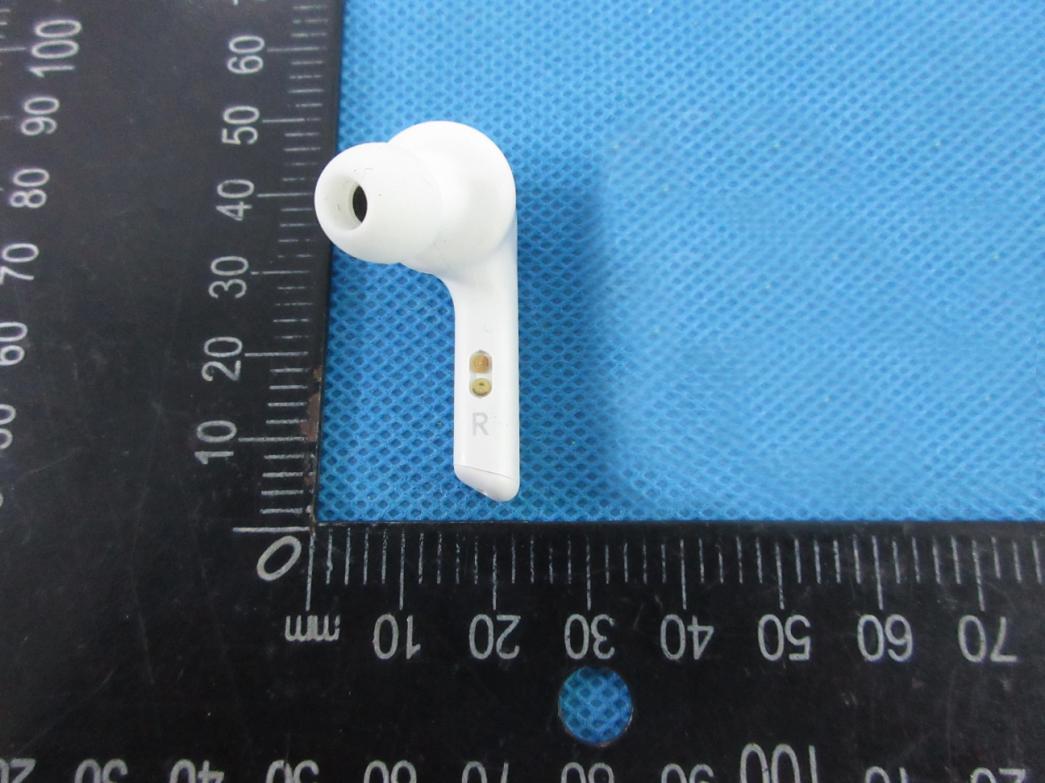

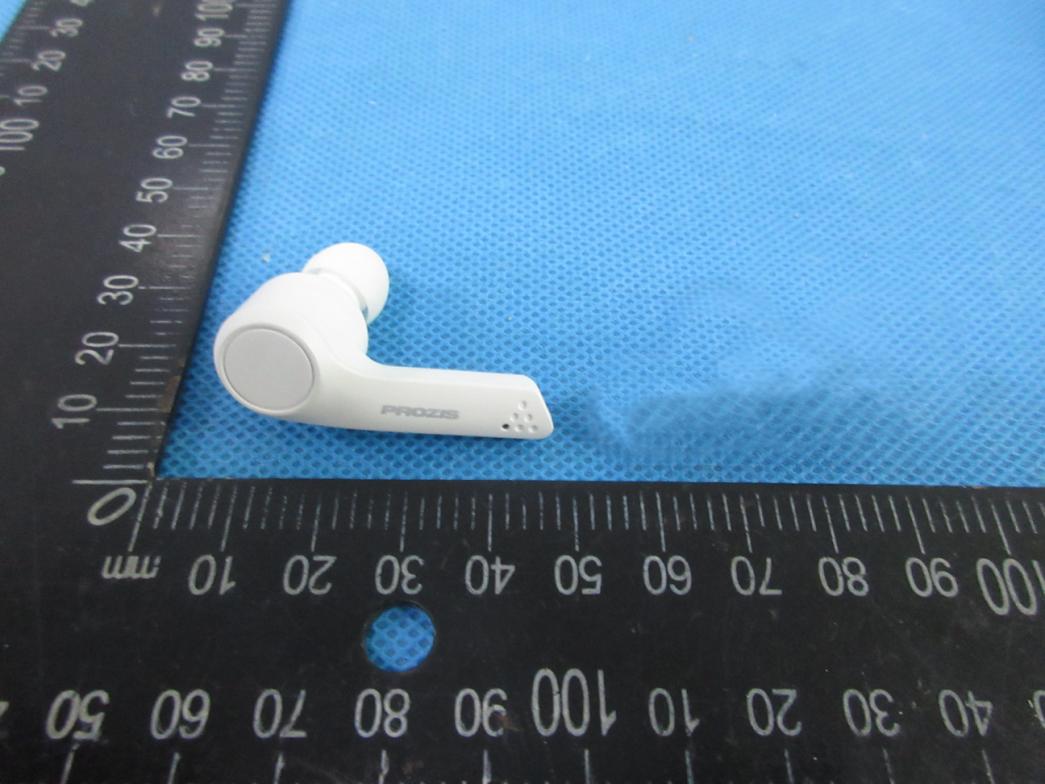

S21041904001 Model: Airia Photo 1 Photo 2 S21041904001 Model: Airia Photo 3 Photo 4 S21041904001 Model: Airia Photo 5 Photo 6 S21041904001 Model: Airia Photo 7 Photo 8 S21041904001 Model: Airia Photo 9 Photo 10 S21041904001 Model: Airia Photo 11 Photo 12 S21041904001 Model: Airia Photo 13 Photo 14 S21041904001 Model: Airia Photo 15
S21041904001 Model: Airia Photo 1 Photo 2 S21041904001 Model: Airia Photo 3 Photo 4 S21041904001 Model: Airia Photo 5 Photo 6 ANT S21041904001 Model: Airia Photo 7 Photo 8
version01 PROZIS.COM, S.A. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Airia,B216, B219, B221, B222 FCC ID: 2AW22-AIRIAR fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for FPC antenna type(s) described below: Model No. of antenna: N/A Type of antenna: FPC Antenna Gain of the antenna: -2.99 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: PROZIS.COM, S.A. Address: Modulo 6 do Pavilhao Industrial K, Plataforma 28, Zona Franca Industrial da Madeira, City: 9200-047 Canical, Madeira, ZIP / Postal code: Country: Portugal Name: Ricardo Alheiro Date: 2021/07/13 Signature:
FCC ID:2AW22-AIRIAR Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BR+EDR: Antenna Type: FPC Antenna Antenna Gain: -2.99 dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.4022.231.6713±14.02.512<50.778603.00YES 2.4413.912.4603±14.02.512<50.784903.00YES 2.4802.71.8623±14.02.512<50.791143.00YES 2.4022.131.6333±14.02.512<50.778603.00YES 2.4413.882.4433±14.02.512<50.784903.00YES 2.4802.691.8583±14.02.512<50.791143.00YES 2.4022.161.6443±14.02.512<50.778603.00YES 2.4413.872.4383±14.02.512<50.784903.00YES 2.4802.731.8753±14.02.512<50.791143.00YES GFSK π/4- DQPSK 8DPSK Conclusion: For the max result : 0.79114≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 2021-07-20 NAME AND TITLE (Please print or type): Alex /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China
Report No.: S21041904001002 Version.1.3 Page 1 of 78 RADIO TEST REPORT FCC ID: 2AW22-AIRIAR Product: True Wireless Earphones Trade Mark: PROZIS Model No.: Airia Family Model: B216, B219, B221, B222 Report No.: S21041904001002 Issue Date: 21 May. 2021 Prepared for PROZIS.COM, S.A. Modulo 6 do Pavilhao Industrial K, Plataforma 28, Zona Franca Industrial da Madeira, 9200-047 Canical, Madeira, Portugal Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106,0755-2320 0050 / 2320 0090 Website: http://www.ntek.org.cn Report No.: S21041904001002 Version.1.3 Page 2 of 78 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 32 7.10 ANTENNA APPLICATION .......................................................................................................................... 33 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS .............................................. 34 8 TEST RESULTS ................................................................................................................................................... 35 8.1 DWELL TIME ................................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 40 8.3 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 45 8.4 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 50 8.5 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 55 8.6 BAND EDGE .................................................................................................................................................... 56 8.7 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 69 Report No.: S21041904001002 Version.1.3 Page 3 of 78 1 TEST RESULT CERTIFICATION Applicant’s name .........................: PROZIS.COM, S.A. Address ........................................: Modulo 6 do Pavilhao Industrial K, Plataforma 28, Zona Franca Industrial da Madeira, 9200-047 Canical, Madeira, Portugal Manufacturer's Name ..................: Shenzhen Aoni Electronic Industry Co., Ltd. Address ........................................: Honghui Industrial Park, 2nd LiuXian Road, Xin’An streets, District 68,Bao'an District, Shenzhen, China Product description Product name ..............................: True Wireless Earphones Model and/or type r…
Text truncated - open the document above for the full version.
FCC ID: 2AW22-AIRIAR Radiated Measurement Photos FCC ID: 2AW22-AIRIAR Conducted Measurement Photos
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 2.50 mW |

True Wireless Earphones
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Wireless Speaker
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
