2AW24JS-L01WiFi Camera

HD SMART WI-FI CAMERA INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE Getting Started • Remove the Camera and its accessories from the box. • Remove any packaging from the product. • Please retain all packaging until you have checked and counted all the parts and the contents against the parts list. Package Contents • HD Smart Wi-Fi Camera • Instruction Manual • Power adapter x 1 • Screw Pack x 1 • USB cable x 1 Key Features • HD Smart Wi-Fi Camera makes it simpler to keep an eye on your home • App supports up to 4 cameras (sold separately) • Full HD 1920x1080 resolution • Easy to install and set-up • View your home through your phone • High-definition video streaming • Wide-angle view • Supports night-vision view • Motion detection • Two-way audio for communication • Built-in Mic & Speaker • Supports pan/tilt – move security camera from your App so that you can monitor • Built-in Micro SD (TF) card memory card slot (supports up to 128GB card, memory card not included) • App available on iOS and Android SAFETY INSTRUCTIONS • Keep the camera away from extreme heat sources or fire. • Do not use the camera if it has been dropped or damaged in any way. • Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. • Keep the camera free from dust, lint etc. • Do not use this camera for anything other than its intended use. • Keep the camera out of reach of children. • This product is not a toy. Instructions for use Quick Start Guide • Connect the USB power cord to the USB input power port of the camera and insert the other end into a suitable USB power source. • It will take about 20 seconds for the camera to start up. Compatibility This HD Smart Wi-Fi Camera is compatible with the App – “TuyaSmart” This HD Smart Wi-Fi Camera and App is compatible with the devices using iOS 9.0 and above with Wi-Fi option, or Android 5.0 and above with Wi-Fi option. This device does not currently support 5GHz WiFi bands. Please see that your phone is connected to 2.4GHz WiFi band of your router. Operating Instructions Login to the App: • Search for, and download / install “tuyaSmart Home” App on your phone or tablet. • Open the App, and it will ask you to register your device. Select your country, enter your email, get Verification Code and input your favorite password to confirm. Adding a new HD Smart Wi-Fi Camera: • Turn on Wi-Fi of your phone, and then connect to the local/home network. • Power on: Connect the USB power to the camera. • Wait for about 20 seconds until you hear voice message ‘camera starts’, then further 20 - 30 seconds later ‘please configure network’. [Note: If reset is required, use the reset pin to press the Reset (as shown on “Description of Parts” above) for several seconds until the camera starts to beep.] • Turn on the “tuyaSmart Home” App, click ‘+’, and then ‘Security & Sensors’ and ‘Smart Camera’ to add a new HD Smart Wi-Fi Camera on your App. • While you have seen the indicator on the camera is flashing quickly, click ‘next step’. • Select the same connected Wi-Fi network of your phone or tablet and input password of the Wi-Fi, then tap ‘Confirm’. • Tap ‘Continue’, the mobile phone will display a QR code. Use the camera to scan to the QR code that is 15 cm to 20 cm away from the mobile phone. • Tap ‘I Heard a Prompt’ when you hear a prompt sound. The HD Smart Wi-Fi Camera is trying to connect to the App. Once connected successful, the App will show ‘Added successfully’ & ‘Security Camera Device added successfully’ with a voice message ‘camera online’. • Tap ‘Done’ to view the live stream of your camera. • Storage Settings, Remove Device...etc. Note: Micro SD Card (not included) will perform Event Recording or Non- Stop Recording. Upon reaching its maximum storage capacity, it will automatically record over the oldest recording. This will erase the oldest recording, and replace it with the new recording. For longer access to important recordings, it is recommended to move the recordings from the Micro SD card to your computer etc. Recorded videos can be seen under the Playback icon. Detection Alarm Settings: Tap on “Detection Alarm Settings” can then turn on/off the Motion Detection Alarm. Once this is turned on, if any motion is detected you will get notification. Notifications can be checked on the “Message” tab of the App. Motion Alarm Sensitivity Level can be set: • Low Sensitivity – Records any movements within 5 meters • Medium Sensitivity – Records any movements within 10 meters • High Sensitivity – Records any movements within 15 meters Remove Device: Tap on “Remove Device” if you’d like to delete this camera. Care and maintenance Read the following recommendations before using the product. • Don’t use abrasive cleaning solvents to clean the camera. • Do not expose the camera to extremely high or low temperature as this will shorten the life of electronic devices, destroy the battery or distort certain plastic parts. • Don’t dispose of the camera in fire as it will result in an explosion. • Don’t expose the camera to contact with sharp objects as this will cause scratches and damage. • Don’t let the camera fall on the floor. The internal circuit might get damaged. • Don’t attempt to disassemble the camera as it may get damaged if you are not professional. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide…

Text truncated - open the document above for the full version.

Shenzhen Whale Vision Technology Co.,Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Shenzhen Whale Vision Technology Co.,Ltd Address: Room 510-511, Building A8, Peking University Sci-Tech Park, 3000-1 Songbai Road, Shiyan Town, Bao'an District, Shenzhen, China Product Name: WiFi Camera FCCID: 2AW24JS-L01 Model(s): JS-L01,JS-L02,JS-L03, JS-L04,JS-L05,JS-L06,JS-K259, JS-P158,JS-P159, JS-P160,JS-P161,JS-P162, JS-P163, JS-R01,JS-R02,JS-R03,JS-R04, JS-P167,JS-P168, JS-K268, JS-G05, JS-G02,JS-G08,JS- GL09,JN-LB4AB, JN-LB4AB-2, JS-B01,JS-B02,JS-PL01,JS-PLX,JS-BLX, (X Can be 01~99) 2.911(d)(5)(i) EquipmentType We, [Shenzhen Whale Vision Technology Co.,Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Yi Liang Date: 2024/08/19 Title and Company name: CEO / Shenzhen Whale Vision Technology Co.,Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Whale Vision Technology Co.,Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Whale Vision Technology Co.,Ltd Address: Room 510-511, Building A8, Peking University Sci-Tech Park, 3000-1 Songbai Road, Shiyan Town, Bao'an District, Shenzhen, China Product Name: WiFi Camera FCCID: 2AW24JS-L01 Model(s): JS-L01,JS-L02,JS-L03, JS-L04,JS-L05,JS-L06,JS-K259, JS-P158,JS-P159, JS-P160,JS-P161,JS-P162, JS-P163, JS-R01,JS-R02,JS-R03,JS-R04, JS-P167,JS-P168, JS-K268, JS-G05, JS-G02,JS-G08,JS- GL09,JN-LB4AB, JN-LB4AB-2, JS-B01,JS-B02,JS-PL01,JS-PLX,JS-BLX, (X Can be 01~99) 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Whale Vision Technology Co.,Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Yi Liang Date: 2024/08/19 Title and Company name: CEO / Shenzhen Whale Vision Technology Co.,Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Declaration on model difference We the undersigned hereby confirm that any of o The following models of units we produce are identical in electrical, mechanical and physical structure; The difference is only in the model name, we finally have JS-L01 as test model. Production name Trade name Model no. WiFi Camera N/A JS-L01,JS-L02,JS-L03, JS-L04,JS-L05,JS- L06,JS-K259, JS-P158,JS-P159, JS-P160,JS- P161,JS-P162, JS-P163, JS-R01,JS-R02,JS- R03,JS-R04, JS-P167,JS-P168, JS-K268, JS- G05, JS-G02,JS-G08,JS- GL09,JN-LB4AB, JN- LB4AB-2, JS-B01,JS-B02,JS-PL01,JS-PLX,JS- BLX, (X Can be 01~99) Signature: Date: 2024/08/19 Name: Yi Liang Title: CEO Company: Shenzhen Whale Vision Technology Co.,Ltd

Shenzhen Whale Vision Technology Co.,Ltd 2024.08.19 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR Product Name: WiFi Camera FCCID: 2AW24JS-L01 Model(s): JS-L01,JS-L02,JS-L03, JS-L04,JS-L05,JS-L06,JS-K259, JS-P158,JS-P159, JS-P160,JS-P161,JS-P162, JS-P163, JS-R01,JS-R02,JS-R03,JS-R04, JS-P167,JS- P168, JS-K268, JS-G05, JS-G02,JS-G08,JS- GL09,JN-LB4AB, JN-LB4AB-2, JS- B01,JS-B02,JS-PL01,JS-PLX,JS-BLX, (X Can be 01~99) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Yi Liang / CEO Contact information / address: Room 510-511, Building A8, Peking University Sci-Tech Park, 3000-1 Songbai Road, Shiyan Town, Bao'an District, Shenzhen, China

Shenzhen Whale Vision Technology Co.,Ltd1 2024.08.19 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION Product Name: WiFi Camera FCCID: 2AW24JS-L01 Model(s): JS-L01,JS-L02,JS-L03, JS-L04,JS-L05,JS-L06,JS-K259, JS-P158,JS-P159, JS-P160,JS-P161,JS-P162, JS-P163, JS-R01,JS-R02,JS-R03,JS-R04, JS-P167,JS- P168, JS-K268, JS-G05, JS-G02,JS-G08,JS- GL09,JN-LB4AB, JN-LB4AB-2, JS- B01,JS-B02,JS-PL01,JS-PLX,JS-BLX, (X Can be 01~99) To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Yi Liang / CEO Contact information / address: Room 510-511, Building A8, Peking University Sci-Tech Park, 3000-1 Songbai Road, Shiyan Town, Bao'an District, Shenzhen, China

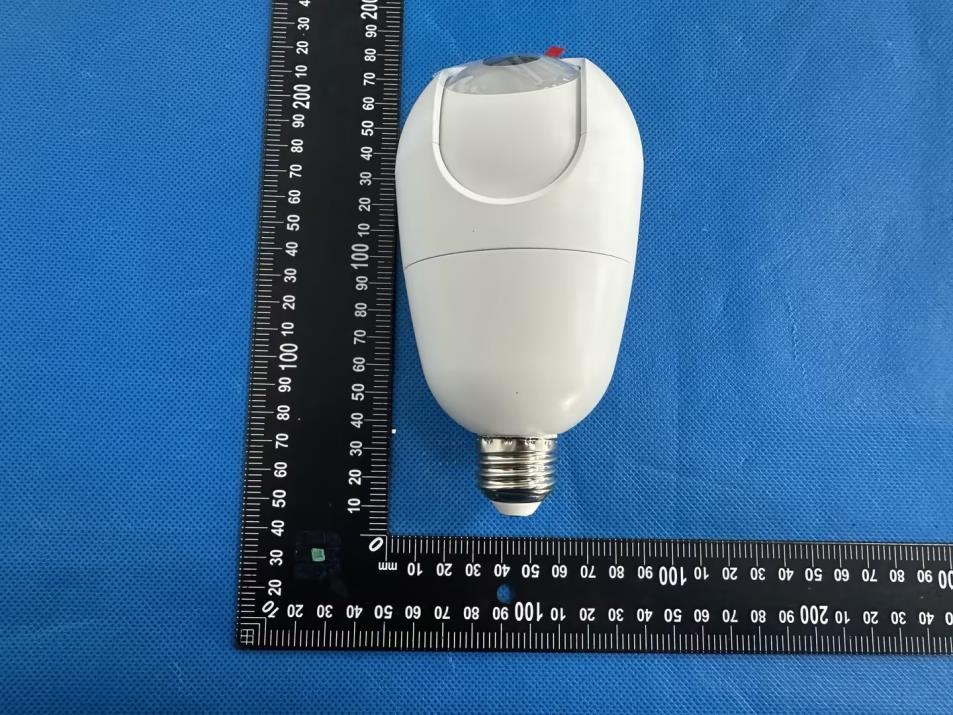

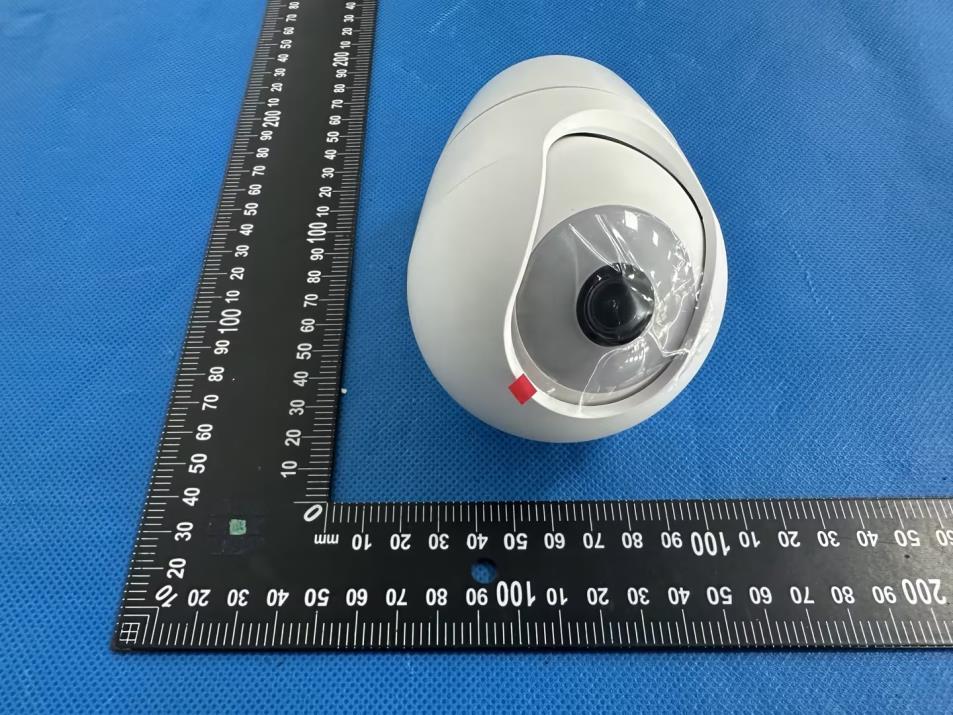

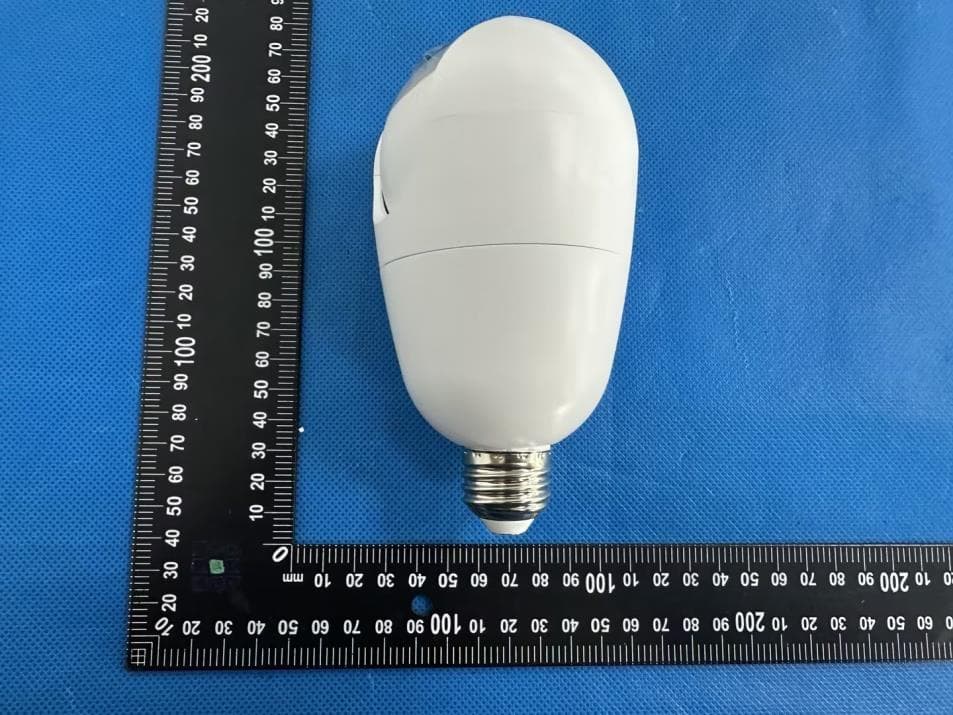

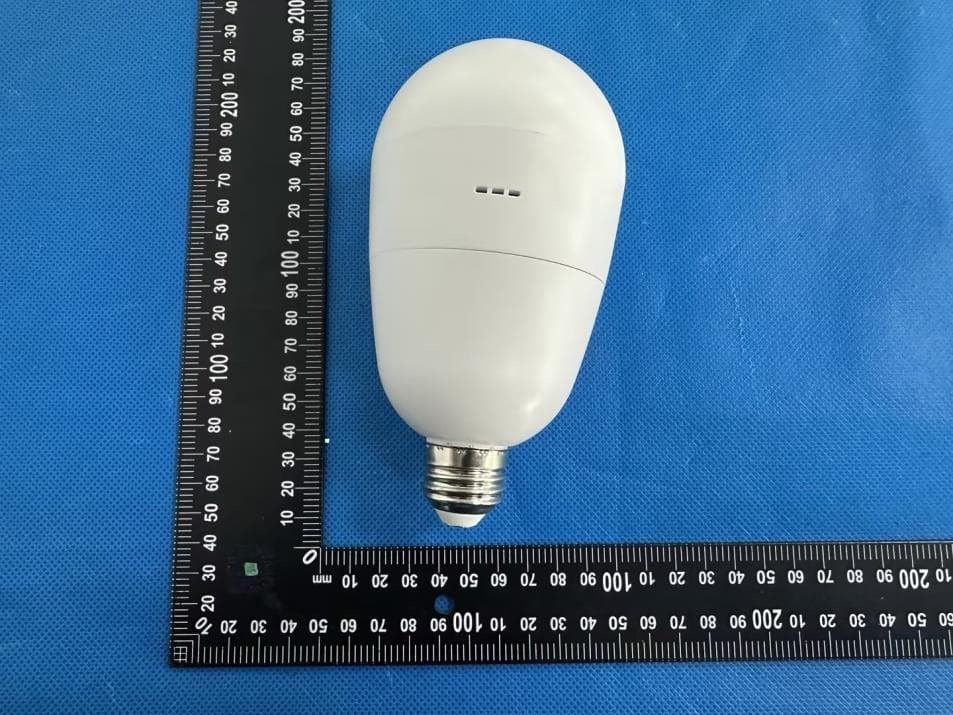

External Photos

Size:40*40mm Model : JS-L01 FCC ID: 2AW24JS-L01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos ANT

FCC ID : 2AW24JS-L01 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 40cm between the equipment and a person's body. 11.2 Measurement Result BLE Antenna :2.23dBi Measured power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 4.97 3 to 5 5 1.67 0.001 1 WIFI 2.4G Antenna :2.23dBi Measured power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 18.47 17 to 19 19 1.67 0.023 1 WIFI 5G Antenna :1.83dBi Measured power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 9.83 8 to 10 10 1.52 0.003 1 CONCLUSION of simultaneous transmitter The module can transmit simultaneously, the formula of calculated the MPE is: CPD1/LPD1+CPD2/LPD2+......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore the worst-case situation is 0.001/1.00+0.023/1.00=0.024which is less than “0.024”, This confirmed that the device comply with FCC 1.1310 MPE limit.

R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected] Shenzhen SKYLink Technology Co.,Ltd Antenna Specification for Approval Customer Name： Product Name： 2.4G/5.8G WIFI Antenna Part NO.: TY06 Write By： Damon Cui Issued Date: 2024.08.12 Customer R&D Dept Business Dept Approved By SKYLink R&D Dept Engineer Dept Approval R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected]  Specification Summary A. Electrical Characteristics Frequency 2400MHz ~2500MHz 5150MHz ~5850MHz Return Loss <-10 dbi Efficiency >50% Peak Gain 2.3dbi Impedance 50 Ohm Polarization Line B. Material & Mechanical Characteristics Material of Radiator / Cable Type / Connector Type / Dimension At Attachment Heat-durability 280±5 ̊C，10sec. C. Environmental Characteristics Operation Temperature - 20 ̊C ~ + 80 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected]  Test Equipment & Conditions 1． Network Analyzers : Agilent 8753D 5071B Communications Test Set: Agilent E5515C CMW500 2． 3D Chamber Test System A 0 . 0 3 0 . 0 2 0 . 0 4 0 ～ 1 0 ± 0 . 0 5 1 0 ～ 1 8 ± 0 . 1 0 1 8 ～ 3 0 ± 0 . 1 2 ∅ 0 . 0 2 3 0 ～ 4 0 ± 0 . 1 5 R e m a r k R e v D a t e T h i r d A n g l e N e w d r a w i n g D e s c r i p t i o n 4 0 ～ ± 0 . 2 0 1 2 3 4 A p p r o v e d b y DCB 5 6 7 8 A 1 2 3 4 5 6 7 8 P a r t N o . D a t e D e s i g n e d b y C h e c k e d b y S c a l e R e v m m L o c a t i o n P r o j e c t M a t e r i a l P a r t N a m e U n i t R F M D A A n g l e ± 0 . 5 ° 1 : 1 DCBA S H E N Z H E N S K Y L i n k C O . , L T D R o H S P G C o m p l i a n t D W G N o . T Y 0 6 2 0 2 4 - 0 8 - 1 2 由 Autodesk 教育版产品制作 由 A u t o d e s k 教 育 版 产 品 制 作 由 Autodesk 教育版产品制作 由 A u t o d e s k 教 育 版 产 品 制 作 R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected]  matching circuit  Return Loss R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected]  Gain & Efficiency R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected]  TRP &TIS R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected]  Radiation Pattern R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected] R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected] R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected]  Antenna Picture R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected]  Reliability Test Test Item Test condition Equipment Specification Result 1 Low Temp. Storage Test Temperature: -30°C， Time:48hrs Test condition: Placing antenna in a Low/High Temperature Chamber, keep the temp is 25°C and humidity is 65% for one hour, then step-down the temp. to -30°C in one hour, store antenna for 44 hours; step-up temp to 25°C,test antenna after 2 hours. Temp.&Humi. Tester No material deformation is allowed. Electronic Performance is ok . PASS 2 High Temp./High Humid Storage Test Temperature: 85°C Humidity: 85% RH Time:48hrs Test condition: Placing antenna in a Low/High Temperature Chamber, keep the temp is 25°C and humidity is 65% for one hour, then step-up the temp. to 80°C and the humidity up to 85% in one hour, store antenna for 44 hours; step-down temp to 25°C,test antenna after 2 hours. Temp.&Humi. Tester No material deformation is allowed. Electronic Performance is ok . PASS 3 Salt-Spray 6 pray Test Placing antenna in the Salt-Spray Tester ,set the test condition ，Temp: 35±2°C Humidity: 85% NaCl salt spray :5 ±1 %.PH value :6.5~7.2 Test time:24hours Salt-Spray Tester No color change No appear rusting PASS

No.：BCTC/RF-EMC-005 Page: 1 of 53 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2407026189-1E Applicant: Shenzhen Whale Vision Technology Co., Ltd Product Name: WiFi Camera Test Model: JS-L01 Tested Date: 2024-07-22 to 2024-08-06 Issued Date: 2024-08-19 Report No.: BCTC2407026189-1E No.：BCTC/RF-EMC-005 Page: 2 of 53 Edition：B.2 FCC ID:2AW24JS-L01 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: WiFi Camera Trademark: N/A Model/Type Ref.: JS-L01,JS-L02,JS-L03, JS-L04,JS-L05,JS-L06,JS-K259, JS-P158,JS-P159, JS-P160,JS-P161,JS-P162, JS-P163, JS-R01,JS-R02,JS-R03,JS-R04, JS-P167,JS-P168, JS-K268, JS-G05, JS-G02,JS-G08,JS- GL09,JN-LB4AB, JN-LB4AB-2, JS-B01,JS-B02,JS-PL01,JS-PLX,JS-BLX, (X Can be 01~99) Prepared For: Shenzhen Whale Vision Technology Co., Ltd Address: Room 510-511, Building A8, Peking University Sci-Tech Park, 3000-1 Songbai Road, Shiyan Town, Bao'an District, Shenzhen, China Manufacturer: Shenzhen Whale Vision Technology Co., Ltd Address: Room 510-511, Building A8, Peking University Sci-Tech Park, 3000-1 Songbai Road, Shiyan Town, Bao'an District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-07-22 Sample tested Date: 2024-07-22 to 2024-08-06 Report No.: BCTC2407026189-1E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2407026189-1E No.：BCTC/RF-EMC-005 Page: 3 of 53 Edition：B.2 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result ............................................................................................................ 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement and Restricted Bands Of Operation ...... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test Procedure ................................................................................................... 25 8.4 EUT Operating Conditions .................................................................................. 25 8.5 Test Result .......................................................................................................... 26 9. Power Spectral Density Test ............................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure ...........…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 74 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2407026189-2E Applicant: Shenzhen Whale Vision Technology Co., Ltd Product Name: WiFi Camera Test Model: JS-L01 Tested Date: 2024-07-22 to 2024-08-06 Issued Date: 2024-08-19 Report No.: BCTC2407026189-2E No.：BCTC/RF-EMC-005 Page: 2 of 74 Edition：B.2 FCC ID:2AW24JS-L01 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: WiFi Camera Trademark: N/A Model/Type Reference: JS-L01,JS-L02,JS-L03, JS-L04,JS-L05,JS-L06,JS-K259, JS-P158,JS-P159, JS-P160,JS-P161,JS-P162, JS-P163, JS-R01,JS-R02,JS-R03,JS-R04, JS-P167,JS-P168, JS-K268, JS-G05, JS-G02,JS-G08,JS- GL09,JN-LB4AB, JN-LB4AB-2, JS-B01,JS-B02,JS-PL01,JS-PLX,JS-BLX, (X Can be 01~99) Prepared For: Shenzhen Whale Vision Technology Co., Ltd Address: Room 510-511, Building A8, Peking University Sci-Tech Park, 3000-1 Songbai Road, Shiyan Town, Bao'an District, Shenzhen, China Manufacturer: Shenzhen Whale Vision Technology Co., Ltd Address: Room 510-511, Building A8, Peking University Sci-Tech Park, 3000-1 Songbai Road, Shiyan Town, Bao'an District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-07-22 Sample Tested Date: 2024-07-22 to 2024-08-06 Report No.: BCTC2407026189-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2407026189-2E No.：BCTC/RF-EMC-005 Page: 3 of 74 Edition：B.2 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information and Test Setup ...................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Te…
