2AW2H-HC-03Wireless charger warm cup

Specifications 1（ ） Name:Wireless Charger Input:12V/1.5A Charging output:5V/1A 9V/1.2A 12V/1.5A Transmission distance: less than 6mm Charging efficiency: about80% LEDindicatorPhenomenon description Thelight flashes three timesThewireless charger is turned on Thelight is not brightStandby mode In the state of breathing lightPower transmission Flashing lights Thelocation is not in place or security is activated Applicable equipment 1.Built-in wireless charging receiver (iphone8, iphoneX, Samsung S6, etc.), 2.Equipment with a protective cover for the receiving device (iphone7 series, etc.) Wireless cup warmer instructions After power-on, place the matching glass cup in the center of the base. Wireless charger instructions Place the phone in the middle of the wireless charger and the breathing light flashes to the charging state. Package Contents--------------------------------------------------------- Wireless cup warmer instructions------------------------------------ Wireless charger instructions ------------------------------------------ Specifications -------------------------------------------------------------- Care and Cleaning-------------------------------------------------------- Troubleshooting----------------------------------------------------------- Warranty -------------------------------------------------------------------- Warranty Thank you for purchasing our product,whichhas been made to meet high quality standards.Themanufacturer's warranty covers the product for a period of12 months from the date of purchase against manufacturing faults. Due to continuous product improvement,wereserve the right to change the product specification without prior notice. Warranty Card Please fill in this table and email it within 10 days from the date of purchase. Article: Model: Owner ’s Name: Address: Tel: Purchase Date: Dealer ’s Name&Stamp: Address: Tel: User Manual Wireless charger warm cup Please read the instructions carefully before using this product! This product is household use only. Model No. :HC-03 Package Contents 1.Wireless charger 2.Adapter 3. Power cord 4.Glass cup 5.Silicone cup cover Important Safeguards 1.Do not disassemble or modify this product yourself. 2. Keepthe charger and receiver away from water and other liquids. 3. Toclean the charger, make sure that no power is plugged in. 4. Theambient temperature is maintained at 0-45° C 5.It is forbidden to place metal materials such as coins and keys or magnetic materials such as bank cards on the charger,which willaffect normal work. 6. The cups can only be hand washed, not for microwave/dishwasher/oven. 12 3 6 LEDindicatorPhenomenon description Thelight flashes three timesThecup warmer is turned on Thelight is not bright Standby mode/not powered on/not used for more than8hours In the state of breathing lightHeating/charging Flashing lights Thelocation is not in place or security is activated 4 Note: Entering standby mode after 8 hours of heat preservation. Note: The bottom of the mug is made of special materials. The mug is placed on the base and heated by electromagnetic induction. The ordinary cup is not compatible and cannot be heated. Note: These receivers must comply with the WPCQI standard for compatibility Note: The wireless charger is equipped with a “wireless charging and heating adaptive switch”, which can effectively prevent metal objects or mobile phones from being heated and further prevent d amage to the mobile phone or burn the user, and the heat preservation cup can be automatically switched to Heating function. Care and Cleaning 1. Wipethe adapter, data cable, and charging stand with a rag or paper towel. Never enter the water. 2.Please clean the cup manually, do not use dishwasher. 3.Thecup can bedriedand disinfected in150°C/302°F, but it can't be placed in a microwave oven or heated in the oven. Troubleshooting ProblemPossible causesWhat to do No powerThegrid is out of powerChange the power socket No powerThepower cord plug is not in place Put the power cord plug in place No powerAdapter or power cord is brokenReplace No powerCharging block circuit is badContact the dealer Flashing lightTheappliance is not in placePut the appliance in place Flashing light Thecup is heated for more than8 hours Pick up the cup and put it back in the cradle 5 Specifications （2） Name: Wireless Charger Heating power :15W CUPCAPACITY:ABOUT350ML Keepwarm: about50 °C/ 122°F (more suitable for human drinking water ) Material: glass cup Heating method: wireless induction heating 1 2 2 3 5 5 6 FCC Statement This device complies with part 18 of the FCC Rules. Operation is Subject To the following two conditions: (1) This devic e may not cause harmful interference, and (2) this device must ac cept any interference received, including interference that may cause undesired operation. Changes or modifications not explicitly approved by the party responsible for compliance could void the user's authority to operate this equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferenc e in a residential installation. This equipment generates, uses and candidate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Howev er, there is no guarantee that interference will not occur in a particular installation. If this equipment does c ause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. …

Text truncated - open the document above for the full version.

SHENZHEN FUTOUCH SCIENCE AND TECHNOLOGY CO.,LTD Agent Authorization Company: SHENZHEN FUTOUCH SCIENCE AND TECHNOLOGY CO.,LTD Address: 3-1F., Baoan Industrial Park, Xixiang Road., Baoan District, Shenzhen, Guangdong, China Product Name: Wireless charger warm cup Trade Mark: FUTOUCH Model Number(s): HC-03 FCC ID: 2AW2H-HC-03 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2002-08-04 Name: HAIYANG GENG Title: general manager Company: SHENZHEN FUTOUCH SCIENCE AND TECHNOLOGY CO.,LTD

SHENZHEN FUTOUCH SCIENCE AND TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-08-04 Subject; Request for Confidentiality FCC ID: 2AW2H-HC-03 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: HAIYANG GENG Title: general manager

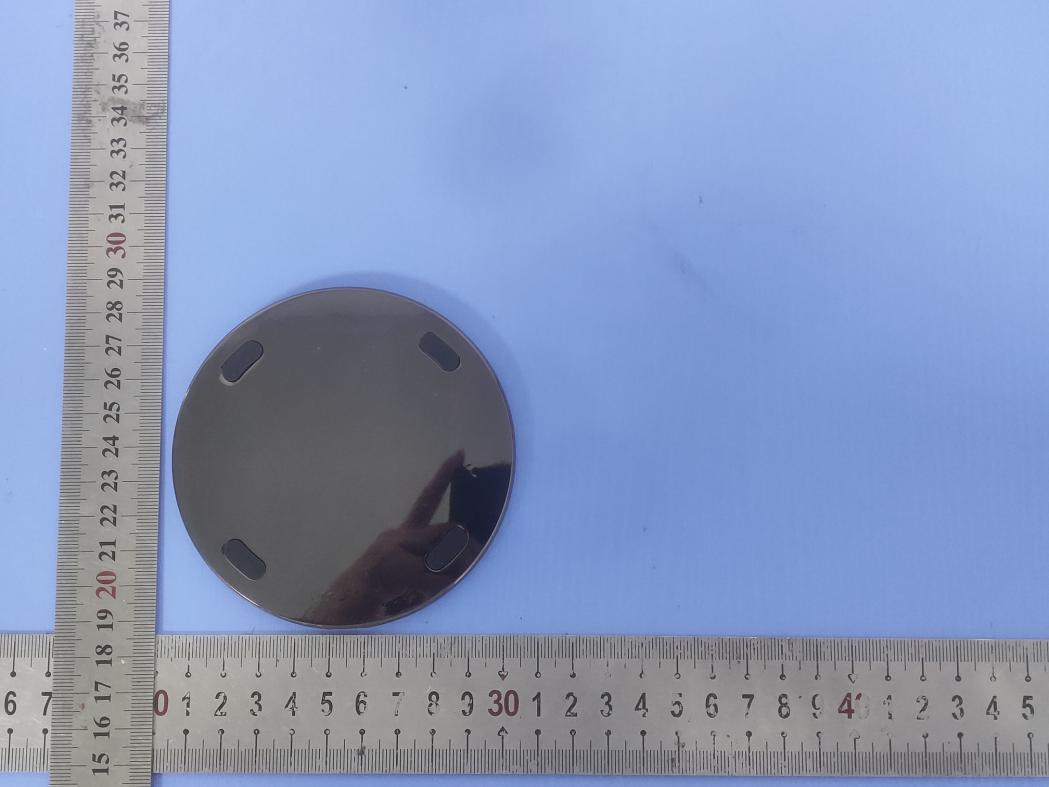

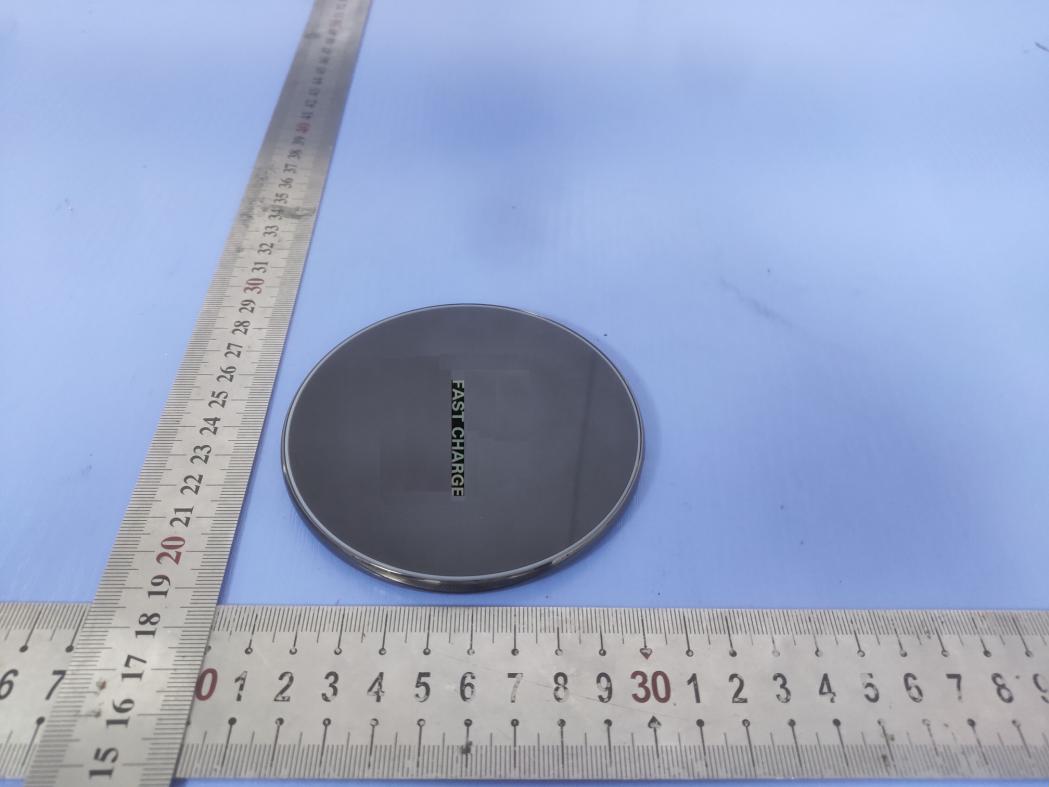

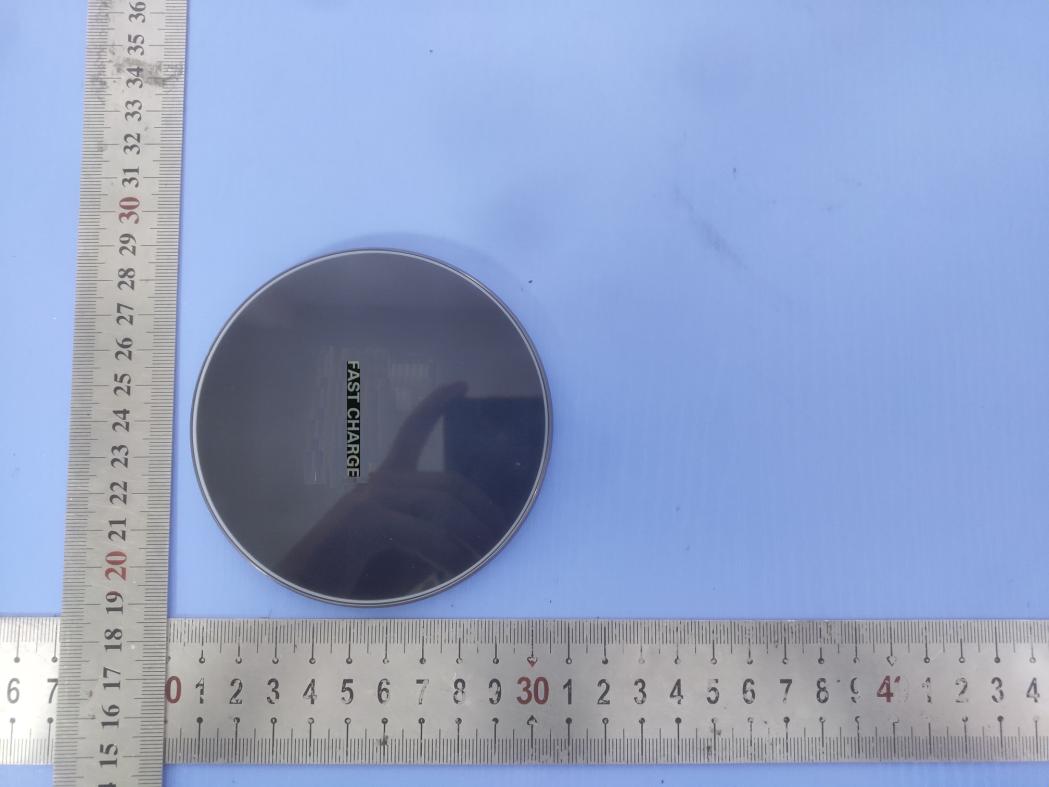

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 3.5cm*W: 3.0cm Label Location Wireless charger warm cup Model No.: HC-03 FCC ID : 2AW2H-HC-03 This device complies with part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 Internal Photos of the EUT Fig.1 Fig.2 Coil Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 10 RF Exposure Evaluation Report 1. Product Information FCC ID: 2AW2H-HC-03 Number of tested samples 1 Sample number 200707058A Product Name Wireless charger warm cup Model Number HC-03 Power Supply Input: 9Vdc/1.67A; 12Vdc/1.5A USB Output: 9Vdc/ 1.2A; 12Vdc/1.25A Modulation Type CW (Continuous Wave) Frequency Range 110 KHz - 205 KHz Operation Frequency 128.0 KHz Antenna Type Coil Antenna Hardware version HC-03V1.0 Software version HC-03V1.0-55°C Accessories Mobile phone Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 10 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 / / f/300 6 1,500-100,000 / / 5 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 ___________________________________________________________________________ This report shall not be reproduced except …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 Report No.: LCS200707058AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 23 FCC TEST REPORT For SHENZHEN FUTOUCH SCIENCE AND TECHNOLOGY CO.,LTD Wireless charger warm cup Test Model: HC-03 Additional Model No.: / Prepared for : SHENZHEN FUTOUCH SCIENCE AND TECHNOLOGY CO.,LTD Address : 3-1F., Baozhou Industrial Park, Xixiang Road., Baoan District, Shenzhen, Guangdong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 03, 2020 Number of tested samples : 1 Sample number 200707058A Serial number : Prototype Date of Test : July 03, 2020 ~ July 23, 2020 Date of Report : July 25, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 Report No.: LCS200707058AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 23 FCC TEST REPORT FCC CFR 47 PART 18 Report Reference No. ................ : LCS200707058AEA Date Of Issue ................................. : July 25, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : SHENZHEN FUTOUCH SCIENCE AND TECHNOLOGY CO.,LTD Address .......................................... : 3-1F., Baozhou Industrial Park, Xixiang Road., Baoan District, Shenzhen, Guangdong, China Test Specification Standard ......................................... : FCC CFR 47 PART 18 Test Report Form No. .................... : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Wireless charger warm cup Trade Mark ..................................... : FUTOUCH Test Model ...................................... : HC-03 Power Supply ................................. : Input: 9Vdc/ 1.67A; 12Vdc/1.5A USB Output: 9Vdc/ 1.2A; 12Vdc/1.25A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 Report No.: LCS200707058AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 23 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200707058AEA July 25, 2020 Date of issue Test Model.............................. : HC-03 EUT......................................... : Wireless charger warm cup Applicant............................... : SHENZHEN FUTOUCH SCIENCE AND TECHNOLOGY CO.,LTD Address.................................. : 3-1F., Baozhou Industrial Park, Xixiang Road., Baoan District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHENZHEN FUTOUCH SCIENCE AND TECHNOLOGY CO.,LTD Address................................... : 3-1F., Baozhou Industrial Park, Xixiang Road., Baoan District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / Factory................................... : SHENZHEN FUTOUCH SCIENCE AND TECHNOLOGY CO.,LTD Address................................... : 3-1F., Baozhou Industrial Park, Xixiang Road., Baoan District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 Report No.: LCS200707058AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 23 Revision History Revision Issue Date Revisions Revised By 000 July 25, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 Report No.: LCS200707058AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 23 TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) .............................................................................................................. 6 1.2 Support equipment List ....................................................................................................................... 6 1.3 External I/O Cable .......................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Appendix A Photographs of Test Setup Conducted Emission-AC adapter charge mode Radiated Emission below 30MHz-AC adapter charge mode SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW2H-HC-03 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission Below 1 GHz
