2AW3E-K121RV wireless Bluetooth speaker

DW-BT-MAGI RV Speaker User's Guide DW-BT-MAGI Power button Pause Pairing TWS /LED/Reset Volume - Previous song Volume + Next song Speaker indicator light Each part button Base charging port Speaker charging port Wireless charging ButtonN ame Function Description Power button Pairing TWS Volume - Next song Volume + Previous song •Power on: Press and hold for 2S to power on. It will enter Bluetooth pairing mode by default. •Power off: Press and hold for 2S to power off •Pause/Play: Click to play/pause •Connection: Double-click to enter TWS pairing mode. When pairing is in progress, the RGB light flashes blue. The connection is successful. The blue light stays on. If there is no pairing within 60S, the TWS mode will be automatically exited. •Disconnect: Double-click to exit TWS mode •Volume reduction: Click to reduce the volume, click continuously to quickly reduce the volume. •Next song: Press and hold for 2S to next song •Volume increase: short press to increase volume, long press to quickly increase volume. •Previous song: Long press 2S to go to the previous song Key operation instructions Base charging contacts Speaker charging contacts DC 12V power cable Connect to 12V power supply and place the speaker on the base to charge 100 1 4 0 尺寸：100*140 There are built-in magnets on both sides of the bottom, which can be attached to golf carts or other iron materials to play music. Tips: Please do not attach to dangerous objects, such as electrical boxes, to avoid causing personal injury or damaging the speaker; 1.Please read the manual carefully and use the product according to the operating instructions. 2. Please use or store this product at room temperature. 3. Do not use this product near heat sources, such as radiators, heaters or other heating devices. 4. In order to protect your hearing and extend the life of the product, please do not adjust the volume to the maximum for a long time. 5.Please choose a charger that is certified by a regular manufacturer to charge the product. 6. It is recommended to fully charge the product before using it for the first time. If the product has not been used for a long time, please fully charge the product every 3 months to avoid battery damage. Note Product parameters Magnetic fixation Position of magnet Support Speaker power Play time Battery capacity Waterproof level Model Functions 1.Wireless output: 5W Max. 2.For mobile phones that support wireless charging, place them in the wireless charging sensing area to charge the phone . 3.Tip: When the power supply is not connected, playing songs while charging mobile phone will consume power very quickly. The battery can only last for about an hour. It is recommended to connect the power supply before charging the phone. When the speaker runs out of power, it will not be able to charge the mobile phone. The speaker needs to be fully charged or connected to a power supply before the wireless charging output can be used to charge the mobile phone; Charging: The blue light is always on during charging, and turns off when the battery is fully charged. The charging port of the base is connected to the Type-C charger. The base is connected to the power supply, and the Speaker is charged. During charging, the blue light is always on, and the light goes off when the battery is fully charged. The speaker is placed on the charging base to charge Wireless charging Power saving mode Wireless charging ButtonN ame F unction Description Speaker charging port Speaker indicator light Base charging port •Wireless charging: the green light is always on, foreign object detection: the red light is always on; •Speaker charging: The blue light alwaya on during charging, and turns off when the battery is fully charged. •The base is connected to the power supply. •Speaker charging: When charging, the blue light is always on, and when fully charged, the light goes off. •The speaker is charging. When charging, the blue light is always on, and when fully charged, the light goes off. 1.Bluetooth connection: Open the Bluetooth speaker and enter the Bluetooth pairing interface of the mobile phone. Search for the Bluetooth name: DW-BT-MAGI and click to connect. 2.Tip: If you cannot find the Bluetooth name, please press and hold the key for 5 seconds. After the Speaker is reset, search for Bluetooth again to connect. 1. Connect the DC5V power supply to the Type-C charging port of the Speaker for charging. 2. Place the speaker on the charging base, connect the DC5V power supply to the Type-C charging port of the base or connect the base power cord to the 12V power supply for charging; Tip: During charging, the blue light on the Speaker is always on, and when fully charged, the light turn off. Two speakers are close to each other. After turning on the phone, without connecting to Bluetooth, doule click the "pairing button" of one of the speakers for 2 seconds and wait for about 10 seconds. The two speakers will automatically pair. Open the Bluetooth interface of the mobile phone and search for "DW- BT-MAG1", click Connect, the connection is successful, and the two speakers can play songs at the same time; Bluetooth pairing TWS Function Speaker charging Power on: Press and hold for 2S to power on. It will enter Bluetooth pairing mode by default. 正面 反面 •Reset: Press and hold for 5S to restore factory settings •Lighting effect: Click to cycle through RGB (Colorful Transformation-Col- orful Breathing-Colorful Rotation-Purple-Light Blue-Yellow-Turn off the light). The last lighting effect is defaulted when turned on. LED Mode Reset DW-BT-MAGI Bluetooth version 5.3 20*10W (RMS) Charging time 2.5H 2200mAh/7.4V Wireless charging output 5W Max IPX6 Charging voltage DC 5V/DC 12V (charging base) 12H (50% volume) Product size 210*75*79mm A2DP V1.3, AVRCP V1.6, TWS Bluetooth music, TWS interconnection, 5W wireless charging, magnetic fixation FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi…

Text truncated - open the document above for the full version.

(Shenzhen Kenuo Digital Technology Co., Ltd) (2024.08.16) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AW3E-K121) [Shenzhen Kenuo Digital Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Weibiao Zhao (Shenzhen Kenuo Digital Technology Co., Ltd) (2024.08.16) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AW3E-K121) [Shenzhen Kenuo Digital Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Weibiao Zhao

Shenzhen Kenuo Digital Technology Co., Ltd 2024.08.16 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Weibiao Zhao / Manager Contact information / address:3A01, Building U3, Junxiang U8 Intelligent Manufacturing Industrial Park, Guxing Community, Xixiang Street, Baoan District, Shenzhen, China

Shenzhen Kenuo Digital Technology Co., Ltd 2024.08.16 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: RV wireless Bluetooth speaker Trademark: N/A MODEL: K121 DW- BT-MAG1, KN121, DW FCC ID: 2AW3E-K121 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Weibiao Zhao / Manager Contact information / address:3A01, Building U3, Junxiang U8 Intelligent Manufacturing Industrial Park, Guxing Community, Xixiang Street, Baoan District, Shenzhen, China

Shenzhen Kenuo Digital Technology Co., Ltd Model Difference 2024.08.16 EUT NAME: RV wireless Bluetooth speaker FCC ID: 2AW3E-K121 MODEL : K121 DW- BT-MAG1, KN121, DW All the model are the same circuit and RF module, except appearance color and model name. Regards Sincerely Client’s signature: Client’s name / title : Weibiao Zhao / Manager Contact information / address:3A01, Building U3, Junxiang U8 Intelligent Manufacturing Industrial Park, Guxing Community, Xixiang Street, Baoan District, Shenzhen, China

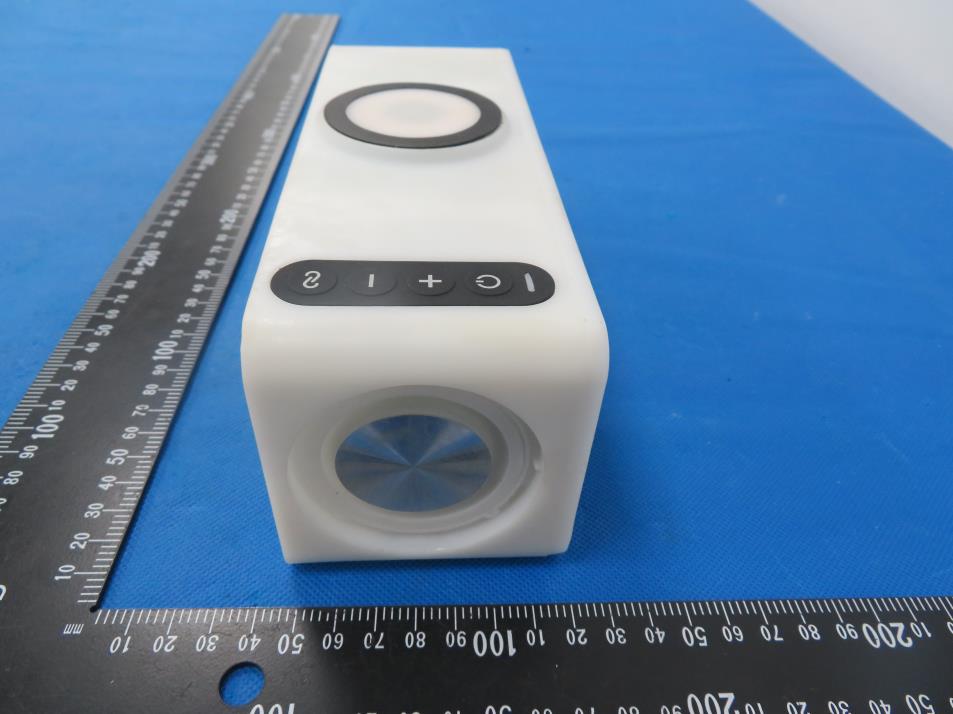

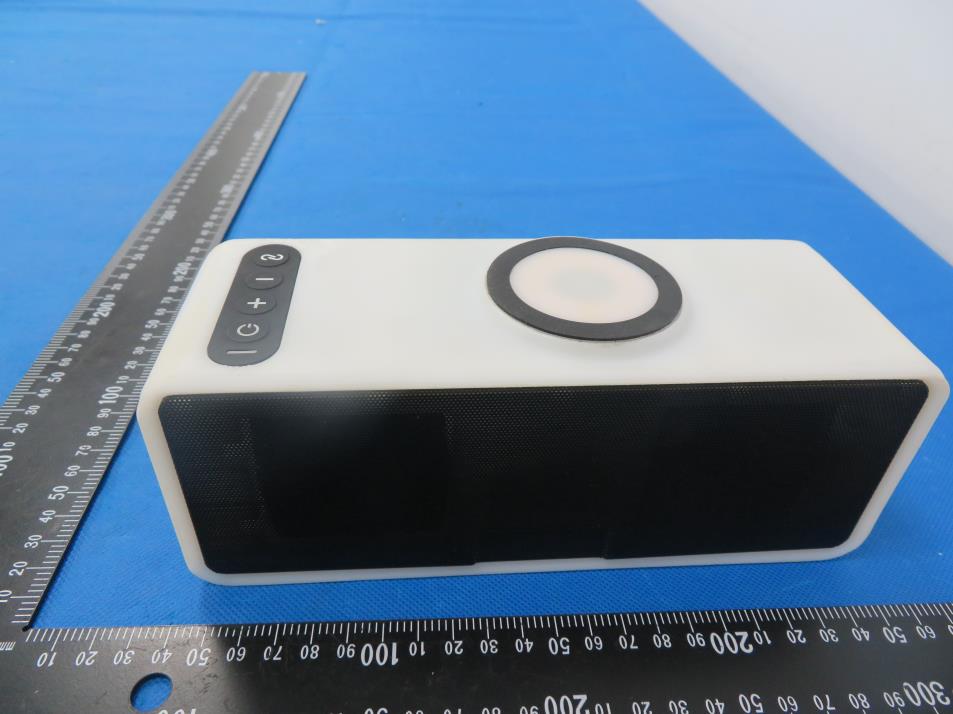

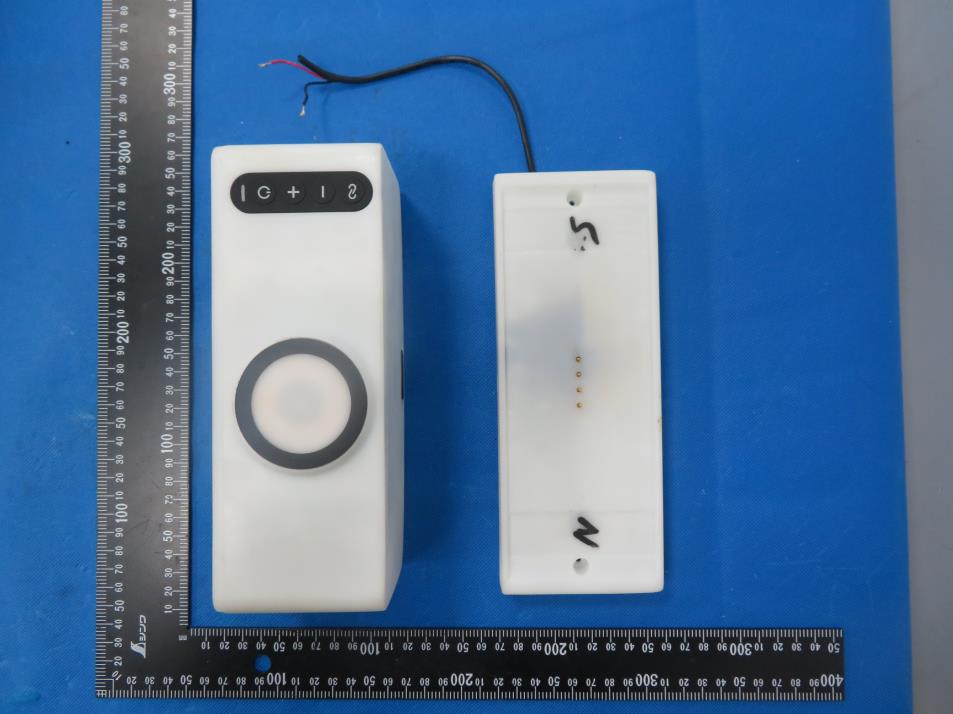

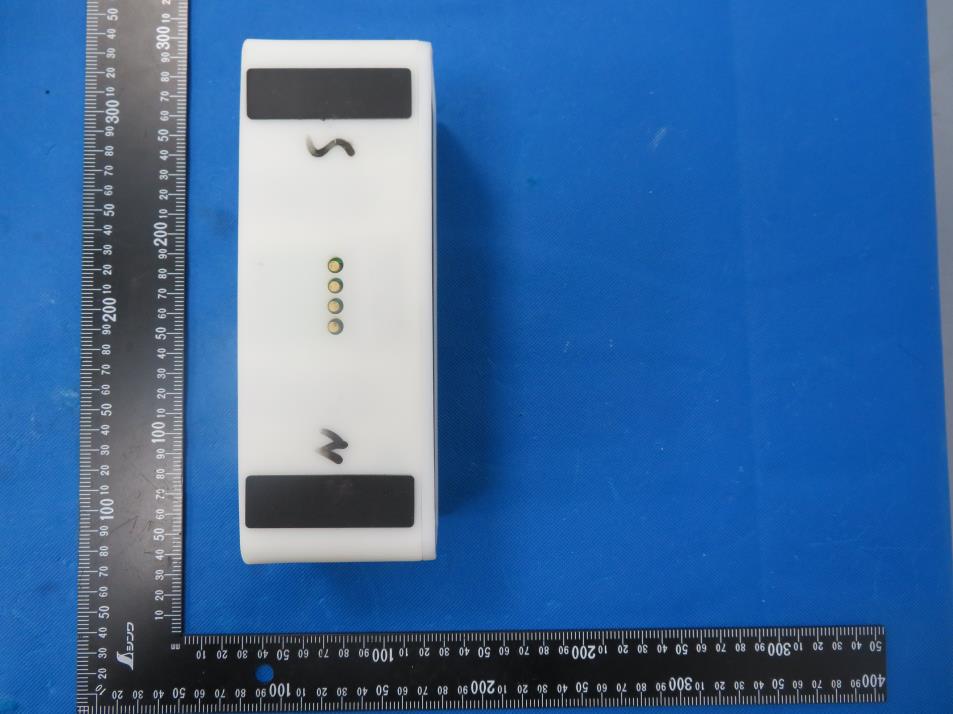

External Photos

Label & label location Size:20*10mm FCC ID: 2AW3E-K121 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Internal Photos BT Antenna Wireless charging Antenna

RF EXPOSURE EVALUATION METHOD FCC ID:2AW3E-K121 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT GFSK 2402 -1.2 21 GFSK 2441 -1.34 21 GFSK 2480 -1.52 21 π/ 4 DQPSK 2402 1.02 21 π/ 4 DQPSK 2441 0.86 21 π/ 4 DQPSK 2480 0.75 21 8DPSK 2402 1.51 21 8DPSK 2441 1.43 21 8DPSK 2480 1.23 21 max possible output power (PK,conducted)：2±1dBm -0.58dBi logarithmic terms convert to numeric result is nearly 0.87 3dBm=2mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.00/5*√2.402=0.62≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.00 /5*√2.441=0.62≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.00/5*√2.48=0.63≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Summary Inverted F Antenna Specification ITEM ANT SPEC Model Name 2.4G ANT(PCB) Center Frequency Horizontal Vertical 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.2mm Manufacture SHENZHEN RENYUAN TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Sc Frequency (MHz) Gain(dB) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/di Frequency (MHz) Gain(dB) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432

No.：BCTC/RF-EMC-005 Page: 1 of 84 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2405379042-3E Applicant: Shenzhen Kenuo Digital Technology Co., Ltd Product Name: RV wireless Bluetooth speaker Test Model: K121 Tested Date: 2024-05-31 to 2024-07-24 Issued Date: 2024-07-24 Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 2 of 84 Edition：B.2 FCC ID:2AW3E-K121 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: RV wireless Bluetooth speaker Trademark: N/A Model/Type Reference: K121 DW- BT-MAG1, KN121, DW Prepared For: Shenzhen Kenuo Digital Technology Co., Ltd Address: 3A01, Building U3, Junxiang U8 Intelligent Manufacturing Industrial Park, Guxing Community, Xixiang Street, Baoan District, Shenzhen, China Manufacturer: Shenzhen Kenuo Digital Technology Co., Ltd Address: 3A01, Building U3, Junxiang U8 Intelligent Manufacturing Industrial Park, Guxing Community, Xixiang Street, Baoan District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. Sample Received Date: 2024-05-31 Sample tested Date: 2024-05-31 to 2024-07-24 Issue Date: 2024-07-24 Report No.: BCTC2405379042-3E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Tang Changyu/ Project Handler Zero Zhou/Reviewer Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 3 of 84 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Spurious RF Conducted Emissions ..................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure .....................................................…

Text truncated - open the document above for the full version.

Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 57 of 84 Edition：B.2 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 58 of 84 Edition：B.2 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 59 of 84 Edition：B.2 Power NVNT 3-DH1 2480MHz Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 60 of 84 Edition：B.2 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 7.4V Remark: N/A Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH1 2401.834 2402.834 1 0.579 Pass NVNT 1-DH1 2440.832 2441.832 1 0.574 Pass NVNT 1-DH1 2478.83 2479.83 1 0.575 Pass NVNT 2-DH1 2401.836 2402.834 0.998 0.844 Pass NVNT 2-DH1 2440.832 2441.834 1.002 0.864 Pass NVNT 2-DH1 2478.828 2479.828 1 0.823 Pass NVNT 3-DH1 2401.834 2402.836 1.002 0.833 Pass NVNT 3-DH1 2440.832 2441.832 1 0.834 Pass NVNT 3-DH1 2478.83 2479.83 1 0.817 Pass Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 61 of 84 Edition：B.2 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 62 of 84 Edition：B.2 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 63 of 84 Edition：B.2 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 64 of 84 Edition：B.2 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 65 of 84 Edition：B.2 CFS NVNT 3-DH1 2480MHz Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 66 of 84 Edition：B.2 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 7.4V Remark: N/A Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 67 of 84 Edition：B.2 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 68 of 84 Edition：B.2 Hopping No. NVNT 3-DH1 2441MHz Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 69 of 84 Edition：B.2 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 70 of 84 Edition：B.2 14.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 7.4V Remark: N/A Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH1 2441 0.394 125.686 319 31600 400 Pass NVNT 1-DH3 2441 1.651 269.113 163 31600 400 Pass NVNT 1-DH5 2441 2.9 319 110 31600 400 Pass NVNT 2-DH1 2441 0.401 127.919 319 31600 400 Pass NVNT 2-DH3 2441 1.653 262.827 159 31600 400 Pass NVNT 2-DH5 2441 2.9 304.5 105 31600 400 Pass NVNT 3-DH1 2441 0.402 128.238 319 31600 400 Pass NVNT 3-DH3 2441 1.652 264.32 160 31600 400 Pass NVNT 3-DH5 2441 2.904 302.016 104 31600 400 Pass Note: Total Dwell Time (ms) = Pulse Time (ms)*Burst Count Report No.:BCTC2405379042-3E No.：BCTC/RF-EMC-005 Page: 71 of 84 Edition：B.2 Test Graphs Dwell NVNT 1-DH1 2441MHz One Burst Dwell NVNT 1-DH1 2441MHz Accumulated Report No.:BCT…

Text truncated - open the document above for the full version.

17. EUT Test Setup Photographs Conducted emissions Radiated Measurement Photos 9kHz-30MHz(Mode 1-3) 9kHz-30MHz(Mode 4-6) 30MHz-1GHz Above 1Ghz
