2AW3KKL100-3HRF REMOTE CONTROL

Customer Service: 651-357-1862 | [email protected] | www.extrememax.com Remote Control - Gen 4: 3001.9815 Battery Replacement Only: 3005.4242 Boat Lift Boss™ Remote Control User Guide 3005.2156.2 - 2971ex0917 Battery Replacement, Usage, and Programming of the Remote Control Unit Part I: Remote Use Use the top button on your remote to raise your boat, and the bottom button to lower your boat. The smaller button below is used for the optional lighting kit and programming of the remote. Important The following instructions are intended to be used for pairing a Generation 4 Remote (gray case with black buttons) to a Generation 4 Remote Receiver (signified by sticker on the face of the Boat Lift Boss). For pairing instructions with Generation 3 Receivers, follow the web path at the bottom of the page. Light Control Button Raise Boat Lower Boat Refer to www.ExtremeMax.com for the most up to date programming instructions. www.ExtremeMax.com > Support > Boat Lift Boss Programming Gray Case Black Buttons OR 12 Volt 120 Volt Part II: Programming Step 1 Unplug the Boat Lift Boss unit from the power source. Step 2 Turn the unit key in either direction to reset the unit. This is mandatory. Step 3 Press and hold the “Light Control” button on the remote control and reconnect the power to the Boat Lift Boss unit. Continue to hold the “Light Control” button for 5 seconds. Tech Line: 651-357-1862 | [email protected] | www.extrememax.com 2 Troubleshooting: 1. Ensure the remote control’s battery is operational. A dead battery will not allow the remote to pair with the Boat Lift Boss. • A battery may be tested by removing the back cover of the remote. Once open, an LED light will show when a button is pressed if the battery has charge. 2. During Step 2 of the Programming stage, be sure to turn the key fully in either direction and listen for a “click” signifying the reset allowing the programming to continue. 3. If the previous steps fail, confirm that the Boat Lift Boss being paired to is a Generation 4 unit. A sticker on the lower left of the unit’s face will read “Wireless Remote • GEN 4 Internal Receiver.” If this label is missing, attempt the programming steps for a Generation 3 Boat Lift Boss, available on www.ExtremeMax.com. Part III: Battery Replacement Lithium Battery CR 2032 3V Step 1 Remove the four screws from the remote control, remove the back cover. Step 2 Remove the old battery, and install a new lithium battery (model number facing up). Use 3-volt 2032 battery. (Part Number: 3005.4242) Step 3 Reinstall back cover. Make sure the cover lines up properly with the interior electric board.

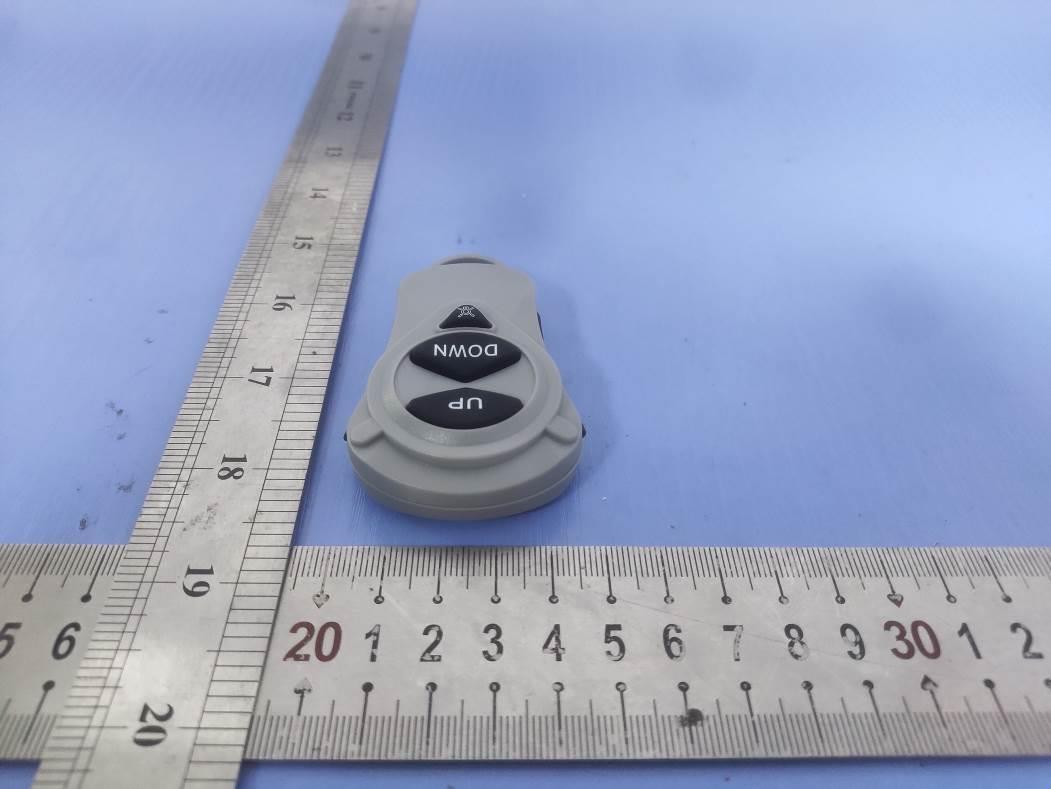

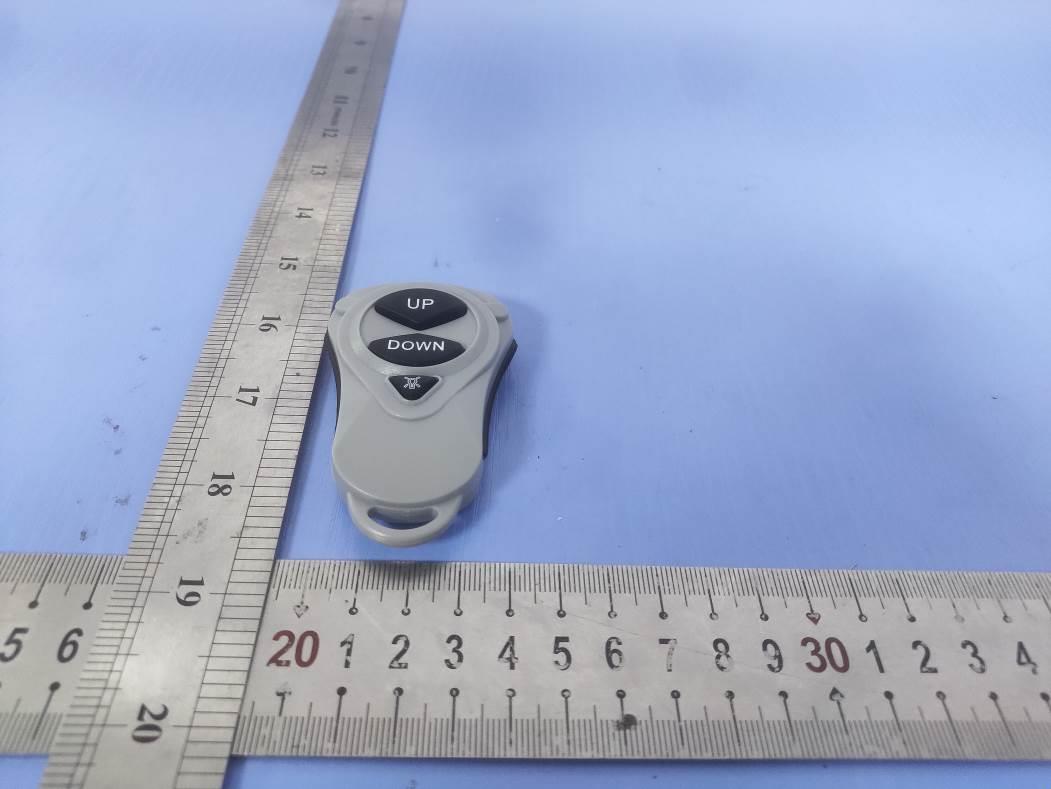

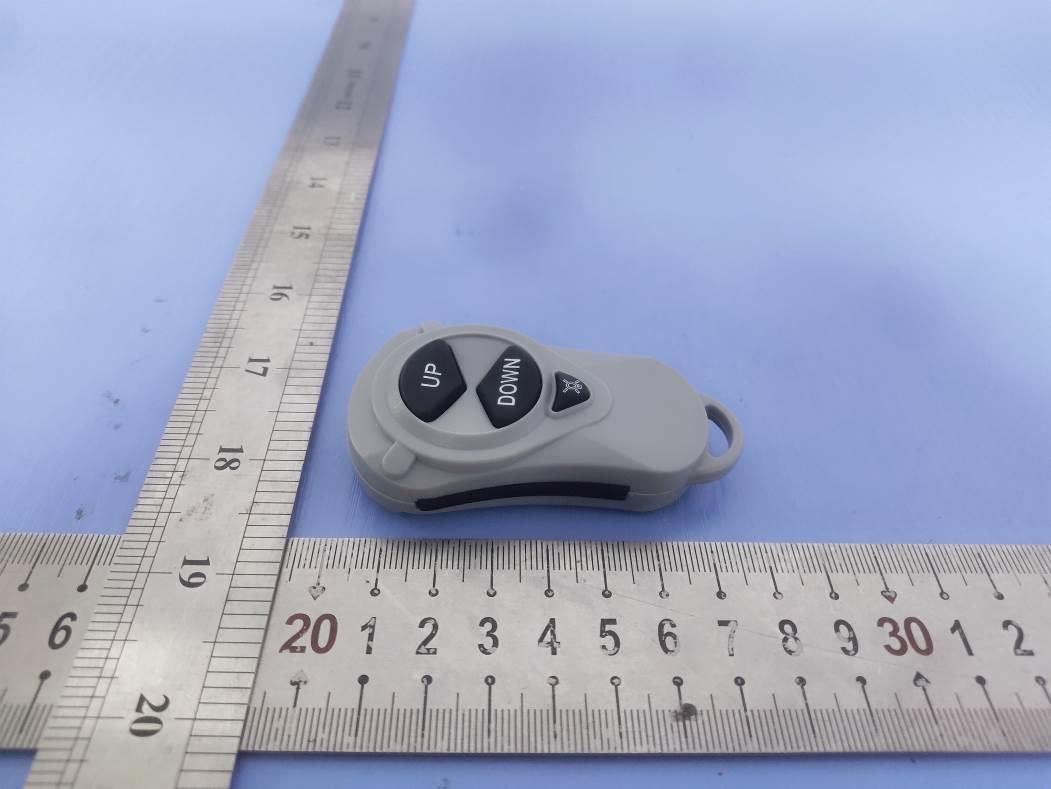

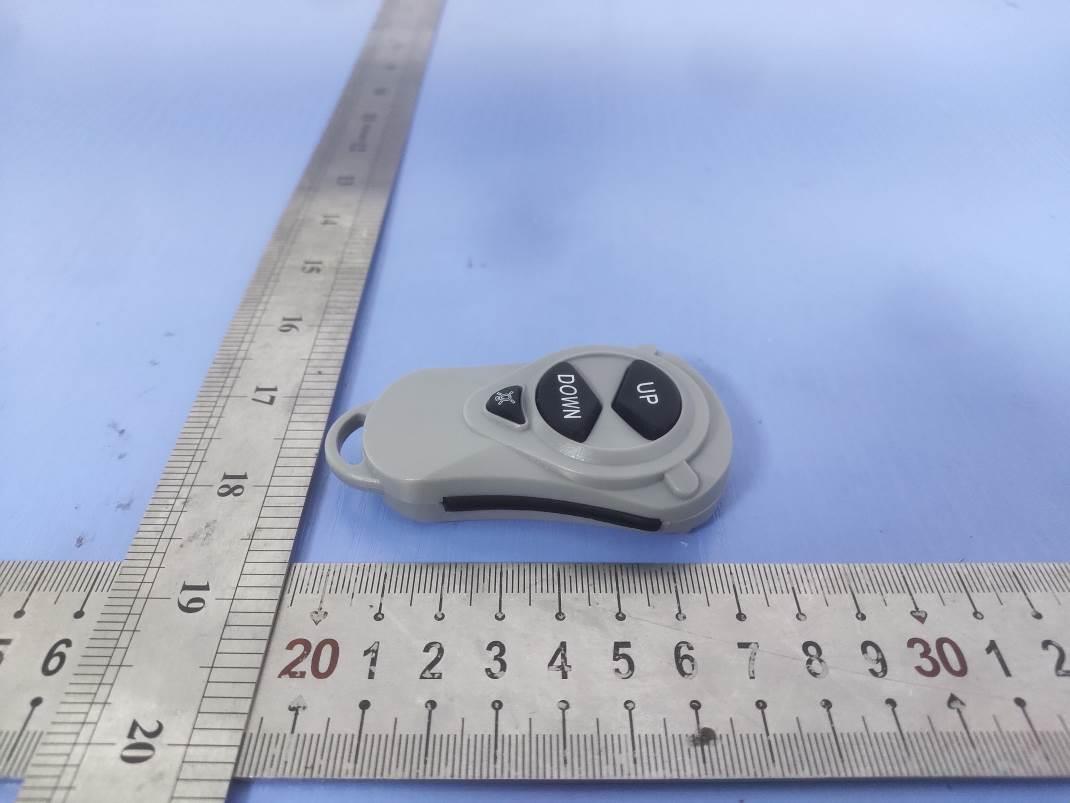

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW3KKL100-3H This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 External Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW3KKL100-3H This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW3KKL100-3H This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L3.0cm x 2.0cm) Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Model No.: KL100-3H FCC ID: 2AW3KKL100-3H

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW3KKL100-3H This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW3KKL100-3H This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Fig.3 Antenna

Northern Wholesale Supply 6800 Otter Lake Road Lino Lakes, MN 55038 USA Declaration concerning Antenna Specification Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/08/21 TO WHOM IT MAY CONCERN It is hereby declared that the product Model No.: KL100-3H FCC ID: 2AW3KKL100-3H Fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Fixed Internal antenna type(s) described below: Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: SRD(433.0-434.5MHz) / Internal antenna 0dBi 433.0-434.5MHz The antenna will be fixed to the radio module by integral connector, and no other antennas not listed above should be used. Sincerely, Name: Candy Chen/ sales Company: Northern Wholesale Supply Address: 6800 Otter Lake Road Lino Lakes, MN 55038 USA Phone: 15112362867 Fax: 0755-82591330 E-Mail: [email protected]

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW3KKL100-3H ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AW3KKL100-3H Product name RF REMOTE CONTROL Test Model KL100-3H Power supply Input: DC 3V Modulation Type GFSK Channel Number 4 Channel Spacing 0.5MHz Antenna Type PCB Antenna Antenna Gain 0 dBi (maximum) Hardware version 2017.07.14. Software version KL100-3H/RFM2119S Operation frequency 433.0MHz~434.5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device Model Declaration / 2. Evaluation Method and Limit According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW3KKL100-3H ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results 4.1 Test Setup Block Diagram 4.2 Test Equipment Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Power Meter R&S NRVS 100444 2021-06-15 2 Power Sensor R&S NRV-Z32 10057 2021-06-15 Remark: all calibration period of equipment list is one year. 4.3 Test Procedure a. The EUT was directly connected to the power meter and antenna output port as show in the block diagram Test Setup; b. Setup EUT work at duty cycle more than 98%; c. Read power sensor values in RMS detector; Mode Channel Frequency (MHz) Average Conducted Output Power (dBm) GFSK 1 433.0 0.063 GFSK 2 433.5 -0.229 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AW3KKL100-3H ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. …
