2AW3X-APPP4S4UWifi Smart Power Strip

Easy Installation Indicator Light Power Strip Output Main Switch USB Ports Output Plug the Smart Power Strip into the wall outlet Add Device to Apone Smart APP Product Overview Apone Smart Power Strip has 4 power outlets and 4 USB outputs. This product works seamlessly with your home automation devices through the Apone Smart app or voice commands with Amazon Alexa or Google Assistant. It provides wireless control of your power from anywhere. It automatically switches individual devices on and off based on multiple timers. Intelligent USB charging ports can detect your devices and deliver the ideal charging for optimum safety. Technical Specification Rated Current: 15 (Max) / Rated Power: W Rated Voltage: AC100V-240V (50/60Hz) Surge protection: 800J 4 x USB Output: 5V, 3.1A (Max) Light Indicators Red Light Blinking: Syne mode Red Light Steady On: Successfully paired to wireless network Red Light Off: Not connected to wireless network Blue Light On: Power connected to output ports Blue Light Off: Power disconnected to output ports NOTE: This device support 2.4GHz Wi-Fi Network only. It is compatible with Android ersion 5.0above iOS 8 above. DO NOT overload capacity.For more troubleshooting help, please visit:www.apone.ca Or send us an e-mail at [email protected] this device may not cause harmful interference. this device must accept any interference received, including interference that may cause undesired operation. help. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. - - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for Smart Power Strip Quick Guide Model: APP-P4S4U Length: 1.8 m Item Dimensions: 29.5 x 5.8 x 3 (cm) avoid The distance between user and products should be no less than 20cm

DATE : 2020-08-14 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AW3X-APPP4S4U Product Name: Wifi Smart Power Strip Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Yvonne Huang Title: Product Manager Applicant Company: APONE TECHNOLOGY CO., LTD.

DATE: 2020-08-14 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint DONGGUAN SHUOXIN ELECTRONIC TECHNOLOGY CO., LTD. Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with APONE TECHNOLOGY CO., LTD. 6F.,No.258, Sec.1, Wenhua 1st Rd., Linkou Dist.,New Taipei City 24447, Taiwan (Applicant Name and address) <Signature>: Name: Yvonne Huang Title: Product Manager Applicant Company: APONE TECHNOLOGY CO., LTD. Aug.14th., 2020

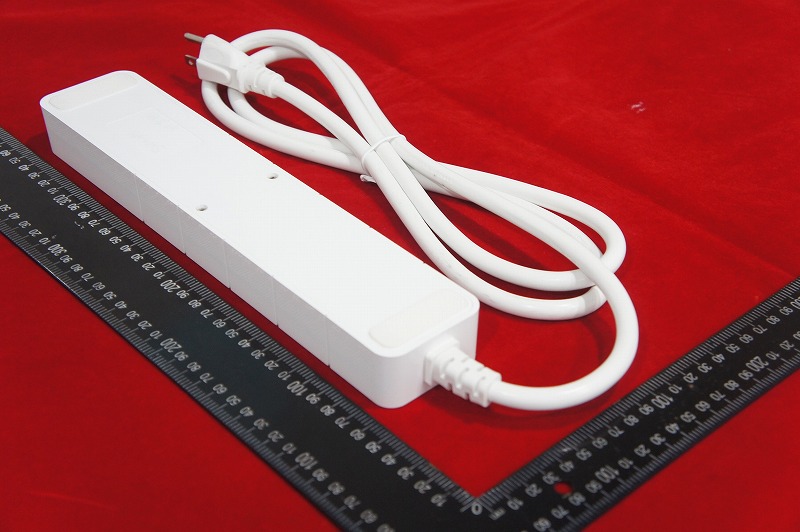

External photo

SIZE: 49x29mm Smart Power Strip Model: APP-P4S4U Input/ Contribution: 120V-240VAC, 50/60 Hz, 15A Output/ Production: 120V-240VAC, 50/60 Hz, 15A Max load/ Charge max: 1875W FCC ID: 2AW3X-APPP4S4U IC: 26330-APPP4S4U C380 29 mm 49 mm

Internal photo

RF EXPOSURE REPORT FCC ID: 2AW3X-APPP4S4U IC:26330-APPP4S4U Applicant’s name ........................ : APONE TECHNOLOGY CO., LTD. Address ...................................... : 6F.,No.258, Sec.1, Wenhua 1 st Rd., Linkou Dist., New Taipei City 24447, Taiwan Manufacturer .............................. : APONE TECHNOLOGY CO., LTD. Equipment .................................. : Wifi Smart Power Strip Trade Mark ................................. : APONE Model ........................................ : APP-P4S4U Ratings ....................................... : I/P: AC 120V-240VAC, 50/60 Hz, 15A 1875W(Resistive) O/P: AC 120V-240VAC, 50/60 Hz, 15A USB:Output:5Vdc,3.1A (each USB port) Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China According ................................... : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 N/A N/A Printed Antenna N/A 2 TEST RESULTS EUT： Wifi Smart Power Strip Model Name : APP-P4S4U Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz For FCC 2.4G WIFI Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 21.584920.46 111.2 1 Complies Note: the calculated dist ance is 20 cm. 0.035

Report No.: 20EFAS07087 6411 Page 1 of 77 FCC &ISED Radio Test Report FCC ID: 2AW3X-APPP4S4U IC:26330-APPP4S4U The report concerns: Original Grant Report Reference No. ................. : 20EFAS07087 6411 Date Sample(s) Received ........... : 2020-07-20 Date of Tested ............................. : 2020-07-20 to 2020-08-06 Date of issue ............................... : 2020-08-07 Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name ........................ : APONE TECHNOLOGY CO., LTD. Address ...................................... : 6F.,No.258, Sec.1, Wenhua 1 st Rd., Linkou Dist., New Taipei City 24447, Taiwan Manufacturer............................... : APONE TECHNOLOGY CO., LTD. Equipment................................... : Wifi Smart Power Strip Trade Mark ................................. : APONE Model ........................................ : APP-P4S4U Ratings ....................................... : I/P: AC 120V-240VAC, 50/60 Hz, 15A 1875W(Resistive) O/P: AC 120V-240VAC, 50/60 Hz, 15A USB:Output:5Vdc,3.1A (each USB port) Test Engineer: Blue Qiu Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 20EFAS07087 6411 Page 2 of 77 Table of Contents Page 1 . TEST REPORT DECLARE 4 2 . SUMMARY OF TEST RESULTS 5 2.1 MEASUREMENT UNCERTAINTY 6 3 . GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 8 3.3 PARAMETERS OF TEST SOFTWARE 9 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.5 SUPPORT UNITS 10 3.6 TEST ENVIRONMENT CONDITIONS 10 3.7 DUTY CYCLE 11 4 . AC POWER LINE CONDUCTED EMISSIONS TEST 12 4.1 LIMIT 12 4.2 TEST PROCEDURE 12 4.3 MEASUREMENT INSTRUMENTS LIST 12 4.4 TESTSETUP 13 4.5 EUT OPERATION CONDITIONS 13 4.6 TEST RESULTS 14 5 . RADIATED EMISSIONSTEST 16 5.1 LIMIT 16 5.2 TEST PROCEDURE 17 5.3 MEASUREMENT INSTRUMENTS LIST 18 5.4 TESTSETUP 18 5.5 EUT OPERATIONCONDITIONS 19 5.6 TEST RESULTS - 9KHZ TO 30MHZ 20 5.7 TEST RESULTS - 30MHZTO 1000MHZ 21 5.8 TEST RESULTS- ABOVE 1000MHZ(BAND EDGE) 23 5.9 TEST RESULTS- ABOVE 1000MHZ(HARMONIC) 39 6 . BANDWIDTH TEST 63 6.1 LIMIT 63 6.2 TEST PROCEDURE AND SETTING 63 6.3 MEASUREMENT INSTRUMENTS LIST 63 6.4 TEST SETUP 63 Report No.: 20EFAS07087 6411 Page 3 of 77 Table of Contents Page 6.5 EUT OPERATION CONDITIONS 63 6.6 TESTRESULTS 64 7 . MAXIMUM OUTPUT POWER TEST 68 7.1 LIMIT 68 7.2 TEST PROCEDURE AND SETTING 68 7.3 MEASUREMENT INSTRUMENTS LIST 68 7.4 TEST SETUP 68 7.5 EUT OPERATION CONDITIONS 68 7.6 TESTRESULTS 69 8 . CONDUCTED SPURIOUS EMISSIONS 70 8.1 LIMIT 70 8.2 TEST PROCEDURE AND SETTING 70 8.3 MEASUREMENT INSTRUMENTS LIST 70 8.4 TEST SETUP 70 8.5 EUT OPERATION CONDITIONS 70 8.6 TESTRESULTS 71 9 . POWER SPECTRAL DENSITY TEST 73 9.1 LIMIT 73 9.2 TEST PROCEDURE AND SETTING 73 9.3 MEASUREMENT INSTRUMENTS LIST 73 9.4 TEST SETUP 73 9.5 EUT OPERATION CONDITIONS 73 9.6 TESTRESULTS 74 10 . FREQUENCY STABILITY MEASUREMENT 76 10.1 LIMIT 76 10.2 TEST PROCEDURE AND SETTING 76 10.3 MEASUREMENT INSTRUMENTS LIST 76 10.4 TEST SETUP 76 10.5 EUT OPERATION CONDITIONS 76 10.6 TEST RESULTS 77 Report No.: 20EFAS07087 6411 Page 4 of 77 1. TEST REPORT DECLARE Applicant APONE TECHNOLOGY CO., LTD. Address 6F.,No.258, Sec.1, Wenhua 1st Rd., Linkou Dist., New Taipei City 24447, Taiwan Manufacturer APONE TECHNOLOGY CO., LTD. Address 6F.,No.258, Sec.1, Wenhua 1st Rd., Linkou Dist., New Taipei City 24447, Taiwan Factory APONE TECHNOLOGY CO., LTD. Address 6F.,No.258, Sec.1, Wenhua 1st Rd., Linkou Dist., New Taipei City 24447, Taiwan Equipment Wifi Smart Power Strip Model No. APP-P4S4U Trade Mark APONE Standard FCC Part15, Subpart C (15.247) RSS-247 Issue 2, Feb. 2017 RSS-Gen Is sue 5 March 2019 ANSI C63.10-2013 We Declare: The equipment described above is tested by DongGuan ShuoXin Electronic Technology Co., Ltd(ATT). and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and DongGuan ShuoXin Electronic Technology Co., Ltd.(ATT) is assumed of full responsibility for the accuracy and completeness of these tests. ATT is not responsible for the sampling stage, so the results only apply to the sample as received. ATT's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. ATT shall have no liability for any declarations, inferences or generalizations drawn by the client or others from ATT issued reports. Report No.: 20EFAS07087 6411 Page 5 of 77 2. SUMMARY OF TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Standard(s) Section Test Item Judgment Remark FCC ISED 15.207 RSS-Gen8.8 AC Power Line Conducted Emissions PASS ------ 15.247(d) 15.205(a) 15.209(a) RSS-247 5.5 RSS-Gen8.9 RSS-Gen8.10 Radiated Emissions PASS ------ 15.247(a)(2) RSS-247 5.2 (a) RSS-Gen6.7 Bandwidth PASS ------ 15.247(b)(3) RSS-247 5.4 (d) Maximum Output Power PASS ------ 15.247(d) RSS-247 5.5 Conducted Spurious EmissionPASS ------ 15.247(e) RSS-247 5.2 (b) Power Spectral Density PASS ------ - RSS-Gen 6.11 Frequency Stability PASS ------ 15.203 - Antenna Requirement PASS Note(2) Note: (1) “N/A” denotes test is not applicable in this test report. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: 20EFAS07087 6411 Page 6 of 77 2.1 MEASUREMENT UNCERTAINTY Test Item Uncertainty Uncertainty for Conduction emission test (9kHz-150kHz) 3.7 dB Uncertainty for Conduction emission test (150kHz-30MHz) 3.3 dB Uncertainty for Radiation Emission test (30MHz-200MHz) 4.60 dB (Polarize: V) 4.60 dB (Polarize: H) Uncertainty for Radiation Emissio…

Text truncated - open the document above for the full version.

Radiated Setup photo (Below 1G)
Radiated Setup photo (Above 1G) Conduction Setup photo
