2AW49200731ASAGA

Quick Start Guide 2 Quick Start Guide SIM tray placement Dual SIM trays Power button Finger print scanner Volume up Volume down USB-C port 1 2 1 2 3 4 5 6 7 3 3 4 5 6 7 4 Getting Started If migrating from an iPhone, deregister/disable iMessage before setup, or you may not receive all text messages on your new Saga. For more information: https://selfsolve. apple.com/deregister-imessage/ Step 1: This phone is powered by Android™. Set up your device like any other smartphone. Step 2: Press and hold the power button for four seconds. Step 3: Follow the prompted instructions to connect to the internet and finish the setup process — the steps are the same as they are for any other phone. Step 4: Create a Seed Phrase in the Seed Vault (Settings -> Seed Vault). This lets you use the Solana dApps store and can later be linked to a wallet. Quick Start Guide 5 Limited Warranty User Manual and Safety Guidelines solanamobile.com/warranty solanamobile.com/manual Terms of Use solanamobile.com/legal osomprivacy.com/legal Regulatory information Certification details, compliance markings, and other regulatory information can be found on your phone itself under Settings -> About phone -> Legal information. This device was made in compliance with the rules and regulations governing the use of radio frequency-emitting consumer electronic equipment. However, local laws and/or rules may vary — for example, in the case of airplanes. Please follow all instructions or laws required when operating the Solana Saga. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful 6 Quick Start Guide interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a 7 8 particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by OSOM Products could void the user’s authority to operate the equipment. Quick Start Guide 10 with a hearing aid on the microphone setting (acoustic coupling), and the T rating indicating the level of performance with a hearing aid on the telecoil setting (inductive coupling). The FCC considers a rating above M3/T3 as hearing aid-compatible. However, there may be features or functionality present that have not been tested for use with hearing aids. Consult your service provider or phone retailer for more information. Quick Start Guide This product is powered by a lithium-ion polymer battery. If handled incorrectly, lithium ion batteries may leak flammable gas, catch fire, or explode. Do not expose the battery to fire, excessive heat, vacuum, or extremely low ambient pressure. Do not cut, puncture, or cause Safety Notice 11 California notice WARNING: This product or its packaging can expose you to chemicals including Bisphenol A (BPA), which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov United States any other physical damage to the battery. If battery replacement is necessary, an identical model must be used to ensure safe operation. Recycle and dispose of batteries safely in accordance with your local laws. Safe input levels for the battery are: USB Type-C: 5V/3A, 9V/2.22A, 12V/1.67A. 20W max. Wireless Charging: 10V/1.5A. 15W max The OSOM logo, OSOM Products, OSOM, and other marks are trademarks of OSOM Products, Inc. Solana is a registered trademark of the Solana Foundation. Google, Android, and other marks are trademarks of Google LLC. LTE is a trademark of ETSI. Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of Wi-Fi Alliance. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. The N-Mark is a trademark of NFC Forum, Inc. All other trademarks are the property of their respective owners. Trademarks 12 Quick Start Guide 13 Product information Model: 200731A Input: Type-C: 5Vdc/3A, 9Vdc/2.22A, 12Vdc/1.67A, 20W max. Wireless charging: max. 10Vdc, 1.5A. max. 15W. Safety hints Altitude during operation (3000m). The maximum ambient temperature during use of the appliance must not exceed 50 C. The ventilation must not be impaired by covering the appliance with items such as newspapers, table cloths, curtains, etc. Naked flame sources, such as candles, must not be placed on the appliance. 'Warning' 1. The battery pack with the wrong model cannot be replaced; 2. Do not put the battery into fire or heating furnace, or mechanically extrude or cut the battery for disposal; 3. The battery shall not be placed in an extremely high temperature environment that may cause battery explosion or leakage of flammable liquid or gas; 4. The battery shall not be subjected to extremely low air pressure that may cause explosion or leakage of flammable liquid and gas. Symbols used: Indoor use only The appliance shall not be disposed together with the n…

Text truncated - open the document above for the full version.

OSOM Products Inc. March 15, 2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2AW49200731A) [OSOM Products Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (name, function): Wilson Chan, VP of Operations (signature): OSOM Products Inc. March 15, 2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2AW49200731A) [OSOM Products Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (name, function): Wilson Chan, VP of Operations (signature):

Attestation Statements March 15, 2023 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID:2AW49200731A) (OSOM Products Inc.), the undersigned, hereby authorize (OSOM Products Inc.) to act as our designated U.S. agent for service of process, (OSOM Products Inc.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (OSOM Products Inc.) accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: OSOM Products Inc. Contact Name: Wilson Chan Address: 21701 Stevens Creek Blvd #2270, Cupertino,CA 95015, USA Telephone No: +86 138 2522 0660 Email: [email protected] Signature [name] U.S. Agent Information: Company Name: OSOM Products Inc. Address: 21701 Stevens Creek Blvd #2270, Cupertino,CA 95015, USA FRN:0029817582 Contact Name: Wilson Chan Telephone No: +86 138 2522 0660 Email: [email protected] Signature [name]

OSOM Products Inc. Mar. 22,2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (SAGA /MODEL:OV1 AND FCC ID: 2AW49200731A) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (BOM,Operational Description，Block Diagram，Schematic Diagram, PCB Layout, Software Security Requirements for UNII devices, Tune Up Procedure) required to be submitted with this application be permanently withheld from public review. the above documents are company proprietary information that could never get into the possession of your competition Please contact me if there is any information you may need. Sincerely, (name, function): Jason Keats, Founder (signature):

OSOM Products Inc. Mar. 22,2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (CVC Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, (name, function): Jason Keats, Founder (signature):

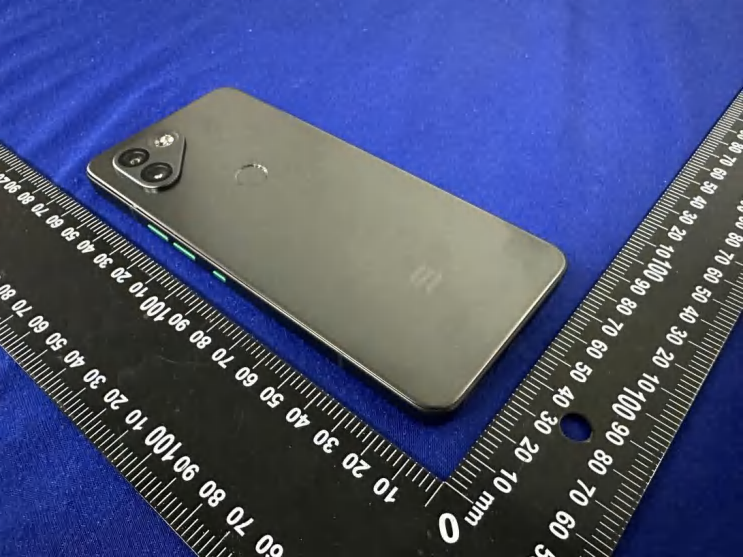

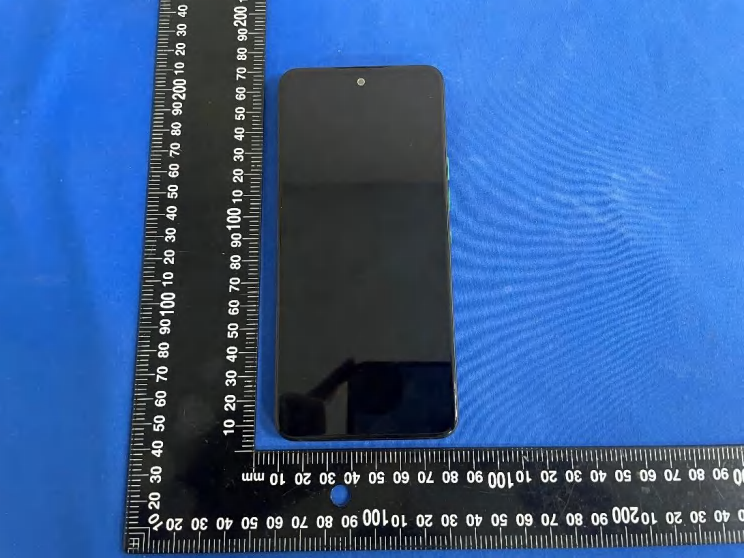

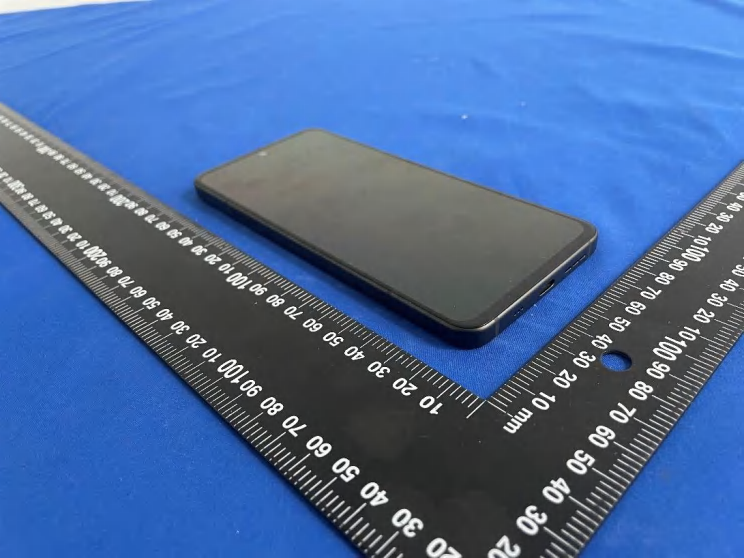

Page1of2ReportVersion1 FCC2022-0064-E PHOTOGRAPHSOFTHEEUT Page2of2ReportVersion1 FCC2022-0064-E

THIS DRAWING AND ANY ASSOCIATED DIGITAL FILES OR COMMUNICATIONS CONTAIN INFORMATION CONFIDENTIAL TO OSOM PRODUCTS, INC. OR ITS PROFESSIONAL AFFILIATES. CONTENTS MAY NOT BE USED, DISCLOSED, REPRODUCED, OR MODIFIED WITHOUT WRITTEN CONSENT OF OSOM. INKS / FINISHES / COLORS PROCESS STOCK TYPE REVISIONS DIMENSIONS AT BE BG CH CY CZ DE DK EE EL ES FI FR HR HU IE IS IT LI LT LU LV MT NL NO PL PT RO SE SI SK TR RO UA UK(NI) UNITED STATES FCC ID: 2AW49200731A CANADA IC: 26394-200731A CAN ICES-3 (B)/NMB-3 (B) EUROPE 5.15-5.35 GHZ INDOOR USE ONLY IMPORTED BY SOLANA MOBILE [EU address XXX] UNITED KINGDOM 5.15-5.35 GHZ INDOOR USE ONLY IMPORTED BY SOLANA MOBILE [UK address XXX] AUSTRALIA HAC: M4/T4 HVIN: OV1 MODEL / TYPE: OV1 MODEL NUMBER: 200731A AT BE BG CH CY CZ DE DK EE EL ES FI FR HR HU IE IS IT LI LT LU LV MT NL NO PL PT RO SE SI SK TR RO UA UK(NI) UNITED STATES FCC ID: 2AW49200731A CANADA IC: 26394-200731A CAN ICES-3 (B)/NMB-3 (B) EUROPE 5.15-5.35 GHZ INDOOR USE ONLY IMPORTED BY SOLANA MOBILE [EU address XXX] UNITED KINGDOM 5.15-5.35 GHZ INDOOR USE ONLY IMPORTED BY SOLANA MOBILE [UK address XXX] AUSTRALIA HAC: M4/T4 HVIN: OV1 MODEL / TYPE: OV1 MODEL NUMBER: 200731A THE SAGA IS DESIGNED & MANUFACTERED BY OSOM PRODUCTS INC. 21701 STEVENS CREEK BLVD #2270 CUPERTINO, CA 95015 MADE IN CHINA Certification details, compliance markings, and other regulatory information can be found on your phone itself under Settings → About phone → Legal information. ARTWORKMOCKUP Regulatory 1 - 2022.10.20: initial draft. 2 - 2022.10.24: add Canada company code, update EU pictogram, add UKCA mark 3 - 2022.11.09: update EU27, change model 4 - 2022.12.19: update FCC & IC ID –’s 5 - 2023.02.05: add Bureau Veritas logo & EU importer address 6 - 2023.02.16: placeholder EU/UK address, add HVIN, change GHz 7 - 2023.02.22: add manufacturer address REGULATORY E-MARKING ABC DIATYPE MONO REGULAR

Page1of11ReportVersion1 FCC2022-0064-E PHOTOGRAPHSOFTHEEUT Page2of11ReportVersion1 FCC2022-0064-E Page3of11ReportVersion1 FCC2022-0064-E Page4of11ReportVersion1 FCC2022-0064-E Page5of11ReportVersion1 FCC2022-0064-E Page6of11ReportVersion1 FCC2022-0064-E Page7of11ReportVersion1 FCC2022-0064-E Page8of11ReportVersion1 FCC2022-0064-E Page9of11ReportVersion1 FCC2022-0064-E Page10of11ReportVersion1 FCC2022-0064-E Page11of11ReportVersion1 FCC2022-0064-E Note1:ANT0/1/4/5/6/7/8forCell Note2:ANT2/3forBT/WIFI/GPS

Page 1 of 633 Report No.: S22092102102001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name᧶᧶ SAGA Brand Name᧶᧶ Model Name᧶᧶ OV1 Family Model᧶᧶ N/A Report No.᧶᧶ S22092102102001 FCC ID᧶᧶ 2AW49200731A Prepared for OSOM Products Inc 21701 Stevens Creek Blvd #2270, Cupertino, CA 95015, USA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 633 Report No.: S22092102102001 TEST RESULT CERTIFICATION Applicant’s name ................. : OSOM Products Inc Address .................................. : 21701 Stevens Creek Blvd #2270, Cupertino, CA 95015, USA Manufacturer's Name .......... : OSOM Products Inc Address .................................. : 21701 Stevens Creek Blvd #2270, Cupertino, CA 95015, USA Factory's Name .................... : Lens Technology (XiangTan) Co., Ltd. Address .................................. : NO.16, Baishi West Road, Xiangtan Economic & Technological Development Zone, Hunan Province, CN Product description Product name ........................ : SAGA Brand Name ......................... : Model and/or type reference : OV1 Family Model ......................... : N/A Standards ............................. : FCC 47 CFR Part 2(2.1093); ANSI/IEEE C95.1-1992 IEEE Std 1528-2013;Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) s pecified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties . This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number .............................S220921021002 Date of Test Date (s) of performance of tests .............. : Oct. 08, 2022 ~ Nov. 28, 2022 Date of Issue ........................................... : Feb. 06, 2023 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 633 Report No.: S22092102102001 Ć Ć Revision History Ć Ć REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Feb. 06, 2023 Jacob Chen Page 4 of 633 Report No.: S22092102102001 TABLE OF CONTENTS 1. General Information ............................................................................................ 7 1.1. RF exposure limits .................................................................................... 7 1.2. Statement of Compliance ........................................................................ 8 1.3. EUT Description ....................................................................................... 8 1.4. Test specification(s) ................................................................................ 11 1.5. Ambient Condition ................................................................................. 11 2. SAR Measurement System ................................................................................. 12 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 12 2.2. Robot ..................................................................................................... 13 2.3. E-Field Probe .......................................................................................... 14 2.3.1. E-Field Probe Calibration ................................................................. 14 2.4. SAM phantoms ...................................................................................... 15 2.4.1. Technical Data .................................................................................. 16 2.5. Device Holder ........................................................................................ 17 2.6. Test Equipment List ................................................................................ 18 3. SAR Measurement Procedures .......................................................................... 20 3.1. Power Reference ................................................................................... 20 3.2. Area scan & Zoom scan .......................................................................... 20 3.3. Description of interpolation/extrapolation scheme .............................. 22 3.4. Volumetric Scan ..................................................................................... 22 3.5. Power Drift ............................................................................................ 22 4. System Verification Procedure .......................................................................... 23 4.1. Tissue Verification ................................................................................. 23 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 24 4.2. System Verification Procedure .............................................................. 25 4.2.1. System Verification Results .............................................................. 26 5. SAR Measurement variability and uncertainty .................................................. 27 5.1. SAR measurement variability ................................................................. 27 5.2. SAR measurement uncertainty ........................…

Text truncated - open the document above for the full version.

Page 201 of 633 Report No.: S22092102102001 8. Antenna Location Antennas Band used ANT 0 WCDMA Band2/4/5, LTE Band 2/4/5/7/12/13/14/17/25/26/30/38/40/41/66/71, NR n2/n5/n7/n12/n25/n26/n38/n41/n66/n71 ANT 2 WLAN 2.4G ANT A, WLAN 5G ANT B ANT 3 WLAN 2.4G ANT B, WLAN 5G ANT A ANT 4 NR n41 ANT 6 LTE Band 42/48, NR n48/n77/n78 Note: Since the confidentiality request of EUTˈthe antenna location example diagram see as above. Distance of the Antenna to the EUT surface/edge Antennas Front Side Back Side Left Side Right Side Top Side Bottom Side ANT 0 ≤ 25mm ≤ 25mm ≤ 25mm ≤ 25mm > 25mm ≤ 25mm ANT 2 ≤ 25mm ≤ 25mm > 25mm ≤ 25mm ≤ 25mm > 25mm ANT 3 ≤ 25mm ≤ 25mm > 25mm ≤ 25mm ≤ 25mm > 25mm ANT 4 ≤ 25mm ≤ 25mm ≤ 25mm > 25mm ≤ 25mm > 25mm ANT 6 ≤ 25mm ≤ 25mm > 25mm ≤ 25mm ≤ 25mm > 25mm Positions for SAR tests Antennas Front Side Back Side Left Side Right Side Top Side Bottom Side Top Side Left Side Bottom Side Right Side 163mm Back View ANT 0 Back Side 75mm 174mm ANT2 ANT 4 ANT3 ANT6 109mm 124mm 40mm 20mm 54mm Page 202 of 633 Report No.: S22092102102001 ANT 0 YES YES YES YES NO YES ANT 2 YES YES NO YES YES NO ANT 3 YES YES NO YES YES NO ANT 4 YES YES YES NOYES NO ANT 6 YES YES NO YES YES NO 9. Stand-alone SAR test exclusion Refer to FCC KDB 447498D04, When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Mode P max (dBm) P max (mW) Distance (mm) SAR Exclusion threshold (mW) SAR test exclusion Bluetooth EDR 11.00 12.59 5 3 NO Bluetooth LE 10.00 10.00 5 3 NO NOTE: Standalone SAR test exclusion for Bluetooth. 10. SAR Results 10.1. SAR measurement Result 10.1.1. SAR measurement Result of WCDMA Band 2 Test Position of Head Test channel /Freq Mode SAR Value (W/kg) Power Drift(%) Conducted Power (dBm) Tune-up Power (dBm) Scaled SAR 1-g (W/Kg) Date Plot 1-g 10-g Left Cheek 9400/1880 RMC12.2K 0.067 0.043 -1.16 23.84 24.00 0.070 2022/10/08 1# Left Tilt 15 Degree 9400/1880 RMC12.2K 0.034 0.022 -3.19 23.84 24.00 0.035 2022/10/08  Right Cheek 9400/1880 RMC12.2K 0.062 0.039 -3.25 23.84 24.00 0.064 2022/10/08  Right Tilt 15 Degree 9400/1880 RMC12.2K 0.028 0.018 0.07 23.84 24.00 0.029 2022/10/08  NOTE: Head SAR test results of WCDMA Band 2 Test Position of Body-worn with 15mm Test channel /Freq. Mode SAR Value (W/kg) Power Drift(%) Conducted Power (dBm) Tune-up Power (dBm) Scaled SAR 1-g (W/Kg) Date Plot 1-g 10-g Page 203 of 633 Report No.: S22092102102001 Front Side 9400/1880 RMC12.2K 0.216 0.127 -2.74 23.84 24.00 0.224 2022/10/08  Back Side9400/1880 RMC12.2K 0.315 0.185 -2.50 23.84 24.00 0.327 2022/10/08  NOTE: Body-Worn SAR test results of WCDMA Band 2 Test Position of Hotspot with 10mm Test channel /Freq. Mode SAR Value (W/kg) Power Drift(%) Conducted Power (dBm) Tune-up Power (dBm) Scaled SAR 1-g (W/Kg) Date Plot 1-g 10-g Front Side 9400/1880 RMC12.2K 0.490 0.244 1.37 21.84 22.00 0.508 2022/10/08  Back Side 9400/1880 RMC12.2K 0.588 0.302 -0.24 21.84 22.00 0.610 2022/10/08  Left Side 9400/1880 RMC12.2K 0.243 0.127 -1.58 21.84 22.00 0.252 2022/10/08  Right Side 9400/1880 RMC12.2K 0.288 0.144 -3.38 21.84 22.00 0.299 2022/10/08  Bottom Side 9400/1880 RMC12.2K 0.835 0.443 -0.93 21.84 22.00 0.866 2022/10/08  Bottom Side 9262/1852.4 RMC12.2K 0.959 0.503 -1.52 21.93 22.00 0.975 2022/10/08 2# Bottom Side Repeated 9262/1852.4 RMC12.2K 0.952 0.495 0.35 21.93 22.00 0.967 2022/10/08  Bottom Side 9538/1907.6 RMC12.2K 0.911 0.477 -2.52 21.83 22.00 0.947 2022/10/08  NOTE: Hotspot SAR test results of WCDMA Band 2 10.1.2. SAR measurement Result of WCDMA Band 4 Test Position of Head Test channel /Freq Mode SAR Value (W/kg) Power Drift(%) Conducted Power (dBm) Tune-up Power (dBm) Scaled SAR 1-g (W/Kg) Date Plot 1-g 10-g Left Cheek 1413/1732.6 RMC12.2K 0.071 0.045 0.02 23.74 24.00 0.075 2022/10/14 3# Left Tilt 15 Degree 1413/1732.6 RMC12.2K 0.039 0.024 2.81 23.74 24.00 0.041 2022/10/14  Right Cheek 1413/1732.6 RMC12.2K 0.061 0.038 -1.30 23.74 24.00 0.065 2022/10/14  Right Tilt 15 Degree 1413/1732.6 RMC12.2K 0.030 0.018 0.10 23.74 24.00 0.032 2022/10/14  NOTE: Head SAR test results of WCDMA Band 4 Test Position of Body-worn with 15mm Test channel /Freq Mode SAR Value (W/kg) Power Drift(%) Conducted Power (dBm) Tune-up Power (dBm) Scaled SAR 1-g (W/Kg) Date Plot 1-g 10-g Front Side 1413/1732.6 RMC12.2K 0.222 0.132 -2.05 23.74 24.00 0.236 2022/10/14  Back Side 1413/1732.6 RMC12.2K 0.360 0.216 0.23 23.74 24.00 0.382 2022/10/14  NOTE: Body-Worn SAR test results of WCDMA Band 4 Page 204 of 633 Report No.: S22092102102001 Test Position of Hotspot with 10mm Test channel /Freq Mode SAR Value (W/kg) Power Drift(%) Conducted Power (dBm) Tune-up Power (dBm) Scaled SAR 1-g (W/Kg) Date Plot 1-g 10-g Front Side 1413/1732.6 RMC12.2K 0.435 0.226 -3.38 22.74 23.00 0.462 2022/10/14  Back Side 1413/1732.6 RMC12.2K 0.510 0.273 1.22 22.74 23.00 0.541 2022/10/14  Left Side 1413/1732.6 RMC12.2K 0.218 0.116 -2.44 22.74 23.00 0.231 2022/10/14  Right Side 1413/1732.6 RMC12.2K 0.264 0.144 -3.60 22.74 23.00 0.280 2022/10/14  Bottom Side 1413/1732.6 RMC12.2K 0.819 0.445 -2.36 22.74 23.00 0.870 2022/10/14  Bottom Side 1312/1712.4 RMC12.2K 0.848 0.464 -0.54 22.50 23.00 0.951 2022/10/14 4# Bottom Side Repeated 1312/1712.4 RMC12.2K 0.842 0.460 1.23 22.50 23.00 0.945 2022/10/14  Bottom Side 1513/1752.6 RMC12.2K 0.815 0.439 -1.43 22.77 23.00 0.859 2022/10/14  NOTE: Hotspot SAR test results of WCDMA Band 4 10.1.3. SAR measurement Result of WCDMA Band 5 Test Position of Head Test channel /Freq Mode SAR Value (W/kg) Power Drift(%) Conducted Power (dBm) Tune-up Power (dBm) Scaled SAR 1-g (W/Kg) Date Plot 1-g 10-g Left Cheek 4182/836.4 RMC12.2K 0.082 0.063 0.75 23.74 24.00 0.087 2022/10/10 5# Left Tilt 15 Degree 4182/836.4 RMC12.2K 0.047 0.035 -2.56 23.74 24.00 0.050 2022/10/10  Right Cheek 4182/836.4 RMC12.2K 0.075 0.055 1.93 23.74 24.00 0.080 2022/10/10  Right Tilt 15 Degree 4182/836.4 RMC12.2K 0.040 0.030 2.98 23.74 24.00 0.042 2022/10/10  NOTE: Head SAR test results of WCDMA Band 5 …

Text truncated - open the document above for the full version.

Page 321 of 633 Report No.: S22092102102001 MEASUREMENT 1 Date of measurement: 8/10/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band Band2_WCDMA1900 Channels Middle Signal WCDMA (Crest factor: 1.0) ConvF 1.91 B. SAR Measurement Results Frequency (MHz) 1880.000000 Relative permittivity (real part) 38.434464 Relative permittivity (imaginary part) 13.801094 Conductivity (S/m) 1.441448 Variation (%) -1.160000 SURFACE SAR VOLUME SAR Maximum location: X=-50.00, Y=-51.00 SAR Peak: 0.10 W/kg SAR 10g (W/Kg) 0.043165 SAR 1g (W/Kg)0.066570 Page 322 of 633 Report No.: S22092102102001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.0892 0.0662 0.0486 0.0369 0.0321 0.0207 0.0190 3D screen shot Hot spot position Page 323 of 633 Report No.: S22092102102001 MEASUREMENT 2 Date of measurement: 8/10/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band Band2_WCDMA1900 Channels Low Signal WCDMA (Crest factor: 1.0) ConvF 1.91 B. SAR Measurement Results Frequency (MHz) 1852.400000 Relative permittivity (real part) 38.562344 Relative permittivity (imaginary part) 13.826774 Conductivity (S/m) 1.422929 Variation (%) -1.520000 SURFACE SAR VOLUME SAR Maximum location: X=2.00, Y=12.00 SAR Peak: 1.51 W/kg SAR 10g (W/Kg) 0.503064 SAR 1g (W/Kg)0.959075 Page 324 of 633 Report No.: S22092102102001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.4662 0.9961 0.6056 0.3714 0.2299 0.1441 0.0919 3D screen shot Hot spot position Page 325 of 633 Report No.: S22092102102001 MEASUREMENT 3 Date of measurement: 14/10/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band Band4_WCDMA1700 Channels Middle Signal WCDMA (Crest factor: 1.0) ConvF 1.73 B. SAR Measurement Results Frequency (MHz) 1732.600000 Relative permittivity (real part) 39.136761 Relative permittivity (imaginary part) 13.799881 Conductivity (S/m) 1.327855 Variation (%) 0.020000 SURFACE SAR VOLUME SAR Maximum location: X=-51.00, Y=-51.00 SAR Peak: 0.11 W/kg SAR 10g (W/Kg) 0.045464 SAR 1g (W/Kg)0.071200 Page 326 of 633 Report No.: S22092102102001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.0994 0.0740 0.0527 0.0372 0.0309 0.0224 0.0196 3D screen shot Hot spot position Page 327 of 633 Report No.: S22092102102001 MEASUREMENT 4 Date of measurement: 14/10/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band Band4_WCDMA1700 Channels Low Signal WCDMA (Crest factor: 1.0) ConvF 1.73 B. SAR Measurement Results Frequency (MHz) 1712.600000 Relative permittivity (real part) 39.302464 Relative permittivity (imaginary part) 13.746481 Conductivity (S/m) 1.307443 Variation (%) -0.540000 SURFACE SAR VOLUME SAR Maximum location: X=2.00, Y=0.00 SAR Peak: 1.33 W/kg SAR 10g (W/Kg) 0.464243 SAR 1g (W/Kg)0.848055 Page 328 of 633 Report No.: S22092102102001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 1.2938 0.8943 0.5611 0.3613 0.2309 0.1543 0.0982 3D screen shot Hot spot position Page 329 of 633 Report No.: S22092102102001 MEASUREMENT 5 Date of measurement: 10/10/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band Band5_WCDMA850 Channels Middle Signal WCDMA (Crest factor: 1.0) ConvF 1.50 B. SAR Measurement Results Frequency (MHz) 836.400000 Relative permittivity (real part) 41.288811 Relative permittivity (imaginary part) 19.947828 Conductivity (S/m) 0.926909 Variation (%) 0.750000 SURFACE SAR VOLUME SAR Maximum location: X=-53.00, Y=-18.00 SAR Peak: 0.10 W/kg SAR 10g (W/Kg) 0.062820 SAR 1g (W/Kg)0.081911 Page 330 of 633 Report No.: S22092102102001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.0976 0.0804 0.0669 0.0573 0.0477 0.0404 0.0306 3D screen shot Hot spot position Page 331 of 633 Report No.: S22092102102001 MEASUREMENT 6 Date of measurement: 10/10/2022 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band Band5_WCDMA850 Channels Middle Signal WCDMA (Crest factor: 1.0) ConvF 1.50 B. SAR Measurement Results Frequency (MHz) 836.400000 Relative permittivity (real part) 41.288811 Relative permittivity (imaginary part) 19.947828 Conductivity (S/m) 0.926909 Variation (%) -0.280000 SURFACE SAR VOLUME SAR Maximum location: X=3.00, Y=1.00 SAR Peak: 0.33 W/kg SAR 10g (W/Kg) 0.119584 SAR 1g (W/Kg)0.211894 Page 332 of 633 Report No.: S22092102102001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.3193 0.2212 0.1403 0.0930 0.0622 0.0452 0.0327 3D screen shot Hot spot position Page 333 of 633 Report No.: S22092102102001 MEASUREMENT 7 Date of measurement: 8/11/2022 A. Experimental conditions. Area Scan dx=10mm dy=10mm, h= 2.00 mm ZoomScan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Left head Device Position Cheek Band IEEE 802.11ax U-NII Channels Middle Signal IEEE802.11ax (Crest factor: 1.0) ConvF 1.80 B. SAR Measurement Results Frequency (MHz) 5210.000000 Relative permittivity (real part) 35.045477 Relative permittivity (imaginary part) 15.709539 Conductivity (S/m) 4.547039 Variation (%) -4.810000 SURFACE SAR VOLUME SAR Maximum location: X=-11.00, Y=23.00 SAR Peak: 1.74 W/kg SAR 10g (W/Kg) 0.203825 SAR 1g (W/Kg)0.607310 Page 334 of 633 Report No.: S22092102102001 Z (m m) 0.00 2.00 4.00 6.00 8.00 10.0 0 12.0 0 14.0 0 16.0 0 18.0 0 20.0 0 22.0 0 SA R (W/ Kg) 1.10 20 0.64 58 0.31 51 0.17 12 0.09 49 0.06 65 0.04 08 0.…

Text truncated - open the document above for the full version.
