2AW6BSR-MU921BUHF RFID Module

1 SR-MU921B Function Description 1. RFID fundamentals Radio Frequency Identification (RFID) is a wireless communication technology. It can identify the object under test through radio signals, and the system does not need to contact with the object under test. By inductively coupled electromagnetic fields, radio signals transmit information from electronic tags placed on the object under test, thereby automatically identifying it. The tag, which can be identified within a few meters, contains electronically stored information. Unlike bar codes, RFID tags do not have to be seen from the human eye, but can be identified from the object being identified. 2. SR-MU921B Overview General Description： SR-MU921B is a high performance UHF RFID Reader Module, which is designed with lower dissipation, high integrated RFID chip design, cost effective and small size. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system etc. 2 Features： *Designed based on low dissipation (single +5V power supply) and high integration RF transceiver chip working902~928MHzUS* Support EU 866~868MHz, frequency (or Customized). *Support EPC global UHF class 1 gen2 / ISO18000-6C protocol RFID tags. *Support temperature sensor RFID tag, moisture Sensor RFID tag and some other sensor RFID tags. *Optimized multiple tags inventory algorithm, inventory tags speed is more than 100 per second *Support 4 external antennas with MCX or IPX socket *Support 4 GPIO ports GPIO, I/O Control for RS-485 port and indication I/O for Read Tag. *Support UART (3.3V TTL level) interface. *Support IAP firmware upgrading. *Provide free DEMO software and SDK for testing and further development. 3 3. SR-MU921B principle description SR-MU921B is a high performance UHF RFID Reader Module, which is designed base on a high integrated RFID Reader chip, with low cost effective and small size. It meets EPC Gen2/ISO18000-6C tag protocol which is an international RFID standard. The follow diagram shows the principle of the SR-MU921B. There are several circuit unit, including Communication Port, Power unit, MCU unit, Reader Chip unit, Transmit Path unit, Receive Path unit, Coupler and RF Antenna unit.  Communication Port Communication Port provide the communication function between the reader module and the host from outside the reader module. There are two kind of communication port. One is a UART 4 serial port, the other is General Purpose Input/Output port (GPIO). For the UART serial port, the reader module receives control commands from the host through the UART serial port; at the same time, it return back the data of the electronic tag that read by the reader module to host and so on. For the GPIO port, the host control the reader module power up or power down, also reset the reader module by the GPIO port. The reader module can be triggered to start some operation or task through the GPIO port when it is in the status of input, and can also control the peripheral outside of reader module through the GPIO port when it is in the status of output.  Power unit The Power Unit have two part of power. One of the power provide the work energy for the digital circuit, including the Microcontroller Unit (MCU) and the Reader Chip Unit; the other of the power provide the work energy for the RF transmit circuit, including the RF Amplifier and RF Switch circuit and so on. The host outside can power up or shut down the Digital Power through the GPIO port from the Communication Port. The RF Power is control on or shut down by the MCU depend on the RF signal need to be transmitted or not. 5  MCU unit MCU unit base on a High-performant Cortex-M3 microcontroller, which run some software module to support the function of Reader Module, including Communication process, Tag protocol flow process, Tag receive data process, RF power control and Antenna control and so on. Communication process are communication with two side unit, one is communication with Host outside of Reader Module, and the other is communication with the Reader Chip unit. Tag protocol flow process the flow of tag operation which base on ISO-18000-6C protocol. Tag receive data process get the tag data received from the tags during the flow of tag operation. RF power control is used to control the RF power when host needs. Antenna control send the GPIO signal to switch the antenna channel according the Host command.  Reader Chip unit Reader Chip unit base on a High-performant and low cost RFID Reader Chip. There are modulation circuit, demodulation circuit, 6 LNA, PLL circuit, embedded MCU circuit and UART port. The RFID Reader Chip is in charge of generating the based Tag instruction that was modulated into a Transmit Path unit and demodulate the tag response data from these electronic tags. MCU unit send a tag operation command to the embedded MCU of Reader Chip, then the modulation circuit and PLL of Reader Chip generate the RF Tag instruction for the Transmit Path unit to send a RF modulate wave to an electronic tag. Reader Chip unit receive the tag response data from the electronic tag through the Receive Path. LNA amplifies the tag signal; the demodulation circuit demodulated the RF tag signal into a digital signal and decode it into tag data; the embedded MCU package the tag data, then return it back to the MCU unit for further process. Transmit Path unit Transmit Path unit is a transmitted channel to amplify and transmit the RF signal which was modulated by a tag command from Reader Chip unit, including a power amplifier and a filter circuit. 7  Receive Path unit Receive Path unit receive the response RF signal from electronic tag. There are receive filter, impedance transformer circuit and so on.  Coupler unit The main function of couplers unit is to separate RF signals between transmit and receive signal. On the one hand, it pass the transmit RF signal to RF Antenna uni…

Text truncated - open the document above for the full version.

Shenzhen SYSloT Co.,LTD Add: Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China <2020-09-21> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, Shenzhen SYSloT Co.,LTD Hereby declares the following statement for FCC, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product Name: UHF RFID Module FCC ID: 2AW6BSR-MU921B Model Number(s): SR-MU921B, SR-MU921A, SR-MU922B, SR-MU922A Sincerely, Name: Candy Chen/sales Company: Shenzhen SYSloT Co.,LTD Address: Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Phone: 0755-82591330 Fax: / E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-09-21> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AW6BSR-MU921B SR-MU921B, SR-MU921A, SR-MU922B, SR-MU922A For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Candy Chen/sales Company: Shenzhen SYSloT Co.,LTD Address: Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Phone: 0755-82591330 Fax: / E-Mail: [email protected]

Shenzhen SYSloT Co.,LTD Add: Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/09/21 To whom it may concern: We, Shenzhen SYSloT Co.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AW6BSR-MU921B including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Candy Chen/sales Company: Shenzhen SYSloT Co.,LTD Address: Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Phone: 0755-82591330 Fax: / E-Mail: [email protected]

Shenzhen SYSloT Co.,LTD Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Module Approval Request Letter 2020/09/21 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subjects: Module Approval Request Letter The Device,FCC ID: 2AW6BSR-MU921B, is seeking FCC authorization as a modular transmitter. The EUT meets the requirement for modular approval as detailed in FCC Public Notice DA 00-1407. Compliance to each of the requirement is described below: (a) The radio elements must have the radio frequency circuitry be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. Yes the module with a shield. (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. Yes. (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. The modular has an onboard 3.3V regulator(Support UART (3.3V TTL level) interface). (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The modular has a External antenna which comply with the antenna requirement of Section 15.203. (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. The modular was tested in a standalone configuration apart from host units. (f) The module shall comply with the Category I equipment labeling requirements and CFR § 15.212(a)(1)(vi). The modular has its own FCC ID number. (g) The module shall comply with any applicable FCC RF exposure requirement which are based on the intended use/configurations. Not applicable,(Because the modular application FCC part 15.249 rules) (h) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. Yes If you have any questions, please feel free to contact us at the address shown below Sincerely, Name / Title: Candy Chen/sales Company: Shenzhen SYSloT Co.,LTD Address: Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Phone: 0755-82591330 Fax: / E-Mail: [email protected]

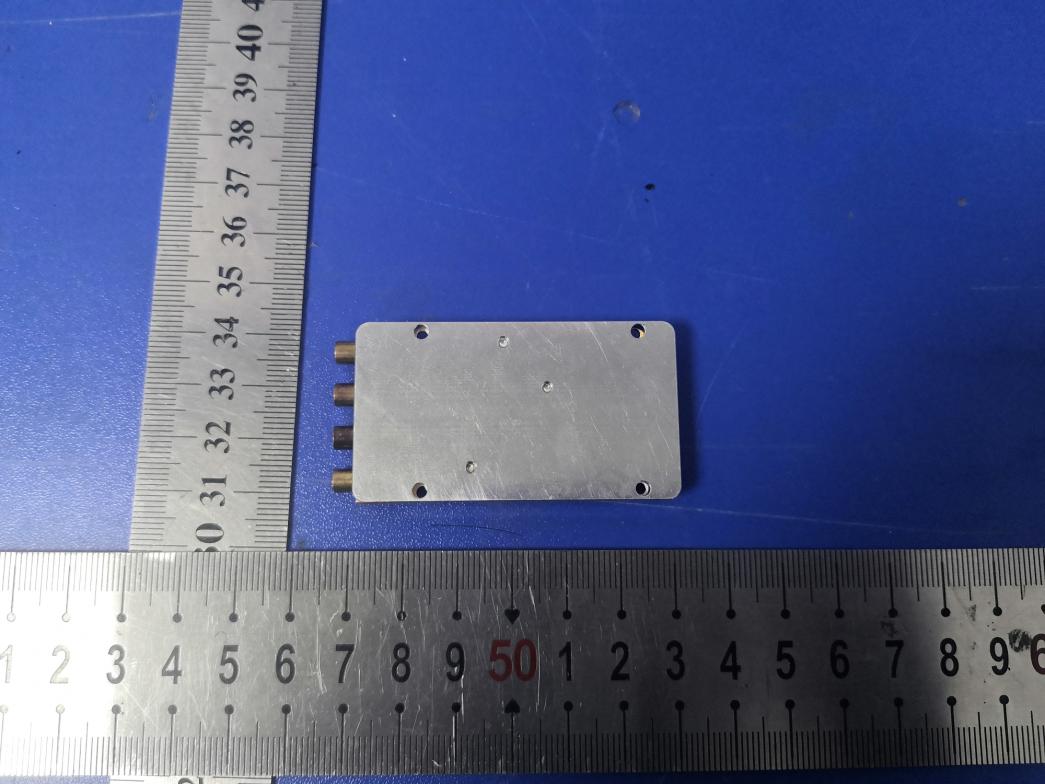

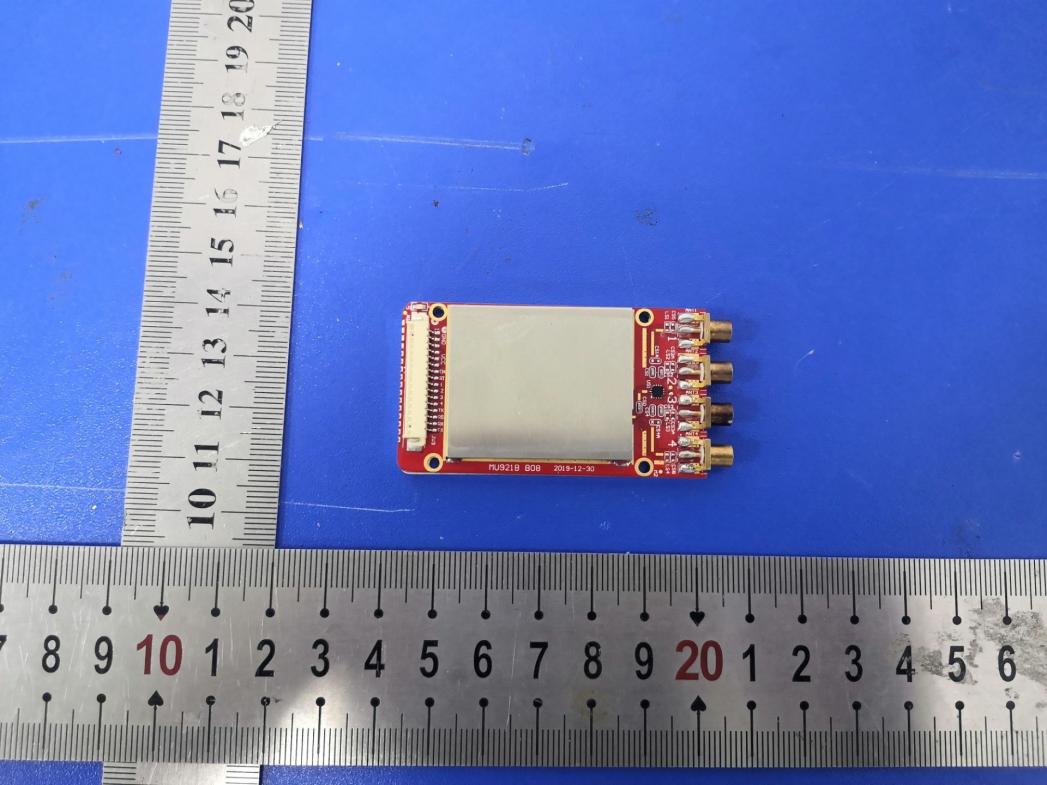

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B 8.EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 Test antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B Fig.3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L3.0cm*W2.0cm Label Location UHF RFID Module Model No.: SR-MU921B FCC ID: 2AW6BSR-MU921B

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B 9.INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B Fig. 3 Fig. 4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B Report No.: LCS200720047AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT FOR Shenzhen SYSloT Co.,LTD UHF RFID Module Test Model: SR-MU921B Additional Model No.: SR-MU921A, SR-MU922B, SR-MU922A Prepared for : Shenzhen SYSloT Co.,LTD Address : Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 20, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : July 20, 2020 ~ August 04, 2020 Date of Report : August 07, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B Report No.: LCS200720047AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.249) Report Reference No. ............... : LCS200720047AEA Date of Issue ................................. : August 07, 2020 Testing Laboratory Name .......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Shenzhen SYSloT Co.,LTD Address ......................................... : Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.249) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : UHF RFID Module Trade Mark ................................... : , SYSIOT, 新思物联 Model/ Type reference.................. : SR-MU921B Ratings .......................................... : DC 5V Result ......................................... : Positive Compiled by: Supervised by: Approved by: Linda He/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B Report No.: LCS200720047AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200720047AEA August 07, 2020 Date of issue Type / Model........................... : SR-MU921B EUT......................................... : UHF RFID Module Applicant............................... : Shenzhen SYSloT Co.,LTD Address.................................. : Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen SYSloT Co.,LTD Address................................... : Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen SYSloT Co.,LTD Address................................... : Room 717,Yiben E-Commerce Industrial Park,No.1063,Chaguang Road,Nanshan District,Shenzhen,China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B Report No.: LCS200720047AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 August 07, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B Report No.: LCS200720047AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................ 6 1.1. Description of Device (EUT) ......................................................................................................... 6 1.2. Host System Configuration List and Details .................................................................................. 6 1.3. External I/O .................................................................................................................................... 6 1.4. Description of Test Facility .................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B _______________________________________________________________________________________________ 9. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AW6BSR-MU921B _______________________________________________________________________________________________ 1.1. Photo of Conducted Emissions Measurement Fig. 1
