2AW73-2E7124WIRELESS CHARGER

This device contains licence-exempt transmitter(s) /receiver(s) that comply with Innovation, Science and Economic Development Canada's licenceexempt RSS(s). Operation is subject to the following two conditions: 1.This device may not cause interference. 2.This device must accept any interference, including interference that may cause undesired operation of the device. The equipment meets the ISED radiation exposure limits set for an uncontrolled environment. During the operation of the device, a distance of 10cm should be kept around the device and above the top surface of the device. L'équipement respecte les limites d'exposition aux rayonnements ionisants fixées pour un environnement non contrôlé. Pendant le fonctionnement du dispositif, une distance de 10cm devrait être maintenue autour du dispositif Cet appareil contient des émetteurs/récepteurs exemptés de licence qui sont conformes aux RSS exemptés de licence d' innovation, sciences et développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne peut pas causer d'interférences. 2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un fonctionnement indésirable de l' appareil. et au-dessus de la surface supérieure du dispositif.

ShenzhenXiangdangwenTechnologyCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 6/14/24 U.S.AgentDesignation ShenzhenXiangdangwenTechnologyCo.,Ltd.acknowledgestheirconsentforthefollowingcontactlocatedin theUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationissought (FCCID:2AW73-2E7124): NameandcompanyofU.S.agent:UUXGROUPINC PhysicalU.S.addressofagent:36South18thAvenue,SuiteABrighton,COUSA80601 FRNofU.S.agent:0033701590 EmailaddressofU.S.agent:[email protected] UUXGROUPINCacknowledgestheirobligationtoacceptserviceofprocessonbehalfofShenzhen XiangdangwenTechnologyCo.,Ltd.. ShenzhenXiangdangwenTechnologyCo.,Ltd.withtheFRN0029844610acceptsitsobligationtomaintainan agentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature LeiYan Productmanager ShenzhenXiangdangwenTechnologyCo.,Ltd. Signature JackFu Manager UUXGROUPINC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

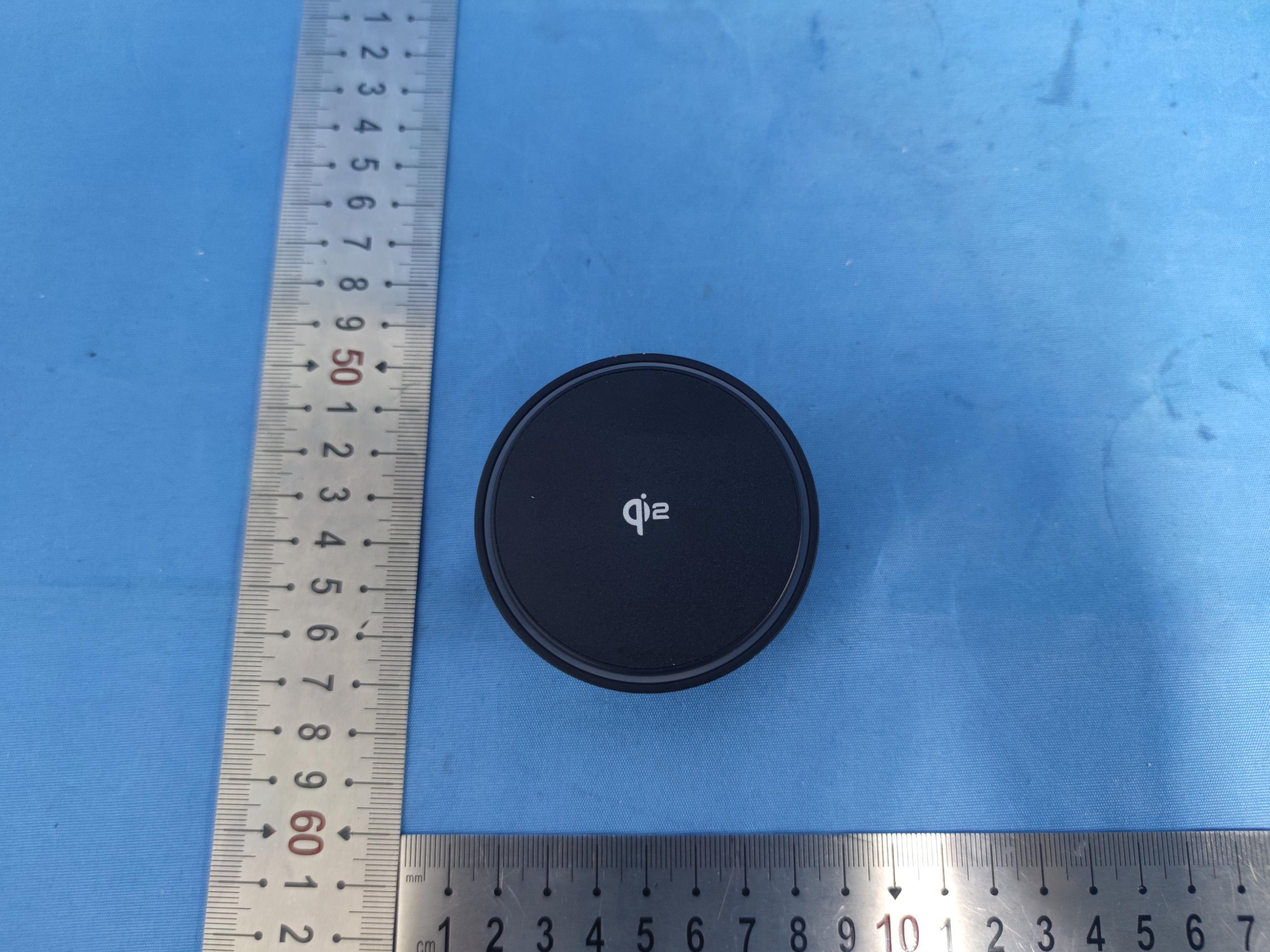

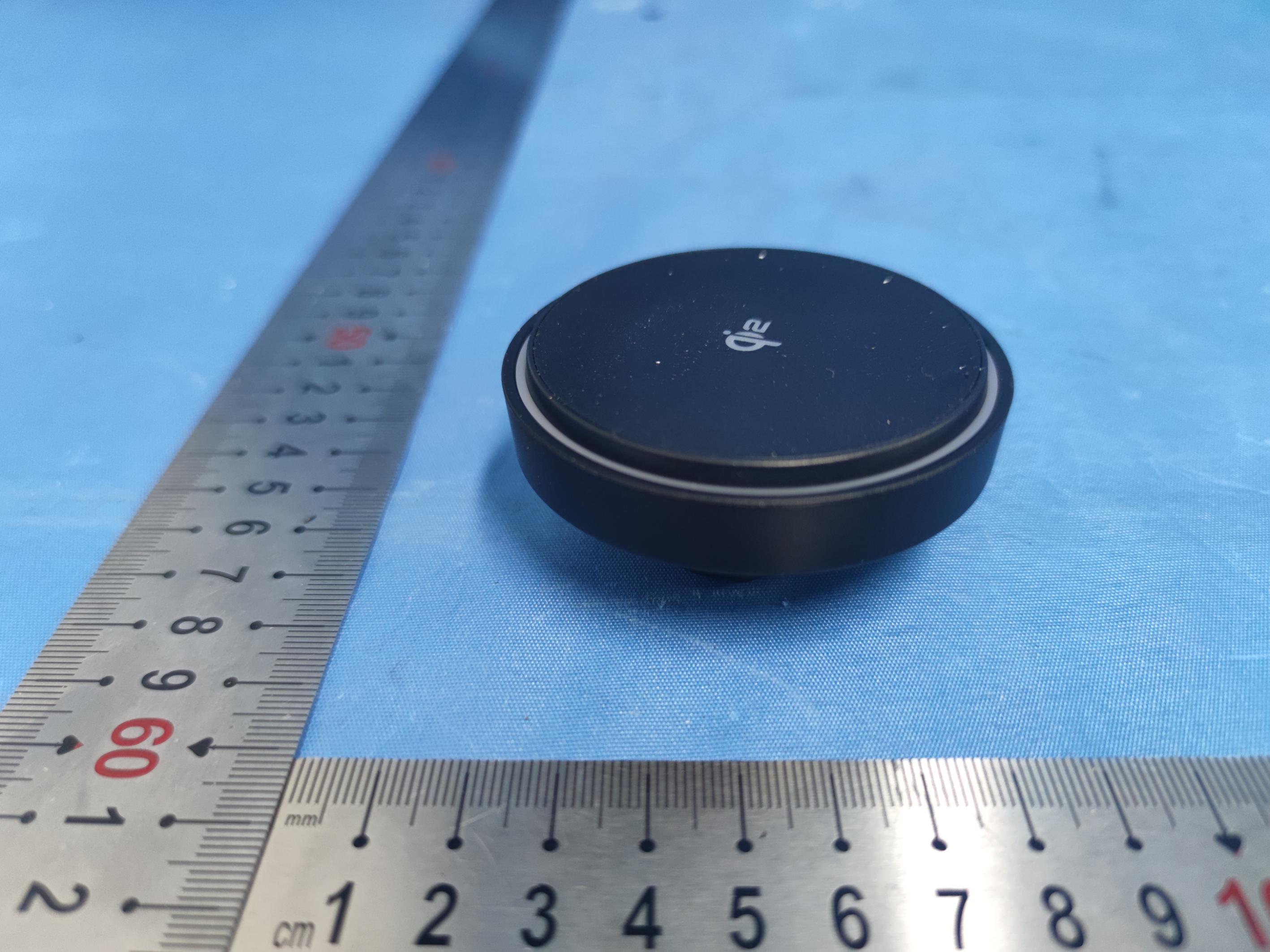

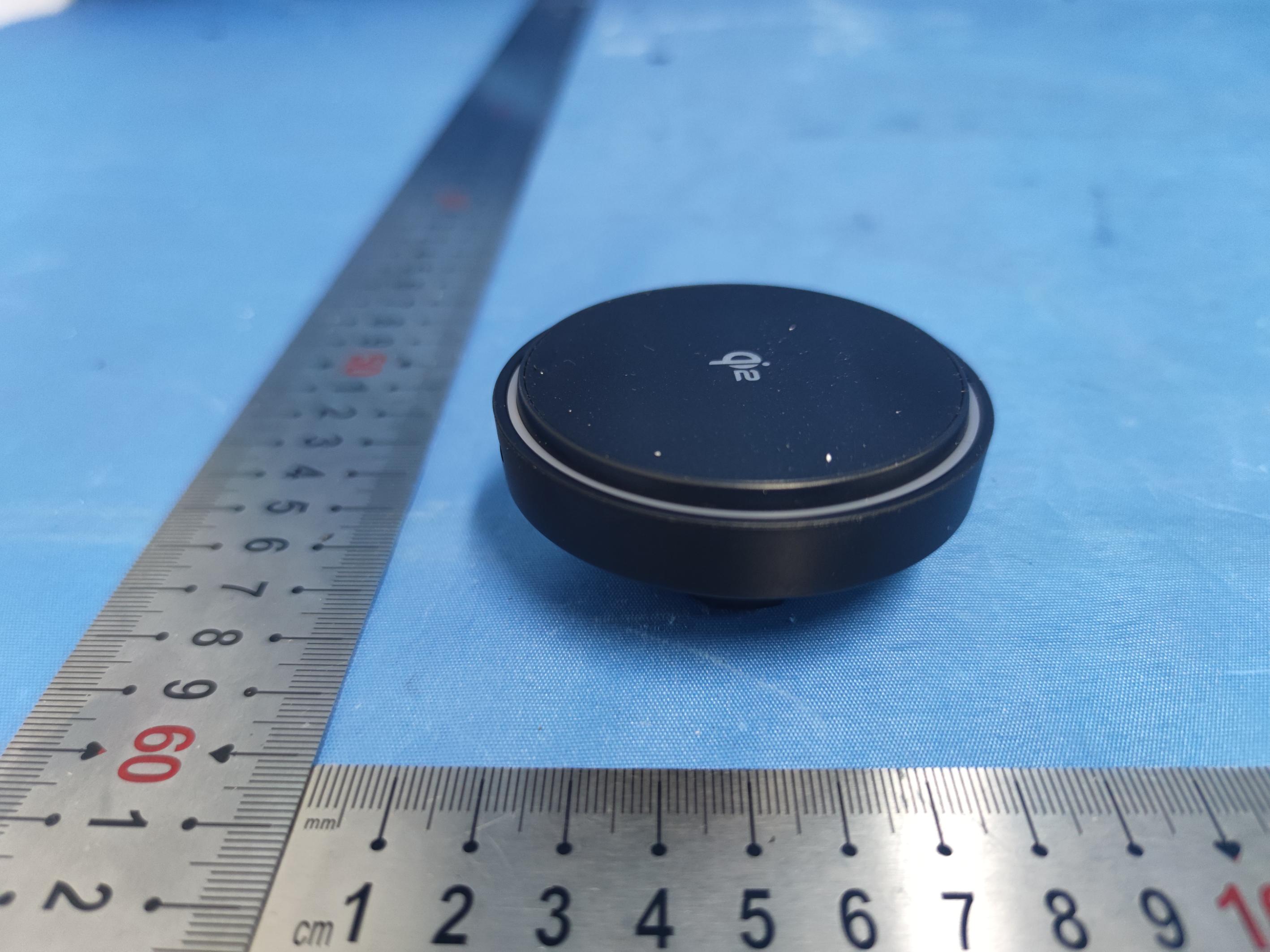

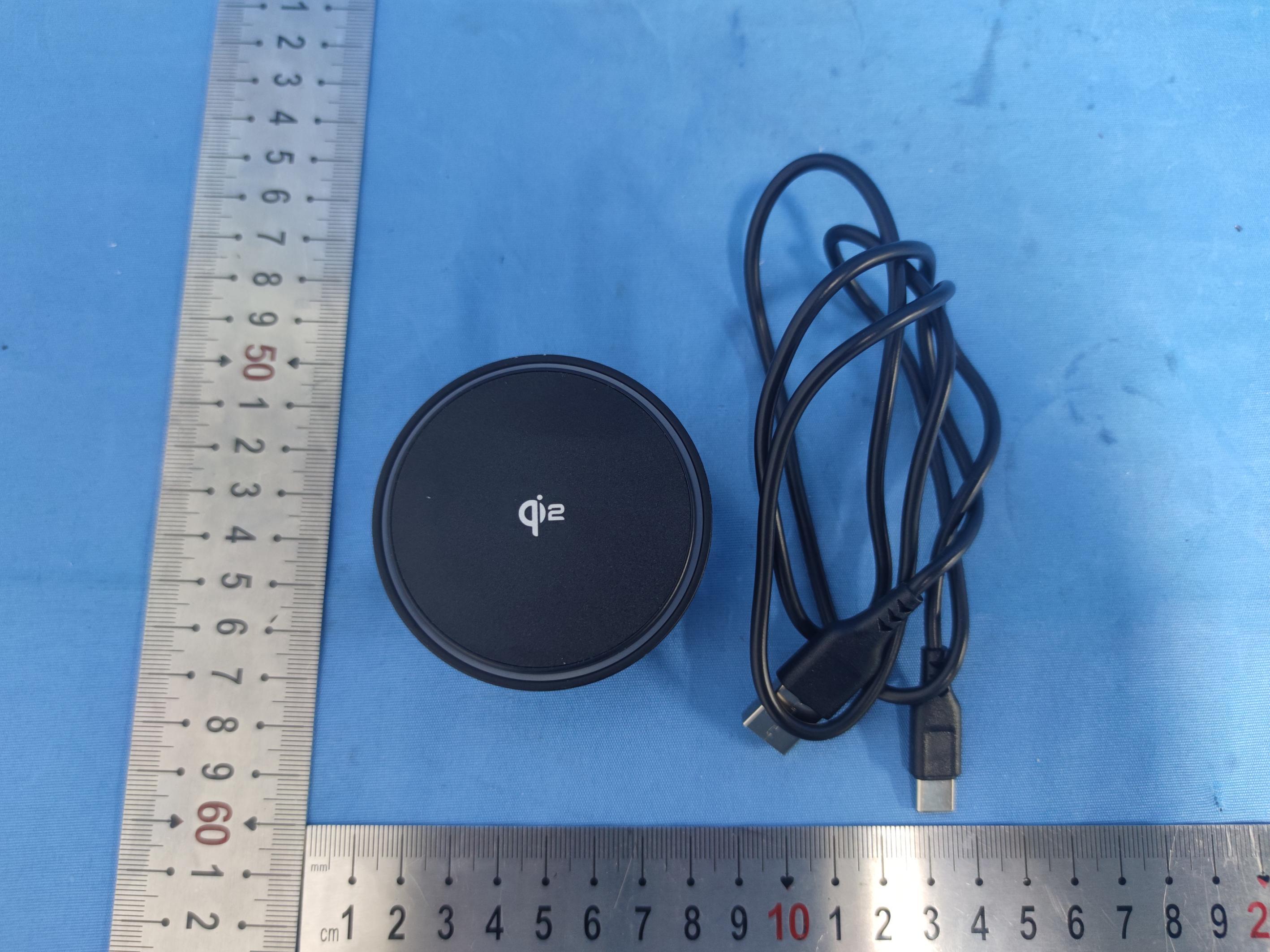

Page1of4FCCID: 2AW73-2E7124 IC: 30716-2E7124 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. EUTConstructionalDetails ExternalEUTPhoto Photo1 Photo2 Page2of4FCCID: 2AW73-2E7124 IC: 30716-2E7124 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of4FCCID: 2AW73-2E7124 IC: 30716-2E7124 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of4FCCID: 2AW73-2E7124 IC: 30716-2E7124 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 ---TheEnd---

Page1of3FCCID: 2AW73-2E7124 IC: 30716-2E7124 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. EUTConstructionalDetails InternalEUTPhoto Photo1 Photo2 Coil Antenna Page2of3FCCID: 2AW73-2E7124 IC: 30716-2E7124 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of3FCCID: 2AW73-2E7124 IC: 30716-2E7124 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 ------End------

Page 1 of 14 ReportNo.:AIT24050601W3 RFExposureEvaluation ClientInformation: Applicant: ShenzhenXiangdangwenTechnologyCo.,Ltd. Applicantadd.: 106,1/F,No.313-4Building,HuachangRoad,LangkouCommunity,DalangStr eet,LonghuaDistrict,Shenzhen,China Manufacturer: HuizhouYimaiElectronicsTechnologyCo.,Ltd. Manufactureradd.: 3rdFloor,BuildingB,HuakaiHigh-techIndustrialPark,ElectronicCityRoad,L ongxiStreet,BoluoCountry ProductInformation: ProductName: WIRELESSCHARCER ModelNo.: 2E7124 BrandName: LISEN,AINOPE,VEICO Testsamples.:AIT24050601001 FCCID: 2AW73-2E7124 Applicablestandards: FCCCFR47PART1,§1.1310 KDB680106D01WirelessPowerTransferv04 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:May08,2024DateofTest:May08,2024~May22,2024 DateofIssue:May22,2024TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements. Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofDongguan Yaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedbyDongguanYaxu(AiT) TechnologyLimited,personalonly,andshallbenotedintherevisionofthedocument.Thistest reportmustnotbeusedbytheclienttoclaimproductendorsement. Rviewedby:Approvedby: EmiyaLinSimabaHuang Page 2 of 14 ReportNo.:AIT24050601W3 1CONTENTS COVERPAGEPage 1CONTENTS2 2TESTFACILITY4 2.1Deviationfromstandard4 2.2Abnormalitiesfromstandardconditions4 2.3TestLocation4 3GENERALINFORMATION5 4TESTMETHODOLOGY6 4.1MeasuringStandard6 4.2Requirements6 4.3Limits6 4.4TestSetup7 4.5TestProcedure7 5EquipmentApprovalConsiderations8 5.1Descriptionofthetestmode9 5.2PeripheralList9 5.3TestInstrumentslist9 5.4DutyCycle10 5.5TestResult11 1.1TestSetupphoto12 Page 3 of 14 ReportNo.:AIT24050601W3 RevisionHistory RevisionIssueDateRevisionsRevisedBy 00 May.22,2024 InitialIssueSimabaHuang Page 4 of 14 ReportNo.:AIT24050601W3 2TESTFACILITY Thetestfacilityisrecognized,certifiedoraccreditedbythefollowingorganizations: .CNAS-RegistrationNo:L6177 DongguanYaxu(AiT)technologyLimitedisaccreditedtoISO/IEC17025:2017general Requirementsforthecompetenceoftestingandcalibrationlaboratories(CNAS-CL01Accreditation Criteriaforthecompetenceoftestingandcalibrationlaboratories)onApril18,2022 FCC-RegistrationNo.:703111DesignationNumber:CN1313 DongguanYaxu(AiT)technologyLimitedhasbeenregisteredandfullydescribedinareportfiled withthe(FCC)FederalCommunicationsCommission.TheacceptanceletterfromtheFCCis maintainedinourfiles. IC—RegistrationNo.:6819ACABidentifier:CN0122 The3mSemi-anechoicchamberofDongguanYaxu(AiT)technologyLimitedhasbeenregistered byCertificationandEngineeringBureauofIndustryCanadaforradioequipmenttestingwith RegistrationNo.:6819A A2LA-LabCert.No.:6317.01 DongguanYaxu(AiT)technologyLimitedhasbeenaccreditedbyA2LAfortechnicalcompetence inthefieldofelectricaltesting,andprovedtobeincompliancewithISO/IEC17025:2017General RequirementsfortheCompetenceofTestingandCalibrationLaboratoriesandanyadditional programrequirementsintheidentifiedfieldoftesting. 2.1Deviationfromstandard None 2.2Abnormalitiesfromstandardconditions None 2.3TestLocation DongguanYaxu(AiT)TechnologyLimited Address:No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan,Guangdong,China Tel.:+86-769-82020499 Fax.:+86-769-82020495 Page 5 of 14 ReportNo.:AIT24050601W3 3GENERALINFORMATION EUTName: WIRELESSCHARCER ModelNo: 2E7124 SerialModel: N/A BrandName: LISEN,AINOPE,VEICO Testsample(s)ID: AIT24050601001 Sample(s)Status: Engineersample Operationfrequency: 113kHz-205kHz ModulationTechnology: MSK AntennaType: LoopcoilAntenna Antennagain: 0dBi Hardwareversion.: N/A Softwareversion.: N/A Powersupply: Input:5V⎓3A,9V⎓3A,12V⎓3A WirelessOutput:5W/7.5W/10W/15W Modeldifferent: N/A Note: Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’s specificationsortheUser'sManual. Page 6 of 14 ReportNo.:AIT24050601W3 4TESTMETHODOLOGY 4.1MeasuringStandard Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines.Accordingto§1.1310and§2.1091RFexposureiscalculated.According KDB680106D01:KDB680106D01WirelessPowerTransferv04. 4.2Requirements Accordingtotheitem3ofKDB680106D01v04: Inductivewirelesspowertransferapplicationsthatmeetallofthefollowingrequirementsareexcluded fromsubmittinganRFexposureevaluation. (1)MobileDeviceandPortableDeviceConfigurations (2)EquipmentAuthorizationProceduresforDevicesOperatingatFrequenciesBelow4MHz (3)TheaggregateH-fieldstrengthsanywhereatorbeyond15cmsurroundingthedevice,and20cm awayfromthetopsurface. 4.3Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Page 7 of 14 ReportNo.:AIT24050601W3 4.4TestSetup 4.5TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(15cmfromallsidesand20cmfromthetop)whichis betweentheedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurementofeachpoints (A,B,C,D,E,F)werecompleted. 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106D01WirelessPowerTransferv04. Remark：TheEUT’stestpositionA,B,C,D,EandFisvalidfortheEandHfieldmeasurements. Page 8 of 14 ReportNo.:AIT24050601W3 5EquipmentApprovalConsiderations TheEUTdoescomplywithKDB680106D01asfollowtable. Requirementsofsection5ofKDB680106D01 Yes/ No Description MobileDeviceandPortableDeviceConfigurations Yes MobileDevice EquipmentAuthorizationProceduresforDevicesOperatingat FrequenciesBelow4MHz Yes Thedeviceoperateinthe frequencyrange113-205KHz(for mobilephone) RFExposurecompliancemaybeensuredonlyforaminimum separationdistancethatisgreaterthan20c…

Text truncated - open the document above for the full version.

Page 1 of 24 Report No.: AIT24050601W2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Shenzhen Xiangdangwen Technology Co.,Ltd. Applicant add.: 106, 1/F, No.313-4 Building, Huachang Road, Langkou Community, Dalang S treet, Longhua District,Shenzhen, China Manufacturer: Huizhou Yimai Electronics Technology Co., Ltd. Manufacturer add.: 3rd Floor, Building B, Huakai High-tech Industrial Park, Electronic City Road, Longxi Street, Boluo Country Product Information: Product Name: WIRELESS CHARGER Model No.: 2E7124 Brand Name: LISEN , AINOPE , VEICO FCC ID: 2AW73-2E7124 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22,Jinqianling 3rd Street,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: May 08, 2024 Date of Test: May 08, 2024~ May 22, 2024 Date of Issue: May 22, 2024 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Rviewed by: Approved by: Emiya Lin Simaba Huang Page 2 of 24 Report No.: AIT24050601W2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ........................................................................................................................................................... 2 2 TEST SUMMARY .................................................................................................................................................. 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................. 5 2.2 MEASUREMENT UNCERTAINTY ............................................................................................................................ 5 3 TEST FACILITY ..................................................................................................................................................... 6 3.1 DEVIATION FROM STANDARD ............................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 6 3.3 TEST LOCATION ................................................................................................................................................. 6 4 GENERAL INFORMATION ................................................................................................................................... 7 4.1 EUT TEST MODE ............................................................................................................................................... 8 4.2 DESCRIPTION OF TEST SETUP............................................................................................................................. 8 4.3 PERIPHERAL LIST ............................................................................................................................................... 9 4.4 EUT PERIPHERAL LIST ....................................................................................................................................... 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ..................................................................................................... 10 6 CONDUCTED EMISSION TEST ......................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ........................................................................................... 11 6.3 TEST PROCEDURE ...................................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 11 6.5 TEST SETUP ................................................................................................................................................. 12 6.6 EUT OPERATING CONDITIONS .................................................................................................................. 12 6.7 TEST RESULT .................................................................................................................................................. 13 7 RADIATED EMISSION MEASUREMENT .......................................................................................................... 15 7.1 RADIATED EMISSION LIMITS .............................................................................................................................. 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ..................................................................................................... 16 7.3 TEST PROCEDURE ........................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD .................................................…

Text truncated - open the document above for the full version.

Fine Page 1 of 3 承 認 書 SPECIFICATION FOR APPROVAL 客 戶： CUSTOMER: 客 戶 料 號： CUST P/N: Shenzhen Bolaide Technology Co.,Ltd 10.0110.1259Heat shrinkable tube 松 岛 料 號： FINE P/N: G45-6.5UH monocoil 0.08*24P*2- 10TS 産 品 型 號： DESC: Φ43.7MMX5.0MMX0.8MM 日 期： DATE: 2021/11/29 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE Huang MingningYuan Zhou Zhou Wentao Contact:sheng quan TPhone:0755-33616363 Fax:0755-33065865 Address:Room 922,Hongyu Building ,Longguan Road, Longhua,Shenzhen Shenzhen Bolaide Technology Co.,Ltd City,China Fine Page 2 of 3 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2018/04/24 黄锦华 Fine Page 3 of 3 SPECIFICATION 産 品 型 號： DESC Φ20.5x40-6.5uH-0.08x24PX2P-150mm 版本 Rev：A.0 客戶CUST: XXX 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) A 43.5±0.25 B 20.5±1 C 40±1.0 D 150±3 E 3±2 Note: 1. Cross out wire; 2. Wrap 8mm(ref) width high-temperature adhesive paper 1-2Ts around the outlet position; 3. The coil is attached to the circular hard magnetic disc with groove , the magnetic disc size is 43.5±0.23mm, and the inner hole 5.0mm, thickness 0.8±0. 1mm. 4. Lead heating tube 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 丝包线0.08*24PX2 10Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 3.8uH ±20%单独线圈 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH ±10%加磁片 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤90mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≥39 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 黄燕铭2021/11/29 黄锦华2021/11/29 Operating frequency: 113kHz-205kHz Antenna gain:0dBi 二、原理图SCHEMATIC DIAGRAM:

Page1of2FCCID: 2AW73-2E7124 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TestSetupPhoto DCD Conduction Radiation(9KHz-30MHz) Page2of2FCCID: 2AW73-2E7124 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Radiation(30MHz-1000MHz) ------End------
