2AW8K-ARCHLDThrough Surface Wireless Charger

Arc-H-User-Manual-Universal-2020 (LD)-v3 OE GmbH www.oeelectrics.de +49 (0)2261 958 3001 [email protected] OE Head Office www.oeelectrics.co.uk +44 (0) 1924 367255 [email protected] www.oeelsafe.com.au +61 2 9454 7500 [email protected] Slow on/off Blue - Device is on and in stand-by mode Solid Blue - Device is on and in charging mode. Red - Error Mode: • Phone not aligned with charging coil under ARC logo - Align phone • Foreign Object Detected - Remove metal from near charger. • Phone is too close - Move phone greater than 20mm (0.78”) away. • Power Adapter Issue - Only use original plug pack. • NON-Compatible Phone - Upgrade phone. LED Functions: The phone will not charge when I place the phone directly on the charger, to check it works before installation? The charger will not charge a phone unless it is separated (and aligned) from the phone by at least 20mm(0.78”). The magnets will not attract each other through my desk? The magnets only work up to 25mm(1”). Either route the desk underside to <25mm (1”) thick or call to purchase the Electronic Alignment Guide. Precautions Through Surface Wireless Charging ADVANCED RESONANT CHARGER OE Inc www.oeelectrics.com +1 (844)-927-0600 [email protected] • Follow installation guidelines overleaf for optimum charge. • Keep metal objects (keys, coins, credit cards etc) away from charging area. They may activate foreign object detection (FOD) and ARC-H will not operate. • Do not use phone cases with magnet or metallic blocks when charging. • Charger will only charge through non-metallic surfaces. • Install further than 35mm from metal objects. • Do not expose ARC-H to liquids. • Use only supplied 19V power supply with correct plug attachment for country of use. • Complies with the following Safety and EMC standards. The ARC logo identifies the coil center which must be aligned with the Resonator Pad Pad fitted over the centre of the charger - WILL NOT WORK The charging coil is Off- Center, the alignment guide MUST be used to guarantee accuracy Pad misaligned - WILL NOT WORK The alignment guide MUST be used to guarantee accuracy LD Alignment Common Faults & Troubleshooting Is the table too thin or too thick? ARC-H (LD) is designed for worksurfaces with surfaces 20-50mm (0.78”-2”) thick FCC requirements in USA limit the maximum worksurface thickness to 30mm (1.18”). Will my device charge with metal objects on the charging surface? Devices won’t charge if there’s a metal object on the charging surface. Remove the object and allow several seconds for the device to begin charging again. Can ARC-H charge other wireless charging devices? Due to the coils size, ARC-H will only charge your compatible mobile phones. My phone isn’t charging or is charging slowly. Generally the wireless charging coil is located in the middle of a phone, so please make sure your phone is placed over the center of the resontor pad. If the phone case is too thick or has metal/magnetic accessories, your phone may not charge. Standards • Qi Compatible • FCC part 15 (when installed under surfaces 20-30mm (0.78”-1.18”) thick) • IEC62386-1:2014 +A11:2017 • EN50655:2017 • ETSI EN 301 489-1 V2.2.3 (2019-11) • ETSI EN 301 489-3 V2.1.1 (2019-03) • ETSI EN 303 417 V1.1.1 (2017-09) FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help RF Exposure Warning Statements: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body. Arc-H-User-Manual-Universal-2020 (LD)-v3 AR C-H Pad Coil C en ter AR C-H 3x cable clips Power Adapter Contents: Attract magnets ARC-H (LD) is designed for surfaces 20-50mm (0.78-2”) thick. However, for USA, FCC compliance requires ARC-H to be fitted to worksurfaces 20-30mm (0.78-1.18”) only Move guide to your desired location 1 2 Metal Frame 35mm (1.38") 35mm (1.38") 35mm (1.38") 45mm (1.77" ) Cable Entry Adjust to ensure correct clearance and mark screw holes 3 Place resonator pad where magnet indicated 4 Fit ARC-H (LD) with tape (provided) or screws 5 Connect power and check for blue LED 6 Place phone on the pad and charge 7 The ARC logo identifies the coil center which must be aligned with the resonator pad Alignment Magnet Alignment Template ARC-H (LD) 1 x Resonator Pad Interchangeable plug attachments

OE Electrics Limited Sep.21, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AW8K-ARCHLD Model Number: ARC-H (LD), ARC-Hxx (xx) To Whom It May Concern: We, The OE Electrics Limited hereby declare that the model : ARC-Hxx (xx) is identical with the model : ARC-H (LD), except the model names and the color of appearance. Except for the different above, no other modification is performed. Sincerely, Signature: OE Electrics Limited Contact person: Charles Fox

OE Electrics Limited Agent Authorization Company: OE Electrics Limited Address: OE House, Thomas Maddison lane, Calder Park, Wakefield, WF4 3GH, UK Product Name: Through Surface Wireless Charger Model Number(s): ARC-H (LD), ARC-Hxx (xx) Product Description: Through Surface Wireless Charger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-09-21 Name: Charles Fox Company: OE Electrics Limited

OE Electrics Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-09-08 Subject; Request for Confidentiality FCC ID: 2AW8K-ARCHLD To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely OE Electrics Limited Contact person: Charles Fox

OE Electrics Limited Declaration Letter Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/21/2020 FCC ID: 2AW8K-ARCHLD Pursuant to KDB 680106 of the OE Electrics Limited hereby declare our product which is an inductive wireless power transfer applications that meet all of the following requirements are not required to submit a KDB inquiry for devices approved usinga PAG for equipment approved using certification to address RF exposure compliance. 1) Power transfer frequency is 0.115-0.150MHz which is less than1 MHz 2) Output power from each primary coil is 10W which is less than 15 watts 3) The transfer system includes only single primary coils. 4) Client device is placed directly in contact with the transmitter 5) The EUT is a mobile device. 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yours sincerely, OE Electrics Limited Contact person: Charles Fox

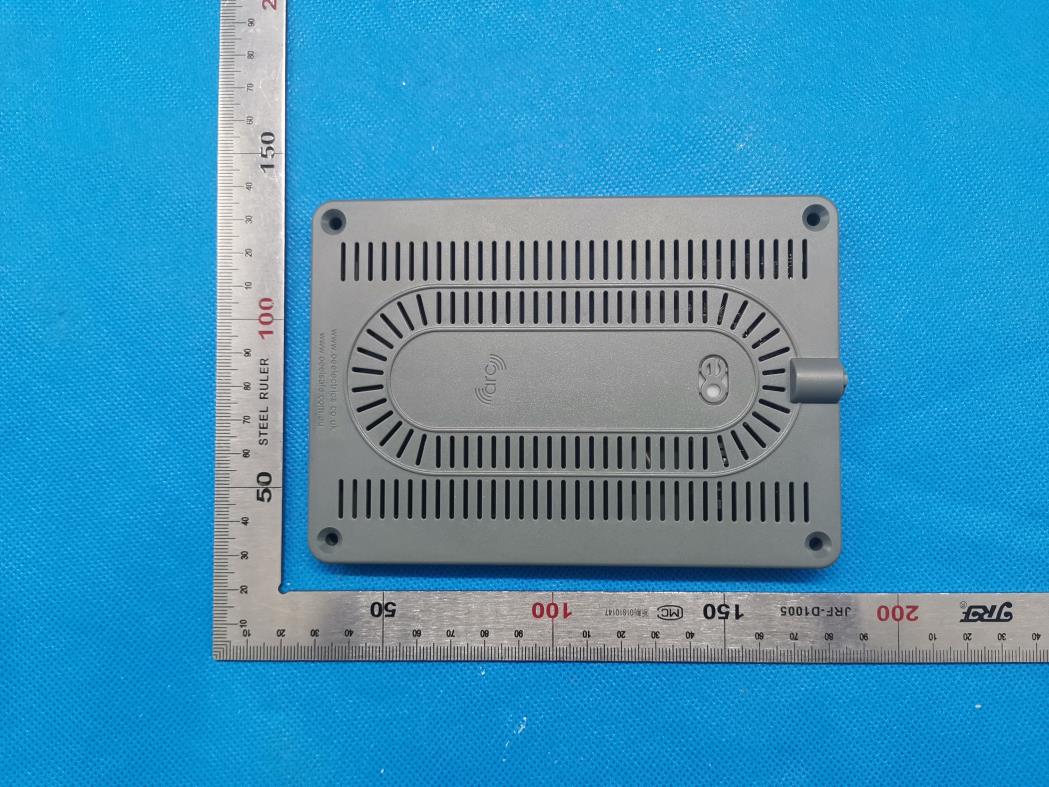

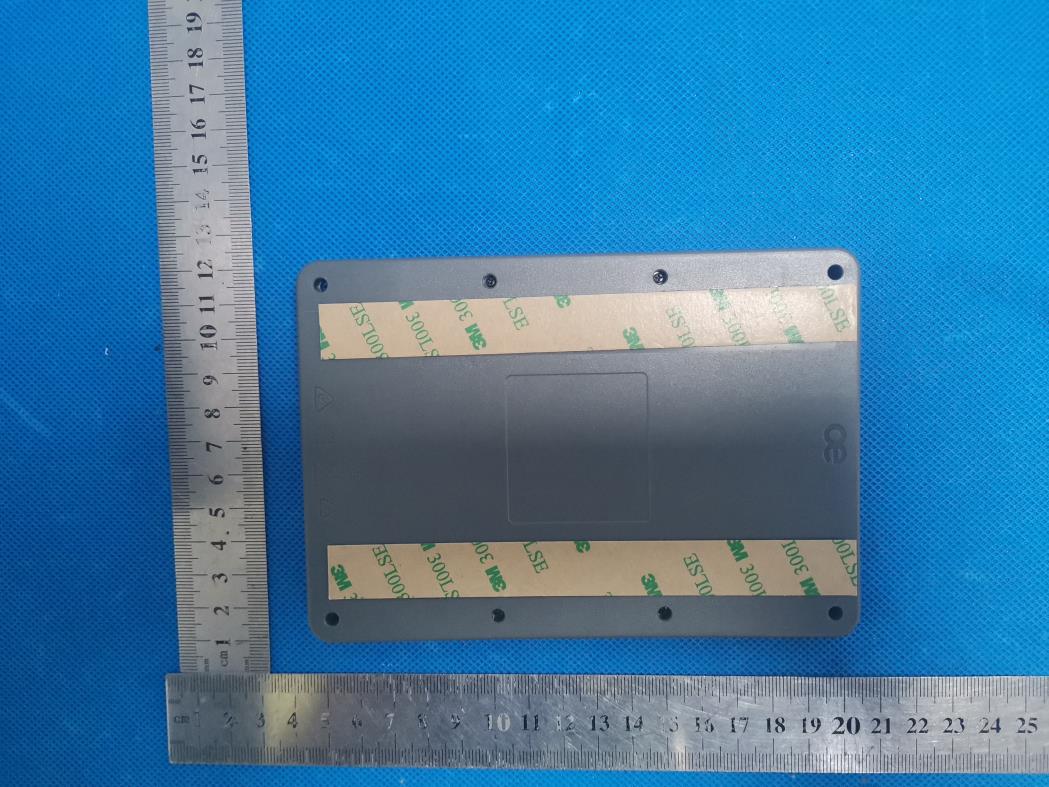

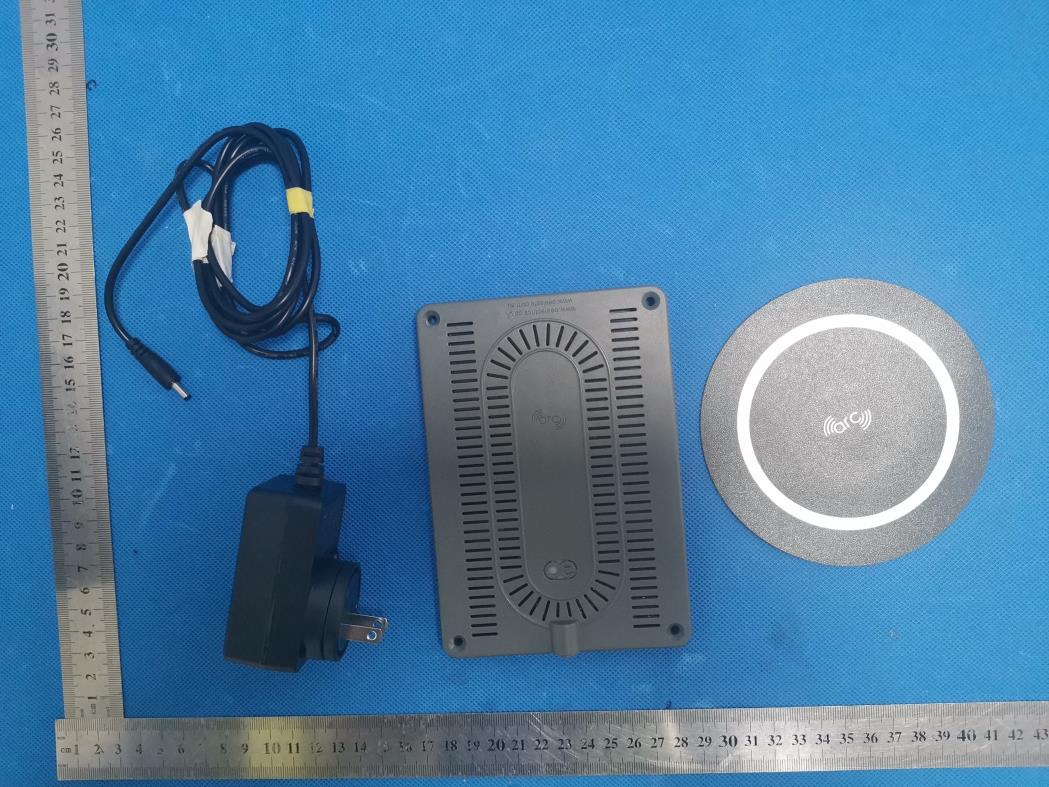

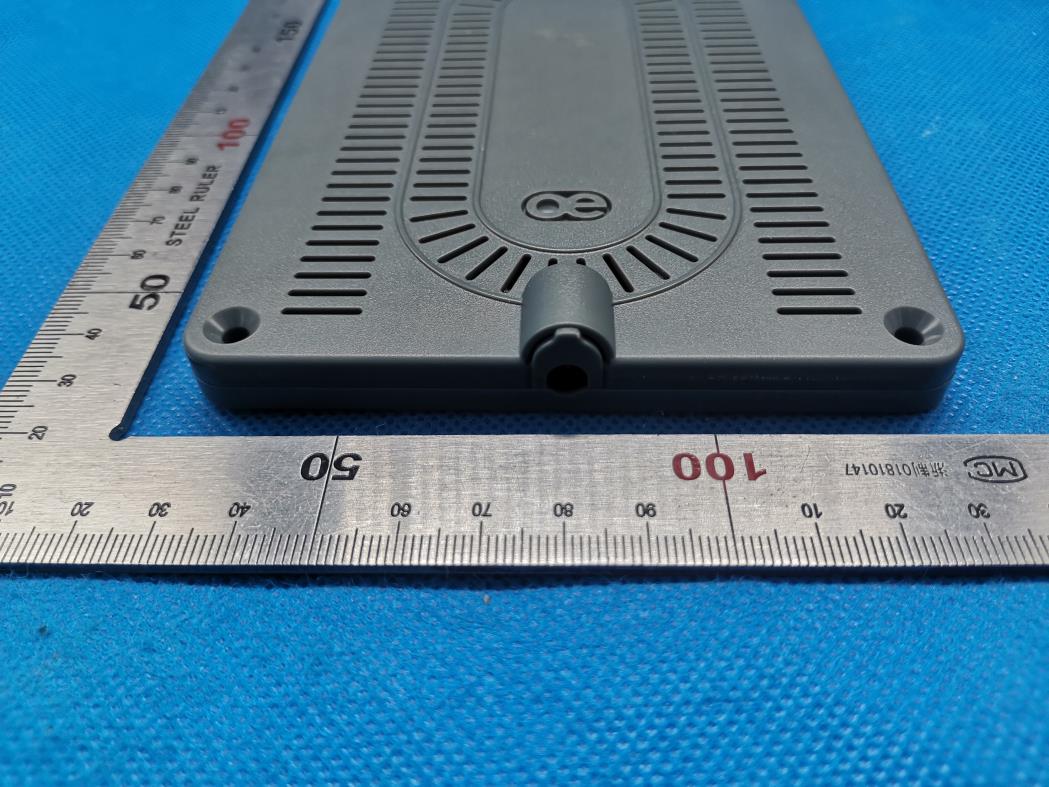

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

Page 1 of 14 RF Exposure Report Report No.: AGC10971200801FH03 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Through Surface Wireless Charger BRAND NAME : OE MODEL NAME : ARC-H (LD), ARC-Hxx (xx) APPLICANT : OE Electrics Limited DATE OF ISSUE : Sep. 08, 2020 STANDARD(S) : KDB680106 D01 RF Exposure Wireless Charging Base App v03 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd Report No.: AGC10971200801FH03 Page 2 of 14 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Sep. 08, 2020 Valid Initial Release Report No.: AGC10971200801FH03 Page 3 of 14 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. DESCRIPTION OF TEST MODES................................................................................................................. 6 4. SYSTEM TEST CONFIGURATION ............................................................................................................... 6 5. TEST FACILITY ............................................................................................................................................. 7 6. RADIO FREQUENCY (RF) EXPOSURE TEST ............................................................................................. 8 6.1. LIMITS ..................................................................................................................................................... 8 6.2. TEST SETUP ........................................................................................................................................... 8 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ......................................................................................... 11 Report No.: AGC10971200801FH03 Page 4 of 14 1. VERIFICATION OF CONFORMITY Applicant OE Electrics Limited Address OE House, Thomas Maddison lane, Calder Park, Wakefield, WF4 3GH, UK Manufacturer OE Electrics Limited Address OE House, Thomas Maddison lane, Calder Park, Wakefield, WF4 3GH, UK Factory SHENZHEN CIJI TECHNOLOGY CO.,LTD. Address Room 1807, Overseas Chinese Scholars Venture Building, No.29 Gaoxin South Ring Road, Nanshan District, Shenzhen, China Product Designation Through Surface Wireless Charger Brand Name OE Test Model: ARC-H (LD) Series Model ARC-Hxx (xx) Model Difference All the series models are the same as the test model except for the model names and the color of appearance. Date of test Aug. 13, 2020 to Sep. 07, 2020 Deviation No any deviation from the test method Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance(Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in KDB680106 D01. The results of testing in this report apply to the product/system which was tested only. Prepared By Sky Dong (Project Engineer) Sep. 07, 2020 Reviewed By Max Zhang (Reviewer) Sep. 08, 2020 Approved By Forrest Lei (Authorized Officer) Sep. 08, 2020 Report No.: AGC10971200801FH03 Page 5 of 14 2. GENERAL INFORMATION 2.1.PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 115-150 kHz Test Frequency 127kHz Maximum field strength 51.29dBuV/m(PK)@3m Number of channels 1 Antenna Designation Coil Antenna (Met 15.203 Antenna requirement) Hardware Version V2.1 Software Version V4.5.6 Power Supply DC 19V by adapter Report No.: AGC10971200801FH03 Page 6 of 14 3. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 Wireless charging Mode(Full load) 2 Wireless charging Mode(Half load) 3 Wireless charging Mode(Null load) Note: 1. The mode 1 was the worst case and only the data of the worst case record in this report. 4. SYSTEM TEST CONFIGURATION Item Equipment Model No. ID or Specification Remark 1 Through Surface Wireless Charger ARC-H (LD) 2AW8K-ARCHLD EUT 2 Adapter MX24Z1-1900940 Input:100-240V~50-60Hz, 0.7A Output:19V, 0.94A AE 3 Wireless Load N/A 10W AE Report No.: AGC10971200801FH03 Page 7 of 14 5. TEST FACILITY TEST EQUIPMENT LIST Description Manufacturer Model S/N Cal. Date Cal. Due Broadband Field Meter Narda Safety Test Solutions GmbH ELT-400 J-0004 May 25,2020 May 24,2021 Probe FHP Narda Safety Test Solutions GmbH 2300/90.10 J-0015 May 25,2020 May 24,2021 TestSite Attestation of Global Compliance(Shenzhen) Co., Ltd Location 1-2/F,Building19,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiSt reet,Bao'anDistrict,Shenzhen,Guangdong,China Designation Number CN1259 FCC Test Firm Registration Number 975832 A2LA Cert. No. 5054.02 Description Attestation of Global Compliance(Shenzhen) Co., Ltd is accredited by A2LA Report No.: AGC10971200801FH03 Page 8 of 14 6. RADIO FREQUENCY(RF) EXPOSURETEST 6.1. LIMITS For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. 6.2. TEST SETUP Note: Position A: Front of EUT; Position B: Left of EUT; Position C: back of EUT; Position D: Right of EUT; Position E: Top of EUT(20 cm measure distance); Report…

Text truncated - open the document above for the full version.

Page 1 of 30 FCC Test Report Report No.: AGC10971200801FE04 FCC ID : 2AW8K-ARCHLD APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Through Surface Wireless Charger BRAND NAME : OE MODEL NAME : ARC-H (LD), ARC-Hxx (xx) APPLICANT : OE Electrics Limited DATE OF ISSUE : Sep. 08, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC10971200801FE04 Page 2 of 30 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Sep. 08, 2020 Valid Initial Release Report No.: AGC10971200801FE04 Page 3 of 30 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 6 4. DESCRIPTION OF TEST MODES ................................................................................................................. 7 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ..................................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 8 6. TEST FACILITY ............................................................................................................................................. 9 7. RADIATED EMISSION ................................................................................................................................. 10 7.1TEST LIMIT ............................................................................................................................................. 10 7.2. MEASUREMENT PROCEDURE ............................................................................................................ 11 7.3. TEST SETUP ......................................................................................................................................... 12 7.4. TEST RESULT ....................................................................................................................................... 13 8. 20DB BANDWIDTH ..................................................................................................................................... 16 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 16 8.3. MEASUREMENT RESULTS .................................................................................................................. 17 9. FCC LINE CONDUCTED EMISSION TEST ................................................................................................ 18 9.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................................ 18 9.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST .............................................................. 18 9.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 19 9.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .......................................................... 19 9.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .................................................................... 20 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 22 APPENDIX B: PHOTOGRAPHS OF EUT ....................................................................................................... 24 Report No.: AGC10971200801FE04 Page 4 of 30 1. VERIFICATION OF CONFORMITY Applicant OE Electrics Limited Address OE House, Thomas Maddison lane, Calder Park, Wakefield, WF4 3GH, UK Manufacturer OE Electrics Limited Address OE House, Thomas Maddison lane, Calder Park, Wakefield, WF4 3GH, UK Factory SHENZHEN CIJI TECHNOLOGY CO.,LTD. Address Room 1807, Overseas Chinese Scholars Venture Building, No.29 Gaoxin South Ring Road, Nanshan District, Shenzhen, China Product Designation Through Surface Wireless Charger Brand Name OE Test Model ARC-H (LD) Series Model ARC-Hxx (xx) Difference Description All the series models are the same as the test model except for the model names and the color of appearance. Date of test Aug. 13, 2020 to Sep. 07, 2020 Deviation No any deviation from the test method Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with Section 15.207, 15.209, 15.203 of the FCC Part 15, Subpart C Rules. The results of testing in this report apply to the product/system which was tested only. Prepared By Sky Dong (Project Engineer) Sep. 07, 2020 Reviewed By Max Zhang (Reviewer) Sep. 08, 2020 Approved By Forrest Lei (Authorized Officer) Sep. 08, 2020 Report No.: …

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC LINE CONDUCTED EMISSION TEST SETUP
