2AW8W-DCH-Hindustrial remote control

手持式系列遥控器使用说明书V2.0 HandheldRemoteControlUserManualV2.0 （适用于手持式A系列和H系列） (ApplicabletohandheldAseriesandHseries) 遥控器说明书 欢迎使用工业遥控器产品，我们的每套产品在出厂前都经过了严格的各项测试，请放心使用。 Welcometouseindustrialremotecontrolproducts.Eachofourproductshasundergonestrict testingbeforeleavingthefactory.Pleaserestassuredtouseit. 在安装使用此产品前，请耐心阅读此说明书并清点包装箱内的各种配件和随机图纸，以免安装时电 压不对，烧毁接收器。Beforeinstallingandusingthisproduct,pleasepatientlyreadthismanual andcountthevariousaccessoriesandaccompanyingdrawingsinsidethepackagingboxto avoidincorrectvoltageduringinstallationandburningthereceiver. 我们是一家致力于工业无线遥控系统研发，生产，销售为一体的高新技术企业，我们的客户分布在 很多行业，起重机设备，工程机械，建筑设备，高空作业设备，工程特种车辆，农林装备等普通行业， 以及市政消防，矿山开采，隧道建设，港口海工，石油开采等特殊行业，我们产品都有成熟的客户使用 案例；我们产品质量稳定可靠，并通过欧盟CE以及美国联邦通讯委员会FCC认证，目前我们产品出口 到全球许多国家和地区。Weareahigh-techenterprisededicatedtotheresearchand development,production,andsalesofindustrialradioremotecontrolsystems.Ourcustomers aredistributedinmanyindustries,includingcraneequipment,constructionmachinery, constructionequipment,high-altitudeoperationequipment,engineeringspecialvehicles, agriculturalandforestryequipment,aswellasspecialindustriessuchasmunicipalfire protection,mining,tunnelconstruction,portandmarineengineering,andoilextraction,our productshavematurecustomerusingcases;ourproductsareofstableandreliablequality,and havepassedEUCEandFCCcertification.Currently,ourproductsareexportedtomany countriesandregionsaroundtheworld. 工业遥控器产品有手持式遥控器，主要应用于远程控制起重机以及其他简单的设备，肩带式遥控 器主要应用于远程控制较复杂的设备，如大吨位起重机，泵车，高空作业车，移动AGV，盾构掘进机， 消防车，移动破碎机等。德驰R系列接收器支持纯IO输出，模拟量输出，RS485总线输出，RS232总 线输出，Can总线输出，Profibus-DP总线输出，PWM输出，Canopen总线输出，ProfiNet总线输 出，DeviceNet总线输出，J1939输出等。ourproductsincludehandheldremotecontrollers, mainlyusedforremotecontrolofcranesandothersimpleequipment.Shoulderbeltremote controllersaremainlyusedforremotecontrolofmorecomplexequipment,suchaslarge tonnagecranes,pumptrucks,aerialworkvehicles,mobileAGVs,shieldtunnelingmachines,fire trucks,mobilecrushers,etc.RseriesreceiversupportsIOoutput,analogoutput,RS485bus output,RS232busoutput,Canbusoutput,ProfibusDPoutput,PWMoutput,Canopenoutput, ProfiNetoutput,DeviceNetoutput,J1939output,etc. 遥控器说明书 1.发射器参数 Emergencystopswitch:mushroomhead type,inaccordancewithEN13849-1 standard Protectionlevel:IP65 Operatingelement:4，8，12doublespeed selfresetbuttons Keyidentification:arrows,text,symbols,or customerdefined Smartkey:iKey(remotecontrolkeysofthe samemodelareinterchangeable 型号：DCH-H, DCH-H21, DCH-H22, DCH-H31, DCH-H32, DCH-H51, DCH-H52, DCH-H41, DCH-H42, DCH-R10, DCH-R15, DCH-R20等 TransmitterHseriesparametermodels:DCH-H, DCH-H21, DCH-H22, DCH-H31, DCH-H32, DCH-H51, DCH-H5 2, DCH-H41, DCH-H42, DCH-R10, DCH-R15, DCH-R20 etc ) 尺寸：120*60*35mm(4按键） 180*60*35mm(8按键） 240*60*35mm（12按键） 按键：4个/8个/12个单速/双速自复位按键 材质：PA6+30%GF 重量：120g-360g 天线：内置 启动方式：旋起急停，按启动按键2秒开机（A系列短 按，再长按启动按键开机，请参考随机图纸） 急停开关：蘑菇头式，符合EN13849-1标准 防护等级：IP65 操作元件：4个，8个或12个双速自复位按键 按键标识：箭头，文字，符号或者客户自定义 智能钥匙：iKey（相同型号遥控器钥匙互相通用） Size:120*60*35mm(4buttons) 180*60*35mm(8buttons) 240*60*35mm(12buttons) Buttons:4/8/12singlespeed/dualspeedselfreset buttons Material:PA6+30%GF Weight:120g-360g Antenna:inside Startmethod:Rotatetheemergencystop buttonandpressthestartbuttonfor2seconds (Aseriesshort+longpressstartbutton,please refertodrawingsattached). 控制距离：≥150米（空旷环境，发射器和接收 器均离地1米标准测试； 工作温度范围：-40°C~+80°C 中心频率范围：433-434MHz； LED指示灯：操作指示/电池状态 Continuousoperationtime:morethan500hours(2 AAbatteriesusedatroomtemperature) Typicalapplications:singleanddoublebeam cranes,Europeancranes,groundpumps,vehicle 遥控器说明书 按键寿命：≥200万次 电源供应：H系列：2节5号电池 A系列：3节5号电池 连续操作时间：500小时以上（2节五号正品南 孚电池常温下使用） 典型应用：单双梁起重机，欧式起重机，地泵， 车载泵及其他设备； APO（自动关机）：标配30分钟 Controldistance:≥150meters(inanopen environment,thetransmitterandreceiverare bothtestedatastandarddistanceof1meter fromtheground); Workingtemperaturerange:-40 °C ~+80 °C Centerfrequencyrange:433-434MHz; LEDindicatorlight:operation indicator/batterystatus Keylifespan: ≥ 2milliontimes mountedpumps,andotherequipment; APO(automaticshutdown):Standardconfiguration for30minutes Powersupply:Hseries ： 2pieceAAbatteries Powersupply:Aseries ： 3pieceAAbatteries 遥控器说明书 2.R系列接收器参数型号：R10；R15；R20 R-seriesreceiverparameterModel:R10;R15;R20 Temperaturerange:-40°C~+80°C Frequencyrange:433-434MHz Relaycapacity:10A/250VAC Relaylife:greaterthan5milliontimes LEDindicatorlight:operationstatus indicator/RFsignal Antenna:External(standardwithsoft antenna,otherantennasrequirespecial customization) Shellmaterial/protectionlevel:IP65 开关量输出：10路,15路,20路继电器 输出接口：重载连接器、电缆可选 尺寸：220×120×75mm 重量：1000g 外壳材质：工程塑料 防护等级：IP65 温度范围：-25°C~+70°C 频率范围：433-434MHz 继电器容量：10A/250VAC 继电器寿命：大于500万次 LED指示灯：操作状态指示/射频信号 天线：外置(标配软天线，其他天线要求需 要特殊定制） 外壳材质/防护等级：工程塑料/IP65 继电器容量：10A/250VAC Relayoutput:10,15,20relays Outputinterface:heavy-dutyconnector, cableoptional Size:220 × 120 × 75mm Weight:1000g Shellmaterial:ABS Protectionlevel:IP65 Relaycapacity:10A/250VAC 适 配发射器Transmitter： H21四个按键单速-H214singlebutton H22四个按键双速-H224doublebutton H31,A31八个按键单速-H318singlebutton H32,A32八个按键双速-H328doublebutton H41,A41十个按键单速-H4110singlebutton H42,A42十个按键双速-H4210doublebutton H51十二个按键单速-H5112singlebutton H52十二个按键双速-H5212doublebutton 选配电源ReceiverPower： 9-36VDC30-420VAC 遥控器说明书 3.遥控系统安装操作 Installationandoperationofremotecontrolsystem 3.1安装说明 Installationinstructions 按键式系列遥控器可以和各种规格型号的起重机或者设备配合使用 Handheldseriesremotecontrolcanbeusedinconjunctionwithvariousspecificationsand modelsofcranesorequipment 3.2接收器安装注意事项 Remarkforreceiverinstallation 攀爬起重机时，请注意安全。安装前，请务必关掉起重机总电源，严禁带电安装。 当接收器附近有变频器时，接收器距离变频器必须大于2米，或将接收器装在屏蔽金属盒内，引出 天线的距离尽量远离变频器。接收器天线尽量安装在较高，并空旷的地方，以免影响接收信号。 Pleasepayattentiontosafetywhenclimbingthecrane.Beforeinstallation,pleasebesureto turnoffthemainpowersupplyofthecrane,andliveinstallationisstrictlyprohibited.When thereisafrequencyconverternearthereceiver,thedistancebetweenthereceiverandthe frequencyconvertermustbegreaterthan2meters,orthereceivershouldbeinstalledina shieldedmetalbox,andthedistancefromtheantennashouldbeasfarawayaspossiblefrom thefrequencyconverter.Thereceiverantennashouldbeinstalledashighandopenaspossible toavoidaffectingth…

Text truncated - open the document above for the full version.

DCH RADIO LIMITED COMPANY Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/10/2023 U.S. Agent Designation DC H RADIO LIMITED COMPANY acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AW8W-DCH-H): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of DCH RADIO LIMITED COMPANY. DCH RADIO LIMITED COMPANY with the FRN 0029857273 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Since rely, Signature Allen Xu Sales Director DCH RADIO LIMITED COMPANY Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

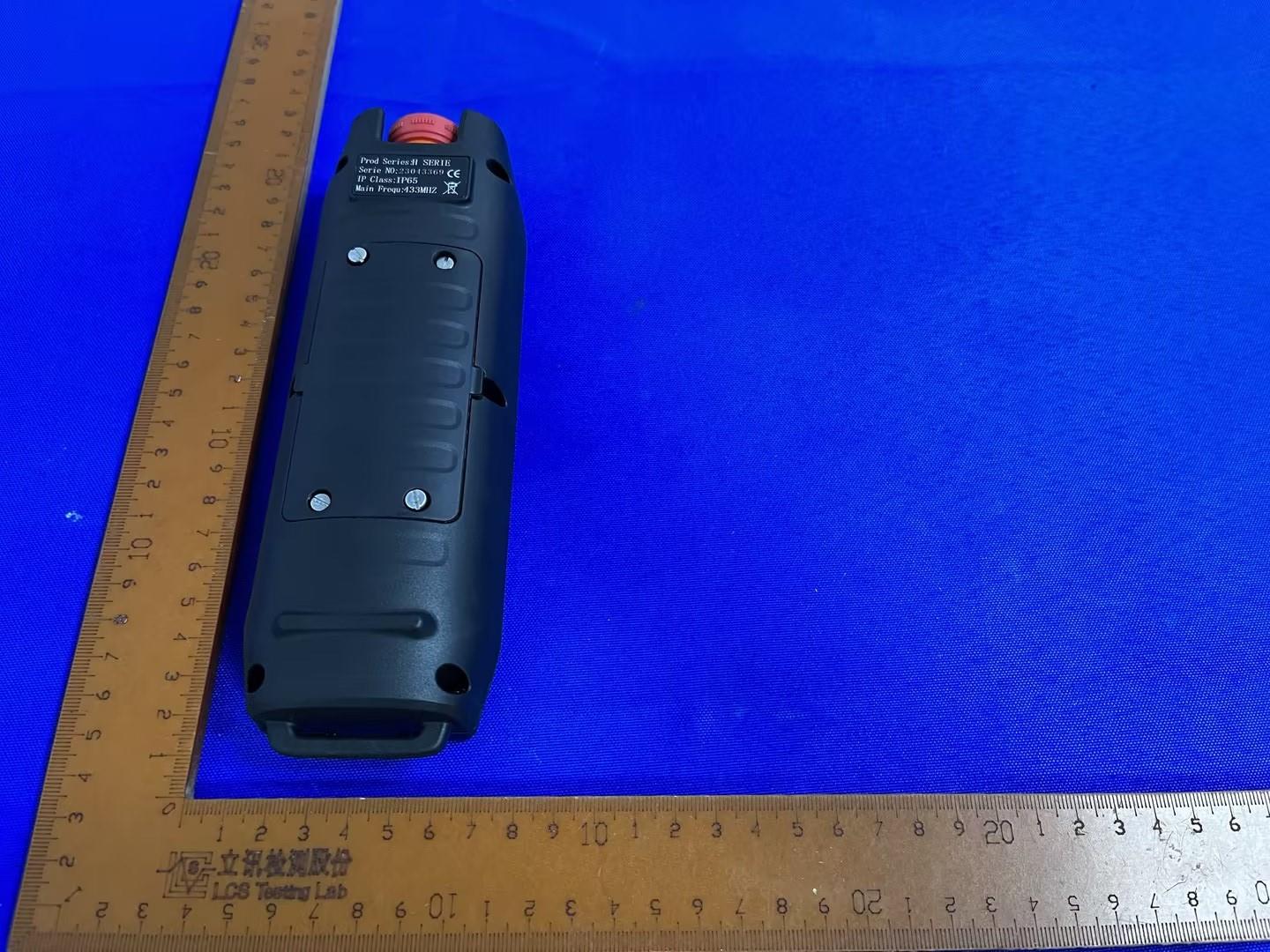

Page 1 of 4 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7

Page 1 of 1 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION (Size: L 3.0cm x W 1.0cm) Label Location industrial remote control Model: DCH-H FCC ID: 2AW8W-DCH-H

Page 1 of 6 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 6 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Antenna Page 3 of 6 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 6 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Page 5 of 6 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9 Fig. 10 Page 6 of 6 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 11 Fig. 12

Page 1 of 3 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information Product name industrial remote control Test Model DCH-H Additional Model No. DCH-H21, DCH-H22, DCH-H31, DCH-H32, DCH-H51, DCH-H52, DCH-H41, DCH-H42, DCH-R10, DCH-R15, DCH-R20 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply DC 3.0V by 2*AAA batteries Hardware Version / Software Version / Frequency Range 435MHz Channel Number 1 Modulation Type ASK Antenna Description Internal Antenna, 2.0dBi (max.) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device Page 2 of 3 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 2.Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Page 3 of 3 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 4. Conducted Power Test Procedure TX frequency range: 435MHz Device category: Portable device (Distance: 5mm) Max. Field Strength: 52.73dBuV/m @3m EIRP=E-104.7+20logD=52.73-104.7+20log3=-42.43dBm Maximum Conducted Output Power: -42.43dBm Turn-up: -42±1 5. Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exc…

Text truncated - open the document above for the full version.

Page 1 of 28 FCC ID: 2AW8W-DCH-H Report No.: LCSA060823086EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For DCH RADIO LIMITED COMPANY industrial remote control Test Model: DCH-H Additional Model No.: Please Refer to Page 6 Prepared for : DCH RADIO LIMITED COMPANY Address : No. 389 Road Zhaojiajing, Songjiang, Shanghai, 201416 China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 26, 2023 Number of tested samples : 2 Sample No. : A060823086-1, A060823086-2 Serial number : Prototype Date of Test : June 26, 2023 ~ July 05, 2023 Date of Report : July 05, 2023 Page 2 of 28 FCC ID: 2AW8W-DCH-H Report No.: LCSA060823086EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15 C(15.231) Report Reference No. .............. : LCSA060823086EA Date of Issue ............................... : July 05, 2023 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ...................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : DCH RADIO LIMITED COMPANY Address ...................................... : No. 389 Road Zhaojiajing, Songjiang, Shanghai, 201416 China Test Specification Standard ..................................... : FCC CFR 47 PART 15 Subpart C, ANSI C63.10-2013 Test Report Form No. ............... : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : industrial remote control Trade Mark ................................. : DCH Test Model .................................. : DCH-H Ratings ....................................... : DC 3.0V by 2*AAA batteries Result ........................................ : Positive Compiled by: Supervised by: Approved by: Kevin Huang/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Page 3 of 28 FCC ID: 2AW8W-DCH-H Report No.: LCSA060823086EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT EUT......................................... : industrial remote control Test Model........................... : DCH-H Applicant............................... : DCH RADIO LIMITED COMPANY Address.................................. : No. 389 Road Zhaojiajing, Songjiang, Shanghai, 201416 China Telephone............................... : / Fax.......................................... : / Manufacturer....................... : DCH RADIO LIMITED COMPANY Address................................... : No. 389 Road Zhaojiajing, Songjiang, Shanghai, 201416 China Telephone............................... : / Fax.......................................... : / Factory....................... : DCH RADIO LIMITED COMPANY Address................................... : No. 389 Road Zhaojiajing, Songjiang, Shanghai, 201416 China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA060823086EA July 05, 2023 Date of issue Page 4 of 28 FCC ID: 2AW8W-DCH-H Report No.: LCSA060823086EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 July 05, 2023 Initial Issue --- Page 5 of 28 FCC ID: 2AW8W-DCH-H Report No.: LCSA060823086EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEV…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID: 2AW8W-DCH-H Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2
