USERS GUIDE www.auroramm.com Manual Number: 200617 TeamStream TS-100 Quick Start Guide ii USERS GUIDE www.auroramm.com SAFETY INSTRUCTIONS Please review the following safety precautions. If this is the first time using this model, then read this manual before installing or using the product. If the product is not functioning properly, please contact your local dealer or Aurora for further instructions. The lightning symbol in the triangle is used to alert you to the presence of dangerous voltage inside the product that may be sufficient to constitute a risk of electric shock to anyone opening the case. It is also used to indicate improper installation or handling of the product that could damage the electrical system in the product or in other equipment attached to the product The exclamation point in the triangle is used to alert you to important operating and maintenance instructions. Failure to follow these instructions could result in injury to you or damage to the product. Be careful with electricity: Power outlet: To prevent electric shock, be sure the electrical plug used on the product power cord matches the electrical outlet used to supply power to the Aurora product. Use only the power adapter and power connection cables designed for this unit. Power cord: Be sure the power cord is routed so that it will not be stepped on or pinched by heavy items. Lightning: For protection from lightning or when the product is left unattended for a long period, disconnect it from the power source. Also follow these precautions: Ventilation: Do not block the ventilation slots if applicable on the product or place any heavy object on top of it. Blocking the air flow could cause damage. Arrange components so that air can flow freely. Ensure that there is adequate ventilation if the product is placed in a stand or cabinet. Put the product in a properly ventilated area, away from direct sunlight or any source of heat. Overheating: Avoid stacking the Aurora product on top of a hot component such as a power amplifier. Risk of Fire: Do not place unit on top of any easily combustible material, such as carpet or fabric. Proper Connections: Be sure all cables and equipment are connected to the unit as described in this manual. Object Entry: To avoid electric shock, never stick anything in the slots on the case or remove the cover. Water Exposure: To reduce the risk of fire or electric shock, do not expose to rain or moisture. Cleaning: Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning. ESD: Handle this unit with proper ESD care. Failure to do so can result in failure. FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Trademarks All trademarks in this document are the properties of their respective owners. iii USERS GUIDE www.auroramm.com FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. iv USERS GUIDE www.auroramm.com TABLE OF CONTENTS Package Contents .................................................................................................................................................... 6 Initial Setup ............................................................................................................................................................... 6 TS-100 Main Screen ................................................................................................................................................. 7 Connecting to the TS-100 ........................................................................................................................................ 8 PC/Mac ................................................................................................................................................................ 8 Android/iOS ......................................................................................................................................................... 8 Network and Device Settings ...................................................................…
Text truncated - open the document above for the full version.
FCC Software Configuration Control Declaration Rev1.1 Aurora Multimedia Corp, USA FCC Software Configuration Control Declaration Date: August 17, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number:Multi-format 4K Switcher cum Scaler with built-in Wireless Presentation System / TS-100 Regarding FCC Country Code Selection guidelines identified in KDB 594280 v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Paul HarrisDate:17/08/2020 Title: CEO Signature of applicant
Aurora Multimedia Corp, USA Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/08/17 Subject; Request for Confidentiality FCC ID: 2AW9A-TS-100 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description FCC SW SECURITY DESCRIPTION In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Paul Harris Title: CEO
Aurora Multimedia Corp, USA Letter of Authorization Company: Aurora Multimedia Corp, USA Address: 205 Commercial Ct., Morganville, NJ 07751, USA Product Name: Multi-format 4K Switcher cum Scaler with built-in Wireless Presentation System Model Number(s): TS-100 Product Description: Multi-format 4K Switcher cum Scaler with built-in Wireless Presentation System We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 17/08/2020 Name:Paul Harris Title:CEO Company: Aurora Multimedia Corp, USA

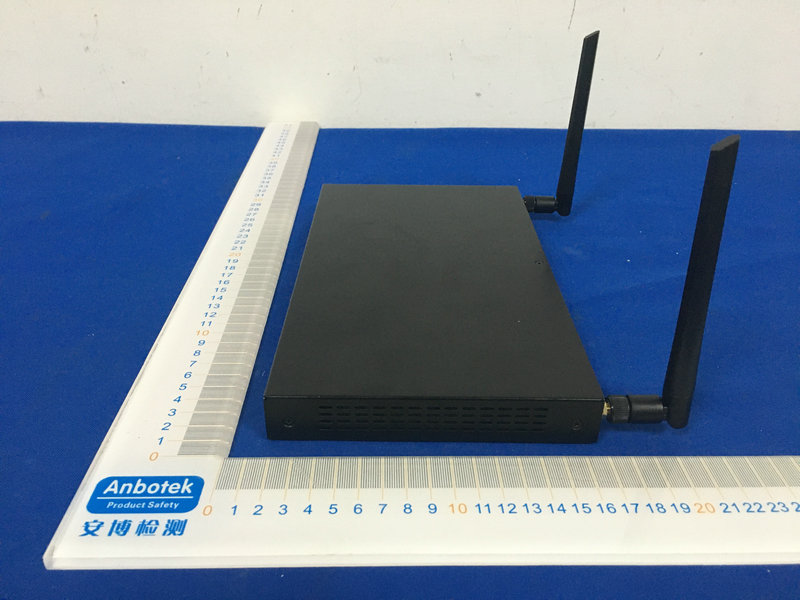

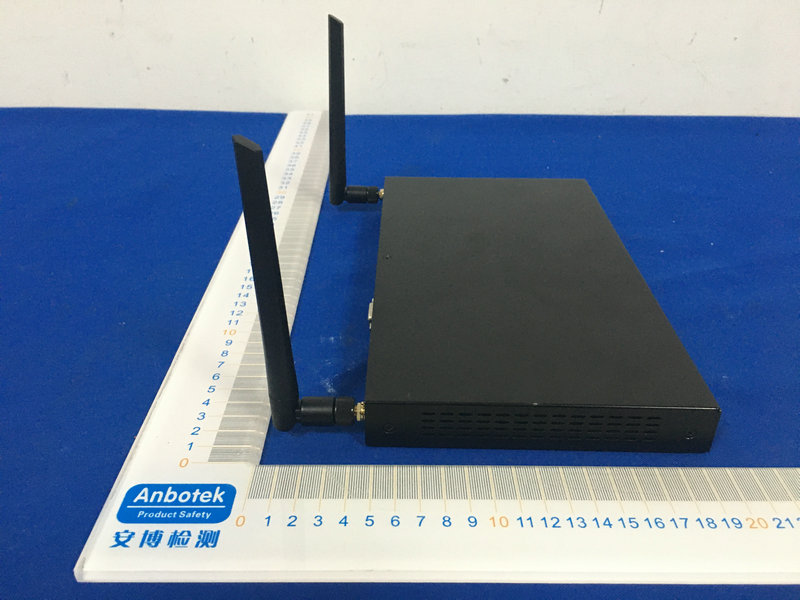

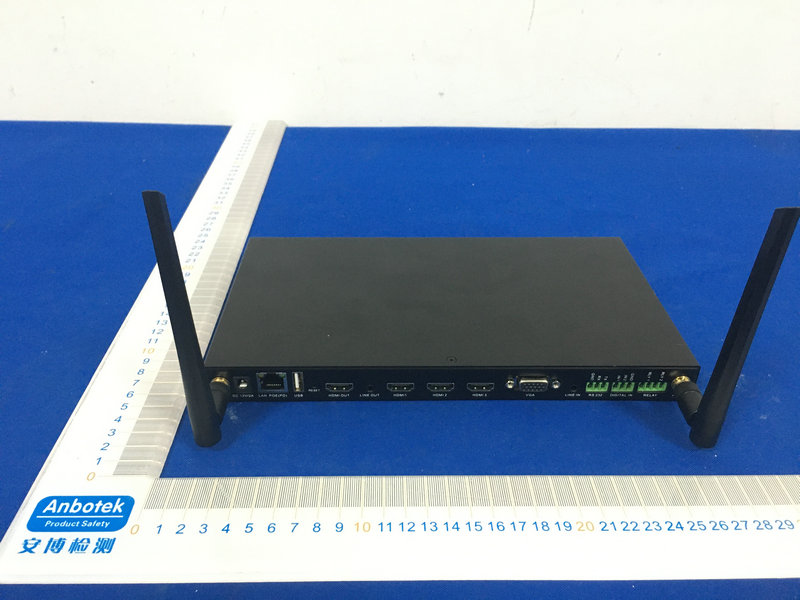

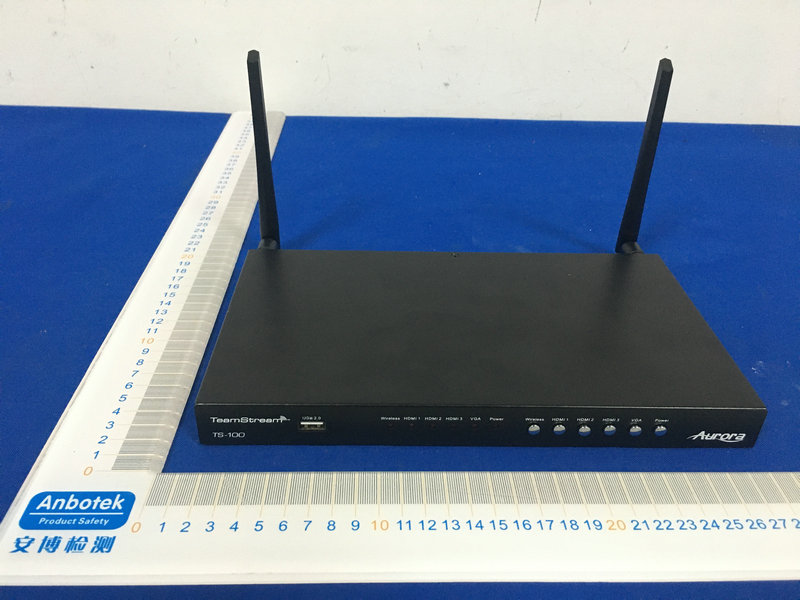

FCC ID: 2AW9A-TS-100 ANTA ANTB
Label Location:
Product Name: Multi-format 4K Switcher cum Scaler with built-in Wireless Presentation System Model No.: TS-100 FCC ID: 2AW9A-TS-100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
FCC ID: 2AW9A-TS-100
RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2AW9A-TS-100 EUT Specification EUTMulti-format 4K Switcher cum Scaler with built-in Wireless Presentation System Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz WLAN: 5.745GHz ~ 5.825GHz Others: 2.402GHz~2.480GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classificationOccupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power2.4G WiFi:20.54dBm (0.0333W) 5.1G WiFi:16.35dBm (0.0372W) 5.8G WiFi:17.86dBm (0.0442W) Antenna gain (Max)3dBi Evaluation appliedMPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500----F/3006 1500-100000----56 (B) Limits for General Population/Uncontrol Exposures 300-1500----F/15006 1500-100000----130 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result 2.4G WiFi ANT A: Operating Mode Channel Frequency (MHz) Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 802.11b 241217.3417.34±118.3430.02711 243717.5717.57±118.5730.02861 246217.6317.63±118.6330.02901 802.11g 241214.5814.58±115.5830.01431 243714.7714.77±115.7730.01501 246214.6914.69±115.6930.01471 802.11n (HT20) 241214.5014.50±115.5030.01411 243714.7314.73±115.7330.01491 246214.5714.57±115.5730.01431 802.11n (HT40) 242214.2614.26±115.263 0.0133 1 243714.1614.16±115.1630.01301 245214.2114.21±115.2130.01321 2.4G WiFi ANT B: Operating Mode Channel Frequency (MHz) Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 802.11b 241217.3517.35±118.3530.02711 243717.4917.49±118.4930.02801 246217.3917.39±118.3930.02741 802.11g 241214.7114.71±115.7130.01481 243714.6714.67±115.6730.01461 246214.5414.54±115.5430.01421 802.11n (HT20) 241214.3314.33±115.3330.01351 243714.5814.58±115.5830.01431 246214.5714.57±115.5730.01431 802.11n (HT40) 242213.9213.92±114.923 0.0123 1 243713.8913.89±114.8930.01221 245214.1414.14±115.1430.01301 ANT A+ANT B Operating Mode Channel Frequency (MHz) ANT A Power density at 20cm (mW/ cm 2 ) ANT B Power density at 20cm (mW/ cm 2 ) ANT A+ANT B Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 802.11b 24120.02710.02710.05421 24370.02860.02800.05661 24620.02900.02740.05641 802.11g 24120.01430.01480.02911 24370.01500.01460.02961 24620.01470.01420.02891 802.11n (HT20) 24120.01410.01350.02761 24370.01490.01430.02921 24620.01430.01430.02861 802.11n (HT40) 24220.01330.01230.02561 24370.01300.01220.02521 24520.01320.01300.02621 5.1G WiFi ANT A: 5.1G WiFi ANT B: Operating Mode Channel Frequency Measured Power Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (mW/cm2 ) (MHz)(dBm)(dBm)(dBm)(dBi)(mW/ cm2 ) 802.11a 518013.1713.17±114.1730.01041 520012.6012.60±113.6030.00911 524013.1113.11±114.1130.01021 802.11n20 518012.6112.61±113.6130.00911 520012.2912.29±113.2930.00851 524013.1313.13±114.1330.01031 802.11ac20 518013.1013.10±114.1030.01021 520013.2913.29±114.2930.01071 524012.2812.28±113.2830.00841 802.11n40 519012.1512.15±113.1530.00821 523013.7313.73±114.7330.01181 802.11ac40 519012.2812.28±113.2830.00841 523012.4012.40±113.4030.00871 802.11ac80 521012.5612.56±113.5630.00901 Operating Mode Channel Frequency Measured Power Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (mW/cm2 ) (MHz)(dBm)(dBm)(dBm)(dBi)(mW/ cm2 ) 802.11a 518012.9212.92±113.9230.00981 520013.0613.06±114.0630.01011 524013.3613.36±114.3630.01081 802.11n20 518012.7912.79±113.7930.00951 520012.7012.70±113.7030.00931 524013.4413.44±114.4430.01101 802.11ac20 518012.7912.79±113.7930.00951 520012.7812.78±113.7830.00951 524013.7213.72±114.7230.01181 802.11n40 519011.9911.99±112.9930.00791 523012.9012.90±113.9030.00971 802.11ac40 519012.6512.65±113.6530.00921 523012.7212.72±113.7230.00931 802.11ac80 521012.5012.50±113.5030.00891 ANT A+ANT B: 5.8G WiFi ANT A: Operating Mode Channel Frequency ANT A Power density at 20cm ANT B Power density at 20cm ANT A+ANT B Power density at 20cm Power density Limits (MHz)(mW/ cm2 )(mW/ cm2 )(mW/ cm2 )(mW/cm2 ) 802.11a 51800.01040.00980.02021 52000.00910.01010.01921 52400.01020.01080.02101 802.11n20 51800.00910.00950.01861 52000.00850.00930.01781 52400.01030.01100.02131 802.11ac20 51800.01020.00950.01971 52000.01070.00950.02021 52400.00840.01180.02021 802.11n40 51900.00820.00790.01611 52300.01180.00970.02151 802.11ac40 51900.00840.00920.01761 52300.00870.00930.01801 802.11ac80 52100.00900.00890.01791 Operating Mode Channel Frequency Measured Power Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (mW/cm2 ) (MHz)(dBm)(dBm)(dBm)(dBi)(mW/ cm2 ) 802.11a 574513.8113.81±114.8130.01201 578513.5713.57±114.5730.01141 582513.7013.70±114.7030.01171 802.11n20 574513.9213.92±114.9230.01231 578513.8113.81±114.8130.01201 582513.4113.41±114.4130.01101 802.11ac20 574513.7313.73±114.7330.01181 578513.7313.73±114.7330.01181 582512.7312.73±113.7330.00941 802.11n40 575512.8612…
Text truncated - open the document above for the full version.
Report No.: 18220WC00106602FCC ID: 2AW9A-TS-100Page 1 of 93 Code:AB-RF-05-a FCC Test Report Client Name: Aurora Multimedia Corp, USA Address: 205 Commercial Ct., Morganville, NJ 07751, USA Product Name: Multi-format 4K Switcher cum Scaler with built-in Wireless Presentation System Date: Aug. 17, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00106602FCC ID: 2AW9A-TS-100Page 2 of 93 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 4 1.1. Client Information ....................................................................................................................................... 4 1.2. Description of Device (EUT) ..................................................................................................................... 4 1.3. Auxiliary Equipment Used During Test ................................................................................................... 5 1.4. Description of Test Modes ........................................................................................................................ 5 1.5. List of channels ........................................................................................................................................... 6 1.6. Description Of Test Setup ......................................................................................................................... 7 1.7. Test Equipment List .................................................................................................................................... 8 1.8. Measurement Uncertainty ......................................................................................................................... 9 1.9. Description of Test Facility ........................................................................................................................ 9 2. Summary of Test Results ................................................................................................................................... 10 3. Conducted Emission Test ................................................................................................................................... 11 3.1. Test Standard and Limit .......................................................................................................................... 11 3.2. Test Setup .................................................................................................................................................. 11 3.3. Test Procedure .......................................................................................................................................... 11 3.4. Test Data .................................................................................................................................................... 11 4. Radiation Spurious Emission and Band Edge ................................................................................................ 16 4.1. Test Standard and Limit .......................................................................................................................... 16 4.2. Test Setup .................................................................................................................................................. 16 4.3. Test Procedure .......................................................................................................................................... 17 4.4. Test Data .................................................................................................................................................... 18 5. Maximum Peak Output Power Test .................................................................................................................. 52 5.1. Test Standard and Limit .......................................................................................................................... 52 5.2. Test Setup .................................................................................................................................................. 52 5.3. Test Procedure .......................................................................................................................................... 52 5.4. Test Data .................................................................................................................................................... 52 6. Occupy Bandwidth Test ...................................................................................................................................... 56 6.1. Test Standard ............................................................................................................................................ 56 6.2. Test Setup .................................................................................................................................................. 56 6.3. Test Procedure .......................................................................................................................................... 56 6.4. Test Data .................................................................................................................................................... 56 7. Power Spectral Density Test .............................................................................................................................. 73 7.1. Test Standard and Limit .......................................................................................................................... 73 7.2. Test Setup .................................................................................................................................................. 73 7.3. Test Procedure .....................................................................................................…
Text truncated - open the document above for the full version.
Report No.: 18220WC00106603FCC ID: 2AW9A-TS-100Page 1 of 99 Code:AB-RF-05-a FCC Test Report Client Name: Aurora Multimedia Corp, USA Address: 205 Commercial Ct., Morganville, NJ 07751, USA Product Name: Multi-format 4K Switcher cum Scaler with built-in Wireless Presentation System Date: Aug. 17, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00106603FCC ID: 2AW9A-TS-100Page 2 of 99 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 4 1.1. Client Information ....................................................................................................................................... 4 1.2. Description of Device (EUT) ..................................................................................................................... 4 1.3. Auxiliary Equipment Used During Test ................................................................................................... 5 1.4. Description of Test Modes ........................................................................................................................ 5 1.5. List of channels ........................................................................................................................................... 6 1.6. Description Of Test Setup ......................................................................................................................... 7 1.7. Test Equipment List .................................................................................................................................... 8 1.8. Measurement Uncertainty ......................................................................................................................... 9 1.9. Description of Test Facility ........................................................................................................................ 9 2. Summary of Test Results ................................................................................................................................... 10 3. Conducted Emission Test ................................................................................................................................... 11 3.1. Test Standard and Limit .......................................................................................................................... 11 3.2. Test Setup .................................................................................................................................................. 11 3.3. Test Procedure .......................................................................................................................................... 11 3.4. Test Data .................................................................................................................................................... 11 4. Radiation Spurious Emission and Band Edge ................................................................................................ 16 4.1. Test Standard and Limit .......................................................................................................................... 16 4.2. Test Setup .................................................................................................................................................. 16 4.3. Test Procedure .......................................................................................................................................... 17 4.4. Test Data .................................................................................................................................................... 18 5. Maximum Peak Output Power Test .................................................................................................................. 44 5.1. Test Standard and Limit .......................................................................................................................... 44 5.2. Test Setup .................................................................................................................................................. 44 5.3. Test Procedure .......................................................................................................................................... 44 5.4. Test Data .................................................................................................................................................... 44 6. Occupy Bandwidth Test ...................................................................................................................................... 48 6.1. Test Standard ............................................................................................................................................ 48 6.2. Test Setup .................................................................................................................................................. 48 6.3. Test Procedure .......................................................................................................................................... 48 6.4. Test Data .................................................................................................................................................... 48 7. Power Spectral Density Test .............................................................................................................................. 79 7.1. Test Standard and Limit .......................................................................................................................... 79 7.2. Test Setup .................................................................................................................................................. 79 7.3. Test Procedure .....................................................................................................…
Text truncated - open the document above for the full version.
PHOTOSOFTESTSETUP FCC ID: 2AW9A-TS-100 Photo of PowerLine Conducted Emission Test Photo of Radiation Emission Test
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15E | 5.75 GHz - 5.83 GHz | 44.20 mW |
