2AW9O-MT1020REMOTE CONTROL CAR SERIES

USER MANUAL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

XINLIFENG TOYS FACTORY August 13. 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AW9O-MT1020 Product Name: REMOTE CONTROL CAR SERIES Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Zhou Yu Title：Manager Company： XINLIFENG TOYS FACTORY

XINLIFENG TOYS FACTORY August 13. 2020: Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Flux Compliance Service Laboratory 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with XINLIFENG TOYS FACTORY LIANNAN ROAD,NANWAN,LIANXIA TOWN, CHENGHAI DISTRICT,SHANTOU CITY, GUANGDONG PROVINCE (Applicant Name and address) <Signature> Name：Zhou Yu Title：Manager Company： XINLIFENG TOYS FACTORY

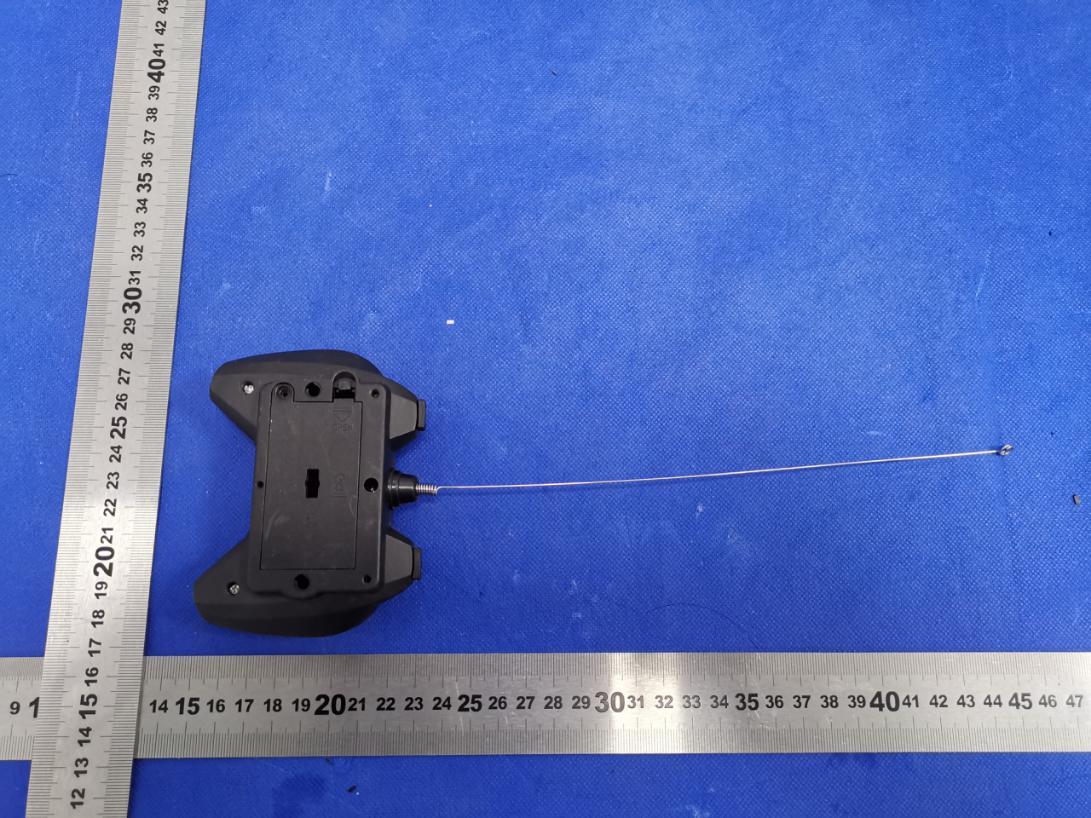

Page 1 of 3 Report No.:FCS202007033W01 External photos Photo 1 Photo 2 Antenna Page 2 of 3 Report No.:FCS202007033W01 Photo 3 Photo 4 Page 3 of 3 Report No.:FCS202007033W01 Photo 5 Photo 6

Label and Label Location FCC ID: 2AW9O-MT1020 L*W: 10mm*7mm white font on a Black label

Page 1 of 2 Report No.:FCS202007033W01 Internal photos Photo 1 Photo 2 Page 2 of 2 Report No.:FCS202007033W01 Photo 3 Photo 4

Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com FCC Test Report Report No: FCS202007033W01 Issued for Applicant: XINLIFENG TOYS FACTORY Address: LIANNAN ROAD,NANWAN,LIANXIA TOWN, CHENGHAI DISTRICT,SHANTOU CITY, GUANGDONG PROVINCE Product Name: REMOTE CONTROL CAR SERIES Brand Name: N/A Model Name: MT1020 Series Model: 789-200A, 789-300A, 789-400A, 789-804A, 789-809B, 789-908A FCC ID: 2AW9O-MT1020 Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Page 2 of 22 Report No.:FCS202007033W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com TEST RESULT CERTIFICATION Applicant’s Name ................... : XINLIFENG TOYS FACTORY Address .................................. : LIANNAN ROAD,NANWAN,LIANXIA TOWN, CHENGHAI DISTRICT,SHANTOU CITY, GUANGDONG PROVINCE Manufacture's Name .............. : XINLIFENG TOYS FACTORY Address .................................. : LIANNAN ROAD,NANWAN,LIANXIA TOWN, CHENGHAI DISTRICT,SHANTOU CITY, GUANGDONG PROVINCE Product Description Product Name ........................ : REMOTE CONTROL CAR SERIES Model Name ........................... : MT1020 Series Model .......................... : 789-200A,789-300A, 789-400A, 789-804A, 789-809B, 789-908A Test Standards ....................... : FCC Rules and Regulations Part 15 Subpart C, Section 227 Test Procedure ....................... : ANSI C63.10:2013 This device described above has been tested FCS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of FCS, this document may be altered or revised by FCS, personal only, and shall be noted in the revision of the document.. Date of Test ................................ : Date (s) of performance of tests . : 01 August. 2020 ~ 12 August. 2020 Date of Issue .............................. : 12 August. 2020 Test Result .................................. : Pass Tested by : (Chris Chen) Reviewed by : (Jack Chen) Approved by : ( Andy yue) Page 3 of 22 Report No.:FCS202007033W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF THE TEST MODES 8 2.3 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 9 2.4 EQUIPMENTS LIST 10 3 CONDUCTED EMISSION MEASUREMENT 11 3.1 LIMIT 11 3.2 TEST PROCEDURE 11 3.3 TEST SETUP 12 3.4 TEST RESULTS 12 4. RADIATED EMISSION MEASUREMENT 13 4.1 LIMIT 13 4.2 TEST PROCEDURE 14 4.3 TEST SETUP 15 4.4 TEST RESULTS 16 5. 20 DB BANDWIDTH TEST 20 5.1 TEST PROCEDURE 20 5.2 TEST SETUP 20 5.3 TEST RESULTS 21 6 ANTENNA REQUIREMENT 22 6.1 STANDARD REQUIREMENT 22 6.2 EUT ANTENNA 22 Page 4 of 22 Report No.:FCS202007033W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Revision History Rev. Issue Date Effect Page Contents 00 12 August. 2020 All Initial Issue Page 5 of 22 Report No.:FCS202007033W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 1. SUMMARY OF TEST RESULTS FCC Part 15 Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.227&15.209&15.205 Radiated Emission PASS -- 15.215 20dB Bandwidth PASS 15.203 Antenna Requirement PASS -- NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) All tests are according to ANSI C63.10-2013 Page 6 of 22 Report No.:FCS202007033W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 1.1 TEST FACTORY Company Name: Flux Compliance Service Laboratory Address: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Telephone: +86-769-27280901 Fax: +86-769-27280901 FCC Test Firm Registration Number: 514908 Designation number: CN0127 A2LA accreditation number：5545.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.71dB 2 Unwanted Emissions, conducted ±2.98 dB 3 Conducted Emission (9KHz-150KHz) ±4.13 dB 4 Conducted Emission (150KHz-30MHz) ±4.74 dB 5 All emissions,radiated(<1G) 30MHz-1000MHz ±3.2 dB 6 All emissions,radiated (1GHz -18GHz) ±3.66 dB 7 All emissions,radiated (18GHz -40GHz) ±4.31 dB Page 7 of 22 Report No.:FCS202007033W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name REMOTE CONTROL CAR SERIES Trade Name N/A Model Name MT1020 Series Model 789-200A,789-300A,789-400A, 789-804A, 789-809B, 789-…

Text truncated - open the document above for the full version.

Blow 30MHz for radiated emission test setup Above 1GHz for radiated emission test setup
