2AWA2-N81-UHFWireless Lavalier Microphone

1 2 3 4 5 1 2 3 4 5 6 6.35mm MIC 6.35mm MIC 3.5mm MIC (U12L) 尺寸:95mm*130mm UHF (U12LS) 1 2 3 4 5 6 (U12G) (U12GS) Wireless Live Recording Microphone Instructions for use Please read this manual before use Basic Introduction This product is a sound signal transmitting and receiving equipment. Receiver 3.5mm 4 pole plug,3 pole plug.The 3 plugs need to be inserted into the earphone hole of the mobile phone with the U type conversion head to record. 4 plugs are directly inserted into the headphone hole of the mobile phone for recording, and all of them support the recording and amplification function of SLR camera. Matters needing attention 1. The limitation of Android mobile phone shooting video For Android phones produced before 2019, Android's own camera program does not support external microphones.The system still uses the built-in microphone of the mobile phone to pick up sound.There is no difference between using or not using the microphone at this time.Must use third-party video APP software to shoot。For example, Open Camera, small shadow, Tik Tok, kwai And so on software can solve the above problem.There are no such restrictions on live broadcasting and recording. Android phones produced after 2019 (Android 9.0 +) Most do not have the above restrictions Apple mobile phone does not have the above restrictions. Figure 1: Transmitter (without display) 1,Volume-/long press 3 seconds frequency conversion 2,Volume +/long press 10 seconds pairing 3,POWER SWITCH 4,DC 5 V charging port 5,Blue light power indicator/red light, charging indicator Note: The picture is for reference only, subject to the physical product, the right of interpretation belongs to the company. Figure 2: Receiver 1, 3.5mm _ 3 pole plug 2, Working status indicator light (blue light) 3, Charging indicator light (red light) 6, 3.5mm _ 4 pole plug 5, DC 5 V charging port 4, POWER SWITCH Figure 3: Transmitter (with display) 1, Digital display/enter power display after 12 seconds 2, Volume-/long press 3 seconds to switch (Frequency conversion mode and volume mode) 3, Volume +/long press 10 seconds pairing 4, POWER SWITCH 5, DC 5 V charging port 6, Charging indicator light (red light) Product Function Introduction Complimentary 6.35mm adapter 3.5mm PLUG Receiver 6.35mm adapter 6.35mm adapter Note: The picture is for reference only, subject to the physical product, the right of interpretation belongs to the company. RECEIVER TO MICROPHONE CONNECTION Receiver and Power Amplifier Connection Diagram Receiver and Acoustic Connection Diagram A mobile phone with a 3.5mm round headphone hole (Apple 6 Android) Headphone Jack Complimentary U-type branch connector Microphone Jack Plug in the earphone hole of the mobile phone Apple 7/8/X (No round headphone Jack) Use with Apple Original Adapter Adapter cable self-contained (Apple original) TYPE-C Android mobile phone(No round headphone Jack) Use with TYPE-C adapter ADAPTER LINE PROVIDED (Original mobile phone brand) SLR camera, desktop computer or external sound card do not use U-splitter. Direct insertion of camera MlC hole Plug directly into the pink microphone hole on the back of the computer, single headphone hole laptop can not be used. Note: The picture is for reference only, subject to the physical product, the right of interpretation belongs to the company. Direct insertion of camera MlC hole Plug directly into the pink microphone hole on the back of the computer, single headphone hole laptop can not be used. Note: The picture is for reference only, subject to the physical product, the right of interpretation belongs to the company. ADAPTER LINE PROVIDED (Original mobile phone brand) Use with TYPE-C adapter TYPE-C Android mobile phone(No round headphone Jack) Adapter cable self-contained (Apple original) Use with Apple Original Adapter Apple 7/8/X (No round headphone Jack) Plug in the earphone hole of the mobile phone A mobile phone with a 3.5mm round headphone hole (Apple 6 Android) Plug directly into your cell phone. SLR cameras, desktop computers or external sound card to use 4 to 3 connector. Complimentary 3.5 mm (4 turn 3 turn) adaptor 2，General clip wheat clip in the collar, collar clip wheat from the mouth about 10 cm more appropriate, such as small sound can increase the volume. (There are 5 levels to increase the volume.) 3，If the blue indicator light of the receiver flashes slowly after the machine is turned on, it needs to be paired again, and the pairing methodcan be operated according to Step 7:1, Use Method for Connection of Transmitter and Receiver 1, Method for connecting transmitter to receiver Turn on the power switch of the transmitter, the blue light is always on. Press and hold the "+" key on the transmitter, the blue light will flash quickly and then release, then immediately turn on the receiver power switch to enter wireless pairing. After waiting a few seconds, the blue light on the transmitter and receiver is on. At this time, the transmitter and receiver are paired successfully and ready to use. 2, Frequency conversion use method After the transmitter and receiver are successfully connected, press and hold the "-" button on the transmitter for 3 seconds, then release the blue light to enter the fast blinking five times, then enter the frequency conversion mode, wait a few seconds to automatically reconnect successfully, the frequency conversion is successful 3, Multi-station use no cross-frequency use method only support below 40 channels using at same time that should not result of interfere and corss-frequency! Remember! If multiple units are used at the same time, they must be reconnected according to the above steps (1, How to connect the transmitter to the receiver), and then be converted into frequency. If 10 units are used at the same time, press and hold the "-" key once for the first transmitter, and press the "-" key twice for the second transmitter, and press the "-" key three times for the third transmitter. The fourth unit presses the "-" k…

Text truncated - open the document above for the full version.

Shenzhen Lococo Technology Co., Ltd. Agent Authorization Company: Shenzhen Lococo Technology Co., Ltd. Address: RM602, Bldg A, Huanyuan Tech Park, Baoyuan Road, Baoan Dist, Shenzhen, Guangdong, China Product Name: Wireless Lavalier Microphone Trade Mark: N/A Model Number(s): N81-UHF, U12G FCC ID: 2AWA2-N81-UHF We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2002-05-18 Name: liming Ke Title: General manager Company: Shenzhen Lococo Technology Co., Ltd.

Shenzhen Lococo Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, Shenzhen Lococo Technology Co., Ltd. Hereby declares the following statement for FCC, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product Name: Wireless Lavalier Microphone Model Number(s): N81-UHF, U12G Sincerely, Signature: Date: 2002-05-18 Name: liming Ke Title: General manager Company: Shenzhen Lococo Technology Co., Ltd.

Shenzhen Lococo Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-18 Subject; Request for Confidentiality FCC ID: 2AWA2-N81-UHF To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: liming Ke Title: General manager

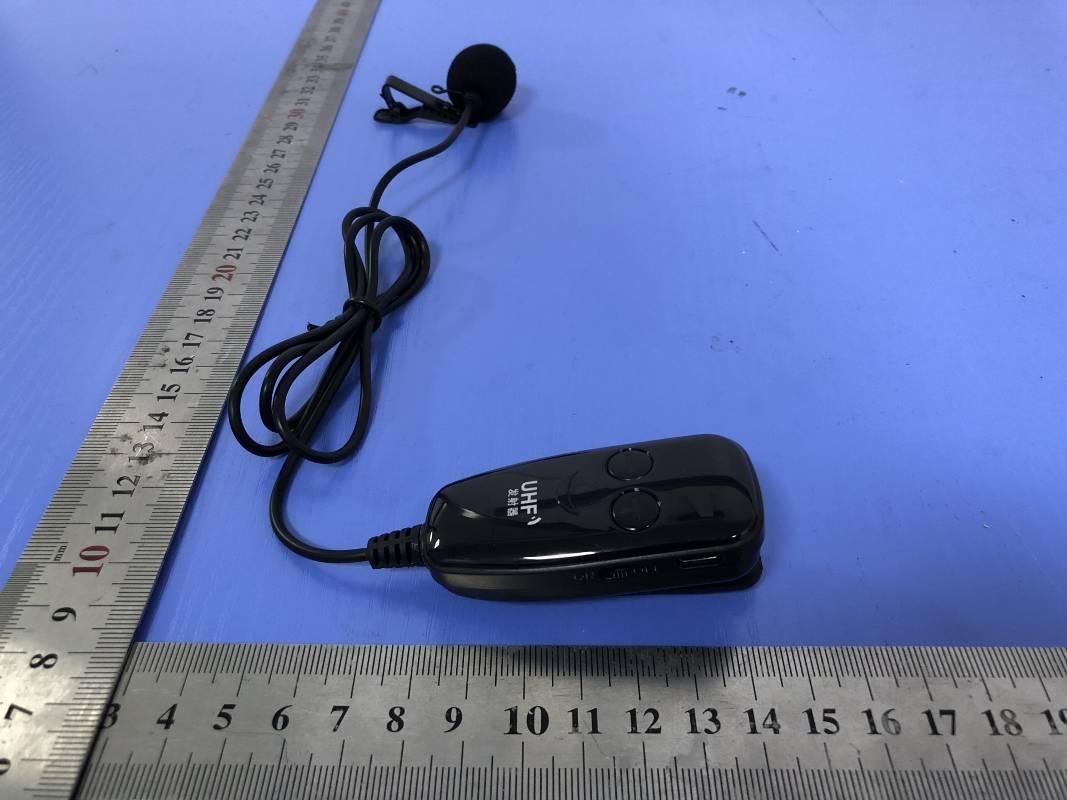

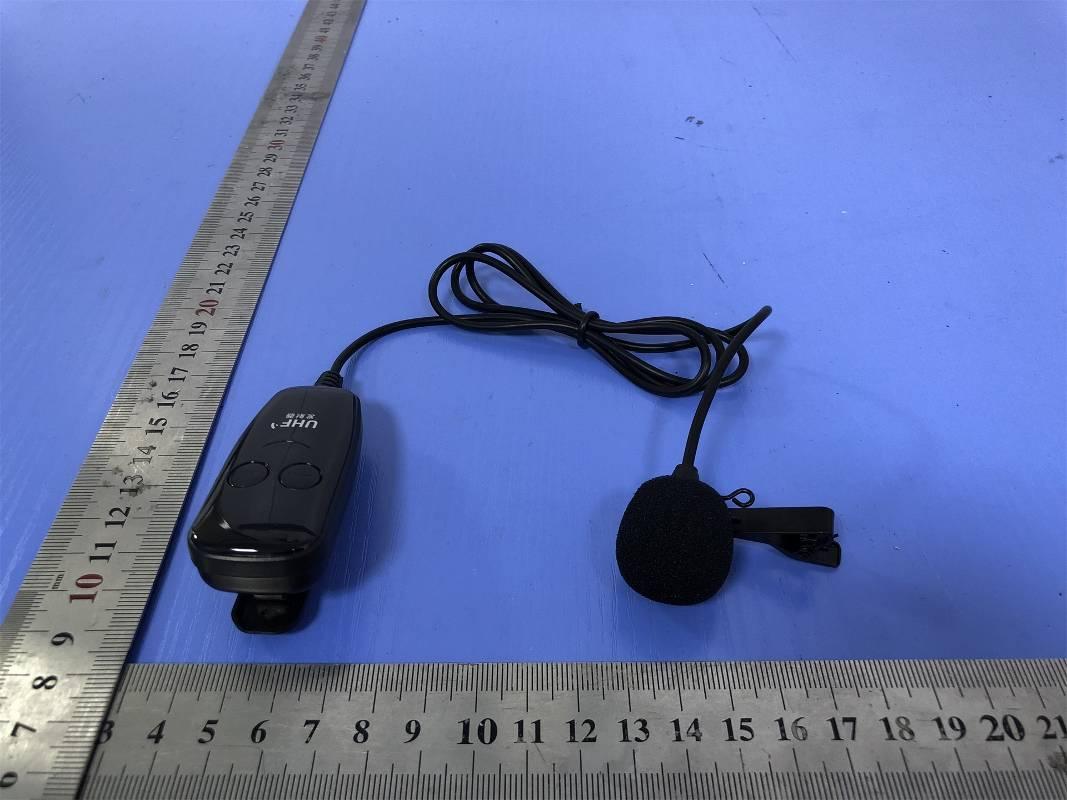

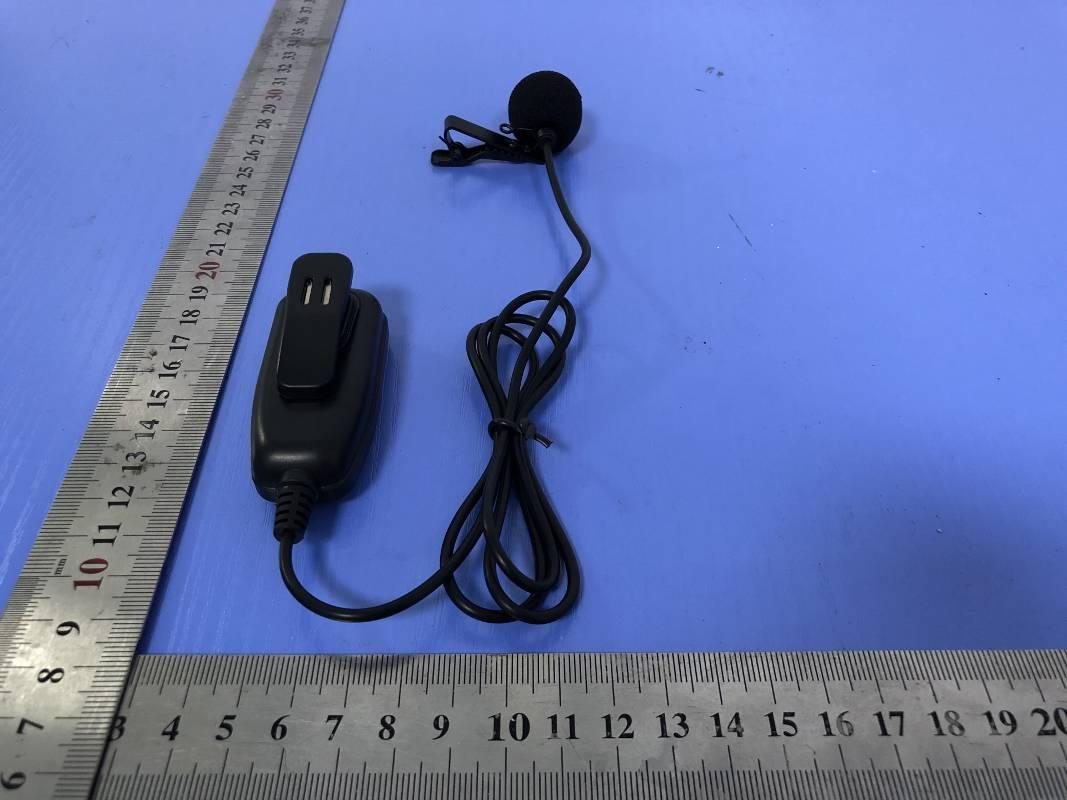

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location Wireless Lavalier Microphone Model No.: N81-UHF FCC ID: 2AWA2-N81-UHF

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig. 3 Fig. 4 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig. 5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AWA2-N81-UHF Product name Wireless Lavalier Microphone Model number N81-UHF, U12G Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply By Battery DC 3.7V(500mAh) Modulation Type FM Antenna Type Internal Antenna Antenna Gain 1.0dBi Hardware version V1.2 Software version SW20190218V1.2 Operation frequency 550.5MHz~589.5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 3. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results Test Mode Channel Frequency (MHz) Measured Maximum Peak Power(dBm) Limits (dBm) Verdict FM 01 550.5 6.268 24 PASS 20 569.5 6.164 40 589.5 6.093 5. Manufacturing tolerance GFSK (Peak) Channel Channel 01 Channel 20 Channel 40 Target (dBm) 6.0 6.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW FM 0.5505 5 7 5.0119 0.744 < 3.0 Yes Remark: 1. Output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 of KDB447498 is applied to determine SAR test exclusion. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. .......................THE END OF REPORT.........................

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF Report No.: LCS200411019AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 39 FCC TEST REPORT For Shenzhen Lococo Technology Co., Ltd. Wireless Lavalier Microphone Test Model: N81-UHF Additional Model No.: U12G Prepared for : Shenzhen Lococo Technology Co., Ltd. Address : RM602, Bldg A, Huanyuan Tech Park, Baoyuan Road, Baoan Dist, Shenzhen, Guangdong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 26, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : April 26, 2020 ~ May 06, 2020 Date of Report : May 07, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF Report No.: LCS200411019AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 39 FCC TEST REPORT FCC CFR 47 PART 74 Report Reference No. ................. : LCS200411019AEA Date of Issue .................................. : May 07, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen Lococo Technology Co., Ltd. Address .......................................... : RM602, Bldg A, Huanyuan Tech Park, Baoyuan Road, Baoan Dist, Shenzhen, Guangdong, China Test Specification Standard ......................................... : FCC CFR 47 PART 74 Test Report Form No. .................. : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Wireless Lavalier Microphone Trade Mark ..................................... : N/A Test Model ...................................... : N81-UHF Ratings ........................................... : By Battery DC 3.7V(500mAh) Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF Report No.: LCS200411019AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 39 FCC -- TEST REPORT Test Model.............................. : N81-UHF EUT......................................... : Wireless Lavalier Microphone Applicant............................... : Shenzhen Lococo Technology Co., Ltd. Address.................................. : RM602, Bldg A, Huanyuan Tech Park, Baoyuan Road, Baoan Dist, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHEN ZHEN XIE XUN DA TECHNOLOGY CO.,LTD Address................................... : B Building 401, 30 BWH Aviation Road, Xixi ang Street, Baoan District, Shenzhen City, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200411019AEA May 07, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF Report No.: LCS200411019AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 39 Revision History Revision Issue Date Revisions Revised By 000 May 07, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF Report No.: LCS200411019AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 39 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 6 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ......................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWA2-N81-UHF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
