2AWATHOTMOM-BB200Baby Bouncer

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Zhongshan Hot Mom Co., Ltd Address NO.1 JULU STREET, FUSHAN TOWN, ZHONGSHAN CITY, GUANGDONG PROVINCE,528434,China Grantee Code 2AWAT FCC ID 2AWATHOTMOM-BB200 Authorized Contact Name FUBO Du Contact Email [email protected] Contact Phone +86 18022100718 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

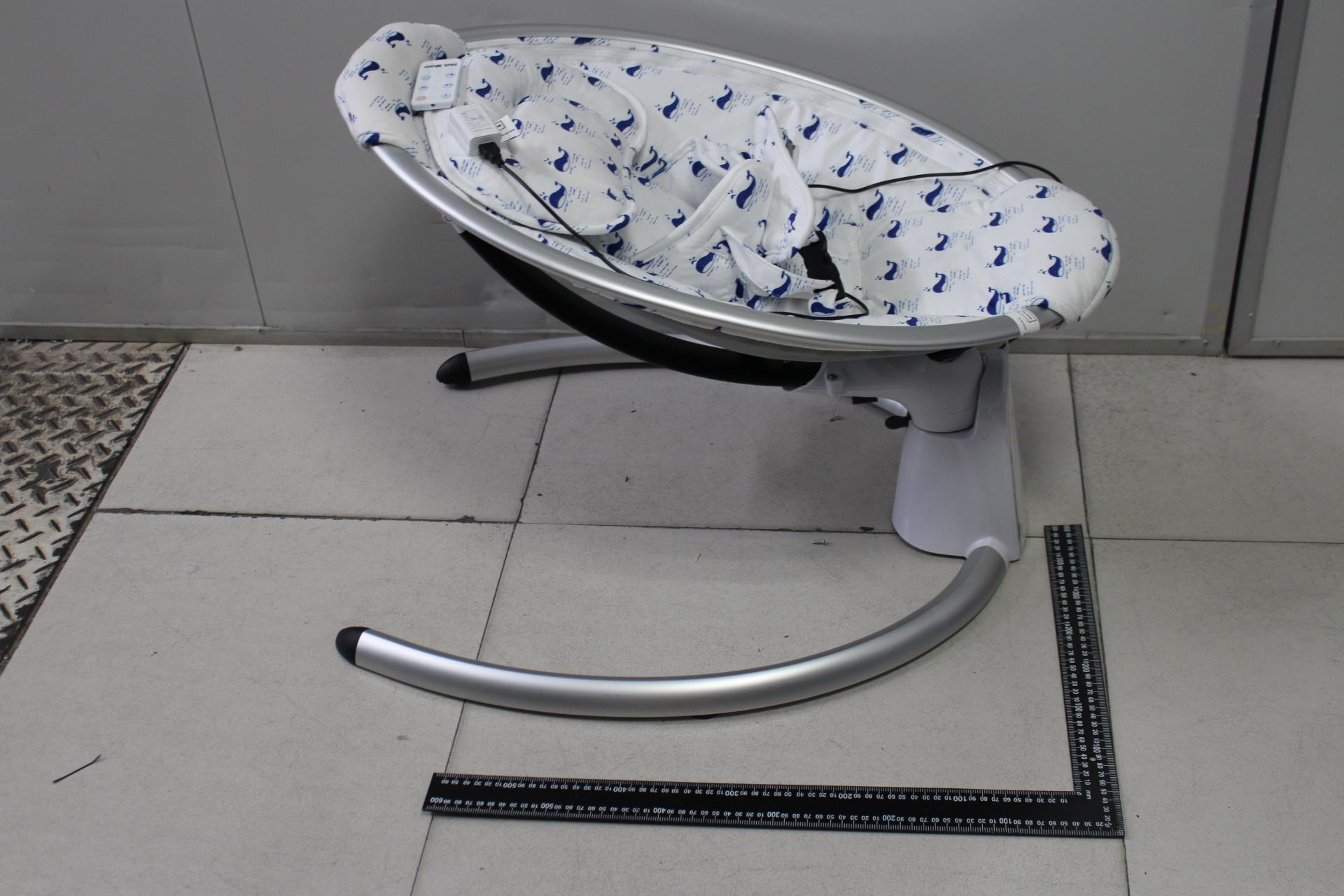

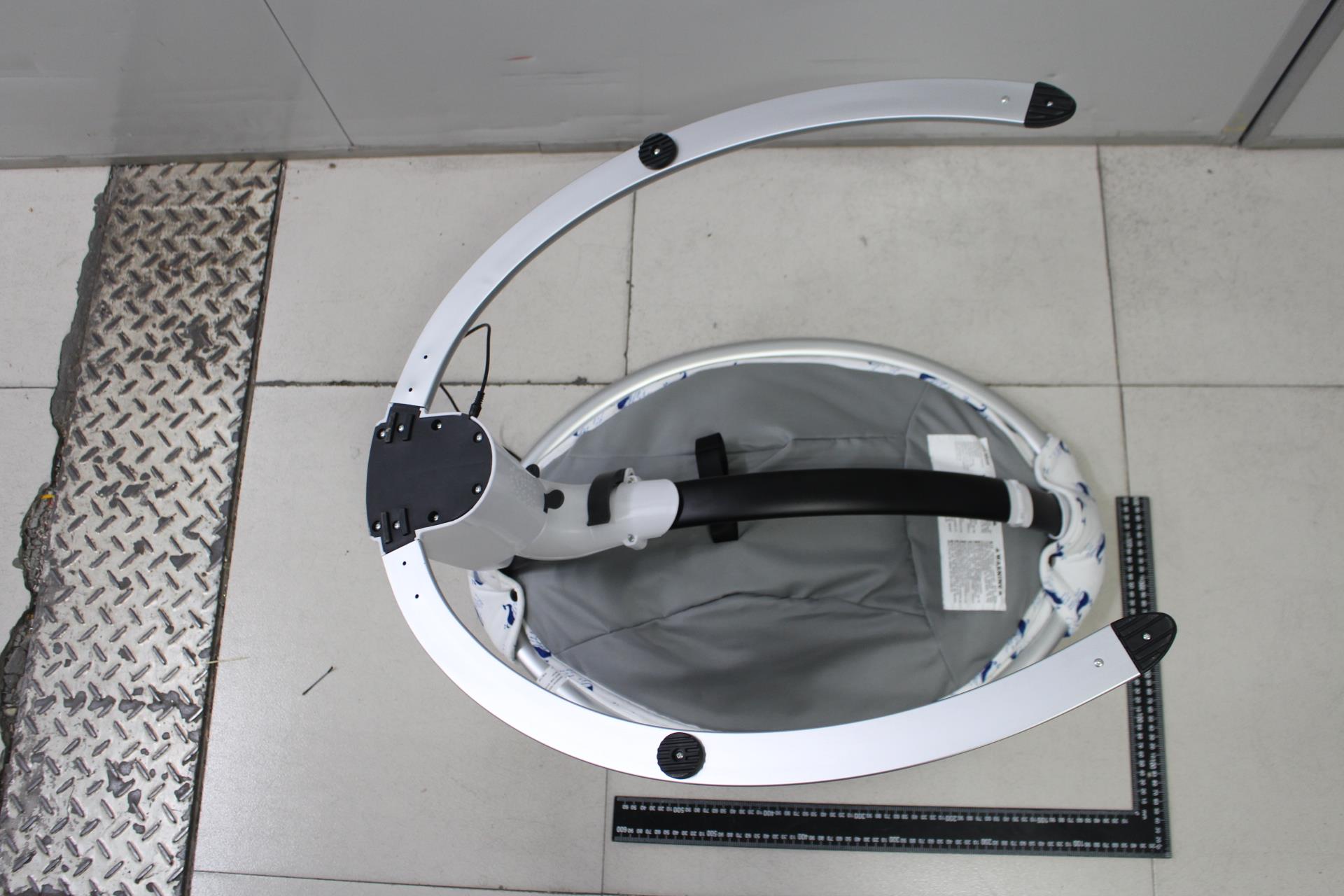

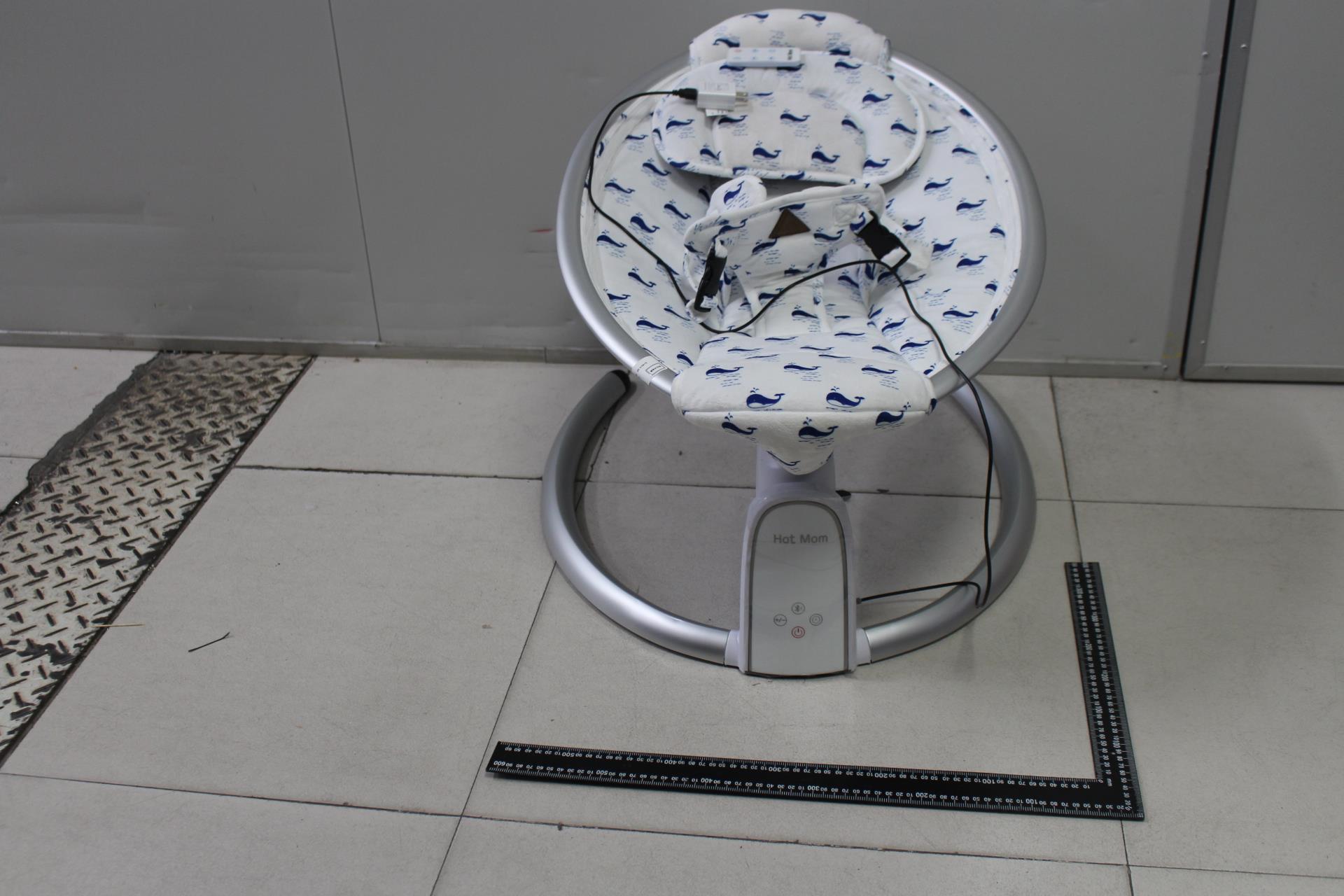

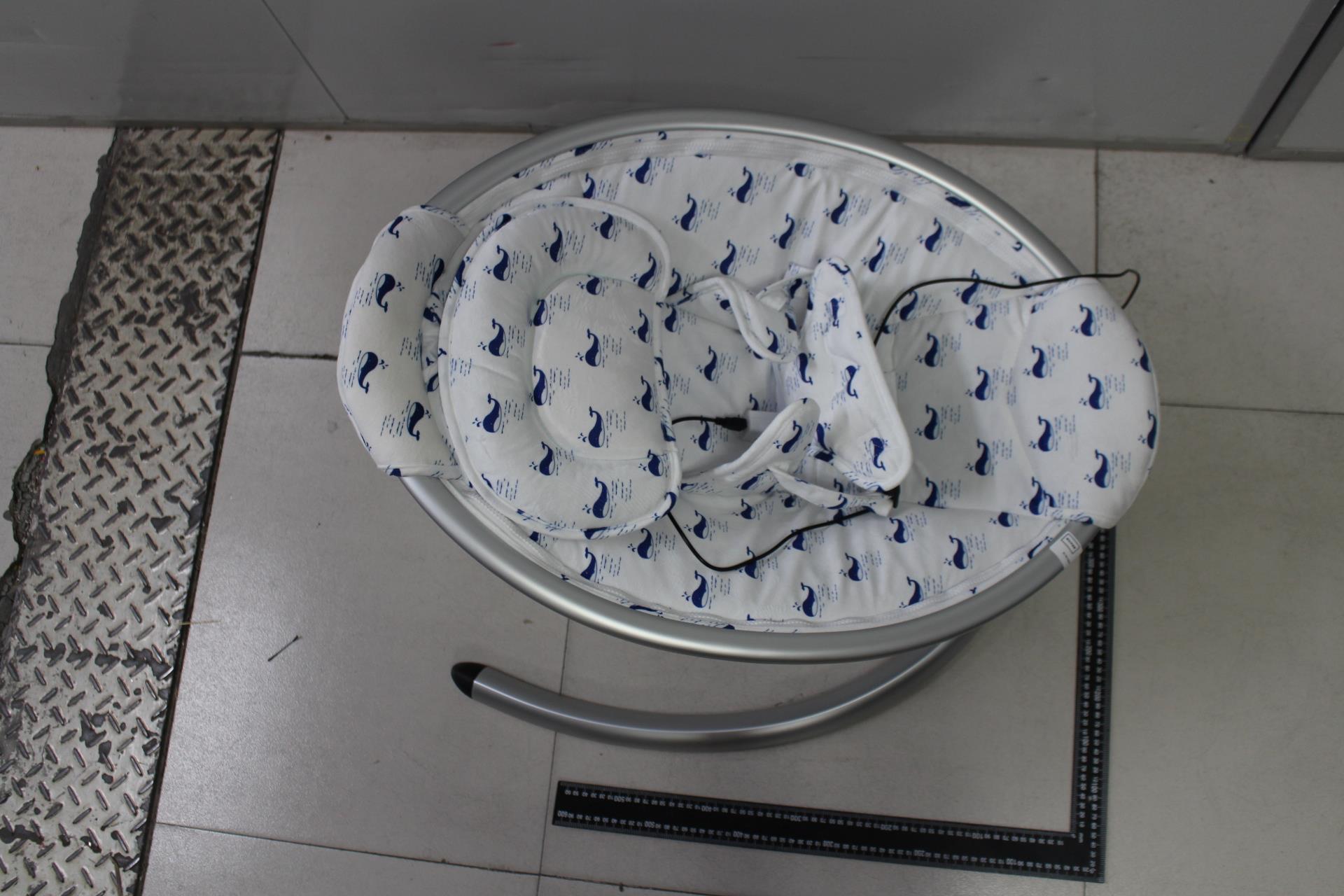

External photo

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFER- ENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 80MM 40MM

Internal photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160003 Page: 1 of 9 FCC ID: 2AWATHOTMOM-BB200 Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2004011600CR Applicant: Zhongshan Hot Mom Co., Ltd. Address of Applicant: No.1 Julu Street, Fusha Town, Zhongshan City, Guangdong Province, China Manufacturer: Zhongshan Hot Mom Co., Ltd. Address of Manufacturer: No.1 Julu Street, Fusha Town, Zhongshan City, Guangdong Province, China Buyer: Zhongshan Hot Mom Co., Ltd. Equipment Under Test (EUT): EUT Name: Baby Bouncer Model No.: BB200 Standard(s): 47 CFR Part 1.1307, Part 2.1093, KDB 447498 Date of Receipt: 2020-04-15 Date of Test: 2020-04-27 to 2020-05-09 Date of Issue: 2020-05-19 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160003 Page: 2 of 9 Revision Record Version Chapter Date Modifier Remark 01 2020-05-19 Original Authorized for issue by: Tested By 2020-05-09 Jackson_Yuan /Project Engineer Date Checked By 2020-05-19 Jerry_Chan /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160003 Page: 3 of 9 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, Part 2.1093, KDB 447498 CFR 47 Part 2.1093 CFR 47 Part 2.1093 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160003 Page: 4 of 9 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 5 4.1 Details of E.U.T. ..................................................................................................................................... 5 4.2 Description of Support Units .................................................................................................................. 5 4.3 Test Location ......................................................................................................................................... 5 4.4 Test Facility ............................................................................................................................................ 6 4.5 Deviation from Standards ...................................................................................................................... 7 4.6 Abnormalities from Standard Conditions ............................................................................................... 7 5 Radio Spectrum Technical Requirement ................................................................................................... 8 5.1 RF Exposure .......................................................................................................................................... 8 5.1.1 Test Requirement: ............................................................................................................................. 8 5.1.2 Conclusion ......................................................................................................................................... 8 6 Photographs ................................................................................................................................................. 9 6.1 EUT Constructional Details .................................................................................................................... 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160003 Page: 5 of 9 4 General Information 4.1 Details of E.U.T. Power Supply: DC 5V powered by AC/DC adapter as below for main unit: Model: GAT-0501000U Input: AC 100-240 V, 50/60 Hz, 0.4A Output: DC 5 V, 1000 mA DC 3 V(1*CR2025) for IR remote control Test Voltage: AC 120 V, 60 Hz Cable: DC input ports for main unit; For AC/DC adapter: AC plug; USB output ports with unshielded cables (1.5 m) Antenna Gain 0 dBi Antenna Type PCB Antenna Modulation Type GFSK, π/4DQPSK Number of Channels 79 Operation Frequency 2402MHz to 2480MHz Spectrum Spread Technology Frequency Hopping Spread Spectrum(FHSS) Channel Spacing 1MHz Power setting Level 5 4.2 Description of Support Units Description Manufacturer Model No. Serial No. Laptop Lenovo T430u REF. No.SEA1800 BT test board SGS EMC RF 07 RF 07 Software None FCC assist 2.4.exe None 4.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160003 Page: 6 of 9 4.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations:  NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 200611-0. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government.  ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian C-Tick mark as a…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 1 of 91 FCC ID: 2AWATHOTMOM-BB200 Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2004011600CR Applicant: Zhongshan Hot Mom Co., Ltd. Address of Applicant: No.1 Julu Street, Fusha Town, Zhongshan City, Guangdong Province, China Manufacturer: Zhongshan Hot Mom Co., Ltd. Address of Manufacturer: No.1 Julu Street, Fusha Town, Zhongshan City, Guangdong Province, China Buyer: Zhongshan Hot Mom Co., Ltd. Equipment Under Test (EUT): FCC ID: 2AWATHOTMOM-BB200 EUT Name: Baby Bouncer Model No.: BB200 Standard(s): 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-04-15 Date of Test: 2020-04-27 to 2020-05-09 Date of Issue: 2020-05-19 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 2 of 91 Revision Record Version Chapter Date Modifier Remark 01 2020-05-19 Original Authorized for issue by: Tested By 2020-04-27 to 2020-05-09 Jackson_Yuan /Project Engineer Date Checked By 2020-05-19 Jerry_Chan /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 3 of 91 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 4 of 91 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 6 4.1 Details of E.U.T. ..................................................................................................................................... 6 4.2 Description of Support Units .................................................................................................................. 6 4.3 Measurement Uncertainty ...................................................................................................................... 7 4.4 Test Location ......................................................................................................................................... 7 4.5 Test Facility ............................................................................................................................................ 8 4.6 Deviation from Standards ...................................................................................................................... 9 4.7 Abnormalities from Standard Conditions ............................................................................................... 9 5 Equipment List ............................................................................................................................................ 10 6 Radio Spectrum Technical Requirement ................................................................................................. 14 6.1 Antenna Requirement .......................................................................................................................... 14 6.1.1 Test Requirement: ........................................................................................................................... 14 6.1.2 Conclusion ....................................................................................................................................... 14 6.2 Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence ................... 15 6.2.1 Test Requirement: ........................................................................................................................... 15 6.2.2 Conclusion…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 51 of 91 Conducted Peak Output Power_DH5_2480 Conducted Peak Output Power_2DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 52 of 91 Conducted Peak Output Power_2DH5_2441 Conducted Peak Output Power_2DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 53 of 91 3.Carrier Frequency Separation Test Mode Test Channel Result[MHz] Limit[MHz] Verdict DH5 2402 0.980 0.634 PASS DH5 2441 1.094 0.633 PASS DH5 2480 1.027 0.634 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 54 of 91 TEST PLOT Carrier Frequency Separation_DH5_2402 Carrier Frequency Separation_DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 55 of 91 Carrier Frequency Separation_DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 56 of 91 4.Dwell Time Test Mode Test Channel Burst Width[ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit[s] Verdict DH1 2402 0.38 320 0.12 0.4 PASS DH1 2441 0.38 320 0.12 0.4 PASS DH1 2480 0.38 310 0.12 0.4 PASS DH3 2402 1.63 130 0.21 0.4 PASS DH3 2441 1.63 120 0.20 0.4 PASS DH3 2480 1.63 130 0.21 0.4 PASS DH5 2402 2.88 130 0.37 0.4 PASS DH5 2441 2.88 130 0.37 0.4 PASS DH5 2480 2.88 110 0.32 0.4 PASS 2DH1 2402 0.39 320 0.12 0.4 PASS 2DH1 2441 0.39 320 0.12 0.4 PASS 2DH1 2480 0.39 310 0.12 0.4 PASS 2DH3 2402 1.64 150 0.25 0.4 PASS 2DH3 2441 1.64 150 0.25 0.4 PASS 2DH3 2480 1.64 120 0.20 0.4 PASS 2DH5 2402 2.88 90 0.26 0.4 PASS 2DH5 2441 2.88 110 0.32 0.4 PASS 2DH5 2480 2.88 130 0.37 0.4 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 57 of 91 TEST PLOT Dwell Time_DH1_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 58 of 91 Dwell Time_DH1_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 59 of 91 Dwell Time_DH1_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 60 of 91 Dwell Time_DH3_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 61 of 91 Dwell Time_DH3_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 62 of 91 Dwell Time_DH3_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 63 of 91 Dwell Time_DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 64 of 91 Dwell Time_DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 65 of 91 Dwell Time_DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 66 of 91 Dwell Time_2DH1_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 67 of 91 Dwell Time_2DH1_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 68 of 91 Dwell Time_2DH1_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 69 of 91 Dwell Time_2DH3_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 70 of 91 Dwell Time_2DH3_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 71 of 91 Dwell Time_2DH3_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 72 of 91 Dwell Time_2DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 73 of 91 Dwell Time_2DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 74 of 91 Dwell Time_2DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 75 of 91 5.Hopping Channel Number Test Mode Test Channel Number of Hopping Channel[N] Limit[N] Verdict DH5 All hopping channels 79 >=15 PASS 2DH5 79 >=15 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 76 of 91 TEST PLOT Hopping Channel Number_DH5_2402 Hopping Channel Number_2DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 77 of 91 6.Band-edge for RF Conducted Emissions Test Mode Test Channel Hopping Carrier Power[dBm] Max. Spurious Level [dBm] Limit[dBm] Verdict DH5 2402 On 1.916 -47.806 -18.08 PASS DH5 2402 Off 1.370 -48.411 -18.63 PASS DH5 2480 On 2.422 -47.670 -17.58 PASS DH5 2480 Off 2.654 -44.622 -17.35 PASS 2DH5 2402 On 1.411 -48.217 -18.59 PASS 2DH5 2402 Off 1.063 -48.653 -18.94 PASS 2DH5 2480 On 2.570 -46.851 -17.43 PASS 2DH5 2480 Off 2.062 -44.360 -17.94 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 78 of 91 TEST PLOT Band-edge for RF Conducted Emissions_DH5_2402_Hopping On Band-edge for RF Conducted Emissions_DH5_2402_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 79 of 91 Band-edge for RF Conducted Emissions_DH5_2480_Hopping On Band-edge for RF Conducted Emissions_DH5_2480_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 80 of 91 Band-edge for RF Conducted Emissions_2DH5_2402_Hopping On Band-edge for RF Conducted Emissions_2DH5_2402_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401160002 Page: 81 of 91 Band-edge for RF Conducted Emissions_2DH5_2480_Hopping On Band-edge for RF Conducte…

Text truncated - open the document above for the full version.

Test Setup photo 1.1 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup 1.2 Radiated Emissions which fall in the restricted bands Test Setup 1.3 Radiated Spurious Emissions Test Setup
