2AWAX-FORECADDYSmart Golf Cart

USER MANUAL Version 1.2 ™ Thank you. For choosing the ForeCaddy by Foresight Sports. Like everything we make, this product is designed to provide you with years of game-changing performance on the course. Should you have any questions or concerns, please contact our service team. Instead of driving a golf cart, your ForeCaddy will help you to enjoy the incredible health benefits of walking your favorite course. Health benefits that include lower blood pressure and cholesterol, improving cardiovascular and cognitive function, and reducing stress. This product is Health Smart! Features & Components 12 13 11 10 14 9 8 16 7 6 5 1 2 20 21 15 ForeCaddy Components 1 17 18 19 4 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 HandlePower Assist/Stop ButtonCart Power IndicatorAcceleration & Deceleration ButtonUmbrella HolderScore Card and Ball HolderHookArm Adjustment LatchGolf Bag (Upper) HolderCart Power ButtonCart BatteryCart LED Indicator LightGolf Bag StrapsWheelsRange Finder MagnetSand Bottle HolderColumn Folding PedalCharging PortExternal Cart Battery Charging BaseDrink HolderPower Charger Adapter Remote Control ForeCaddy Components 2 22 1 8 7 6 4 5 2 3 Control Stick Power Assist/Remote Mode Follow Mode BETAPower On/Off Remote Control Battery IndicatorGolf Cart Battery IndicatorBelt ClipUSB TYPE-C Charging Port 1 2 3 4 5 6 7 8 D F Getting Started Securing a golf bag (with provided straps) Cleaning and storing To clean your ForeCaddy, please use water ONLY. It is recommended that you clean your ForeCaddy after every use by gently rinsing with cold or warm (not hot) water. Towel or air dry thoroughly before storing in a cool, dry place. Folding and unfoldingThe ForeCaddy can be collapsed and unfolded for storage and transportation. Top Straps Clasp the left side hook onto the right side peg, then pull the elastic loop to adjust the tightness and set cord into grooves to secure. Bottom Straps Clasp the left side hook around the right side peg. Charging the ForeCaddy batteryConnect the power adapter charger cable to the charging port on the back of the ForeCaddy.You can also charge the battery on the external charger. (page 24) Press and hold down the red lever and pull up on the handle. The lower column will lock in place when fully extended (vertical). Adjust the steering column to the desired angle and lock in place with the arm lock. Arm lock 3 ForeCaddy Getting Started ForeCaddy Getting Started 4 Power FeaturesPowering the ForeCaddy ON and OFFQuickly press the power button to turn the ForeCaddy ON or OFF Powering the Remote ON and OFFPress and hold to turn the remote control ON or OFFQuickly press on the ForeCaddy handle or any button on the remote to brake and stop the ForeCaddy while in Remote Control or Follow modes. ForeCaddy Remote 5 ForeCaddy Power Features 6 The cart power indicator lights will confirm that the ForeCaddy is ON or OFF, and will indicate the amount of battery chargeremaining. D F FF DD D F D F F ForeCaddy Operating Modes ForeCaddy Operating Modes Operating Modes (At-A-Glance)Your ForeCaddy can be operated in four (4) different modes: (No Indicator Lights) Rear Wheel Setting:Rear Wheel Setting: Rear Wheel Setting:Rear Wheel Setting: Inner Groove Outer Groove Inner GrooveInner Groove Blue Indicator Lights Flashing Green Indicator Lights Orange OR Blue Indicator Lights D MODE 1: MANUAL (UNASSISTED) MODE 3: REMOTE OPERATION MODE 2: POWER ASSIST MODE 4: FOLLOW (BETA) 7 8

MODE 2: POWER ASSISTTo move the ForeCaddy forward, press the button. Press to increase or decrease the ForeCaddy’s speed. Press to stop. Alternatively, you can exclusively use the button by pressing and holding it down to move the ForeCaddy forward and releasing it to stop. The ForeCaddy will (by default) restart at the same speed as its last session. In Power-Assist mode there are 5 speeds that can be selected to match your de sired walking rate (see chart below). When the ForeCaddy is stopped and in Power Assist mode, press the button to release the brake to use the ForeCaddy in “free wheel” mode. Acceleration & Deceleration Button Handle Power Assist/ Stop Button While in Power Assist mo de, the following safety precautions should be followed:1 The ForeCaddy should always be steered manually when making a turn. When making a sharp turn, push the handle down to lift the front of the ForeCaddy upward to assist turning.2 On complex turns or road sections, when the ForeCaddy is stopped, press the deceleration button to switch into neutral mode. This makes it easier to maneuver if you need to stop the ForeCaddy (without sliding). To resume Power Assist mode, press the Power Assist button again after pushing or pulling the ForeCaddy. 3 When the ForeCaddy is connected to the remote control in a stopped state, press the acceleration button to move the ForeCaddy forward automatically. Press the Power Assist button or the stop button on the remote control to stop the ForeCaddy. The ForeCaddy will automatically switch to standby mode if its distance from the remote exceeds 10 feet. Safety recommendations for Power Assist mode Operating Your ForeCaddy ForeCaddy Operating your ForeCaddy ForeCaddy Operating your ForeCaddy 9 10 decreases speedincreases speed Speed Chart1st – 3.3 k/m per hour (2.05 mph)2nd – 4.2 k/m per hour (2.61 mph)3rd – 5.0 k/m per hour (3.1 mph)4th – 5.9 k/m per hour (3.6 mph)5th – 6.7 k/m per hour (4.2 mph) MODE 2: REMOTE CONTROLTo enter the Remote Control mode, quickly press the button.In Remote Control mode, use the co ntrol stick to cont rol the speed and direction of the ForeCaddy. Move the control stick back to the middle or pressto stop the ForeCaddy. Note: You can use the Remote Control mode on open fields or fairway. Operating Your ForeCaddy While in Remote Control mo de, the following safety precautions should be followed:1 Practice operating the ForeCaddy in a field or large, obstacle-free area prior to using on the golf course. 2. Always inspect your environment for potential obstacles or dangers prior to operating in remote mode. 3. Never operate the ForeCaddy remotely near vehicular traffic (roadways) or in areas with dense pedestrian traffic. 4. Never operate the ForeCaddy remotely on steep hills, near water features, or other natural or man-made obstacles that may result in damage or injury. 5. Immediately disengage the ForeCaddy from Remote Control mode in the event of a potential accident, or if an accident has occurred. Safety recommendations for Remote Control mode ForeCaddy Operating your ForeCaddy ForeCaddy Operating your ForeCaddy 11 12 D F D F D Safety clearance in Follow mode (BETA)While using Follow mode BETA, always allow for 7.5 feet of obstruction-free space on both sides of the ForeCaddy for safe operation. Operating ranges in Follow mode (BETA)Please observe the following range limits when operating the ForeCaddy in Follow mode.          ForeCaddy Operating your ForeCaddy 15 ForeCaddy Operating your ForeCaddy 16 Operating Your ForeCaddy Note: It is normal for the ForeCaddy to “weave” slightly while in Follow Mode (BETA). When encountering obstructions that may be close to this 15 foot-wide safety zone, reduce your w alking speed. The cart will also slow down and will weave less. Operating Your ForeCaddy Proper mode usage on the course Please follow proper mode usage while using the ForeCaddy on the golf course. Follow Zone Fairway Green Te e Power Assist Zone Power Assist Zone Only use the Follow mode on the fairway. Be sure to check your surroundings for any hazards. It is safe to use the manual push mode or Power Assist mode while using the ForeCaddy in the Tee area or around the Green. Operating Your ForeCaddy ForeCaddy Operating your ForeCaddy 17 ForeCaddy Operating your ForeCaddy 18 Rear wheel - mode settings1. To install or remove the rear wheel, press on part A and rotate the wheel. 2. When the ForeCaddy is in ANY powered mode (Power Assist, Remote, Follow BETA), the rear wheels need to be installed in the INNER groove. 3. When the ForeCaddy is in manual mode, the rear wheels need to be installed in the OUTER groove. Note: When the ForeCaddy is out of battery or powered off, you can use manual mode for long distance walks. A Operating Your ForeCaddy ForeCaddy Operating your ForeCaddy Installing the (accessory) umbrella holder1. Pull knob A to install or remove the umbrella holder. 2. When the umbrella holder is installed, place the handle into the holder, then rotate knob C to keep the umbrella fixed. 3. Press on knob B to adjust the angle of the umbrella and release it after the desired angle has been reached. CB A ForeCaddy Installing Accessories Installing Accessories 19 20 The ForeCaddy status lights indicate the following: ORANGE Indicates the remote control is not on or not connected to the ForeCaddy.(Only the Power Assist mode can be used in this state.) BLUE Indicates the remote control is connected to the ForeCaddy. The ForeCaddy is not in Follow mode. FLASHING GREEN The ForeCaddy is in Follow mode. Status Indicator Lights Mode/Operation Status Indicators ForeCaddy Mode/Operation status indicators ForeCaddy Battery IndicatorIn fully charged state, all 5 lights will turn GREEN. With power consumption, the lights will gradually go out.ForeCaddy Charging IndicatorRED Charging GREEN Fully Charged Remote Battery IndicatorGREEN Normal use, battery power is more than 50% ORANGE Battery power is lower than 5…

Text truncated - open the document above for the full version.

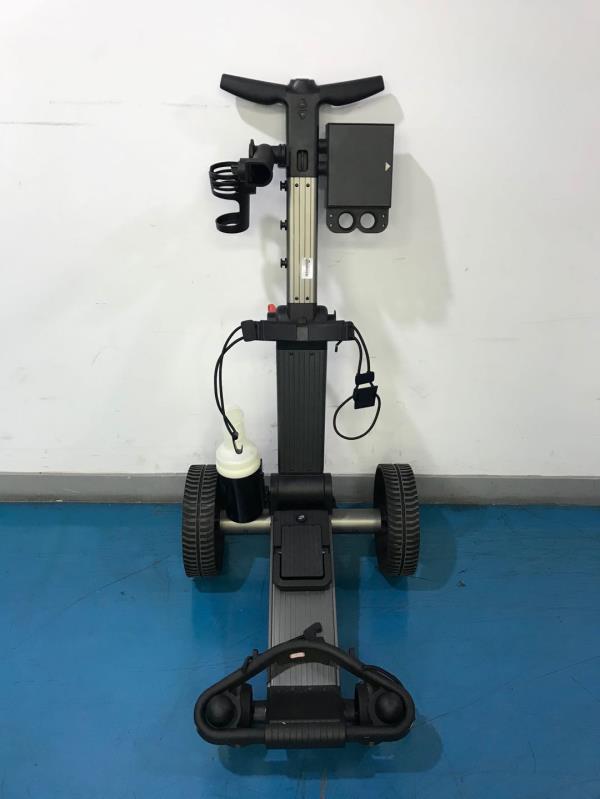

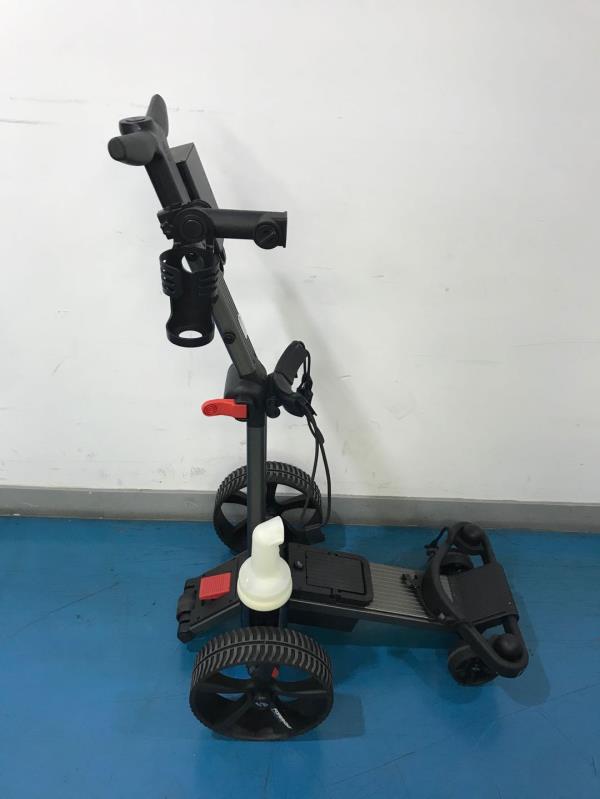

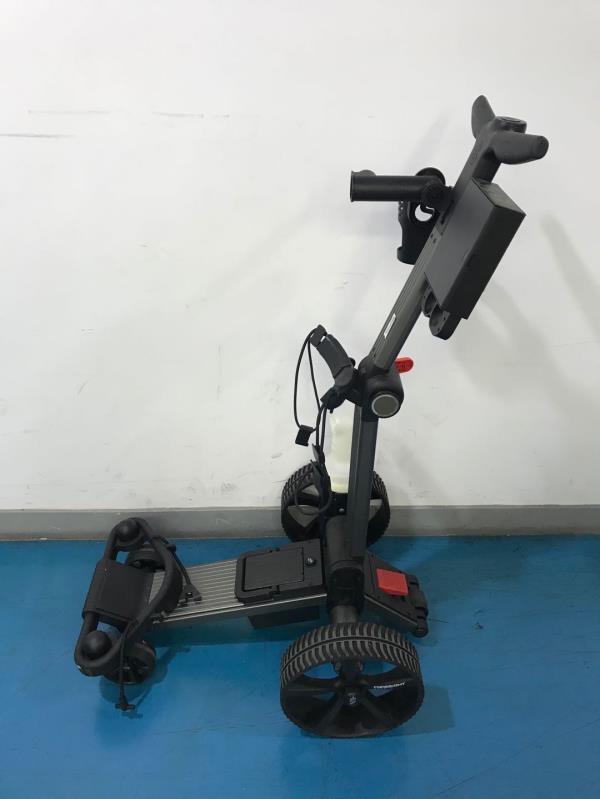

FCC ID:2AWAX-FORECADDY External Photos FCC ID:2AWAX-FORECADDY FCC ID:2AWAX-FORECADDY
