2AWCT-SR100006On-board Wireless Terminal

SiRun (Beijing) Technology Co., Ltd.
On-board Wireless Terminal - FCC ID 2AWCT-SR100006 - SiRun  (Beijing)  Technology  Co.,  Ltd.
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Jun 08, 2020
Application Purpose
Original Equipment
Date of Application
Jun 07, 2020
Equipment Note
On-board Wireless Terminal
Frequency Range
2565.00000000 - 2645.00000000
Company
SiRun (Beijing) Technology Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

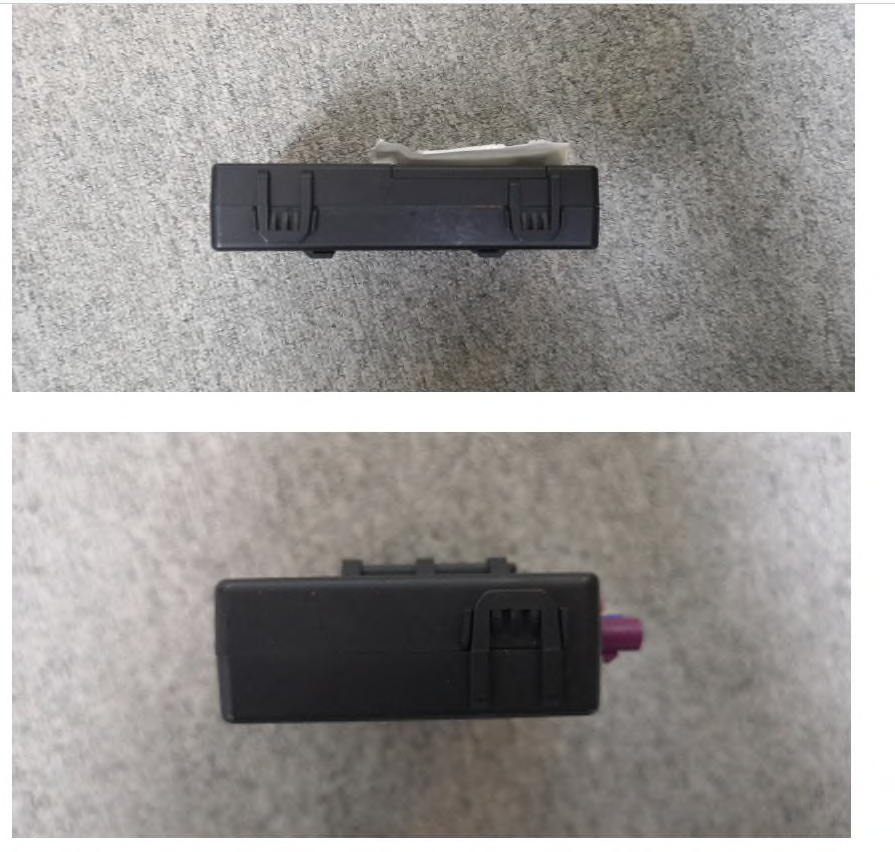

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 Product Installation Guide and specification On-board Wireless Terminal SR10006 FCC ID: 2AWCT-SR10006 SiRun (Beijing) Technology Co., Ltd. 2 Product Name On-board Wireless Terminal Model SR10006 Subject Specification Identifier Note about identifier of this document: TBOX-SR10006 represents “4G TBOX products of SiRun” Description This document describes hardware requirement of this product and general functional requirements, non-functional requirements, interface requirements and environment demands for software. Applicable Readers SiRun’s Project Managers, all developers and testers of the project team, and other relevant personnel. Revision History Version Chapter Type Date Author Description 1.0 3 Chapters C 2018-9-6 Hao Xu Draft 1.1 1.2 1.3 1.4 2.0 3.0 Note: Type-C for Creation, M for Modification, D for Delete, A for Add. Review Record Role Signature Date Description Verify Countersign Standardized Audit Approve 3 Table of Contents Chapter One Introduction ............................................................................................................. 4 1.1 Product Name ................................................................................................................. 4 1.2 Product Background ....................................................................................................... 4 1.3 References ...................................................................................................................... 4 1.4 Terminology, Acronyms ................................................................................................. 4 Chapter Two Overview ................................................................................................................. 6 2.1 Objective .......................................................................................................................... 6 2.2 Scope ............................................................................................................................... 6 2.3 TBOX-SR10006 System Structure .............................................................................. 6 Chapter Three TBOX-SR10006 Hardware Specification ........................................................ 7 3.1 TBOX-SR10006 External Dimension .......................................................................... 7 3.2 TBOX-SR10006 Harware Details ................................................................................. 9 3.3 TBOX-SR10006 Hardware Connector Requirement .............................................. 13 3.3.1 Main Connector 40 PIN Definition .................................................................. 13 3.3.2 GPS Connector ................................................................................................. 14 3.3.3 4G Connector ..................................................................................................... 14 3.4 TBOX-SR10006 Executive Standard ........................................................................ 15 3.5 TBOX-SR10006 Performance .................................................................................... 16 3.5.1 Brief Introduction ............................................................................................... 16 3.5.2 Performance Parameter of Important Modules ............................................. 18 3.5.2 WIFI/BT Performance Parameter .................................. 错误! 未定义书签。 4 Chapter One Introduction 1.1 Product Name 4G-T-BOX of SiRun (Beijing) Technology Co., Ltd. (TBOX-SR10006), SiRun 4G-TBOX for short. 1.2 Product Background As IoT industry develops rapidly, a new generation of technologies of big data, cloud computing, AI etc. have deeply combined with areas of auto traffic etc. With a multi-dimensional exchange network of V2V, V2I, V2H, V2C gradually forming, intelligence level of cars constantly improving, technologies like auto driving, comprehensive information service and intelligent transportation rapidly developing, Telematics industry has become the hotspot and focus for international competition. SiRun (Beijing) Technology Co., Ltd. (SR) is a high-tech enterprise specialized in R&D, sales and operation of Telematics platform. Its T-BOX product is one of the most advanced and stable terminal products within industry. SR has rich successful experience in providing end-2-end solution for passenger vehicle, EV, commercial vehicle as well as motor cycles. 1.3 References Changchai Farm Machinery T-box Requirements-20180802 Yueda Farm Machinery T-box Requirements-20180820 SiRun EV 2G TBOX Requirements 2018.06.05 1.4 Terminology, Acronyms Terminology and English Description 5 Acronyms TBOX Telematics BOX On-board Terminal Modem 4G-LTE BT Bluetooth Technology RTC Real Time Clock OTA Custom Upgrade KL.15 Ignition(Ignition POS 2) KL.30 Battery Positive KL.31 Remote Information Processing Controller TSP Telematics Service Provider Remote Information Processing Service Provider ICM Instrument Cluster Module Information Processing Center (Instrument Cluster) BCM Body Control Module Body Control Module IHU Infotainment Head Unit Infotainment Head Unit EMS Engine Management System Engine Management System PS Passive Start One-key Start System CPU Central Processing Unit Central Processing Unit GSM Global System for Mobile Communication Global System for Mobile Communication neGPS Global Positioning System Global Positioning System GPRS General Packet Radio Service General packet Radio service technology, refers to how the product transmits data wirelessly. APP Application Application USB Universal Serial Bus Universal Serial Bus EMC Electro Magnetic Compatibility Electro Magnetic Compatibility CAN Controller Area Network Controller Area Network DTC Diagnostic Trouble Code Diagnostic Trouble Code TBD To Be Determined To Be Determined R Receive Receive T Transmit Transmit 6 Chapter Two Overview 2.1 Objective TBOX-SR10006 provides communication connection for T…

Text truncated - open the document above for the full version.

ID Label/Location Info

SR10006 Label and location

Internal Photos

SR10006_Internal photos

RF Exposure Info

Certificate Number: 5055.02 MPE REPORT Report No.: SRTC2020-9004(F)-20050801(I) Product Name: On-board Terminal (Telematics BOX) Product Model: SR10006 Applicant: SiRun (Beijing) Technology Co., Ltd. Manufacturer: SiRun (Beijing) Technology Co., Ltd. Specification: FCC Part §2.1091, §2.1093, §1.1307(b), §1.1310 (2019) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R.China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2020-9004(F)-20050801(I) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 9 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 CONTENTS 1 GENERAL INFORMATION .....................................................................................................................................2 1.1 NOTES OF THE TEST REPORT .................................................................................................................................... 2 1.2 INFORMATION ABOUT THE TESTING LABORATORY ..................................................................................................... 2 1.3 APPLICANT’S DETAILS ................................................................................................................................................ 2 1.4 MANUFACTURER’S DETAILS ....................................................................................................................................... 2 1.5 TEST ENVIRONMENT .................................................................................................................................................. 3 2 DESCRIPTION OF THE DEVICE UNDER TEST ..................................................................................................4 2.1 FINAL EQUIPMENT BUILD STATUS ............................................................................................................................. 4 3 REFERENCE SPECIFICATION .............................................................................................................................5 4 RESULT SUMMARY ...............................................................................................................................................6 5 TEST RESULTS.......................................................................................................................................................7 5.1 AVERAGE POWER OUTPUT TEST RESULT ................................................................................................................ 7 5.2 CALCULATION RESULT ............................................................................................................................................... 8 No.: SRTC2020-9004(F)-20050801(I) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 9 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 1 GENERAL INFORMATION 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested.The certification and accreditation identifiers used in this report shall not be applicable to the tested or calibrated samples thereof. The manufacturer shall not mark the tested samples or items (or a separate part of the item) with the identifiers of certification and accreditation to mislead relevant parties about the tested samples or items. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: 15th Building, No.30 Shixing Street, Shijingshan District, P.R.China City: Beijing Country or Region: P.R.China Contacted person: Liu Jia Tel: +86 10 57996183 Fax: +86 10 57996388 Email: [email protected] 1.3 Applicant’s details Company: SiRun (Beijing) Technology Co., Ltd. Address: F16, Block A, Building 2, No.2 Auto Museum East Road, Fengtai District, Beijing, China City: Beijing Country or Region: China Contacted person: Lingrong Zhou Tel: 15010875309 Fax: --- Email: [email protected] 1.4 Manufacturer’s details Company: SiRun (Beijing) Technology Co., Ltd. Address: F16, Block A, Building 2, No.2 Auto Museum East Road, Fengtai District, Beijing, China City: Beijing Country or Region: China Contacted person: Lingrong Zhou Tel: 15010875309 Fax: --- Email: [email protected] No.: SRTC2020-9004(F)-20050801(I) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 3 of 9 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 1.5 Test Environment Date of Receipt of test sample at SRTC: 2020-05-08 Testing Start Date: 2020-05-08 Testing End Date: 2020-05-22 Environmental Data: Temperature (°C) Humidity (%) Ambient 25 30 Maximum Extreme 70 --- Minimum Extreme -30 --- Normal Supply Voltage (V d.c.): 12.0 Maximum Extreme Supply Voltage (V d.c.): 18.0 Minimum Extreme Supply Voltage (V d.c.): 9.0 No.: SRTC2020-9004(F)-20050801(I) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 4 of 9 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 2 DESCRIPTION OF THE DEVICE UNDER TEST 2.1 Final Equipment Build Status Frequency Range CDMA BC0 LTE 5/40/41 Modulation Type CDMA: CDMA2000 1x Advanced CDMA2000 1x EVDO Rel.0/Rev.A LTE:QPSK/16QAM/64QAM Antenna Type Fixed external Antenna Antenna Gain 0dBi Power Supply DC Power Hardware Version V3.01 Software Version V3.02 ICCID 898602F2101950003613 No.: SRTC2020-9004(F)-20050801(I) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 5 of 9 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 3 REFERENCE SPECIFICATION Specification Version Title 2.1091 2019 Radiofrequency radiation exposure evaluation: mobile devices. 2.1093 2019 Radiofrequency …

Text truncated - open the document above for the full version.

Test Report

Certificate Number: 5055.02 TEST REPORT FOR CDMA TESTING Report No.: SRTC2020-9004(F)-20050801(P) Product Name: On-board Terminal (Telematics BOX) Product Model: SR10006 Applicant: SiRun (Beijing) Technology Co., Ltd. Manufacturer: SiRun (Beijing) Technology Co., Ltd. Specification: FCC Part 24E, Part 22H, Part 2, Part 27 (2019) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R.China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2020-9004(F)-20050801(P) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 28 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 CONTENTS 1. GENERAL INFORMATION ......................................................................................................................................... 2 1.1 NOTES OF THE TEST REPORT .................................................................................................................................... 2 1.2 INFORMATION ABOUT THE TESTING LABORATORY ..................................................................................................... 2 1.3 APPLICANT’S DETAILS ................................................................................................................................................ 2 1.4 MANUFACTURER’S DETAILS ....................................................................................................................................... 2 1.5 TEST ENVIRONMENT .................................................................................................................................................. 3 2 DESCRIPTION OF THE DEVICE UNDER TEST ...................................................................................................... 4 2.1 FINAL EQUIPMENT BUILD STATUS .............................................................................................................................. 4 2.2 SUPPORT EQUIPMENT................................................................................................................................................ 4 2.3 SUMMARY TABLE. ....................................................................................................................................................... 4 3 REFERENCE SPECIFICATION ................................................................................................................................... 5 4 KEY TO NOTES AND RESULT CODES ................................................................................................................... 5 5 RESULT SUMMARY ..................................................................................................................................................... 6 6 TEST RESULT ................................................................................................................................................................ 7 6.1 RF POWER OUTPUT ...................................................................................................................................... 7 6.2 EFFECTIVE RADIATED POWER AND EFFECTIVE ISOTROPIC RADIATED POWER ................................................... 8 6.3 OCCUPIED BANDWIDTH ................................................................................................................................ 10 6.4 EMISSION BANDWIDTH ................................................................................................................................. 11 6.5 SPURIOUS EMISSIONS AT ANTENNA TERMINAL ............................................................................................... 12 6.6 BAND EDGES COMPLIANCE .......................................................................................................................... 13 6.7 FREQUENCY STABILITY ................................................................................................................................ 14 6.8 RADIATED SPURIOUS EMISSIONS.................................................................................................................. 15 6.9 PEAK-AVERAGE RATIO ................................................................................................................................. 17 7 MEASUREMENT UNCERTAINTIES ........................................................................................................................ 18 8 TEST EQUIPMENTS ................................................................................................................................................... 19 APPENDIX A – TEST DATA OF CONDUCTED EMISSION ..................................................................................... 20 APPENDIX B – TEST DATA OF RADIATED EMISSION.......................................................................................... 26 No.: SRTC2020-9004(F)-20050801(P) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 28 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 1. GENERAL INFORMATION 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC).The test results relate only to individual items of the samples which have been tested. The certification and accreditation identifiers used in this report shall not be applicable to the tested or calibrated samples thereof. The manufacturer shall not mark the tested samples or items (or a separate part of the item) with the identifiers of certification and accreditation to mislead relevant parties about the tested samples or items. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: 15th Building, No.30 Shixing Street, Shijingshan District, P…

Text truncated - open the document above for the full version.

Test Report

Certificate Number: 5055.02 TEST REPORT FOR RF TESTING Report No.: SRTC2020-9004(F)-20050801(C) Product Name: On-board Terminal (Telematics BOX) Product Model: SR10006 Applicant: SiRun (Beijing) Technology Co., Ltd. Manufacturer: SiRun (Beijing) Technology Co., Ltd. Specification: FCC Part 2, Part 24E, Part 22H, Part 27 (2019) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30, Shixing Street, Shijingshan District, Beijing, P.R.China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 CONTENTS 1. GENERAL INFORMATION............................................................................................................................................... 2 1.1 Notes of the test report ................................................................................................................................................ 2 1.2 Information about the testing laboratory ...................................................................................................................... 2 1.3 Applicant’s details ....................................................................................................................................................... 2 1.4 Manufacturer’s details ................................................................................................................................................. 2 1.5 Test Environment ........................................................................................................................................................ 3 2 DESCRIPTION OF THE EQUIPMENT UNDER TEST ....................................................................................................... 4 2.1 Final Equipment Build Status ...................................................................................................................................... 4 2.2 Summary table ............................................................................................................................................................ 5 2.3 Support Equipment ..................................................................................................................................................... 5 3 REFERENCE SPECIFICATION......................................................................................................................................... 6 4 KEY TO NOTES AND RESULT CODES ........................................................................................................................... 6 5 RESULT SUMMARY ......................................................................................................................................................... 7 6 TEST RESULT ................................................................................................................................................................... 8 6.1 RF Power Output ........................................................................................................................................................ 8 6.2 Effective Radiated Power and Effective Isotropic Radiated Power ............................................................................. 9 6.3 Occupied Bandwidth ................................................................................................................................................. 12 6.4 Emission Bandwidth .................................................................................................................................................. 13 6.5 Peak-Average Ratio .................................................................................................................................................. 14 6.6 Spurious Emissions at antenna terminal ................................................................................................................... 15 6.7 Band Edges Compliance ........................................................................................................................................... 16 6.8 Frequency Stability .................................................................................................................................................... 18 6.9 Radiated Spurious Emissions ................................................................................................................................... 19 7 MEASUREMENT UNCERTAINTIES ............................................................................................................................... 21 8 TEST EQUIPMENTS ....................................................................................................................................................... 22 APPENDIX A – TEST DATA OF CONDUCTED EMISSION .............................................................................................. 23 LTE BAND 5 ....................................................................................................................................................................... 23 1 RF Power Output ........................................................................................................................................................ 23 2 Occupied Bandwidth ................................................................................................................................................. 27 3 Peak-Average Ratio ................................................................................................................................................... 34 4 Spurious Emissions at antenna terminal ................................................................................................................. 37 5 Band Edges Compliance .............................…

Text truncated - open the document above for the full version.

Test Report

No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 36 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 Fig.11 Fig.12 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 37 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 4 Spurious Emissions at antenna terminal Band Carrier frequency (MHz) Channel BW RB Size RB Offset Conducted Spurious Plot QPSK 5 829 20450 10 1 0 Fig.1-2 836.5 20525 10 1 0 Fig.3-4 844 20600 10 1 0 Fig.4-5 Fig.1 Fig.2 Fig.3 Fig.4 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 38 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 Fig.5 Fig.6 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 39 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 5 Band Edges Compliance Test result Band Carrier frequency (MHz) Channel BW RB Size RB Offset Band Edges Plot QPSK 5 824.7 20407 1.4 1 0 Fig.1 6 0 Fig.2 848.3 20643 1 5 Fig.3 6 0 Fig.4 825.5 20415 3 1 0 Fig.5 15 0 Fig.6 847.5 20635 1 14 Fig.7 15 0 Fig.8 826.5 20425 5 1 0 Fig.9 25 0 Fig.10 846.5 20625 1 24 Fig.11 25 0 Fig.12 829 20450 10 1 0 Fig.13 50 0 Fig.14 844 20600 1 49 Fig.15 50 0 Fig.16 Fig.1 Fig.2 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 40 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 Fig.3 Fig.4 Fig.5 Fig.6 Fig.7 Fig.8 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 41 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 Fig.9 Fig.10 Fig.11 Fig.12 Fig.13 Fig.14 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 42 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 Fig.15 Fig.16 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 43 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 6 Frequency Stability Test result: Temperature(°C) Voltage Test Result (ppm) Band5Low Channel 1.4M 3M 5M 10M -20 NV -0.01 -0.079 -0.042 0.052 -10 NV 0.008 -0.039 -0.078 0.03 0 NV -0.023 0.001 0.067 -0.037 +10 NV 0.054 -0.048 0.018 0.059 +20 NV 0.000 0.000 0.000 0.000 +30 NV -0.056 0.071 -0.027 0.047 +40 NV -0.042 -0.042 0.065 0.066 +50 NV -0.058 -0.061 -0.003 -0.04 +55 NV 0.074 -0.059 -0.015 0.037 +20 LV 0.048 -0.042 0.009 -0.076 +20 HV -0.021 -0.067 0.021 0.001 Temperature(°C) Voltage Test Result (ppm) Band5High Channel 1.4M 3M 5M 10M -20 NV -0.049 0.028 -0.074 -0.078 -10 NV -0.02 0.068 -0.011 0.006 0 NV 0.062 -0.074 -0.035 0.037 +10 NV -0.013 0.007 0.067 0.037 +20 NV 0.000 0.000 0.000 0.000 +30 NV -0.045 0.023 -0.041 0.038 +40 NV 0.054 -0.012 -0.009 0.052 +50 NV -0.056 -0.02 -0.011 0.012 +55 NV 0.012 -0.023 -0.049 0.029 +20 LV -0.068 0.042 -0.039 -0.036 +20 HV 0.069 0.039 0.074 -0.026 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 44 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 LTE Band 40 1 RF Power Output Modulation Carrier frequency (MHz) UL Channel BW RB Size RB Offset Conducted power (dBm) QPSK 2307.5 38725 5 1 0 22.32 1 24 22.17 12 6 21.40 25 0 21.34 2310.0 38750 1 0 22.33 1 24 22.31 12 6 21.38 25 0 21.39 2312.5 38775 1 0 22.22 1 24 22.23 12 6 21.37 25 0 21.44 16QAM 2307.5 38725 5 1 0 21.34 1 24 21.22 12 6 20.35 25 0 20.33 2310.0 38750 1 0 21.25 1 24 21.20 12 6 20.38 25 0 20.34 2312.5 38775 1 0 21.20 1 24 21.21 12 6 20.35 25 0 20.32 64QAM 2307.5 38725 5 1 0 21.30 1 24 21.20 12 6 20.26 25 0 20.22 2310.0 38750 1 0 21.12 1 24 21.06 12 6 20.32 25 0 20.20 2312.5 38775 1 0 21.06 1 24 21.20 12 6 20.26 25 0 20.29 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 45 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 Modulation Carrier frequency (MHz) UL Channel BW RB Size RB Offset Conducted power (dBm) QPSK 2352.5 39175 5 1 0 22.57 1 24 22.46 12 6 21.68 25 0 21.61 2355.0 39200 1 0 22.71 1 24 22.42 12 6 21.70 25 0 21.75 2357.5 39225 1 0 22.50 1 24 22.37 12 6 21.50 25 0 21.52 16QAM 2352.5 39175 5 1 0 21.54 1 24 21.41 12 6 20.79 25 0 20.64 2355.0 39200 1 0 21.50 1 24 21.60 12 6 20.73 25 0 20.65 2357.5 39225 1 0 21.54 1 24 21.15 12 6 20.58 25 0 20.52 64QAM 2352.5 39175 5 1 0 21.53 1 24 21.30 12 6 20.74 25 0 20.62 2355.0 39200 1 0 21.38 1 24 21.55 12 6 20.62 25 0 20.55 2357.5 39225 1 0 21.53 1 24 21.06 12 6 20.45 25 0 20.36 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 46 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 Modulation Carrier frequency (MHz) UL Channel BW RB Size RB Offset Conducted power (dBm) QPSK 2310 38750 10 1 0 22.54 1 49 22.35 24 12 21.54 50 0 21.53 16QAM 2310 38750 1 0 21.52 1 49 21.41 24 12 20.40 50 0 20.43 64QAM 2310 38750 1 0 21.43 1 49 21.32 24 12 20.36 50 0 20.41 Modulation Carrier frequency (MHz) UL Channel BW RB Size RB Offset Conducted power (dBm) QPSK 2355 39200 10 1 0 22.89 1 49 22.50 24 12 21.80 50 0 21.73 16QAM 2355 39200 1 0 21.90 1 49 21.40 24 12 20.88 50 0 20.85 64QAM 2355 39200 1 0 21.80 1 49 21.38 24 12 20.84 50 0 20.76 No.: SRTC2020-9004(F)-20050801(C) FCC ID: 2AWCT-SR10006 The State Radio_monitoring_center Testing Center (SRTC) Page number: 47 of 87 Tel: 86-10-5799 6183 Fax: 86-10-5799 6388 V3.0.0 2 Occupied Bandwidth Test result Band Carrier frequency (MHz) Channel BW (MHz) RB Size RB Offset Bandwidth of 99% Power (MHz) QPSK 16-QAM 64-QAM 40 2307.5 38725 5 25 0 4.4918 Fig.1 4.4823 Fig.2 4.4808 Fig.3 2310.0 38750 25 0 4.4840 Fig.4 4.4916 Fig.5 4.4903 Fig.6 2312.5 38775 25 0 4.4863 …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Lingrong Zhou(Program Manager)
[email protected]15010875309Fax: 010-50953688

Test Firm

The State Radio_monitoring_center Testing CenterSun Yang
[email protected]+86-10-57996131

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
34272.56 GHz - 2.65 GHz140.00 mW17M9W7D0.1 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is ERP for frequencies below 1 GHz and EIRP for frequencies above 1 GHz. The antennas used with this signal booster must be installed to provide a separation distance of at least 20 cm from all persons. Users and installers must be provided with the antenna kitting and installation instructions and operating conditions for satisfying RF exposure compliance.
