2AWCZ-LOUBILABBATTLoubilab

LOUBILAB POUCH With battery included — QUICKSTART USER GUIDE FCC ID: 2AWCZ-LOUBILABBATT FCC Class B Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energ y and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa- tion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful inter- ference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. This device has been evaluated to meet general RF exposure requirement. This device can be used in portable exposure condition without restriction. FCC caution: Any changes or modifications not expressly appro- ved by the party responsible for compliance could void the user's authority to operate this equipment. (VCCI) B WWW.CHRISTIANLOUBOUTIN.COM CHRISTIAN LOUBOUTIN SAS CL_loubilab_leaflet_105x165mm_V4.qxp_Mise en page 1 08/06/2020 14:42 Page 1 PRODUCT DESCRIPTION ACCESSORIES USB TO USB-C cable Product name: Model: Manufacturer: Address: Importer: Importer address: Product weight: Battery type: Battery ratings: Battery dimensions: USB-C input: wireless output: Loubilab Loubilab Batt Shenzhen Aodehong Electronic Technolog y Co., Ltd. 5 th Floor, Elegant Industrial Park, No. 8 Liuhe Road, Liuyue, Henggang Street, Longgang District, Shenzhen, People’s Republic Of China De Rigueur SAS 36 quai Fulchiron, 69005 Lyon, France 115 g Lithium-Ion Polymer Rechargeable Battery 5000 mAh 3.7V (18.5Wh) 112mm / 65mm / 4,7 mm 5V/2A (DC) 5V 1A (5W) CHARGING THE BATTERY 1. Connect the USB-C port of the battery with the included cable and plug the other end to a main power source before using. USB power adapter not included CL_loubilab_leaflet_105x165mm_V4.qxp_Mise en page 1 08/06/2020 14:42 Page 3 wireless charging zone switch TURNING THE BATTERY ON AND OFF 2. Double tap the power switch to turn ON the battery. Double tap the power switch to turn OFF the battery. Otherwise, the battery will automatically turn OFF after a few seconds. CHARGING THE BATTERY 3. Check that the battery is charging by looking at the light indicator located on the switch. When the 3 blue led indicators are lit up, your battery is fully charged. For the first use, make sure to fully charge the battery. battery indicator work status indicator Work status indicator light to indicate work situations: battery indicator light to indicate the power: STATUS LED COLOR power on blue charging green fault flashing red LED NUMBER POWER 1 30% 2 60% 3 100% CL_loubilab_leaflet_105x165mm_V4.qxp_Mise en page 1 08/06/2020 14:42 Page 5 CHARGING YOUR PHONE 4. To charge your phone, place it against the battery pack (on the red Louboutin logo side) located in your Loubilab pouch. INSTRUCTIONS You will need to charge the battery pack before use. Be sure the charger and battery pack are well ventilated when in use or while charging. Do not charge the battery pack and your phone at the same time, this could damage the device. Using damaged cables or chargers, or charging when moisture is present can cause fire, electric shock, injury, or damage to the battery pack. Only charge the battery pack with its USB-C port. Failure to use compatible charging accessories can cause fire, electric shock, injury, or damage to the device. Phones compatible with the Loubilab charger: Iphone 8 and higher, Samsung Galaxy s6 and higher, Edges & Note 5, Microsoft Lumia 920 and higher, Nexus, Google 4 and higher, LG optimus pro, G3 and higher, Blackberry classic, Z30, Sony xperia Z3V and higher. CL_loubilab_leaflet_105x165mm_V4.qxp_Mise en page 1 08/06/2020 14:42 Page 7 CARE & CLEANING This Christian Louboutin leather good accessory has been created using only the best materials to provide the highest degree of satisfaction to our clients. This accessory made from animal leather can show irregularities, inherent to the leather, which gives it all its specificity and beauty. In order to preserve your accessory’s quality and radiance over time, we recommend that you observe the following care instructions: Limit exposure to humidity as well as sources of heat or light. Avoid contact with abrasive surfaces. Avoid contact with alcohol or grease (make-up). Avoid over-loading your accessory. Prevent prolonged contact with other leathers, in order to avoid potential color migration. Extra care should be taken to protect white and light-colored accessories. Store your Loubilab in its pouch to prevent it when not used. To clean your Loubilab, wipe it with a soft cloth of neutral color. To clean the battery pack, wipe it with a soft cloth of neutral color. Do not use soaps, solvents or abrasives on it. The battery pack contains a lithium-ion battery, which is a sensitive component that can cause injury if damaged. Do not attempt to remove the battery. Replacement by non-qualified professionals can damage your device. Use of an unqualifie…

Text truncated - open the document above for the full version.

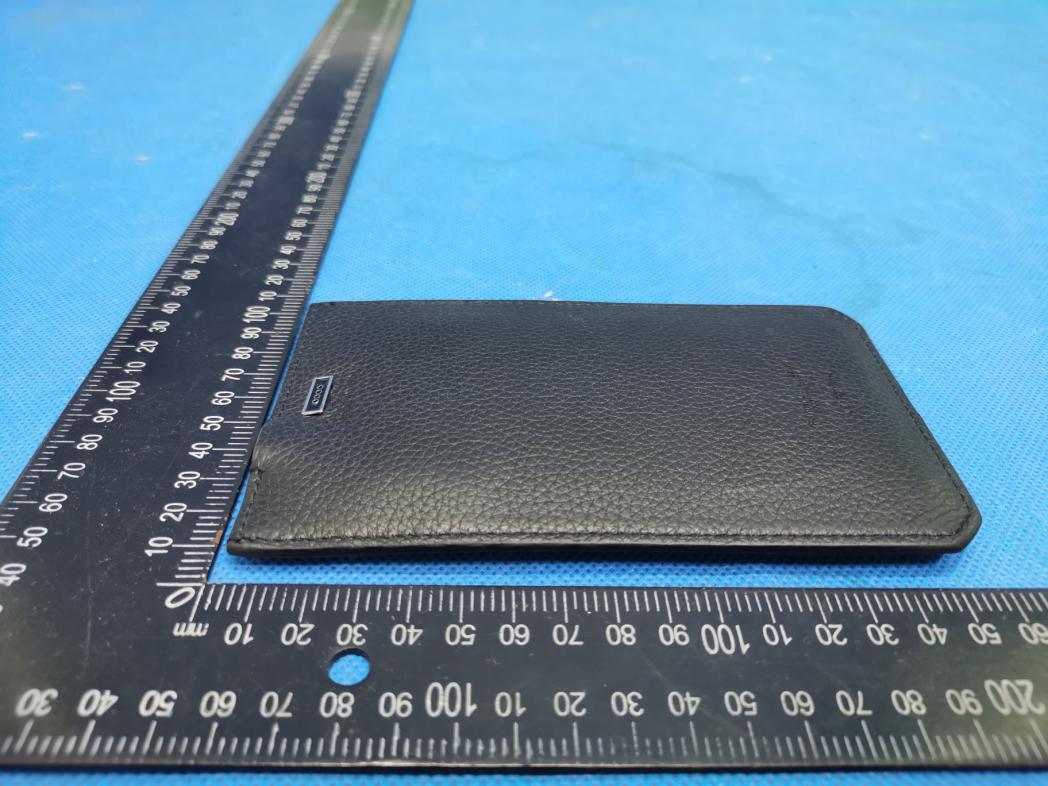

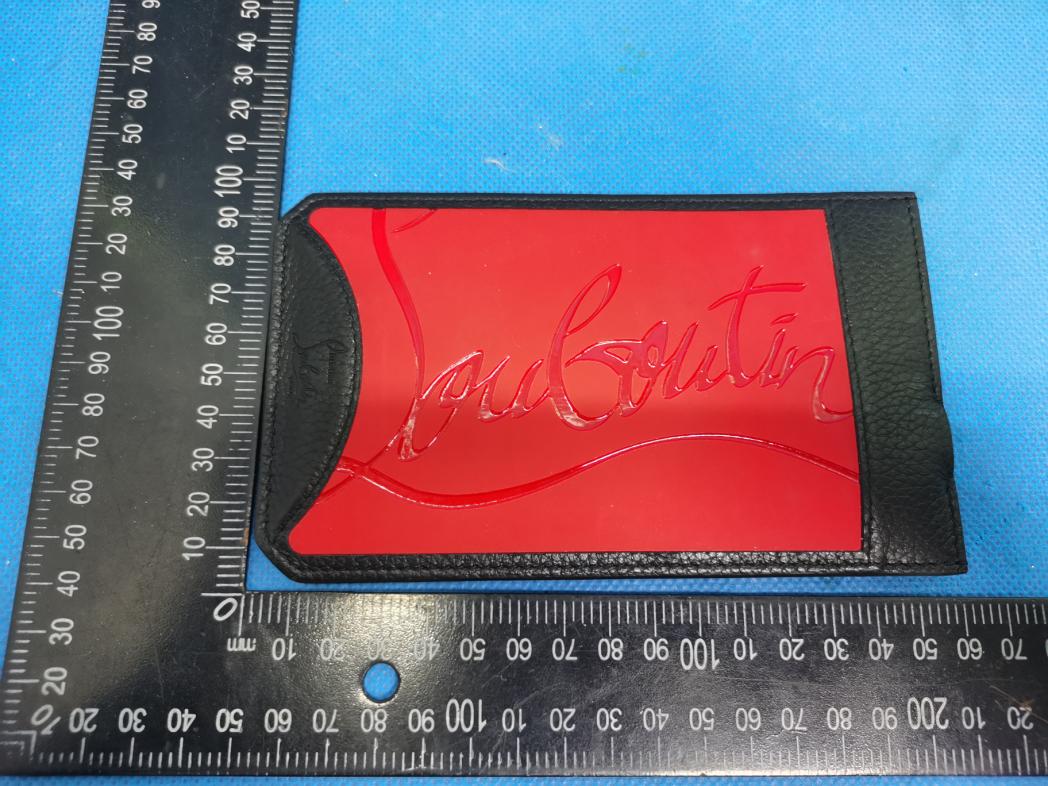

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Christian Louboutin Loubilab Loubilabbatt Input: 5V 2A Output: 5W FCC ID: 2AWCZ-LOUBILABBATT

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Induction coil 1 Induction coil 2 Photo 5

FCC ID: 2AWCZ-LOUBILABBATT 1.Measuring Standard FCC Part 1(1.1310) and Part 2(2.1091), KDB 680106 D01 RF Exposure Wireless Charging App v03 1.2. Requiments Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR §2.1091. o Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFR§2.1093). The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/ Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: Occupational/Controlled Exposure: In general, occupational/controlled exposure limits are applicable to situations in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure and can exercise control over their exposure. This exposure category is also applicable when the exposure is of a transient nature due to incidental passage through a location where the exposure levels may be higher than the general population/uncontrolled limits, but the exposed person is fully aware of the potential for exposure and can exercise control over his or her exposure by leaving the area or by some other appropriate means. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. 1.3 Test configuration 1, H-field strengths at 15 cm surrounding the device and 20 cm above the top surface, the equipment list above for determining compliance with the MPE requirements of FCC Part 1.1310. 2, The RF power density was measured at Under maximum load test 3, Maximum E-field and H-field measurements were made 15cm from each side of the EUT. Along the side of the EUT and still 15cm away from the edge of the EUT, the field probes were positioned at the location where there is maximum field strength. The maximum E-field and H-field is reported below. 4, This device uses a wireless charging circuit for power transfer operating at the frequency of 111–175kHz. Thus, the 300kHz limits were used: E-field Limit = 614 (V/m); H-field limit = 1.63 (A/m). 1.4 Test Setup 2. Limits 3. MEASURING DEVICE AND TEST EQUIPMENT 2.1For MPE Measurement Equipment Manuf acturer Model No. Serial No. Last calibration Calibrated until Cal. Interval E-Field Probe(100kHz-3GHz) Narda EF0391 Q15221 May 17, 2019 May 16, 2020 1 Year H-Field Probe(300KHz-30MHz) Narda HF3061 Q15835 May 17, 2019 May 16, 2020 1 Year Broadband Field Meter Narda NBM-550 Q201455 May 17, 2019 May 16, 2020 1 Year Load N/A N/A N/A N/A N/A N/A 4. Measuring Results EUT: Loubilab Model Name. : Loubilab batt Temperature: 26 °C Relative Humidity: 54% Pressure: 1010hPa Test Date: 2020-3-20 Test Voltage: DC 4.2V Test Mode : Max Load Low frequency: Table 1. H-Field MPE Data-Top EUT Side Top(V/m) Limits (V/m) Max load 0.025 1.63 Table 2. H-Field MPE Data- Surrounding EUT Side Left(A/m) Right(A/m) Bottom (A/m) Z- Axis(above) (A/m) Limits (A/m) Max load 0.013 0.031 0.033 0.052 1.63 Table 3. E-Field MPE E-Field Measurement (15cm) EUT Side Left(V/m) Right(V/m) Top(V/m) Bottom (V/m) Z- Axis(above) (V/m) Limits (V/m) Max load 2.11 1.93 1.84 1.23 1.22 614 Middle frequency: Table 1. H-Field MPE Data-Top EUT Side Top(V/m) Limits (V/m) Max load 0.032 1.63 Table 2. H-Field MPE Data- Surrounding EUT Side Left(A/m) Right(A/m) Bottom (A/m) Z- Axis(above) (A/m) Limits (A/m) Max load 0.0011 0.042 0.033 0.061 1.63 Table 3. E-Field MPE E-Field Measurement (15cm) EUT Side Left(V/m) Right(V/m) Top(V/m) Bottom (V/m) Z- Axis(above) (V/m) Limits (V/m) Max load 2.12 2.03 1.52 1.15 1.12 614 High frequency: Table 1. H-Field MPE Data-Top EUT S…

Text truncated - open the document above for the full version.

Report No.: S20032001206001 Version.1.1 Page 1 of 25 FCC Test Report FCC ID: 2AWCZ-LOUBILABBATT Product: Loubilab Trade Name: Model Number: Loubilab batt Family Model: N/A Report No.: S20032001206001 Prepared for CHRISTIAN LOUBOUTIN SAS 19 RUE JEAN JACQUES ROUSSEAU, 75001 PARIS, FRANCE Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website: www.ntek.org.cn Report No.: S20032001206001 Version.1.1 Page 2 of 25 TEST RESULT CERTIFICATION Applicant’s name ................. : CHRISTIAN LOUBOUTIN SAS Address ................................. : 19 RUE JEAN JACQUES ROUSSEAU, 75001 PARIS, FRANCE Manufacturer's Name .......... : Shenzhen Aodehong Electronic Technology Co., Ltd. Address ................................. : 5th Floor, Elegant Industrial Park, No. 8 Liuhe Road, Liuyue, Henggang Street, Longgang District, Shenzhen, China Factory 's Name ................... : N/A Address ................................. : N/A Product description Product name ........................... : Loubilab Model and/or type reference : Loubilab batt Standards ............................. : FCC part 15C:2018 ANSI C63.10:2013 KDB 680106 D01 RF Exposure Wireless Charging App v03 This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this report relate only to the tested sample identified in this report. Date of Test ............................................ : Date (s) of performance of tests ............. : 20 Mar. 2020 ~ 12 May. 2020 Date of Issue ........................................... : 12 May. 2020 Test Result ............................................... : Pass Testing Engineer : (Allen Liu) Technical Manager : (Jason Chen) Authorized Signatory : (Sam Chen) Report No.: S20032001206001 Version.1.1 Page 3 of 25 Table of Contents Page 1 . TEST SUMMARY 4 1.1 FACILITIES AND ACCREDITATIONS 5 1.2 LABORATORY ACCREDITATIONS AND LISTINGS 5 1.3 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST SETUP 9 2.3 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 10 2.4 MEASUREMENT INSTRUMENTS LIST 11 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION 12 3.1.2 TEST PROCEDURE 13 3.1.3 TEST SETUP 13 3.1.4 EUT OPERATING CONDITIONS 13 3.1.5 TEST RESULTS 14 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 16 3.2.2 TEST PROCEDURE 17 3.2.3 TEST SETUP 18 3.2.4 TEST RESULTS 19 4. BANDWIDTH TEST 24 4.1 TEST PROCEDURE 24 4.2 TEST SETUP 24 4.3 TEST RESULT 24 5. ANTENNA APPLICATION 25 5.1 Antenna Requirement 25 5.2 Result 25 Report No.: S20032001206001 Version.1.1 Page 4 of 25 1. TEST SUMMARY Test procedures according to the technical standards: EMC Emission Standard Test Item FCC Rules Limit Judgment Remark FCC part 15C:2018 ANSI C63.10:2013 Conducted Emission §15.207 Class B PASS Radiated Emission §15.209 Class B PASS ANTENNA APPLICATION §15.203 / PASS NOTE: (1) ’N/A’ denotes test is not applicable in this Test Report (2) For client’s request and manual description, the test will not be executed. Report No.: S20032001206001 Version.1.1 Page 5 of 25 1.1 FACILITIES AND ACCREDITATIONS All measurement facilities used to collect the measurement data are located at 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR Publication 22. 1.2 LABORATORY ACCREDITATIONS AND LISTINGS Site Description CNAS-Lab. : The Laboratory has been assessed and proved to be in compliance with CNAS-CL01:2006 (identical to ISO/IEC 17025:2005) The Certificate Registration Number is L5516. IC-Registration : The Certificate Registration Number is 9270A-1. FCC- Accredited : Test Firm Registration Number: 463705. Designation Number: CN1184 A2LA-Lab. : The Certificate Registration Number is 4298.01 This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2005 General requirements for the competence of testing and calibration laboratories. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated 8 January 2009). Name of Firm : Shenzhen NTEK Testing Technology Co., Ltd. Site Location : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China. 1.3 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. A. Conducted Measurement : Test Site Method Measurement Frequency Range U,(dB) NOTE NTEKC01 ANSI 150 KHz ~ 30MHz 3.2 B. Radiated Measurement : Test Site Method Measurement Frequency Range U,(dB) NOTE NTEKA01 ANSI 30MHz ~ 1000MHz 4.7 1GHz ~12.4GHz 5.0 Report No.: S20032001206001 Version.1.1 Page 6 of 25 Revision History Report No. Version Description Issued Date S20032001206001 Rev.01 Initial issue of report 12 May. 2020 Report No.: S20032001206001 Version.1.1 Page 7 of 25 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Feature and Specification Equipment Loubilab Trade Name FCC ID 2AWCZ-LOUBILABBATT Mode…

Text truncated - open the document above for the full version.

Radiated Measurement Photos AC Conducted Measurement Photos

PHOTOGRAPHS OF TEST SETUP 15 cm surrounding 20 cm above the top
