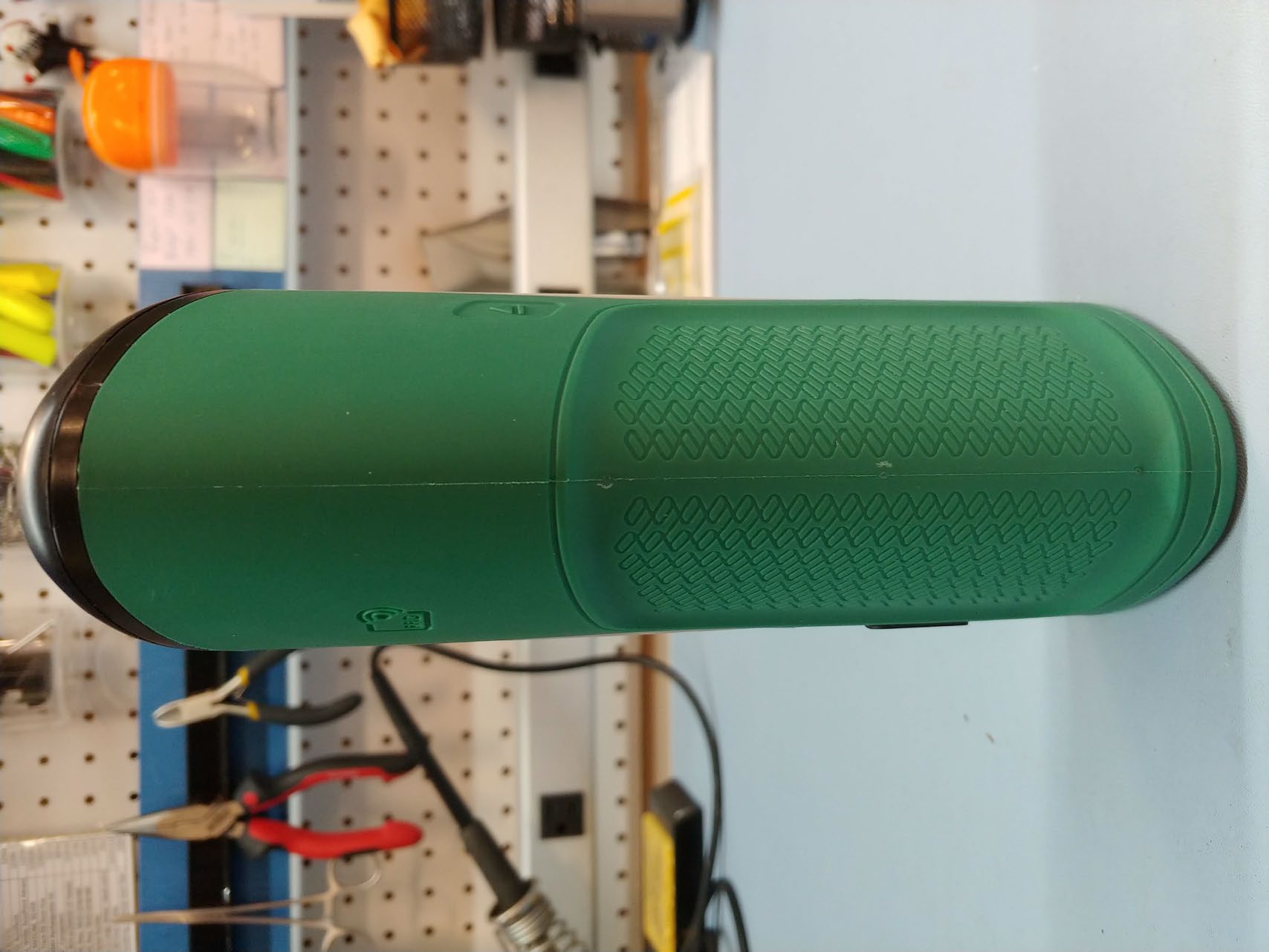

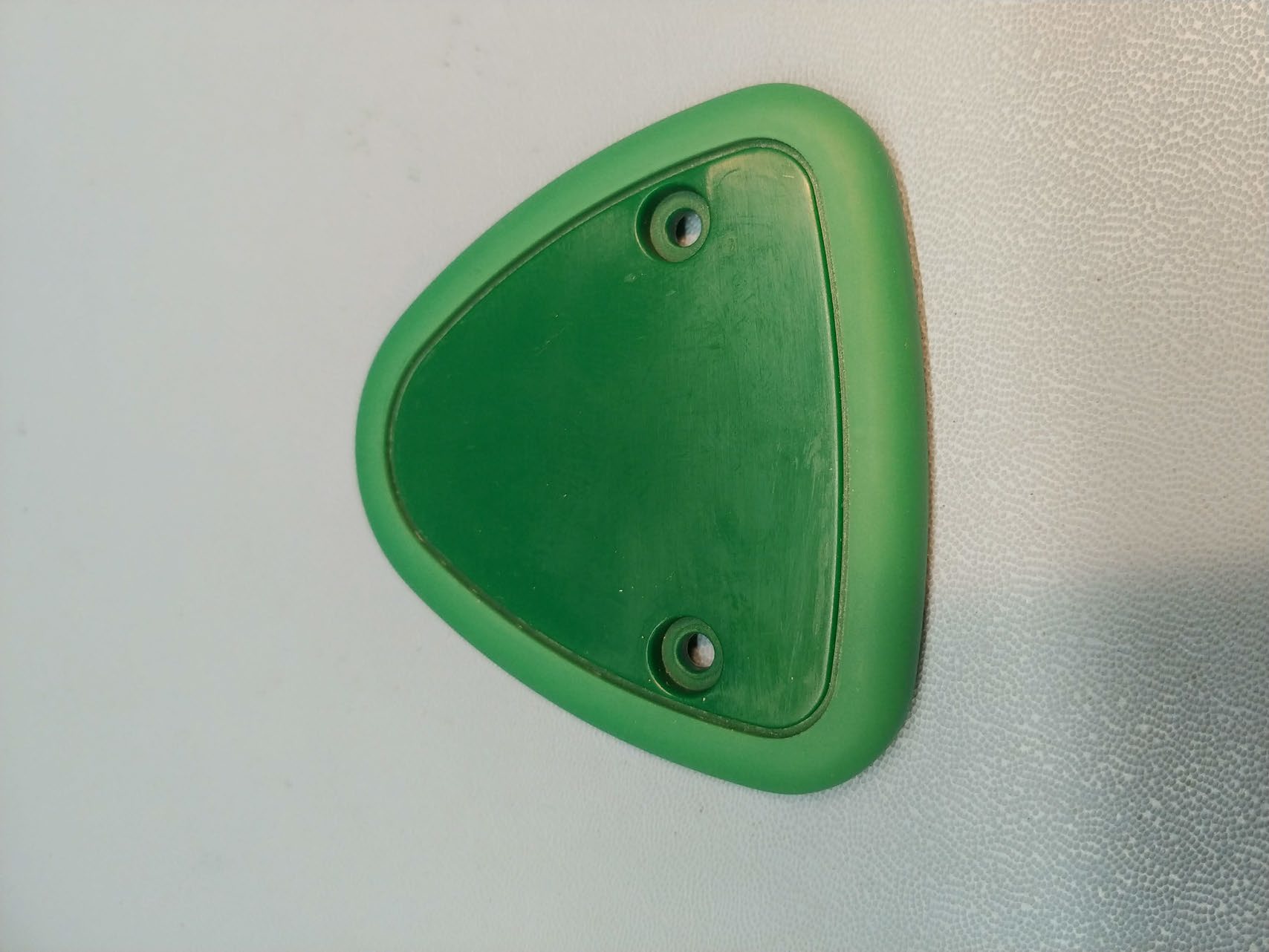

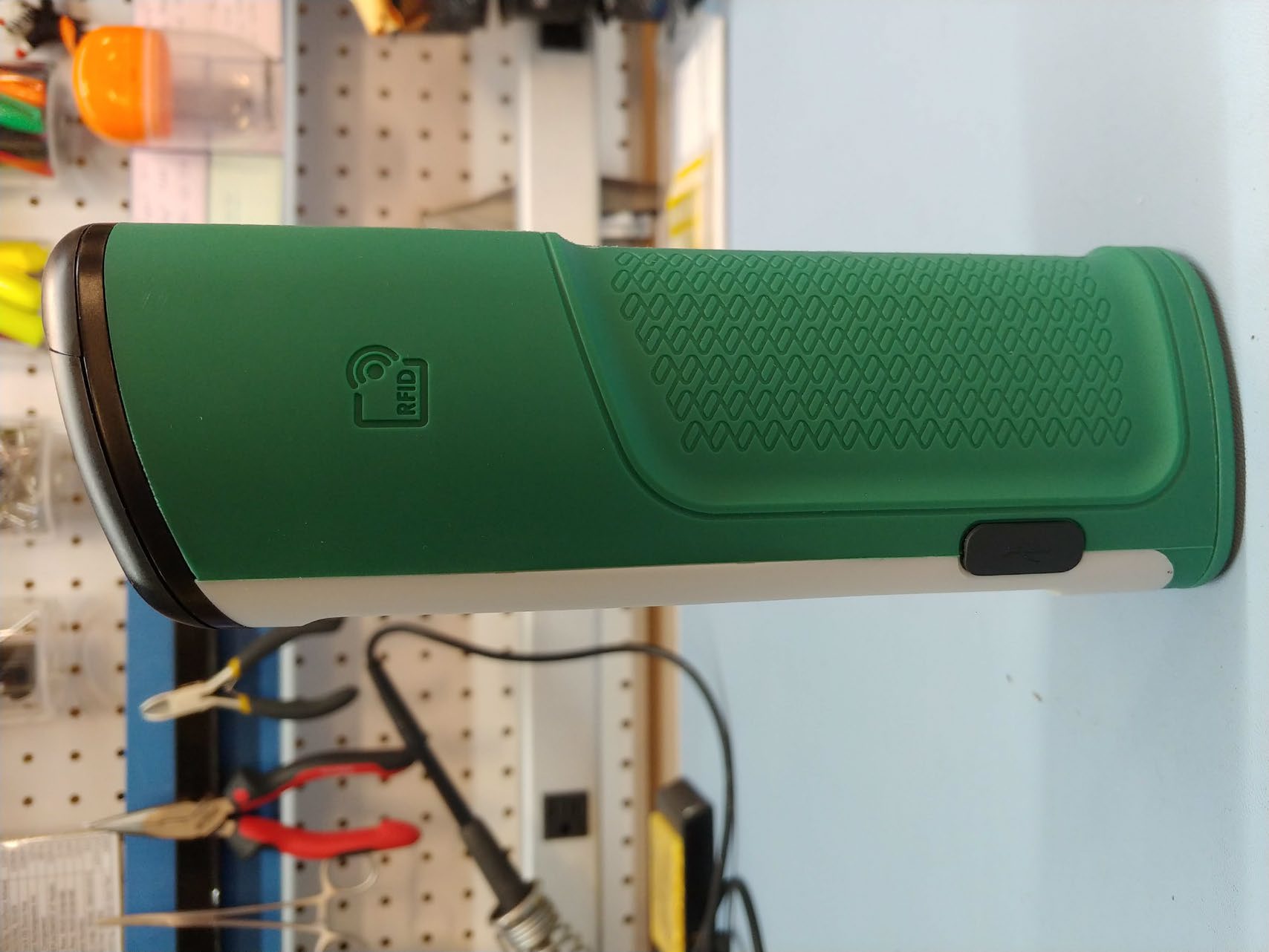

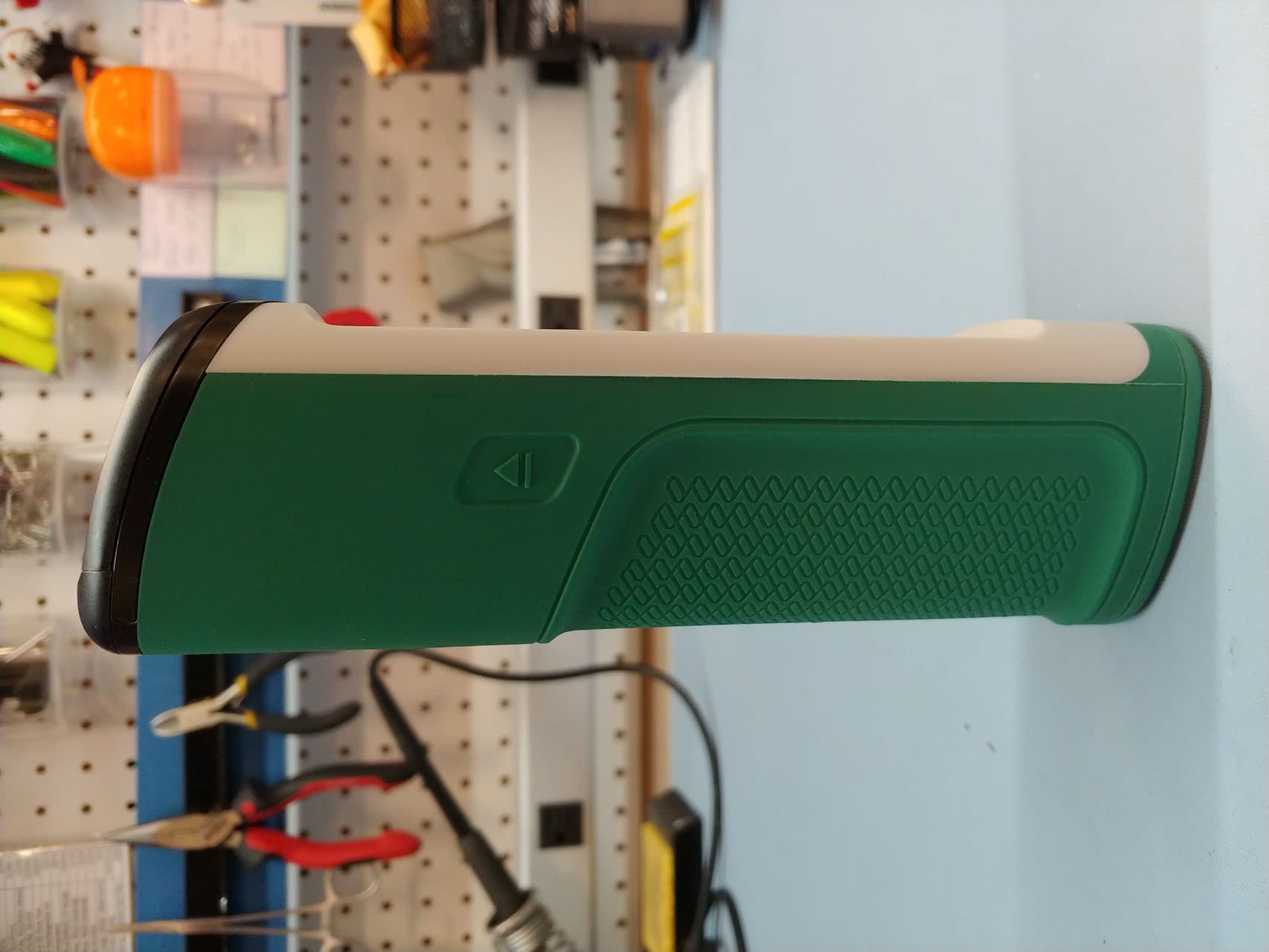

2AWD5-9904Sanitation Verifier

AccuPoint Advanced Sanitation Verification System is accurate in detecting ATP.* *The first sanitation verification device to be approved by the AOAC Research Institute 01. To power on the reader, press and hold the center button on your AccuPoint Phoenix. Enter user name and password if required. 02. Select Standard Test (when using a site plan) or Quick Test for general sampling. Under standard testing, select the correct site to be tested. 04. Hold the sampler vertically and fully depress to activate. NOTE: the sampler must be held vertically. 05. Mix gently for two seconds. NOTE: do not shake. 03. Sample your site by “drawing” a 4” x 4” square. With a vertical and horizontal back- and-forth motion “fill” in the square. Consistency is critical. 08. The RLU score will display along with a symbol for pass, marginal or fail. English 06. With the instrument held upright, press the eject button and insert the sampler. 07. Depress the sampler all the way down and close the door. NOTE: keep instrument upright while the sample is being read. 09. On the results screen, users have the option to enter notes for that result, retest that site, or move to the next site in their plan. 2:15 PM8/1/20 RESULTPASS:0 USER<Guest> TIME2:14 PM 8/1/20 PLANTEST AREAPROCESSING GROUPLINE 1 SITECONVEYOR BELT 1 <Guest> Notes* Retest Next Site Sampling Quick Reference Guide (Phoenix Reader) - Surface Samplers 01. Presione y mantenga presionado el botón central en su AccuPoint Phoenix. Introduzca un nombre de usuario y contraseña si lo desea. 02. Seleccione Prueba estándar (cuando utilice un plan de sitio) o Prueba rápida de muestreo general. En las pruebas estándar, seleccione el sitio correcto que se va a analizar 04. Sostenga el muestreador de manera vertical y oprima hasta el fondo para activarlo. NOTA: el muestreador se debe sostener de manera vertical. 05. Mezcle suavemente durante dos segundos. NOTA: No agite 03. Obtenga la muestra del sitio “trazando” un cuadrado de 10 cm x 10 cm. “Llene” el cuadrado mediante un movimiento vertical y horizontal hacia adelante y hacia atrás. La uniformidad es crítica. Spanish 08. La puntuación en unidades RLU se mostrará junto con un símbolo de aprobado, marginal o no aprobado. 09. En la pantalla de resultados, los usuarios tienen la opción de introducir notas para dicho resultado, volver a analizar ese sitio o pasar al siguiente sitio del plan. 2:15 PM8/1/20 RESULTPASS:0 USER<Guest> TIME2:14 PM 8/1/20 PLANTEST AREAPROCESSING GROUPLINE 1 SITECONVEYOR BELT 1 <Guest> Notes* Retest Next Site Guía de referencia rápida de muestreo - Muestreador de superficie 06. Sosteniendo el instrumento en posición vertical, presione el botón de expulsión e inserte el muestreador. 07. Oprima el muestreador hasta el fondo y cierre la puerta. NOTA: sostenga el instrumento en posición vertical mientras se lee la muestra. 01. Mantenha o botão central em seu AccuPoint Phoenix pressionado. Se necessário, insira nome de usuário e senha 02. Selecione a amostragem geral de teste padrão (ao usar um plano de local) ou de teste rápido. Em teste padrão, selecione o local certo a ser testado 04. Segure o amostrador na posição vertical e pressione completamente para ativar. OBS.: é necessário segurar o amostrador na posição vertical. 05. Misture delicadamente por 2 segundos. OBS.: não agite 03. Amostre seu local “desenhando” um quadrado de 10x10 cm. Executando um movimento vertical e horizontal para frente e para trás, “preencha” o quadrado. É crucial executar uma operação consistente. Portuguese 06. Com o instrumento posicionado na posição vertical, pressione o botão de ejetar e insira o amostrador. 07. Pressione o amostrador até o fim e feche a porta. OBS.: mantenha o instrumento na posição vertical enquanto a amostra estiver sendo lida. 08. A pontuação em unidades relativas de luz (URL) será exibida juntamente com o símbolo de aprovado, alerta ou reprovado. 09. Na tela de resultados, os usuários têm a opção de adicionar observações para o respectivo resultado, retestar o local ou continuar para o próximo local no plano. 2:15 PM8/1/20 RESULTPASS:0 USER<Guest> TIME2:14 PM 8/1/20 PLANTEST AREAPROCESSING GROUPLINE 1 SITECONVEYOR BELT 1 <Guest> Notes* Retest Next Site Guia rápido de referência de amostragem - Amostrador de superfície

AccuPoint ® Advanced Next Generation User Guide Chapter 1 — Introduction 02 Introduction Chapter 2 — Operating Principles and Technology 03 System Components Chapter 3 — Operating Guidelines and Precautions 05 Electrical Warnings 05 Proper Use of the Sampler Cartridges 05 Proper Care of the Instrument 06 Cleaning the Instrument Chapter 4 — Preparing the Instrument for Use 07 Power 08 Home Page 09 Running Quick Tests 09 Results Screen 09 Add Notes 09 Retest 10 Sample Procedure Chapter 5 — User Access 12 Logging In 12 Logging Out Chapter 6 — Running Standard Tests 13 Select Plan 13 Select Area 14 Select Group 14 Select Site 15 Testing Screen 15 Results Screen 15 Add Notes 15 Retest 15 Next Site TABLE OF CONTENTS Chapter 7 — Menu Navigation 16 Sites 16 Results 16 Settings 16 Learn RFID 17 Wi-Fi 17 About Chapter 8 — RFID 18 Learn RFID 18 Use RFID Chapter 9 — Wi-Fi 19 Sync Results 19 Disconnect Wi-Fi 19 Connect Wi-Fi Chapter 10 — Additional Features 20 The AccuPoint Data Manager Software 20 Sampler Type: Surface, Liquid, or Alkaline Phosphatase 20 Setting the Pass, Marginal, and Fail Thresholds 21 Troubleshooting Chapter 11 — Technical Information 25 Electromagnetic Compatibility (EMC) 25 Specifications and Environmental Considerations 25 Operating Conditions 25 Storage Conditions 26 Electrical Requirements 26 Certificate of System Control 26 Replacement Parts and Accessories 26 Warranty 26 Customer Service and Contact Information NEOGEN.com 2 CHAPTER ONE Introduction NEOGEN ® ’s AccuPoint Advanced Next Generation (NG) sanitation monitoring system is a lightweight, handheld diagnostic tool used to validate and verify a sanitation program’s effectiveness by detecting organic residues remaining on surfaces and in liquids after cleaning when using the AccuPoint Advanced samplers. The system is composed of three primary components: an electronic luminometer; fully self-contained single-use samplers, and data manager software. When used with AccuPoint Advanced ATP samplers, the system will detect adenosine triphosphate (ATP) collected in the sample and report the measurement in relative light units (RLUs). RLU thresholds are established by a facility to reflect effective cleaning practices.The instrument compares the measured level of ATP to the established thresholds and reports the result as a pass, marginal, or fail. The system will record the time, date, specific test site location, site group, and area information in addition to the recorded RLU and result. The AccuPoint Advanced NG instrument also gives users the ability to enter notes on individual test results. This information can be uploaded to the data manager software for additional review and reporting. NEOGEN continually works to improve its product lines, and nowhere is that more evident than with the AccuPoint Advanced system. With the AccuPoint Advanced system, innovations allow for better functionality and service than ever before. These innovations include the advanced samplers, which feature a bioluminescent reaction in a liquid-stable solution. This allows for a more consistent reaction that provides a more consistent result. This chemistry also creates a more robust reaction that has the benefit of providing greater sensitivity through a clearer distinction between very low levels of ATP. The AccuPoint Advanced NG instrument offers enhanced navigation, touch screen, wireless data transfer capability, and robust design to take your sanitation monitoring program to the next level. NEOGEN’s AccuPoint Advanced system can also be used to test dairy products to ensure proper pasteurization when using high-temperature, short time (HTST) processing equipment. The AccuPoint Advanced Alkaline Phosphatase sampler is a chemiluminescence-based test that allows the user to determine whether a milk sample has been properly pasteurized or is contaminated with raw milk. A sample of milk to be tested is collected using the sampler and exposed to the substrate solution contained within the sampler body. After a brief incubation, the amount of light generated by the interaction of the substrate with alkaline phosphatase naturally present in raw milk is detected on the AccuPoint Advanced NG instrument and reported in mU/L. When used with the AccuPoint data manager version 4.0 software (or later), the AccuPoint Advanced NG instrument can be set up to record the testing results at user specified test sites, along with the date, time, and user. The test site information is entered into the data manager program and uploaded to the AccuPoint instrument. The user simply navigates to the correct site and takes the test. The AccuPoint Advanced NG instrument has built in RFID functionality that can be used to automatically identify test locations that are set up with RFID tags. The user simply brings the unit close to the RFID tag and the correct site is automatically identified for that test. Up to 3,000 unique testing sites can be tracked with each AccuPoint Advanced NG instrument. Up to 4,000 test results can be stored at any time and are not lost if the instrument loses power. An integrated, rechargeable lithium-ion battery provides power. NEOGEN.com 3 CHAPTER TWO Operating Principles and Technology Part No.Description 9904AccuPoint Advanced NG sanitation monitoring instrument 9617-USB2 USB thumb drive containing user guide and AccuPoint Advanced data manager software 9918USB data and power cable 1232-2Quick reference guide 9916Holster, with shoulder strap and sampler holder 9919Wall charger* 9919EWall charger faceplates — U.K., E.U. 9919AWall charger faceplates — U.S., Brazil 9919PWall charger faceplates — Australia, China, India, Japan The AccuPoint ® Advanced ATP samplers utilizes ATP bioluminescence to determine the cleanliness of test samples. ATP is a chemical compound found in all living cells, including bacteria, food debris, yeast, and mold. Bioluminescence is a chemical reaction that produces light. ATP bioluminescence occurs when ATP from a…
